Frigidaire GLRS64ZD User manual

N58L00001.eps N58FCCBBB2.eps N58RCCBBB9.eps N58BAAAAA0.eps
N58SJCHAB1.eps N58TAAAAB4.eps N58CAAAAA5.eps N58XDAAAA1.eps
N58YBAAAA1.eps N58I115.eps W241526901A.eps S241526901A.eps
Product No. GLRS64ZEB0 GLRS64ZEQ0 GLRS64ZEW0
Series R134a R134a R134a
Color black bisque white
Volts 115 115 115
Wiring Diagram 241526901 241526901 241526901
Owner's Guide 240581300 240581300 240581300
Market North America North America North America
Energy Guide 241585983 241585983 241585983
Service Data Sheet 240389616 240389616 240389616
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378
Augusta, GA 30917
Publication No.
5995429106
05/02/15
(EN/SERVICE/DCS)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
GLRS64ZD
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995429106 GLRS64ZD
02/05 2
FREEZER DOOR
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
22C
11
1
4A
68
4B
4B
13A
22A
21A
N58FCCBBB2

GLRS64ZD Publication No: 5995429106
# Functional Parts 3 02/05
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AGLRS64ZE (GLRS64ZEB0)
BGLRS64ZE (GLRS64ZEQ0)
CGLRS64ZE (GLRS64ZEW0)
POS. NO PART NO. DESCRIPTION
1 # 240390606 A - - Gasket-frzr door, black, magnetic
1 # 240390602 - B C Gasket-frzr door, white, magnetic
4A 240334201 A B C Bin-door, frzr-upper
4B 240351601 A B C Bin-door
11 240451814 A - - Panel-frzr door, black, complete assy
11 240451809 - B - Panel-frzr door, bisque, complete assy
11 240451803 - - C Door-frzr, white, complete assy
13A 240537106 A - - Door Stop, black, frzr
13A 240537104 - B - Door Stop, bisque, frzr
13A 240537102 - - C Door Stop, white, frzr
18 240359108 A - - Handle-door, black, LH
18 240359109 - B - Handle-door, bisque
18 240359106 - - C Handle-door, white
21 218781100 A B C Screw, pan head, 8-18 x 0.625
21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
21C 240521302 A B C Screw, #8-18 x 3/4
22A 240328204 A - - Bearing-hinge(frz), black, closer
22A 240328202 - B C Bearing-hinge(frz), closer
22C 240328404 A - - Bearing-hinge, black, upper
22C 240328402 - B C Bearing-hinge, natural, upper
37 240359203 A - - Trim-handle, 30.13", black, lower
37 240359204 - B - Trim-handle, 30.13", bisque, lower
37 240359201 - - C Trim-handle, 30.13", white, lower
68 241525101 A B C Chute-ice
72 240421701 A B C Button-handle mtg, dovetail
73 218396700 A B C Block-handle mtg, dovetail
74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500
* 240352102 A B C Connector-water, straight
* 240552101 A B C Harness-wiring, door
* 5303918256 A B C Dispenser heater kit

Publication No: 5995429106 GLRS64ZD
02/05 4
REFRIGERATOR DOOR

GLRS64ZD Publication No: 5995429106
# Functional Parts 5 02/05
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AGLRS64ZE (GLRS64ZEB0)
BGLRS64ZE (GLRS64ZEQ0)
CGLRS64ZE (GLRS64ZEW0)
POS. NO PART NO. DESCRIPTION
2 240390605 A - - Gasket-refr door, black, magnetic
2 # 240390601 - B C Gasket-refr door, white, magnetic
4 240323002 A B C Bin-door, pseudo, bottom
7 240326203 A B C Door-dairy
12 240449703 A - - Nameplate, black
12 240449702 - B - Nameplate, bisque
12 240449701 - - C Nameplate, white
13 240537105 A - - Door Stop, black, ref
13 240537103 - B - Door Stop, bisque, ref
13 240537101 - - C Door Stop, white, ref
15 240451908 A - - Panel-refr door, black, complete assy
15 240451904 - B - Panel-refr door, bisque, complete assy
15 240451900 - - C Panel-refr door, white, complete assy
18 240359103 A - - Handle-door, black, RH
18 240359104 - B - Handle-door, bisque
18 240359101 - - C Handle-door, white
21 218781100 A B C Screw, pan head, 8-18 x 0.625
21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
21C 240521302 A B C Screw, #8-18 x 3/4
22 240328203 A - - Bearing-hinge, black, closer
22 240328201 - B C Bearing-hinge(ref), closer
22B 240328403 A - - Bearing-hinge, black, upper
22B 240328401 - B C Bearing-hinge(ref), natural, upper
37 240359203 A - - Trim-handle, 30.13", black, lower
37 240359204 - B - Trim-handle, 30.13", bisque, lower
37 240359201 - - C Trim-handle, 30.13", white, lower
49 240430305 A B C Bin-door, gallon
72 240421701 A B C Button-handle mtg, dovetail
73 218396700 A B C Block-handle mtg, dovetail
74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995429106 GLRS64ZD
02/05 6

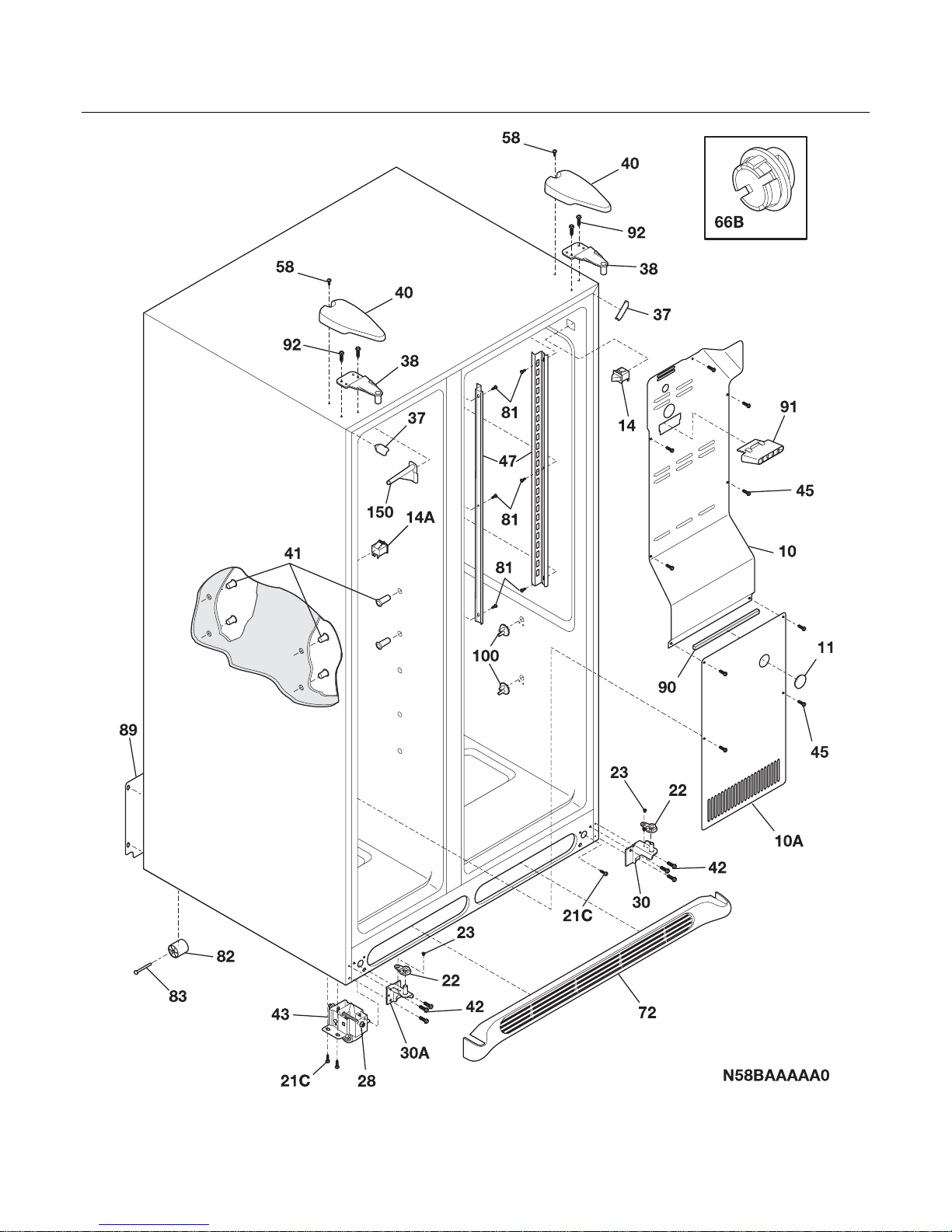

CABINET

GLRS64ZD Publication No: 5995429106
# Functional Parts 7 02/05
* Non-Illustrated Parts
CABINET
Model Index: AGLRS64ZE (GLRS64ZEB0)
BGLRS64ZE (GLRS64ZEQ0)
CGLRS64ZE (GLRS64ZEW0)
POS. NO PART NO. DESCRIPTION
10 240435906 A B C Cover-air duct
10A 240475907 A B C Cover-evap coil, lower
11 5303208309 A B C Plug-hole, factory test
14 240505801 A B C Switch, light/lamp
14A 241547901 A B C Switch-light/lamp, frzr door
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - - Plate-door closer
22 240457701 - B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240419101 A B C Bracket-lower hinge, ref
30A 240419102 A B C Bracket-lower hinge
37 240337603 A - - Trim-cabinet corner, black, (2)
37 240337604 - B - Trim-cabinet corner, bisque, (2)
37 240337601 - - C Trim-cabinet corner, white, (2)
38 240327201 A B C Bracket-upper hinge
40 240327007 A - - Cover-upper hinge, black
40 240327006 - B - Cover-upper hinge, bisque
40 240327005 - - C Cover-upper hinge, white
41 241550801 A B C Grommet-shelf mtg, 1.40" long
41* 241550701 A B C Grommet-shelf mtg, .96" long
42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C Roller Assy, front, (2)
45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500
47 218659500 A B C Channel-shelf mtg, side, (2)
58 218781100 A B C Screw, pan head, 8-18 x 0.625
66B 240374301 A B C Diffuser-air
66B* 240518802 A B C Pin-push, push-in, plastic
72 240324406 A - - Grille/Kickplate, black
72 240324404 - B - Grille/Kickplate, bisque
72 240324402 - - C Grille/Kickplate, white
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 A B C Cover access
90 218249808 A B C Seal-coil cover
91 240380101 A B C Duct-ice maker
92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C Support, crisper cover, front, (4)
100* 240350802 A B C Support, crisper cover, rear, (4)
150 240368701 A B C Guide-control bulb
* 240396801 A B C Clamp, tube/wiring, nylon, black/natural
* 240479601 A B C Plug, button, cab liner holes, (2)
* 240481601 A B C Shim-lower hinge
* 5303305345 A - - Paint, touch-up, black
* 5304414035 - B - Paint, touch-up, bisque
* 5303305324 - - C Paint, touch-up, white

Publication No: 5995429106 GLRS64ZD
02/05 8
SHELVES
N58SJCHAB1
11B
11A
126
81
81
126
39B
39B
97
81
24
24
24
42
62
123
42
51
25
26
47
100
25A
27
47A
52
101
101
49
11
39
26A
140
109 16A
15A
11C
81

GLRS64ZD Publication No: 5995429106
# Functional Parts 9 02/05
* Non-Illustrated Parts
SHELVES
Model Index: AGLRS64ZE (GLRS64ZEB0)
BGLRS64ZE (GLRS64ZEQ0)
CGLRS64ZE (GLRS64ZEW0)
POS. NO PART NO. DESCRIPTION
11 240338802 A B C Shelf-freezer, flip-up
11A 240338702 A B C Shelf-freezer, fixed wire
11B 240338704 A B C Shelf-freezer, fixed wire
11C 240324101 A B C Shelf-pizza
15A 241555401 A B C Light Bulb
16A 241513901 A B C Socket-light
16A* 241537602 A B C Harness-wiring
24 240355205 A B C Shelf-"Spill-Safe", fixed
25 240350702 A B C Cover-crisper pan, upper
25* 240362101 A B C Clip-slide, cover-crisper
25A 240350902 A B C Cover-crisper pan, lower
26 240351005 A B C Pan-crisper, upper
26* 240349801 A B C Clip-slide, pan-crisper
26A 240362201 A B C Control-humidity
27 240351206 A B C Pan-crisper, lower
39 240430706 A B C Trim-shelf, 11.21", front
39B 240430702 A B C Trim-shelf, 12.39", front
42 240356501 A B C Track, meat pan hanger, RH
42 240365401 A B C Track, meat pan hanger, LH
47 240350602 A B C Insert-pan cover, glass
47A 240350603 A B C Insert-pan cover, glass
49 240564401 A B C Basket-sliding
51 240343002 A B C Hanger-basket, RH
52 240343102 A B C Hanger-basket, LH
62 240342806 A B C Pan-meat
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 A B C Water Tank Assy, coiled tubing, front filter
100 240326302 A B C Cover-water tank
101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4
101* 215005000 A B C Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger
109 240351301 A B C Base-crisper light socket
123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438
126 218867405 A B C Channel, auger mtg, LH
126 218867406 A B C Channel, auger mtg, RH
140 240430501 A B C Channel, wtr tube cover

Publication No: 5995429106 GLRS64ZD
02/05 10
CONTROLS

GLRS64ZD Publication No: 5995429106
# Functional Parts 11 02/05
* Non-Illustrated Parts
CONTROLS
Model Index: AGLRS64ZE (GLRS64ZEB0)
BGLRS64ZE (GLRS64ZEQ0)
CGLRS64ZE (GLRS64ZEW0)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 215474201 A B C Washer, "slinger", nylon, evap fan shaft
9 241563601 A B C Bushing-motor mtg, (2)
13 240369702 A B C Motor-evap fan
14 241517701 A B C Clip, evap fan motor
15 241555401 A B C Light Bulb
16 241513901 A B C Socket-light
17 240317701 A B C Box-control, front
17* 241537802 A B C Harness-wiring, control box
18 240360801 A B C Knob, temp control
21 # 241586501 A B C Control-temperature
21A 5304421067 A B C Control-temperature, frzr section
22 218660702 A B C Tube-insulator
23 # 241508001 A B C Control-defrost, adaptive timer, PC board
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 240369501 A B C Box-control
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4
115 241600902 A B C Damper Assy, w/seal
137 240396401 A B C Filter, water, carbon cassette, front, with o'rings
137* 240396701 A B C Bypass, water filter, Optional Part
138 240397301 A B C Button-filter release
139 240396002 A B C Base-water filter
139* 240526901 A B C O-ring, wtr filter base
149 241563501 A B C Shroud-fan orfice
149* 241528303 A B C Seal, foam, evap fan assy
150 240394204 A B C Insulation-water tube cover
151 240373806 A B C Cover-water tube
198 240397401 A B C Retainer
199 240397501 A B C Rod
199* 240398401 A B C Spring-filter release rod
200 240397601 A B C Light Pipe
201 240398509 A B C Label-control box

Publication No: 5995429106 GLRS64ZD
02/05 12
SYSTEM
N58CAAAAA5
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
60
59
61
58

GLRS64ZD Publication No: 5995429106
# Functional Parts 13 02/05
* Non-Illustrated Parts
SYSTEM
Model Index: AGLRS64ZE (GLRS64ZEB0)
BGLRS64ZE (GLRS64ZEQ0)
CGLRS64ZE (GLRS64ZEW0)
POS. NO PART NO. DESCRIPTION
1 240333603 A B C Condenser
3 218679607 A B C Block-evap coil, styrofoam, (2)
4 # 218944001 A B C Drier-filter, R134a System
6 241586801 A B C Harness-wiring, machine compt
6* 240449601 A B C Harness-wiring
6* 241537802 A B C Harness-wiring, control box
14 # 5303918253 A B C Defrost Heater Kit
15 # 5303918284 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
21 5303918214 A B C Thermostat-defrost, kit
22 240330008 A B C Base-compressor mtg
22* 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
25 240491501 A B C Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B C Pan-defrost drain
29 # 5303918316 A B C Compressor, w/electricals
30 # 241524605 A B C Starter
32 218973501 A B C Clamp, elec cont mtg, compressor
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240555001 A B C Screw-#8-32 X 3/8
44 215174700 A B C Clamp-service cord, strain relief, galv steel
45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B C Capacitor-run, 220 VAC, 15 microfarad
57 240542601 A B C Clip-wiring harness
58 218897002 A B C Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C Bracket-cond motor assy
59* 240346701 A B C Tape-foam seal, shroud
59* 240359401 A B C Screw-fan shroud, (2)
60 # 240525402 A B C Motor, condensor fan
61 # 240524101 A B C Fan Blade, galv steel, condenser fan
62 240429402 A B C Trough-drain
70 218990801 A B C Bracket-evap/cvr mtg
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B C Tube-drain, lower
85 240346201 A B C Tube-connector, suction
* 5303918213 A B C Heat Exchanger Kit, suction line
* 5303918222 A B C Hot Tube Repair Kit, service

Publication No: 5995429106 GLRS64ZD
02/05 14

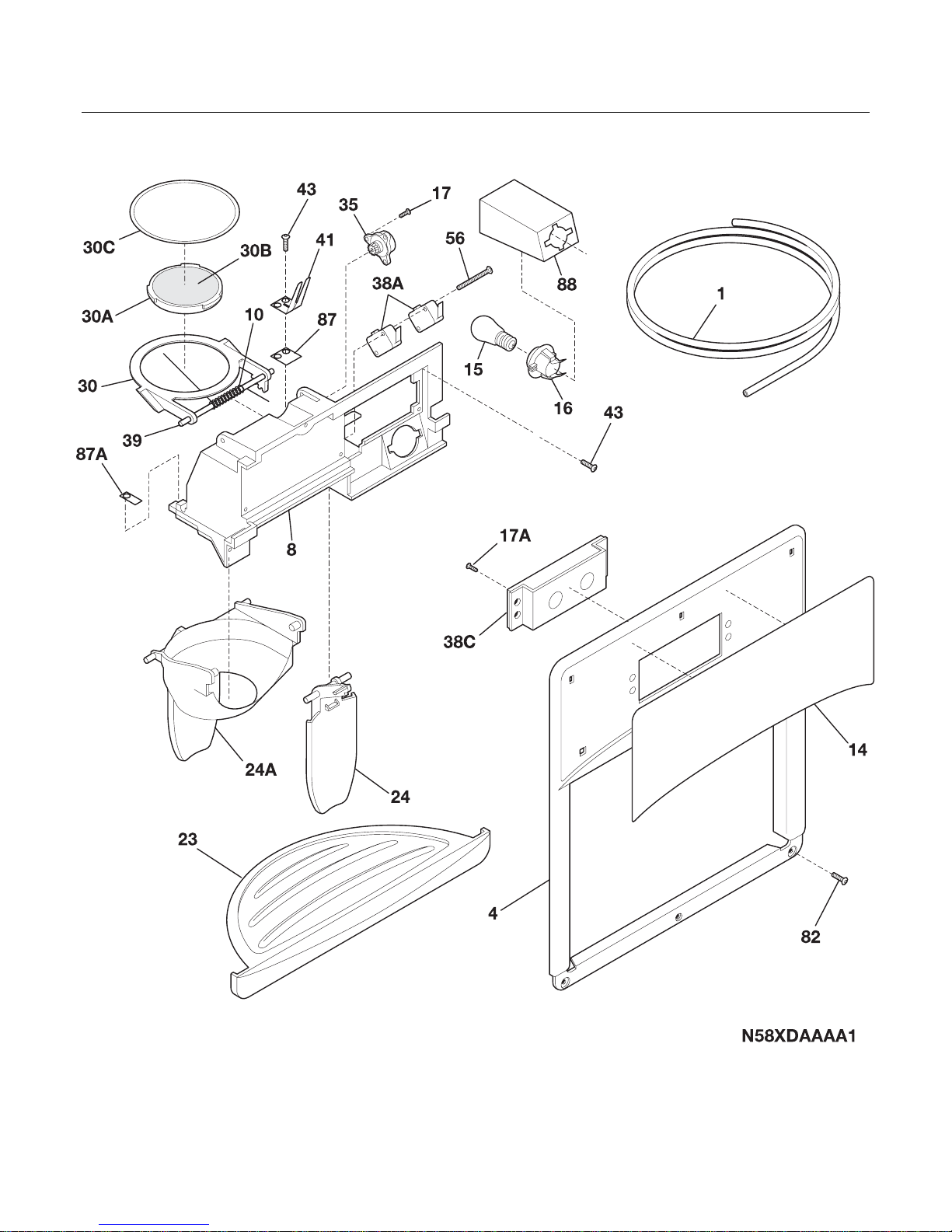

ICE & WATER DISPENSER

GLRS64ZD Publication No: 5995429106
# Functional Parts 15 02/05
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AGLRS64ZE (GLRS64ZEB0)
BGLRS64ZE (GLRS64ZEQ0)
CGLRS64ZE (GLRS64ZEW0)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube-water-DOOR
1* 218976901 A B C Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B C Tube-water inlet, inlet valve, to filter
1* 218976907 A B C Tube-water inlet, valve to door
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
4 5304433186 A - - Cover-module, black
4 5304433187 - B - Cover-module, bisque
4 5304433188 - - C Cover-module, white
8 5304422013 A - - Module-dispenser
8 5304421849 - B - Module-dispenser
8 5304422030 - - C Module-dispenser
10 5304426649 A B C Spring-torsion
14 240570211 A - - Label-module cover, black
14 240570210 - B - Label-module cover, bisque
14 240570209 - - C Label-module cover, white
15 5304421616 A B C Light Bulb
16 240548901 A B C Socket-light
17 5304421619 A B C Screw
17A 5304433185 A B C Screw, switch mtg.
23 240323603 A - - Drip Tray, black
23 240323602 - B - Drip Tray, bisque
23 240323601 - - C Drip Tray, white
24 5304422026 A - - Actuator-water, black
24 5304422027 - B - Actuator-water, bisque
24 5304421825 - - C Actuator-water, white
24A 5304422025 A - - Actuator-ice, black
24A 5304422028 - B - Actuator-ice, bisque
24A 5304421826 - - C Actuator-ice, white
30 5304421628 A B C Door Assy-ice chute
30A 5304421624 A B C Door center
30B 5304421625 A B C Insulation-door
30C 5304421629 A B C Door seal
35 5304421620 A B C Damper-rotary
38A# 5304421617 A B C Switch-micro, single pole, double throw
38A* 5304430839 A B C Harness-wiring
38C 5304436275 A B C Switch
38C* 5304430837 A B C Harness-wiring
39 5304421627 A B C Pin-hinge
41 5304421829 A B C Spring-actuator
43 215296300 A B C Screw, plask h/l, #6 x 3/8
56 5304421830 A B C Screw-micro switch, pan head
82 240363401 A B C Screw-#8-18 X 1/2, #6 hd plask
87 5304421622 A B C Bearing Plate
87A 5304421621 A B C Bearing Plate
88 5304421615 A B C Shield-light
* 218515401 A B C Clip
* 5303918256 A B C Dispenser heater kit

Publication No: 5995429106 GLRS64ZD
02/05 16
ICE CONTAINER
45
4
45A
48
71
47
46
45B
45C
45D
50
18 20
15
16
44
44
58
51
26
26
26
26
10
21
26
44
44
44
49 7
N58YBAAAA1
57
3
2
23
39
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25

GLRS64ZD Publication No: 5995429106
# Functional Parts 17 02/05
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AGLRS64ZE (GLRS64ZEB0)
BGLRS64ZE (GLRS64ZEQ0)
CGLRS64ZE (GLRS64ZEW0)
POS. NO PART NO. DESCRIPTION
2 5304428402 A B C Auger-ice
3 5304404343 A B C Cam-drive
4 218815300 A B C Container-ice, bucket only
6 5304404346 A B C Drum-ice disp
7 218815400 A B C Front-ice container
10 241624801 A B C Bar-drive
13 5304404359 A B C Gate
15 241555401 A B C Light Bulb
16 241559801 A B C Socket-light
17 5304404345 A B C Drive Blade
18 # 5304440392 A B C Motor-auger
18*# 240352601 A B C Wiring Harness, internal, with plug
20 5304404332 A B C Cover-motor
21 215285100 A B C Nut-drive
23 5304404347 A B C Plate-front
25 5304404362 A B C Screw, hex washer head, 8-32T x 0.375
26 215503200 A B C Screw, cr pan hd, 10-16 x 0.500
33 5304404351 A B C Spacer
34 5304404349 A B C Spacer
35A 5304404353 A B C Fixed Blade, round
35B 5304404352 A B C Fixed Blade, square
37A 5304404348 A B C Blade, crusher #1
37B 5304404350 A B C Blade, crusher #2
37C 5304404356 A B C Blade, crusher #3
39 5304404365 A B C Screw
41 5304404358 A B C Housing-crusher
44 218359200 A B C Screw, pan head, 8-32 x 0.250
45 # 5304404333 A B C Solenoid Assy
45A 5304406816 A B C Spring-solenoid
45B 5304406817 A B C E-Ring-solenoid
45C 5304406818 A B C Actuator-solenoid
45D 5304406819 A B C Solenoid
46 5304404341 A B C Control Rod
47 5304404342 A B C Spring-control rod
48 5304404340 A B C Bracket-control rod
48* 5304404364 A B C Screw-bracket
49 5304404329 A B C Rail Assy
50 5304404334 A B C Guide-solenoid
51 5304404336 A B C Rotation Stop
52 5304404354 A B C Spacer-fixed blades
53 5304404355 A B C Pin-spiral, fixed blades
54 5304404357 A B C Nut-auger
55 5304404360 A B C Washer
56 5304404361 A B C E-ring
57 5304404363 A B C Door-access
58 5304404331 A B C Screw-solenoid
71 241577302 A B C Cover-Rear Auger
* 240323808 A B C Ice Container Assy, w/moving parts
* 240507202 A B C Deflector-ice container

Publication No: 5995429106 GLRS64ZD
02/05 18

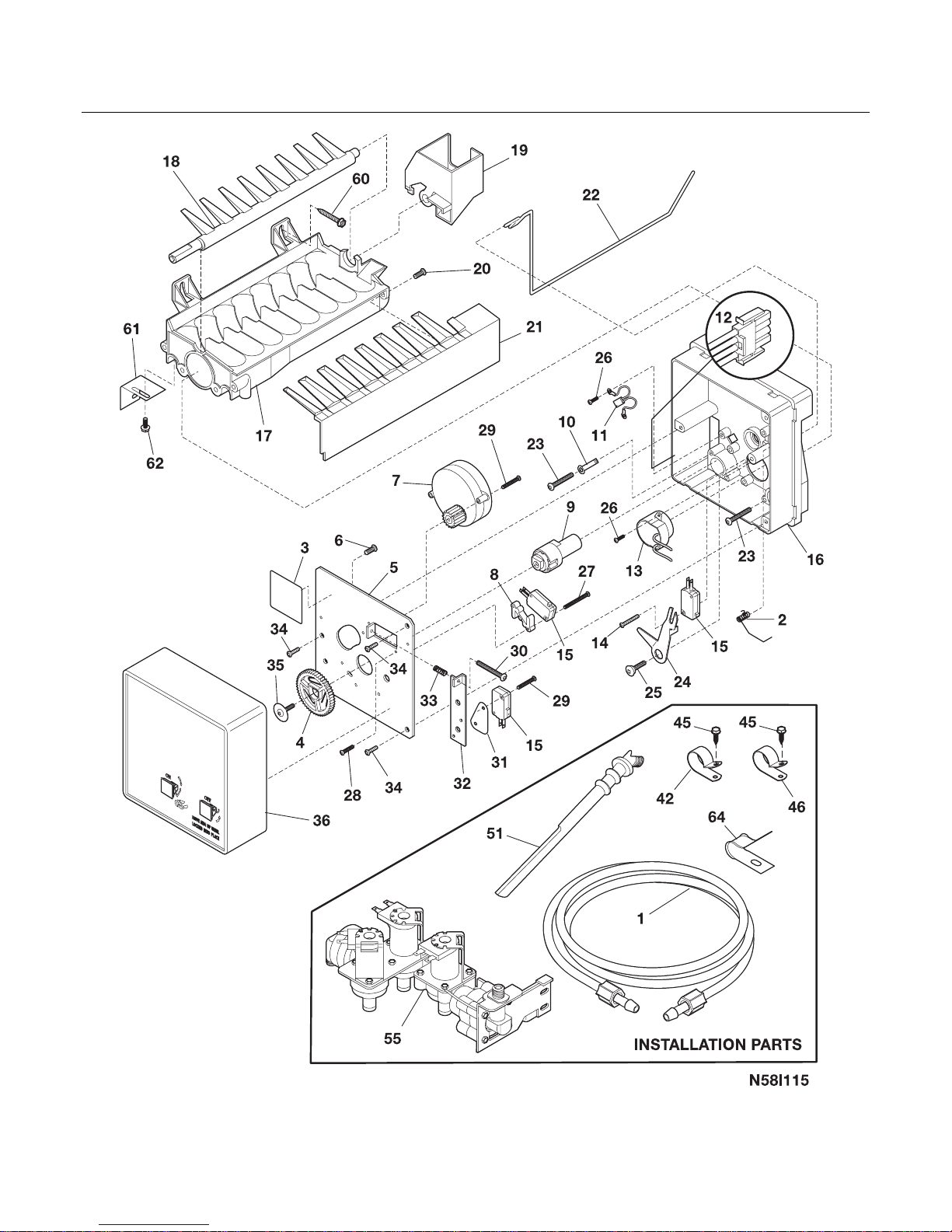

ICE MAKER

GLRS64ZD Publication No: 5995429106
# Functional Parts 19 02/05
* Non-Illustrated Parts
ICE MAKER
Model Index: AGLRS64ZE (GLRS64ZEB0)
BGLRS64ZE (GLRS64ZEQ0)
CGLRS64ZE (GLRS64ZEW0)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube-water-DOOR
1* 218976901 A B C Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B C Tube-water inlet, inlet valve, to filter
1* 218976907 A B C Tube-water inlet, valve to door
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
2 5304420650 A B C Spring, shut-off arm
3 3206299 A B C Label, ID plate
4 3206301 A B C Gear
5 3206303 A B C Plate-mounting
6 3206305 A B C Screw-ground wire, 8-32 x 0.250
7 # 3206306 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 3206313 A B C Cam
10 3206315 A B C Clamp
11 # 3206319 A B C Thermal Cutoff, ICE MAKER, complete assy
12 # 240352601 A B C Wiring Harness, internal, with plug
13 # 3206322 A B C Thermostat Assy, ICE MAKER
14 5304420652 A B C Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C Switch, (3)
16 5304420653 A B C Support, phenolic
17 # 5303320545 A B C Mold-ice maker, Radius Cube, with heater
18 3206328 A B C Ejector-ice
19 3206330 A B C Bearing & Inlet
20 5304408581 A B C Screw, 8-32 x 0.375
21 3206332 A B C Ice Stripper
22 3206333 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C Screw-timing stop, 4-40 x 0.375
29 3206323 A B C Screw, 4-24 x 0.750, (6)
30 3206341 A B C Screw-timing adj, 8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304408583 A B C Spring-timing adj
34 5304420655 A B C Screw, plazscrew, 8-10, (3)
35 5304408585 A B C Screw
36 3206347 A B C Cover-ice maker
42 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
42* 218515402 A B C Clip, (2), tube mtg.
45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
45* 5303001343 A B C Screw, hex washer head, 8-15A x 0.500
46 5303001193 A B C Clamp, .50 ID, steel, water tube
46* 5308000133 A B C Clamp, nylon, .625 ID
51 240387101 A B C Tube-water, ice mold fill, extension
55 # 240531101 A B C Valve-water, triple solenoid

Publication No: 5995429106 GLRS64ZD
02/05 20
ICE MAKER
