Frigidaire FRT18FS5A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT18FS5AQ0 FRT18FS5A R134a bisque 115
FRT18FS5AQ2 FRT18FS5A R134a bisque 115
FRT18FS5AW0 FRT18FS5A R134a white 115
FRT18FS5AW2 FRT18FS5A R134a white 115
MARKET
North America
Publication No.
5995355715
010706
-EN/SERVICE/KHB
390
TOP MOUNT
REFRIGERATOR
Model No.
FRT18FS5A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917

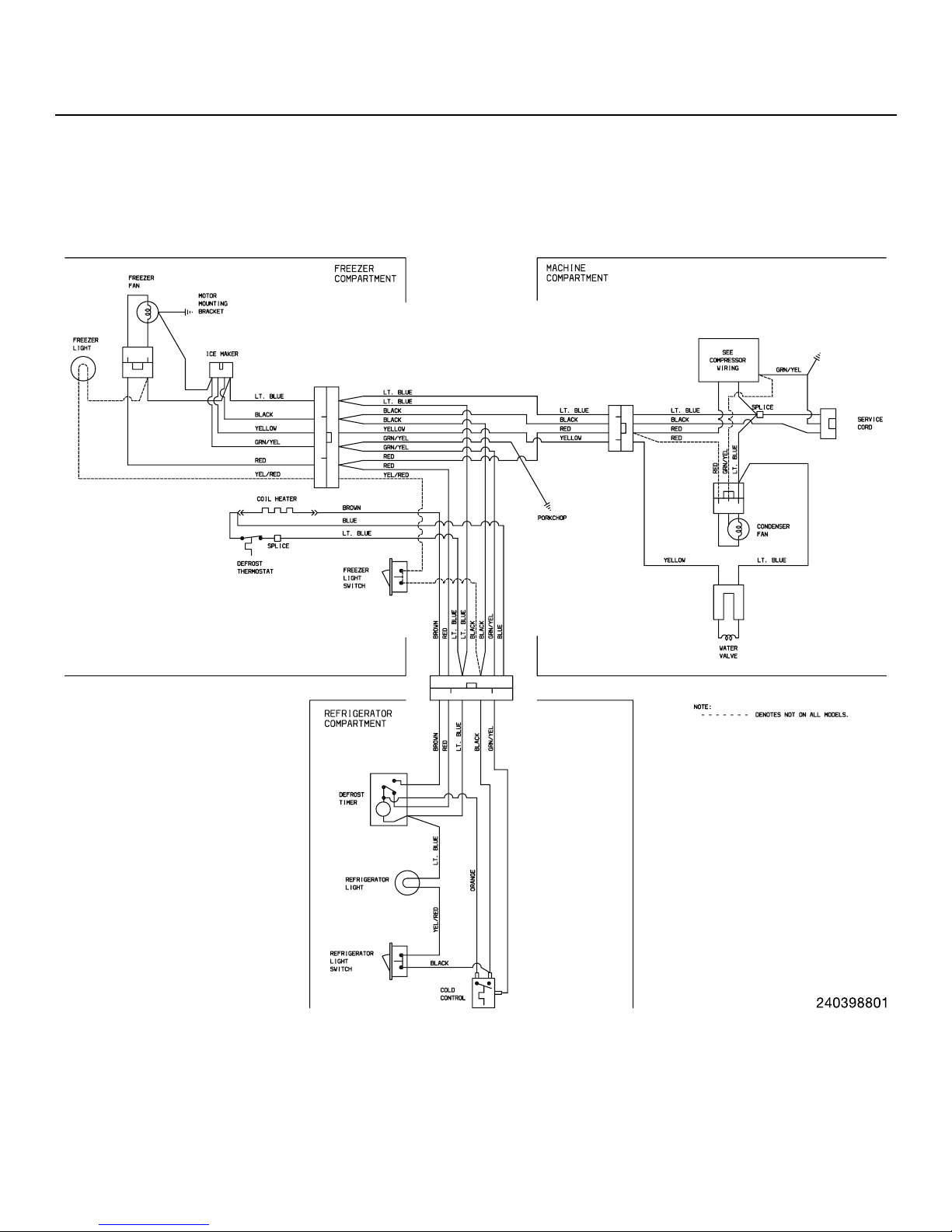

WIRING DIAGRAM - 0 = 240379006 & 2 = 240379007
OWNER’S GUIDE - 240400103
SERVICE DATA SHEET-0=240379006 & 2 = 240379007

07/01 2
Publication No. FRT18FS5A
5995355715

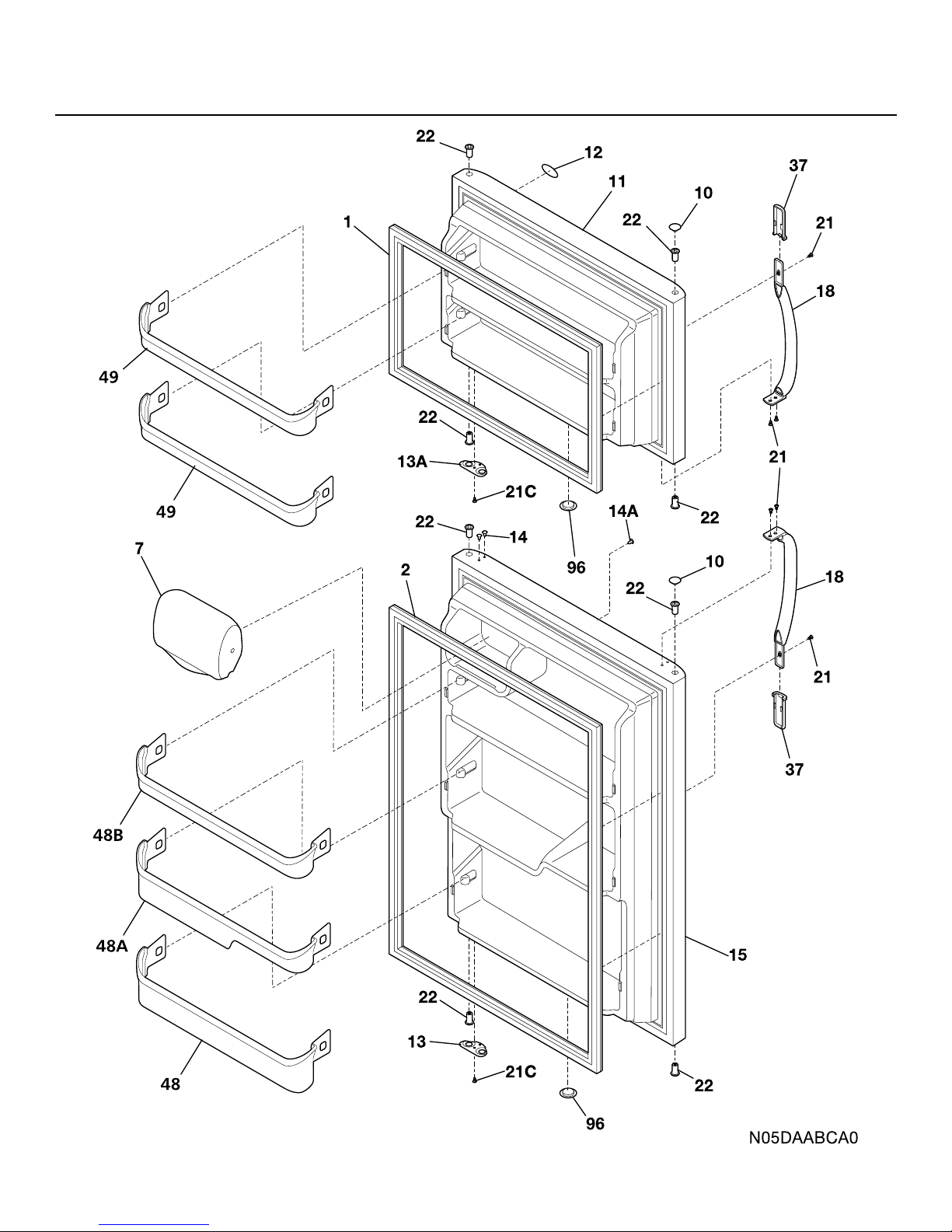

DOOR

# = Fast-moving Parts 3 07/01
* = Non-Illustrated Parts
FRT18FS5A Publication No.
5995355715
A = FRT18FS5A (FRT18FS5AQ0)
B = FRT18FS5A (FRT18FS5AQ2)
C = FRT18FS5A (FRT18FS5AW0)
D = FRT18FS5A (FRT18FS5AW2)
POS. NO PART NO DESCRIPTION
1 # 240370905 A B C D Gasket-frzr door,white ,magnetic
2 # 240370906 A B C D Gasket-refr door,white ,magnetic
7 240337703 A B C D Door-dairy,w/o graphics ,clear
10 240381302 A B - - Plug-button,hinge brg hole ,bisque ,(2)
10 240381301 - - C D Plug-button,hinge brg hole ,white ,(2)
11 240410202 A B - - Door-frzr,bisque ,complete assy
11 240410201 - - C D Door-frzr,white ,complete assy
12 240415203 A B - - Label-nameplate,bisque
12 240415201 - - C D Label-nameplate,white
13 240312407 A B - - Door Stop,bisque ,ref
13 240312403 - - C D Door Stop,white ,ref
13A 240312408 A B - - Door Stop,bisque ,frzr
13A 240312404 - - C D Door Stop,white ,frzr
14 218915704 A B - - Plug-button,bisque
14 218915701 - - C D Plug-button,white
14A 240428302 A B - - Plug-button,screw type ,bisque
14A 240428301 - - C D Plug-button,screw type ,white
15 240410302 A B - - Door-refr,bisque ,complete assy
15 240410301 - - C D Door-refr,white ,complete assy
18 218668004 A B - - Handle-door,bisque
18 218668001 - - C D Handle-door,white
21 240383401 A B C D Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
22 240311201 A B C D Bearing-hinge,natural color ,(8)
37 215870633 A B - - Trim-handle, 2.47", bisque, w/satin AL band
37 215870629 - - C D Trim-handle, 2.47", white, w/satin AL band
37* 218676004 A B C D Band-decorative, satin aluminum, handle trim
48 240338101 A B C D Bin-door,Pseudo ,bottom
48A 240337901 A B C D Bin-door,ref
48B 240338001 A B C D Bin-door,ref
49 240337801 A B C D Bin-door,Pseudo ,frzr
96 240345501 A - C - Plug-foam hole,white
96 240345503 - B - D Plug-foam hole,white
DOOR

07/01 4
Publication No. FRT18FS5A
5995355715
CABINET

# = Fast-moving Parts 5 07/01
* = Non-Illustrated Parts
FRT18FS5A Publication No.
5995355715
A = FRT18FS5A (FRT18FS5AQ0)
B = FRT18FS5A (FRT18FS5AQ2)
C = FRT18FS5A (FRT18FS5AW0)
D = FRT18FS5A (FRT18FS5AW2)
POS. NO PART NO DESCRIPTION
1 240355401 A B C D Cover-fan
2 240367001 A B C D Knob-damper control
3 5303001028 A B C D Nut,push-on
4 240367401 A B C D Damper-fan cover
5 # 5308000010 A B C D Fan Blade,red ,evaporator fan
8 5300157666 A B C D Bushing-motor mtg,(2)
9 5303292396 A B C D Bracket-motor mtg,front
10 240462005 A B C D Cover-evap coil
10* 240371302 A B C D Seal-coil cover
10*# 240385401 A B C D Wiring Harness,freezer section
11 5303208309 A B C D Plug-hole,factory test
13 # 240369701 A B C D Motor-evap fan
13* 218931001 A B C D Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D Bracket-motor mtg,rear
14* 240433201 A B C D Screw-8-18 x 3/8, hex washer head,
18 240345801 A B C D Support-evap cover,(2)
21C 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
22 215774919 A B - - Plug-button, bisque, upr hinge holes
22 215774901 - - C D Plug-button, white, upr hinge holes
28 240335501 A B C D Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020, (2), special
30 240314004 A B - - Bracket-lower hinge,bisque
30 240314002 - - C D Bracket-lower hinge,white
34 240311301 A B C D Washer,hinge ,nylon ,(2)
35 240313804 A B - - Bracket-ctr hinge,bisque
35 240313802 - - C D Bracket-ctr hinge,white
35A 240336801 A B C D Spacer-hinge,center
36 240313901 A B C D Pin-center hinge
37 240337604 A B - - Trim-cabinet corner,bisque ,(2)
37 240337601 - - C D Trim-cabinet corner,white ,(2)
38 240313701 A B C D Bracket-upper hinge
40 240354403 A B - - Cover-upper hinge,bisque
40 240354401 - - C D Cover-upper hinge,white
41 5303001609 A B C D Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B C D Grommet,shelf mtg ,1.25" ,LH
42 240423601 A B C D Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C D Roller Assy,front ,(2)
56 240314101 A B C D Pin-lower hinge
58 5308002748 A B C D Screw, hex wshr hd, 8-15A x 0.500, special
59 240442704 A B - - Screw-#10-32 X 3/4,bisque
59 240442702 - - C D Screw-#10-32 X 3/4,white
72 240368202 A B - - Grille/Kickplate, bisque
72 240368201 - - C D Grille/Kickplate, white
81 5308016566 A B C D Screw, hex washer hd, 8-15A x 0.625, low profile
82 5304418225 A B C D Roller, compressor base ,rear ,(2)
83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326102 A B C D Cover-access,w/ label
89* 241500301 A B C D Screw,#8 18 x .500 ,(3)
92 5303001479 A B C D Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 218843800 A B C D Screw,hex wshr hd ,8-15A x 0.500
* 5304414035 A B - - Paint,touch-up ,bisque
* 5303305324 - - C D Paint,touch-up ,white
CABINET

07/01 6
Publication No. FRT18FS5A
5995355715

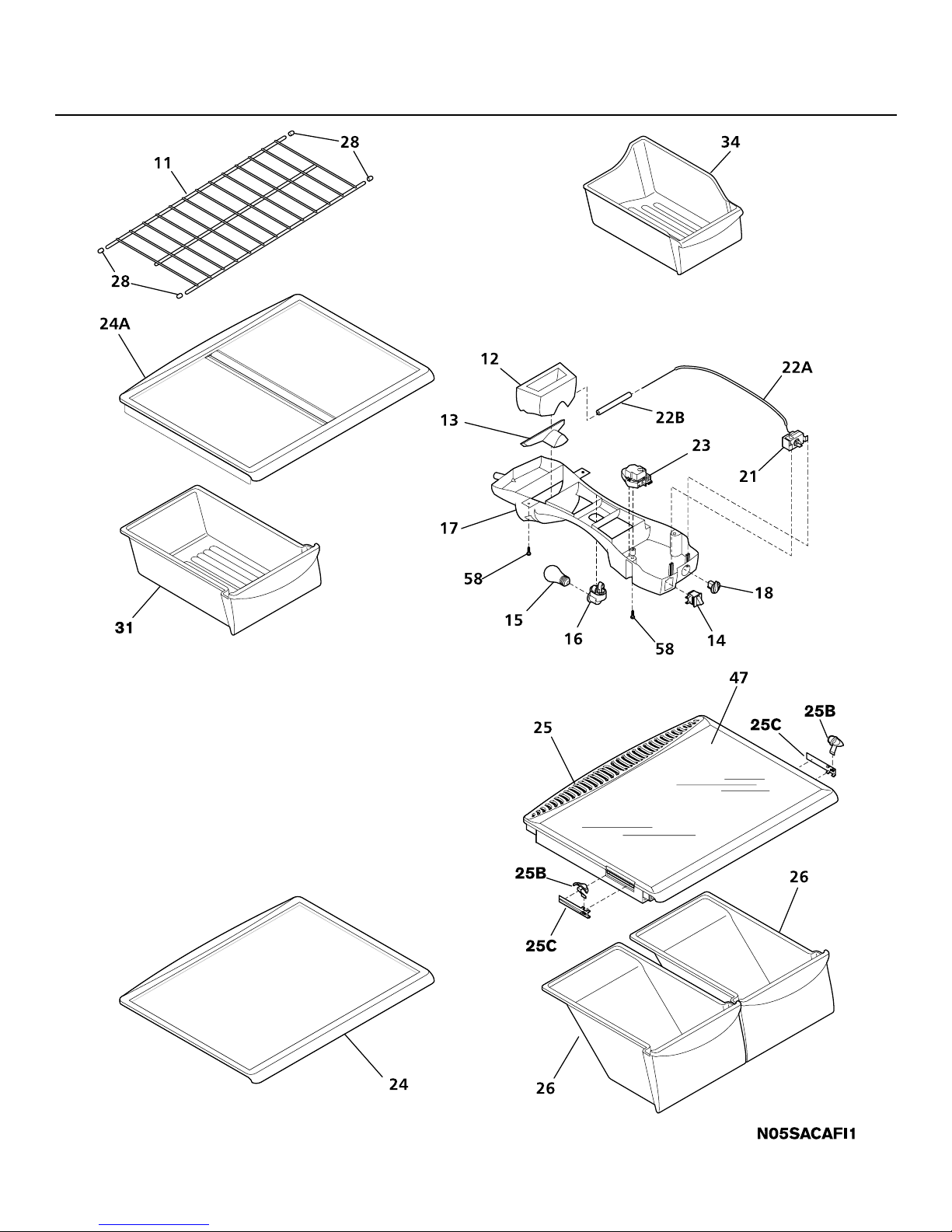

SHELVES

# = Fast-moving Parts 7 07/01
* = Non-Illustrated Parts
FRT18FS5A Publication No.
5995355715
A = FRT18FS5A (FRT18FS5AQ0)
B = FRT18FS5A (FRT18FS5AQ2)
C = FRT18FS5A (FRT18FS5AW0)
D = FRT18FS5A (FRT18FS5AW2)
POS. NO PART NO DESCRIPTION
11 240358002 A B C D Shelf-freezer,full width
11* 5303299664 A B C D Spacer-shelf
12 240362501 A - C - Diffuser-air,top
12 240362502 - B - D Diffuser-air,top
13 240362601 A B C D Diffuser-air,bottom
13* 240392601 A B C D Seal-diffuser
14 # 5309918806 A - C - Switch-light/lamp
14 240505801 - B - D Switch-light/lamp
15 5303001179 A - C - Light Bulb/Lamp,40 W
15 240436701 - B - D Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 241500701 A B C D Socket-light/lamp
17 240352701 A B C D Control Box
17*# 240388701 A B C D Wiring Harness,control box
18 240360801 A B C D Knob-control
21 # 5304418228 A - C - Control-temperature
21 # 5304421256 - B - D Control-temperature
22A 5303916855 A - C - Tube,sensor sleeve ,plastic ,clear
22A 240468201 - B - D Tube, sensor sleeve, 31 inch, plastic, white
22B 218731105 A - C - Tube, PVC, white, @ air diffuser, insulator
23 # 215846606 A B C D Timer-defrost, 60 Hz, 120 V, 10 hour/30 min
23* 5303001259 A B C D Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240358905 A B C D Shelf-"Spill-Safe",sliding
24A 240358906 A B C D Shelf-"Spill-Safe",sliding
25 240364714 A B C D Cover-crisper pan
25B 240361201 A B C D Control-humidity
25C 240361301 A B C D Damper-humidity control
26 240337103 A B C D Pan-crisper,clear ,(2) ,no graphics
28 3201150 A B C D End Cap-shelf,protector ,frzr shelf
31 240354203 A B C D Pan-meat,w/o graphics ,clear
34 240385201 A B C D Container-ice
47 240350643 A B C D Insert-pan cover,glass
58 5308016566 A B C D Screw, hex wshr hd, 8-15A x 0.625, low profile
SHELVES

07/01 8
Publication No. FRT18FS5A
5995355715
SYSTEM

# = Fast-moving Parts 9 07/01
* = Non-Illustrated Parts
FRT18FS5A Publication No.
5995355715
A = FRT18FS5A (FRT18FS5AQ0)
B = FRT18FS5A (FRT18FS5AQ2)
C = FRT18FS5A (FRT18FS5AW0)
D = FRT18FS5A (FRT18FS5AW2)
POS. NO PART NO DESCRIPTION
1 # 240345601 A - C - Condenser,dynamic
1 240444401 - B - D Condenser,dynamic
4 # 218944001 A B C D Drier-filter,R134a System
6 # 240375301 A B C D Wiring Harness,machine compt, w/service cord
6* # 240385401 A B C D Wiring Harness,freezer section
6* # 240388701 A B C D Wiring Harness,control box
14 # 5303918208 A B C D Defrost Heater Kit
15 # 5303918250 A B C D Evaporator Kit
16 5308000110 A B C D Strap-evap/heater,aluminum ,(2)
17 240434002 A B C D Trough-drain
18 240362301 A B C D Insulation Block,RH
20 240362401 A B C D Insulation Block,LH
21 # 5303918202 A B C D Thermostat-defrost,kit
22 240330001 A B C D Plate-compr mtg
22* 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B C D Grommet-compr mtg,(4)
25 240420302 A - C - Screw-compr mtg,hex hd ,1/4-28 shoulder
25 240491501 - B - D Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332601 A - C - Pan-defrost drain
26 240332603 - B - D Pan-defrost drain
29 # 5303918206 A B C D Compressor,w/electricals
30 # 218721113 A B C D Starter-PTC
32 218740800 A B C D Clamp,elec cont mtg ,compressor
34 240405201 A B C D Grommet, mounting, rubber, black, holds tube/wire
41 218897001 A B C D Screw,hex washer head ,8-32 x 1/4
41* 5308000039 A B C D Screw,hex wshr hd, 8-32CA x 0.500, (7),serrated hd
44 5303001199 A B C D Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C D Screw, hex wshr hd, 8-15A x 0.625, low profile
55 # 218909901 A B C D Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B C D Clip-wiring harness
58 240453400 A B C D Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16,(2)
59 240315501 A B C D Shroud-cond fan
59* 240346701 A B C D Tape-foam seal,shroud
59* 240359401 A B C D Screw-fan shroud,(2)
59A 240346501 A B C D Bracket-support,cond mtr ,(3)
59B 240346601 A B C D Grommet-bracket,(3)
60 # 240453600 A B C D Motor,condenser fan
61 # 240315401 A B C D Fan Blade,galv steel ,condenser fan
61A 240453300 A B C D Nut,speed
61B 240453500 A B C D Grommet-silencer
82 5304418225 A B C D Roller,compressor base ,rear ,(2)
83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240359601 A B C D Tube-drain,lower
85 240346201 A B C D Tube-connector,suction
86 240409302 A B C D Spacer-cond tube,black
* 218843800 A B C D Screw,hex wshr hd ,8-15A x 0.500
* 240396801 A B C D Clamp,tube/wiring ,nylon ,black/natural
* # 5303918207 A B C D Heat Exchanger Kit,suction line
* 5303918222 A B C D Hot Tube Repair Kit,Service
SYSTEM

07/01 10
Publication No. FRT18FS5A
5995355715

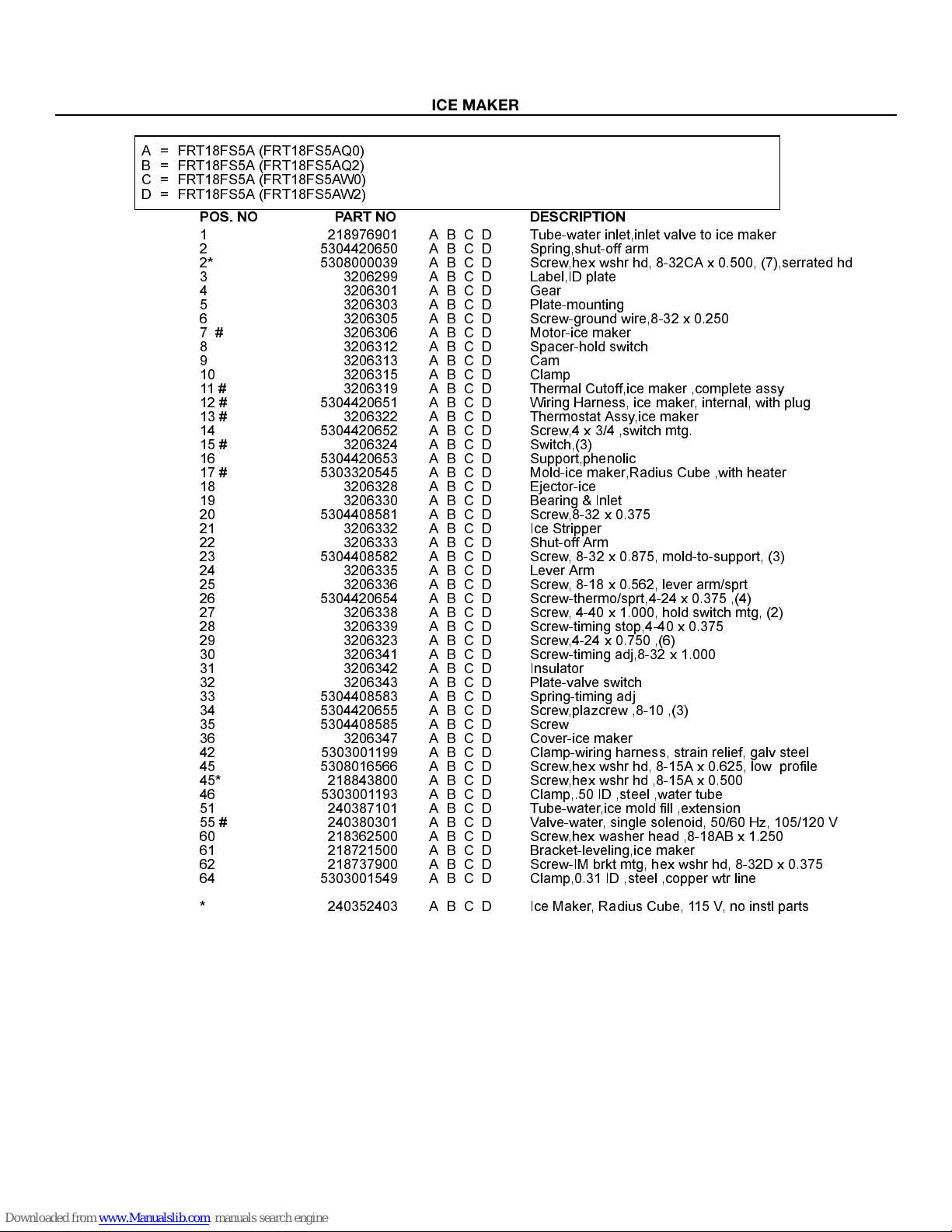

ICE MAKER

# = Fast-moving Parts 11 07/01
* = Non-Illustrated Parts
FRT18FS5A Publication No.
5995355715
A = FRT18FS5A (FRT18FS5AQ0)
B = FRT18FS5A (FRT18FS5AQ2)
C = FRT18FS5A (FRT18FS5AW0)
D = FRT18FS5A (FRT18FS5AW2)
POS. NO PART NO DESCRIPTION
1 218976901 A B C D Tube-water inlet,inlet valve to ice maker
2 5304420650 A B C D Spring,shut-off arm
2* 5308000039 A B C D Screw,hex wshr hd, 8-32CA x 0.500, (7),serrated hd
3 3206299 A B C D Label,ID plate
4 3206301 A B C D Gear
5 3206303 A B C D Plate-mounting
6 3206305 A B C D Screw-ground wire,8-32 x 0.250
7 # 3206306 A B C D Motor-ice maker
8 3206312 A B C D Spacer-hold switch
9 3206313 A B C D Cam
10 3206315 A B C D Clamp
11 # 3206319 A B C D Thermal Cutoff,ice maker ,complete assy
12 # 5304420651 A B C D Wiring Harness, ice maker, internal, with plug
13 # 3206322 A B C D Thermostat Assy,ice maker
14 5304420652 A B C D Screw,4 x 3/4 ,switch mtg.
15 # 3206324 A B C D Switch,(3)
16 5304420653 A B C D Support,phenolic
17 # 5303320545 A B C D Mold-ice maker,Radius Cube ,with heater
18 3206328 A B C D Ejector-ice
19 3206330 A B C D Bearing & Inlet
20 5304408581 A B C D Screw,8-32 x 0.375
21 3206332 A B C D Ice Stripper
22 3206333 A B C D Shut-off Arm
23 5304408582 A B C D Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C D Lever Arm
25 3206336 A B C D Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C D Screw-thermo/sprt,4-24 x 0.375 ,(4)
27 3206338 A B C D Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C D Screw-timing stop,4-40 x 0.375
29 3206323 A B C D Screw,4-24 x 0.750 ,(6)
30 3206341 A B C D Screw-timing adj,8-32 x 1.000
31 3206342 A B C D Insulator
32 3206343 A B C D Plate-valve switch
33 5304408583 A B C D Spring-timing adj
34 5304420655 A B C D Screw,plazcrew ,8-10 ,(3)
35 5304408585 A B C D Screw
36 3206347 A B C D Cover-ice maker
42 5303001199 A B C D Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C D Screw,hex wshr hd, 8-15A x 0.625, low profile
45* 218843800 A B C D Screw,hex wshr hd ,8-15A x 0.500
46 5303001193 A B C D Clamp,.50 ID ,steel ,water tube
51 240387101 A B C D Tube-water,ice mold fill ,extension
55 # 240380301 A B C D Valve-water, single solenoid, 50/60 Hz, 105/120 V
60 218362500 A B C D Screw,hex washer head ,8-18AB x 1.250
61 218721500 A B C D Bracket-leveling,ice maker
62 218737900 A B C D Screw-IM brkt mtg, hex wshr hd, 8-32D x 0.375
64 5303001549 A B C D Clamp,0.31 ID ,steel ,copper wtr line
* 240352403 A B C D Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

07/01 12
Publication No. FRT18FS5A
5995355715
WIRING SCHEMATIC

# = Fast-moving Parts 13 07/01
* = Non-Illustrated Parts
FRT18FS5A Publication No.
5995355715
WIRING DIAGRAM
