Frigidaire LFHB2741PF Owner's manual

TABLE OF CONTENTS
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
All about the
Use &Care
of your Refrigerator
Important Safety Instructions......................2
Features at a Glance...................................5
Installation ................................................6

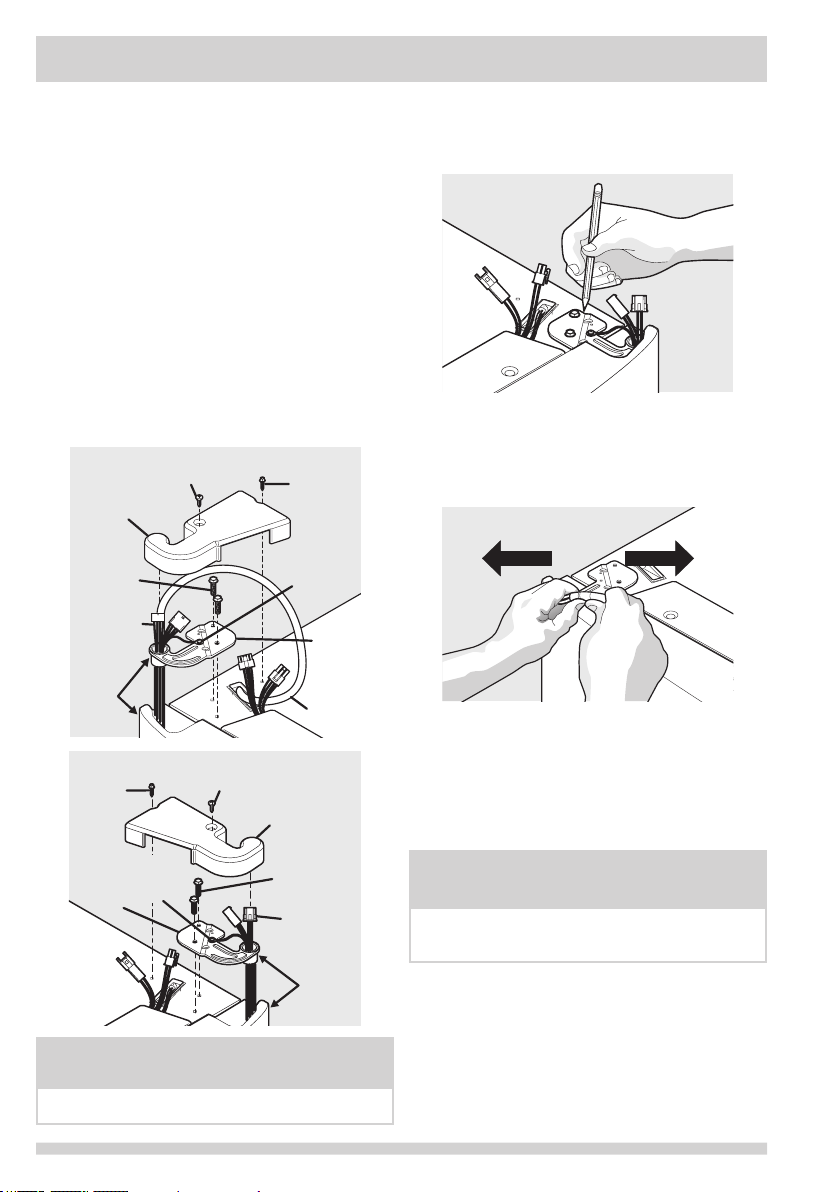

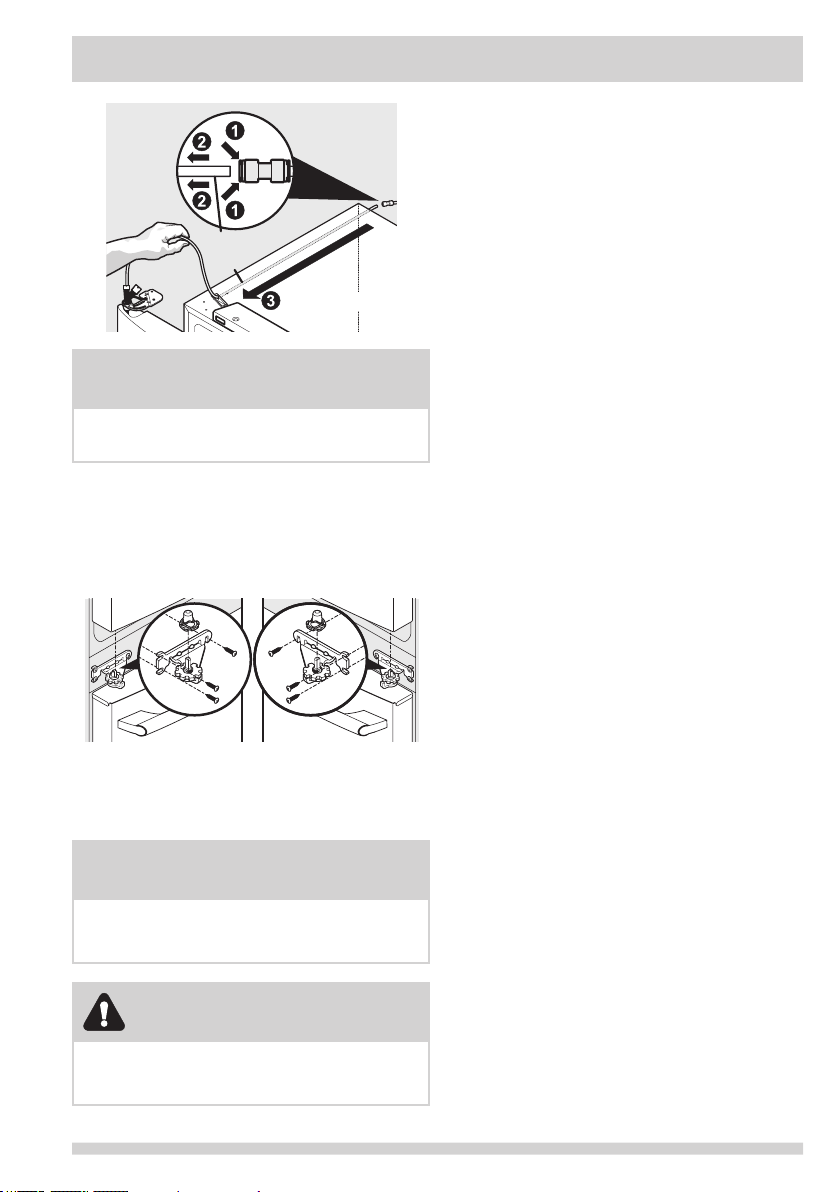

Door Removal Instructions ........................10

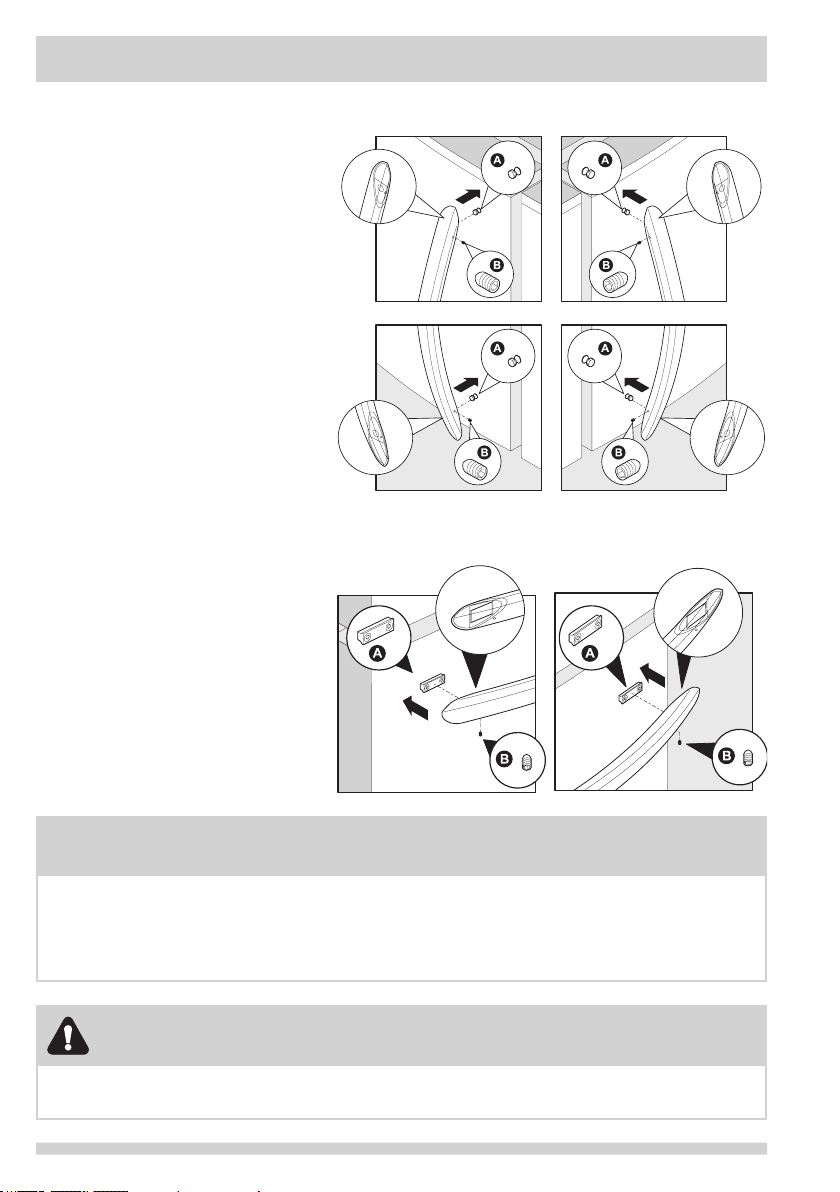

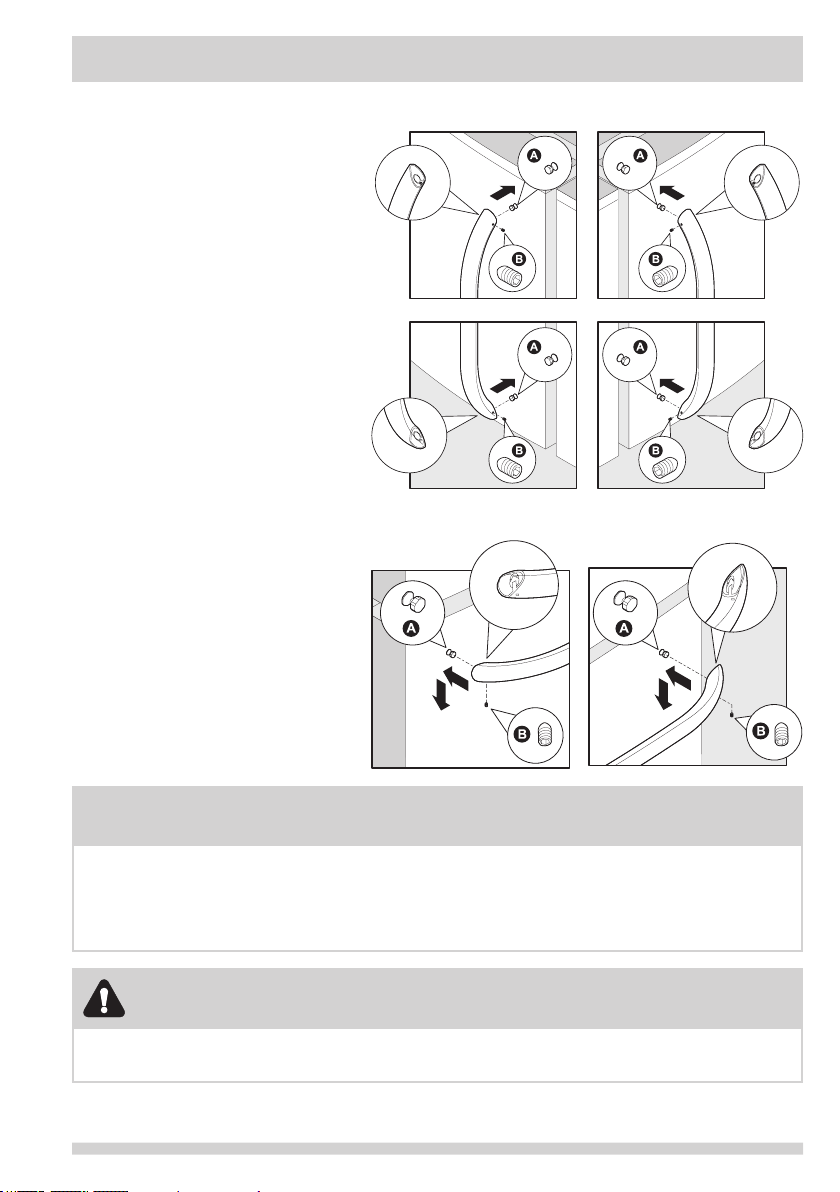

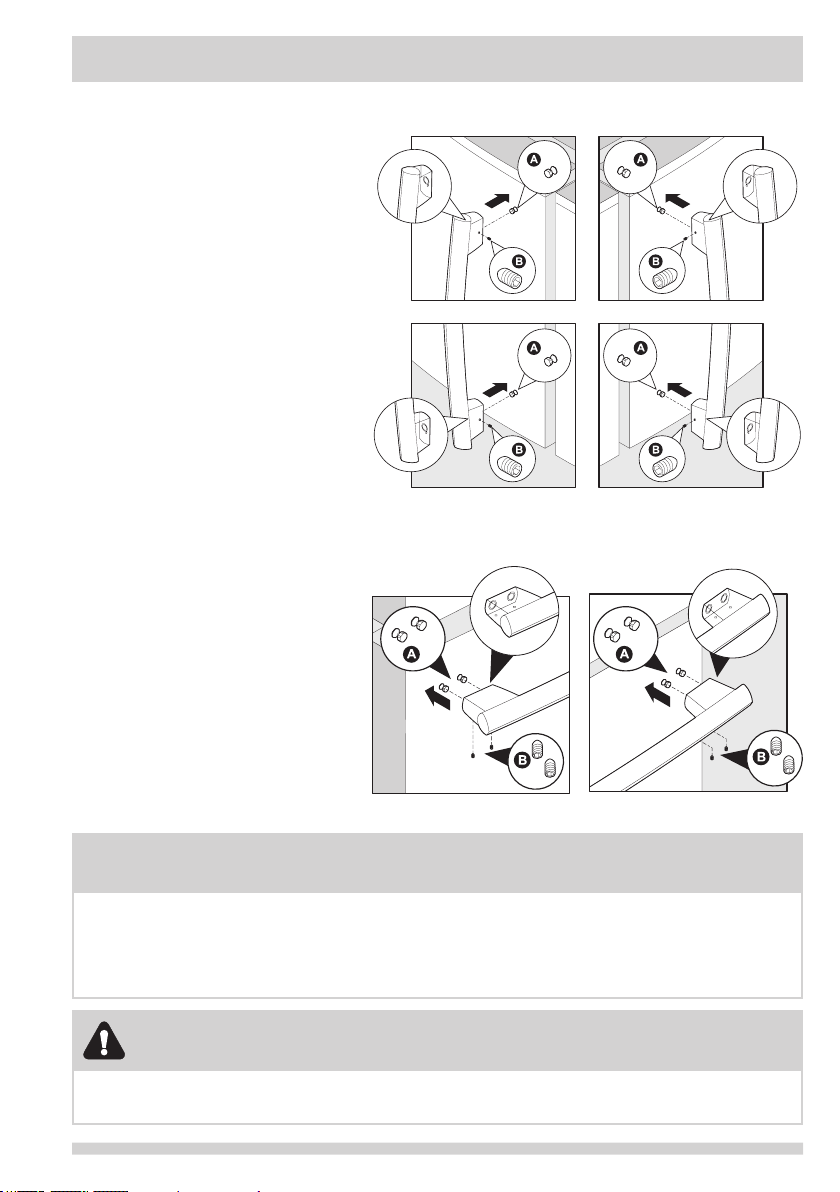

Installing Door Handles.............................13
Connecting Water Supply ..........................16

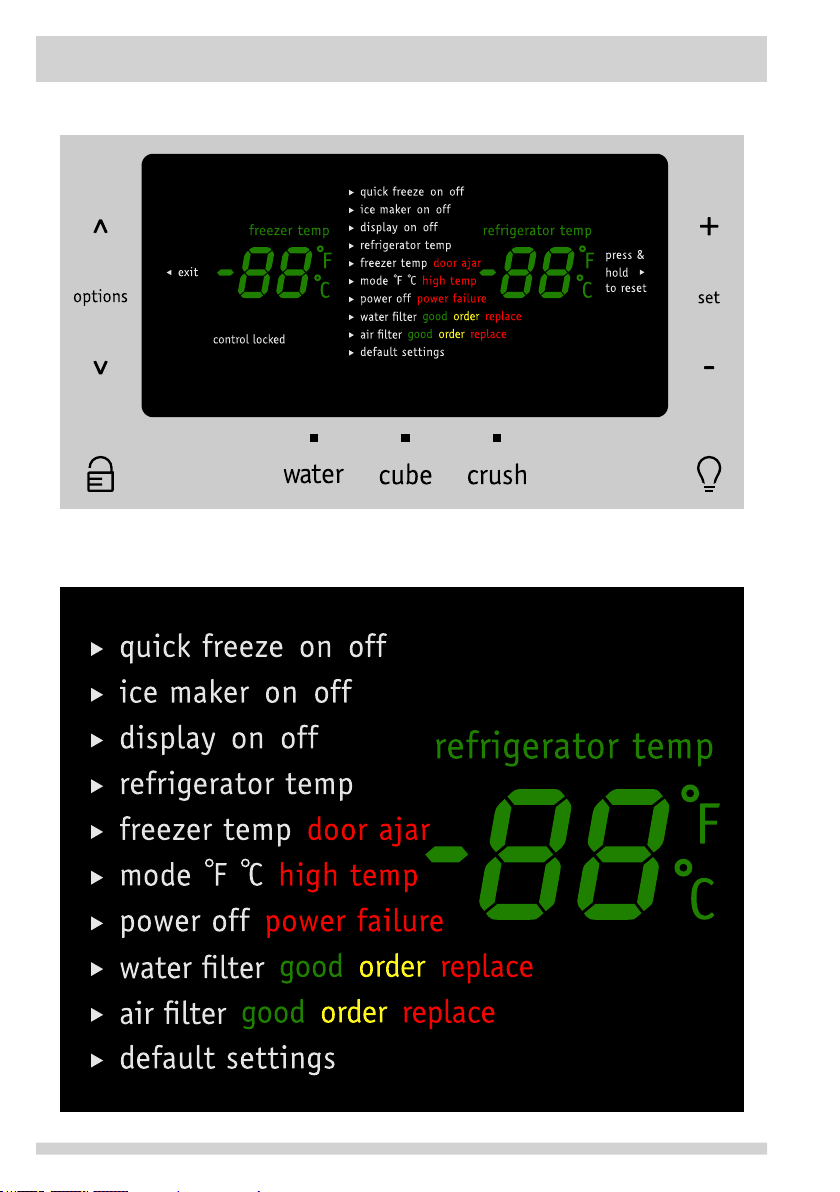

Controls...................................................18
Automatic Ice & Water Dispenser ..............21
808857601 (September 2013)
Automatic Ice Maker - Freezer...................24
Storage Features ......................................25
Storing Food and Saving Energy................29
Normal Operating Sounds and Sights.........30
Changing the Filter...................................31
Care and Cleaning....................................33
Before you Call.........................................37
Major Appliance Warranty .........................41

WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
IMPORTANT
IMPORTANT indicates installation, operation or
maintenance information which is important but
not hazard-related.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
Denitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol
to avoid possible injury or death.
Doors
Handles are secure and tight
Door seals completely to cabinet on all sides
Freezer drawer is level across the top
Leveling
Refrigerator is level, side-to-side and tilted
¼” (6 mm) front-to-back
Toe grille is properly attached to refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator
No water leaks present at all connections -
recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates correctly
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
2
IMPORTANT SAFETY INSTRUCTIONS
For your Safety
• DO NOT store or use gasoline, or other
ammableliquidsinthevicinityofthisor
any other appliance. Read product labels for
warningsregardingammabilityandother
hazards.
• DO NOT operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts of
automatic ice maker.
• Remove all staples from the carton. Staples
can cause severe cuts, and also destroy
nishesiftheycomeincontactwithother
appliances or furniture.
WARNING
Please read all instructions before using this
refrigerator.
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately after
the refrigerator is unpacked. Children should
NEVER use these items to play. Cartons covered
with rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and can
quicklycausesuffocation.

3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a cooling system
thatusedCFCsorHCFCs(chlorouorocarbons
orhydrochlorouorocarbons).CFCsandHCFCs
are believed to harm stratospheric ozone if
released to the atmosphere. Other refrigerants
may also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old refrigerator,
make sure the refrigerant is removed for
properdisposalbyaqualiedtechnician.If
you intentionally release refrigerant, you may
besubjecttonesandimprisonmentunder
provisions of environmental legislation.
Electrical information
• The refrigerator must be plugged into its
own dedicated 115 Volt, 60 Hz., 15 Amp, AC
only electrical outlet. The power cord of the
applianceisequippedwithathree-prong
grounding plug for your protection against
electrical shock hazards. It must be plugged
directly into a properly grounded three
prong receptacle. The receptacle must be
installed in accordance with local codes and
ordinances.Consultaqualiedelectrician.
Avoid connecting refrigerator to a Ground
Fault Interrupter (GFI) circuit. Do not use an
extension cord or adapter plug.
• If the power cord is damaged, it should be
replaced by an authorized service technician to
prevent any risk.
• Never unplug the refrigerator by pulling on the
powercord.Alwaysgriptheplugrmly,and
pull straight out from the receptacle to prevent
damaging the power cord.
• Unplug the refrigerator before cleaning and
before replacing a light bulb to avoid electrical
shock.
• Performance may be affected if the voltage
varies by 10% or more. Operating the
refrigeratorwithinsufcientpowercan
damage the compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an electrical outlet
controlled by a wall switch or pull cord to
prevent the refrigerator from being turned off
accidentally.
Proper Disposal of your
Refrigerator or Freezer
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators or freezers are still dangerous –
even if they will sit for “just a few days”. If you
are getting rid of your old refrigerator or freezer,
please follow the instructions below to help
prevent accidents.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your utility
company or visit www.energystar.gov/recycle for
more information on recycling your old refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove
doors.
• Leave shelves
in place so
children may
not easily
climb inside.
• Have
refrigerant
removed by
aqualied
service technician.
IMPORTANT
Pressing and holding the On/Off button for
three seconds, located on the temperature
control panel, will disable your refrigerator’s
cooling system but does not disconnect the
power to the light bulb and other electrical
components. To turn off power to your
refrigerator you must unplug the power cord
from the electrical outlet.

4
IMPORTANT SAFETY INSTRUCTIONS

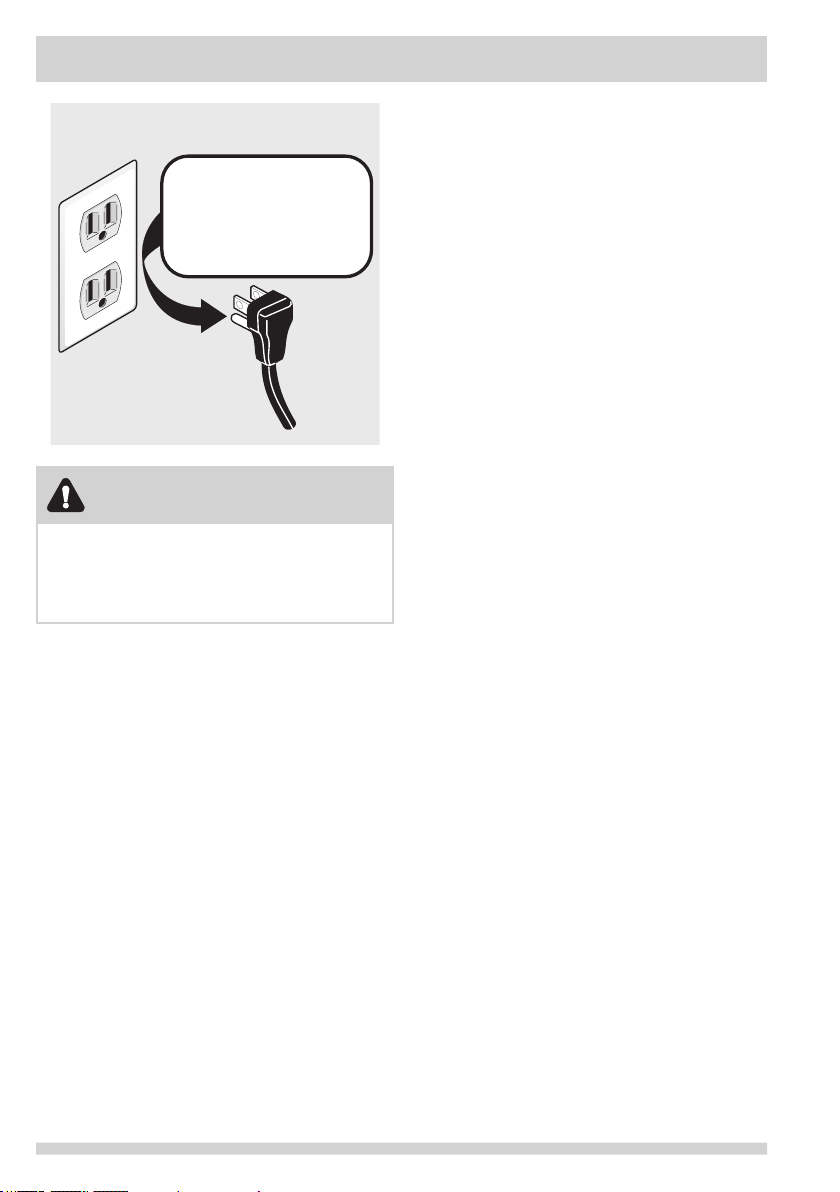

Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
CAUTION
To avoid personal injury or property damage,
handle tempered glass shelves carefully.
Shelves may break suddenly if nicked,
scratched, or exposed to sudden temperature
change.

IMPORTANT
Features not purchased with your refrigerator can be purchased at www.frigidaire.com
or by calling 1-800-944-9044.
5

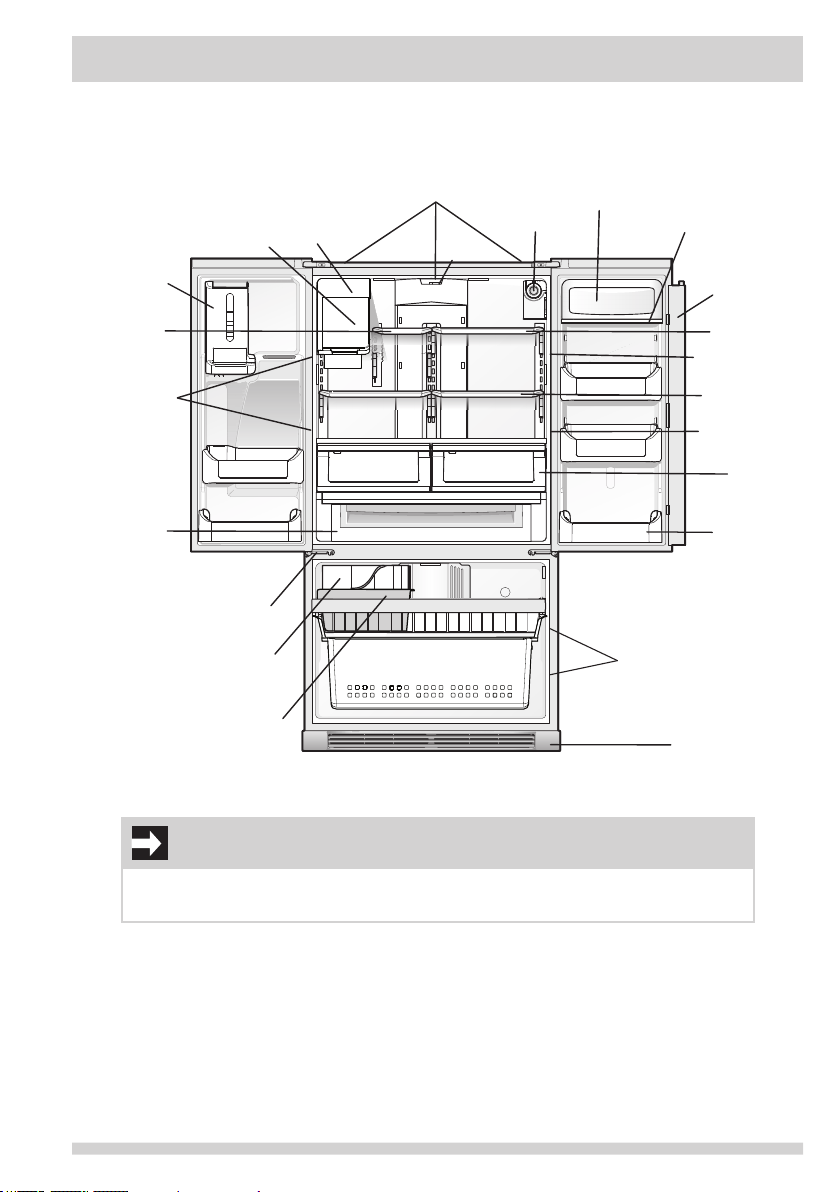

FEATURES AT A GLANCE
*Features may vary according to model
Flip Shelf
*Store-
MoreTM
Drawer
Water
Filter
Removable
Ice Bin
*Freezer Ice
Maker
Adjustable Hinges
Freezer Baskets
Toe Grille
*Door Bin
Spillsafe®
Shelves
Flipper
Mullion
*Air
Filter
Flipper
Guide
*Fresh Food
Ice Maker
Ice
Bin
Crisper
Drawer
*LED Cluster
Light
*Dairy
Compartment
*LED
Cluster Lights
*LED Cluster
Light
Slide-Under
Shelf
*Can Rack
*LED Cluster
Light

NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space so the door can be
opened wider.
6
INSTALLATION
CAUTION
Do Not install the refrigerator where the
temperature will drop below 55° F (13° C) or
rise above 110° F (43° C). The compressor will
not be able to maintain proper temperatures
inside the refrigerator.
Do Not block the toe grille on the lower front
ofyourrefrigerator.Sufcientaircirculation
is essential for the proper operation of your
refrigerator.
This Use & Care Guide provides general
installation and operating instructions for your
model. We recommend using a service or kitchen
contracting professional to install your refrigerator.
Use the refrigerator only as instructed in this Use
& Care Guide. Before starting the refrigerator,
follow these important rst steps.
Location
• Choose a place that is near a grounded,
non-GFCI, electrical outlet. Do Not use an
extension cord or an adapter plug.
• If possible, place the refrigerator out of direct
sunlight and away from the range, dishwasher,
or other heat sources.
• Therefrigeratormustbeinstalledonaoor
that is level and strong enough to support a
fully loaded refrigerator.
• Consider water supply availability for models
equippedwithanautomaticicemaker.
Installation
Allow the following clearances for ease of
installation, proper air circulation, and plumbing
and electrical connections:
 Sides&Top ⅜inch(9.5mm)
Back 1 inch (25.4 mm)
Door opening
Your refrigerator should be positioned to allow
easy access to a counter when removing food.
For best use of refrigerator drawers and freezer
baskets, the refrigerator should be in a position
where both can be fully opened.

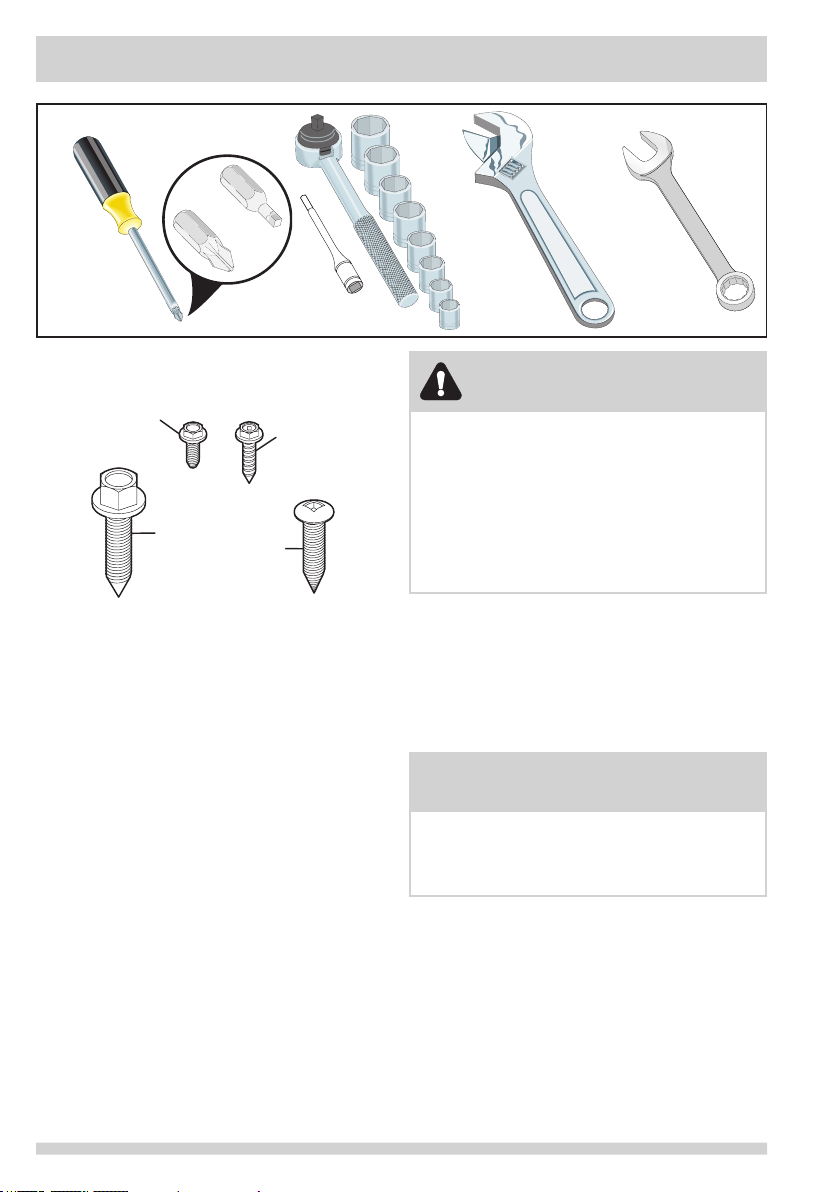

Adjustable
Wrench
Socket
Wrench Set
Phillips Head
or
#2 Square
Drive Head
(OR)
Tools Necessary:
3/8" Fixed
Wrench
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw
Components Provided:
AND OR OR

7
INSTALLATION
Toe Grille Must
Fit in Slot on
Anti-tip Bracket
Screw/Washer
Assembly
(3) Retaining Clips
• Doors should align with each other and be
level.
Most of these conditions can be met by
raising or lowering the adjustable front
rollers.
To level the cabinet using the front rollers:
Leveling Freezer Drawer (if necessary)
To level the freezer drawer:
1 Check gasket seal around top, bottom, and sides of freezer drawer.
2 If gasket is not sealed, open drawer and slightly loosen four drawer screws (two on each side) to
allow drawer to rotate.
3 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not to
rotate the drawer.
4 Tighten four drawer screws.
5 Recheck gasket seal.

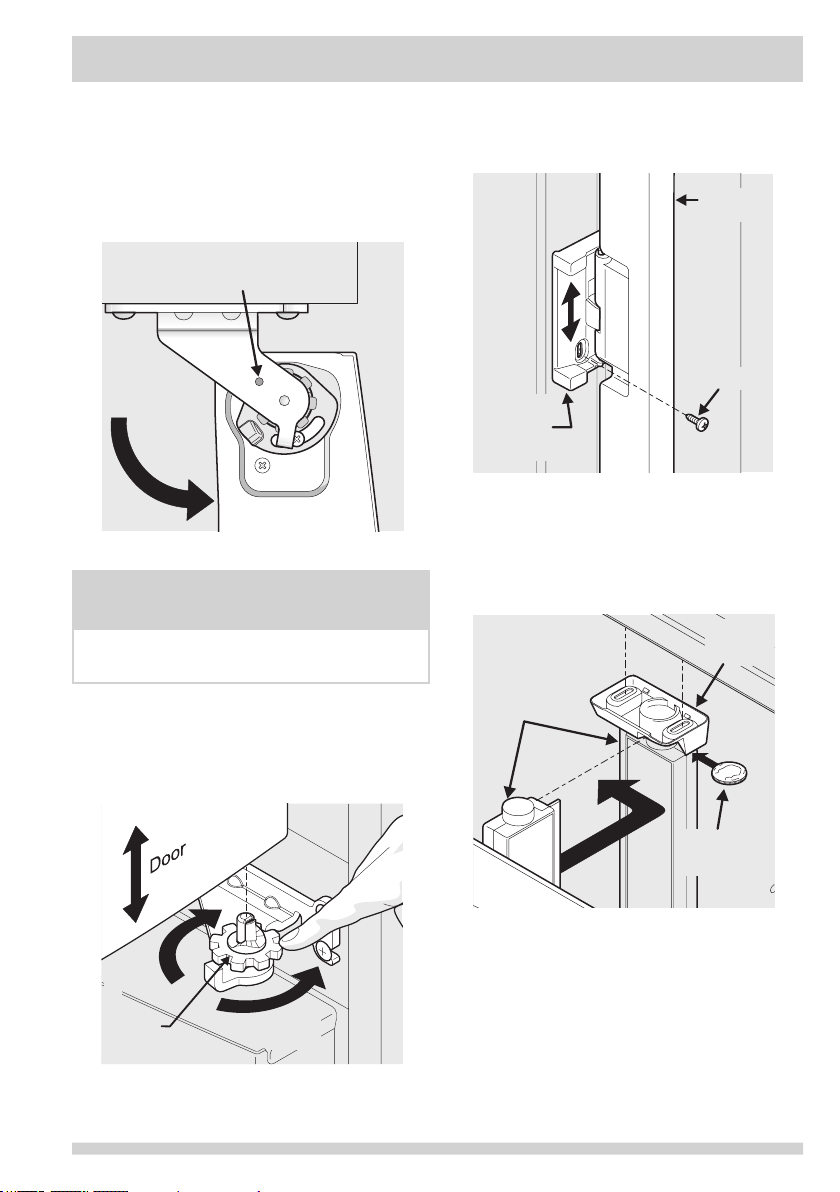

Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for nal positioning of your
refrigerator:
• Allfourcornersofthecabinetmustrestrmly
ontheoor.
• The sides should tilt ¼ inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
AB
Grab
Drawer
at Center
from Both
Sides
Then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
1 Slightly open freezer drawer. Lift the toe grille
and gently pull forward (see illustration).
2 You can raise or lower each door. Use a
⅜inchsocketwrenchtoturntheadjustment
screws (one per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw
counterclockwise.
3 Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.
Remove Hex
Head Drawer
Screw
Remove
Hex Head Drawer
Screw
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
Remove
Hex Head Drawer
Screw

8
To adjust the door stop:
Door stop is adjustable between 85 to 145
degrees.
1 Open door to provide access to screw.
2 Loosen screw.
3 Adjust door to desired location.
4 Rotate door stop until it makes contact with
the lower hinge.
5 Re-tighten screw.
Rotate
Door to Desired
Location
Adjusting Door
Rotate
Door
Stop
Re-tighten
Screw
Re-tighten Screw
Adjustable Door Stop
Door
Stop
Screw
Lower
Hinge
Min
Open
Max
Open
INSTALLATION
NOTE
View shown is looking up at the bottom of the
refrigerator door.
4 After unit is leveled, lower anti-tip leg until it
contactstheoor.
Raise
Lower
Anti-tip
Leg
Door
Door
 5 Installthetoegrillebyttingintoplace.
6 Ensure door stops in desired location before
resuming normal use.

9
Open
Door
90
Degrees
Loosen or Remove
Screw
Bottom of Door
Loosen/Remove Screw (where applicable)
To level the doors using the adjustable
lower hinge (select models):
1 Remove all food items from door bins on door
being adjusted.
2 Open doors to 90 degrees.
3 Loosen or remove screw.
NOTE
Adjustable hinge should only be used after
doors have been leveled with rollers.
Flipper
Mullion
Screw
Flipper
Mullion
Hinge
Adjusting Flipper Mullion Screw
To adjust the ipper mullion:
 1 Loosenthescrewlocatedontheipper
mullion hinge.
 2 Adjustippermullionheight.Forproper
connectionwiththeippermullionguide,
there should be a separation about the
thickness of a coin (0.060 inches, or 1.5 mm)
betweentheguideandippermullion.
3 Re-tighten screw.
4 Lift the door while adjusting the washer.
To raise the door, rotate washer clockwise
(when viewed from the bottom). To lower
door, rotate washer counter-clockwise (when
viewed from the bottom).
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
Hinge
Washer
Raise
Door
Lower
Door
Raising/Lowering Door
INSTALLATION

10
DOOR REMOVAL INSTRUCTIONS
To remove the refrigerator doors:
1 Trace lightly around the door’s top hinges
with a pencil. This makes reinstallation easier.
2 Disconnect the harness by grasping both
sidesoftheconnectorrmly,depressthe
latch, and pull apart. Remove the two screws
from the top hinge. Lift the door off of the
bottom hinge and set it aside.
3 Detach the water tube from the connector
located behind the refrigerator and pull the
tube back out to the front of the unit. The
connector releases when you press inward
on the outer sleeve while pushing the tube
toward the connector then while continuing to
hold in the sleeve, pull the tube away.
Getting through narrow spaces
Ifyourrefrigeratorwillnottthroughanentrance
area,youcanremovethedoors.Checkrstby
measuring the entrance.
To prepare for removing the doors:
1 Make sure the electrical power cord is
unplugged from the wall outlet.
2 Open the freezer drawer and remove the toe
grille (see “Installation” section).
3 Remove any food from the door shelves and
close the doors.
To remove the top hinge covers:
1 Remove the two screws from each cover over
the top door hinges.
2 Lift inside edge of hinge cover and tilt back.
Rear
Cover
Screw
Ground
Screw
Top
Hinge
Top Hinge
Cover
Hinge
Screws
Multi-wire
Cables
Leave
Hinge
With
Door
Front
Cover Screw
Water
Line
Rear
Cover
Screw
Front
Cover Screw
Top Hinge
Cover
Hinge
Screws
Two Wire
Cables
Leave
Hinge
With
Door
Top
Hinge
Ground
Screw
NOTE
DO NOT remove the ground screw from hinge.
NOTE
Use care while pulling the water tube from the
unit to be sure that you do not kink the tube.

CAUTION
Be sure doors are set aside in a secure position
where they cannot fall and cause personal
injury, or damage to the doors or handles.
11
Press
Press
Approximately
5 feet
Water
Line
DOOR REMOVAL INSTRUCTIONS
Once both doors are in place, ensure they are
aligned with each other and level (Please see
the “Installation” section for more details), and
replace the top hinge cover.
Lower Hinge Removal
4 Unscrew the three lower hinge screws and
hinge if necessary.
To reinstall the right door, reverse the above
steps.
NOTE
Youwillbepullingapproximatelyvefeetof
water tube from the back of the refrigerator.
NOTE
When reinserting the water tube and replacing
the top hinge cover, use care to be sure you do
not kink the tube.

CAUTION
Drawer is heavy. Use caution when lifting.
12
DOOR REMOVAL INSTRUCTIONS
Removing Freezer Drawer
1 Open freezer drawer.
2 Remove drawer screws on right and left sides (two screws on each side).
3 Lift drawer up and out to remove.
Installing Freezer Drawer
1 With lower slides pulled out, hang drawer
onto slide brackets ensuring pins on each side
are fully inserted into slots on each side.
6 Tighten four drawer screws.
7 Recheck gasket seal.
 8 Installthetoegrillebyttingintoplace.
AB
Grab
Drawer
at Center
from Both
Sides
Then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
Assembly
Pin
Slot
Cabinet
Fully Extend
Drawer Slides
Install
crews
(2) Each
Side
3 Check gasket seal around top, bottom, and
sides of freezer drawer.
4 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
5 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not to
rotate the drawer.
Remove Hex
Head Drawer
Screw
Remove
Hex Head Drawer
Screw
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
Remove
Hex Head Drawer
Screw
NOTE
Do not remove center screw from freezer
drawer. This is a factory adjustment.
2 Reinstall four drawer screws (two per side),
tighten down, and close drawer.

13
INSTALLING DOOR HANDLES
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The handles
should be drawn tight to freezer and refrigerator doors with no gaps. Opening the opposite door
while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens, tighten the
set screws on the handles.
Door Handle Mounting
Instructions for Frigidaire
1 Remove handles from carton and
any other protective packaging.
2 Position fresh food handle end caps
over upper and lower pre-installed
shoulder bolts (A) that are fastened
into door, ensuring the holes for the
set screws are facing towards the
opposite door.
 3 Whileholdinghandlermlyagainst
door, fasten upper and lower Allen set
screws (B) with supplied Allen wrench.
4 Repeat steps 2 and 3 to install
opposite handle. Ensure the holes
for the set screws are facing
towardstherstdoor.
5 Position freezer handle end caps
over left and right pre-installed
shoulder bolts that are fastened to
the door, ensuring the holes for the
set screws are facing down.
 6 Whileholdinghandlermlyagainst
door, loosely tighten right Allen
set screw (B) with supplied Allen
wrench until there is no gap
between handle and door.
 7 Stillholdingthehandlermlytothe
door,rmlytightenleftAllenset
screw (B) with supplied Allen wrench.
8 Return to the right Allen set screw
(B)andrmlytightenwithsupplied
Allen wrench.
Mounting Freezer Handle
Mounting Refrigerator Handles

CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
14
INSTALLING DOOR HANDLES
Door Handle Mounting
Instructions for Frigidaire
Gallery®
1 Remove handles from carton and any
other protective packaging.
2 Position fresh food handle end
over upper and lower pre-installed
shoulder bolts (A) that are fastened
into door, ensuring the holes for the
set screws are facing towards the
opposite door.
 3 Whileholdinghandlermlyagainst
door, fasten upper and lower Allen set
screws (B) with supplied Allen wrench.
4 Repeat steps 2 and 3 to install
opposite handle. Ensure the holes for
the set screws are facing towards the
rstdoor.
5 Position freezer handle end over
left and right pre-installed handle
mounts that are fastened to the
door, ensuring the holes for the set
screws are facing down.
 6 Whileholdinghandlermlyagainst
door, loosely tighten far right Allen
set screw (B) with supplied Allen
wrench until there is no gap between
handle and door.
 7 Stillholdingthehandlermlytothe
door,rmlytightenfarleftAllenset
screw (B) with supplied Allen wrench.
8 Return to the far right Allen set
screw(B)andrmlytightenwith
supplied Allen wrench.
Mounting Refrigerator Handles
Mounting Freezer Handle
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The handles
should be drawn tight to freezer and refrigerator doors with no gaps. Opening the opposite door
while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens, tighten the
set screws on the handles.

CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
15
Door Handle Mounting
Instructions for Frigidaire
Professional®
1Remove handles from carton and any
other protective packaging.
2Position fresh food handle end
over upper and lower pre-installed
shoulder bolts (A) that are fastened
into door, ensuring the holes for the
set screws are facing towards the
opposite door.
3 Whileholdinghandlermlyagainst
door, fasten upper and lower Allen set
screws (B) with supplied Allen wrench.
4Repeat steps 2 and 3 to install
opposite handle. Ensure the holes for
the set screws are facing towards the
rstdoor.
5Position freezer handle end over
left and right pre-installed handle
mounts that are fastened to the
door, ensuring the holes for the set
screws are facing down.
6 Whileholdinghandlermlyagainst
door, loosely tighten far right Allen
set screw (B) with supplied Allen
wrench until there is no gap between
handle and door.
7 Stillholdingthehandlermlytothe
door,rmlytightenfarleftAllenset
screw (B) with supplied Allen wrench.
8Return to the far right Allen set
screw(B)andrmlytightenwith
supplied Allen wrench.
9Firmly tighten the inside Allen set screws.
INSTALLING DOOR HANDLES
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The handles
should be drawn tight to freezer and refrigerator doors with no gaps. Opening the opposite door
while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens, tighten the
set screws on the handles.
Mounting Refrigerator Handles
Mounting Freezer Handle

16
CONNECTING THE WATER SUPPLY
WARNING
To avoid electric shock, which can cause
death or severe personal injury, disconnect
the refrigerator from electrical power before
connecting a water supply line to the
refrigerator.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing your
new refrigerator. Depending on your local/
state building codes, Frigidaire recommends
for homes with existing valves its Smart
Choice®water line kit 5305513409 (with
a 6 ft. Stainless Steel Water Line) and for
homes without an existing valve, Frigidaire
recommends its Smart Choice®water line kit
5305510264 (with a 20 ft. Copper Water Line
with self-tapping saddle valve). Please refer to
www.frigidaire.com/store for more information.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply line.
Water supply tubing made of ¼ inch plastic
is not recommended to be used. Plastic
tubing greatly increases the potential for
water leaks, and the manufacturer will not be
responsible for any damage if plastic tubing
is used for the supply line.
• DO NOT install water supply tubing in areas
where temperatures fall below freezing.
• Chemicals from a malfunctioning water
softener can damage the ice maker. If your
home has a water softening system, ensure
the softener is maintained and working
properly.
IMPORTANT
Ensure that your water supply line connections
comply with all local plumbing codes.
Before Installing The Water Supply
Line, You Will Need:
• BasicTools:adjustablewrench,at-blade
screwdriver, and PhillipsTM screwdriver
• Access to a household cold water line with
water pressure between 30 and 100 psi.
• A water supply line made of ¼ inch (6.4 mm)
OD, copper or stainless steel tubing. To
determine the length of tubing needed,
measure the distance from the ice maker
inlet valve at the back of the refrigerator to
your cold water pipe. Then add approximately
7 feet (2.1 meters), so the refrigerator can be
moved out for cleaning (as shown).
• A shutoff valve to connect the water supply
line to your household water system. DO NOT
use a self-piercing type shutoff valve.
• Donotre-usecompressionttingoruse
thread seal tape.
• A compression nut and ferrule (sleeve) for
connecting a copper water supply line to the
ice maker inlet valve.

17
IMPORTANT
After connecting the water supply, refer to
“How to Prime the Water Supply System” for
important information about priming an empty
water supply system.
Your refrigerator’s water supply system includes
severaltubinglines,awaterlter,awater
valve, and a water tank. To ensure that your
water dispenser works properly, this system
mustbecompletelylledwithwaterwhenyour
refrigeratorisrstconnectedtothehousehold
water supply line.
CONNECTING THE WATER SUPPLY
Figure 1
Steel
Clamp
Brass
Compression
Nut
Water Line
Water Valve
Bracket
Valve Inlet
Water Valve
Water line from household
water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Ferrule
(Sleeve)
Plastic Water Tubing
to Ice Maker
Fill Tube
To Connect Water Supply Line To
Ice Maker Inlet Valve
1 Disconnect refrigerator from electric power
source.
2 Place end of water supply line into sink or
bucket.TurnONwatersupplyandush
supply line until water is clear. Turn OFF water
supply at shutoff valve.
3 Remove plastic cap from water valve inlet and
discard cap.
4 If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve) onto
water supply line. Push water supply line
into water valve inlet as far as it will go
(¼ inch/6.4 mm). Slide ferrule (sleeve) into
valveinletandngertightencompressionnut
onto valve. Tighten another half turn with a
wrench; DO NOT over tighten. See Figure 1.
If you use stainless steel tubing - The nut and
ferrule are already assembled on the tubing.
Slide compression nut onto valve inlet and
ngertightencompressionnutontovalve.
Tighten another half turn with a wrench; DO
NOT over tighten. See Figure 1.
5 With steel clamp and screw, secure water
supply line (copper tubing only) to rear panel
of refrigerator as shown.
6 Coil excess water supply line (copper tubing
only), about 2½ turns, behind refrigerator
as shown and arrange coils so they do not
vibrate or wear against any other surface. Do
not kink tubing.
7 Turn ON water supply at shutoff valve and
tighten any connections that leak.
8 Reconnect refrigerator to electrical power
source.
9 To turn ice maker on, lower wire signal arm
(freezer ice maker) or set the ice maker’s On/
Off power switch to the “On” position (fresh
food ice maker).

18
CONTROLS
Enlarged view of user interface display menu (options may vary)
User Interface (options may vary)

19
options
(∧ or ∨)
Used to enter and exit the
options menu and make
selections.
exit Toggles the options and run
modes.
control
locked
While in the locked state, you
will not be able to change any
settings on the display nor
dispense ice and water. The
“Control Locked” indicator will
ashandanaudiblewarning
tone is played.
quick
freeze on
off
Activates a faster rate for
freezing food and increases
ice production in the freezer.
Deactivates after 12 hours.
ice maker
on off
Toggles the ice maker in the
refrigerator compartment “ON”
or “OFF”. In the “Off” state, the
indicator will blink when ice is
dispensed.
display
on off
Toggles the temperature
displays On and Off.
refrigerator
temp
Allows the temperature set-
points to be adjusted. Control
temperatures range from +33°F
/ +1°C to +47°F / +8°C.
freezer
temp
Allows the temperature set-
points to be adjusted. Control
temperatures range from -6°F /
-21°C to +6°F / -15°C.
mode
°F °C
Toggles display from Fahrenheit
to Celsius.
light Toggles dispenser light On and
Off.
power off Press and hold for three seconds
to turn off the cooling system.
It also turns off the ice maker
and all dispenser functions. The
display will read “power off”.
water lter Displays the current status of
thewaterlter(Good,Order,
orReplace).Toresetthelter
status to “Good”, press and hold
the “set” key for three seconds.
air lter Displays the current status of
theairlter(Good,Order,or
Replace).Toresetthelter
status to “Good”, press and hold
the “set” key for three seconds.
default
settings
While in the default option,
press and hold the set key
for three seconds to reset all
refrigerator settings to their
factory default settings.
set (+ or -) Selects the current menu
selection option.
water Press the “water” key to select
water. A green indicator light will
be illuminated above the active
feature.
cube Press the “cube” key to select
cubed ice. A green indicator
light will be illuminated above
the active feature.
crush Press the “crush” key to select
crushed ice. A green indicator
light will be illuminated above
the active feature.
CONTROLS
Setting cooling temperatures
(options may vary)
NOTE
Whenyourstpowerontherefrigerator,the
temperature displays 0°F and 37°F. After a
few seconds, both of the displays will switch to
“HI”. The displays will continue to show “HI” for
20 minutes. After 20 minutes, the High Temp
alarm will sound and both displays will show
the actual temperature.
1 Plus (+) and Minus (-) indicators are located
on the right side of the control panel.
2 Press the + or - indicator to adjust the
temperature to the desired setting.
Options May Vary

20
CONTROLS
Alarms
Power Failure
In the event of a power failure, the power fail
alert will be illuminated. Press alarm reset to
acknowledge the alarm. Other modes may be
turned off until the alarm is acknowledged. When
the power fail alert is acknowledged, the refrigera-
tor will resume normal operation. The high temp
alarm may also be illuminated until a safe operat-
ing range temperature has been reached.
Freezer Temp
If the freezer temperature reaches 26°F or
greater, the alarm will sound and the temperature
willash.Youcandisablethealarmbypressing
the set key but the “High Temp” indicator will il-
luminate until the temperature goes below 26°F.
Fresh Food Temp
If the fresh food temperature reaches 55°F or
greater, the alarm will sound and the temperature
willash.Youcandisablethealarmbypressing
the set key but the “High Temp” indicator will il-
luminate until the temperature goes below 55°F.
Door Ajar
If the freezer or fresh food doors have been left
openforveminutesormore,analarmwillsound
and the door ajar indicator will illuminate on the
display. Press the set key to reset any system
alarms.
Flapper
When“Cube”or“Crush”isselected,iftheap-
per (or ice chute door) is being held open by a
jammed ice cube, an alarm will sound for two
minutes. The alarm will reset after two minutes or
when the ice cube is removed and the set key is
pressed to reset.
Sabbath Mode
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
in accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by pressing
and holding both the “∨” and “+”forveseconds.
The display shows “Sb” while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is
active for health reasons. If a high temperature
alarm is activated during this time, for example
due to a door left ajar, the alarm will sound
intermittently for about two minutes. The alarm
will then silence on its own and a red high
temperature icon will display. The high temp icon
will continue to display, even if the door is closed,
until the Sabbath mode is exited and the icon
reset. The refrigerator will function normally once
the door is closed, without any violation of the
Sabbath/Holidays.
For further assistance, guidelines for proper usage
and a complete list of models with the
Sabbath feature, please visit the web at
http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights,
dispenser, nor the control panel will work until
Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode after power
failure recovery. It must be deactivated with the
buttons on the control panel.
NOTE
Although you have entered the Sabbath Mode,
the ice maker will complete the cycle it had
already initiated. The ice cube compartment will
remain cold and new ice cubes can be made
with standard trays.
