Frigidaire PLHS69EG User manual

N58L00002.eps N58FFDEEA2.eps N58RFCBBC7.eps N58BAAAAB5.eps
N58SLDJBE13.eps N58TCAAAB4.eps N58CAAAAC9.eps N58XEAAAA1.eps
N58YDAAAC0.eps n58I115T1.eps W241689701.eps S241689701.eps
Product No. PLHS69EGSS1
Series R134a
Color stainless
Volts 115
Wiring Diagram 241689701
Owner's Guide 241695101
Market North America
Energy Guide 241649279
Service Data Sheet 241636602
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995468013
06/06/13
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
PLHS69EG
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995468013 PLHS69EGSS1
06/06 2
FREEZER DOOR
68
55
5
5
22C
22A
21A
13A
11
4B
N58FFDEEA2
1
18
79
79 80
80
4C

PLHS69EGSS1 Publication No: 5995468013
# Functional Parts 3 06/06
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241674806 Gasket-frzr door, black, magnetic
4B 240334202 Bin-door, frzr-upper
4C 240351702 Bin-door, frzr-dispenser
5 241545005 Bin-tilt out, tilt-out
11 241668500 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240536813 Handle-door, stainless steel
21A 240598402 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240352102 Connector-water, straight
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit

Publication No: 5995468013 PLHS69EGSS1
06/06 4

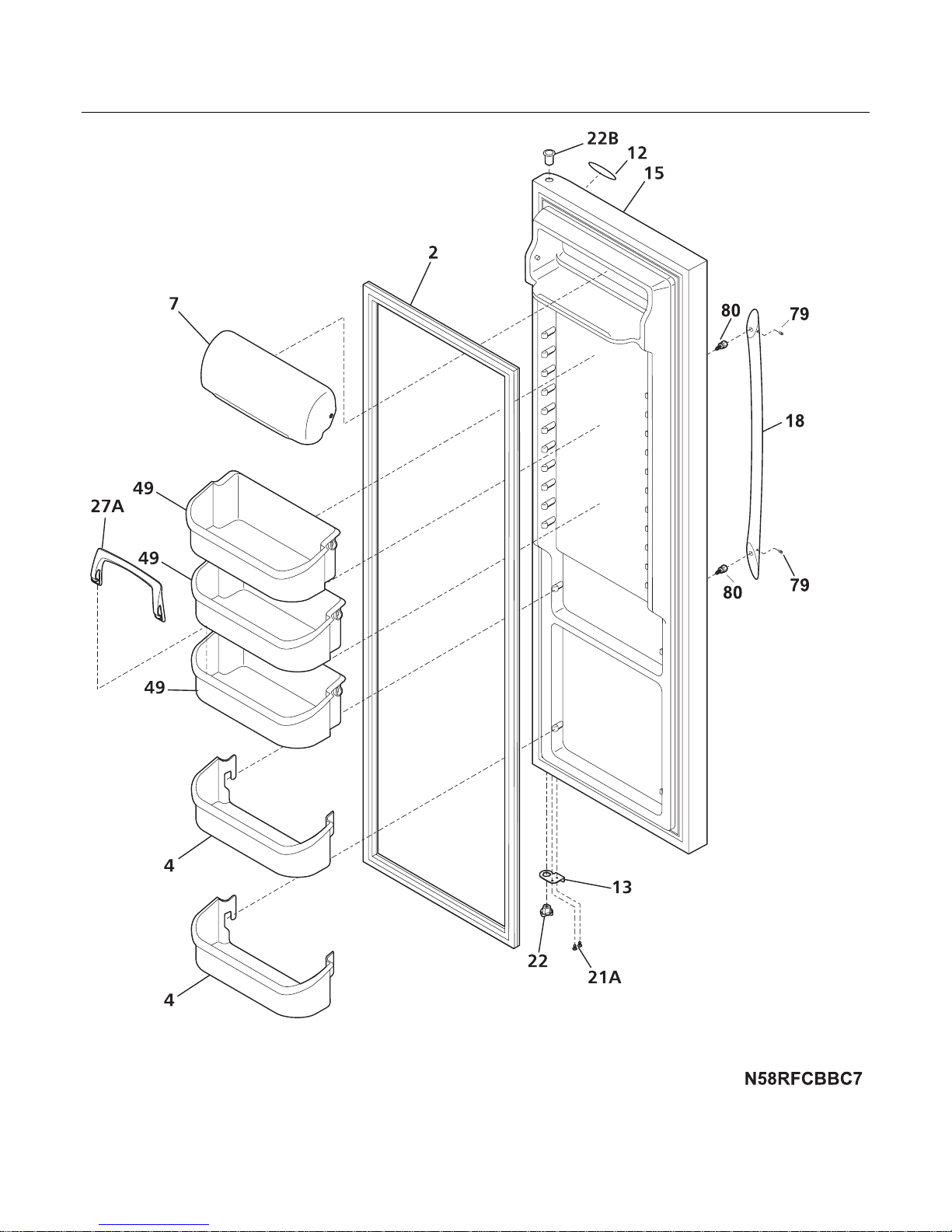

REFRIGERATOR DOOR

PLHS69EGSS1 Publication No: 5995468013
# Functional Parts 5 06/06
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241674805 Gasket-refr door, black, magnetic
4 240323002 Bin-door, pseudo, bottom
7 240326203 Door-dairy
12 240558802 Label-nameplate
13 240581905 Door Stop, black, ref
15 241534541 Door-refr, stainless steel, complete assy
18 240536813 Handle-door, stainless steel
21A 240598402 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
27A 240396102 Retainer, tall bottle
49 240430312 Bin-door, gallon
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995468013 PLHS69EGSS1
06/06 6

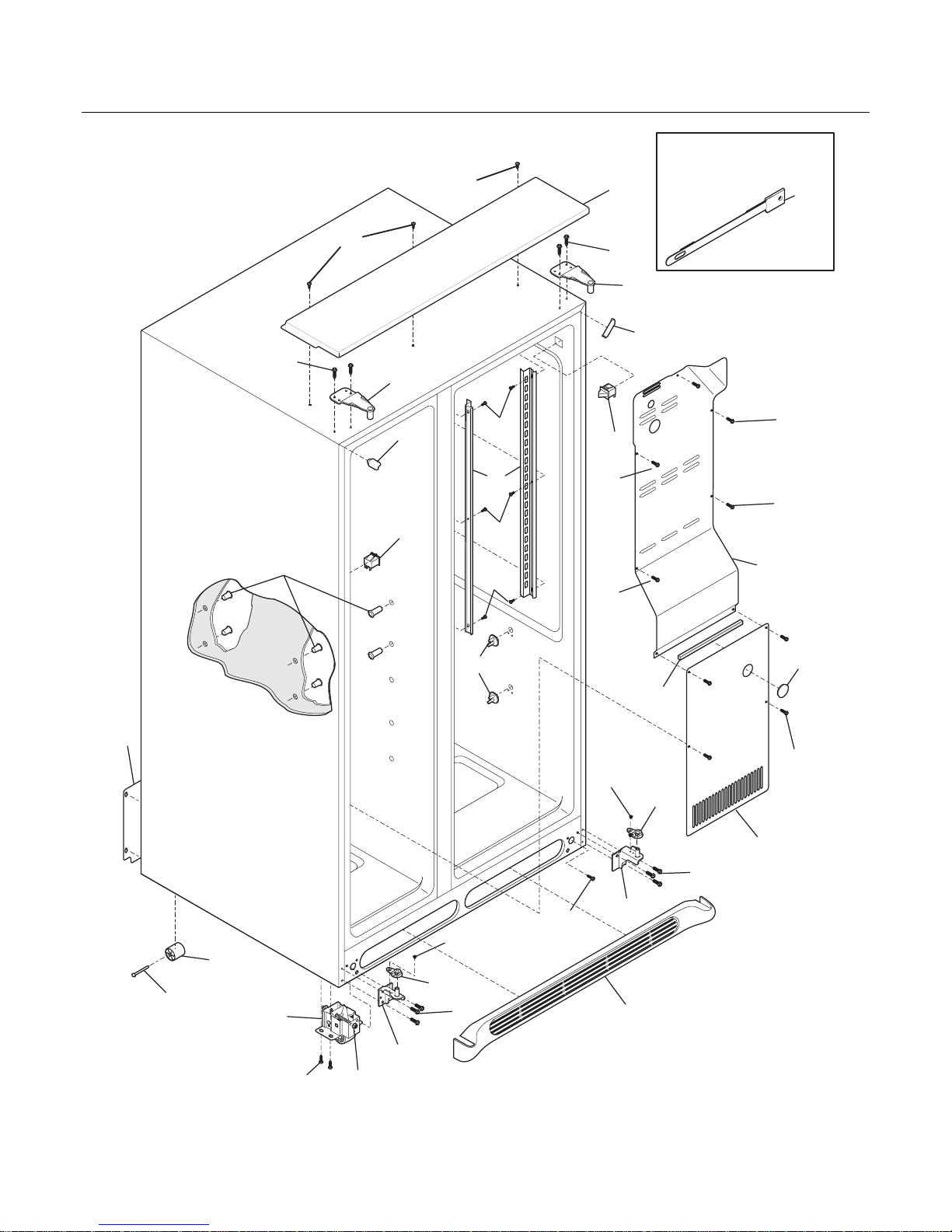

CABINET
66
92
92
38
38
37
37
14A
14
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB5
10
90
11
45
45
45
45
45
81
81
81
47
58
58
40

PLHS69EGSS1 Publication No: 5995468013
# Functional Parts 7 06/06
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435908 Cover-air duct
10A 240475911 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337605 Trim-cabinet corner, silver, (2)
38 240327207 Bracket-upper hinge
40 241555103 Cover-hinge, black
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 241595402 Screw-#10-32 X 3/4
66 5304424968 Damper Cover Assy
66* 240518802 Pin-push, push-in, plastic
72 240324406 Grille/Kickplate, black
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574605 Cover-access, w/label
90 218249808 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes

Publication No: 5995468013 PLHS69EGSS1
06/06 8
SHELVES
120
122
121
11
39
11A
16
15
141
142
140A
15
39
126
81
81
126
52
52A
109
51
51A
49B
49A
52B
51B
2
97
51
52
101
101
49
N58SLDJBE13
100
25A
27
47A
15A
16A
21
25
26
47
26A
27A
42A
62
123
42
24A
24
140
81
11C
24B
136
2
60
81

PLHS69EGSS1 Publication No: 5995468013
# Functional Parts 9 06/06
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510604 Trim-basket
11 240350668 Shelf-freezer, glass, lower
11A 240350667 Shelf-freezer, glass, upper
11C 240324101 Shelf-pizza
15 241552801 Light Bulb
15A 241555401 Light Bulb
16 240590401 Socket-light
16* 241537504 Harness-wiring
16A 241513901 Socket-light
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 240355203 Shelf-"Spill-Safe", fixed
24A 240350106 Shelf-"Spill-Safe", cantilever, sliding
24B 240424602 Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240350702 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
26 240351022 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26* 240423101 Channel-divider
26* 240423201 Retainer
26* 240423301 Divider-crisper pan
26* 241595202 Clip-slide, pan-crisper
26A 241638201 Control-humidity
26A* 241638101 Frame-humidity control
27 240351219 Pan-crisper, lower
27A 240362201 Control-humidity
39 240367602 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42A 240349701 Hanger-meat pan, LH
42A* 240349901 Block-meat pan rail, LH
42A* 240350001 Spring-meat pan rail
47 240350602 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
49 240564401 Basket-sliding
49A 240530502 Basket-sliding, upper, half
49B 240530504 Basket-sliding, upper, full
51 240343002 Hanger-basket, RH
51A 240395502 Hanger-basket, RH
51B 240579801 Hanger-basket, RH
52 240343102 Hanger-basket, LH
52A 240395602 Hanger-basket, LH
52B 240579802 Hanger-basket, LH
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 240342818 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 Water Tank Assy, coiled tubing, front filter
100 240326302 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 Base-crisper light socket
120 241691901 Shelf-ice cream
121 241561001 Rail-ice cream shelf, LH

Publication No: 5995468013 PLHS69EGSS1
06/06 10
SHELVES
120
122
121
11
39
11A
16
15
141
142
140A
15
39
126
81
81
126
52
52A
109
51
51A
49B
49A
52B
51B
2
97
51
52
101
101
49
N58SLDJBE13
100
25A
27
47A
15A
16A
21
25
26
47
26A
27A
42A
62
123
42
24A
24
140
81
11C
24B
136
2
60
81

PLHS69EGSS1 Publication No: 5995468013
# Functional Parts 11 06/06
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
122 241692001 Rail-ice cream shelf, LH
123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
136 240424501 Dispenser-can, white
140 240430501 Channel, wtr tube cover
140A 240430503 Channel, wtr tube cover
141 240585404 Bracket-light socket
142 240582701 Shield-light, deli pan

Publication No: 5995468013 PLHS69EGSS1
06/06 12
CONTROLS
149
14
13
9
8
5
139
138
198
199
137
200
151
150
21
21A
23
115
53
81
101
15
16
20
N58TCAAAB4
81
81
17
81

PLHS69EGSS1 Publication No: 5995468013
# Functional Parts 13 06/06
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 # 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 # 241513901 Socket-light
17 241608801 Box-control, front
17*# 241663601 Harness-wiring, control box
20 241603913 Label-control box
21 # 241608401 Thermistor-refr
21A# 241608501 Thermistor-frzr
23 # 5304452071 Control, board assy
23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 241608901 Box-control
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 Screw, #8AB x 1 3/4"
115# 241600902 Damper Assy, w/seal
137 240396401 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240397301 Button-filter release
139 240396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241563501 Shroud-fan orfice
149* 241528306 Seal, shroud
150 241505101 Insulation-water tube cover
151 241505001 Cover-water tube
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe
* 3205266 Edge Protector, wiring harness

Publication No: 5995468013 PLHS69EGSS1
06/06 14

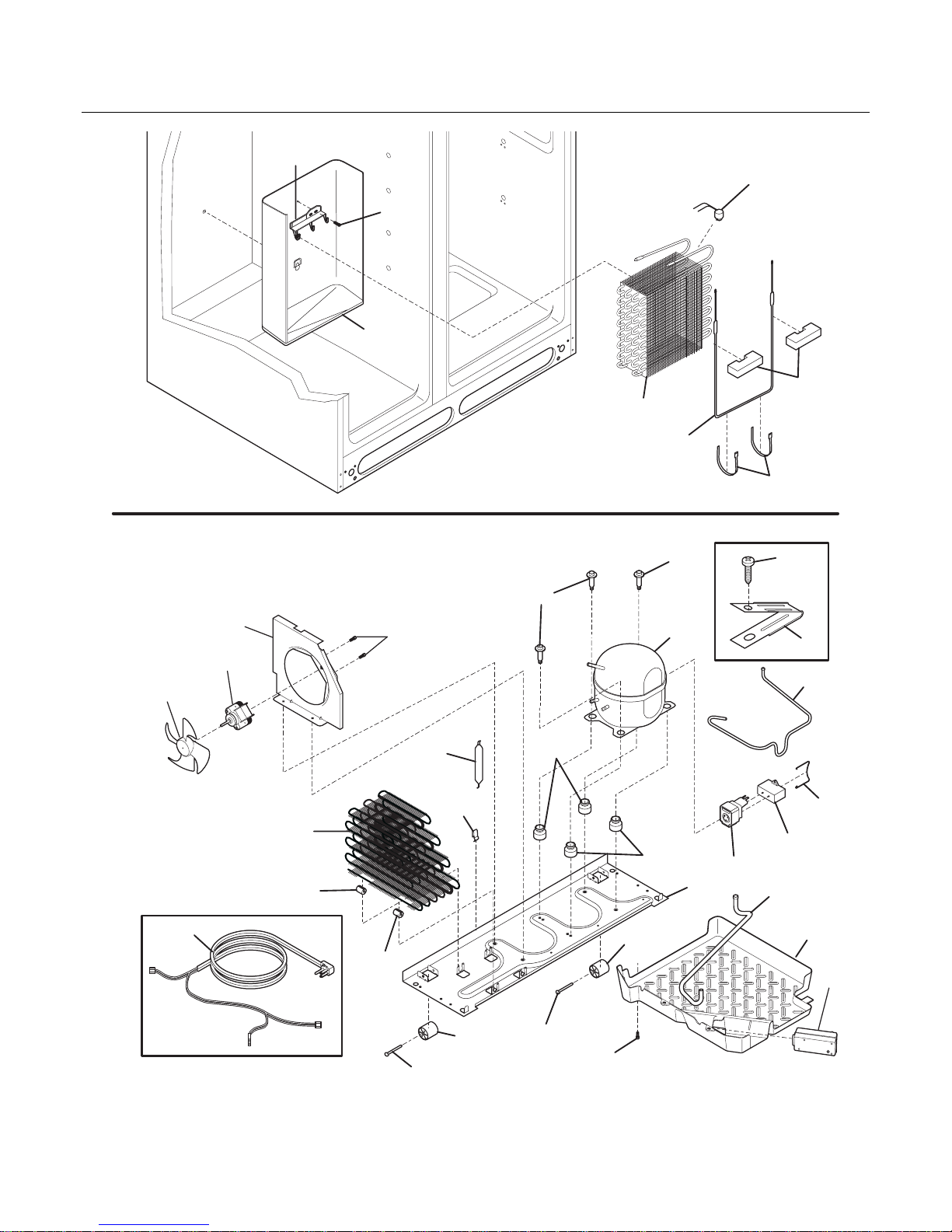

SYSTEM
85
84
83
83
82
82
70
62
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC9
25
25
23
23
22
21
16
15
14
6
4
3
1
50
60
59
61
58

PLHS69EGSS1 Publication No: 5995468013
# Functional Parts 15 06/06
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 # 241641401 Harness-wiring, machine compt
6* 241651601 Harness-wiring
6* 241663601 Harness-wiring, control box
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 # 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 Grommet, compressor
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241637401 Pan-defrost
29 # 5303918329 Compressor, kit, w/electricals
30 # 241707701 Starter, PTC
32 241650901 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 Housing-control, apollo lighting
50* 241641501 Screw
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 218897004 Screw, hex washer head, 8-32 x 0.375
59 5304430246 Bracket-cond motor assy
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
60 240525402 Motor, condensor fan
61 # 240524101 Fan Blade, galv steel, condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 241719501 Tube-connector, suction
* # 5303918222 Hot Tube Repair Kit, service
* # 5303918328 Heat Exchanger Kit, suction line, service

Publication No: 5995468013 PLHS69EGSS1
06/06 16

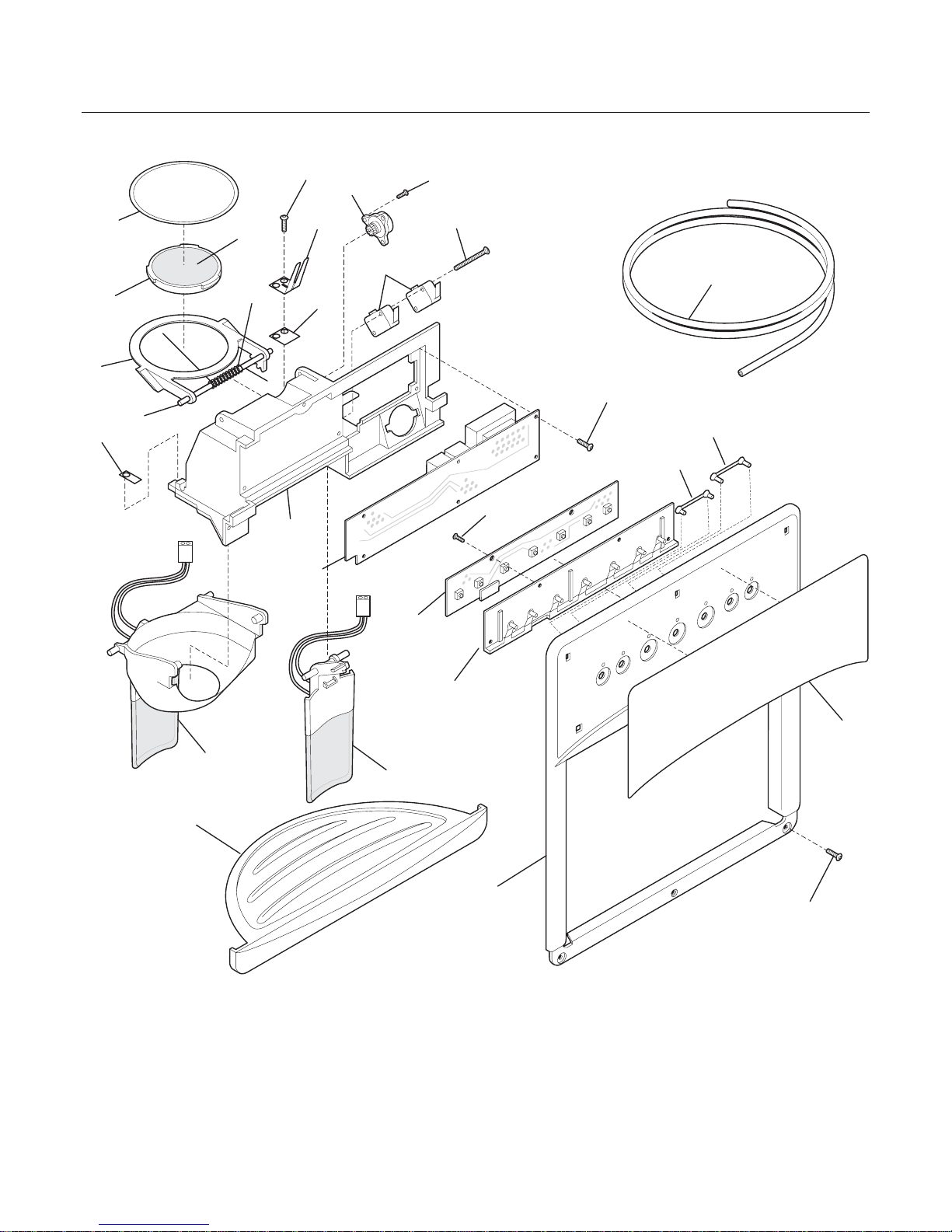

ICE & WATER DISPENSER
N58XEAAAA1
43
41
87
87A
35 17
56
38A
17
8
38
38C
1
17
24
24A
23
82
4
14
30
30A
30B
30C
39
10
90
91
36

PLHS69EGSS1 Publication No: 5995468013
# Functional Parts 17 06/06
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water-DOOR
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 241678703 Cover-module, black
8 5304424549 Module-dispenser
10 5304426649 Spring-torsion
14 240323949 Label-module cover, stainless
17 5304455697 Screw
23 241649003 Drip Tray, black
24 5304433613 Actuator-water, black
24A 5304433610 Actuator-ice, black
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
36 5304421824 Carrier
38 5304433619 Board-power
38A# 5304455698 Switch-micro, single pole, double throw
38C# 241708307 Board-control
38C* 5304430811 Harness-ribbon cable
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 5304455699 Screw, plask h/l, #6 x 3/8
56 5304455700 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
90 5304421831 Light Pipe, reflector
91 5304421850 Light Pipe, reflector, short
* 5303918256 Dispenser heater kit
* 5304426535 Insulator-electrical

Publication No: 5995468013 PLHS69EGSS1
06/06 18
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
58
51
26
26
26
26
10
21
26
44
44
44
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC0

PLHS69EGSS1 Publication No: 5995468013
# Functional Parts 19 06/06
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 241561301 Container-ice, bucket only
6 5304404346 Drum-ice disp
7 241561401 Front-ice container
10 241624801 Bar-drive
13 5304404359 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 5304404345 Drive Blade
18 # 5304447433 Motor-auger
18* 5304455843 Harness-wiring
20 5304404332 Cover-motor
21 215285100 Nut-drive
22 240597201 Sensor
23 5304404347 Plate-front
25 5304404362 Screw, hex washer head, 8-32T x 0.375
26 5304455680 Screw, plask, 4-14 x 3/8
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade, round
35B 5304404352 Fixed Blade, square
37A 5304404348 Blade, crusher #1
37B 5304404350 Blade, crusher #2
37C 5304404356 Blade, crusher #3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 5304455847 Screw, pan head, 8-32 x 0.250
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404329 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral, fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
58 5304404331 Screw-solenoid
70 241561502 Plate-mounting
70* 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
70* 241551601 Screw, hex head, 8-18B x 0.875
* 241561601 Ice Container Assy, w/moving parts

Publication No: 5995468013 PLHS69EGSS1
06/06 20

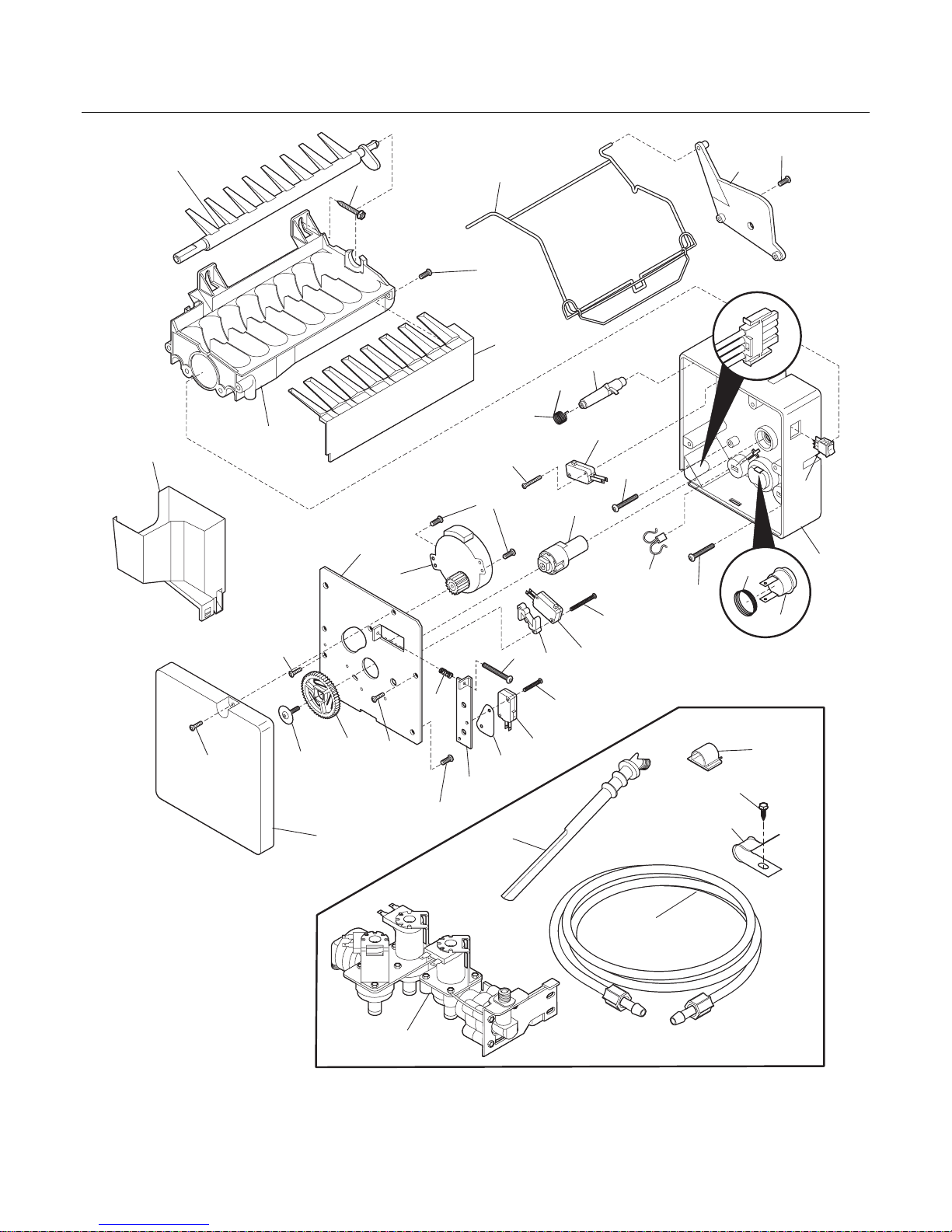

ICE MAKER
45
51
64
6
6
7
6
16
67
20
21
19
22 66
60
18
17
3
2
23
23
34
34
34
11
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115T1
15
14
12
13
33
42
