Frigidaire Affinity FAFW3511K B User manual

frigidaire.com
3.5 Cu. Ft. Electric
Signature Features
Save Your Settings
Automatically saves your last wash
setting so you can save time when
doing laundry.
WashSense™ Technology
Our WashSense™ technology ensures
clothes get clean with care.
Balance Control System
Vibration control technology keeps
even oversized loads balanced for
smooth, quiet operation. Ideal for use
on second floors.
Advanced Rinse Technology
Final rinse uses fresh water to ensure
whiter whites and reduce allergens.
Front Load Washers
FAFW3511K W/B/R
Powerful Performance
7 Cycles Including –
Quick Cycle (Fast 25-minute wash cycle1)
Whitest Whites
17 Options Including –
Stain Clean
5 Temperature Selections Including –
Automatic Temperature Control
Automatic Water Level Adjustments
5 Spin Speeds
3 Soil Levels
Performance-Driven Style
Express-Select™ Controls
TimeWise™ Technology
Stainless Steel Tub
More Easy-To-Use Features
Estimated Time Remaining
4 Status Indicators Including –
Add-A-Garment
Delay Start - Up to 14 Hours
SilentDesign™
SpaceWise™ Design
Optional 15" Largest Capacity2Drawer Pedestals
Classic White – PN # APWD15W
Classic Black – PN # APWD15E
Classic Red – PN # APWD15R
ENERGY STAR®
Capacities
Total Capacity 3.5 Cu Ft. (IEC)
Overall Exterior Dimensions
Height 36"
Width 27"
Depth328"
Available in:
1Based on 8 lb. load / quick cycle selected for various
load compositions.
2Based on manufacturer specifications.
329-3/4" when aligned with front of dryer unit.
Classic
Black
(B)
Classic
Red
(R)
Classic
White
(W)

Specifications
subject to change.
Front Load Laundry - Washer
Frigidaire Affinity

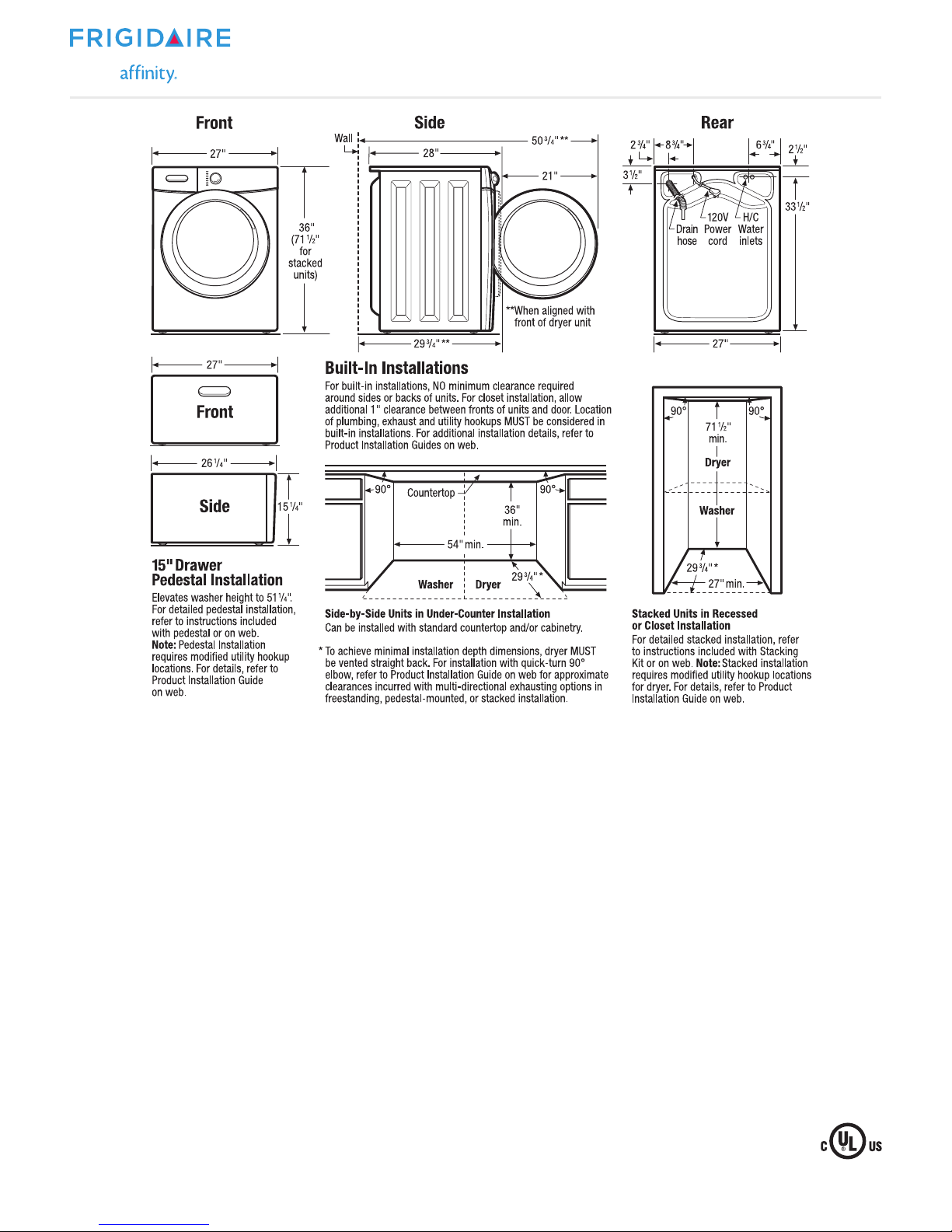

•Floor MUST be solid with 1" maximum slope. To minimize vibration or
movement, reinforcement of floor may be necessary. Do NOT install
on carpeted surface.
•Leveling legs supplied to level washer properly and reduce excessive
noise and vibration.
•H/C water faucets MUST be installed within 43" of washer’s water
inlet and MUST be 3/4" to connect to 48-1/2" inlet hoses.
•Water pressure MUST be between 30 and 120 psi with NOT more
than 10 psi pressure difference between hot and cold.
•Drain required with standpipe diameter of 1-1/4" min. and height of
24" min. / 96" max. above floor, capable of eliminating 17 gallons per
minute. Attached 52" drain hose can reach 74"-high standpipe. For
higher standpipe, optional Drain Hose Extension Kit available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Dryer Stacking Kit – (PN # 134700600).
•15" Classic White Drawer Pedestal – (PN # APWD15W).
•15" Classic Black Drawer Pedestal – (PN # APWD15E).
•15" Classic Red Drawer Pedestal – (PN # APWD15R).
•Mobile Home Installation Kit – (PN # 137067200).
•Drain Hose Extension Kit – (PN # 137098000).
Front Load Washer Specifications
•Product Shipping Weight (approx.) – 220 Lbs.
•An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (ANSI/NFPA 70) and
local codes & ordinances. (Do not use same circuit as dryer.)
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Amps @ 120 Volts = 8 Amps
•Equipped with 120V 3-wire power supply cord, approx. 60" long.
•Always consult local and national electric & plumbing codes.
•To maximize detergent effectiveness, ambient temperature should
never be below 60° F.
•Can be installed alone, with or without optional 15" Drawer Pedestal,
or stacked below matching Frigidaire® Affinity Dryer, which requires
installation of optional Dryer Stacking Kit. (For installation details, refer
to instructions included with optional pedestal or stacking kit or on web.)
•Can be built in with matching Frigidaire® Affinity Dryer in under-
counter, recessed or closet installation. (Refer to Built-In Installations
on this page for cutout dimensions. For additional installation details,
refer to Product Installation Guide on web.)
•Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom
of door. Full-length 120 sq. in. opening also acceptable. Allow
additional 1" clearance between fronts of units and closed door.
•Do NOT install in area exposed to dripping water or outdoor
weather conditions, or where gasoline or other flammables, including
automobiles, are kept or stored.
FRIGIDAIRE®
USA
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• 5855 Terry Fox Way •
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FAFW3511K 10/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Front Load Washers
FAFW3511K W/B/R 3.5 Cu. Ft. Electric
