Frigidaire FCCW2000LS0 User manual

Commercial Tumble
Action Washer
For best results a low-
sudsing, HE High Efficiency
Detergent made for front
loading washers must be
used.
www.frigidare.com
Printed in U.S.A.
PIN 137321500A (1004)

TABLE OF
Important Safety Instructions ..................................... 2-4
Washing Procedures................................................... 4-6
Stain Removal.............................................................. 6-7

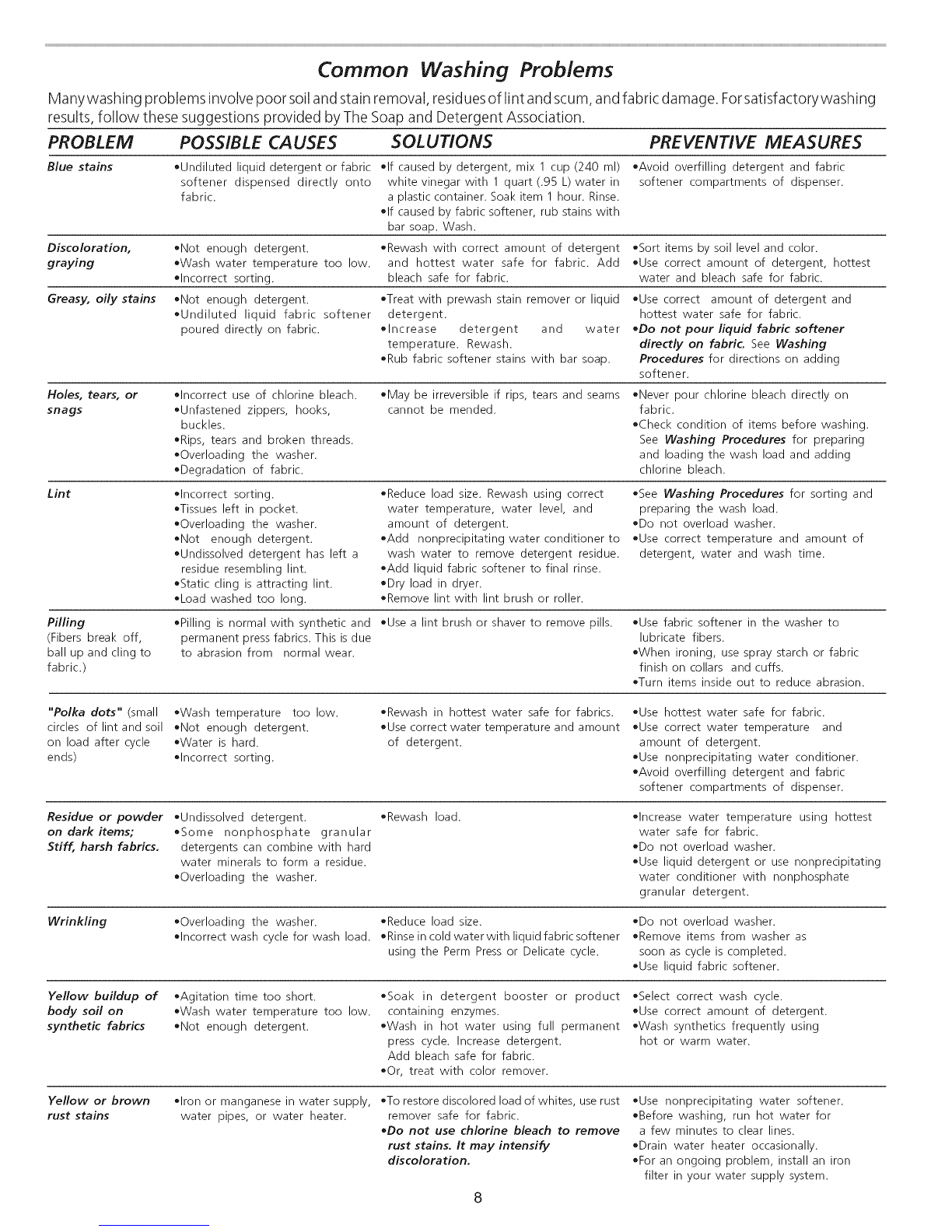

Common Washing Problems.......................................... 8
Care and Cleaning ......................................................... 9
Avoid ServiceChecklist ................................................. 10
Warranty.................................................................. 11
Operating Instructions ................................................ 12
Pre-lnstallation Requirements ....................................... 13
CONTENTS
Electrical Requirements ................................................. 13
Grounding Requirements .............................................. 13
Water Supply Requirements .......................................... 13
Drain Requirements ........................................................ 13
Location Of Your Washer............................................... 14
Rough-In Dimensions .................................................... 14
Unpacking ....................................................................... 15
Installation .................................................................... 16
The symbol _n the product or on its packaging indicates that this product may not be treated ashousehold waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Byensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
pleasecontact your local city office, your household waste disposal serviceor the shop where you purchased the product.
Before beginning installation, carefully read these
instructions. This will simplify the installation and ensure
the washer is installed correctly and safely. Leave these
instructions near the washer after installation for future
reference.
NOTE: The electrical service to the washer must conform
with local codes and ordinances and the latest edition of
the Nationa I Electrica I Code, A NSI/NFPA 70.
NOTE: The instructions appearing in this INSTALLATION
INSTRUCTION/USEAND CARE GUIDE are not meant to cover
every possible condition and situation that may occur. Common
senseand caution must be practiced when installing, operating
and maintaining any appliance.
Product Record
If you need SERVICEor PARTS for your commercial washer:
be ready to give the model number, serial number and date of
purchase. Record below.
Model number
Serial number
Purchase date
WASHER SAFETY
Your safety and the safety of others is very important. We have provided many important safety messages in the Installation
Instructions/Use & Care Guide and on your appliance. Always read and obey all safety messages.
_This isthe safety alert symbol. This symbol alerts you to hazardsthat can kill or hurt you or others. All safety messages will be
preceded by the safety alert symbol and the word "DANGER" or "WARNING ". Thesewords mean:
You can be killed or seriously injured if you don't immediately follow instructions.
You can be killed or seriously injured if you don't follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
Foryour safety the information in this manual must befollowed to minimize the risk of fire or explosion or to prevent
_e, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquid in the vicinity of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from a neighbor's phone. Follow the gas suppliers instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Your washer isequipped with a door safety interlock. Verify proper operation of interlock system daily, using the following procedure:
1.With the washer door open, pressthe STARTbutton. THE WASHER MUSTNOTSTART!
2.Close the washer door. Pressthe STARTbutton again to start the machine. Attempt to open the door, without exerting excessive
force. THE DOOR MUST NOT OPEN!
IF THE WASHER STARTS WITH THE DOOR OPEN, OR THE DOOR CAN BE OPENED WHILE THE WASHER IS OPERATING, THE
MA CHINEMUST IMMEDIA TELYBE TAKEN OUT OFSERVICE.DISCONNECT THEPOWER CORD,AND MARK THEMACHINE "OUT
OFORDER", UNTIL THE INTERLOCK SYSTEM ISREPAIRED, AND OPERATESAS DESCRIBEDABOVE.

Avoid fire
hazardorelectricalshock.
Do not usean adaptor
plugor extension cord or
remove grounding prong
from electrical power
cord. Failure to followthis
warning can cause
serious injury, fire or
death.
Grounding type wall receptacle
Do not under any
circumstances cut, remove,
or bypass the grounding
prong from this plug.
Power supply coTd with
3-prong grounding plug
CORRECT Use this way ONLY
Do not use or mix
liquid chlorine bleach with
other household chemicals
such as toilet rust
removers, acid or
containing ammonia. These
mixtures can produce
dangerous fumes which can
cause serious injury or death.
Important Safety Instructions Read all instructions before using this washer.
You can be killed or seriously injured if you don't follow these Important Safety Instructions:
• To reduce the riskof fire, electrical shock, or injury to persons when using this washer, comply with the basicwarnings listed below.
• Failure to comply with these warnings could result in serious personal injuries.
Prevent Fire
Do not wash items that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, cooking
oils, waxes, etc. Do not store these items on or near the washer. Thesesubstances give off vapors or chemical reactions that could
ignite or explode.
Do not put oily or greasy rags or clothing on top of the washer. These substances give off vapors that could ignite the materials.
Do not add gasoline, cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off
vapors that could ignite or explode.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or
any other appliance.
Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washer, turn on all
hot water faucets and let the water flow from each for several minutes. Thiswill releaseany accumulated hydrogen gas. Hydrogen
gas isflammable; do not smoke or use an open flame during this time.
Failure to comply with these warnings could result infire, explosion, serious bodily injury and/or damage to the rubber or plastic parts
of the washer.
Protect Children
Do not allow children to play on or in the washer. Close supervision of children is necessarywhen the washer isused near children.
As children grow, teach them the proper, safe use of all appliances.
Destroy the carton, plastic bag and other packing materials after the washer isunpacked. Children might use them for play. Cartons
covered with rugs, bedspreads or plastic sheets can become airtight chambers.
Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on product labels.
Before the washer is removed from service or discarded, remove the washer lid to prevent accidental entrapment.
Failure to comply with these warnings could result in serious personal injuries.
Prevent lnjury
• Test door interlock system daily. Follow instructions on previous page.
To prevent shock hazard and assure stability during operation, the washer must beinstalled and electrically grounded bya qualified
service person in accordance with local codes. Refer to INSTALLATION AND SAFETY INSTRUCTIONSfor detailed grounding
procedures. If the washer is moved to a new location, have it checked and reinstalled by a qualified service person.
Toprevent personal injury or damage to the washer, the electrical power cord of the washer must be plugged into a properly grounded
and polarized 3-prong outlet. The third grounding prong must never be removed. Never ground the washerto a gas pipe.
Do not use an extension cord or an adaptor plug.
Follow package directions when using laundry products. Incorrect usage can produce poisonous gas--resulting in serious injury or
death.
-Do not combine laundry products for use in 1 load unless specified on the label.
-Do not mix chlorine bleach with ammonia or acids such asvinegar.
To prevent serious personal injury and damage to the washer:
-AIIrepairs andservicing must be performed by an authorized servicer unlessspecifically recommended in this Owner's Guide.
Use only authorized factory parts.
-Do nottamper with controls.
-Do not install or store the washer where it will be exposed to the weather.

Important Safety Instructions (Con't)
oToreduce the risk of electric shock, disconnect this appliance from the power supply before attempting any usermaintenance. Turning
the controls to the OFFposition does not disconnect this appliance from the power supply.
•To prevent injury, do not reach into the washer while parts are moving. Before loading, unloading or adding items, push in the cycle
selector knob and allow the drum to coast to a complete stop before reaching inside.
•Failure to comply with these warnings could result in serious personal injuries.
•This washer is equipped with an electrical overload protector. The motor will stop if it becomes overheated. The washer will
automatically restart after a cool down period of up to 30 minutes, if the washer has not been manually turned off during this time.
SAVE THESE INSTRUCTIONS
USE AND CARE GUIDE
Washing Procedures
Sort laundry into loads that can be
washed together.
Empty pockets.
Placedelicate items in a mesh bag.
Add laundry load to washer.
Follow the guidelines below for preparing the wash load.
Always read and follow fabric care and laundry product labels.
To reduce the risk of fire, electrical shock, or injury to persons,
read Important Safety Instructions, page 2, before operating this washer.
Sort laundry into loads that can be washed together.
Sort items by recommended water temperatures and wash time.
Separate white, light, and colorfast items from dark and noncolorfast
items.
Separate items which shed lint from items which attract lint. Permanent
press,synthetic, knit and corduroy itemswill pick up lintfrom towels, rugs
and chenille bedspreads.
Separate heavily soiled items from lightly soiled items.
Separate lacy, sheer and loosely knit items from sturdy items.
2_ Prepare items for washing.
Empty pockets.
Brush off lint and dirt. Shake out rugs and beach towels.
Close zippers, fasten hooks, tie strings and sashes, and remove
nonwashable trims and ornaments.
Remove pins, decorative buttons, belt buckles, and other objects which
could be damaged. Thisalso helps protect other items in the wash load.
Mend rips and tears to prevent further damage during washing.
Placedelicate items such asbras, shoulder pads, hosiery, and belts in a
mesh bag to prevent tangling during the wash cycle.
Turn knit items inside out to prevent pilling.
3. Pretreat stains and heavy soil
SeeStain Removal, page 5, for details.
4_ Add laundry load to washer.
•Combine large and small items in a load. Load large items first. Large
items should not be more than half the total wash load.
Do not wash single items such asa sweater, towel or jeans. This may
causean out-of-balance load. Add 1or2 similar itemsto help balancethe
load.
Single heavy items such as a bedspread can be washed separately.
The washer can be fully loaded, but the items should not be tightly
packed. The door should close easily.
4

5. Add detergent, bleach and fabric softener to automatic dispenser following these steps:
A. OPENING AND CLOSING THE DISPENSERDRAWER
•Slowly open the dispenser drawer by first sliding the safety
latch to the right, then pulling the drawer out until it stops.
•After adding laundry products, slowly close the dispenser
drawer. Closing the drawer too quickly could result in
early dispensing of the bleach and fabric softener.
•Dispenserdrawer should becompletely closedfor powdered
detergent, bleach and fabric softener to despense.
•Laundryproducts usedwith powder or liquid detergent, such
color-safe bleach, water conditioner, detergent booster,
and enzyme products should be added to the empty tub
before loading.
Note: From time to time you may seewater in the bleach and
fabric softener compartments. This isa result of the siphoning
action and ispart of the normal operation of the washer.
C, LIQUID BLEACH
•If desired, measure out the recommended amount of
liquid chlorine bleach (not to exceed 1/3 cup (80 mL))
and pour it into the center compartment labeled
"Liquid Bleach" and marked with this symbol _.
•Do not exceed the maximum fill line. Overfilling can
causeearlydispensing ofthe bleach which could result
in damaged clothes.
•Do not pour undiluted liquid chlorine bleach directly
onto the load or into the drum. Fabric damage can
OCCUr.
•Do not use powdered bleach in the dispenser.
B. DETERGENT
•Add measured detergent to the detergent compartment
of the dispenser drawer.
•Detergent isflushed from the dispenser atthe beginning of
the cycle. Eitherpowdered or liquid detergent canbe used.
Note: Liquid detergent will drain into the washer drum as
it isadded.
•Low sudsing detergent is recommended for this washer.
Usethe manufacturer's recommended amount.
•If Iowsudsing detergent isnot available, a reduced amount
of regular detergent may be used. Because reducing the
amount of detergent may reduce cleaning, it isimportant
to pretreat stains, sort carefully by color and soil level, and
avoid overloading.
•Detergent usage may need to be adjusted for water
temperature,water hardness,sizeand soillevelof the load.
•Forbest results, avoid oversudsing.
D_ FABRIC SOFTENER
•If desired, pour the recommended amount of fabric
softenerintothe compartment labeled "FabricSoftener"
and marked with this symbol_ i
•Dilute concentrated softeners with warm water to the
Fill Line.
•Do not exceed the maximum fill line. Overfilling can
cause early dispensing of the fabric softener which
could result in stained clothes.
•Do notpour fabricsoftener direct/y on the wash
load.
•Use of a fabric softener dispensing ball is not
recommended in tumble action washers.

Washing Procedures
continued) 6. Set washer controls according to type, size, and soil level of each load.
Safety
Door Lock
Do not store or place laundry products
on top of washer at any time. They can
damage the finish or controls.
Close the washer door, add coinage or insert card and press the start button.
IMPORTANT: Customer must only insert coinage ONCE per wash cycle and
should not add new coins until the current cycle hasended. If more coins are
inserted before pressing start, the mechanism will malfunction, the washer will
be inoperable and the coin box cam wil have to be manually reset.
Foryour safety, the door will automatically lock during the entire wash cycle. The
Door Lock indicator light will remain lit until the cycle ends.
• Washer will fill and tumble.
• After the cycle ends the Door Lock indicator light will turn off. Wait 1-2
minutes for the lock to release. Thedoor can then be opened. Do not force
open the locked door.
8. Remove items when the cyde is completed.
Placewashed items in automatic dryer, line dry, or dry flat asdirected byfabric
care label. Excesswrinkling, color transfer or odors may develop in items left in
the washer after the cycle has ended.
9. General Precautions
•Dispenser drawer should be dosed completely during operation.
Do not slam the washer door dosed or try to force the door open when
locked (DoorLock light ON). This could result in damage to the washer.
DO NOTleave the washer door open. An open door could entice children
to hang on the door or crawl inside the washer.
Toavoid damaging the washer and personal injury, DO NOThang on or lean
against the washer door.
Do not place detergent, bleach or fabric softener containers on top of the
washer. They can damage the finish or controls.
Stain Removal
Do not use or mix
liquid chlorine bleach with other
household chemicals such as toilet
deaners, rust removers, acid or
products containing ammonia. These
mixtures can produce dangerous
fumes which can cause serious injury
or death.
Safe Stain Removal Procedures
To reduce the risk of fire or serious injury to persons or property,
comply with the basic warnings listed below:
Read and comply with all instructions on stain removal products.
Keep stain removal products in their original labeled containers and out of
children's reach.
Thoroughly wash any utensil used.
Do not combine stain removal products, especially ammonia and chlorine
bleach. Dangerous fumes may result.
Never wash items which have been previously cleaned in, washed in, soaked
in or spotted with gasoline, dry cleaning solvents or other flammable or
explosive substances because they give off vapors that could ignite or
explode.
Never use highly flammable solvents, such as gasoline, inside the home.
Vapors can explode on contact with flames or sparks.

Follow fabric care label instructions.
For successful stain removal:
• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the
stain removal chart below.
• To pretreat stains, usea prewash product, liquid detergent, ora paste made
from granular detergent and water.
• Use cold water on unknown stains because hot water can set stains.
•Check care label instructions for treatments to avoid on specific fabrics.
•Check for colorfastness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal.
Stain Removal
STAIN TREATMENT
Adhesive tape, chewing Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or
gum, rubber cement nonflammable dry cleaning fluid.
Baby formula, dairy Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. Wash.
products, egg
Beverages (coffee, tea, Pretreat stain. Wash using cold water and bleach safe for fabric.
soda, juice, alcoholic
beverages)
Blood Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing enzymes. Wash using
bleach safe for fabric.
Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Presswith warm iron until wax is
absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable
dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.
Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Collar or cuff soil, cosmetics Pretreat with prewash stain remover or rub with bar soap.
Dye transfer on white Use packaged color remover. Wash using bleach safe for fabric.
fabric
Grass Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Grease, oil, tar (butter, fats, Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply
salad dressing, cooking oils, nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse thoroughly. Wash
car grease, motor oils) using hottest water safe for fabric.
Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured
alcohol or nonflammable dry cleaning fluid.
Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water before washing. Badly
mildewed fabrics may be permanently damaged.
Mud Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Nail polish May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain.
Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
Paint, varnish WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed. OIL
BASEDAND VARNISH: Use solvent recommended on can label. Rinse thoroughly before washing.
Perspiration Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach in hottest water safe for
fabric.
Rust, brown or yellow For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate detergent and
discoloration nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration.
Shoe polish LIQUID: Pretreat with a paste of granular detergent and water. PASTE: Scrape residue from fabric. Pretreat
with prewash stain remover or nonflammable dry cleaning fluid. Rinse. Rub detergent into dampened area.
Wash using bleach safe for fabric.
Urine, vomit, mucus, feces Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.
7

Common Washing Problems
Many washing problems involve poor soil and stain removal, residuesof lint and scum, and fabric damage. Forsatisfactory washing
results, follow these suggestions provided byThe Soap and Detergent Association.
PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES
Blue stains ,Undiluted liquid detergent or fabric ,If caused by detergent, mix 1 cup (240 ml) ,Avoid overfilling detergent and fabric
softener dispensed directly onto white vinegar with 1 quart (.95 L) water in softener compartments of dispenser.
fabric, a plastic container. Soak item 1 hour. Rinse.
• If caused by fabric softener, rub stains with
bar soap. Wash.
Discoloration, ,Not enough detergent. ,Rewash with correct amount of detergent ,Sort items by soil level and color.
graying ,Wash water temperature too low. and hottest water safe for fabric. Add ,Use correct amount of detergent, hottest
• Incorrect sorting, bleach safe for fabric, water and bleach safe for fabric.
Greasy, oily stains ,Not enough detergent. ,Treat with prewash stain remover or liquid ,Use correct amount of detergent and
• Undiluted liquid fabric softener detergent, hottest water safe for fabric.
poured directly on fabric. ,Increase detergent and water ,Do not pour liquid fabric softener
temperature. Rewash. directly on fabric. See Washing
• Rub fabric softener stains with bar soap. Procedures for directions on adding
softener.
Holes, tears, or
snags
• Incorrect use of chlorine bleach.
• Unfastened zippers, hooks,
buckles.
• Rips, tears and broken threads.
• Overloading the washer.
• Degradation of fabric.
• May be irreversible if rips, tears and seams
cannot be mended. • Never pour chlorine bleach directly on fabric.
• Check condition of items before washing.
See Washing Procedures for preparing
and loading the wash load and adding
chlorine bleach.
Lint • Incorrect sorting.
•Tissues left in pocket.
• Overloading the washer.
• Not enough detergent.
• Undissolved detergent has left a
residue resembling lint.
• Static cling is attracting lint.
• Load washed too long.
• Reduce load size. Rewash using correct
water temperature, water level, and
amount of detergent.
• Add nonprecipitating water conditioner to
wash water to remove detergent residue.
• Add liquid fabric softener to final rinse.
• Dry load in dryer.
• Remove lint with lint brush or roller.
• See Washing Procedures for sorting and
preparing the wash load.
• Do not overload washer.
• Use correct temperature and amount of
detergent, water and wash time.
Pilling
(Fibers break off,
ball up and cling to
fabric.)
• Pilling is normal with synthetic and ,Use a lint brush or shaver to remove pills.
permanent press fabrics. This is due
to abrasion from normal wear.
• Use fabric softener in the washer to
lubricate fibers.
• When ironing, use spray starch or fabric
finish on collars and cuffs.
• Turn items inside out to reduce abrasion.
"Polka dots" (small ,Wash temperature too low.
circles of lint and soil ,Not enough detergent.
on load after cycle ,Water is hard.
ends) ,Incorrect sorting.
• Rewash in hottest water safe for fabrics.
• Use correct water temperature and amount
of detergent.
• Use hottest water safe for fabric.
• Use correct water temperature and
amount of detergent.
• Use nonprecipitating water conditioner.
• Avoid overfilling detergent and fabric
softener compartments of dispenser.
Residue or powder ,Undissolved detergent.
on dark items; ,Some nonphosphate granular
Stiff, harsh fabrics, detergents can combine with hard
water minerals to form a residue.
• Overloading the washer.
• Rewash load. • Increase water temperature using hottest
water safe for fabric.
• Do not overload washer.
• Use liquid detergent or use nonprecipitating
water conditioner with nonphosphate
granular detergent.
Wrinkling • Overloading the washer.
• Incorrect wash cycle for wash load. • Reduce load size.
• Rinsein cold water with liquid fabric softener
using the Perm Pressor Delicate cycle.
• Do not overload washer.
• Remove items from washer as
soon as cycle is completed.
• Use liquid fabric softener.
Yellow buildup of
body soil on
synthetic fabrics
•Agitation time too short.
•Wash water temperature too low.
• Not enough detergent.
• Soak in detergent booster or product
containing enzymes.
• Wash in hot water using full permanent
press cycle. Increase detergent.
Add bleach safe for fabric.
• Or, treat with color remover.
• Select correct wash cycle.
• Use correct amount of detergent.
• Wash synthetics frequently using
hot or warm water.
Yellow or brown
rust stains • Iron or manganese in water supply,
water pipes, or water heater. • To restore discolored load of whites, use rust ,Use nonprecipitating water softener. remover safe for fabric. ,Before washing, run hot water for
•Do not use chlorine bleach to remove a few minutes to clear lines.
rust stains. It may intensify ,Drain water heater occasionally.
discoloration. ,For an ongoing problem, install an iron
filter in your water supply system.
8

Care and Cleaning TO REFRESHOR CLEAN INSIDE OF THE WASHER:
IMPORTANT: Do not load garments or other items in the washer when cleaning the
inside of the washer.
• Add a 1/2 cup of liquid bleach tothe detergent compartment of the dispenser drawer
and fill the bleach dispenser compartment to the Max Filllevel and run WITHOUT a
clothes load using the Normal Cycle setting.
For Other inside Cleaning
Remove items from the washer as soon as the cycle ends. Excesswrinkling, color
Figure1 transfer, and odors may develop in items left in the washer.
Before cleaning the washer interior, unplug the electrical power cord to avoid
electrical shock hazards.
Dry around the washer door opening, flexible gasket, and door glass. These areas
should always be clean to ensure a water tight seal.
When extremely soiled items have been washed, a dirty residue may remain on the
drum. Removethis bywiping the drum with a nonabrasive household cleanser. Rinse
thoroughlywith water.
The plastic drum vanes may become stained from fabric dye. Clean these parts with
a nonabrasive household cleanser. This prevents dye transfer to future loads.
Cleaning the Dispenser Drawer Area
Detergent and fabric softener may build up in the dispenser drawer. Residue should be
removed once or twice a month.
Remove the drawer by first sliding the safety latch to the right, then pulling the
drawer out until it stops. (Figure 1)
Figure2 • Reach back into the left rear corner of the drawer cavity and press down firmly
on the lock tab (left rear portion of the drawer). Pull out the drawer. (Figure 2)
Remove the inserts from the bleach and fabric softener compartments. (Figure 3)
Rinsethe drawer and inserts with hot tap water to remove traces of accumulated
powders and liquids.
Toclean the drawer opening, usea small brush to clean the recess.Removeall residue
from the upper and lower parts of the recess. (Figure4)
Return the bleach and fabric softener insertstotheir proper compartments. Replacethe
dispenser drawer and run the Prewash cycle without any wash load in the drum.
Outside
When washing iscompleted, wipe top and sidesof washer with a damp cloth. Turn
water faucets off to prevent pressure build-up in the hoses.
Figure3 As needed, clean the cabinet with mild soap and water. Never use harsh, gritty or
abrasive deansers. If door or console becomes stained, clean with diluted chlorine
bleach [1/2 cup (120 ml)in 1quart (.95 L)water]. Rinseseveraltimes with clearwater.
Remove glue residue from tape or labels with a mixture of warm water and mild
detergent. Or, touch residue with the sticky side of the tape or label.
When cleaning chrome parts use Windex with ammonia or any of the cleaning items
mentioned for cleaning the cabinet.
Before moving the washer, place astrip of cardboard or thin fiberboard under the
front leveling legsto prevent floor damage.
Winterizing instructions
If the washer is stored in an area where freezing can occur or moved in freezing
temperatures, follow these winterizing instructions to prevent damage to the washer:
1. Turn off water supply faucets.
2. Disconnect hoses from water supply and drain water from hoses.
3. Plug electrical cord into a properly grounded electrical outlet.
4. Add 1gallon(3.SL)nontoxicrecreationalvehicle(RV)antifreezetoemptywashdrum.
Closedoor.
5. Setcycleselectorknobataspinsetting. Pulloutknobandletwasherspinforl minute
to drain out all water. Not all of the RVantifreeze will be expelled.
6. Pushin knob, unplug electrical power cord, dry drum interior, and close door.
7. Remove dispenser drawer. Drain anywater in compartments and dry compartments.
Replace drawer.
8. Store washer in an upright position.
9. Toremove antifreeze from washer after storage, run emptywasher through acomplete
cycle using detergent. Do not add wash load,
(Lock tab isvisible only after drawer has beer
pulled out) _"

Avoid Service Checklist
Before calling for service, review this list. It may save both time and expense. The list includes common concerns that are not the result of defective workmanship
or materialsin this washer.
0 CCURRENCE POSSIBLE CA USE / SOL UTION
"C/icking"noise. • A normal sound made by the timer.
Highpitch "jet engine" noise, o A certain amount of motor whine is normal during the spin cycle.
Rattling and c/anking noise. ,, Foreign objects such as coins or safety pins may be in drum or pump. Stop washer and check drum.
If noise continues after washer is restarted, objects may be in pump. Call your authorized servicer.
Belt buckles and metal fasteners are hitting wash drum. To prevent unnecessary noise and damage
to drum, fasten fasteners and turn items inside out.
Squea/ingsoundorhotrubberodor. ,, Washer is overloaded. Do not overload washer. Stop washer and reduce load.
Thumpingsound. ,, Heavywash loads may produce a thumping sound. This isusually normal. If sound continues, washer
is probably out of balance. Stop washer and redistribute wash load.
Vibrating noise. ,, Washer isnot resting firmly on floor. Move washer so it restsfirmly on floor. Adjust leveling legs. See
INSTALLATION INSTRUCTIONSfor details.
Shipping bolts and foam block have not been removed during installation. See INSTALLATION
INSTRUCTIONSfor removing shipping bolts and foam block.
Wash load unevenly distributed in drum. Stop washer and rearrange wash load.
Washer does not start.
o
Washer won't spin. •
Residue left in drum.
Laundry additives didn 't dispense.
Insert proper coinage and Pressstart button.
Electrical power cord may not be plugged in or connection may be loose. Make sure plug fits tightly
in wall outlet.
House fuse blown, circuit breaker tripped, or a power outage has occurred. Reset circuit breaker or
replace fuse. Do not increasefuse capacity. If problem isacircuit overload, have it corrected bya qualified
electrician. If problem isa power outage, call local electric company.
Water supply faucets are not turned on. Turn on water supply faucets.
Motor isoverheated. Washer motor will stop if it becomes overheated. It will automatically restart after
a cool down period of up to 30 minutes (if washer has not been manually turned off).
Washer door is not completely closed. Close door completely.
Load is too small. Add 1 or 2 similar items to help balance the load.
Heavily soiled items. Wipe drum with a nonabrasive household cleanser, then rinse. Shake or brush
excess dirt and sand from items before washing.
Dispenser drawer open. Drawer should be completely closed for laundry additive to dispense.
Water collects in b/each and fabric
softener compartments.
Wash load too wet after spin. o
o
Water does not enter washer
or it enters slowly.
Warm or hot water is
nothotenough.
Water in washer does not
drain or drains slowly.
Water leaks.
o
o
Incorrect wash and rinse
tempera tures.
Water is entering washer
but tub does not fill.
This is a result of the siphoning action and is part of the normal operation of the washer. Water may
be removed by removing the dispenser drawer (see Page9, Figures 1 and 2) and draining water into
the empty drum or sink.
Washer is overloaded. Do not overload washer. See Washing Procedures.
Load is too small. Add 1 or 2 similar items to help balance the load.
Load is out of balance. Rearrange load to allow proper spinning.
Drain hose is kinked. Straighten drain hose.
Water supply is not adequate in area. Check another faucet in the house. Wait until water supply and
pressure increase.
Water supply faucets are not completely open. Fully open hot and cold faucets.
Water is being used elsewhere in the house. Water pressure must be at least 30 psi (260 kPa). Avoid
running water elsewhere while washer is filling.
Water inlet hoses are kinked. Straighten hoses.
Hot water heater issettoo low or isadistance from washer. Measure hot water temperature at nearby
faucet with candy or meat thermometer. Water temperature should be at least 120°F (49°C). Adjust
water heater asnecessary.
Hot water is being used elsewhere in the house. Avoid using hot water elsewhere before or during
washer use.There may not be enough hot water available for proper cleaning. If problem persists, your
hot water system may be unable to support more than 1 use at a time.
Drain hose is kinked or clogged. Clean and straighten the drain hose.
House drain pipes are clogged. Unclog drain pipes. Contact plumber if necessary.
Fill hose connection is loose at faucet or washer. Check and tighten hose connections. Install rubber
sealing washers provided.
Oversudsing.Use less detergent.
Dispenser drawer is open. Close drawer when washer is operating..
Hot and cold water hosesare connected to wrong supply faucets. Connect hot water hoseto hot water
faucet and cold water hose to cold water faucet.
Drain hose standpipe is incorrect height. Standpipe must be a minimum of 23.6" (60 cm) high to
prevent siphoning. See INSTALLATION INSTRUCTIONS.
10

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux willpay
all costs, exceptas set forth below, for repairing or replacing any parts of this appliance that prove to be defective inmaterials or
workmanship when suchappliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Payment acceptance devices for commercial laundry products.
2. Products with original serial numbers that have been removed, altered or cannot be readily determined.
3. Normal wear and tear and gradual deterioration.
4. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
5. Rust on the interior or exterior of the unit.
6. Products purchased "as-is".
7. Food loss due to any refrigerator or freezer failures.
8. Damage caused at any time during shipment.
9. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances used other than in
accordancewith the provided instructions.
10. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
11. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not
a part of the appliance when it is shipped from the factory.
12. Service calls to replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other
cosmetic parts.
13. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage
expensefor service calls to remote areas, including the state of Alaska.
14. Damages to the finish of appliance and/or location that are incurred during installation, including but not limited to floors,
cabinets, walls, etc.
15. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux
parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse,
inadequate power supply, accidents, fires, or acts of God.
16. Labor costs after ninety (90) days from your original date of purchase incurred for product repair or replacement as provided
herein for appliances operated by a concessionaire or vendor in a trailer or other motorized vehicle or at varying locations.
DISCLAIMER OF IMPLIED WARRANTIES; LiMITATiON OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR
REPLACEMENTAS PROVIDEDHEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MER-
CHANTABILITY OR FITNESSFOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD
ALLOWED BY LAW, BUT NOT LESS THANONE YEAR. ELECTROLUX SHALL NOT BELIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGEAND INCIDENTAL EXPENSES RESULTING FROM ANYBREACH OF
THIS WRITTEN LIMITED WARRANTY ORANY IMPLIED WARRANTY.SOME STATESAND PROVINCES DO NOTALLOW THE
EXCLU-SION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES, SOTHESE LIMITATIONS OR EXCLUSIONS MAY NOTAPPLYTO YOU.THIS WRITTEN WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAYALSO HAVE OTHER RIGHTS THAT VARY FROM STATETO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period shouldservice be
required. If service is performed, it is in your best interest to obtain and keep all receipts. Service underthis warranty must be
obtained by contacting Electrolux at the addresses or phone numbers below.
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux willpay all
costs,except as set forth below, for repairing or replacing any parts of this appliance that prove to be defective inmaterials or
workmanship whensuch appliance is installed, used, and maintained in accordance with the provided instructions.This warranty
only applies in the USA andCanada. Inthe USA, your appliance is warranted by Electrolux Major Appliances North America,
a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electroluxauthorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty mustbe performed by Electrolux or an authorizedservice company. Product features or specifications as described
or illustrated are subjectto change without notice.
USA 1.866.738.1640
Etectrolux Major Appliances North America
P.O. Box 212378Augusta, GA 30907
Canada 1.866.738.1640
Etectrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
11

OPERATING INSTRUCTIONS
INSTRUCTIONS WASH TEMPERATURE
Perm Press Perm Press
CoLd Warm
1, Load washer,
close door
2, Open drawer to add
detergent, bleach & On/
softener. Close drawer Locked
completely, /
4, Press Start button Whke/Cottons De[ieatee _./
Hot Warm
Commercial Heavy Duty = Stainless Steel
Start
Pushand Hold
Tumbling Off
sMng
/
Final Spin _ t Rinsing
Final Rinse
Spinning
Before Operating Your Washer
Read your washer Use and Care Guide. it has important
safety and warranty information. It also has many
suggestions for best washing results.
To reduce the risk of fire, electric shock, or injury
to persons, read the IMPORTANT SAFETYINSTRUCTIONSin
your washer Use and Care Guide before operating this
appliance.
Operating Steps
Read and follow Washing Procedures in your Use and
Care Guide. It provides detailed information for preparing
the wash load and choosing control settings to ensure best
washing results.
1Sort laundry into loads that can be washed together.
2Prepare items for washing
3Pre treat stains and heavy soil.
4Add laundry load to the wash drum.
,Open the dispenser drawer and add the measured
amount of detergent to the detergent
compartment. If desired, add liquid bleach and fabric
softener to the appropriate compartments. Slowly close
dispenser drawer. Drawer should be completely dosed
for laundry additives to dispense.
,
,
Set Temperatures switch according to fabric type
and soil level of each load.
Push and hold the Start button. The washer will not
operate with the door open. As a safety measure, the
door will automatically lock during the entire wash
cycle. When the door is closed, the Door Lock
Indicator lights up when the washer starts, and turns off
at the end of the cycle.
8. Remove items when cycle ends.
Note: From time to time you may seewater in the bleach
and fabric softener compartments. This isa result of the
siphoning action and ispart of the normal operation of
the washer.
Always follow instructions on fabric care labels.
Note: There is no need to select a water level because the
washer automatically adjusts the water level to the
type and size of wash load.
TEMPERA TURES- This determines water temperatures for
washing and rinsing. For example, the Warm/Cold setting
provides a warm water wash and a cold water final rinse.
Note: Detergents are not aseffective at wash water
temperatures below 65% (18.3°C).
CYCLE SIGNAL - A signal will sound at the end of the cycle.
Thefollowing chart suggests wash/rinse temperatures for basic
fabric types. Wash/Rinse
Fabric Ty_p_e Temperature
Heavily soiled white/colorfast
cotton, perm press Hot/Cold
Normally soiled white/colorfast Warm/Cold
cotton, perm press
Lightly soiled/noncolorfast
fabrics, knits, delicates,
hand washables
Cold/Cold
Washable woolens Warm/Cold
When the door is closed, the Door Lock Indicator lights up
when the cycle selector knob is pulled out and turns off at
the end of the cycle.
12

INSTALLTION INSTRUCTIONS
PRE-INSTALLATION REQUIREMENTS
Tools Required for Insta#ation:
1. 1/4 in. nut driver
2. 3/8 in. socket with ratchet.
3. 3/8 in. open end wrench.
4. 7/16 in. socket with ratchet.
5. 9/16 in. open end wrench.
6. Channel-lock adjustable pliers.
7. Carpenter's level.
ELECTRICAL REQUIREMENTS
CIRCUIT- Individual, properly polarized and grounded 15 amp.
branch circuitfused with 15 amp. time delayfuse or circuit breaker.
DO NOTcut off or alter the grounding prong on the power supply
cord. In situations where a two-slot receptacle ispresent, it isthe
owner's responsibility to have a licensed electrician replace it with
aproperly grounded three prong grounding type receptacle.
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUSTbe installed within 42 inches
(107 cm) of your washer's water inlet. The faucets MUST be 3/4
inch (1.9 cm) garden hose type so inlet hoses can be connected.
Water pressureMUSTbe between 10 and 120 pounds per square
inch (maximum unbalance pressure, hot vs. cold, 10 psi.) Your
water department can advise you of your water pressure.
DRAIN REQUIREMENTS
POWER SUPPLY- 2 wire, with ground, 120 volt, single phase, 60
Hz,Alternating Current. NOTE:The useof this washer with power
created by gas powered generators, solar powered generators,
wind powered generators or and other generator other than the
local utility company is not recommended.
OUTLET RECEPTACLE- Properly grounded 3-prong receptacle to
be located sothe power supply cord isaccessiblewhen the washer
is in an installed position. NOTE: GFI (Ground Fault Interrupter)
receptacle is not required.
GROUNDING REQUIREMENTS
Improper connection of the equipment grounding
conductor can result in a risk of electrical shock. Check with a
licensed electrician if you are in doubt asto whether the appliance
isproperly grounded.
1. Thewasher MUSTbe grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electrical
shock by a path of least resistance for electrical current.
,Since your washer is equipped with a power supply cord
having an equipment-grounding conductor and a grounding
plug, the plug MUSTbe plugged into an appropriate, copper
wired receptacle that is properly installed and grounded in
accordance with all local codes and ordinances or in the
absence of local codes, with the National Electrical Codes,
ANSI/NFPA 70 (latest edition). If in doubt, call a licensed
Models equipped with drain pump:
1. Drain MUST be capable of eliminating 17 gals (64.3 L) per
minute.
2. A standpipe diameter of 1-1/4 in. (3.18 cm) minimum.
3. The standpipe height above the floor should be:
_J
!.
NOTE:
96 in.
(244 cm)
Max.
24 in.
(61 cm)
Min.
Drain hose attached to the washer can reach a 58 in. (147 cm)
high standpipe. For higher standpipe use hose P/N 134592701,
available from an authorized parts distributor. If drain islessthan
24 in. (61 cm), install a siphon break kit, available at your local
hardware store.
Models equipped with gravity drain:
1. Floor drain MUST be capable of eliminating 17 gals (64.3 L)
per minute.
2. Floor drain diameter must be at least 1/2 inch larger than
drain hose.
13

LOCATION OF YOUR WASHER
See rough-in dimensions on the next page
(Figure 1).
DO NOT INSTALL YOUR WASHER:
,In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60 degrees F(15.6 degrees
C)for proper washer operation.
2. In an area where it will come in contact with
curtains or drapes.
3. Inan area (garage or garage-type building) where
gasoline of other flammables are kept or stored
(including automobiles).
,On carpet. Floor MUSTbe solid with a maximum
slope of 1/2 in. per foot (1.27 cm per 30.5 cm).
Toensure vibration or
movement does not occur, reinforcement of the
floor may be necessary.
IMPORTANT MINIMUM
INSTALLATIONCLEARANCES
When installed in alcove:
Sides, Rear,Top = 0 in (0 cm).
When installed in closet:
Sides, Rear,Top = 0 in (0 cm), Front = 1 in (2.54 cm).
Closet door ventilation openings required:
2 louvers each 60 in2(387 cm2)- 3 in (7.6 cm) from
top and bottom of door.
ROUGH-IN DIMENSIONS
17
(43.2) __,
3A _.
(1.9)'- -"
24 3,4
(62.9)
SIDE
_] _ 1 /
(2.54) /
1½1)
PowerCord331/2(85)
v
inch (cm) Adjustable Legs
263A
(67.9) v
©
36
(91.5)
Under
Counter
34%
(87.9)
0
/
/
\\
\\
/
BACK
2%
(7.3)
Water
Inlets
31%
(80.3)
UNDER COUNTER INSTALLATION
If an under counter* installation isdesired, the washer MUST have a top sheet kit
installed, P/N 131445600. Kit is available from an authorized parts
distributor. *Custom sized countertop is required.
14

,
3.
4.
,
UNPACKING
Cut the shipping carton along the dotted line along the base
of the unit.
While in the carton carefully lay the washer on its back side.
Removethe styrofoam base.
Carefully return the washer to an upright position and remove
the carton.
Carefully move the washer to within 4 feet (122cm) of the
final location.
6. Remove the following from the back side of the washer:
3 bolts,
3 yellow plastic spacers,
2 or 3 metal "P" clamps.
\
\\\\
©@
®
®
BOLT
@;ER
(_ CLAMP
7. Remove the service panel from the front of the washer.
,Remove the 4 nuts and 6 large washers that attach the 2
yellow shipping braces to the drum and the base. Lift up on
the drum and remove the braces (a yellow ribbon surrounds
the items to be removed). These bracesmust be removed to
allow the power supply cord to be releasedfrom the shipping
ring.
,
10.
11.
Remove the large styrofoam block located under the drum.
Lift up on the drum, tilt the base of the foam block inwards
toward the rear of the washer until free, then pull it out.
Remove and discard the yellow ribbon and label from the
front of the washer.
From the rear of the washer, carefully pull out the power
supply cord through the hole in the backsheet.
12. Replace the service panel and screws.
NOTE: If the washer isto be transported at a later date, the
shipping support hardware must be reinstalled to prevent
shipping damage.
15

,
,
,
INSTALLATION
Run some water from the hot and cold faucets to flush the
water lines and remove particles that might clog up the water
valve screens.
Remove the inlet hoses and rubber washers from the plastic
bag and install the rubber washers in each end of the inlet
hoses.
Carefully connect the inlet hosemarked "HOT" to the outside
"H" outlet of the water valve. Tighten by hand, then tighten
another 2/3 turn with pliers. Carefully connect the other inlet
hose to the inside "C" outlet of the water valve. Tighten by
hand, then tighten another 2/3 turn with pliers. Do not
crossthread or over-tighten these connections.
6. Carefully move the washer to its final location.
NOTE: Do not usethe dispenser drawer or door to lift washer.
Excessivenoise and vibration can be prevented by properly leveling
the washer.
,For free standing installation and with the washer in it's final
position, place a levelon top of the washer. Adjust the leveling
legs so the washer is level front-to-rear and side-to-side, and
stable corner-to-corner.
,
,
6
Connect the inlet hose ends the HOT and COLD water
faucets tightly by hand, then tighten another 2/3 turn with
pliers. Turn the water on and check for leaks.
On machines equipped with drain pump, form a U shape on
the end of the drain hose, with the hose pointed toward the
drain. ?
NOTE: If the drain hose is placed in a standpipe without
forming a U shape, a siphoning action could occur. There
must be an air gap around the drain hose. A snug hose fit
can also cause a siphoning action.
\\ \
Pressdown on alternate corners and sides and feel for the
slightest movement. Adjust the appropriate leg sothe washer
is SOLIDon the floor on ALL four legs. Keep the leveling leg
extension at a minimum for best performance of thewasher.
8. For pedestal installations See additional installation
instructions included with the pedestal.
9. Plug the power cord into a grounded outlet.
NOTE: Check to ensure the power isoff at the circuit breaker/
fuse box before plugging the power cord into an outlet.
10. Turn on the power at the circuit breaker/fuse box.
11. Be sure you have read the "Important Safety Instructions"
before operating this washer.
12. Run the washer through a complete cycle. Check for water
leaks and proper operation.
13. Keep these instructions for future reference.
NOTE: A wiring diagram is located inside the washer on the
side panel.
16
