Frigidaire FFTW1001PW? User manual

Product Dimensions
Height 42-1/2"
Width 27"
Depth 29"
More Easy To Use Features
Ready-Select® Controls
Stainless Steel Drum
Bleach/Fabric Softener Dispenser
Available in:
frigidaire.com
Top Load Washer
FFTW1001PW
8 Wash Cycles
3.4 Cu. Ft. D.O.E.
Signature Features
Delicates Cycle
Wash your clothes without damaging.
Fits-More™ Washer
Our new design lets you wash more
in one load.
Heavy Wash Cycle
This cycle enables you to wash all those
clothes with difficult stains.
Automatic Water Level
Adjustment with 4 Manual
Options
Classic
White
(W)

USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFTW1001P 10/13 © 2013 Electrolux Home Products, Inc.
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Top Load Washer
FFTW1001PW 3.4 Cu. Ft. D.O.E.
1For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
Top Load Laundry - Washers
Frigidaire Baseline (P Model)
CB
A
Features
Washer Type
Total Capacity D.O.E. (Cu. Ft.)
Controls
Washer Drum Interior
Interior Light
Vibration Control System
Framed Glass Window Lid
Suspension System
Wash System
TimeWise® Technology
Fresh Water Rinse
WaterFall™ Wash
Estimated Time Remaining
Bleach Dispenser
Fabric Softener Dispenser
Cycle Status Lights
Cycle Signal
Cycle Signal “On/O ”
Control Lock
Start / Pause / Cancel Knobs
Delay Start
Agitate Speed (Stroke / Min.)
Spin Speed (Maximum RPM)
Sound Package
Adjustable Leveling Legs
Cycles
Wash Cycles
Specialty Cycles
Options
Water Temperature Selections
Water Levels
Spin Speed Selections
Soil Level Selections
Energy Saver Option
Optional Accessories
Mobile Home Installation Kit
Drain Hose Extension Kit
Certifications
ENERGY STAR®
Specifications
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Top Load
3.4
Ready-Select®
Stainless Steel
Sure-Spin™
Agitator
Yes
Yes
Yes
Yes
Yes
Variable
850
4
8
4
Automatic
PN # 137067200
PN # 137098000
Left Top Rear
Left Rear
120V / 60Hz / 15A
0.4
8.0
15
118 Lbs.
Product Dimensions
A - Height
B - Width
C - Depth
42-1/2"
27"
29"
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

Specifications
subject to change.
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFTW1001P 10/13 © 2013 Electrolux Home Products, Inc.
Top Load Washer
FFTW1001PW 3.4 Cu. Ft. D.O.E.
Top Load Washer Specifications
• Product Shipping Weight (approx.) – 118 Lbs.
• An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (ANSI/NFPA 70) and local codes &
ordinances. (Do not use same circuit as dryer.)
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Amps @ 120 Volts = 8.0 Amps
• Equipped with 120V 3-wire power supply cord, approx. 60" long.
• Always consult local and national electric & plumbing codes.
• To maximize detergent effectiveness, ambient temperature should
never be below 60° F.
• Washer can be installed in recess or closet requiring 0" minimum
installation clearance around sides and back of unit. To achieve
0" minimum rear clearance when installed with dryer, dryer MUST
be vented straight back. Closet installation requires additional 1"
minimum clearance between front of unit and door. If washer and
dryer are installed in same closet, door MUST be vented with 120 sq. in.
minimum louvered opening, equally divided, located 3" from top and
bottom of door. A louvered door with equivalent air openings for full-
length of door is acceptable. Air openings MUST remain unobstructed
with door installed. (For additional installation details, refer to Product
Installation Guide on web.)
• Do NOT install in area exposed to dripping water or outdoor weather
conditions; or where gasoline or other flammables, including
automobiles, are kept or stored.
• Floor MUST be solid with 1" maximum slope. To minimize vibration
or movement, reinforcement of floor may be necessary. Do NOT
install on carpeted surface.
• Leveling legs supplied to level unit properly and reduce excessive
noise and vibration.
• H/C water faucets MUST be installed within 42" of washer’s water
inlet and MUST be 3/4" with threading for laundry hose connection
to connect to 48" inlet hoses.
• Water pressure MUST be between 30 and 120 psi with NOT more
than 10 psi pressure difference between hot and cold.
• Drain standpipe requires diameter of 1-1/4" min. and height of
36" min. / 96" max. above floor, capable of eliminating 17 gallons
per minute. Attached 61" drain hose can reach 74"-high standpipe.
For higher standpipe, optional Drain Hose Extension Kit available.
• For manufactured or mobile home installation optional Mobile Home
Installation Kit (PN # 137067200) required. (For specific installation
details, refer to Product Installation Guide on web.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Mobile Home Installation Kit – (PN # 137067200).
• Drain Hose Extension Kit – (PN # 137098000).
Top Load Laundry - Washers
Frigidaire Baseline (P Model)

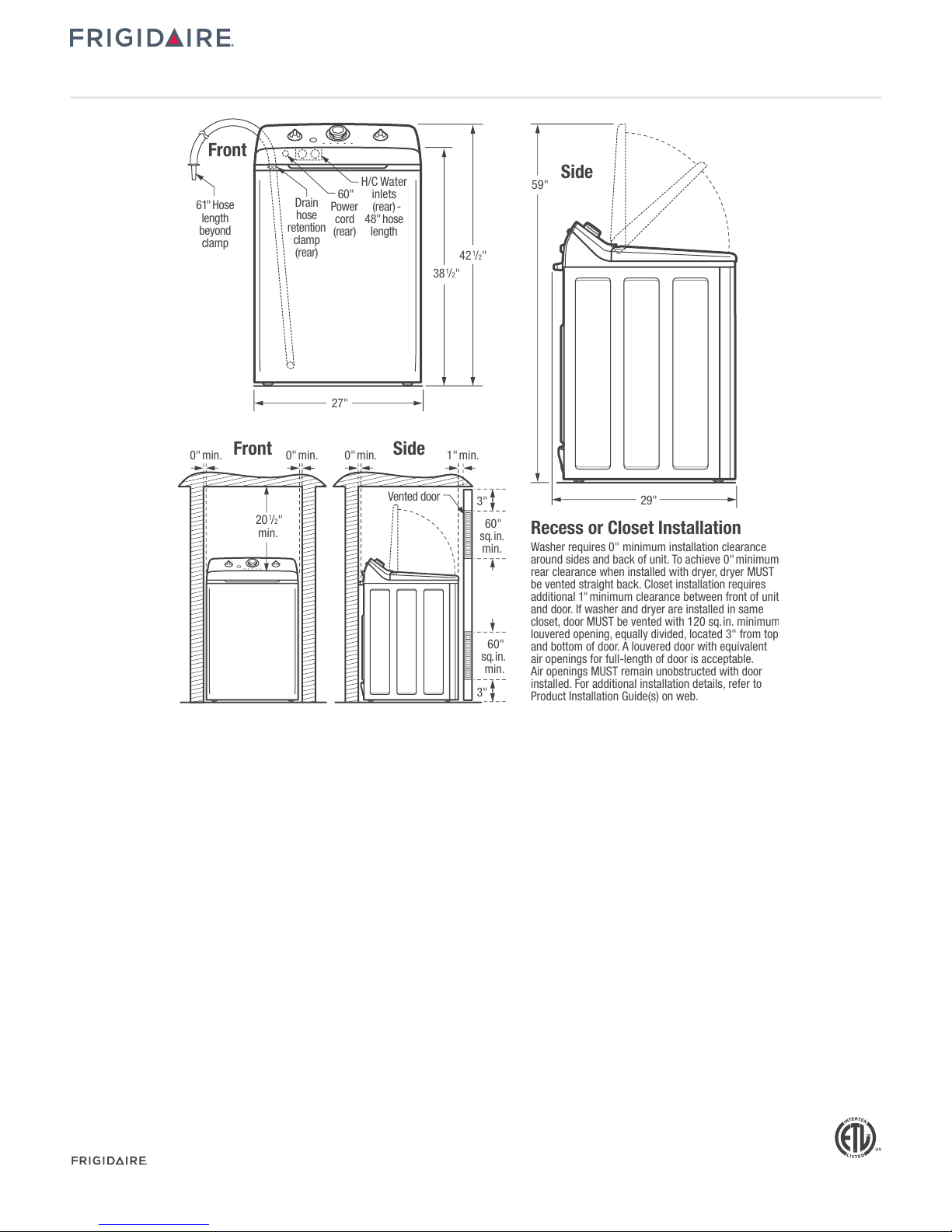

Recess or Closet Installation
Washer requires 0" minimum installation clearance
around sides and back of unit. To achieve 0"
minimum
rear clearance when installed with dryer, dr
yer MUST
be vented straight back. Closet installation requires
additional 1" minimum c
learance between front of unit
and door. If washer and dryer are installed in same
closet, door MUST be vented with 120 sq. in.
minimum
louvered opening, equally divided,
located 3" from top
and bottom of door. A louvered door with equivalent
air openings for full-length of door is acceptable.
Air openings MUST remain unobstructed with door
installed. For additional installation details, refer to
Product Installation Guide(s) on web.
Front
H/C Water
inlets
(rear) -
48" hose
length
42
1
/2"
60"
Power
cord
(rear)
38
1
/2"
27"
Drain
hose
retention
clamp
(rear)
61" Hose
length
beyond
clamp
Side
59"
29"
0" min. 0" min.
20
1
/2"
min.
Front
Vented door
0" min. 1"
min.
Side
60"
sq. in.
min.
3"
60"
sq. in.
min.
3"
