Frigidaire FGX831C User manual

LAUNDRY CENTER
Model number
FGX831C
©2003 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
LAUNDRY CENTER
WIRING DIAGRAM - # 134135600
OWNER’S GUIDE - 131781700
INSTALLATION INSTRUCTIONS - # 131661700
WASHER OPERATING INSTRUCTIONS - # 131919500
DRYER OPERATING INSTRUCTIONS - # 134067200
PRODUCT NO. BASE MODEL NO. SERIES MARKET COLOR
FGX831CS0 FGX831C Frigidaire North America white
Publication No.
5995396404
030922
-EN/SERVICE /KC
361
ELECTROLUX HOME PRODUCTS, INC.
P.O BOX 212378, AUGUSTA , GA 30917

09/03 2
Publication No. FGX831CS0
5995396404

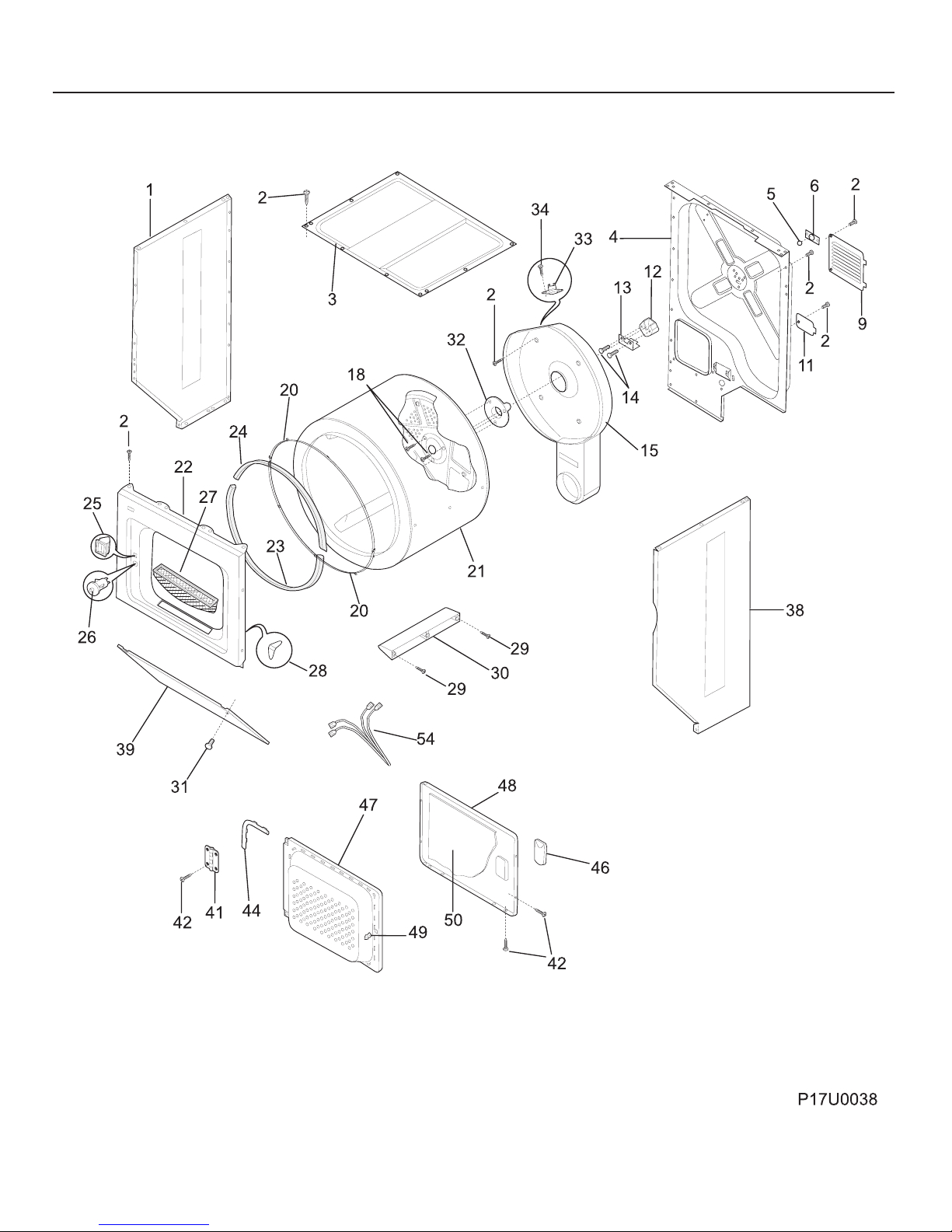

UPPER CABINET / DRUM / HEATER

# = Functional Parts 3 09/03
* = Non-Illustrated Parts
FGX831CS0 Publication No.
5995396404
POS. NO PART NO DESCRIPTION
1 131084700 Panel,left side ,white
2 131168200 Screw,pan head ,8-18B x 0.31
3 131883301 Panel,top
4 131752302 Panel,rear ,steel ,galvanized
5 5303281019 Ball
6 5303281020 Clip,ball ,steel ,flat nut
9 3204249 Panel,motor access ,rear
11 5303207395 Cover,terminal block
12 131825900 Bearing,drum support
13 131724300 Bracket,bearing support
14 131205400 Screw,bracket mtg. ,10-16B x 1.375, cr/sq drive
15 5303207394 Housing,heater ,w/duct & seal
18 131477000 Screw,10-16AB x 0.375
20 131963900 Glide,drum
21 134122532 Drum,dryer ,galvanized stl., service kit
22 134031600 Panel,front ,white ,svce kit w/plug
22* 131870700 Plug,light hole
23 134134700 Seal,felt ,lower
24 134036400 Seal,felt ,upper
25 131658800 Door Catch
26 # 5308001614 Switch,door ,w/o drum light
27 131359600 Lint Trap
28 5303281074 Clip,guide ,(3)
29 131382300 Screw,quadrex head ,10-14 x 1.00, vane mtg.,special
30 5303201200 Vane,straight
31 131202300 Screw,pph ,10-16AB x 0.625
32 131777700 Shaft,drum support ,ballhitch
33 # 5304406099 Thermostat,safety
34 131243800 Screw,pan hd locking ,8-32CA x 0.375, cup point
38 131084800 Panel,right side ,white
39 131084402 Panel,access ,white ,front
41 131627500 Hinge,door
42 131209600 Screw,flat head ,8-18AB x 0.44, cr/sq drive
44 131129900 Gasket,door seal
46 131789400 Handle,door ,white
47 131579103 Panel,inner door ,white
48 131789303 Panel,outer door ,white
49 5303211430 Door Strike
50 3204286 Insulator,heat shield ,outer door
54 # 131498900 Wiring Harness,door switch ,w/o light
UPPER CABINET / DRUM / HEATER

09/03 4
Publication No. FGX831CS0
5995396404

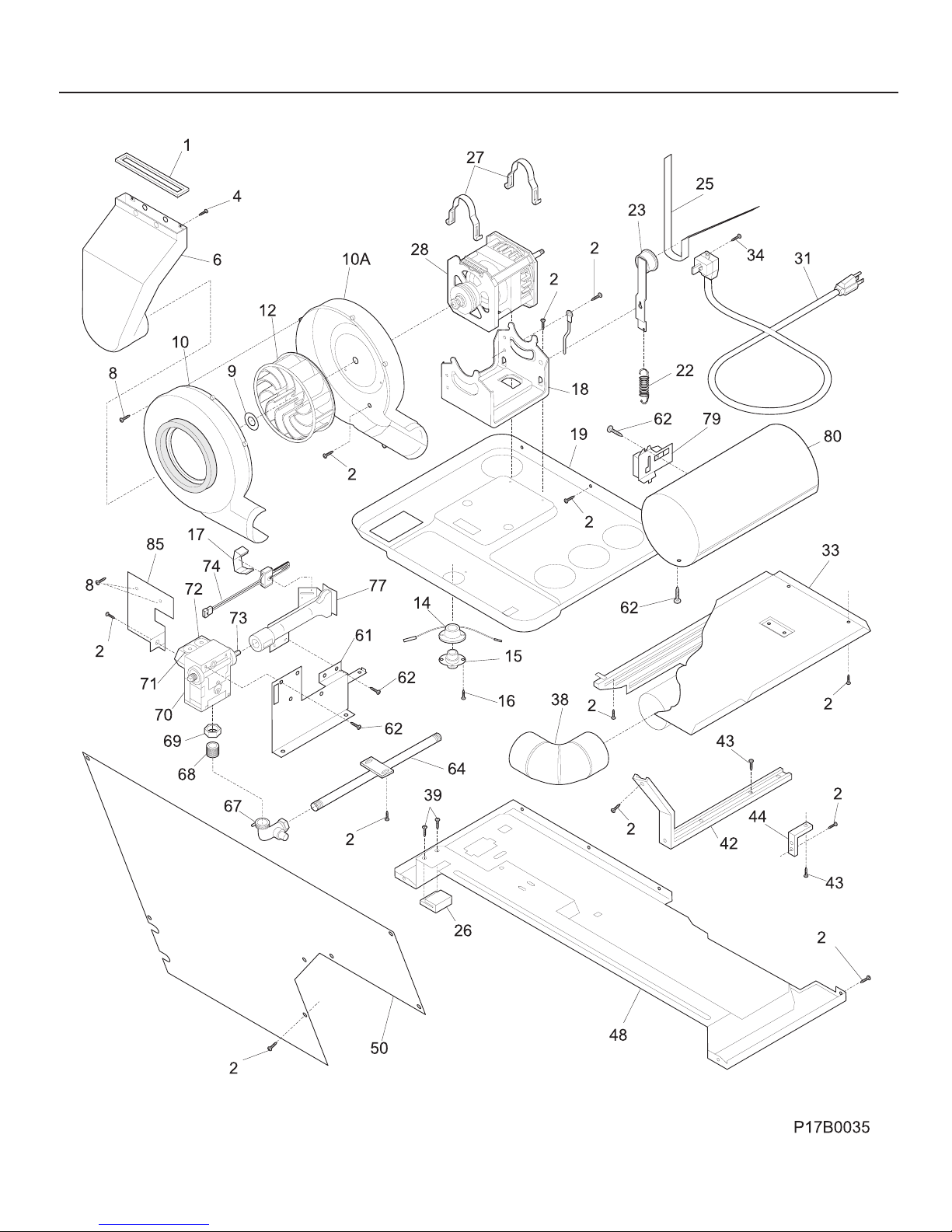

MOTOR / BLOWER / BELT

# = Functional Parts 5 09/03
* = Non-Illustrated Parts
FGX831CS0 Publication No.
5995396404
POS. NO PART NO DESCRIPTION
1 131295200 Seal,air duct
2 131168200 Screw,pan head ,8-18B x 0.31
4 131362400 Fastener,push-in
6 134086300 Duct,air
8 3205245 Screw,pan head ,6-18AB x 0.60
9 5303304824 Clamp
10 131784500 Housing,blower ,front ,with seal
10A 134145100 Housing,blower ,rear
12 131476300 Blower Wheel
14 # 131658101 Thermostat,heater
15 # 131322600 Thermostat,control
16 131311900 Screw,quadrex ph ,8-18AB x 0.500
17 131715500 Clip,ignitor mtg
18 131413600 Cradle,motor mount ,with idler stud
19 131363901 Panel,motor cradle mt
22 3205241 Spring,idler
23 131863100 Idler Arm Assy,with pulley
25 # 134163500 Belt,dryer drive
26 5303212870 Block,support ,bottom panel
27 134242400 Clamp,motor mtg.
28 # 134196600 Motor,dryer drive ,with pulley
31 134099900 Power Cord,electric svce
33 131731410 Shield,access area ,cover
34 134154100 Screw,hex washer head ,10-32 x 0.375, ground
38 3204320 Elbow,exhaust duct
39 131205100 Screw,#8 pan head ,10-10B x 0.500, cr/sq drive
42 3204324 Bracket,marriage ,interior
43 131751500 Screw,hex head ,12-24T 0.63
44 3204326 Bracket,L mounting ,cabinet rear, external
48 131731300 Panel,dryer ,bottom rear
50 3204329 Cover,safety ,lower front
61 5303309493 Bracket,gas valve mtg
62 131243700 Screw,pan head ,8-18AB x 0.375, cr/sq drive
64 134145200 Pipe,gas
67 # 131498500 Valve,gas shutoff
68 134185100 Tail Piece,coupling
69 # 5308015194 Union,hex nut
70 # 5303207409 Valve,gas
71 # 5300622602 Solenoid,secondary coil
72 # 5308015680 Solenoid,booster coil
73 # 5303211036 Orifice,natural gas ,size 44
74 # 5303281151 Ignitor Assy
77 # 131763500 Burner,gas ,adjustable
79 # 5303281135 Sensor,radiant
80 # 131712401 Tube,burner
85 131712300 Shield,heat
* # 5303937053 LP Conversion Kit,natural to LP
MOTOR / BLOWER / BELT

09/03 6
Publication No. FGX831CS0
5995396404
CONTROL PANEL
P17C0066
20
34
1
21
4
15 5
8
11
9
22
11
11
2
21A
25 27
32
24
35
31
23 29
6
3
17
18
38 27
39
10
22

# = Functional Parts 7 09/03
* = Non-Illustrated Parts
FGX831CS0 Publication No.
5995396404
CONTROL PANEL
POS. NO PART NO DESCRIPTION
1 # 5303297139 Timer,dryer
2 131168200 Screw,pan head ,8-18B x 0.31
3 # 134066100 Wiring Harness,dryer control
4 131873404 Knob,rotary ,white/dk gray
5 131692100 Switch,pressure ,3 position ,1/2 hp
5* 131209800 Clamp,hose ,pressure switch
6 # 134122200 Wiring Harness,washer control, w/temp switch
8 # 131758600 Timer,washer
9 131111501 Button,start switch ,white ,push type
10 # 131628900 Switch,push start
11 5303283289 Screw,cr pan head ,8-32 x 0.250, thread forming
15 # 131620800 Switch,temp selector ,3 posn rotary
17 131983410 Bracket,control mtg
18 134310300 Panel,trimplate ,console front
20 131288101 End Cap,white ,LH
21 131873304 Knob,dryer timer ,white
21A 131977201 Knob,washer timer ,white
22 131311700 Screw,pan head quad ,8-32 x 0.15
23 # 131848700 Wiring Harness,main
24 131209600 Screw,flat head ,8-18AB x 0.44, cr/sq drive
25 131976804 Indicator,timer pointer, white/dark gray,washer
27 131892100 Screw,6-20B x 0.230
29 # 134113400 Wiring Harness,washer ,lower
29* 5303161300 Strap,plastic
31 131288211 End Cap,white ,RH
32 3204357 Clip,grounding
34 131243700 Screw,pan head ,8-18AB x 0.375, cr/sq drive
35 5308014350 Clip,end cap mtg ,U-type
38 # 5303286537 Buzzer
39 # 134045300 Switch,dryer temp ,2 posn rotary

09/03 8
Publication No. FGX831CS0
5995396404

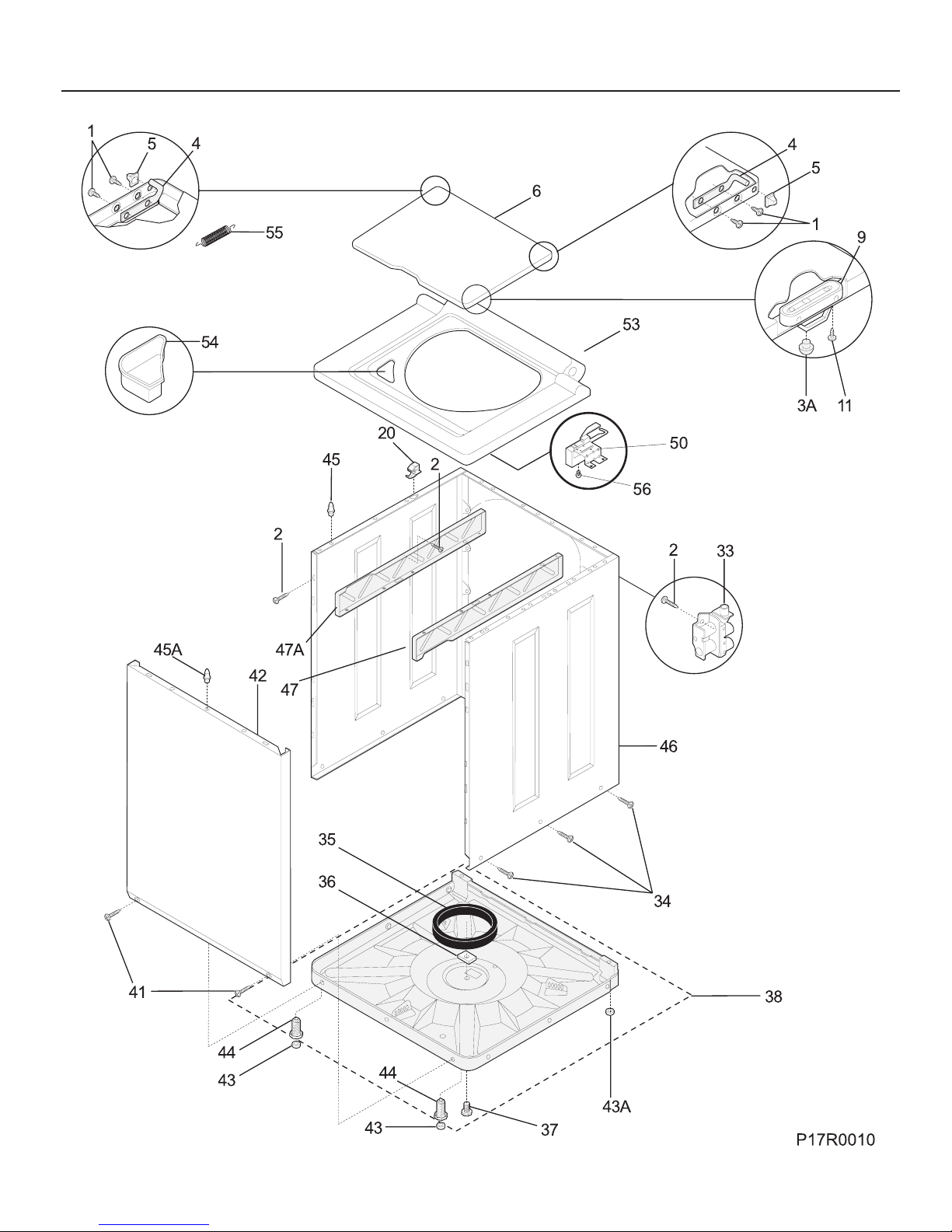

LOWER CABINET / TOP

# = Functional Parts 9 09/03
* = Non-Illustrated Parts
FGX831CS0 Publication No.
5995396404
POS. NO PART NO DESCRIPTION
1 131587500 Screw,hinge mtg ,6-32 x 0.3125, pph 45deg hdrpt
2 131168200 Screw,pan head ,8-18B x 0.31
3A 134075500 Bumper,lid ,front
4 3205250 Hinge Bar
5 5303208743 Grommet,hinge
6 5303212872 Lid,washer ,white
9 131390000 Lid Strike
11 3204368 Screw,lid strike mtg ,6-20B X 0.375
20 3204374 Pin,slide ,side to top
33 # 134211400 Valve,water ,115 V
34 131205500 Screw,cab body ,1/4-14 x 0.625, side-to-base
35 5308002385 Snubber Ring
36 3204380 Shipping Block
37 131658900 Screw,shipping, 1/4-20 x 1.001, yellow, unit base, thrd forming
38 5303311213 Base Assembly
41 131258400 Screw,10-16AB x 0.500
42 131104303 Panel,front ,white
43 131422100 Pad,leveling leg ,front
43A 131422200 Pad,self lvlg leg ,rear
44 5303309673 Screw,leveling leg ,with pad
45 131346400 Pin,panel locator ,side
45A 131346401 Pin,panel locator ,front
46 134046600 Cabinet Assy,white ,back and sides
47 131106701 Bracket,marriage ,RH
47A 131091001 Bracket,marriage ,LH
50 # 134101800 Lock,lid ,w/ext switch
53 131452510 Panel,washer top ,white
54 3204394 Dispenser,bleach
55 5303212876 Spring,lid assist
56 131243700 Screw,pan head ,8-18AB x 0.375, cr/sq drive
LOWER CABINET / TOP

09/03 10
Publication No. FGX831CS0
5995396404
MOTOR / TUB
P17T0054
49
48
26
20
23
21
45
48
35 36 37
38
34
33
30
29
27
28
24
23A
22
40
58
60
43
41
62
339
13
18
53
51
48
15
16
14
12
10
6
7
9
4
1
11
2
68
69

# = Functional Parts 11 09/03
* = Non-Illustrated Parts
FGX831CS0 Publication No.
5995396404
POS. NO PART NO DESCRIPTION
1 3204395 Cap,agitator ,standard,slim
2 3204396 Seal,agitator cap
3 131398303 Cover,splash tub ,with seal
3* 131901400 •Seal,splash cover
4 # 131212301 Capacitor,motor
6 131454100 Hose,water inlet ,hoses & washers
7 5303161296 Washer,inlet hose
9 5303304824 Clamp
10 131726300 Hose Assy,w/nozzle,clamp
11 # 5304405894 Agitator,standard ,slim
12 131090400 Tub,spin ,w/lint filter
13 5303283293 Screw,trunion ,5/16-18 x 0.625 ,(5)
14 131192800 Screw,lockplate ,5/16-18 x 1.625
15 5308001923 Plate,lock
16 131545101 Trunnion
18 131557201 Tub,splash ,w/air dome,brg
20 3205150 Screw,tub bearing ,8-12B x 0.750
21 5308002401 Washer,spin bearing ,upper
22 131373610 Leg & Dome Assy
23 5303208858 Spring,vertical ,short
23* 5303212877 Insert,spring adjuster ,vertical
23A 5303208860 Spring,vertical
24 131373900 Spring,horizontal
26 # 3204405 Bearing,outer tub
27 5303304825 Screw,set,hex hd cup,5/16-18x0.85, xmsn plly,hx hd cup pt
28 # 134161100 V-Belt,washer drive ,standard 4L
29 # 131498301 Pulley,xmsn drive
30 # 131862900 Idler Arm Assy,VAW ,with pulley
33 3204425 Spring,torsional
34 3204426 Sleeve,idler pivot
35 3161433 Ring,retaining
36 5303261031 Washer,pivot shaft
37 5303161306 Washer,spring type
38 5303318708 Nut,hex flange ,motor mounting
39 131205100 Screw,#8 pan head ,10-10B x 0.500,cr/sq drive
40 # 134156400 Motor,washer drive ,with pulley
41 131513300 Shield,motor assy ,w/speed nuts
43 # 134051200 Pump,drain
45 134049200 Hose,drain
45* 131506500 Clip,drain hose ,back sheet ,(2)
45* 131453000 Bushing,snap-in ,drain hose
45* 131462500 Clip,drain hose ,base
45* 131663500 Cushion,drain hose ,base
48 131306234 Clamp,pump to trap
49 # 131494800 Hose,pump to tub
51 131659000 Screw,leg,hex wshr hd ,5/16-18 x 0.875, type 23
53 5304401845 Tube,pressure ,vinyl
58 134160900 Screw,quadrex ,10-16AB X 0.750
60 131304300 Washer,0.21 x 0.71 ,0.06 thick
62 131258400 Screw,10-16AB x 0.500
68 131707800 Ring,drain hose
68* 5303309503 Clip,drain hose ,back sheet
69 131731500 Fastener,ratchet
MOTOR / TUB

09/03 12
Publication No. FGX831CS0
5995396404

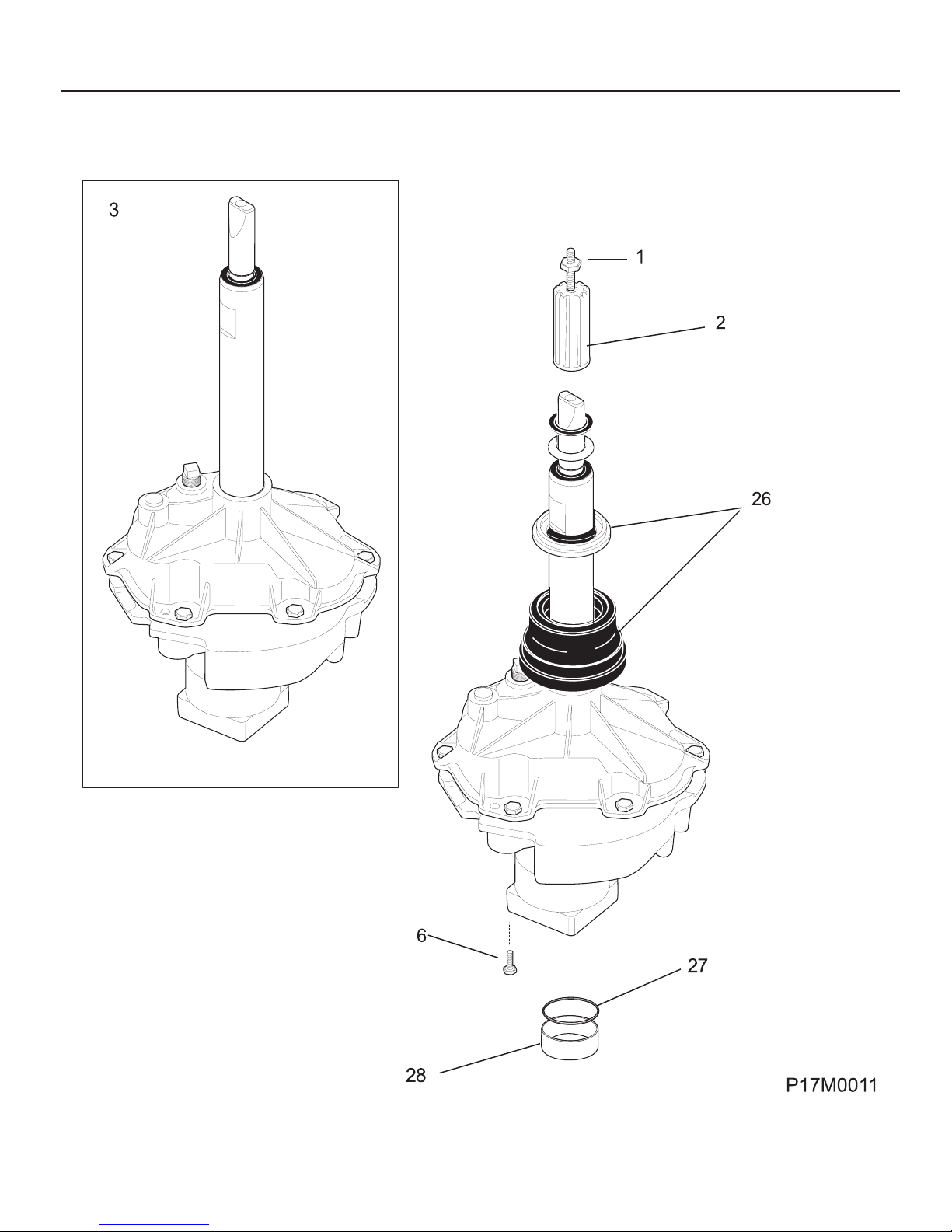

TRANSMISSION

# = Functional Parts 13 09/03
* = Non-Illustrated Parts
FGX831CS0 Publication No.
5995396404
POS. NO PART NO DESCRIPTION
1 131206800 Stud,agitator cap
2 5303306139 Hub,drive ,agitator
3 # 131878400 Transmission Assy,H-helical gear
6 134197900 Screw,hex washer head ,1/4-20 x 0.437
26 # 5303279394 Seal Assy,tub ,transmission
27 131784300 Washer,bearing block ,transmission
28 131784400 Spacer,bearing block ,transmission
* 134283500 Energy Guide
TRANSMISSION

09/03 14
Publication No. FGX831CS0
5995396404

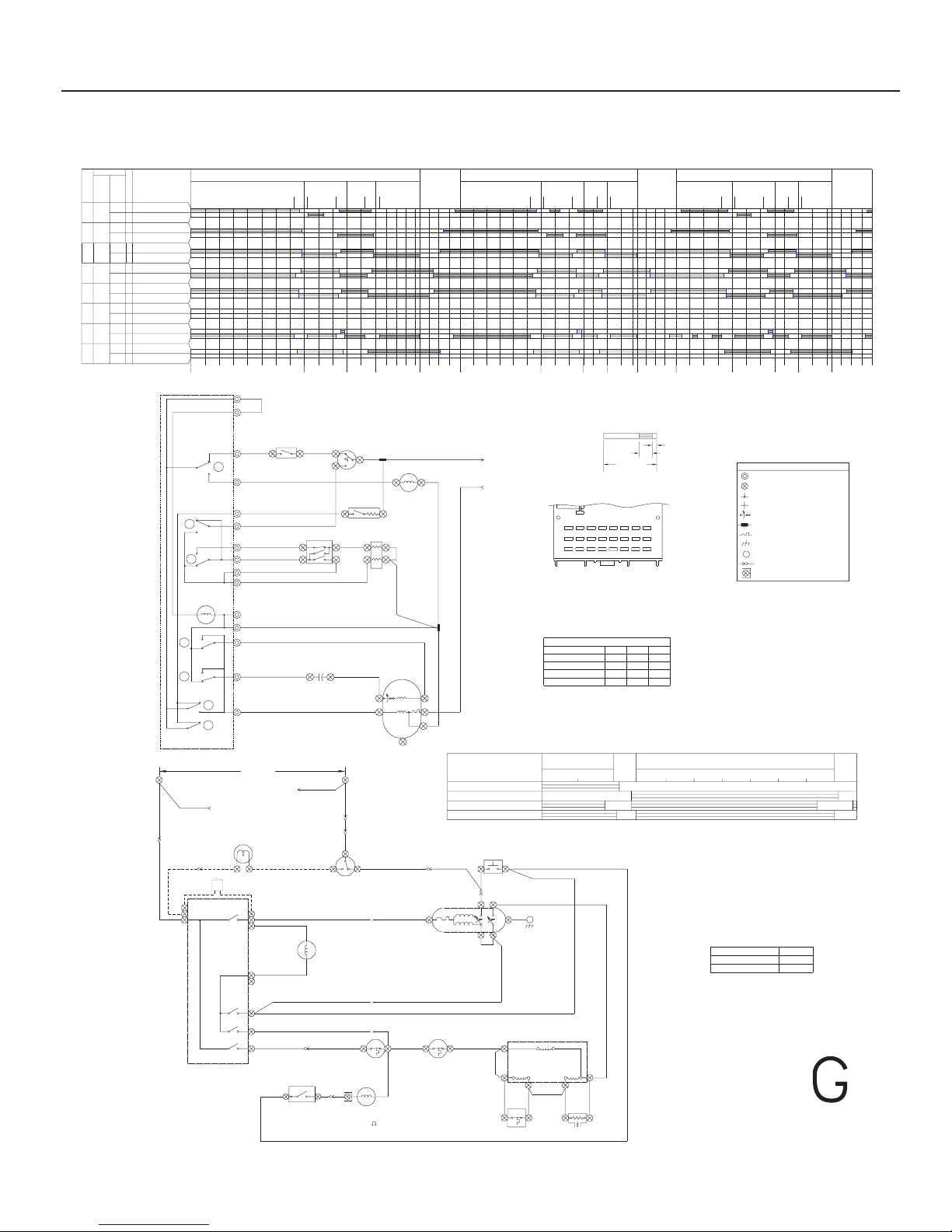

WIRING DIAGRAM
CAUTION: DISCONNECT ELECTRIC CURRENT BEFORE SERVICING. LABEL
ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS.
WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERATION.VERIFY PROPER OPERATION AFTER SERVICING.
WIRING DIAGRAM
P/N 134135600
X
X
WARM/WARM (OPT)
WARM/COLD
COLD/COLD
SWITCH
SELECTOR
FABRIC
BLUE
THERMOSTAT
HEATER
2K
CIRCUITS THAT ARE NOT
DASHED LINES INDICATE
IN ALL MODELS.
NOTE:
HIGH HEAT
X=CLOSED
POSITION
FABRIC SELECTOR SWITCH
LOW HEAT
CIRCUIT
X
XX
X
X=CLOSED
WASH/RINSE
HOT/COLD
TEMPERATURE SWITCH CIRCUIT
X
F-H FF-CFF-H
3. DRYER TIMER SHOWN IN OFF POSITION
START
SWITCH
CIRCUIT
DRYER TIMER
14
12
WASHER TIMER
CIRCLED NUMBERS
INDICATE CAM
8
TO NEUTRAL
CONNECTOR
CONNECTOR
TO L1
RED
ORG
T21
T14
CAPACITOR
MOTOR
TIMER
HEATER
TIMER
MOTOR
M5
M6
ORG
START
HIGH
M7
M3
M1
OFF
AUTO DRY
B-C
TM-AD
TM-TD
B-A
31.7 15
OFF
0105.3 90
TIMED DRY (MIN)
75 60 45 1530 0
TEMPERATURE SELECTOR SWITCH AT
HOT WASH/COLD RINSE, AND
PRESSURE SWITCH FULL.
AN THERMOSTAT CLOSED. AND FABRIC
DOOR SWITCH CLOSED, MOTOR AT REST,
WASHER TIMER SHOWN IN ON POSITION
SELECTOR SWITCH AT HIGH HEAT.
WASH
(12 MIN)
7
TLID SW BYPASS
MOTOR
TIMER
P.S. BYPASS
P.S. BYPASS
AGITATE DIR
AGITATE DIR
MOTOR CONTROL
6
2
0
1710
20
20
14
12
22
B
T
22
21
21
T
B
B
14
20
11
8
4
6
21
21
12
T
B
T
12
9
21
B
T
B
2
BLK
4
EMPTY
C
PURP
BLUE
BLUE
T11
T15
T6
T3
WHT/PURP
PINK
WHT/BLK
WHT/RED
RED/WHT
T5
T4
T2
T22
T9
TEMP SWITCH
FF
FH
1
WATER
VALV E
BLK/
RED
MOTOR
YEL
C
H
LID LOCK
BLK/
RED
PUMP
21
BLK
FULL
PRESSURE
SWITCH
LID SWITCH
TAN/
BLK
T7
T20
T17 BLK
TAN/
3
60°
0°
SPIN DIR
SPIN DIR
PUMP
WHT
82.5°
97.5°
WHT
121°
142.5°
SI SPRAY
WATER TEMP.
XT
T
2
M
03
B
3
4
5
B
T
5
E
D
E
I
V
2
T
T
A
C
A
CI
F
A
C
TERM. C
O
N
SPIN
PUMP
(6 MIN)
REGULAR
(16 MIN)
CIRCUIT
RINSE FILL
WASH FILL
WASH
A
P
PUMP
RINSE
(4 MIN)
PSPIN
(10 MIN)
P
OFF
WIRING CODES
(END VIEW)
TIMER PLUG-MALE
22 19 1316 710 1 4
23
24
20
21
14
15
17
18
TO DRYER L1
CONNECTOR
8
912
11 2
3
5
6
HARNESS CONNECTOR TERMINAL
INSULATED TERMINAL
1. ALL WIRING MUST CONFORM TO LOCAL
2. CONNECT DRYER TO 15 AMP INDIVIDUAL
ELECTRICAL CODES.
BRANCH CIRCUIT.
NOTES;
MOTOR PROTECTOR
SCREW TERMINAL
CONNECTION
NO CONNECTION
MOTOR SWITCH
PLUG-IN TIMER
CHASSIS (CABINET) GROUND
QUICK DISCONNECT TERMINAL
SPLICE
30±2 SEC
SUBINTERVAL SPRAY DETAIL
SPRAY=A
TO DRYER NEUTRAL
CONNECTOR
185°
207.5°
120 SEC
220°
236°
256.5°
308.5°
10±2 SEC
286°
321°
338.5°
360°
(4 MIN)
RINSE
PUMP
PSPIN
(6 MIN)
P
PERM. PRESS
PUMP
(6 MIN)
PSPIN
OFF
DELICATE
PUMP
WASH
(8 MIN)
P
A
SPIN
(6 MIN)
P
PUMP
(6 MIN)
SPIN
P
(4 MIN)
RINSE OFF
ORG
TAN
GRAY
CONTROL
THERMOSTAT
TAN
HIGH LIMIT
THERMOSTAT
BLK
RED/BLK
B
BLK
BLK
L1
SWITCH
DOOR
TD
A
AD
TM
ORG
C
BUZZER
TIMER
MOTOR
WHT
NC
1
PURP
3BLK
TAN
ORG
BRN
NO
MOTOR
M4
M5
START
RUN
GRAY
M6
LIGHT
DRUM
120 VAC
C
WHT
N
WHT
WHT
3
BOOSTER
SENSOR
WHT
COIL
SECONDARY
4
ORG
5
WHT
IGNITER
WHT
WHT
COIL 1
YEL
HOLDING COIL
GAS CONTROL VALVE
TAN
2
CRADLE
GRN
M2
MOTOR
M1
CYCLES
TIMER CONTACTS ARE CLOSED.
THE PROPORTIONAL TIMES THAT INTERNAL
SHADED PORTION OF BAR CHART INDICATES
COMPLETE REVOLUTION OF TIMER SHAFT.
BAR CHART ABOVE REPRESENTS ONE
