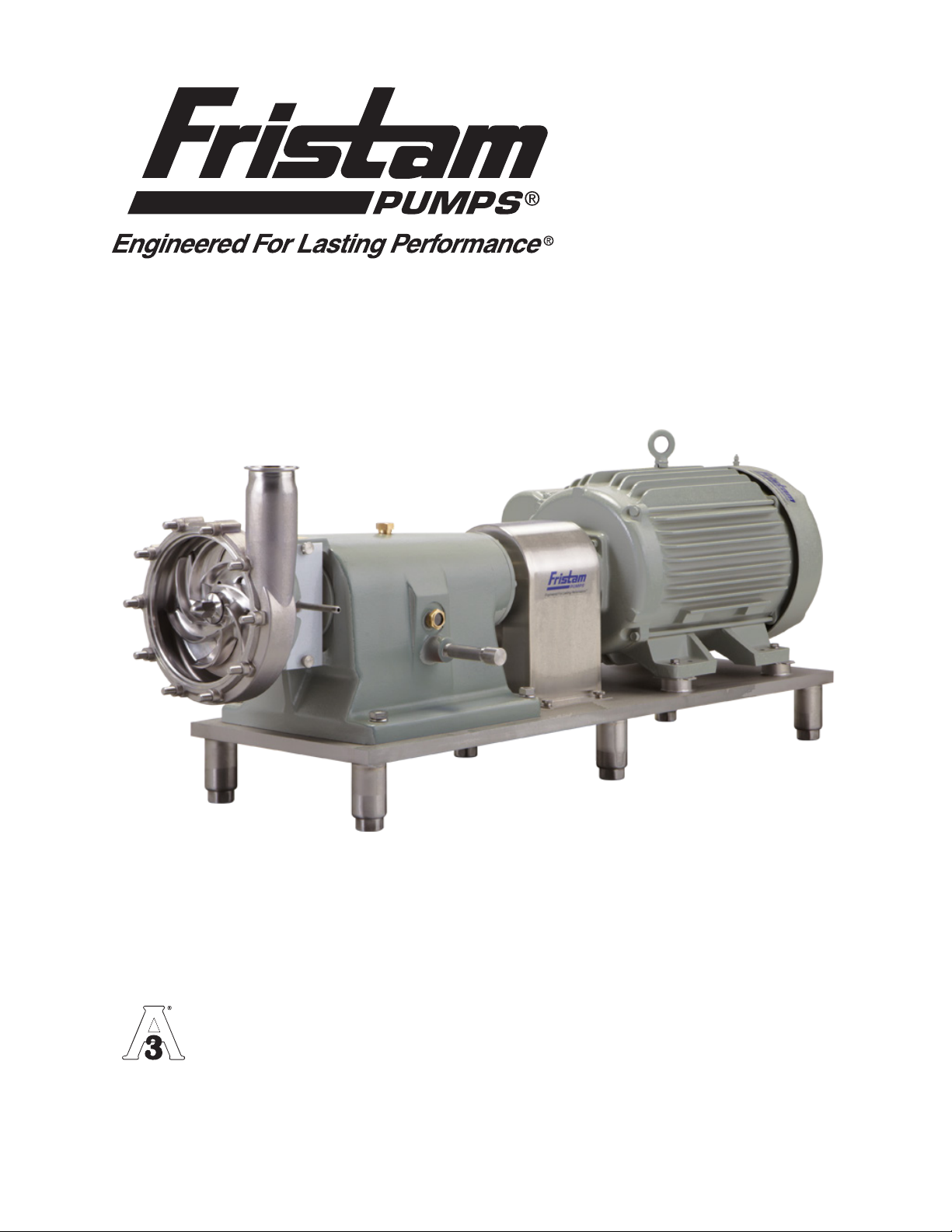

Fristam Pumps FPH Series Instructions for use

INSTRUCTION AND MAINTENANCE MANUAL:
FPH/FPHP-Style Pumps
SANITARY HIGH PRESSURE CENTRIFUGAL PUMPS

Fristam Pumps
2
DeScriPtion
This manual contains installation, operation, assembly, disassembly and repair instructions for the
Fristam “FPH & FPHP” pumps. Please read this manual in its entirety before operating the pump.
The FPH & FPHP pumps are mounted to a heavy duty cast iron bearing block. This bearing block is
coupled to a motor and mounted on a solid stainless steel adjustable baseplate.
The motors used on FPH & FPHP pumps are standard NEMA totally enclosed fan cooled (TEFC) mo-
tors. Replacement motors are readily available from local motor distributors.
The open design of the impeller facilitates cleaning. Due to close clearance between the impeller and
the housing and cover, these pumps are very efficient.
Fristam Pumps have an internal mechanical seal which allows the pumped product to cool, lubricate
and clean the front seal. The FPH & FPHP Series have similar operating characteristics to standard
single impeller centrifugal pumps. The unit is NOT self-priming, it requires a flooded suction.
!
DANGER: BEGIN ALL PUMP MAINTENANCE BY DISCONNECTING THE ENERGY
SOURCE TO THE PUMP. OBSERVE ALL LOCK OUT/TAG OUT PROCEDURES
AS OUTLINED BY ANSI Z244.1-1982 AND OSHA 1910.147 TO PREVENT AC-
CIDENTAL START-UP AND INJURY.
Note: Check alignment between
bearing block shaft and motor
shaft before start-up.
See pages 7-8.

FPH/FPHP Series Pump
3
table oF contentS
Description ..................................................................................................................................2
table of contents .........................................................................................................................3
technical information....................................................................................................................4
preventive maintenance .................................................................................................................5
installation ..................................................................................................................................6
electrical installation ..................................................................................................................8

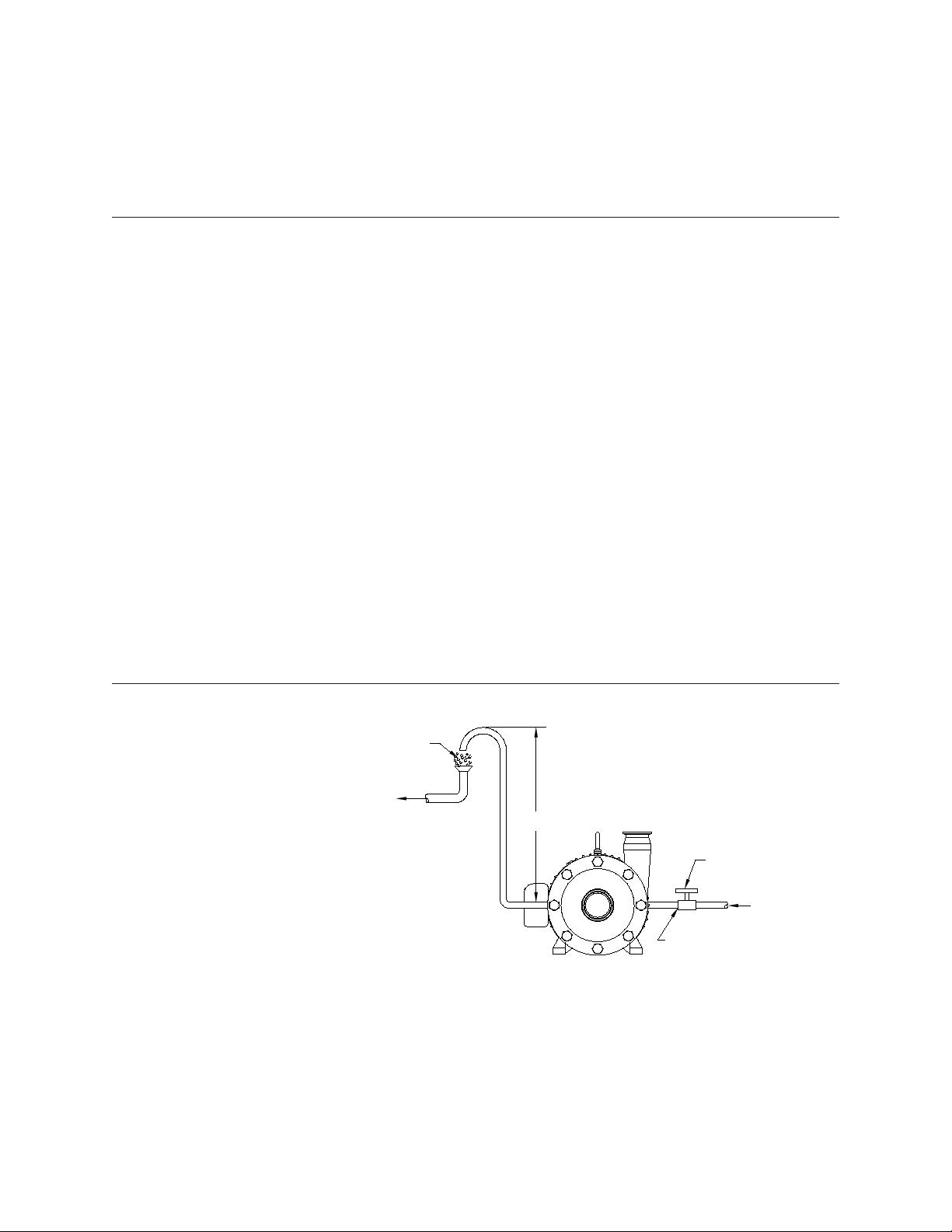

installation of seal flush for Double mechanical seal ...............................................................9

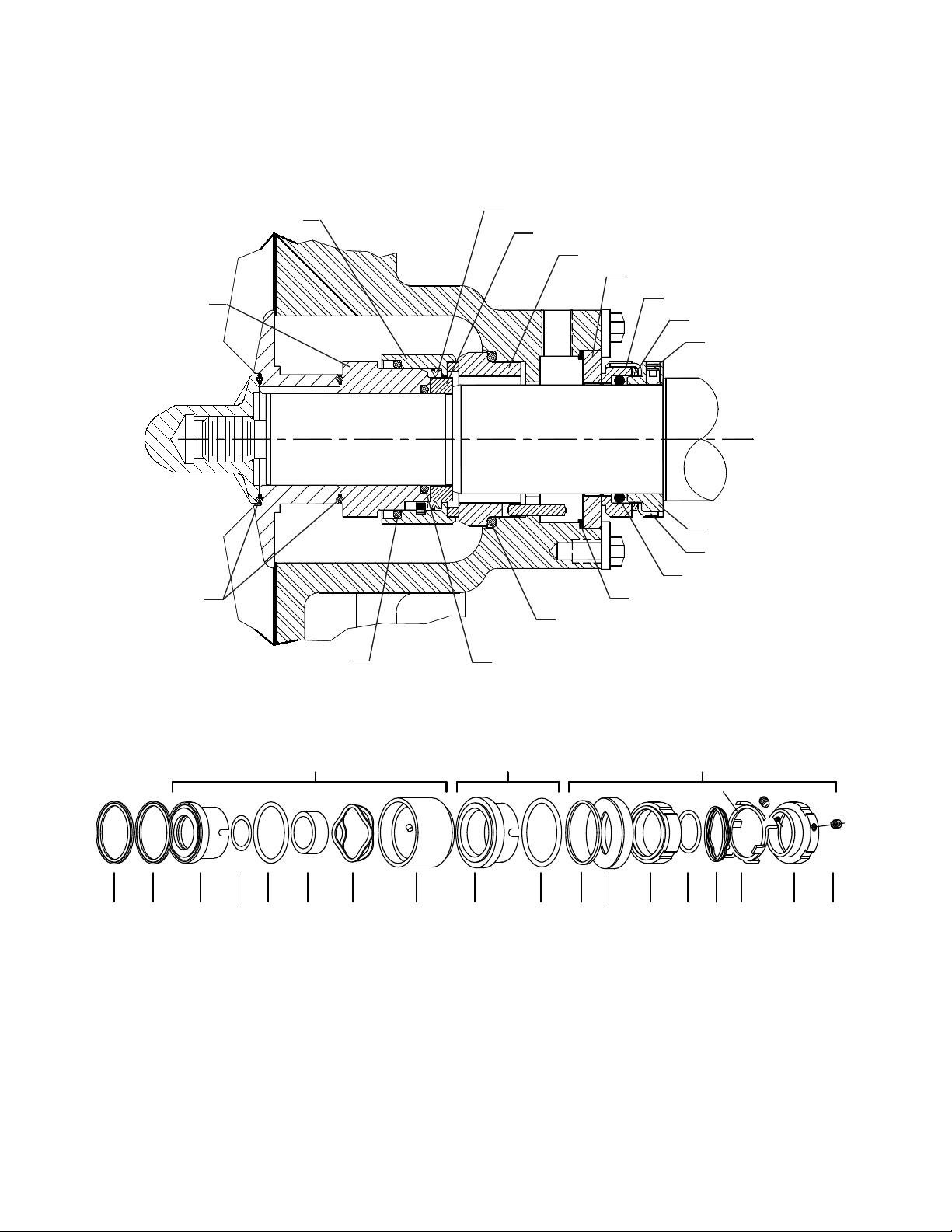

seal assembly Drawings.................................................................................................................10

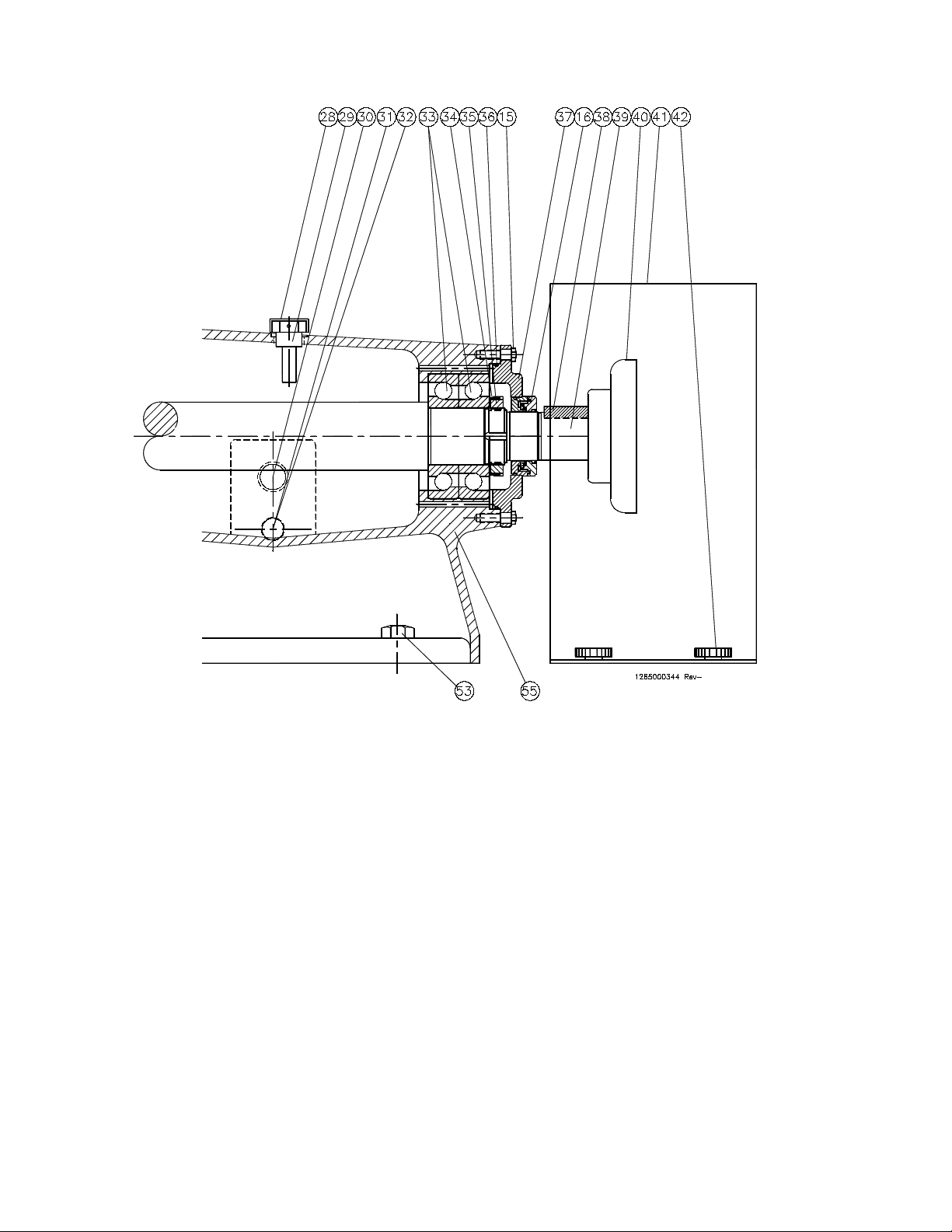

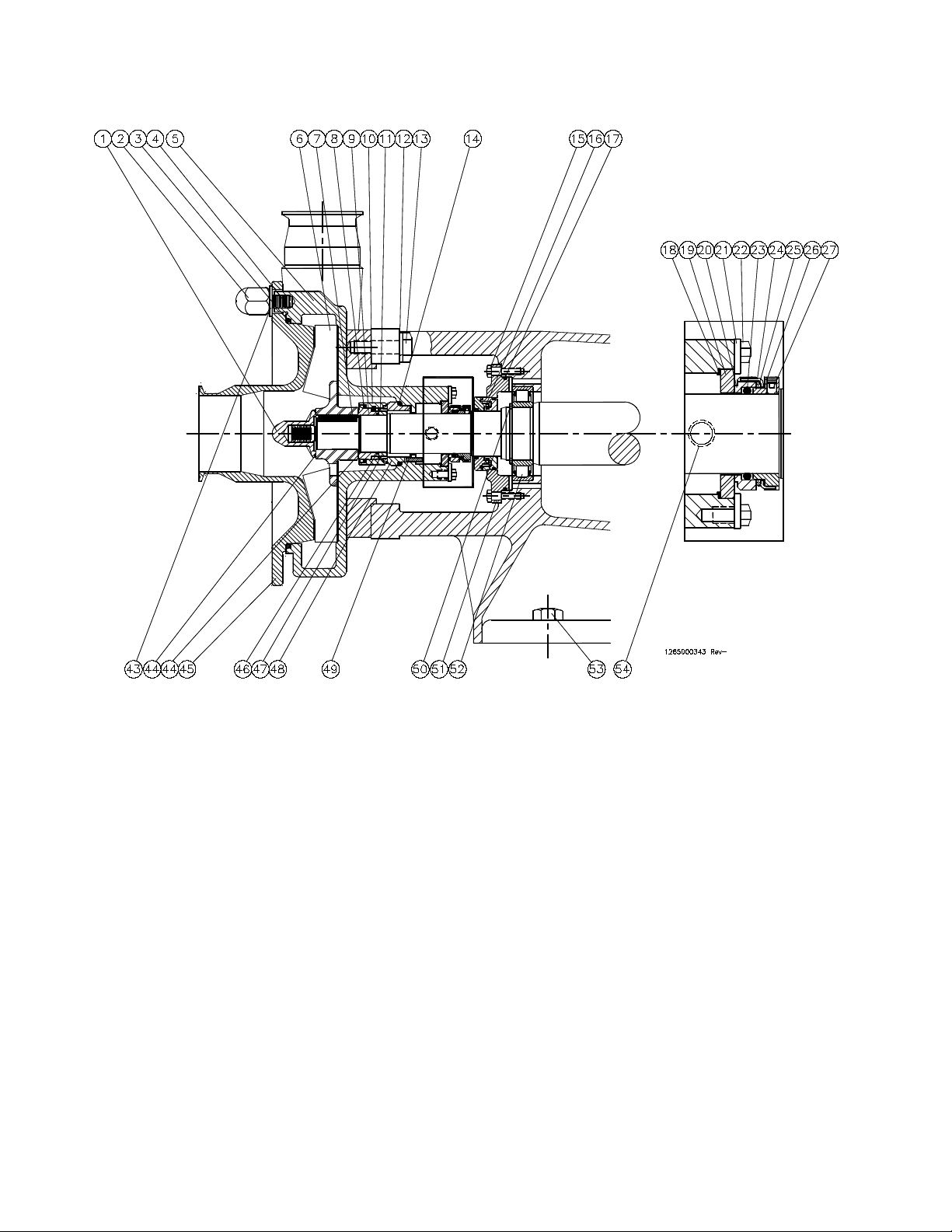

pump assembly Drawings (except 722)............................................................................................12
parts lists ..................................................................................................................................14
fph/fphp 3542 .......................................................................................................14
fph 3552 ..................................................................................................................15
fph 3642 ..................................................................................................................16
fph 3652 ..................................................................................................................17

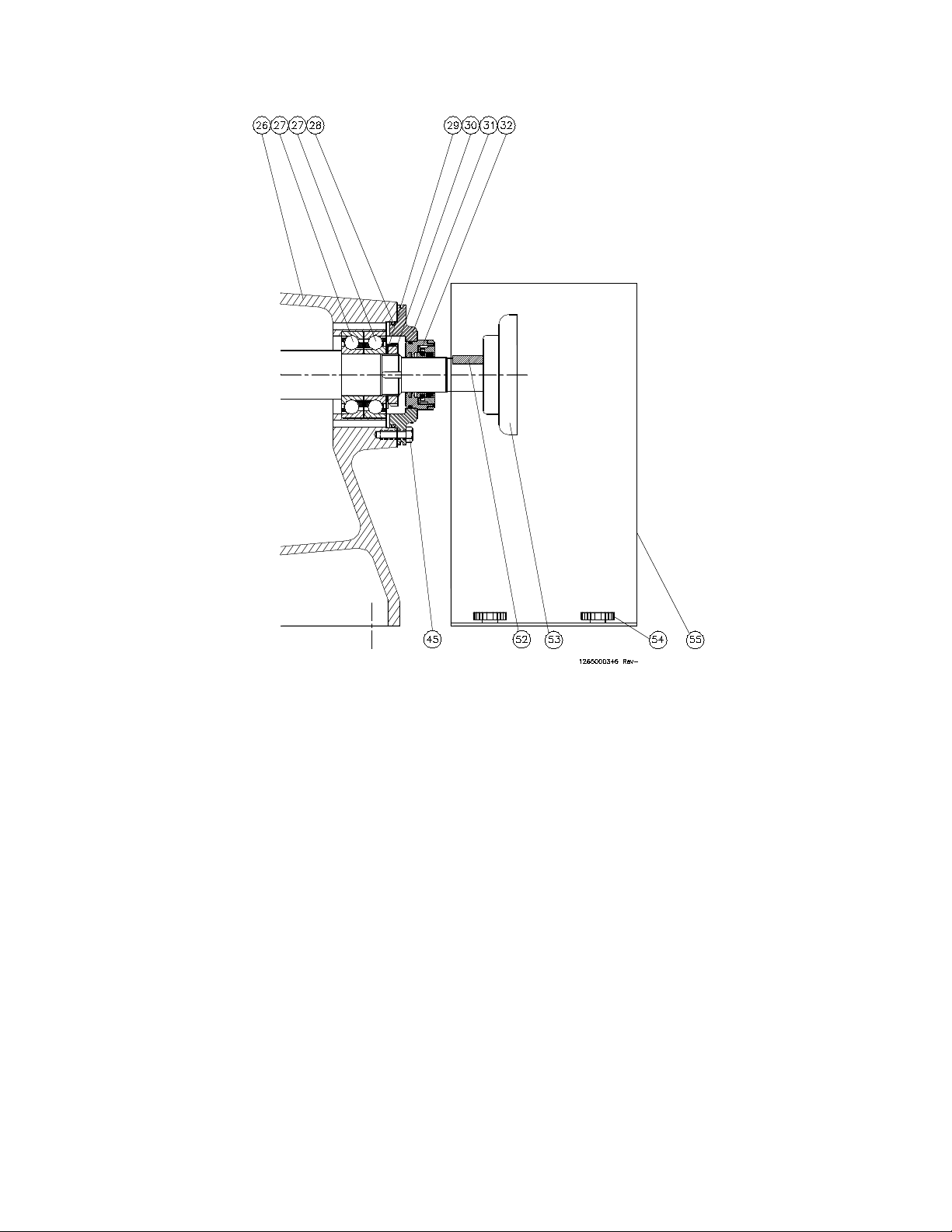

fphp 722 assembly Drawing ........................................................................................................18
fphp 722 part number list .........................................................................................................20
seal replacement ..........................................................................................................................21
pump heaD Disassembly ..............................................................................................21
pump heaD assembly ...................................................................................................22
shaft or bearing replacement.......................................................................................................24
bearing block Disassembly.........................................................................................24
bearing block assembly .............................................................................................25
shaft alignment.........................................................................................................26
impeller gap ..............................................................................................................26
troubleshooting ............................................................................................................................27
pump maintenance recorD..............................................................................................................30
notice of terms, warranty provisions incluDing
Disclaimers, claims anD limitation of liability...............................................................................31

Fristam Pumps
4
Technical informaTion
SpecificaTionS
Maximum Inlet Pressure – FPHP 3542 & FPHP 722......................................................................1000 PSI
–
FPH 3542/3552 & FPH 3642/3652.............................................................................600 PSI
Temperature Range .................................................................................................................. -40°F - 400°F
Noise Level................................................................................................................................. 60 - 85 dB(A)
maTerialS
Primary Product Contact Components ......................................................................................... AISI 316L
Casing Gasket ...................................................................................................................... BUNA (standard)
Also Available in............................................................................................................ Viton, EPDM
Surface Finish for Product Contact Surfaces......................................................................32 Ra (standard)
ShafT SealS
Seal Types......................................................................................................................... Double Mechanical
Water Flush Pressure ..........................................................................................................................1-2 PSI
Water Consumption (seal flush) .....................................................................................................1-2 gal/hr
Primary Stationary Seal Ring Material ................................................................................ Silicon Carbide
For FPHP 722 only................................................................................................Tungsten Carbide
Primary Rotating Seal Ring Material.................................................................................... Silicon Carbide
For FPHP 722 only................................................................................................Tungsten Carbide
O-ring Material ..................................................................................................................... Viton (standard)
Also Available in....................................................................................................... BUNA-N, EPDM
moTor informaTion
Uses standard NEMA rigid base motors. Options include washdown, high efficiency, explosion proof,
chemical duty and IEC.
Voltage and Frequency
3 phase, 50 Hz, 208-220/330-415 VAC ........................................................................................... 3000 RPM
3 phase, 60 Hz, 208-230/460 VAC .................................................................................................. 3500 RPM
3 phase, 60 Hz, 575 VAC.................................................................................................................3500 RPM
recommended Torque ValueS
Models 3542, 3552 Models 3642, 3652 FPHP 720
Impeller nut 40 ft.-lb. 90 ft.-lb. 40 ft.-lb.
Seal retaining ring bolts 4.5 ft.-lb. 4.5 ft.-lb. 4.5 ft.-lb.
Housing bolts 55 ft.-lb. 55 ft.-lb. 25 ft.-lb.
Bearing cap bolts 15 ft.-lb. 15 ft.-lb. 4 ft.-lb.
Bearing lock nut 50 ft.-lb. 50 ft.-lb. 50 ft.-lb.
Cover nut 45 ft.-lb. 45 ft.-lb. 45 ft.-lb.
Seal housing bolt (3642 only) 10 ft.-lb.
impeller Gap (impeller To houSinG meaSuremenT)
PumP SerieS Feeler GauGe GaP Tolerance
FPHP 700 .020" (.5 mm) +/- .004" (.1 mm)
All Other models .040" (1mm) +/- .004' (.1 mm)

FPH/FPHP Series Pump
5
preVenTiVe mainTenance
lubricaTion recommendaTionS
Bearing Block Oil
#1 Bearing Block (model 722)........................................................................................... ISO VG 46
4V/3VR Bearing Block (all other models).......................................................................... ISO VG 68
The oil level should be maintained to the center of the sight glass on the side of the bearing block. It
is recommended that when the pump is first installed the oil is changed after the initial 20 hours of
operation. After this, the oil should be changed every 2,000 hours or 3 months under normal operating
conditions. Make sure the oil drain pipe and cap are properly tightened to prevent any oil leakage from
the bearing block.
maximum operaTinG condiTionS for fph and fphp SerieS pumpS
FPH 3542
Inlet Pressure:................ 600 PSI (41 Bar)
Capacity:......................... 700 gpm (159 m3/Hr.)
Discharge Head:............. 120 psi (8.2 Bar)
Power: ............................ 50 HP
FPH 3552
Inlet Pressure:................ 600 PSI (41 Bar)
Capacity:......................... 750 gpm (170 m3/Hr.)
Discharge Head:............. 190 psi (12.9 Bar)
Power: ............................ 75 HP
FPHP 722
Inlet Pressure:............1000 PSI (68 Bar)
Capacity: .....................150 gpm (34 m3/Hr.)
Discharge Head: .........60 psi (4.1 Bar)
Power:.........................10 HP
recommended Seal mainTenance
Visually inspect mechanical seal daily for leakage.
Replace mechanical seal annually under normal duty.
Replace mechanical seal as often as required under heavy duty.
elaSTomer inSpecTion
Inspect all elastomers when performing pump maintenance. We recommend replacing elastomers (o-
rings and gaskets) during seal, pump shaft and/or motor replacement. If the impeller nut gasket fails,
the threaded hole on the impeller nut and the threads on the end of the shaft will need to be cleaned. A
wire brush is recommended for cleaning these threads.
FPHP 3542
Inlet Pressure:............1000 PSI (68 Bar)
Capacity: .....................700 gpm (159 m3/Hr.)
Discharge Head: .........120 psi (8.2 Bar)
Power:.........................50 HP
FPH 3642
Inlet Pressure:............600 PSI (41 Bar)
Capacity: .....................1350 gpm (306 m3/Hr.)
Discharge Head: .........255 psi (17.5 Bar)
Power:.........................150 HP
FPH 3652
Inlet Pressure:............600 PSI (41 Bar)
Capacity: .....................1000 gpm (227 m3/Hr.)
Discharge Head: .........215 psi (14.8 Bar)
Power:.........................150 HP

Fristam Pumps
6
inStallation
unPackinG
Check the contents and all wrapping when unpacking the pump. Inspect the pump carefully for any dam-
age that may have occurred during shipping. Immediately report any damage to the carrier. Remove the
shaft guard and rotate the pump shaft by hand to make sure the impeller rotates freely. Keep the protective
caps over the pump inlet and outlet in place until you are ready to install the pump.
inStallinG
Prior to actually installing the pump, ensure that:
• the pump will be readily accessible for maintenance, inspection and cleaning.
• adequate ventilation is provided for motor cooling.
• the drive and motor type is suitable for the environment where it is to be operated. Pumps intended
for use in hazardous environments e.g., explosive, corrosive, etc., must use a motor and drive with
the appropriate enclosure characteristics. Failure to use
an appropriate motor type may result in serious damage
and/or injury.
• check alignment between the motor and bearing block.

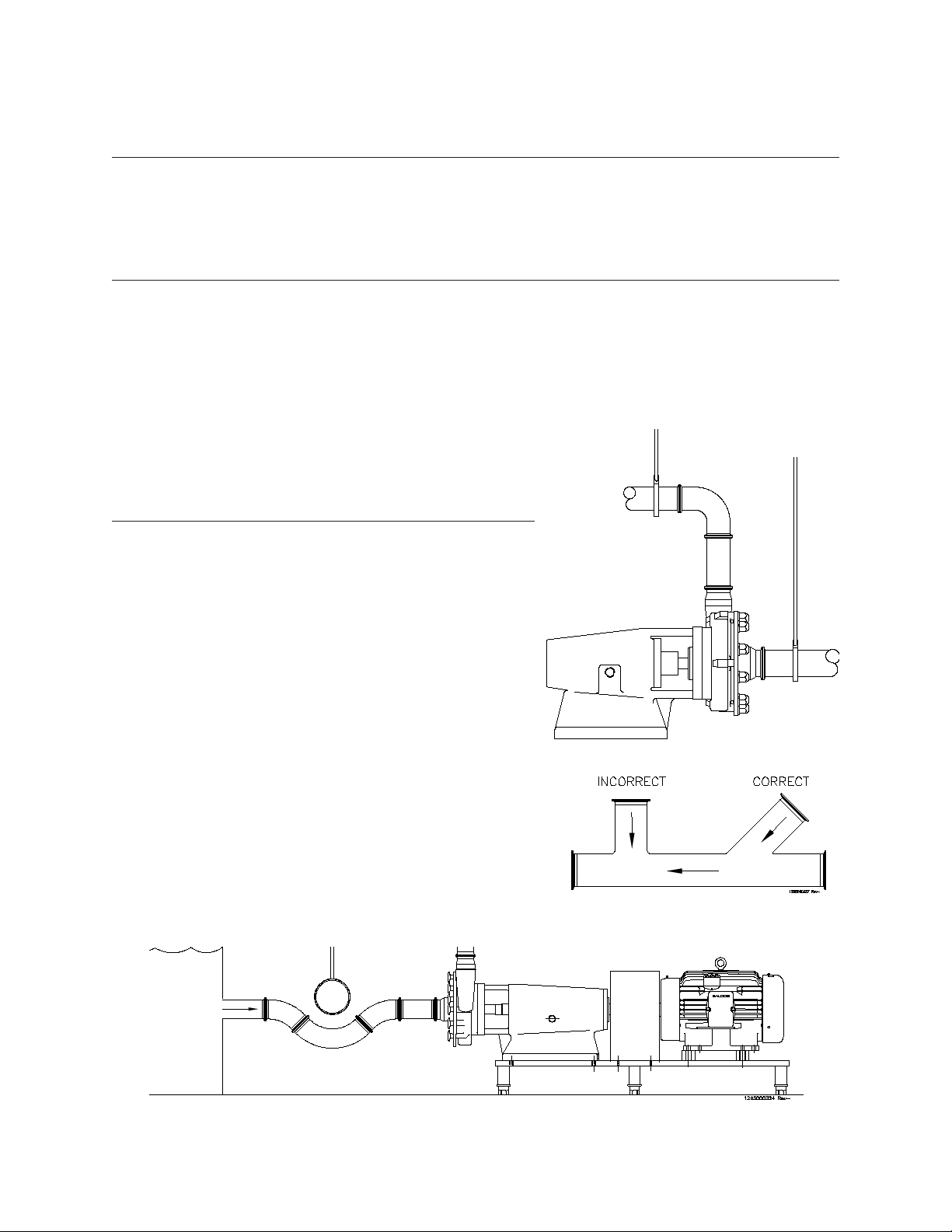

PiPinG GuiDelineS
• Ensuring proper piping support and alignment at both
the suction inlet and discharge outlet can help prevent
serious damage to the pump housing (Figure 1).
• Avoid abrupt transitions in the piping system (Figure 2).
• Avoid throttling valves in the suction piping.
• Keep suction lines as short and direct as possible.
• Ensure that the NPSH available in the system is greater
than NPSH required by the pump.
• Avoid sump areas where sediments may collect (Figure 3).
Figure 2
1265000338 R ev-
Figure 1
Figure 3

FPH/FPHP Series Pump
7
• Avoid the formation of air pockets in the piping (Figure 4).
•Avoid abrupt closure of shut-off valves, this may cause hydraulic shock which can cause severe dam-
age to the pump and system.
• Avoid elbows in the suction line if possible. When necessary they should be located 5 pipe diameters
away from the pump inlet, and have
a bend radius greater than 2 pipe
diameters (Figure 5).
• Check valves in discharge line
should be a minimum of 5 ft. away
from the pump outlet (Figure 5).
aliGnment
In most cases, the pump will be
shipped with a drive unit mounted on
a common baseplate. The drive and
pump are aligned at the factory; how-
ever, this alignment should be checked
after installation (Figure 6). Misalign-
ment between the pump and drive can
result in premature bearing failure or
other damage. If the pump is not shipped with a drive unit, use a flexible coupling between the pump
and drive unit. Align the pump and drive unit according to the coupling requirements.
Figure 4
Figure 5

Fristam Pumps
8
cHeckinG aliGnment
Remove the wire ring from the coupling
sleeve and let it hang between the sleeve
and one of the flanges.
To check the parallel alignment place a
straight edge across the two coupling
flanges and measure the maximum offset
at various points around the periphery of
the coupling without rotating the coupling.
If the maximum offset exceeds the figure
shown under “Parallel” in the table, realign
the shafts.
Check the angular alignment with a
micrometer or caliper. Measure from the outside of one flange to the outside of the other (“Y”) at
intervals around the periphery of the coupling. Determine the maximum and minimum dimensions
without rotating the coupling. The difference between the maximum and minimum must not exceed
the figure given under “Angular” in the table. If a correction is necessary, be sure to recheck the
parallel alignment.
Replace the wire ring on the O.D. of the coupling sleeve.
table 1: Sure-Flex couPlinG maximum allowable miSaliGnment
Sleeve
Size
Type E Type H
Parallel
A
Angular
Y max. - Y min. Y* Parallel
A
Angular
Y max. - Y min. Y*
6 .015 .070 2.375 .010 .016 2.375
7.020 .081 2.563 .012 .020 2.563
8 .020 .094 2.938 .015 .025 2.938
9.025 .109 3.500 .017 .028 3.500
10 .025 .128 4.063 .020 .032 4.063
11 .032 .151 4.875 .022 .037 4.875
12 .032 .175 5.688 .025 .042 5.688
13 .040 .195 6.688 .030 .050 6.625
14 .045 .242 7.750 .035 .060 7.750
Dimensions are in inches.
*The "Y" dimension is shown for reference.
electrical inStallation
We use standard duty TEFC motors unless otherwise specified. Many motor options are available: wash-
down, flameproof, explosion proof, hostile duty or chemical duty.
Have an electrician connect the motor using sound electrical practices. Provide adequate protection.
Pumps fitted with mechanical seals must not run dry, not even momentarily. Determine the direction of
rotation by watching the motor fan, which must turn clockwise.
AY
MAX.
Y
MIN.
PARALLEL ANGULAR
1265000238 REV. -
Figure 6

FPH/FPHP Series Pump
9
The selected motor should meet the requirements of the specified operating conditions. A change in
conditions (for example, higher viscosity, higher specific gravity, lower head losses) can overload the mo-
tor. When changing operating conditions or whenever there is any doubt, please contact Fristam Pumps,
Inc., for technical assistance.
PumP oPerationS
Start-uP inStructionS
• Remove any foreign matter that may have entered the pump.
• Do not use the pump to flush the system!
• Fill bearing block with oil, as directed on page 5, before starting the pump.
Check pump for proper rotation as indicated on the pump. Proper motor direction is clockwise when
looking at the fan end of the motor. (NOTE: When checking the direction of rotation, the pump must
be full of liquid.)
• Never run the pump dry, even momentarily. Seal damage can result.
Note: Maximum inlet pressure to the pump should not exceed 600 psi for all FPH models. Maximum
inlet pressure to the pump should not exceed 1000 psi for all FPHP models.
SHut-Down inStructionS
• Shut off the power supply to the pump.
• Close the shut-off valves in the suction and discharge piping.
• Drain and clean the pump as required.
• Protect the pump against dust, heat, moisture and impact damage.
inStallation oF Seal FluSH For Double mecHanical Seal
Set up the seal flush for the
mechanical seal as shown in
(Figure 7). Use only about 12
gallons per hour of water at a
pressure of 1-2 PSI. Excessive
flow of water through the seal
increases the pressure inside
the seal, causing the seal to
wear prematurely.
Pipe the exit side of the water
flush with 2-5 feet physical
height of tubing. This ensures
that some water is always in the
stationary seal and the seal never runs dry.
It is possible to inject steam through the stationary seal (within the pressure requirements). We do not
recommend using steam alone for the cooling/lubricating of the seal.
It is desirable to have the flush water on the outlet side visible. This allows an easy check to see that
the flush water is on, and also if the seal is functioning properly. In a malfunctioning seal the flush
water will disappear, becomes discolored or shows an unusual increase in flow. If these conditions exist,
check the seal and replace if necessary.
2.5 FT.
COOLING WATER IN
WATER FLUSH CONNECTIONS
TO DRAIN
THROTTLE VALVE
TO 3-12 gal/hr
1/8" N.P.T.
1265000333 Rev-
VISIBLE WATER
FLOW Figure 7

Fristam Pumps
10
HP1/HP3 Seal aSSembly
(FPHP 722, FPH/FPHP 3542, FPH 3552)
1265000334 Rev A
Single Seal Driver
Single Rotating Seal Single Seal Spring
Single Stationary Seal
Gapping Spacer
Double Stationary Seal
Double Rotating Seal
Double Seal Spring
Set Screw
Double Seal Driver
Double Seal Drive Ring
Double Seal O-Ring
Flat Gasket
Single Stationary
Seal O-Ring
Single Seal
Driver O-Ring
Single Rotating
Seal O-Ring
Impeller Gasket
FLUSH SEAL
FLUSH SEAL RING
FLUSH SEAL O-RING
FLUSH SEAL SPRING**
FLUSH SEAL DRIVE RING*
STATIONARY SEAL O-RING
STATIONARY SEAL
GAPPING SPACER*
SINGLE SEAL SPRING
ROTATING SEAL
ROTATING SEAL O-RING
SEAL DRIVER O-RING
SINGLE SEAL DRIVER*
IMPELLER NUT GASKET
FLUSH SEAL DRIVER*
FLAT GASKET
SET SCREW*
IMPELLER GASKET
ROTATING SEAL
ASSEMBLY
STATIONARY SEAL
ASSEMBLY
FLUSH SEAL
ASSEMBLY
DWG # 1265000668*NOT SUPPLIED IN WEAR PARTS KIT
**FLUSH SEAL SPRING HAS A WHITE STRIPE ON THE OUTSIDE EDGE (EXCEPT MODEL 722);
ROTATING SEAL SPRING DOES NOT

FPH/FPHP Series Pump
11
HP4 Seal aSSembly
(FPH 3642 & 3652)
Double Seal Spring
Single Stationary
Seal O-Ring
Single Seal Spring
Gapping Spacer
Single Seal Driver
Single Rotating
Seal O-Ring
Impeller
O-Ring
Single Seal
Driver O-Ring
Flat Gasket
Double Seal O-Ring
Double Seal Drive Ring
Double Rotating Seal
Double Stationary Seal
Single Stationary Seal
FLUSH SEAL
FLUSH SEAL RING
FLUSH SEAL O-RING
FLUSH SEAL SPRING
FLUSH SEAL DRIVE RING*
STATIONARY SEAL O-RING
STATIONARY SEAL
GAPPING SPACER*
SINGLE SEAL SPRING
ROTATING SEAL
ROTATING SEAL O-RING
SEAL DRIVER O-RING
SINGLE SEAL DRIVER*
IMPELLER NUT O-RING
FLAT GASKET
IMPELLER O-RING
ROTATING SEAL
ASSEMBLY
STATIONARY SEAL
ASSEMBLY
FLUSH SEAL
ASSEMBLY
DWG # 1265000667
*NOT SUPPLIED IN WEAR PARTS KIT

Fristam Pumps
12
FiGure 15: FPH/FPHP 3542, 3552, 3642, 3652 aSSembly
1. Impeller Nut
2. Cover Nut
3. Cover Gasket
4. Housing Stud
5. Pump Housing
6. Impeller
7. Impeller Key
8. Rotating Seal o-ring
9. Seal Driver
10. Rotating Seal
11. Seal Spring
12. Lock Washer
13. Pump Housing Bolt
14. Stationary Seal o-ring
15. Bearing Cap Bolt
16. Labyrinth Seal
17. O-ring
18. Flat Gasket
19. Stationary Flush seal
20. Rotating Flush seal
21. Seal Retaining Ring
22. Seal Housing Bolt
23. Flush seal o-ring
24. Flush seal Drive Ring
25. Seal Spring
26. Seal Driver
27. Set Screw
28. Breather Cap
29. Oil Breather
30. Sight Glass

FPH/FPHP Series Pump
13
31. Drain Plug Nipple
32. Drain Plug Cap
33. Thrust Bearing
34. Bearing Lock Washer
35. Bearing Lock Nut
36. O-ring
37. Rear Bearing Cap
38. Coupling Key
39. Pump Shaft
40. Coupling Flange
41. Coupling Guard
42. Guard Screw
43. Flat washer
44. Impeller Nut Gasket & Impeller Gasket
45. Cover
46. O-ring
47. Gapping Spacer
48. Stationary Seal Ring
49. Housing Pin
50. Snap Ring
51. Front Bearing Cap
52. Radial Bearing
53. Mounting bolt
54. Water Pipe
55. Bearing Block

Fristam Pumps
14
FPH/FPHP 3542
Item No. Description Part No. Qty.
1 Impeller nut 1954000005 1
2 Cover nuts 1103000022 10
3 Cover gasket (viton) 1180000336 1
4 Housing stud 1103000001 10
5 FPH/FPHP 3542 housing 1448610004 1
6 Impeller 1448630223 1
7 Impeller key 1315000023 1
8 O-ring (viton) 1180000030 1
9 Seal driver 1811000021 1
10 Rotating seal ring (silicon carbide) 1810600155 1
11 Seal spring 1820000025 1
12 Lock washer 1104000031 4
13 Pump housing bolt 1101000102 4
14 O-ring (viton) 1181000099 1
15 Bearing cap bolt 1101000096 10
16 Labyrinth seal 1812000023 2
17 Front bearing cap o-ring 1180000148 1
18 Flat gasket 1181000047 1
19 Stationary water seal - ceramic 1815600093 1
20 Rotating water seal ring 1810600056 1
21 Seal retaining ring 1148000023 1
22 Seal housing bolt 1101000086 4
23 O-ring (viton) 1180000329 1
24 Water seal drive ring 1811000027 1
25 Water seal spring 1820000016 1
26 Water seal driver 1811000023 1
27 Set screw 1101000112 2
Item No. Description Part No. Qty.
28 Breather cap 1248000009 1
29 Oil breather 1248000007 1
30 Sight glass 1248000018 2
31 Drain plug nipple 1226000006 1
32 Drain plug cap 1226000007 1
33 Thrust bearing (set) 1173000004 1
34 Bearing lock washer 1104000016 1
35 Bearing lock nut 1306000005 1
36 Rear bearing cap o-ring 1180000149 1
37 Rear bearing cap 1303000009 1
38 Coupling key 1315000008 1
39 Pump shaft 1321000181 1
43 Flat washer 1104000005 10
44 Impeller nut gasket (viton) 1181000098 2
45 FPH 3542 cover 1448620336 1
45 FPHP 3542 cover 1448620337 1
46 Seal driver o-ring 1180000086 1
47 Gapping spacer (7.7 mm) 1224000046 1
47 Gapping spacer (8.0 mm) 1
48 Stationary seal ring (silicon carbide) 1815600196 1
50 Snap ring 1148000005 1
51 Front bearing cap 1303000008 1
52 Radial bearing 1173000012 1
54 Water pipe 1910000007 2
55 Bearing block 1310600038 1
* = impellers are available in a variety of sizes. Please check with Fristam Pumps

FPH/FPHP Series Pump
15
FPH 3552
Item No. Description Part No. Qty.
1 Impeller nut 1954000005 1
2 Cover nuts 1103000022 10
3 Cover gasket (viton) 1180000336 1
4 Housing stud 1103000001 10
5 FPH 3552 housing 1458610004 1
6 Impeller 1458630243 1
7 Impeller key 1315000023 1
8 O-ring (viton) 1180000030 1
9 Seal driver 1811000021 1
10 Rotating seal ring (silicon carbide) 1810600155 1
11 Seal spring 1820000025 1
12 Lock washer 1104000031 4
13 Pump housing bolt 1101000102 4
14 O-ring (viton) 1181000099 1
15 Bearing cap bolt 1101000096 10
16 Labyrinth seal 1812000023 2
17 Front bearing cap o-ring 1180000148 1
18 Flat gasket 1181000047 1
19 Stationary water seal - ceramic 1815600093 1
20 Rotating water seal ring 1810600056 1
21 Seal retaining ring 1148000023 1
22 Seal housing bolt 1101000086 4
23 O-ring (viton) 1180000329 1
24 Water seal drive ring 1811000027 1
25 Water seal spring 1820000016 1
26 Water seal driver 1811000023 1
27 Set screw 1101000112 2
Item No. Description Part No. Qty.
28 Breather cap 1248000009 1
29 Oil breather 1248000007 1
30 Sight glass 1248000018 2
31 Drain plug nipple 1226000006 1
32 Drain plug cap 1226000007 1
33 Thrust bearing (set) 1173000004 1
34 Bearing lock washer 1104000016 1
35 Bearing lock nut 1306000003 1
36 Rear bearing cap o-ring 1180000149 1
37 Rear bearing cap 1303000009 1
38 Coupling key 1315000008 1
39 Pump shaft 1321000181 1
43 Flat washer 1104000005 10
44 Impeller nut gasket (viton) 1181000098 2
45 FPH 3552 cover 1458620501 1
46 Seal driver o-ring 1180000086 1
47 Gapping spacer (7.7 mm) 1224000042 1
47 Gapping spacer (8.0 mm) 1
48 Stationary seal ring (silicon carbide) 1815600196 1
50 Snap ring 1148000005 1
51 Front bearing cap 1303000008 1
52 Radial bearing 1173000012 1
54 Water pipe 1910000007 2
55 Bearing block 1310600038 1
* = impellers are available in a variety of sizes. Please check with Fristam Pumps

Fristam Pumps
16
FPH 3642
* = impellers are available in a variety of sizes. Please check with Fristam Pumps
Item No. Descrip�on Part No. Qty Item No. Descrip�on Part No. Qty
1Impeller Nut 1954000036 1 28 Breather cap n/a 1
2 Cover Nuts 1103000022 14 29 Oil breather 1248000036 1
3 Cover gasket (viton) 1180000337 1 30 Sight glass 1248000018 2
4 Housing stud 1103000013 14 31 Drain plug nipple 1226000006 1
5 FPH 3642 Housing 1462610000 1 32 Drain plug cap 1226000007 1
6Impeller 1462630000 1 33 Thrust bearing 1173000030 2
7Impeller Key 1315000035 1 34 Bearing lock washer 1104000058 1
8 O-ring (viton) 1180000280 1 35 Bearing lock nut1306000074 1
9 Seal Driver 1811000035 1 36 Rear bearing cap o-ring 1180000747 1
10 Rotang seal ring (silicon carbide) 1810600156 1 37 Rear bearing cap 1303000014 1
11 Seal Spring 1820000028 1 38 Coupling key 1315000041 1
12 Lock washer 1104000006 4 39 Pump sha1340000012 1
13 Pump housing bolt 1101000086 4 43 Flat washer 110400000514
14 O-ring (viton) 1180000253 1 44 Impeller/nut gasket (viton) 1180000030 2
15 Bearing cap bolt 1101000011 4 45 FPH 3642 Cover 1462620000 1
Labyrinth seal (front) 1812000037 46 Seal driver o-ring 1180000348 1
Labyrinth seal (back)1812000038 Gapping spacer (7.6mm)
17 Front bearing cap o-ring 1180000748 1 Gapping spacer (7.8mm)
18 Flat gasket (viton) 1181000140 1 Gapping spacer (8.0mm)
19 Staonary water seal 1815600198 1 Gapping spacer (5.2mm)
20 Rotang water seal ring 1810600100 1 Gapping spacer (8.4mm)
21 Seal retaining ring 1148000030 1 48 Staonary seal ring (silicon carbide) 1815600197 1
22 Seal housing bolt 1101000086 4 50 Snap ring 1148000031 1
23 O-ring (viton) 1180000030 1 51 Front bearing cap 1303000013 1
24 Water seal drive ring 1811000036 1 52 Radial bearing 1173000029 1
25 Water seal spring 1820000028 1 54 Water pipe 1910000007 2
26 Water seal driver n/a 55 Bearing block 1310600108 1
27 Set screw n/a
16
47 1224000091 1
1

FPH/FPHP Series Pump
17
FPH 3652
* = impellers are available in a variety of sizes. Please check with Fristam Pumps
Item No. Descrip�on Part No. Qty Item No. Descrip�on Part No. Qty
1 Impeller Nut 1954000036 1 28 Breather cap n/a 1
2 Cover Nuts 1103000022 10 29 Oil breather 1248000036 1
3 Cover gasket (viton) 1180000340 1 30 Sight glass 1248000018 2
4 Housing stud 1103000017 10 31 Drain plug nipple 1226000006 1
5 FPH 3652 Housing 1460610000 1 32 Drain plug cap 1226000007 1
6 Impeller 1460630000 1 33 Thrust bearing 1173000030 2
7 Impeller Key 1315000054 1 34 Bearing lock washer 1104000058 1
8 O-ring (viton) 1180000280 1 35 Bearing lock nut 1306000074 1
9 Seal Driver 1811000035 1 36 Rear bearing cap o-ring 1180000747 1
10 Rotang seal ring (silicon carbide) 1810600156 1 37 Rear bearing cap 1303000014 1
11 Seal Spring 1820000028 1 38 Coupling key 1315000041 1
12 Lock washer 1104000031 4 39 Pump sha1321000398 1
13 Pump housing bolt 1101000102 4 43 Flat washer 1104000005 10
14 O-ring (viton) 1180000253 1 44 Impeller/nut gasket (viton) 1180000030 2
15 Bearing cap bolt 1101000011 4 45 FPH 3652 Cover 1460620000 1
Labyrinth seal (front) 1812000037 46 Seal driver o-ring 1180000348 1
Labyrinth seal (back) 1812000038 Gapping spacer (7.6mm)
17 Front bearing cap o-ring 1180000748 1 Gapping spacer (7.8mm)
18 Flat gasket (viton) 1181000140 1 Gapping spacer (8.0mm)
19 Stanary water seal 1815600198 1 Gapping spacer (5.2mm)
20 Rotang water seal ring 1810600100 1 Gapping spacer (8.4mm)
21 Seal retaining ring 1148000030 1 48 Stanary seal ring (silicon carbide) 1815600197 1
22 Seal housing bolt 1101000086 4 50 Snap ring 1148000031 1
23 O-ring (viton) 1180000030 1 51 Front bearing cap 1303000013 1
24 Water seal drive ring 1811000036 1 52 Radial bearing 1173000029 1
25 Water seal spring 1820000028 1 54 Water pipe 1910000007 2
26 Water seal driver n/a 55 Bearing block 1310600108 1
27 Set screw n/a
116
47 1224000091 1

Fristam Pumps
18
FiGure 16: FPHP 722 aSSembly
1. Pump Cover
2. Impeller Nut
3. Impeller Key
4. Impeller
5. Impeller Gasket
6. Seal Driver
7. Rotating Seal o-ring
8. Rotating Seal
9. Stationary Seal
10. Stationary Seal o-ring
11. Lock Washer
12. Flange Bolt
13. Water Pipe
14. Bearing Block Bolt
15. Flat Gasket
16. Stationary Flush seal
17. Rotating Flush seal Ring
18. Flush seal o-ring
19. Flush seal Drive Ring
20. Seal Spring
21. Seal Driver
22. Set Screw
23. Snap Ring
24. Oil Breather
25. Breather Cap
26. Bearing Block
27. Thrust Bearing
28. O-ring
29. Bearing Lock Washer
30. Bearing Lock Nut

FPH/FPHP Series Pump
19
31. Rear Bearing Cap
32. Labyrinth Seal
33. Cover Nut
34. Flat Washer
35. Cover Gasket
36. Housing Stud
37. O-ring
38. Housing
39. Gapping Spacer
40. Seal Spring
41. Housing Pin
42. Flange Adapter
43. Seal Retaining Ring
44. Seal Housing Bolt
45. Bearing Cap Bolt
46. Front Bearing Cap
47. Radial Bearing
48. Pump Shaft
49. Sight Glass
50. Drain Plug Nipple
51. Drain Plug Cap
52. Coupling Key
53. Coupling Flange
54. Guard Screw
55. Coupling Guard

Fristam Pumps
20
FPHP 722
* = impellers are available in a variety of sizes. Please check with Fristam Pumps
Item No. Description Part No. Qty.
28 O-ring (viton) 1180000122 2
29 Bearing lock washer 1104000023 1
30 Bearing lock nut 1306000008 1
31 Rear bearing cap 1303000007 1
32 Labyrinth seal 1812000024 2
33 Cover nut 1103000022 8
34 Flat washer 1104000005 8
35 Cover gasket (viton) 1180000335 1
36 Housing stud 1103000017 8
37 O-ring (viton) 1180000119 1
38 FPHP 722 housing w/1.5" tting 1424610001 1
39 Gapping spacer 1224000051 1
40 Seal spring 1820000044 1
41 Housing pin 1891000008 1
42 Flange adapter 1310600055 1
43 Seal retaining ring 1148000021 1
44 Seal housing bolt 1101000086 4
45 Bearing cap bolt 1101000021 8
46 Front bearing cap 1303000006 1
47 Radial bearing 1173000010 1
48 Pump shaft 1321000180 1
49 Sight glass 1248000018 2
50 Drain plug nipple 1226100001 1
51 Drain plug cap 1226100002 1
52 Coupling Key 1315000044 1
Item No. Description Part No. Qty.
1 FPHP 722 cover w/2" tting 1424620673 1
2 Impeller nut 1954000000 1
3 Impeller key 1315000002 1
4 Impeller 1424630051 1
5 Impeller nut gasket (viton) 1181000089 2
6 Seal driver 1811000010 1
7 O-ring (viton) 1181000036 1
8 Rotating seal ring (tungsten carbide) 1810600030 1
9 Stationary seal ring (tungsten carbide) 1815600080 1
10 O-ring (viton) 1180000344 1
11 Lock washer 1104000036 8
12 Flange bolt 1101000105 4
13 Water pipes 1910000000 2
14 Bearing block bolt 1101000106 4
15 Flat gasket 1181000069 1
16 Stationary water seal 1815600177 1
17 Rotating water seal ring 1810600015 1
18 O-ring (viton) 118000056 1
19 Water seal drive ring 1811000016 1
20 Seal spring 1820000026 1
21 Seal driver 1811000024 1
22 Set screw 1101000018 2
23 Snap ring 1148000012 1
24 Oil breather 1248000007 1
25 Breather cap 1248000009 1
26 Bearing block 1310600037 1
27 Thrust bearing 1173000003 2
