Frog Leap 7800 User manual

1
FROG®Leap®
Instruction Manual
Mineral Pool-Care Infuzer®
for Pools up to 25,000 Gallons
Customer Service 800-222-0169
frogproducts.com
FROG Leap Infuzer comes with the
FROG Leap Anti-Bac Mineral Pac®
Patented Mineral Disinfectant
Cleaner
because it kills bacteria two ways
Clearer
because it helps keep pH in range
Softer
because it reduces chlorine use up to 50%*
Easier
with prelled pacs for no mess,
no guess and no stress
To minimize the risk of serious injury, death or
damage, before installing or first using this
equipment, read Instruction Manual and all safety
labels and follow all safety instructions and
precautions. Save manual for future reference.
WARNING
Ver la versión en español de este manual en frogproducts.com/product/frog-leap
®

2
TABLE OF CONTENTS
FROG Leap Introduction 3
Notes and Safety Information 4
Safety Labels on Infuzer 5
Installation Tips to Ensure Proper Performance 6
Installation with Nipple Kit and Flex Hose 7
Installation with Flex Hose Only 8
Hard-Plumbed Installation 9
Step 1: Preparing the Pool 10-11
Step 2: Putting the System to Work 12
Step 3: Setting the Control Dial 13
Step 4: Routine Pool Care 14
Replacing FROG Leap Anti-Bac Mineral Pac 15
Using FROG Leap Pool Wake Up!® 16
Using FROG Leap All-Out®17
Using FROG Leap Torpedo Pac®18
Winterizing 19
Troubleshooting 20
Parts List 21
Maintenance - Replacing Control Dial O-Rings 22
Maintenance - Replacing Cap O-Rings and Knobs 22
Warranty 24
For information on King Technology’s entire product
line, visit our website at frogproducts.com

3
Welcome to easier pool care courtesy of FROG Leap.
With FROG Leap, your pool water will look and feel
better without a lot of work or a lot of chlorine. This
system†controls bacteria using a combination of
minerals and reduced chlorine levels. Chlorine lasts
2X longer with the FROG Leap Mineral System.*
Part 1
FROG Leap Infuzer
The water treatment center
that controls the ow of water
to each part of the FROG Leap
System.
Part 2
FROG Leap Anti-Bac
Mineral Pac
Holds the minerals and ts
inside the FROG Leap Infuzer.
Part No. 01-12-7822
For Pools up to 25,000
gallons. Part No. 01-01-7820
Part 3
FROG Leap Pool Wake Up!/Pool Hibernation
Three-step pool opening and closing kit with an Algae
Protection Guarantee. Part No. 01-10-7858.
Part 4
FROG Leap Torpedo Pac
Prelled with chlorine tablets and
ts inside the FROG Leap Anti-
Bac Mineral Pac.
Part No. 01-03-7937
FROG Leap Anti-Bac Mineral Pac comes inside the FROG Leap Infuzer and is also sold separately.
Also sold separately: FROG Leap Torpedo Pac, FROG Leap All-Out (Part No. 01-10-7872) and
FROG Leap Pool Wake Up!/Pool Hibernation.
†FROG Leap Mineral System consists of the FROG Leap minerals silver chloride and carbonate used in conjunction with 0.5 ppm chlorine. The FROG Leap
Anti-Bac Mineral Pac must be used in conjunction with the FROG Leap Torpedo Pac, an EPA registered chlorine pool product or a chlorine delivery device.
*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.
For pools and hot tubs.
THE FROG LEAP ANTI-BAC
MINERAL PAC MUST BE
REPLACED EVERY SIX MONTHS
OR AFTER ONE POOL SEASON,
WHICHEVER IS SHORTER.
There are 4 main parts to the FROG Leap System:
1. FROG Leap Infuzer
2. FROG Leap Anti-Bac Mineral Pac
3. FROG Leap Pool Wake Up!/Pool Hibernation®
4. FROG Leap Torpedo Pac
FROG Leap Reveille®, FROG Leap Depth Charge®and FROG Leap All-Out

4
General Notes
These instructions contain information for the safe and proper
operation of this Infuzer. Observe the following principles:
• Ensure that everyone using this Infuzer follows the
instructions and safety precautions.
• Keep the instructions nearby and available for reference
throughout the service life of this Infuzer.
Signal Word Meaning
DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death, serious injury
or major property damage.
WARNING Indicates a hazardous situation which, if not avoided, could result in serious injury, death, or major
property damage.
NOTICENOTICE Indicates special instructions that are important but not related to physical injury hazards.
Explanation of the safety pictographs
The following pictographs illustrate the type of hazard.
Pictograph Type of Danger
Safety Alert/General Hazard
Explosion Risk
Hazardous Pressure
Flammable Fire Hazard
Identication of warnings
Warnings are intended to help you recognize risks and avoid
death, injury or property damage. This is how warnings are identied:
Signal Word
Pictographs
Description of danger.
Consequences if ignored.
a The arrow signals a safety precaution to be taken to
eliminate or reduce the risk.
These instructions do not provide for every possible contingency
that might be encountered in connection with installation, opera-
tion or maintenance of this equipment. Should further informa-
tion be desired or should particular issues arise which are not
covered sufciently in this manual, contact King Technology at
800-222-0169.
Explanation of the signal words
Signal words, which depict the probability and severity of harm, are used in these instructions. They are dened as follows:
Notes and Safety Information

5
Fire, explosion and high pressure hazards
To minimize the risk of serious injury, death or property damage while using the FROG Leap Infuzer:
a Read, understand and follow all instructions and safety precautions in the manual, and on this Infuzer and on any label for chemicals used
with this Infuzer including FROG Leap Torpedo Pacs, FROG Leap Anti-Bac Mineral Pacs and FROG Leap Pool Wake Up!/Pool Hibernation
(which includes FROG Leap Reveille, FROG Leap Depth Charge and FROG Leap All-Out).
DANGER
a Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the FROG Leap Infuzer.
a Never mix Trichlor chlorine tablets with Calcium Hypochlorite, or with any other form of concentrated chlorine or other chemicals.
a Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer.
These products should be added directly into the pool if required.
a Do not contaminate the FROG Leap Infuzer, FROG Leap Anti-Bac Mineral Pac, FROG Leap Torpedo Pac and FROG Leap Pool Wake Up!/Pool Hibernation
(which includes FROG Leap Reveille, FROG Leap Depth Charge and FROG Leap All-Out) with dirt, organic matter, pool chemicals (such as calcium
hypochlorite or pool shocks), fertilizers or other household chemicals. Contact between any of these substances and the FROG Leap Infuzer including
FROG Leap Anti-Bac Mineral Pac, FROG Leap Torpedo Pac, FROG Leap Pool Wake Up!/Pool Hibernation (which includes FROG Leap Reveille, FROG
Leap Depth Charge and FROG Leap All-Out) will result in a chemical reaction with the generation of heat, liberation of hazardous gasses and
re or explosion.
WARNING
a Use only FROG Leap Torpedo Pacs, FROG Leap Anti-Bac Mineral Pacs, FROG Leap Pool Wake Up!/Pool Hibernation (which includes FROG Leap
Reveille, FROG Leap Depth Charge and FROG Leap All-Out) in the FROG Leap Infuzer. Never use bulk chemicals.
a To prevent the build up of gas pressure in the FROG Leap Infuzer, be sure the pool return line valves are open –
except when opening or servicing the unit.
a Do not inhale fumes from the FROG Leap Infuzer or FROG Leap Torpedo Pac.
a Avoid sparks, smoking, or any open ame near FROG Leap Infuzer or chemicals.
a Do not exceed maximum operating pressure of 50 psi or maximum temperature of 104ºF.
a Do not remove the cap while under pressure. Always turn off pump and bleed off pressure before opening FROG Leap Infuzer.
a Do not install automatic or fast shut off valves downstream of Infuzer.
a Always install the FROG Leap Infuzer AFTER a heater (if applicable) on the return line.
a Always install any additional sanitizing equipment AFTER and NEVER BEFORE the FROG Leap Infuzer is installed on the return line.
a Do not permit children to use or climb on this product. This product must be positioned to prevent children from using it as a
means of access to the pool.
a Always stand clear of the FROG Leap Infuzer during pump start-up.
a Replace FROG Leap Infuzer if you see signs of cracks, damage or degradation to the Infuzer body or cap.
NOTICENOTICE
a Prior to pressurizing, check with your dealer to ensure your plumbing connections meet building codes.
a Failure to properly winterize your FROG Leap Infuzer could result in freeze damage. (See page 19 for winterizing details.)
Review this label before installing or operating this Infuzer. Contact King Technology at 800-222-0169 if this label is missing from your FROG Leap Infuzer.
Safety Label on Infuzer

6
✙
✙
✙
✙
✙
Installation Tips to Ensure Proper Performance
1) If using a multi-speed pump, run
pump for at least 6 hours per day at
high speed (at least 40 gpm).
If the pump will run on low speed 24
hours per day or less than 6 hours per
day on high speed, you must bleed the
air while the pump is on by unscrewing
the back knob until water appears.
Then screw the knob back in. Repeat
this process each time the cap is
removed for any reason.
2) Install system with 4-8 psi back pressure.
Lower back pressures could result in under
chlorination. Change the eyeball ttings in
the return jets to a smaller size to increase
back pressure. Contact King Technology at
800-222-0169 for a specially designed
Infuzer pressure gauge to determine back
pressure at pool start-up.

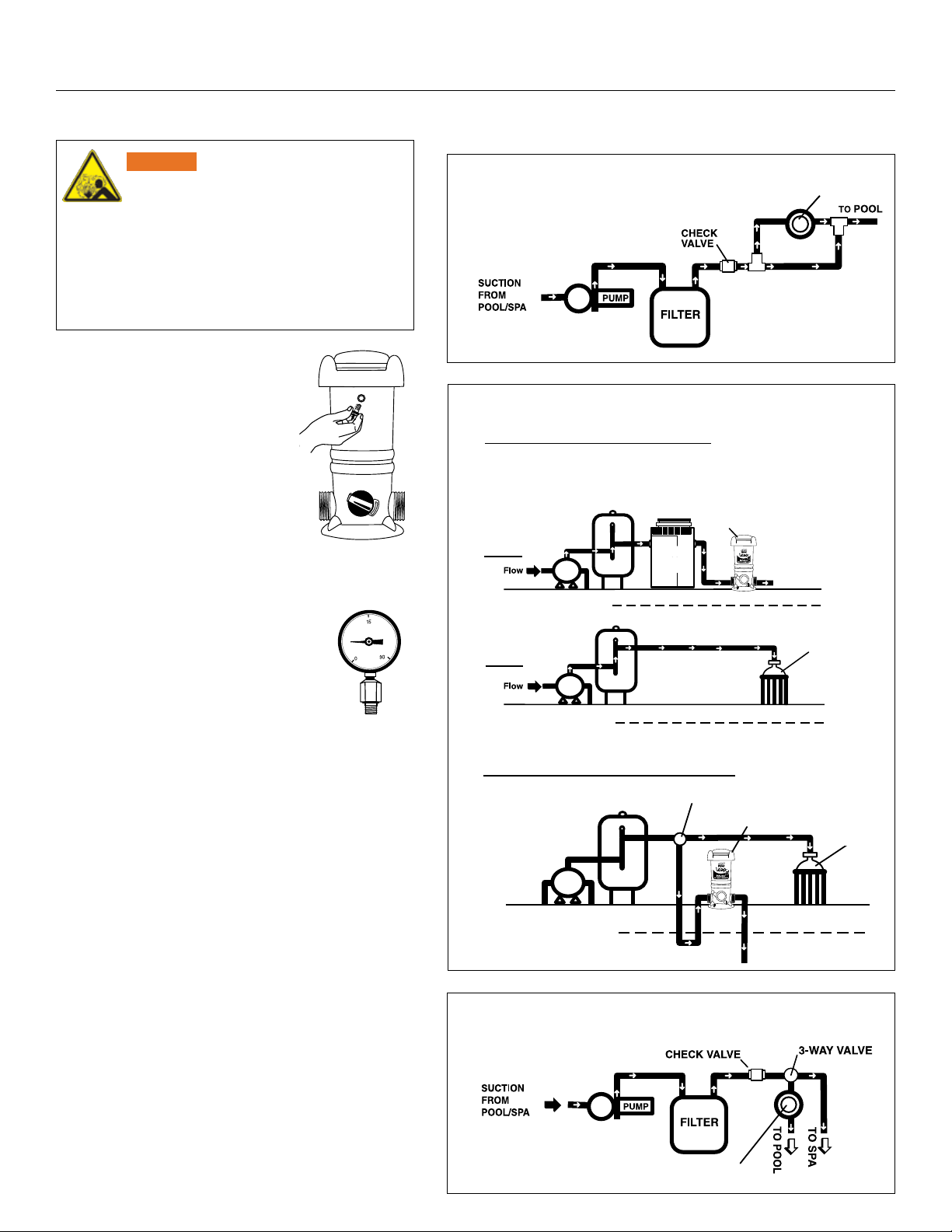

3) Special installation Requirements:
A. With High Flow Rate (greater than 80 gpm)
Install T-ttings exactly as shown.
B. With In-Floor Cleaner - TWO OPTIONS
The best option is to have two lines. One line with pump, lter, heater and
FROG Leap Infuzer and a second line with a separate pump for the in-oor
cleaning system (lter optional).
OPTION 1- A Two-Line Installation
POOL RETURN
FROG Leap Infuzer
FROG Leap Infuzer
FROG Leap Infuzer
FROG Leap Infuzer
IN-FLOOR
CLEANER
VALVE
FILTER
FILTER HEATER
OPTION 2 - A 3-Way Valve Installation
POOL WATER LEVEL
3-way manual valve or 3-way motor valve plus controls
IN-FLOOR
CLEANER
VALVE
FILTER
PUMP
PUMP
PUMP
C. Pool and Spillover Spa Combination
Line 1
Line 2
POOL WATER LEVEL
POOL WATER LEVEL
WARNING
• Do not exceed maximum operating pressure of 50 psi.
• Do not install automatic or fast shut off valves
downstream of feeder.
• Always install the FROG Leap Infuzer AFTER the
heater (if applicable) on the return line.
• Always install any additional sanitizing equipment
AFTER and NEVER BEFORE the FROG Leap Infuzer is
installed on the return line.
•If water ow is higher than 80 gallons per minute (gpm),
see diagram A.
•If an in-oor cleaner is included with pool,
see diagram B, with two options. Preferred
installation is Option 1 with two separate lines.
•If set-up is a pool and spa combination with
common equipment, see diagram C.
Questions? Call Customer Service at 800-222-0169
Monday thru Friday, 8 am to 5 pm central time.
IMPORTANT: Over chlorination or damage to the FROG
Leap Infuzer or other equipment could result if special
installations A, B or C are not used in these situations.
Before installing, read all directions carefully and contact your dealer for installation support.
Part No. 01-22-4000

7

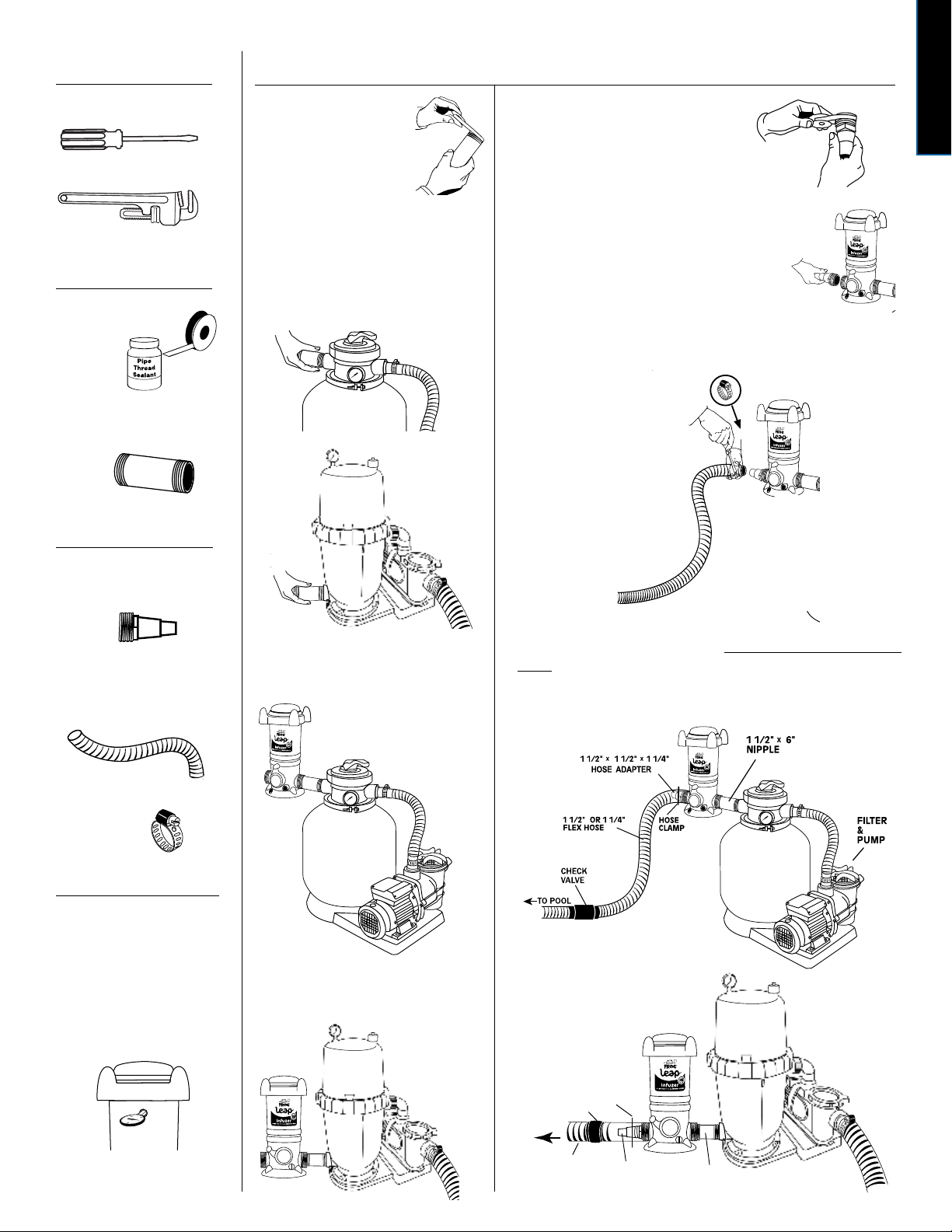

Install
To prevent damage to heaters or lters, see your
dealer about installing a corrosion resistant check
valve which will reduce the back ow of chlorine gas when
the FROG Leap Infuzer is turned off.
TOOLS NEEDED
Screwdriver
Pipe Wrench
INCLUDED WITH FROG
Leap Infuzer
Pipe Thread Tape
or Sealant
One 6” X 1½” TBE PVC
Nipple
MATERIALS NEEDED
One Hose Adapter
1½” X 1½” X 1¼”
One Section of
1½” or 1¼” Flex Hose
One
Hose Clamp
RECOMMENDED
4-8 psi Back Pressure
To avoid over or under chlorination,
replace eyeball ttings in the
return jets to a smaller or larger
size to adjust back pressure. For
best results use King Technology’s
pressure gauge, order Part No.
01-22-4000.

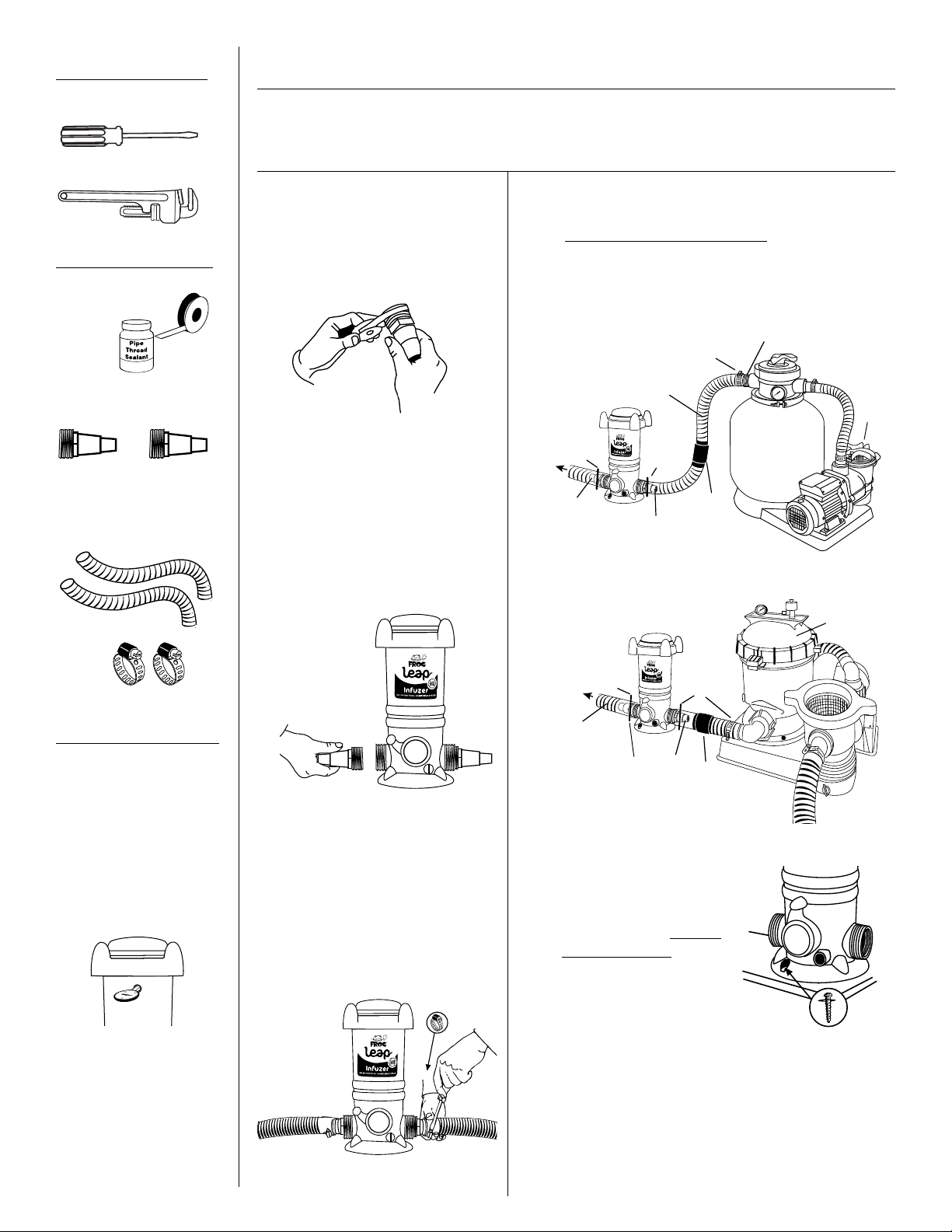

Installation with Nipple Kit and Flex Hose
Apply pipe thread
tape or sealant
to each threaded
end of nipple.
1.
Screw either side of FROG
Leap Infuzer on to open nipple
end until upright and
secure.
Apply pipe thread tape or
sealant to threaded end of
hose adapter.
3.
4.
Screw adapter into the other
side of FROG Leap Infuzer.
Hand tighten. Finish tightening by turning
1 to 2 revolutions with a pipe wrench.
DO NOT OVER TIGHTEN.
7.
Screw one end of nipple into
the lter return. Hand tighten.
Finish tightening by turning 1 to 2
revolutions with a pipe wrench.
DO NOT OVER TIGHTEN.
2.
6.
5.
Attach return section of hose to the adapter with
clamp. Tighten clamp with screwdriver.
PUMP
PUMP
Sand Filter
Sand Filter
Sand Filter
DE and
Cartridge
Filter
DE and
Cartridge
Filter
TO POOL
PUMP
1 1/2" OR 1 1/4"
FLEX HOSE HOSE
ADAPTER
HOSE
CLAMP
NIPPLE
CHECK
VALVE
DE and Cartridge Filter
For DE and Cartridge lters you
may have to tip the lter back when
screwing the Infuzer onto the nipple.

8
FILTER
HOSE
CLAMP
HOSE
ADAPTER
HOSE
CLAMP
HOSE
ADAPTER
1 1/2" OR 1 1/4"
FLEX HOSE
1 1/2" X1 1/2" X1 1/4"
HOSE ADAPTER
HOSE
CLAMP
PUMP
CHECK
VALVE
TO
POOL
TOOLS NEEDED
Screwdriver
Pipe Wrench
MATERIALS NEEDED
Pipe Thread Tape
or Sealant
Two hose adapters
1½” X 1½” X 1¼”
Two Sections of 1½”
or 1¼” Flex Hose (one
provided with lter)
Two
Hose
Clamps
RECOMMENDED
4-8 psi Back Pressure
To avoid over or under
chlorination, replace eyeball
ttings in the return jets to a
smaller or larger size to adjust
back pressure. For best results
use King Technology’s pressure
gauge, order Part No.
01-22-4000.
Apply pipe thread tape or
sealant to the threaded end of
both hose adapters.
1.
Installation with Flex Hose Only
Screw adapters into each end
of FROG Leap Infuzer. Hand
tighten. Finish tightening by
turning 1 to 2 revolutions with
pipe wrench. DO NOT OVER
TIGHTEN.
2.
Attach the lter section of ex
hose to one hose adapter and
the return section of ex hose
to the other hose adapter
with clamps and tighten with
screwdriver. Bi-ow valve
design allows water ow
installation in either direction.
3.
To prevent damage to heaters or lters, install a
corrosion resistant check valve which will reduce
the back ow of chlorine gas when the system is
turned off.
4.
For better stability, FROG
Leap Infuzer may be
mounted on a treated
wood base using Phillips
pan head screws, one
in front and two in back.
If you have questions
about stability, please
contact your dealer or King
Technology.
5.
The FROG Leap Infuzer should always be installed between the lter and pool (or between heater and
pool if applicable). Never install FROG Leap Infuzer before the heater or damage to the heater could
occur.
TO POOL
PUMP
FILTER
HOSE
CLAMP
HOSE
ADAPTERS
HOSE
CLAMP
1 1/2" OR 1 1/4"
FLEX HOSE
CHECK
VALVE
Sand Filter
DE and Cartridge Filter

9
Installation with Flex Hose Only
1½” Male Adapter
(slip x MPT)
or
2” Female
Adapter
(slip x FPT)
Hard-Plumbed Installation
Do NOT install FROG
Leap Infuzer off-line.
Following Primer directions, brush Primer on the inside of the
adapters and to ends of pipe. Repeat this process with PVC
cement following manufacturer’s directions on that product.
Measure the distance
between the outside
adapters and cut out a
section of pipe 3” less
than that dimension.
Allow a minimum of
12” above and on
each side of FROG
Leap Infuzer to
ensure room for easy
replacement of FROG
Leap Anti-Bac Mineral
Pac and FROG Leap
Torpedo Pac.
Insert PVC pipe into adapters with
a twisting action. Hold in place 5 to
10 seconds to bond.
TOOLS NEEDED
Hacksaw
MATERIALS NEEDED
Tape
Measure
SECURE INFUZER
To prevent damage to heaters
or lters, see your dealer about
installing a corrosion resistant
check valve which will reduce the
back ow of chlorine gas when the
Infuzer is turned off.
2.
1a.
1.
1b.
3.
Pipe Wrench
Bi-ow valve design allows
installation in either ow
direction.
Pipe Thread Tape
or Sealant, Primer and
PVC Cement
If using male adapters, apply
pipe thread tape or sealant to the
threaded end of each adapter.
Screw adapters into each end of FROG Leap Infuzer following directions
for a male adapter or a female adapter. Hand tighten. Finish
tightening by turning 1 to 2 revolutions with a pipe wrench.
DO NOT OVER TIGHTEN.
4.
5.
Do NOT install in copper pipe if using
FROG Leap Torpedo Pac as chemical
corrosion may lead to pipe failure.
P
r
i
m
e
r
For better stability,
FROG Leap Infuzer
may be mounted on
a treated wood base
using Phillips pan head
screws, one in front
and two in back. If you
have questions about
stability, please contact
your dealer or King
Technology.
P
r
i
m
e
r
P
V
C
C
e
m
e
n
t
P
V
C
C
e
m
e
n
t
12"
12" 12"
If using female adapters, apply
pipe thread tape or sealant to the
threaded end of each feeder port.
OR
The FROG Leap Infuzer should always be installed between
the lter and pool (or between heater and pool if applicable).
Never install FROG Leap Infuzer before the heater or
damage to the heater could occur.
Install

10
Step 1: Preparing the Pool
1. Make sure the pool has adequate
circulation. The total volume of pool
water must completely circulate
through the pump and lter at least
1 to 2 times per day. This usually
requires 8 to 12 hours of circulation.
Check with your dealer for the
proper circulation time for your pool.
2.
3.
5.
4.
Water Balance Guidelines
pH: 7.2 – 7.8
Total Alkalinity: 80 – 120 ppm
Hardness: 200 – 400
Total Dissolved Solids: <1500
Stabilizer: 20 – 80 ppm
Free Chlorine: 0.5 – 1.0 ppm
Check the pool’s lter gauge often
and periodically clean lter per
the manufacturer’s directions.
A dirty lter will slow the ow of
water which could hamper proper
circulation.
Check the Water Hardness of your ll water before
adding to the pool. If calcium content is higher than
400 ppm nd a soft water source to ll your pool
instead; otherwise water balance will be very difcult.
Check for metals in the pool such
as iron or copper. Before attempting
water balance these should be
removed. See your dealer for a metal
out or sequesterant and follow the
label directions carefully.
Before beginning with any pool care program, you
must rst balance your pool water. Take a water
sample to your local pool professional (or use a
complete test kit) to test for the important Water
Balance Guidelines.
IMPORTANT: Always follow printed instructions on
the balancing chemical packages. Add balancing
chemicals in small increments, one at a time,
with circulation running. For best results, wait
8-12 hours before testing again and adding any
additional balancing chemicals.
Metal
Out
WARNING
Do not exceed maximum operating
pressure of 50 psi.

11
Operate
Continue... Step 1: Preparing the Pool
Initially shock the pool with a chlorine shock only to
rid the water of contaminants and establish a chlorine
residual. Always follow the manufacturer’s directions
carefully. See the DANGER box below for important
guidance on shocking.
5b. Look at the Total Alkalinity reading rst. Adjustments
should be made to bring the Total Alkalinity in the range of
80 – 120 ppm prior to making any adjustments to pH even
if it throws pH off further.
5c. After Total Alkalinity is in range, test for pH. It should be
between 7.2 and 7.8. If higher or lower, add a pH adjuster.
5d. Then test your Water Hardness again. If lower than 200
ppm, add Calcium Increaser. Always maintain 200-400 ppm.
5e. Lastly, test for stabilizer or conditioner levels. Add
conditioner if the level is below 20 ppm. This will prevent
chlorine burn off. If stabilizer level is above 80 ppm,
partially drain water and re-ll.
6.
5a. Take a water sample
from the pool and dip a
FROG Test Strip into it.
For best results in achieving water balance, follow steps 5a
through 5e in order.
Dip
u
6.2 6.8 7.2 7.8 8.4
LOW
BAJO
VERY LOW
MUY BAJO
HIGH
ALTO
LOW
BAJO
VERY LOW
MUY BAJO
HIGH
ALTO
VERY HIGH
MUY ALTO
040 80 120 180 240
Total Alkalinity
(ppm)
Alcalinidad Total
(mg/L)
Hold level for
15 Seconds
NOTE: Low pH readings may result when Total Alkalinity is below 80 ppm.
Important: Keep cap on tight between uses. Store at room temperature.
www.KingTechnology.com
Patent 6,030,842 Made in USA 553101443N
Read
v
w
IDEAL
USE BY DATE ON BOTTLE
USE ANTES FECHA
SmartChlor
Out Indicator
Active Chlorine
pH
If lighter color,
check Smart
Chlor catridge
If darker
color, OK
If lighter color,
turn cartridge
setting up
1 number
If darker color,
turn cartridge
setting down
1 number
Just Dip and Read
Test Strips
From
Specially made
for use with
FROG
Mineral Systems
50 100 250 450 800
Calcium
Hardness
Hot Tub
IDEAL
IDEAL
Dip
u
6.2 6.8 7.2 7.8 8.4
LOW
BAJO
VERY LOW
MUY BAJO
HIGH
ALTO
LOW
BAJO
VERY LOW
MUY BAJO
HIGH
ALTO
VERY HIGH
MUY ALTO
040 80 120 180 240
Total Alkalinity
(ppm)
Alcalinidad Total
(mg/L)
Hold level for
15 Seconds
NOTE: Low pH readings may result when Total Alkalinity is below 80 ppm.
Important: Keep cap on tight between uses. Store at room temperature.
www.KingTechnology.com
Patent 6,030,842 Made in USA 553101443N
Read
v
w
IDEAL
USE BY DATE ON BOTTLE
USE ANTES FECHA
SmartChlor
Out Indicator
Active Chlorine
pH
If lighter color,
check Smart
Chlor catridge
If darker
color, OK
If lighter color,
turn cartridge
setting up
1 number
If darker color,
turn cartridge
setting down
1 number
Just Dip and Read
Test Strips
From
Specially made
for use with
FROG
Mineral Systems
50 100 250 450 800
Calcium
Hardness
Hot Tub
IDEAL
IDEAL
DANGER
• Never add any other types of chlorine, pH adjusters,
shock treatments or algaecides through the skimmer.
These products should be added directly into the
pool if required.
• Never use fast dissolving chlorine tablets, liquid
bleach, or calcium hypochlorite in the FROG Leap
Infuzer.

12
Step 2: Putting the System to Work
1.
2.
Install a FROG Leap Anti-Bac
Mineral Pac into the FROG
Leap Infuzer. (See page 15 for
directions.)
IMPORTANT:
Replace the FROG Leap Anti-
Bac Mineral Pac every 6 months
or after one pool season,
whichever is shorter. After that
time, you will hear the spent
media inside, however it is no
longer effective and must be
replaced.
Replace cap and run FROG
Leap Infuzer, with FROG Leap
Anti-Bac Mineral Pac inserted,
for 10 minutes on Setting 10.
Insert FROG Leap All-Out into
the open center of the FROG
Leap Anti-Bac Mineral Pac in
the Infuzer. (See page 17 for
directions.)
Use FROG Leap
All-Out for a
90-day Algae
Protection
Guarantee!
When chlorine reading is down to
1.0 ppm, which may take a few
days, insert FROG Leap Torpedo
Pac into the open center of the
FROG Leap Anti-Bac Mineral Pac.
(See page 18 for directions.)
3.
5.
6.
Shock the pool with FROG Leap
Depth Charge to rid the water
of contaminants. (See page 16
for FROG Leap Depth Charge
directions.)
Create a chlorine residual with
FROG Leap Reveille. (See page
16 for FROG Leap Reveille
directions.)
4.
DANGER
If using standard chlorine shocks do not add in or near
the skimmer or into the FROG Leap Infuzer as it could
damage equipment, risk potential explosion or discolor
your pool surface.

13
Operate
Step 3: Setting the Control Dial
This system is designed to work effectively with a variety of pool equipment as long as the following procedures are followed.
Set the control dial by matching up the parameters of your pool on the chart below. THIS IS A STARTING POINT ONLY and may need
to be adjusted to t your individual pool needs. See #2 below for adjusting directions. IMPORTANT: If using a multi-speed pump,
pump-run times of at least 6 hours per day at high speed are recommended for proper performance.
If running the pump at low speed only or on high speed less than 6 hours per day, please follow the 24 hour low-speed
directions below.
1.
For the rst week, test the pool
water daily for free chlorine with
FROG Test Strips to ensure correct
dial setting. Continue to test weekly
throughout the season.
2. After each testing, adjust the dial
up by 1/2 increment if the free
chlorine reading has dropped
below 0.5 ppm or adjust down by
1/2 increment if the reading has
risen above 1.0 ppm. Continue
this process each day until the free
chlorine reading stabilizes to at
least 0.5 ppm.
Remember to adjust dial by
1/2 increments only in order to
prevent over chlorination which
may bleach pool surfaces.
Find your starting dial setting by matching up the parameters of your
pool on the above chart. A pool with approximately 12,000 gallons
with a 1 horsepower pump running 12 hours a day would require a
starting setting of 4.5.
^ – Bypass installation recommended. See “Installation Tips” on page 6. RECOMMENDED FLOW RATE: 20-60 gpm
NR – This pump size is not recommended for this size pool.
24 HOUR, LOW-SPEED PUMP-RUN TIME
In order to ensure proper performance when running the
pump on low speed for 24 hours per day or high speed less
than 6 hours per day, bleed the air while the pump is on by
unscrewing the back knob until water appears. Then screw
the knob back in. Repeat this process each time the cap is
removed for any reason. Set the control dial at #6 and follow
the adjustment directions in Step 2 to determine the correct
setting for your pool.
POOL SIZE
Gallons Diameter
8 HOUR PUMP RUN TIME 12 HOUR PUMP RUN TIME 24 HOUR PUMP RUN TIME
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
7,000 (18’) 5.0 4.5 4.0 3.5 4.5 4.0 3.0 5.0^ 3.5 3.0 2.5 4.0^
9,000 (21’) 5.5 5.0 4.5 4.0 5.0 4.5 4.0 5.5^ 4.0 3.5 3.0 4.5^
12,000 (24’) 6.0 5.5 5.0 4.5 5.5 5.0 4.5 4.0 4.5 4.0 3.5 5.0^
15,000 NR 6.0 5.5 5.0 6.0 5.5 5.0 4.5 5.0 4.5 4.0 3.5
20,000 NR NR 6.0 5.5 NR 6.0 5.5 5.0 5.5 5.0 4.5 4.0
25,000 NR NR 6.5 6.0 NR 6.5 6.0 5.5 6.0 5.5 5.0 4.5
POOL SIZE
Gallons Diameter
12 HOUR PUMP RUN TIME
PUMP SIZE
1/2 hp 3/4 hp 1 hp 1 1/2 hp
7,000 (18’) 4.5 4.0 3.0 5.0^
9,000 (21’) 5.0 4.5 4.0 5.5^
12,000 (24’) 5.5 5.0 4.5 4.0
15,000 6.0 5.5 5.0 4.5
20,000 NR 6.0 5.5 5.0
25,000 NR 6.5 6.0 5.5
IMPORTANT: Control dial settings in excess of these
recommendations could result in excess trichlor levels being
discharged into the pool. This can result in bleaching or
discoloration of areas around the pool inlet or, in some cases,
bleaching or discoloration of the entire pool liner or paint. In
addition, excess trichlor in the pool can create health hazards
to bathers.
EXAMPLE

14
Step 4: Routine Pool Care
Run ltration enough hours to
circulate all water 1 to 2 times per
day. More than that could result in
over chlorination.
2.
3.
1. 4.
6.
5.
Remember to replace FROG Leap
Anti-Bac Mineral Pac and all other
FROG Leap replacements as
directed.
Before closing the pool for the
winter, use FROG Leap Pool
Hibernation following the same
directions as FROG Leap Pool
Wake Up! on page 16.
Shock the pool every other week
or as needed. We recommend a
non-chlorine shock as reducing
chlorine use is the goal of FROG
products. However, using a
chlorine shock is OK too.
Maintain 0.5 to 1.0 ppm free
chlorine level at all times.
Note: These lower chlorine levels
are only acceptable when using
FROG minerals.
Regularly test water with FROG Test
Strips to maintain pH and Total
Alkalinity.
NOTE: Water balance is affected
by bather load, chemical usage,
evaporation and the makeup of
source water, so maintaining water
balance regularly is important.
WARNING
To prevent the build up of gas pressure in the FROG Leap
Infuzer, be sure the pool return line valves are open except
when opening or servicing the unit. DANGER
• Never add any other types of chlorine, pH adjusters,
shock treatments or algaecides through the skimmer.
These products should be added directly into the
pool if required.
• Never use fast dissolving chlorine tablets, liquid
bleach, or calcium hypochlorite in the FROG Leap
Infuzer.
DANGER
Do not contaminate the FROG Leap Infuzer, FROG
Leap Anti-Bac Mineral Pac, FROG Leap Torpedo Pac
or FROG Leap Pool Wake Up!/Pool Hibernation (which
includes FROG Leap Reveille, FROG Leap Depth Charge
and FROG Leap All-Out) with dirt, organic matter,
pool chemicals (such as calcium hypochlorite or pool
shocks), fertilizers or other household chemicals.
Contact between any of these substances and the
FROG Leap Infuzer, FROG Leap Anti-Bac Mineral Pac,
FROG Leap Torpedo Pac or FROG Leap Pool Wake Up!/
Pool Hibernation, will result in a chemical reaction with
the generation of heat, liberation of hazardous gasses
and re or explosion.

15
Operate
Replacing a FROG Leap Anti-Bac Mineral Pac
Must be replaced every 6 months or after one pool season.
1.
Check the top of the box and back label of product to make sure
you have the correct FROG Leap Anti-Bac Mineral Pac to t your
FROG Leap Infuzer.
IMPORTANT: The FROG Leap Anti-Bac Mineral Pac must be
replaced every 6 months or after one pool season, whichever is
shorter.
IMPORTANT: Remove and read the
information card.
Please note: Complete instructions for
inserting a FROG Leap Anti-Bac Mineral
Pac, and all other FROG Leap products are
included inside the FROG Leap Anti-Bac
Mineral Pac.
2.
Turn off pump and turn dial
to Setting 0. This reduces
the ow of water into the
unit when the cap is open.
3.
Open FROG Leap Infuzer
cap.
4.
Find slot on side of FROG
Leap Anti-Bac Mineral Pac
and line up with n inside
the FROG Leap Infuzer.
Lower FROG Leap Anti-Bac
Mineral Pac into FROG Leap
Infuzer until secure.
Replace the FROG Leap
Torpedo Pac inside the
FROG Leap Anti-Bac Mineral
Pac to continue operating
system (see directions on
page 18).
5.
Mark your calendar ahead for
the six month replacement
of the FROG Leap Anti-Bac
Mineral Pac. Once wetted,
the time-released mineral
coating of this product is
effective up to 6 consecutive
months or one pool season,
whichever is shorter. After
that time you will hear the
spent media inside, however,
it is no longer effective and
must be replaced.
6.
7.
SLOT IN
ANTI-BAC
MINERAL PAC®
FIN INSIDE
INFUZER®
Remove the FROG Leap Torpedo Pac and if not empty, set to
the side or store for winter. Then remove the FROG Leap Anti-
Bac Mineral Pac and discard if it has been used for one pool
season or 6 months, whichever is shorter.
DANGER
• Never use fast dissolving chlorine tablets,
liquid bleach, or calcium hypochlorite in
the FROG Leap Infuzer.
Anti-Bac Mineral Pac®
UP TO
25K
GALLONS

16
Replace cap by hand only.
DO NOT OVER TIGHTEN.
FROG Leap Depth Charge is a one time start-up product used to rid
the water of all contaminants.
FROG Leap Reveille - also used at start up, sets the chlorine residual
to help nd the proper dial setting for maintaining up to 50%* less
chlorine.
FROG Leap All-Out offers a 90-day Algae Protection Guarantee.
FROG Leap All-Out is also sold separately.
Using FROG Leap Pool Wake Up!
For FROG Leap Depth Charge and Reveille
Turn pac over and shake slightly
until ingredients fall into tower
areas.
Turn off pump. Turn control dial
to 0. Open FROG Leap Infuzer
cap. Stand back to let any
chlorine fumes dissipate.
To remove colored caps, grab
onto the lip of one cap with
a pliers and pull up until cap
releases. Repeat the process
for the other cap.
1.
2.
3.
4.
FROG Leap
Depth Charge
FROG Leap
Reveille
Run the pump and lter for each pac according to the
directions on the product label. Remove from the FROG
Leap Infuzer when empty and discard in trash or offer
for recycling if available.
Turn control dial on FROG Leap Infuzer to Setting 10.
6.
5.
Line up the small leg of the
FROG Leap Depth Charge or
Reveille with the small opening in
the FROG Leap Anti-Bac Mineral
Pac and the large leg with the
large opening. Lower pac into
FROG Leap Anti-Bac Mineral Pac
until secure.
Top View
FROG Leap
Anti-Bac
Mineral Pac
FROG Leap
Depth Charge
or Reveille
FROG Leap
All-Out
DANGER
Never use fast dissolving chlorine tablets, liquid bleach,
or calcium hypochlorite in the FROG Leap Infuzer.
WARNING
Avoid sparks, smoking, or any open ame near
FROG Leap Infuzer or chemicals.
Important: Read the labels on the FROG Leap Depth
Charge, Reveille and All-Out products carefully before using.
Pac
Towers
COLORED
CAPS
PAC
TOWERS
PAC
TOWERS
Pac
Towers

17
Using FROG Leap Pool Wake Up!
Operate
Using FROG Leap All-Out for an Algae-Protection Guarantee
1.
If you are not using FROG Leap All-Out refer to page 18 for Using
the FROG Leap Torpedo Pac. See FROG Leap All-Out product
labeling for complete directions for use (EPA Reg. No. 53735-9).
For a preventive dose add:
•One FROG Leap All-Out for pools up to 15,000 gallons.
•Two FROG Leap All-Out for pools between 15,000 & 30,000 gallons.
NOTE: If using directly after a shock treatment, test the water rst to ensure the pH is in the proper range of 7.2-7.8 and the chlorine
level is no more than 4.0 ppm. Avoid using other chemicals until this product has been circulated (ltered) for at least 24 hours.
Remove cap from FROG
Leap All-Out without
removing seal.
Turn off pump. Turn control
dial to 0. Open FROG Leap
Infuzer cap. Stand back
to let any chlorine fumes
dissipate.
Insert upside down into
center of FROG Leap Anti-Bac
Mineral Pac pushing down
rmly on FROG Leap All-Out
bottle allowing key in FROG
Leap Infuzer to puncture seal.
Replace cap by hand only.
DO NOT OVER TIGHTEN.
Turn control dial on FROG Leap
Infuzer to Setting 10.
2.
3.
4.
5.
Turn pump on for 90 minutes
allowing FROG Leap All-Out
to circulate through pool.
6.
To remove expended FROG Leap
All-Out bottle, turn pump off and
turn dial to Setting 0.
7.
Remove FROG Leap Infuzer cap.
8. Lift FROG Leap All-Out up and
allow any water in the container
to drain through the FROG Leap
Infuzer before discarding in trash or
offering for recycling. Do not reuse
or rell this container.
NOTE: If water shows more than
a hint of blue inside FROG Leap
Infuzer, replace the FROG Leap
Infuzer cap, turn dial to Setting 10
and run the pump for one minute.
8a. If pool size requires additional
FROG Leap All-Out, repeat steps
1-8.
8b. When water is clear in FROG
Leap Infuzer, insert a FROG Leap
Torpedo Pac according to the
instructions on page 18.
seal
Looking
down at top
of bottle
Important: If storing FROG Leap All-Out prior to use, always keep
in a cool, dry place away from children and pets.
DANGER
Never use fast dissolving chlorine tablets, liquid bleach,
or calcium hypochlorite in the FROG Leap Infuzer.
Seal

18
Remove colored caps by grabbing on
to the lip of one cap with a pliers and
pulling up until cap releases. Repeat
the process for the other cap.
Invert FROG Leap Torpedo Pac and
shake slightly until chlorine tablets fall
into tower areas.
Top View
FROG Leap
Anti-Bac
Mineral Pac
FROG Leap
Torpedo Pac
Mark your calendar ahead for the
approximate replacement times
for the FROG Leap Torpedo Pac.
Line up small leg of the FROG
Leap Torpedo Pac with small
opening in FROG Leap Anti-Bac
Mineral Pac, and large leg with
large opening. Lower FROG Leap
Torpedo Pac into FROG Leap Anti-
Bac Mineral Pac until secure.
Using FROG Leap Torpedo Pac
FROG Leap Torpedo Pac is required to
assure up to 50% reduction in chlorine
use*. FROG Leap Torpedo Pac sold
separately.
(EPA Reg. No. 53735-2)
2.
3.
4.
5.
6.
7.
Replace cap by hand only.
DO NOT OVER TIGHTEN.
The chlorine pac container is
made of HDPE plastic. Non-
rellable container. Do not reuse
or rell this container. Rinse
thoroughly before discarding in
trash or offering for recycling if
available.
WE RECYCLE
1. Turn off pump. Turn
control dial to 0. Remove
cap from FROG Leap
Infuzer and stand back
to let any chlorine fumes
dissipate.
IMPORTANT: Read the label on the FROG Leap Torpedo Pac
carefully before using.
WARNING
Avoid sparks, smoking, or any open ame near
FROG Leap Infuzer or chemicals.
DANGER
Never use fast dissolving chlorine tablets, liquid bleach,
or calcium hypochlorite in the FROG Leap Infuzer.
PAC
TOWERS
PAC
TOWERS
Colored
Caps

19
Operate
Winterizing
2.
1.
4.
5.
6.
3.
7.
Turn pump off and turn dial
to Setting 0.
Before closing your
pool, refer to page 16
and follow directions
for using FROG Leap
Pool Hibernation
(same directions as
using FROG Leap Pool
Wake Up!).
Then proceed to
steps 2-7 below.
Remove cap.
Unscrew knob from the front
of FROG Leap Infuzer. Allow
all water to drain.
If FROG Leap Torpedo Pac
still contains chlorine, wrap in
plastic bag and store in shed or
cool, dry, well-ventilated location
away from children, pets, cars,
motorcycles or anything metal
that can rust, pit, etc.
If empty, rinse and recycle.
Remove the FROG Leap Anti-
Bac Mineral Pac and discard in
trash. You will hear spent media
inside, however, it is no longer
effective.
Replace the cap and
knob loosely.
WARNING
Avoid sparks, smoking, or any open ame near
FROG Leap Infuzer or chemicals.
FROG Leap
Depth Charge
FROG Leap
Reveille
FROG Leap
All-Out

20
1.
3.
4.
5.
2.
Troubleshooting
1. Make sure your ltration
system is working properly (i.e.
clean lter, skimmer and pump
basket).
2. Make sure circulation time
is adequate – increase pump
time if not.
3. Make sure the pool is
properly balanced.
(See page 10.)
4. Shock the water to eliminate
build up of any organic matter.
5. Make sure pool has a
free chlorine reading of
0.5 to 1.0 ppm.
6. Check with your dealer
for more information.
1. Algae may be trying to form
– shock the pool, increase
circulation time if needed and
clean the lter.
2. Metals in the ll water may
have been oxidized. Have the
pool tested. See pool dealer
if a metal control product is
required.
3. Check with your dealer for
more information.
1. Use FROG Leap All-Out or
an effective algaecide per the
directions on the bottle and
brush the sides of the pool often.
2. Clean the lter and shock
the pool with chlorine daily until
water clarity returns.
3. If you are in an area of
the country that struggles
with algae growth, see your
dealer regarding a 90-day
Algae-Protection Guarantee
using FROG Leap All-Out.
See product hang tag for
guarantee details.
4. Check with your dealer for
more information.
1. If you are unable to
maintain 0.5 to 1.0 ppm, rst
make sure there are chlorine
tablets in the tower areas of
the FROG Leap Torpedo Pac
and it is installed properly. If a
correction was made, test the
water in 24 hours.
2. If still low, turn the dial up
one setting and test the water
again in 24 hours. Continue
raising the setting by one
increment each day until the
proper reading is achieved.
3. Shock the pool if the reading
has been lower than 0.5 ppm
for more than one day.
4. Make sure pump run time is
at least 6 hours on high speed
(40 gpm or higher) or if not,
bleed the air from the back
knob each time cap is open.
5. Contact your dealer to have
your back pressure tested. If
under 4 psi, consider a smaller
eyeball tting in the return jet.
6. Check for a suction side
leak by looking for air bubbles
in your pump basket or at the
return jet. Contact dealer for
help in correcting this situation.
7. Contact King Technology’s
Customer Service Department
at 800-222-0169.
1. If the chlorine reading is
over 3.0 ppm, remove the
FROG Leap Torpedo Pac
from the FROG Leap Anti-Bac
Mineral Pac and test the water
daily until the reading is down
to 1.0 ppm.
2. Reinsert the FROG Leap
Torpedo Pac, lower the dial
one setting and test the
water again in 24 hours. If
the reading has risen, lower
the dial one setting again.
Continue this process until
proper reading is achieved.
3. If over-chlorinating at
the lowest possible setting,
consider decreasing the
circulation time. Depending on
your pump size, you may be
circulating the water more than
is necessary.
4. Contact your dealer to have
your back pressure tested. If
over 8 psi consider a larger
eyeball tting in the return jet.
5. Check to see if the pressure
relief valve is loose or missing
and replace. See parts diagram
on page 21.
6. If these steps are not
successful and your Infuzer is
installed using the 6” nipple,
we have found changing
the installation can make a
difference. You will need a
section of ex hose and 2 hose
adapters to do this. See page 8
for directions.
6. Contact King Technology’s
Customer Service Department
at 800-222-0169.
What do I do
if I am over
chlorinating with
the FROG Leap
Torpedo Pac?
What do I do
if I am under
chlorinating with
the FROG Leap
Torpedo Pac?
What do I do
if algae forms in or
on my pool?
What do I do
if the water turns
color?
What do I do
if the water looks
cloudy?
Problem Remedy
For more in-depth troubleshooting, go to frogproducts.com or call King Technology at 800-222-0169.
