Assembly Instructions
S4 Turbo
Read and follow the assembly instructions and safety information.
Subject to technical change.

Introduction
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 3
Tel [phone] Fax [phone] [email protected] www.froeling.com M0970208
I
Dear customer,
The FRÖLING S4 Turbo is a state-of-the-art design that conforms to all
currently applicable standards and testing guidelines.
Please read and follow the assembly instructions. They contain safety
instructions and comprehensive information relating to transporting,
setting up and assembling the boiler.
The continuous development of our products means that there may be
minor differences between the illustrations and other content of the
document. If you discover any errors, please let us know.
Subject to technical change.
Delivery Certificate
Keeping a record that the delivery was received correctly and collecting
customer-specific data relating to the system allows us to respond
quickly should problems arise.
We would therefore ask you to confirm that you have received the
product in good condition.
Please send Fröling a copy of the delivery certificate, filled in and signed
by the customer.
Guarantee conditions
Our sale and delivery conditions shall always apply. These are made
available to customers in advance, and are deemed to have been
accepted at the time the contract is concluded.
The warranty conditions can also be found in the enclosed guarantee
certificate.
Address of manufacturer
FRÖLING
Heizkessel- und Behälterbau GesmbH
Industriestraße 12
A-4710 Grieskirchen
AUSTRIA
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
INTERNET www.froeling.com

Contents
Page 4
M0970208 I
C
1General information 6
1.1 Notes on standards 6
1.2 Design Information 7
1.2.1 Approval and obligation to report ...................................................................... 7
1.2.2 Requirements for central heating water.............................................................. 7
1.2.3 Ventilation of boiler room ................................................................................. 8
1.2.4 Installing the heating system / Standards........................................................... 8
Return feed lift ..............................................................................................8
Combination with storage tank.........................................................................9
1.2.5 Chimney connection/chimney system .............................................................. 10
Draught limiter ............................................................................................ 10
Boiler data relating to design of the flue gas system.......................................... 10
2Technology 11
2.1 Components and connections 11
2.2 Dimensions 12
2.3 Performance data 13
2.3.1 S4 Turbo 15/22/28 ....................................................................................... 13
Test report data........................................................................................... 13
2.3.2 S4 Turbo 34/40 ............................................................................................ 14
Test report data........................................................................................... 14
2.3.3 S4 Turbo 50/60 ............................................................................................ 15
Test report data........................................................................................... 15
3Installation 16
3.1 Transport 16
3.1.1 Positioning ................................................................................................... 16
3.1.2 Remove boiler from pallet .............................................................................. 16
3.1.3 Temporary storage........................................................................................ 16
3.2 Setting up in the boiler room 17
3.2.1 Moving the boiler in the boiler room................................................................. 17
3.2.2 Minimum distances in the boiler room .............................................................. 17
3.3 Materials supplied 18
3.3.1 Tools required .............................................................................................. 18
3.4 Before installation 19
3.4.1 Fitting doors on the left ................................................................................. 19
3.4.2 Fitting the door handles ................................................................................. 21
3.4.3 Positioning doors .......................................................................................... 21
3.5 Installation of S4 Turbo 15/22/28/34/40 22
3.5.1 Fitting the induced draught fan ....................................................................... 22
3.5.2 Installing the flue gas pipe nozzle.................................................................... 22
3.5.3 Installing the WOS system ............................................................................. 22
3.5.4 Installing the air flaps.................................................................................... 24
Air flaps for actuators right (delivery configuration)........................................... 24
Air flaps for actuators left.............................................................................. 25
3.5.5 Installing the insulation.................................................................................. 26

Contents
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 5
Tel [phone] Fax [phone] [email protected] www.froeling.com M0970208
C
3.5.6 Installing the actuators .................................................................................. 29
3.5.7 Installing the Lambda probe ........................................................................... 30
3.5.8 Installing the flue gas sensor .......................................................................... 31
3.5.9 Installing the control unit ............................................................................... 31
3.5.10Installing the WOS lever................................................................................. 32
3.5.11Install the insulating door............................................................................... 34
3.5.12Installing the insulating cover ......................................................................... 35
3.5.13Installing the floor insulation........................................................................... 35
3.6 Installing the S4 Turbo 50/60 36
3.6.1 Installing the WOS system.............................................................................. 36
3.6.2 Installing the air flaps .................................................................................... 37
Air flaps for actuators right (delivery configuration)...........................................37
Air flaps for actuators left ..............................................................................38
3.6.3 Installing the insulation.................................................................................. 39
3.6.4 Installing the actuators .................................................................................. 42
3.6.5 Installing the flue gas sensor .......................................................................... 43
3.6.6 Installing the Lambda probe ........................................................................... 43
3.6.7 Installing the induced draught fan ................................................................... 44
3.6.8 Installing the control unit ............................................................................... 45
3.6.9 Installing the WOS lever................................................................................. 46
3.6.10Install the insulating door............................................................................... 47
3.6.11Installing the insulating cover ......................................................................... 48
3.6.12Installing the floor insulation........................................................................... 48
3.7 Electrical connection 49
3.8 Connecting the thermal discharge safety device 49
4Startup 50
4.1 Initial startup/ configuring the boiler 50
5Decommissioning 50
5.1 Mothballing 50
5.2 Disassembly 50
5.3 Disposal 50
6Appendix 51
6.1 Delivery certificate S4 Turbo 51

General
Standards, Design, Assembly
Page 6
M0970208 I
1
1General information
CAUTION
Assembly and installation by untrained personnel.
Risk of personal injury and damage to property.
The instructions and information provided in the manual must be
observed.
Assembly and installation must only be carried out by qualified
personnel (heating installers or licensed electricians).
1.1 Notes on standards
The boiler must be installed and commissioned in compliance with local
fire and building regulations and the following standards:
ÖNORM/DIN EN 303-5 Heating boilers for solid fuels, hand and automatically stocked, nominal heat
output of up to 300 kW - Terminology, requirements, testing and marking
ÖNORM M 7510 Guidelines for checking central heating systems
ÖNORM / DIN EN 12828 Heating systems in buildings - design of water-based heating systems
ÖNORM B 8130 Safety devices, open water-heating systems
ÖNORM B 8131 Closed water-heating systems, safety requirements
DIN 4751 Parts 1-4 Heating system safety equipment
ÖNORM / DIN
EN 13384-1
Chimneys serving one appliance
ÖNORM M 7515 /
DIN 4705-1
Calculating chimney dimensions for combustion systems
ÖNORM H 5170 Requirements related to fire prevention, fire protection and building
construction
VDI 2035 Prevention of damage in water heating installations - Scale formation in
domestic hot water supply installations and water heating installations
(Germany only)
ÖNORM H 5195-1 Prevention of damage by corrosion and scale formation in closed warm-water-
heating systems at operating temperatures up to 100 °C (Austria only).
VDI 2035 Prevention of damage in water heating installations - Scale formation in
domestic hot water supply installations and water heating installations
(Germany only)
SWKI 97-1 Lime scale and corrosion protection in heating systems (Switzerland only)

General
Standards, Design, Assembly
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 7
Tel [phone] Fax [phone] [email protected] www.froeling.com M0970208
1
1.2 Design Information
It is forbidden to carry out modifications to the boiler or to change or
deactivate safety equipment.
Always comply with all fire, building, and electrical regulations when
installing or operating the boiler system, in addition to following the
operating instructions and mandatory regulations that apply in the
country in which the boiler is operated.
1.2.1 Approval and obligation to report
NOTICE
Each heating system must be officially authorised.
The appropriate supervisory authority (inspection agency) must always be
informed when installing or modifying a heating system, and authorisation
obtained from the building authorities.
Austria: Inform the civic/municipal building authorities.
Germany: Register with an approved chimney sweep/the building
authorities.
1.2.2 Requirements for central heating water
The requirements pertaining to the water used to fill the boiler are
based on the following standards and guidelines:
Applicable standards and guidelines:
Austria: ÖNORM H 5195-1
Germany: VDI 2035
Switzerland: SWKI 97-1
There are no other special requirements for central heating water.
Note on filling with make-up water: bleed the filling hose before
connecting to prevent air from getting into the system.
§

General
Standards, Design, Assembly
Page 8
M0970208 I
1
1.2.3 Ventilation of boiler room
The openings for the supply air and the exhaust air should be arranged
as close to opposite each other as possible to achieve a good thermal
draught effect.
The supply air must be drawn in directly from outside. Exhaust air
must be discharged directly outside.
Unless otherwise stipulated by the building regulations applicable to the
room where the boiler is to be installed, the following standards shall
apply:
Applicable standard:
- ÖNORM H 5170
1.2.4 Installing the heating system / Standards
The following standards govern the installation of heating systems:
Applicable standards:
ÖNORM / DIN EN 12828 Heating Systems in Buildings
The following prior standards still apply:
Austria: - Closed systems as per ÖNORM B 8131
- Open systems as per ÖNORM B 8130
Germany: - Closed systems as per DIN 4751 Part 2
- Open systems as per DIN 4751 Part 1
Return feed lift
If the hot water return feed is below the minimum return feed
temperature, some of the hot water outfeed will be mixed in.
CAUTION
Risk of dropping below dew point/condensation formation if operated
without return feed lift.
Condensation water forms an aggressive condensate when combined
with combustion residue, leading to damage to the boiler.
Regulations stipulate the use of a return feed lift.
The minimum return feed temperature is 55 °C. We recommend fitting
some kind of control device (e.g. thermometer).
§
§

General
Standards, Design, Assembly
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 9
Tel [phone] Fax [phone] [email protected] www.froeling.com M0970208
1
Combination with storage tank
In accordance with the relevant Austrian laws governing energy
technology, which are based on Art. 15a B-VG “Agreement on protective
measures for small furnaces” dated November 1994, no buffer storage
tank is required on manually fed biomass boilers that have been
positively tested at both rated load and partial load (below 50% of rated
load) to ensure they adhere to the emissions limits specified in that
agreement.
Germany has specified its own emissions limits in the “First Ordinance
on Implementation of the Federal Emissions Control Act (1st BImSchV)”.
Provided that commissioning is carried out by our customer services or
an authorised partner company, it can be assumed that these
requirements will also be complied with under partial load conditions in
accordance with § 6 (3) of the 1st BImSchV. This means that the
complete range of firewood boilers can be used in Germany without
requiring a mandatory buffer storage tank.
Combining the system with a buffer storage tank does however offer
significant advantages when using a firewood boiler, such as better
utilisation of the fuel, more user-friendly operation in terms of reloading
intervals (which means the greatest possible independence from
instantaneous heating requirements), and less soiling of the boiler and
flue gas system. In addition to the above, as the manufacturer of the
boiler we have to advise on how the heat generated can be dissipated.
This is because compliance with the emissions limits and minimum level
of efficiency at a minimum heat output of 30% of the rated heat output,
as specified in Section 4.2.5 or EN 303-5, has not been demonstrated
for all variants of the system.
The opportunities for heat dissipation are particularly good if the central
heating system has sufficient capacity for heat uptake, for example
through underfloor heating circuits with a suitable water volume or hot
water tanks with appropriate reserve capacity. It should also be noted
that the integral thermal discharge safety device ensures that the boiler
will operate safely even if it is overfilled or has too little load reduction.
If, however, the amount of heat that can be temporarily dissipated
within the building being heated is limited, then additional heat
dissipation can be provided by a buffer storage tank.
The recommend storage volume for each boiler is given in the technical
specifications. The specified value applies under the following
conditions: the rated heat output of the boiler corresponds to the
heating requirements of the building and a maximum of 50% of the
rated heat output can be dissipated to the building being heated under
partial load conditions.
Certain subsidy guidelines also prescribe compulsory
requirements for the installation of buffer storage tanks:
Some guidelines relate to minimum storage volume in accordance with
EN 303-5, as given in the technical specifications.
... In Austria: some subsidy guidelines of Austrian federal states
(e.g. those of the Vorarlberg state government)
... In Switzerland: The “Quality Seal for Wood Burning Systems”
scheme from Holzenergie Schweiz

General
Standards, Design, Assembly
Page 10
M0970208 I
1
Other guidelines are based on tank size, e.g.
... In Austria: Specific subsidy guidelines for Austrian states (e.g.
Styrian state government guidelines: buffer storage
tanks of at least 800 L)
... In Germany: “BAFA Förderung” guidelines on measures to promote a
better use of renewable energies of the Federal Office
of Economics and Export Control (BAFA): buffer storage
tanks of at least 55 L/kW
Up to date information relating to specific subsidy guidelines for various
regions can be found on our website at www.froeling.com.
1.2.5 Chimney connection/chimney system
EN 303-5 specifies that the entire flue gas system must be designed to
prevent, wherever possible, damage caused by seepage, insufficient
feed pressure and condensation.
It should be noted here that flue gas temperatures of less than 160 K
above room temperature can occur within the permitted operating range
of the boiler.
The flue gas temperatures (for clean systems) and additional flue gas
values can be found in the technical specification sheets.
See “Boiler data relating to design of the flue gas system”
Connect to the chimney via the shortest path, preferably with a vertical
gradient of less than 30–45°. Insulate the connecting piece.
The entire flue gas system (chimney and connection) must be calculated
as per ÖNORM/DIN EN 13384-1 or prior standards
ÖNORM M 7515/DIN 4705-1.
Local regulations and other statutory regulations also apply.
The chimney must be authorised by a smoke trap sweeper or
chimney sweep.
Draught limiter

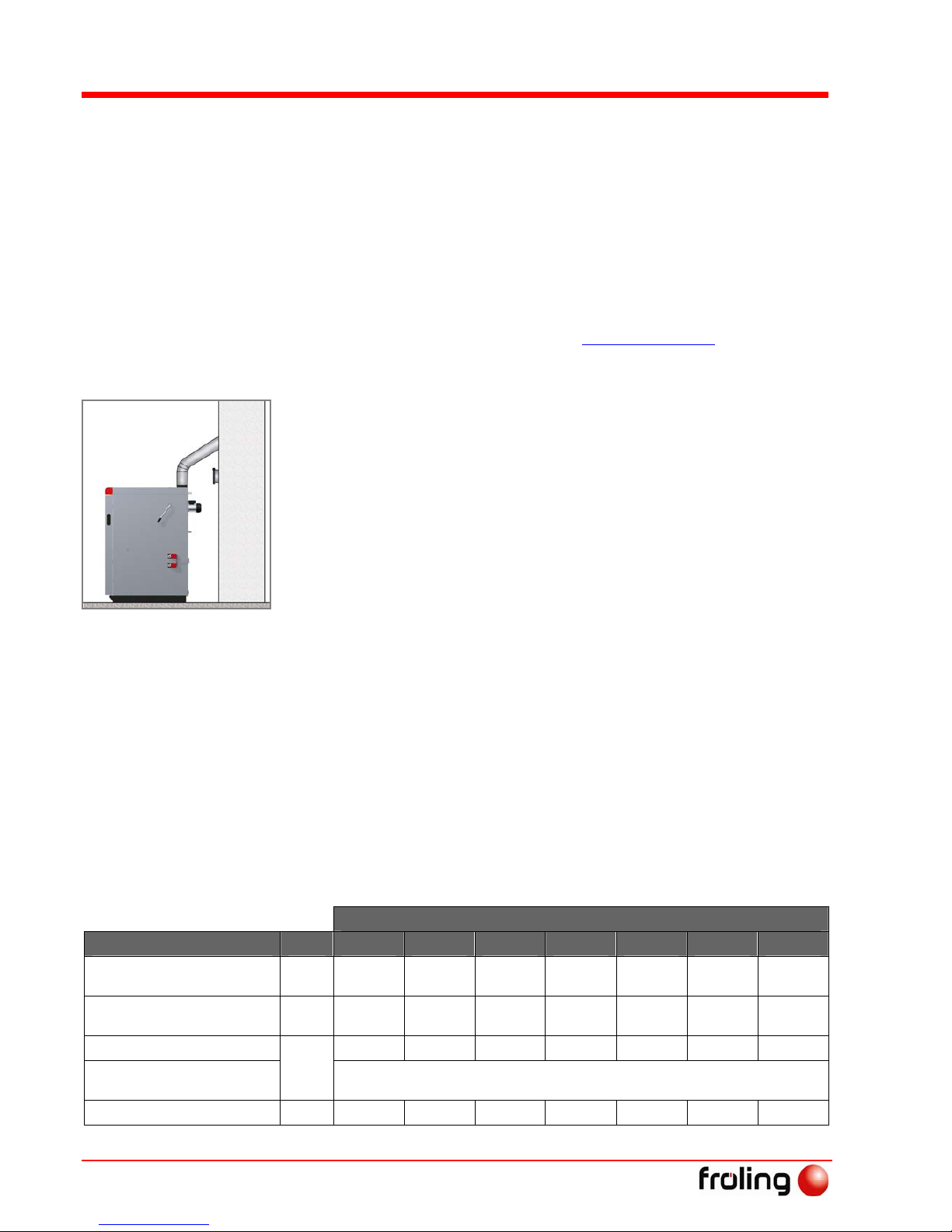

We recommend that a draught limiter is fitted (1)
Install the draught limiter directly under the mouth of the flue line,
as the pressure is lower at this location.
Boiler data relating to design of the flue gas system
S4 Turbo
Description Unit 15 22 28 34 40 50 60
Flue gas temperature RL
PL
°C 140
-
160
110
180
130
140
110
170
130
150
100
170
110
Flue gas mass flow RL
PL
kg/s 0.011
-
0.016
0.007
0.021
0.010
0.025
0.012
0.030
0.015
0.033
0.016
0.041
0.020
Minimum feed pressure 0.08 0.08 0.08 0.08 0.08 0.08 0.08
Maximum permissible feed
pressure
mbar as per ÖNORM / DIN EN 303-5
Flue pipe diameter mm 150 150 150 150 150 150 150
RL = Rated Load, PL = Partial Load
1

Technology
Connections, dimensions and performance data
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 11
Tel [phone] Fax [phone] [email protected] www.froeling.com M0970208
2
2Technology
2.1 Components and connections
S4 Turbo
Item Description Unit 15/22/28 34/40 50/60
1 Boiler outfeed connection 6/4 6/4 6/4
2 Boiler return feed connection 6/4 6/4 6/4
3 Connection for filling/drainage cock 1/2 1/2 1/2
4 2 safety heat-exchanger connection sleeves for
the thermal discharge safety device 1/2 1/2 1/2
5 Flue gas sensor connector 1/2 1/2 1/2
6 Lambda probe connector 3/4 3/4 3/4
7 2 Immersion sleeves for
- thermal discharge safety device sensor
- boiler sensor, safety temperature limiter
Inch
1/2 1/2 1/2
8 Flue gas pipe nozzle mm 150 150 150
2
1
3
8
4
6
7
5
2
1
3
4
6 7
5
S4 Turbo 15-40 S4 Turbo 50/60

Technology
Connections, dimensions and performance data
Page 12
M0970208 I
2
2.2 Dimensions
S4 Turbo
Item Description Unit 15/22/28 34/40 50/60
H Boiler height 1565 1565 1565
H1 Total height, inc. flue gas pipe 1610 1610
H1* Height of induced draught unit housing 1480
H2 Height of flue gas pipe connection 1830 1830
H2* Height of flue gas pipe connection 1700
H3 Height of outfeed connection 1360 1360 1360
H4 Height of return feed connection 140 140 140
H5 Height of safety heat exchanger connection
mm
970 970 960
B Boiler width 570 670 670
B1 Total boiler width inc. actuators mm 635 735 735
L Boiler length 1125 1215 1215
L1 Total length inc. induced draught fan 1300 1390
L1* Total length inc. induced draught fan
mm
1680
*) dimensions indicated only for S4 Turbo 50/60

Technology
Connections, dimensions and performance data
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 13
Tel [phone] Fax [phone] [email protected] www.froeling.com M0970208
2
2.3 Performance data
2.3.1 S4 Turbo 15/22/28
S4 Turbo
Description Unit 15 22 28
Rated heat output 15 22 28
Fuel-heating efficiency at rated heat output kW 16.1 24.0 30.7
Boiler class 3
Electrical connection 230 V / 50 Hz / fused 16 amps
Electrical output W 105 125 125
Boiler weight kg 640 640 640
Fuel loading door dimensions (width / height) mm 380 / 360 380 / 360 380/360
Fuel loading chamber capacity 145 145 145
Water capacity L 115 115 115
Water side resistance (with 10/20 K temperature difference) mbar 6.5 / 2.0 4.0 / 2.0 4.2 / 2.5
Minimum return feed temperature 55
Permitted operating temperature °C 95
Permitted operating pressure bar 3
Permitted fuel Firewood
Combustion time1) Beech
Spruce
h 9.0 - 13.0
6.3 - 9.2
5.6 - 8.1
3.9 - 5.7
4.4 - 6.4
3.1 - 4.5
Recommended buffer storage tank capacity L 2000 2000 1400
1) The values specified for combustion time are guideline values for firewood at rated load and will vary depending on water
content (15-25%) and fill level (80-100%).
Test report data
S4 Turbo
Description Unit 15 22 28
Testing institute TÜV Austria 1)
Test report no. 07-UWC/Wels-
EX-094/1
2) 4) 2) 3)
Date of issue 16.11.2005
Carbon monoxide (CO) Rated load
Partial load
mg/MJ 34
19 20
58
Nitrogen oxide (NOx) Rated load
Partial load
mg/MJ 93
96 97
91
Organic hydrocarbons Rated load
Partial load
mg/MJ 2
< 2 < 2
3
Dust Rated load
Partial load
mg/MJ 17
13 12
6
1) TÜV Austria, Environment and Chemistry Division, Thalheim bei Wels Test Centre
2) In accordance with ÖNORM / DIN EN 303-5, section 5.1.3 Type Test: for a boiler from a range with a consistent structure it is
sufficient, if the ratio of rated heat output from the largest to the smallest boiler ≤2 : 1, to carry out the tests with the smallest and
the largest boilers. The boiler manufacturer must ensure that all boilers, including those that have not been tested in a range, whose
values have been determined depending on rated heat output by interpolation, fulfil the requirements of the norm.
3) Values for the type S4 Turbo 28 are interpolated between the test protocol 07-UWC/Wels-EX-094/2 and 07-UWC/Wels-EX-094/3.
4) Values for the type S4 Turbo 22 are interpolated between the test protocol 07-UWC/Wels-EX-094/1 and 07-UWC/Wels-EX-094/2.

Technology
Technical specifications
Page 14
M0970208 I
2
2.3.2 S4 Turbo 34/40
S4 Turbo
Description Unit 34 40
Rated heat output 34 40
Fuel-heating efficiency at rated heat output kW 37.2 43.8
Boiler class 3
Electrical connection 230 V / 50 Hz /
fused 16 A
Electrical output W 110 110
Boiler weight kg 740 740
Fuel loading door dimensions (width / height) mm 380 / 360 380 / 360
Fuel loading chamber capacity 190 190
Water capacity L 175 175
Water side resistance (with 10/20 K temperature difference) mbar 5.1 / 1.7 6.0 / 1.9
Minimum return feed temperature 55
Permitted operating temperature °C 95
Permitted operating pressure bar 3
Permitted fuel Firewood
Combustion time1) Beech
Spruce
kg/h 4.7 - 6.8
3.3 - 4.8
3.9 - 5.7
2.8 - 4.0
Recommended buffer storage tank capacity L 1400 1400
1) The values specified for combustion time are guideline values for firewood at rated load and will vary depending on water
content (15-25%) and fill level (80-100%).
Test report data
S4 Turbo
Description Unit 34 40
Testing institute TÜV Austria 1)
Test report no. 2) 3) 07-UWC/Wels-
EX-094/3
Date of issue 23.03.2007
Carbon monoxide (CO) Rated load
Partial load
mg/MJ 37
51
54
45
Nitrogen oxide (NOx) Rated load
Partial load
mg/MJ 98
88
99
85
Organic hydrocarbons Rated load
Partial load
mg/MJ < 2
3
< 2
3
Dust Rated load
Partial load
mg/MJ 13
7
14
7
1) TÜV Austria, Environment and Chemistry Division, Thalheim bei Wels Test Centre
2) In accordance with ÖNORM / DIN EN 303-5, section 5.1.3 Type Test: for a boiler from a range with a consistent structure it is
sufficient, if the ratio of rated heat output from the largest to the smallest boiler ≤2 : 1, to carry out the tests with the smallest and
the largest boilers. The boiler manufacturer must ensure that all boilers, including those that have not been tested in a range, whose
values have been determined depending on rated heat output by interpolation, fulfil the requirements of the norm.
3) Values for the type S4 Turbo 34 are interpolated between the test protocol 07-UWC/Wels-EX-094/2 and 07-UWC/Wels-EX-094/3.

Technology
Connections, dimensions and performance data
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 15
Tel [phone] Fax [phone] [email protected] www.froeling.com M0970208
2
2.3.3 S4 Turbo 50/60
S4 Turbo
Description Unit 50 60
Rated heat output 50 60
Fuel-heating efficiency at rated heat output kW 54.9 65.9
Boiler class 3
Electrical connection 230 V / 50 Hz /
fused 16 A
Electrical output W 180 180
Boiler weight kg 798 798
Fuel loading door dimensions (width / height) mm 380 / 360 380 / 360
Fuel loading chamber capacity 200 200
Water capacity L 170 170
Water side resistance (with 10/20 K temperature
difference) mbar 7.0 / 2.0 8.0 / 2.5
Minimum return feed temperature 55
Permitted operating temperature °C 95
Permitted operating pressure bar 3
Permitted fuel Firewood
Combustion time1) Beech
Spruce
kg/h 3.4 - 4.9
2.4 - 3.5
2.8 - 4.1
2.0 - 2.9
Recommended buffer storage tank capacity L 1660 1660
1) The values specified for combustion time are guideline values for firewood at rated load and will vary depending on water
content (15-25%) and fill level (80-100%).
Test report data
S4 Turbo
Description Unit 50 60
Testing institute TÜV Austria 1)
Test report no. 2) 3) 08-UW/Wels-
EX-074
Date of issue 25.04.2008
Carbon monoxide (CO) Rated load
Partial load
mg/MJ 43
46
31
46
Nitrogen oxide (NOx) Rated load
Partial load
mg/MJ 104
83
109
80
Organic hydrocarbons Rated load
Partial load
mg/MJ < 2
3
< 2
3
Dust Rated load
Partial load
mg/MJ 17
11
20
14
1) TÜV Austria, Environment and Chemistry Division, Thalheim bei Wels Test Centre
2) In accordance with ÖNORM / DIN EN 303-5, section 5.1.3 Type Test: for a boiler from a range with a consistent structure it is
sufficient, if the ratio of rated heat output from the largest to the smallest boiler ≤2 : 1, to carry out the tests with the smallest
and the largest boilers. The boiler manufacturer must ensure that all boilers, including those that have not been tested in a
range, whose values have been determined depending on rated heat output by interpolation, fulfil the requirements of the
norm.
3) Values for the type S4 Turbo 50 are interpolated between the test protocol 07-UWC/Wels-EX-094/3 and 08-UW/Wels-EX-074.

Installation
Transport and setup
Page 16
M0970208 I
3
3Installation
3.1 Transport
The boiler comes packed on a pallet.
Move the boiler without jarring or jolting
Follow the instructions on the packaging
when moving the boiler
3.1.1 Positioning
Use a fork-lift or similar lifting device to move the pallet and position
the boiler or
Attach a cable winch or similar lifting device to the eyelet on the
boiler and position the boiler
3.1.2 Remove boiler from pallet
At the front of the boiler:
Remove securing devices used during transportation on the left and
right side of the base.
At the back of the boiler:
Remove securing devices used during transportation on the left and
right side of the base.
3.1.3 Temporary storage
If the system is to be installed at a later date:
Store the boiler, insulation and control unit in a safe, dust-free, and
dry location
Moisture and frost reduce the effectiveness of insulation and can
destroy electronic components.

Installation
Transport and setup
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 17
Tel [phone] Fax [phone] [email protected] www.froeling.com M0970208
3
3.2 Setting up in the boiler room
3.2.1 Moving the boiler in the boiler room
Position a fork-lift or similar lifting device at the base frame of the
boiler and move it to the designated position
To prevent damage:
Move the boiler without jarring or jolting
Risk of damage to firebrick-lined combustion chamber.
Move the packing units carefully
Risk of scratching the insulation
Position the boiler at the designated location
The boiler must be positioned so that it rises slightly towards the
outfeed
Observe the minimum distances from other objects in the boiler
room
3.2.2 Minimum distances in the boiler room
Set up the boiler according to the applicable standards and regulations.
The following minimum distances must be observed in all cases:
A Distance between insulated door and wall 800 mm
B Distance between side of boiler and wall 300 mm
C Distance between rear of boiler and wall
S4 Turbo 15-40
S4 Turbo 50-60
500 mm
800 mm

Installation
Materials supplied
Page 18
M0970208 I
3
3.3 Materials supplied
A
Boiler
B
Insulation
C
Flue gas pipe nozzle
(S4 Turbo 15-40)
D
Induced draught unit
housing
(S4 Turbo 50-60)
E
Induced draught fan
F
Cardboard box containing
small parts
G
Rods for primary and
secondary air
H
Ash shovel
I Cleaning kit
J Cleaning brush, small
K
Cleaning brush, large
L
Control unit of the
Lambdatronic S3200
M
Ash drawer
The following are also included in the materials supplied but not
pictured:
Lambdatronic control unit, installation instructions, operating
instructions, guarantee certificate, identification plate
3.3.1 Tools required
The following tools are required for the installation of the S4 Turbo:
- Hexagonal spanners or hexagonal sockets with widths across flats: 8,
10, 13, 17, 22 mm
- Flat head and cross-head screw drivers
- Hammer, side cutters and half-round file
- Power drill or cordless electric screwdriver with Torx 30 bit insert
A
B
I
E F
H
G
J
K
C
D
M
L

Installation
Before installation
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 19
Tel [phone] Fax [phone] [email protected] www.froeling.com M0970208
3
3.4 Before installation
NOTICE
The boiler doors are attached on the right hand side when delivered.
Carry out the following assembly steps if the doors need to be
attached on the left:
3.4.1 Fitting doors on the left
Detach the doors
Unscrew the hinge and back
plate, swap them over and
reattach.
The top and bottom locking
cams should be installed in
mirrored positions, with the
groove of the adjustable area
facing the middle of the door
hinge in each case.
Position the door hinge on the abutting side of the door
Push the cup square bolts through and place the locking cams on
as shown
Fix the door hinge finger tight with a hexagonal nut and a spacer
washer
Rotate the pre-heating chamber door and the combustion chamber
door and attach them on the left hand side.

Installation
Before installation
Page 20
M0970208 I
3
Additional steps for the fuel
loading chamber door:
Remove the radiation plate
together with the seal
Detach the insulating plate
from the ceramic fibre seal
Carefully lift out the
insulating plate
Turn the insulating plate by
180° and position it so that it
lines up with the holes
provided
Re-install the radiation plate
Fix the seal in place using
contact adhesive
