Fuel NANO HUB LEVANTE 500 Operating instructions

1
REV.00 –08/07/2021
User and Maintenance Manual
Manuale d’uso e manutenzione
LEVANTE 500

2
USA
UK
THANK YOU FOR CHOOSING THE
LEVANTE 500
By purchasing the Air Sanitizer Device,
you demonstrate that you care about the
air quality of your environment,
showing respect for your health and the
health of those around you.

3
Disclaimer:
This document is the exclusive property of FuEl S.r.l. all rights
reserved. Any disclosure, reproduction or transfer of the
content to third parties is prohibited without the prior
authorization of the Company. FuEl S.r.l. disclaims any
responsibility for damage to persons or property due to
improper use of this product and failure to observe the
indications, warnings, instructions and precautions contained in
this user manual.
This user manual is provided only in paper format and must
always accompany the LEVANTE 500 device.
LEVANTE 500 is manufactured by:
FuEl S.r.l.
Via Rossini 7 -21020
Bodio Lomnago (VA) ITALY
e-mail: [email protected]

4
Summary
DISCLAIMER
1. GENERAL INFORMATION
1. Intended Use
2. Applied Regulation
3. Description
4. Symbology
5. General Warnings
6. Hazard Warnings
7. Composition and Accessories
2. INSTALLATION
1. Installation Method
2. Electrical Connection
3. HOW TO USE
1. Control Panel
2. Device Operation
3. Manual Start Mode
4. Automatic Start Mode
4. MAINTENANCE
1. Regular Maintenance –Dust Filter
Cleaning / Replacement
2. Extraordinary Maintenance
5. DISPOSAL
6. TECHNICAL FEATURES
7. TROUBLE SHOOTING
8. STORAGE
9. LABELS
1. Device Plate data
2. Symbols and Safety Labels
5
5
5
5
6
7
9
10
10
10
12
12
12
12
13
14
14
14
16
17
17
18
18
19

5
1 - GENERAL INFORMATION
1.1. Intended Use
The device is intended to be used in commercial, domestic and similar environments
for air sanitization. It is used to reduce the potential presence of pathogens like
bacteria, viruses and pollutants including particles, VOC, NOX and odors. The
intended use of the device is for enclosed environments where prevention of
potential air contamination is required. The device does not perform a disinfection
function of the air or the environment.
1.2. Applied Regulation
Directive (EU) 2014/35 (LVD) and Directive (EU) 2014/30 (EMC).
The device, in the configurations and variants presented, has been designed to
prevent the increments of the environment contamination due to contaminated air.
ATTENTION! the device is not intended for disinfection.
1.3. Description
LEVANTE 500 is an air sanitization and purification device intended for indoor
environments. The device carries out the air sanitization and purification acting
during the air transit that crosses itself. The activity of sanitization and purification is
performed through the principle of photo-catalysis (based on WO3 photo-catalyzer)
and through the use of a support impregnated in a copper solution. LEVANTE 500
does not use any type of additional electrostatic filtration.
Thanks to the oxidation reactions and the products that derive from them by virtue
of the energizing activity resulting from the action of the catalyst, the air is sanitized
and purified by systematically eliminating the harmful agents present in it, such as:
▪Virus
▪SARS-CoV-2 (*)
▪Bacteria
▪Fungi
▪Molds
▪Volatile Organic Substances
▪Nitrogen Oxides
▪Bad odors
▪PM2,5 and PM10
(*): The inactivation of the infectious viral load SARS-CoV-2 was verified according to
tests performed at the viral pathogenesis and biosecurity laboratory of the San
Raffaele hospital in Milan. The test was performed in a liquid environment on a
circular shaped test object.

6
The device does not require the use of any type of biocidal chemical substance or
potentially harmful light sources and can therefore be operated safely in the
presence of people.
1.4. Symbology
Information requirement
This symbol identifies the presence of useful and general
information that alerts the user to a proper use of the device and
/or to the execution of specific actions.
Attention, refer to the user manual. Safety information.
Requirement for Proper Use
This symbol identifies information necessary for the correct use of
the device.
Possible electrical shock hazard.
Inappropriate use can cause injury or damage to the user.
Disconnect the power supply.
Keep away from flames or heat sources.
To make reading the manual comfortable and clear, the symbols used to manage
the important warnings for a correct and safe use of the device are shown below.

7
Keep away from moisture.
DO NOT Disassemble.
Indicates that the product is designed and manufactured according
to the essential safety requirements, in compliance with Directives
2014/35/UE (LVD) of the European Parliament and of the Council
of 26 February 2014 and 2014/30/UE (EMC) of the European
Parliament and of the Council of 26 February 2014.
1.5. General Warnings
Failure to comply with the warnings below as well as the rules and precautions
described in this user manual will result in the immediate forfeit of any warranty on
the LEVANTE 500 device. FuEl S.r.l. is not responsible for any damage to persons or
property as a result of failure to comply with the rules or precautions listed below
and reported in this user manual.
FAILURES OR NEGLIGENCES IN FULFILLMENT OF THE
FOLLOWING INSTRUCTIONS MAY CAUSE DEVICE
MALFUNCTION, DAMAGE AND INJURY TO THE USER
DO NOT USE THE DEVICE UNTIL YOU HAVE READ AND
UNDERSTOOD EVERY DETAIL OF THIS USER MANUAL
NO MODIFICATION TO ANY PARTS OF THE DEVICE ARE
ALLOWED
THE USE OF THE DEVICE FOR PURPOSES OTHER THAN THOSE
INDICATED IN THIS USER MANUAL COULD EXPOSE THE USER
TO DANGER

8
▪This appliance is intended exclusively for use in commercial and domestic
environments that are enclosed and sheltered from atmospheric agents. The
device can also be used by non-experts and in indoor environments such as
shops, offices, hotels, motels, bed & breakfasts, residential and similar enclosed
spaces
▪Do not use the appliance outdoors, in areas with a high amount of dust or in
environments with extremely volatile materials that could clog the filters or
damage the motors
▪The appliance must be kept out of the reach of children
▪Make sure that the appliance does not come into contact with water or other
liquids
▪Do not obstruct the air passage grilles of the appliance with cloths, rags or
various similar objects during operation
▪Do not place device near furniture, furnishing accessories or walls that could limit
the air flow
▪Do not sit or lean on the product
▪Do not place objects on top of the product
▪Do not rest the product on unstable or inclined surfaces
▪The electrical socket must be easily accessible so that the plug can be pulled out
easily in case of an emergency
▪Unplug the power plug if you do not use the appliance for a long period of time
▪Do not move the appliance when it is in operation
▪Keep animals away from LEVANTE 500 and its power cable
▪To avoid tripping, position the power cord properly
▪Do not clean the surfaces of the product with petrol, thinners, chlorine or acid
detergents
▪This appliance is not a substitute for ventilation or cleaning equipment.
Therefore, it is recommended to keep the rooms clean with vacuum cleaners or
cleaning devices
▪Do not pull the power cord or the appliance to disconnect the plug from the
socket. Disconnect using the plug
▪Do not use LEVANTE 500 if it does not appear to be working properly. In this
case, turn off the appliance, disconnect the power plug and contact qualified
personnel

9
1.6. Hazard Warnings
Do not insert any tools or fingers into the air
passage grilles.
Do not disassemble or remove components of
the appliance (the only exception is the filter tray
for regular maintenance of the dust filter).
Never immerse the plug, the electric cable,
the power supply and the appliance in water
or any other liquid.
Do not handle the plug or the device with wet
hands.
Do not use the appliance if flammable sprays,
insecticides or in places where oily residues or
chemical vapors are present.
Do not use the appliance in humid
environments, such as bathrooms, saunas,
tubs, sinks and swimming pools.
Keep away from heat sources such as
fireplaces, ovens, stoves and radiators.
Do not damage or tamper with the power
cord. It must be replaced by the manufacturer
or a qualified service technician in order to
prevent any risk.

10
THE ITEM IS INTENDED TO BE USED IN CLOSED
ENVIRONMENTS, THE ITEM MUST BE CONNECTED WITH THE
SUITABLE VOLTAGE (SEE THE "TECHNICAL FEATURES"
PARAGRAPH OF THIS MANUAL).
COMPOSITION:
▪LEVANTE 500 Device
Sanitizer including power
cable (non-separable)
▪This "User and
Maintenance Manual"
1.7. Composition and Accessories
THE USE OF ELEMENTS THAT ARE NOT PART OF THE DEVICE
OR NOT SUPPLIED WITH THE DEVICE COULD AFFECT SAFETY
AND EFFECTIVENESS.
If you have not received all the items listed below, please
contact your dealer immediately.
2 - INSTALLATION
2.1. Installation Method
Open the package and remove the device by handling it on the sides. Open the
protective bag and remove the device, paying attention to the power cable.
The packaging elements must not be left within the reach of
children as they are potential sources of danger, but must be
disposed of in accordance with the regulations in force in the
appropriate containers for waste collection
Verify the integrity of the device. In case of obvious damage or doubts about the
integrity of the appliance, do not use the LEVANTE 500 and contact professionally
qualified personnel.

11

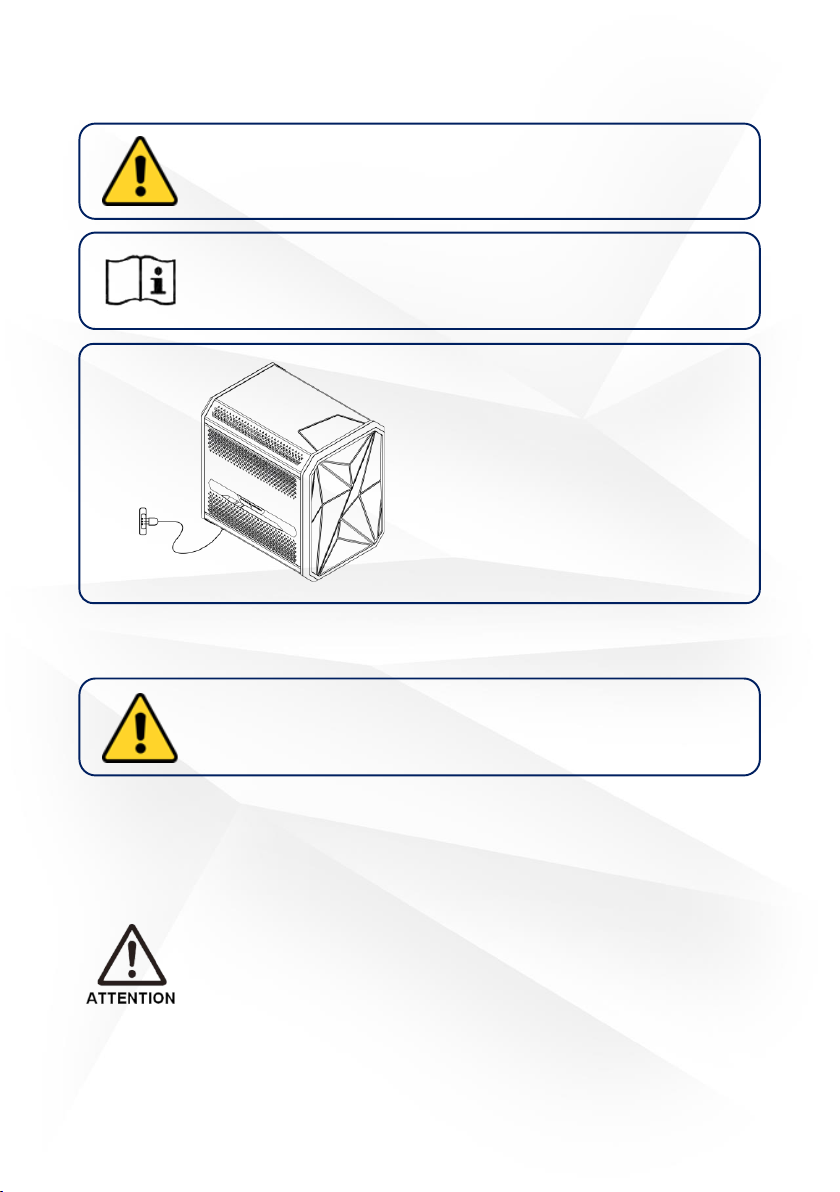

415mm
The dimensions of the
sanitizer LEVANTE 500
(305 x405 x415mm)
make it suitable to be
installed on different
environment conditions.
305mm
405mm
1. Position LEVANTE 500 on
desired position. It is
recommended to put
device on a height of 1
meter from ground level,
to optimize the sanitized
air flows
2. Connect LEVANTE 500 to
an electrical socket (230V)
1mt.

12
3 - HOW TO USE
3.1. Control Panel
Before connecting the appliance to an electrical outlet,
check that the voltage and frequency values shown on the
label correspond to those of the electrical system.
In general, the use of adapters and / or extensions is not
recommended. If their use is essential, they must comply
with current safety standards and their current capacity
(Ampere) must not be less than the maximum of the
appliance.
2.2. Electrical Connection
1. ON / OFF Button
Indicator
2. FILTER
MAINTENANCE
Indicator
3. Fan speed Button
Indicator
4. Power Indicator Light
5. FAN SPEED Indicator
Lights (3 Speeds)
21 3
4 5
3.2 Device Operation
The device has two start modes:
▪Manual Start Mode
▪Automatic Start Mode
The operation of the two modes is described in the following paragraphs. Normally
the device is delivered in manual start mode. To switch from one operating mode
to another, follow the instructions described below.
Legend

13

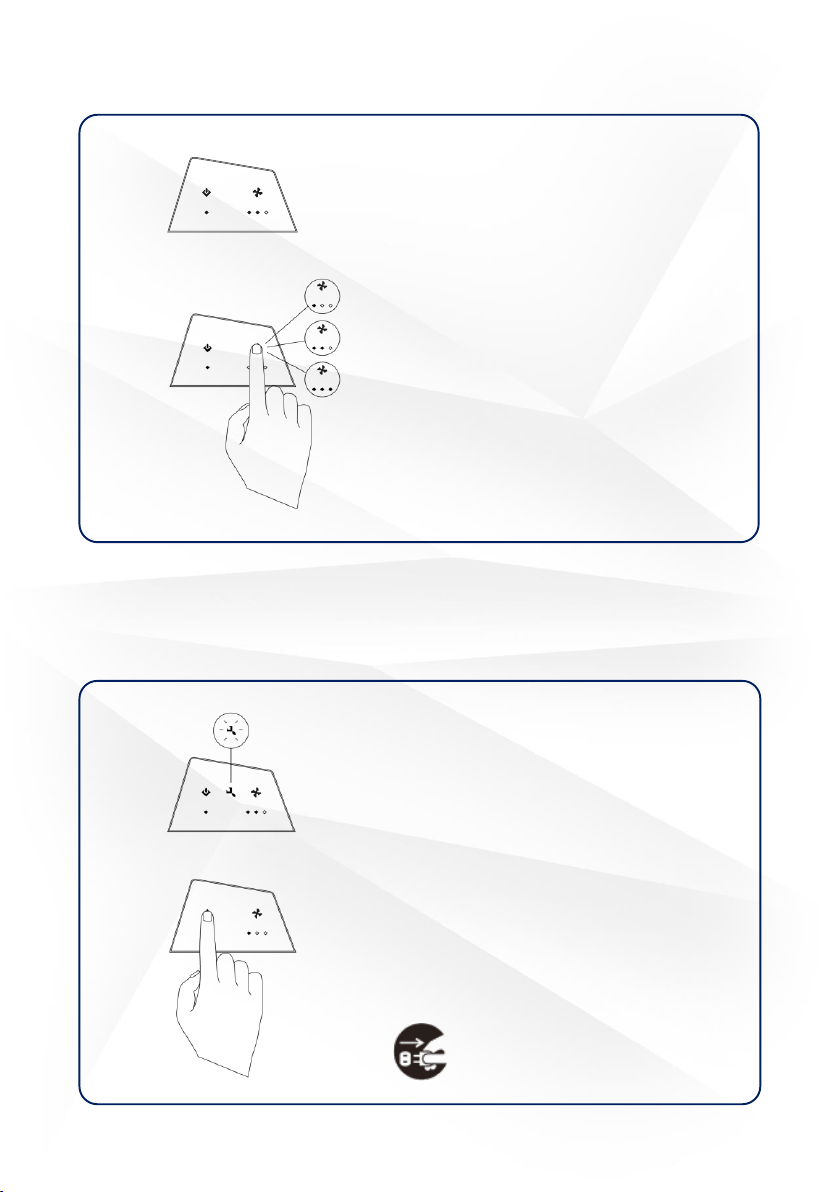

Press and hold the "FAN
SPEED" and "ON/OFF"
buttons simultaneously for
at least 5 seconds.
When the control panel
lights start blinking, it
means that the sanitizer
has switched the mode.

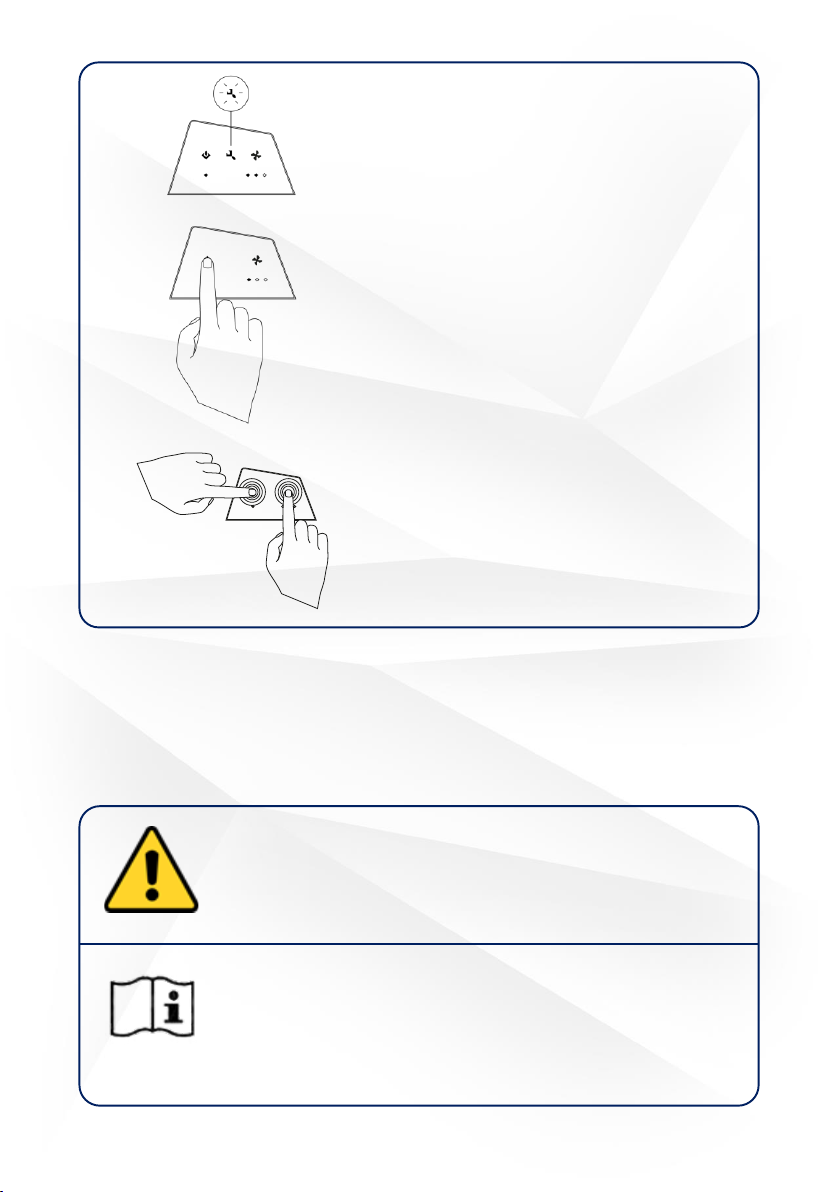

3.3 Manual Start Mode
1. Once LEVANTE 500 is
connected to the electric
line, the “ON/OFF” and
“FAN SPEED” icons will
light up
2. Press the “ON/OFF”
button to start the device
on Fan Speed 1
3. Press the “FAN SPEED"
button once to switch
from speed 1to speed 2
▪Press the “FAN SPEED"
button again to switch
from speed 2to speed 3
▪The next button pression,
the fans will return on
speed 1
▪By pressing the button
again will repeat the cycle
from the beginning

14
3.4 Automatic Start Mode
1. Once LEVANTE 500 is
connected to the electric
line, the “ON/OFF”+“FAN
SPEED” icons will light up
and the device will turn
on automatically at Fan
Speed 2 (medium)
2. As the same to manual
mode, by pressing the
"FAN SPEED" button will
be possible to switch from
one speed to the other
speed
4 - MAINTENANCE
4.1. Regular Maintenance –Dust Filter Cleaning / Replacement
1. After about 2000 hours of
operation, it is necessary
to clean or replace the
dust filter inside the
appliance. When the
"FILTER MAINTENANCE"
indicator illuminates,
proceed as follows:
2. (IN MANUAL START
MODE ONLY) switch OFF
the device by pressing the
“ON/OFF” button
Remove the plug from the
socket

15
3. Open the filter tray by
pulling the handle
outwards. If the device
has not been switched off,
it will automatically switch
off when the drawer is
opened
4. Pull out the filter tray and
turn it over. Carefully
remove the filter from the
tray
5. Clean the filters under
running water. Let the
filters dry and make sure
they are completely dry
before being repositioned
in the appliance
6. Insert the filter into the
tray. Carefully spread the
filter into its housing
making sure that there are
no raised edges or creases
on the filter. Flip the tray
and slide it back into the
device
7. Slide the filter tray until it
reaches its closed position
NOTICE: if dust filter is
damaged, it must be
replaced with a new one
(available on request as
spare part)

16
8. After cleaning/replacing the
dust filter, the maintenance
indicator will still be
illuminated
9. (IN MANUAL START
MODE ONLY) switch OFF
the device by pressing the
“ON/OFF” button
10. Click simultaneously the
"FAN SPEED" and "ON /
OFF" buttons two times
quickly. The fan speed
indicator LED will flash two
times, and the maintenance
indicator will turn OFF
4.2. Extraordinary Maintenance
Any type of intervention, in the event of failure or restoration of functionality, is
considered to be part of extraordinary maintenance or repairs. These types of
interventions must be carried out only by FuEl S.r.l. service technician or by
personnel adequately qualified, specialized and trained for this kind of maintenance.
ATTENTION: EXTRAORDINARY MAINTENANCE
INTERVENTIONS OR REPAIRS NOT AUTHORIZED BY FuEl
S.r.l. WILL BE CONSIDERED AS TAMPERING WITH THE
DEVICE. THE RESULT WILL IMMEDIATELY ELIMINATE THE
VALUE OF THE CE CERTIFICATION THAT WAS PREVIOUSLY
In the event that what is indicated in this section is not
respected, the validity of the CE marking will be forfeited. It
transfers all responsibility to the executor of the
unauthorized activities thus relieving the manufacturer of
liability for damage to people, property or the installation
environment.

17
This product falls within the scope of Directive 2002/96 / EC, also referred to as
WEEE, relating to waste from electrical and electronic equipment. The purpose of
the directive is to prevent, and therefore limit, the production of waste resulting
from such equipment and to promote its reuse, recycling and other forms of
recovery, in order to protect the environment and public health from possible
harmful effects. The crossed-out wheeled bin symbol indicates that the
product is subject to the provisions of the Directive: therefore, at the end of its life
cycle, it cannot be disposed of as mixed municipal waste, but must be delivered to
specialized collection facilities, as prescribed by local regulations or by the
distributor. The manufacturer, the importer and the distributor are responsible for
the collection and disposal, both in the event that these take place directly, and in
the event that they are carried out through a separate waste collection system.
Any clarification as well as any other information may in any case be provided by
the distributor / installer where this product was purchased or by the local waste
authority.
5 - DISPOSAL
INFORMATION FOR DISPOSAL OR RECYCLING AT THE END OF THE PRODUCT'S
LIFE CYCLE
(for countries belonging to the European Union)
6 - TECHNICAL FEATURES
The device must be powered at a mains voltage of 230 V/ac, frequency 50 Hz
(version for the European market). The device produces white light at 6500°K. The
device DOES NOT emit volatile substances or disperse chemical agents in the air.
Degree of protection IP21.
6.1. LEVANTE 500
Maximum Power: 50 Watt (at max fan speed)
Noise: 67 Decibel (at max fan speed)
Nominal Air Flow: 500 m3/h (at max fan speed)
Environmental
conditions
Temperature
Humidity
Atmospheric
pressure
Use
Storage /
transport
Storage /
transport
Storage /
transport
Use
Utilizzo
-10 / +50°C
-25 / +70°C
20/80% Rh without condensation
5/95% Rh without condensation
700 a 1020 hPa
500 a 1060 hPa (375-795 mm Hg)

18
7 - TROUBLE SHOOTING
DEVICE DOES NOT TURN ON
▪Verify that the device is correctly connected to the power supply
▪Verify that there is no power failure or voltage drop in the area
▪Verify that the remote-control functions properly
NO AIR COMES OUT FROM THE DEVICE
▪Check that the appliance is turned on
▪Check that the appliance air outlet grilles are free from obstructions
▪Check that the air intake grilles of the appliance are free from obstructions
DEVICE IS NOISY
▪Verify that the highest speed of the device is not selected
▪Check that the maintenance indicator is not on. If so, it will be necessary to
clean the filter as it could obstruct the correct passage of air (see chapter 4 -
Maintenance section)
▪Check that the air grilles are not blocked
DEVICE EMITS A BAD SMELL
▪Check that the maintenance indicator is not on. If so, it will be necessary to clean
the filter (see chapter 4 - Maintenance section)
▪Check that the air filter is clean
8 - STORAGE
This device is supplied in its box and in a cellophane bag. It is recommended to
open the packaging just before using the device. If it is necessary to store the
device whose packaging has already been opened, it is recommended to replace it
with a new one or to seal it, so that dust or moisture does not come into contact
with the device. In case of storage of the device even for a short period, make
sure that there are no sources of heat in the proximity, water and excessive
humidity. It is recommended to store the devices in a closed and sheltered
environment.

19
9 - LABELS

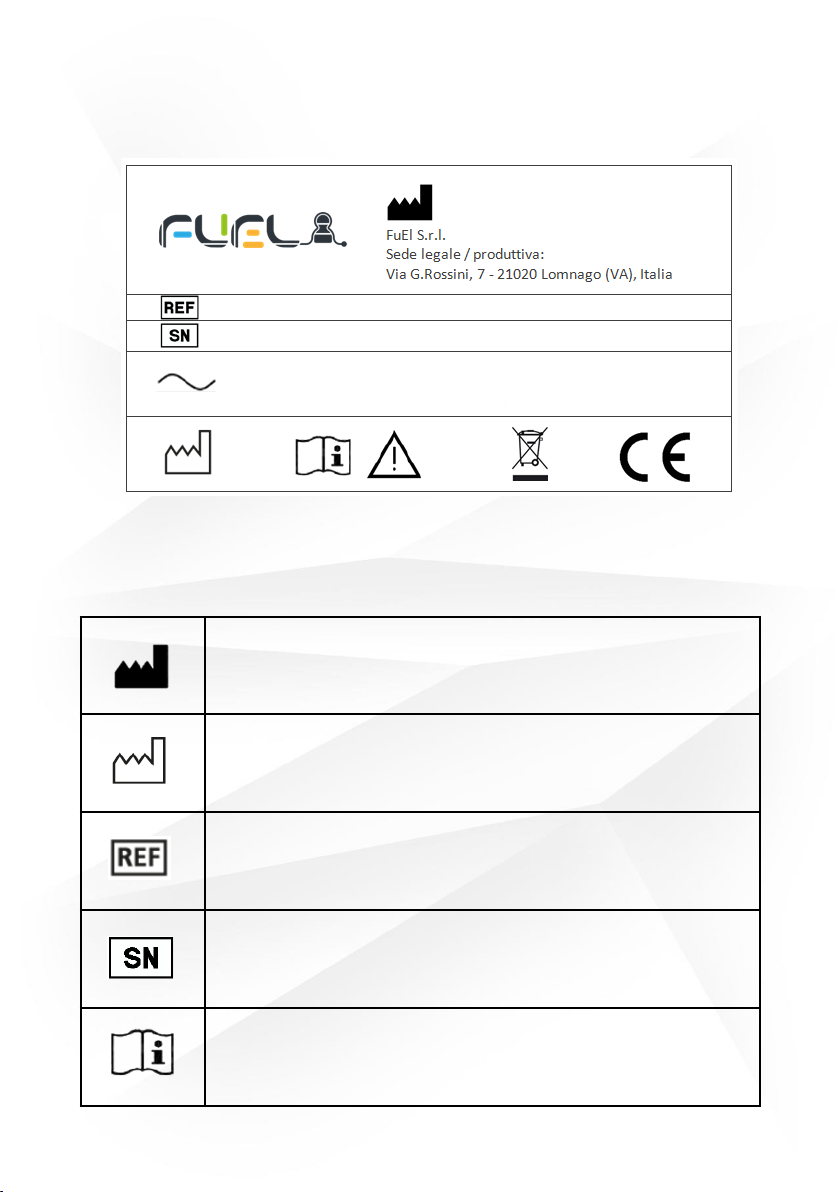

9.1. Device Plate Data
90-264 Vac,47-63 Hz, 50 watt
(Device Part Number)
(Device Serial Number)
9.2. Symbols and Safety Labels
Manufacturer Identification.
Year of Production Identification of the Device.
Device Part Number.
Device Serial Number.
Refer to User Manual.

20
Attention, refer to user manual. Information related to safety.
Disposal according to WEEE Directive.
CE Mark.
Notes:
