FujiFilm instax mini 70 User manual

4
EN
Parts Name
Front
1Film ejection slot
2Self timer lamp
3Flash lampface
4Strap eyelet
5Viewfinder
6Shutter button
7AE light sensor window
8Tripod socket (Tripod sold separately)
9Flash sensor window
10 Lens/Lens cover
11 Self-portrait mirror
1
2
4
7
8
11
3
5
910
6
BO-7_6lang.indb 4 5/11/2017 6:17:28 PM

5
EN
Rear
Parts Name (Continued)
12 Power button
13 Film counter
14 LCD display
15 MODE (mode) button
16 Self timer button
17 Selfie button
18 Strap eyelet
19 Back cover
20 Back cover lock
21 Battery lid
22 Film pack confirmation window
23 Eyepiece
17
18
20
21
22
23
19
121314
1516
BO-7_6lang.indb 5 5/11/2017 6:17:29 PM

6
EN
Attaching the Strap
Attach the strap as illustrated below.
• When you carry or use the camera, put the strap around
your wrist so that the camera does not drop.
~
Attaching the hand strap Attaching the shoulder strap
(separately purchased)
Attach the strap clips to the camera, then attach the
shoulder strap.
Open a strap clip.
Use the clip attaching tool to open a strap clip as
shown.
Keep the tool in a safe place. You will need it to open the
strap clips when removing the shoulder strap.
BO-7_6lang.indb 6 5/11/2017 6:17:29 PM

7
EN
Caution
• Use the strap only as a shoulder strap. Do not put the
strap around your neck.
• Be careful so that the strap does not obstruct the film
ejection slot.
Ÿ
!
⁄
Attaching the Strap (Continued)
Place the strap clip on each strap eyelet.
Hook the strap eyelet in the clip opening. Remove
the tool using the other hand to keep the clip in
place.
Pass the clip through each strap eyelet.
Rotate the clip fully through the eyelet until it
clicks closed.
Pass the strap through each clip.
BO-7_6lang.indb 7 5/11/2017 6:17:29 PM

8
EN
Inserting Batteries
Caution
• Use two new CR2 lithium batteries. (All the batteries should be new and be the same brand/type.)
• Insert the batteries before you load the INSTAX mini film pack.
• The battery performance may be reduced when it is cold. In this case, warm up the batteries to room temperature before
using this camera.
~
Ÿ
!
Open the battery lid.
Insert the batteries.
• Insert two CR2 lithium batteries matching the C
and Dpolarities.
Close the battery lid.
BO-7_6lang.indb 8 5/11/2017 6:17:29 PM

9
EN
Loading the INSTAX mini Film Pack
~ Ÿ
Caution
Do not open the back cover until you have used up the film; otherwise, the rest of the film may be
exposed and ruined for use.
• When you load the film pack, never press the two rectangular holes on the back of the film pack.
• Never use a film pack beyond its shelf life; otherwise, it may damage the camera.
Use FUJIFILM INSTAX mini film only. (No other type of film can be used.)
“”is displayed on the counter when the film pack is not loaded.
Notes on the film pack
• The FUJIFILM INSTAX mini film pack contains 1 black film protective cover and 10 film sheets.
• Do not remove the film pack from its inner bag until immediately before loading it into the camera.
For details, refer to the instructions and warnings on FUJIFILM INSTAX mini film.
Press down the back cover lock to open the
back cover.
Hold both sides of the film pack, align the yellow
marks on the camera and the film pack, then insert
it straight.
Continued on the next page.
BO-7_6lang.indb 9 5/11/2017 6:17:30 PM

10
EN

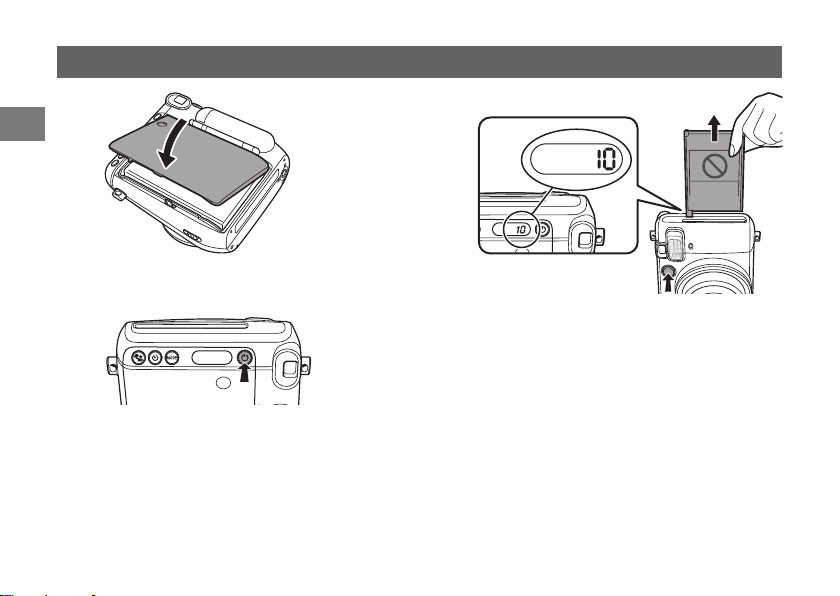

Loading the INSTAX mini Film Pack (Continued)
⁄
@
!
Press the POWER button to turn the camera on.
• Do not hold the lens cover when you are turning
the camera on, otherwise; the lens cover does
not open.
Press the shutter button.
The film cover (black) is ejected and“10
” is
displayed on the film counter on the back of the
camera. Carefully remove the film cover.
Close the back cover until the back cover lock
clicks into place.
BO-7_6lang.indb 10 5/11/2017 6:17:30 PM

11
EN
Taking Pictures
~
Ÿ
!
Press the POWER button to turn the camera on.
• Do not hold the lens cover when you are turning
the camera on, otherwise; the lens cover does
not open.
Vertical image Horizontal image
Press the shutter button.
• The shutter does not release while the flash
is charging. (The icon on the LCD display is
flashing.)
• For horizontal image, hold the camera with the
flash lampface at the top.
• Be careful so that your fingers or the strap
do not cover the flash lampface, flash sensor
window, AE light sensor window, lens, or film
ejection slot.
• Look into the viewfinder so that the“O” mark
appears in the center.
• Be careful not to touch the lens surface when
you press the shutter button.
Hold the camera and confirm the desired
composition of the final image.
Continued on the next page.
BO-7_6lang.indb 11 5/11/2017 6:17:31 PM

12
EN
Taking Pictures (Continued)
Unloading the INSTAX mini film pack
⁄
~
Ÿ
When “ 0 ” is displayed on the film counter, unload the film
pack following the procedure below.
Press down the back cover lock to open the back
cover.
Grasp the rectangular holes on the film pack, then
pull it out straight.
Every time you take a photo, the number on the film
counter decreases from “10” to reflect the number of
remaining photos, and“0”is displayed when you have
used up the film pack.
When the film has been ejected (the camera stops making
a sound), grasp the edge of the film, then take it out.
• For details on taking out the film, refer to the instructions
and warnings on the FUJIFILM INSTAX mini film pack.
• The developing time is approximately 90 seconds. (The
time varies depending on the ambient temperature.)
When finished using the camera, always switch off to
maintain battery life. If the camera is left switched on for
5 minutes without being used, it will automatically switch
off.
BO-7_6lang.indb 12 5/11/2017 6:17:31 PM

13
EN
For one shot self timer
~Press the self timer button once.
The self timer icon (left) appears on the LCD
display.
Ÿ
If you press the shutter button, the self timer lamp is lit about 7 seconds. After
that, the lamp flashes about 3 seconds and the shutter is released.
※To cancel the self timer, press the self timer button while the self timer lamp
is lit or flashing.
Lit about 7 seconds
• You can use the self timer in combination with each shooting mode.
Using the Self Timer
Flashes about 3 seconds
Continued on the next page.
BO-7_6lang.indb 13 5/11/2017 6:17:31 PM

14
EN
For 2 continuous photo self timer
~
Ÿ1st frame 2nd frame
• You can use the self timer in combination with each shooting mode.
• 2 continuous photo self timer is selectable only when 2 or more films remain.
• When the second film is ejected, it may push the first one out.
Using the Self Timer (Continued)
Press the self timer button once.
The 2 continuous photo self timer icon (left)
appears on the LCD display.
Lit about 7 seconds Flashes about 3
seconds
Lit about 3 to 6
seconds
Flashes about 3
seconds
If you press the shutter button, the self timer lamp is lit about 7 seconds. After
that, the lamp flashes about 3 seconds, the shutter is released, and the 1st frame is
photographed.
When the 1st film is ejected, the self timer lamp is lit about 3 to 6 seconds. After
that, the lamp flashes about 3 seconds, the shutter is released, and the 2nd frame is
photographed.
※To cancel the self timer, press the self timer button while the self timer lamp is lit
or flashing.
BO-7_6lang.indb 14 5/11/2017 6:17:31 PM

15
EN
Taking Pictures with Various Shooting Mode
You can select settings according to the subject or purpose.
Selecting a Shooting Mode
Each time you press the MODE button, the shooting
mode changes as follows.
Press the MODE (mode) button.
The mode icon appears.
Select for normal photography.
• As the flash fires with slow shutter (slow synchro) in a
dark place, the background is photographed brightly.
• The flash does not fire in a bright place.
• Taking a photo does not change the settings.
• Turning off the power returns to the Auto mode.
• In a dark place, the slow shutter is used except
when using the Fill-in Flash mode. Hold the camera
securely to prevent camera shake.
• The background may look bluish-green or reddish
depending on the lighting condition.
Macro Landscape Fill-in Flash
Auto mode
(No display) Hi-Key
Shooting Mode
Auto mode (No display)
Continued on the next page.
BO-7_6lang.indb 15 5/11/2017 6:17:31 PM

16
EN
Taking Pictures with Various Shooting Mode (Continued)
Select when shooting a subject at close range (30-60 cm).
• Hold the camera so that the
“ O ” mark in the viewfinder
is on the upper right of the center of the subject (see
the illustration below), then take a photo.
You can force flash to be used. Select when you want
to use a flash regardless of the brightness. The subject
is photographed sharply with backlighting.
• Camera shake can be prevented without selecting
the slow shutter mode even in dark places. (Shutter
speed 1/30 seconds) However, background
depiction may be dark.
Select when shooting a distant subject (3 m～∞).
The whole picture looks brighter.
Select to lighten the next picture if the picture is
coming out too dark.
• Surrounding brightness or temperature affects the
brightness of the whole picture.
• If the picture is coming out too bright, take a picture
with the Auto mode.
Shooting Mode (Continued)
Landscape
Fill-in Flash
Hi-Key
Macro
BO-7_6lang.indb 16 5/11/2017 6:17:32 PM

17
EN
Self Portrait (Sele mode)
Hold the camera securely keeping 40 cm to 50 cm
between you and the edge of the lens.
• Hold the camera securely especially in a dark
place, as the camera is subject to blurring.
Confirm the composition using the self-portrait
mirror, then take a photo.
You can take a self portrait using the self portrait mirror. Using this mode applies an appropriate brightness and shooting
distance for self portrait.
~
Press the Selfie button.
The Selfie mode icon above appears.
• Pressing the MODE button or Selfie button returns
to the Auto mode.
Ÿ
!
• When you take a photo, do not look at the flash;
otherwise, an afterglow may interfere with your view
temporarily.
• If you press the shutter button while the flash is
charging, the shutter release does not trip.
• Taking a photo does not change the settings.
• Turning off the power returns to the Auto mode.
BO-7_6lang.indb 17 5/11/2017 6:17:32 PM

18
EN
SPECIFICATIONS
Film FUJIFILM INSTAX mini lm
Picture Size 62 mm x 46 mm
Lens Retractable lens, 2 components, 2 elements, f = 60 mm, 1:12.7
Viewnder Real image nder, 0.37 x, with target spot
Focusing Motor-driven 3-range switching (0.3 m - 0.6 m/0.6 m - 3 m/3 m and beyond), Macro
Mode (0.3 m - 0.6 m) Normal Mode (0.6 m - 3 m) Landscape Mode (3 m and beyond)
Shutter Release Programmed electronic shutter release, 1/2 sec - 1/400 sec.
Exposure Control Automatic, Interlocking range (ISO 800) : LV 5 - LV 15.5,
Exposure compensation (Hi-Key): +2/3 EV
Film Feeding Out Automatic
Film Developing Time Approximately 90 seconds (Varies depending on the ambient temperature)
Flash Built-in, automatic electronic ash, Charging time: 0.2 sec - 7 sec (using a new battery),
Flash charging indicator, Fill-in Flash Mode, Eective ash lamp range: 0.3 m - 2.7 m
Self-Timer Electronically controlled, approx. 10 second delay, Continuous shooting mode, can be
stopped mid-run
Liquid Crystal
Display(LCD)
Exposure counter (number of unexposed lms), Shooting mode (Sele, Macro, Land-
scape, Fill-in Flash, Hi-Key), Self-timer Mode (1 frame/2 frames continuous shooting)
Power Supply Two CR2/DL CR2 lithium batteries
Capacity: Approximately 40 INSTAX mini 10-pack lm packs with new CR2/DL CR2
lithium batteries
Others Film pack conrmation window, tripod socket (tripod sold separately)
Dimensions & Weight 99.2 mm (W) x 113.7 mm (H) x 53.2 mm (D) (not including protrusions)/ 281g (without
battery, strap, and lm pack)
*Specications are subject to change without notice.
BO-7_6lang.indb 18 5/11/2017 6:17:32 PM

19
EN
TROUBLE SHOOTING
★When to replace the batteries
1When the lens does not work when the power is switched on.
2When it takes a while for the ash to be charged.
3When pressing the shutter button turns o the camera.
* Replace both CR2 batteries with new lithium batteries of the same brand/type.
TROUBLE SHOOTING
During operation
Problems Possible Causes Solutions
The shutter release won’t
trip.
1The battery power is low.
2The batteries are not inserted
correctly.
3The icon on the LCD display
is ashing, or the self timer
lamp is ashing rapidly.
4The exposure counter is showing
“”sign.
5The power is not turned on.
1Replace both batteries with new batteries.
2Insert the batteries correctly.
3The ash is charging. Please wait until the icon turns
o.
4Unload the lm pack, and load a new lm pack.
5Press the POWER button to turn on the power.
“E
” is ashing on the
lm counter or all icons
on the LCD display are
ashing.
●The camera has some trouble. 1Remove the batteries and reinsert them with the items
on the LCD display ashing.
2If 1does not resolve the problem, contact a FUJIFILM
authorized distributor.
BO-7_6lang.indb 19 5/11/2017 6:17:32 PM

20
EN
Problems Possible Causes Solutions
The lm pack won’t load
into your camera, or won’t
load into your camera
smoothly.
1The lm pack is not for your
camera.
2You are not loading the lm
pack correctly.
1Use FUJIFILM INSTAX mini lm only. (No other lms can
be used.)
2
Match the yellow line on the lm pack with the yellow positioning
mark in your camera. Follow the INSTAX mini lm pack instructions.
The lm cover cannot be
ejected.
●The battery power is low. ●Replace both batteries with new batteries and load the
lm pack again.
The LCD looks black. ●The camera is too hot for
operation.
●Put the camera in a cool place. The LCD should return to
normal once it cools down.
The battery becomes
exhausted quickly.
●The batteries are not the same
type.
●Replace both batteries with new CR2 lithium batteries of
the same brand/type.
Printed pictures
Problems Possible Causes Solutions
Part or whole nished
print is white.
●The back cover is opened
before you have used up the
lm.
●Do not open the back cover until you have used up
the lm; otherwise, the rest of the lm is exposed and
ruined for use.
The nished print looks
over exposed. (White in
color)
1The ambient temperature is
low (below +5°C/+41°F).
2The AE light sensor window
or ash sensor window is
blocked.
1Before taking pictures, place your camera in a warm
place to bring it to room temperature.
2Be careful not to block the AE light sensor or ash sensor
window, or so that nothing blocks it.
BO-7_6lang.indb 20 5/11/2017 6:17:32 PM

21
EN
Problems Possible Causes Solutions
The nished print looks
under exposed. (Dark)
1The ambient temperature is
high (above +40°C/+104°F).
2The picture was taken facing
the light.
3The ash lampface, AE light
sensor window or ash sensor
window was covered.
4The background is too bright
in comparison with the
subject.
5The ash light did not reach
the subject.
6The ash light reected back
from a mirror or window glass.
1Keep camera, lm (exposed prints) away from excessive
heat (+40°C/+104°F).
2Take pictures with the light behind you, or take pictures
using Fill-in Flash Mode.
3Be careful not to cover the ash lampface, AE light
sensor window, or ash sensor window.
4Take pictures using Hi-Key Mode.
5Take pictures closer than 2.7 m from the subject.
6Take pictures at an angle not facing the mirror or
window glass.
The picture is out of
focus.
1The shooting distance is not
appropriate.
2The lens is not clean.
3Your camera was shaken when
taking the picture.
1Select the shooting mode according to the distance.
2Please contact a FUJIFILM authorized distributor.
3Hold your camera rmly and press in the shutter release
button gently. Since the slow shutter is selected when
shooting indoors or dark outdoors, xing the camera
using a table, tripod, etc. is recommended. When the
camera is not xed, shoot in the Fill-in Flash Mode.
BO-7_6lang.indb 21 5/11/2017 6:17:32 PM

22
EN
Problems Possible Causes Solutions
The picture is blurred. 1
Picture was not permitted to
develop without touching,
pressure being applied or other
interference once it ejected from
the camera.
2 The picture did not come out
smoothly.
1Do not press onto or fold the picture.
2Do not block the lm exit with your nger.
The subject in the
viewnder has shifted in
nished print.
●The shooting distance is close
to the subject.
●When you take pictures using Macro Mode, see page 16
for notes on using the mode.
Information for traceability in Europe
Manufacturer: FUJIFILM Corporation
Address, City: 7-3, Akasaka 9-Chome, Minato-ku, Tokyo
Country: JAPAN
Authorized representative in Europe:
FUJIFILM EUROPE GMBH
Address, City: Dusseldorf Heesenstrasse 31, 40549
Country: Germany
Information for FUJIFILM in the United States
FUJIFILM North America Corp.
200 Summit Lake Drive
Valhalla, New York 10595, USA
Information for FUJIFILM in Canada
FUJIFILM Canada Inc.
600 Suffolk Court, Mississauga, Ontario L5R 4G4
BO-7_6lang.indb 22 5/11/2017 6:17:32 PM

23
EN
IMPORTANT SAFETY NOTICE
This product has been designed with safety in mind, and to provide safe service when handled correctly and in accor-
dance with the User’s Guide and instructions. It is important that both the product and the INSTAX lm are handled
properly and used only to take pictures as instructed in this User’s Guide and in the INSTAX mini lm instructions. For
your ease and safety, please follow what is written in this User’s Guide. It is also a good idea to keep this User’s Guide
in a safe, easy to nd place where you can refer to it if needed.
WARNING
This symbol indicates danger, which could result in injury or death. Please follow these instructions.
WARNING
Never attempt to take this product apart. There is a danger of an electric shock.
If this product is dropped or damaged so that the inside is showing, do not touch it. There is danger of an electric shock.
If the camera or the batteries inside become hot, begin to smoke, make a burning smell or show any sign of unusual
condition, remove the batteries right away. Use gloves to keep from burning your hands. Not removing batteries could
result in burns or re.
Using a flash too close to a person’s eyes may for the short term aect the eyesight. Take care when taking picture of
infants and young children.
If your camera gets wet or if something such as pieces of metal get inside, remove the batteries right away to avoid heat
buildup or a re starting inside the camera.
Do not use this camera in places where there is flammable gas or near open gasoline, benzene, paint thinner or other
unstable substances which can give o dangerous vapors. Doing so could result in explosion or re.
Store your camera out of the reach of infants and young children. Failure to do this could result in serious injury. (For
example, the strap could become wrapped around a child’s neck and cause choking.)
Never take apart the batteries. Do not subject them to heat, throw them into an open re, or attempt to short-circuit
them. Doing so could result in the batteries exploding or splitting open causing burns or re.
BO-7_6lang.indb 23 5/11/2017 6:17:34 PM
