FujiFilm X-H1 User manual

New Features Guide
Version 2.00
Features added or changed as a result of rmware updates may no
longer match the descriptions in the documentation supplied with
this product. Visit our website for information on the updates avail-
able for dierent products:
http://www.fujifilm.com/support/digital_cameras/software/fw_table.html
BL00005014-200 EN

Contents
X-H1 rmware version 2.00 adds or updates the features
listed below. For information on earlier versions, visit the
following website.
http://fujifilm-dsc.com/en/manual/
No. Description X-H1
P
See
PVer.
1
1The chosen value is now displayed when a color tem-
perature is selected for white balance. 10, 12 1, 2 2.00
2
2
The camera now displays a “charging” icon when pow-
ered via USB or by the AC-9VS AC adapter supplied with
the VPB-XH1 vertical power-booster grip.
10, 12 1, 2 2.00
3
3A ZFOCUS BKT item has been added to drive modes. 83, 84 3 1.10
4
4
Changes have been made to the content of the
GAF/MF SETTING> TOUCH SCREEN MODE op-
tion in the shooting menu.
121 4 1.10
5
5
A ZFOCUS BKT option has been added to
ASHOOTING SETTING> DRIVE SETTING> BKT
SETTING> BKT SELECT in the shooting menu.
124 5 1.10
6
6
A FOCUS BKT option has been added to
ASHOOTING SETTING> DRIVE SETTING> BKT
SETTING in the shooting menu.
124 6 1.10
7
7
LARGE INDICATORS MODE(EVF) and LARGE
INDICATORS MODE(LCD) options have been added
to DSCREEN SETTING in the setup menu.
191 7, 8 1.10
8
8
A LARGE INDICATORS DISP. SETTING option has
been added to DSCREEN SETTING in the setup
menu.
191 9 1.10
9
9Additional functions can now assigned to the function
buttons. 194, 218 10 1.10

No. Description X-H1
P
See
PVer.
10
10
SELECT PAIRING DESTINATION and SMARTPHONE
SYNC. SETTING options have been added to
D CONNECTION SETTING> Bluetooth SETTINGS
in the setup menu.
206 11 1.10
11
11
The D CONNECTION SETTING> PC CONNECTION
MODE> USB RAW CONV. option in the setup menu is
now USB RAW CONV./BACKUP RESTORE.
209 12 1.10
12
12 Changes have been made to how the camera shows the
battery level for the VPB-XH1 vertical power-booster grip. 237 13 1.10
13
13 Movies over 4GB in size are now recorded to a single file.
168,
250,
282
14 2.00

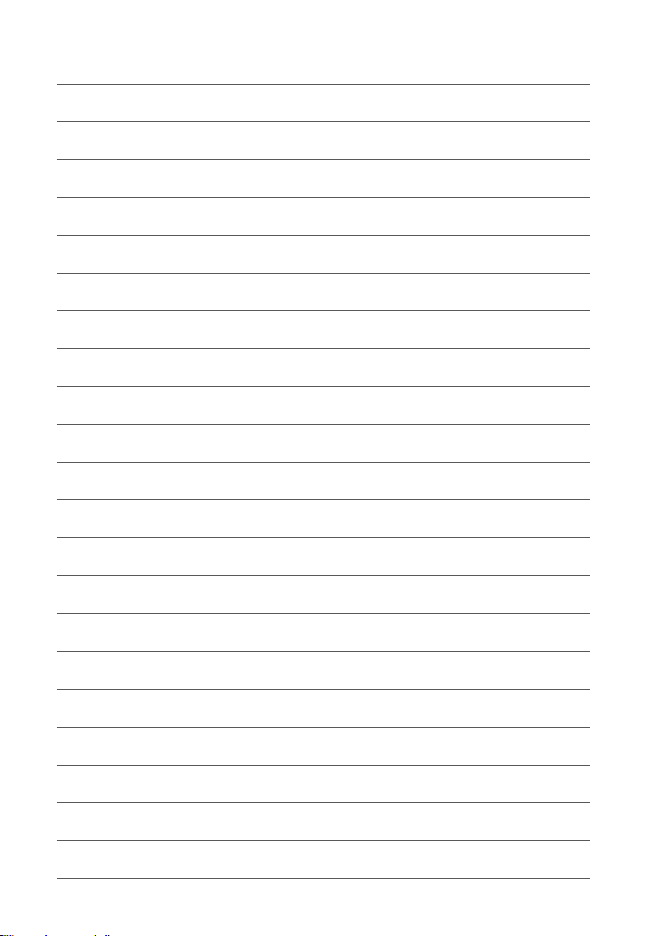

MEMO

1
Changes and Additions
Changes and additions are as follows.
X-H1 Owner’s Manual: P10 Ver. 2.00
The Electronic Viewnder
HWhen a color temperature is selected for white balance (X‐H1
Owner’s Manual P105), the chosen value now appears in
the display.
qThe camera now displays a “charging” icon when powered
via USB or by the AC‐9VS AC adapter supplied with the
VPB-XH1 vertical power-booster grip.

2
X-H1 Owner’s Manual: P12 Ver. 2.00
The LCD Monitor
PWhen a color temperature is selected for white balance (X‐H1
Owner’s Manual P105), the chosen value now appears in
the display.
pThe camera now displays a “charging” icon when powered
via USB or by the AC‐9VS AC adapter supplied with the
VPB-XH1 vertical power-booster grip.

3
X-H1 Owner’s Manual: P83 Ver. 1.10
Bracketing
2 Navigate to DRIVE SETTING> BKT SETTING in the
ASHOOTING SETTING menu and select OAE BKT,
WISO BKT, XFILM SIMULATION BKT, VWHITE BALANCE
BKT, YDYNAMIC RANGE BKT, or ZFOCUS BKT.
X-H1 Owner’s Manual: P84 Ver. 1.10
ZFOCUS BKT
Each time the shutter button is pressed, the camera takes a series
of photos, varying focus with each shot. The number of shots, the
amount focus changes with each shot, and the interval between
shots can be selected using ASHOOTING SETTING> DRIVE
SETTING> BKT SETTING> FOCUS BKT.

4
X-H1 Owner’s Manual: P121 Ver. 1.10
TOUCH SCREEN MODE
Touch Controls for Focus Zoom
Dierent touch controls are used during focus zoom (focus check
enabled).
Central Area
Central Area
Tapping the center of the display per-
forms the operations below.
Touch screen mode
Touch screen mode
Still photography
Still photography
Movie recording
Movie recording
TOUCH SHOOTING AF-S/MF: Take a picture
AF-S: AF
MF: INSTANT AF
AF AF-S: AF
MF: Take a picture
AREA AF-S: AF
MF: Take a picture
OFF AF-S/MF: OFF AF-S/MF: OFF
Other Areas
Other Areas
Tapping other areas simply scrolls the
display, whether during still photogra-
phy or movie recording and regardless
of the option selected for touch screen
mode.

5
X-H1 Owner’s Manual: P124 Ver. 1.10
BKT SETTING
Option
Option
Description
Description
BKT SELECT
ChoosefromOAEBKT,WISOBKT,XFILMSIMULATION
BKT, VWHITE BALANCE BKT, YDYNAMIC RANGE
BKT, and ZFOCUS BKT.

6
X-H1 Owner’s Manual: P124 Ver. 1.10
FOCUS BKT
Option
Option
Description
Description
FOCUS BKT
The following settings are available when BKT SELECT is chosen
for ZFOCUS BKT.
Option
Option
Description
Description
FRAMES Choose the number of shots.
STEP Choose the amount focus changes with each shot.
INTERVAL Choose the interval between shots.
N
• Do not adjust zoom during shooting.
• The supplied flash does not fire.
Focus and FRAMES/STEP
The relation between focus and the options chosen for FRAMES and STEP
is shown in the illustration.
12345
:
Starting focus position
• Focus proceeds from the starting position toward infinity.
• Small STEP values translate to small changes in focus, larger values to larger
changes.
• Regardless of the option chosen for FRAMES, shooting ends when focus reach-
es infinity.
Frames
Step

7
X-H1 Owner’s Manual: P191 Ver. 1.10
LARGE INDICATORS MODE(EVF)
Select ON to display large indicators in the electronic viewnder.
The indicators displayed can be selected using DSCREEN
SETTING > LARGE INDICATORS DISP. SETTING.
OFF ON
O
Some icons are not displayed when ON is selected for LARGE
INDICATORS MODE(EVF), including:
• Focus indicator
• Focus mode
• Distance indicator
• Recording level
• IS mode
N
If LARGE INDICATORS MODE is assigned to a function button, the
button can be used to toggle LARGE INDICATORS MODE on (ON)
and o (OFF) (P194, 218).

8
X-H1 Owner’s Manual: P191 Ver. 1.10
LARGE INDICATORS MODE(LCD)
Select ON to display large indicators in the LCD monitor. The in-
dicators displayed can be selected using DSCREEN SETTING >
LARGE INDICATORS DISP. SETTING.
OFF ON
O
Some icons are not displayed when ON is selected for LARGE
INDICATORS MODE(LCD), including:
• Focus indicator
• Focus mode
• Distance indicator
• Recording level
• IS mode
N
If LARGE INDICATORS MODE is assigned to a function button, the
button can be used to toggle LARGE INDICATORS MODE on (ON)
and o (OFF) (P194, 218).

9
X-H1 Owner’s Manual: P191 Ver. 1.10
LARGE INDICATORS DISP. SETTING
Choose the indicators displayed when
ON is selected for DSCREEN SETTING >
LARGE INDICATORS MODE(EVF) or
LARGE INDICATORS MODE(LCD).
Scale
Expo. DISP.
LARGE INDICATORS DISP. SETTING
Option
Option
Description
Description
A
Expo. DISP.
Expo. DISP.
Choose the items listed at the bottom of the display. Selected
items are indicated by check marks (R); to deselect, highlight
the check marks and press MENU/OK.
B
d
d
Scale
Scale Select ON to display the exposure indicator.
C
L1, L2, L3, L4
L1, L2, L3, L4 Choose up to four large icons for display on the left side of the
screen.
D
R1, R2, R3, R4
R1, R2, R3, R4 Choose up to four large icons for display on the right side of
the screen.

10
X-H1 Owner’s Manual: P194, 218 Ver. 1.10
FUNCTION (Fn) SETTING
Assigning Roles to the Function Buttons
• EXPO. COMP.
• IMAGE SIZE
• IMAGE QUALITY
• RAW
• FILM SIMULATION
• GRAIN EFFECT
• DYNAMIC RANGE
• D RANGE PRIORITY
• WHITE BALANCE
• SELECT CUSTOM SETTING
• FOCUS AREA
• FOCUS CHECK
• AF MODE
• AF-C CUSTOM SETTINGS
• FACE/EYE DETECTION SETTING
• DRIVE SETTING
• SELF-TIMER
• SHUTTER TYPE
• ISO AUTO SETTING
• IS MODE
• MULTI EXPOSURE
• WIRELESS COMMUNICATION
• FLASH FUNCTION SETTING
• TTL-LOCK
• MODELING FLASH
• FULL HD HIGH SPEED REC
• FLICKER REDUCTION
• INTERNAL/EXTERNAL MIC LEVEL
ADJUSTMENT
• MOVIE SILENT CONTROL
• PREVIEW DEPTH OF FIELD
• PREVIEW EXP./WB IN MANUAL MODE
• NATURAL LIVE VIEW
• HISTOGRAM
• ELECTRONIC LEVEL
• LARGE INDICATORS MODE
• AE LOCK ONLY
• AF LOCK ONLY
• AE/AF LOCK
• AF-ON
• APERTURE SETTING
• PERFORMANCE
• AUTO IMAGE TRANSFER
• SELECT PAIRING DESTINATION
• Bluetooth ON/OFF
• PLAYBACK
• NONE (control disabled)

11
X-H1 Owner’s Manual: P206 Ver. 1.10
Bluetooth SETTINGS
Adjust Bluetooth settings.
Option
Option
Description
Description
PAIRING
REGISTRATION
To pair the camera with a smartphone or tablet, select this op-
tion, then launch FUJIFILM Camera Remote on the smart de-
vice and tap PAIRING REGISTRATION.
SELECT PAIRING
DESTINATION
Choose a connection from a list of devices with which the
camera has been paired using PAIRING REGISTRATION.
Select NO CONNECTION to exit without connecting.
DELETE PAIRING REG.
Delete pairing information for selected devices. Choose
the device in the device list. The selected device will also
be removed from the devices listed in SELECT PAIRING
DESTINATION.
Bluetooth ON/OFF
• ON: The camera automatically establishes a Bluetooth
connection with paired devices when turned on.
• OFF: The camera does not connect via Bluetooth.
AUTO IMAGE
TRANSFER
• ON: Mark photos for upload as they are taken.
• OFF: Photos are not marked for upload as they are tak-
en, but JPEG images can be selected for upload using the
IMAGE TRANSFER ORDER option in the playback menu.
SMARTPHONE SYNC.
SETTING
Choose whether to synchronize the camera to the time and/
or location provided by a paired smartphone.
• LOCATION&TIME: Synchronize the time and location.
• LOCATION: Synchronize the location.
• TIME: Synchronize the time.
• OFF: Synchronization off.
N
SELECT PAIRING DESTINATION can also be assigned to a function
button (P194, 218).

12
X-H1 Owner’s Manual: P209 Ver. 1.10
PC CONNECTION MODE
Adjust settings for connection to a computer.
Option
Option
Description
Description
USB CARD READER
Connecting the camera to a computer via USB automatically
enables data transfer mode, allowing data to be copied to
the computer. The camera functions normally when not con-
nected.
USB TETHER
SHOOTING AUTO
Connecting the camera to a computer via USB automatically
enables tethered shooting mode. You can also use FUJIFILM
X Acquire to save and load camera settings, allowing you to
reconfigure the camera in an instant or share settings with
other cameras of the same type. The camera functions nor-
mally when not connected.
USB TETHER
SHOOTING FIXED
The camera functions in tethered shooting mode even when
not connected to a computer. At default settings, pictures are
not saved to the memory card, but pictures taken while the
camera is not connected will be transferred to the computer
when it is connected.
WIRELESS TETHER
SHOOTING FIXED
Choose this option for wireless remote photography. Select a
network using DCONNECTION SETTING> NETWORK
SETTING.
USB RAW CONV./
BACKUP RESTORE
Connecting the camera to a computer via USB automatical-
ly enables USB RAW conversion/backup restore mode. The
camera functions normally when not connected.
• USB RAW CONV. (requires FUJIFILM X RAW STUDIO): Use the
camera’s image processing engine to rapidly convert RAW
files to high-quality JPEG images.
• BACKUP RESTORE (requires FUJIFILM X Acquire): Save and load
camera settings. Reconfigure the camera in an instant or
share settings with other cameras of the same type.

13
X-H1 Owner’s Manual: P237 Ver. 1.10
Battery Level
A “checking battery level” indicator will be displayed when the
camera detects that charge remains in the grip batteries. The
display changes to the battery level once the camera has deter-
mined the amount of charge remaining.

14
X-H1 Owner’s Manual: P168 Ver. 2.00
COPY
O
• Copying ends when the destination is full.
• If you attempt to copy a le over 4GB in size to a memory card with
a capacity of 32GB or less, copying will end and the le will not be
copied.
X-H1 Owner’s Manual: P250 Ver. 2.00
Mac OS X/macOS
Pictures can be copied to your computer using Image Capture
(supplied with your computer) or other software.
O
Use a card reader to copy les over 4GB in size.
X-H1 Owner’s Manual: P282 Ver. 2.00
Memory Card Capacity
O
If the memory card has a capacity of over 32GB, movies will be record-
ed in single les, regardless of size. If the card has a capacity of 32GB
or less, movies over 4GB in size will be recorded uninterrupted across
multiple les.

15
MEMO

7-3, AKASAKA 9-CHOME, MINATO-KU, TOKYO 107-0052, JAPAN
http://www.fujifilm.com/products/digital_cameras/index.html
