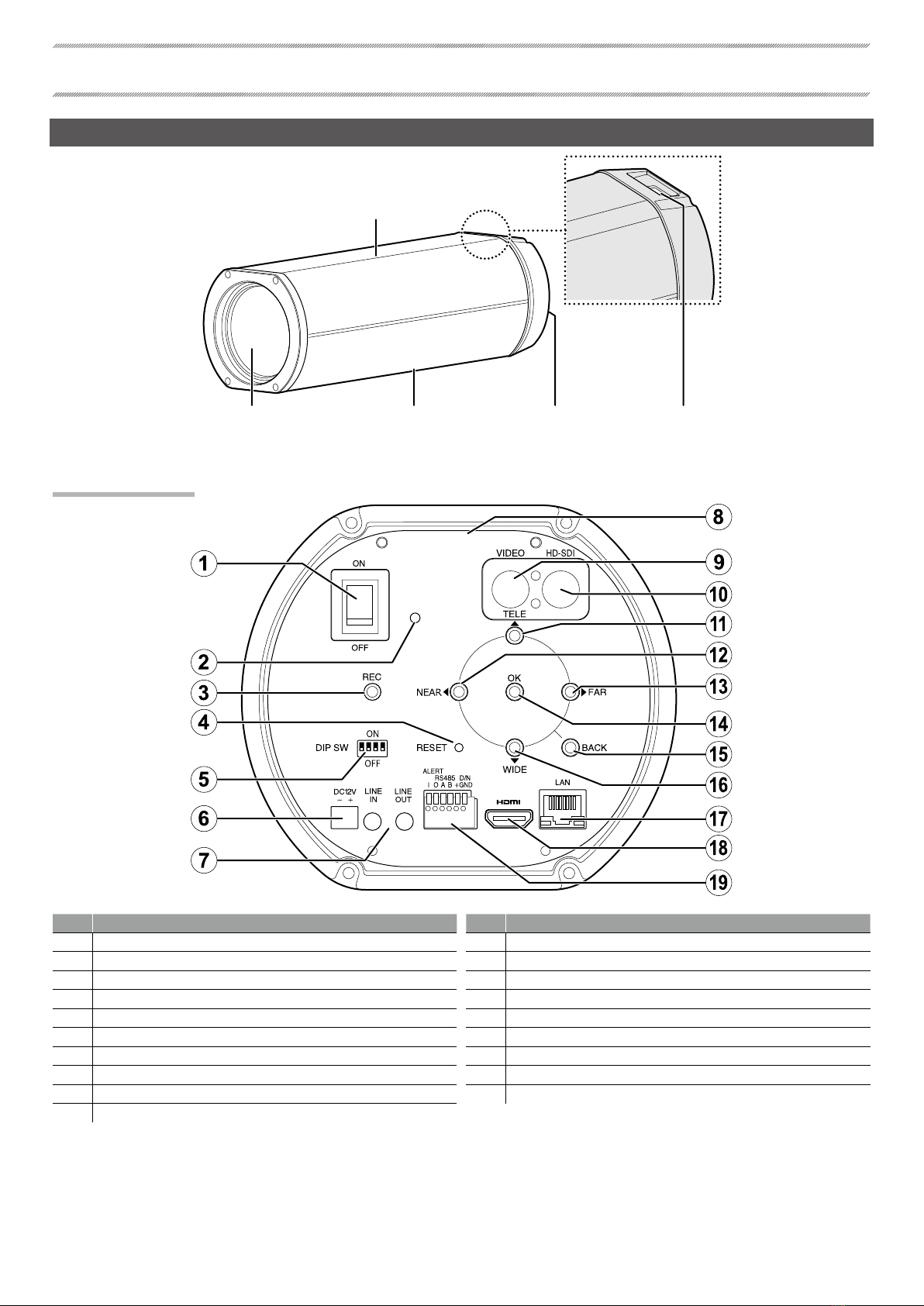

Parts of the Camera......................................................................................................................................................................5
The Control Panel..................................................................................................................................................................................................................5
Installation and Connection 6
Installation ....................................................................................................................................................................................6
Screw Hole Specications................................................................................................................................................................................................6
Connection Schematic.................................................................................................................................................................7
Operating Mode Selection: DIP Switches ..................................................................................................................................7
Connecting to a Computer ..........................................................................................................................................................8
Viewing and Recording the Live Feed 9
Launching a Web Browser ...........................................................................................................................................................9

iii
Table of Contents
Preferences 10
CAMERA SETTING ...................................................................................................................................................................... 11
AF SETTING............................................................................................................................................................................................................................. 11
FOCUS AREA.......................................................................................................................................................................................................................... 11
AF SENSITIVITY...................................................................................................................................................................................................................... 11
IRIS................................................................................................................................................................................................................................................ 11
SHUTTER SPEED................................................................................................................................................................................................................... 11
GAIN............................................................................................................................................................................................................................................ 11
DAY/NIGHT ............................................................................................................................................................................................................................. 12
EXTERNAL TRIGGER ........................................................................................................................................................................................................... 12
IR WAVELENGTH................................................................................................................................................................................................................... 12
IMAGE STABILIZATION...................................................................................................................................................................................................... 13
IMAGE QUALITY SETTING.......................................................................................................................................................... 14
OPTICAL FILTER (VLC)....................................................................................................................................................................................................... 14
WDR ............................................................................................................................................................................................................................................ 14
BACKLIGHT CORRECTION.............................................................................................................................................................................................. 14
HEAT HAZE REDUCTION................................................................................................................................................................................................. 14
FOG REDUCTION ................................................................................................................................................................................................................ 14
NOISE REDUCTION............................................................................................................................................................................................................. 14
DIGITAL ZOOM ..................................................................................................................................................................................................................... 14
USE SETTING.......................................................................................................................................................................................................................... 15
BRIGHTNESS........................................................................................................................................................................................................................... 15
CONTRAST............................................................................................................................................................................................................................... 15
SATURATION........................................................................................................................................................................................................................... 15
SHARPNESS............................................................................................................................................................................................................................. 15
WHITE BALANCE.................................................................................................................................................................................................................. 15
SYSTEM ....................................................................................................................................................................................... 16
MODEL NAME....................................................................................................................................................................................................................... 16
SERIAL NO................................................................................................................................................................................................................................ 16
FW VER....................................................................................................................................................................................................................................... 16
APPLICATION VER................................................................................................................................................................................................................ 16
TIME ZONE .............................................................................................................................................................................................................................. 16
IN-CAMERA TIME SETTING............................................................................................................................................................................................ 16
ABOUT DEVICE ..................................................................................................................................................................................................................... 16

iv
Table of Contents
PTZ SETTING............................................................................................................................................................................... 17
RS485 BAUD RATE............................................................................................................................................................................................................... 17
RS485 ID ................................................................................................................................................................................................................................... 17
RS485 TERMINATION......................................................................................................................................................................................................... 17
Pelco-P/Pelco-D................................................................................................................................................................................................................... 17
SYSTEM MAINTENANCE ............................................................................................................................................................ 18
REBOOT..................................................................................................................................................................................................................................... 18
RESET SETTINGS .................................................................................................................................................................................................................. 18
IMPORT CONFIGURATION FILE...................................................................................................................................................................................18
EXPORT TO CONFIGURATION FILE ........................................................................................................................................................................... 18
FW UPDATE............................................................................................................................................................................................................................. 18
COPY LOG DATA .................................................................................................................................................................................................................. 18
NETWORK SETTING ................................................................................................................................................................... 19
IPv4 ADDRESS ....................................................................................................................................................................................................................... 19
IPv4 SUBNET MASK............................................................................................................................................................................................................ 19
IPv4 DEFAULT GATEWAY ................................................................................................................................................................................................. 19
MAC ADDRESS...................................................................................................................................................................................................................... 19
IPv4 MTU .................................................................................................................................................................................................................................. 19
PRIMARY DNS SERVER......................................................................................................................................................................................................19
SECONDARY DNS SERVER ............................................................................................................................................................................................. 19
IPv4 ADDRESS ....................................................................................................................................................................................................................... 19
DISPLAY/OSD SETTING.............................................................................................................................................................. 20
DATE DISPLAY........................................................................................................................................................................................................................ 20
TIME DISPLAY ........................................................................................................................................................................................................................ 20
DATE DISPLAY FORMAT................................................................................................................................................................................................... 20
言語/LANG. .................................................................................................................................................................................. 20
言語/LANG................................................................................................................................................................................................................................ 20
Troubleshooting 21
Defaults 22
CAMERA SETTING............................................................................................................................................................................................................... 22
IMAGE QUALITY SETTING .............................................................................................................................................................................................. 22
SYSTEM...................................................................................................................................................................................................................................... 22
PTZ SETTING .......................................................................................................................................................................................................................... 22
SYSTEM MAINTENANCE.................................................................................................................................................................................................. 22
NETWORK SETTING........................................................................................................................................................................................................... 22
DISPLAY/OSD SETTING.................................................................................................................................................................................................... 22
言語/LANG................................................................................................................................................................................................................................ 22
Specications 23

1
Safety Precautions
For Your Safety
This section lists important precautions that must be followed to ensure safe and correct use of the product. Read them before
using the product and observe them during use.
The 4WARNING and 4CAUTION indications in this document indicate the following:
4WARNINGS Failure to observe warnings could result in death or serious injury.
4CAUTIONS Failure to observe cautions could result in injury or property damage.
4
4
WARNINGS
WARNINGS
• Take all steps necessary to prevent water entering the product. Failure to observe this precaution could result in re or electric
shock. Should water nd its way in, disconnect the power source immediately.
• Be sure the product is installed securely. Serious accidents could result should the product fall from a height.
• When working in high places, work with a partner or partners, use a safety line, and take all other precautions necessary to
ensure safety. Slipping, falling, or loss of balance could result in serious accidents.
• When installing the camera in high places, ensure that people below keep their distance. Falling objects could cause serious
accidents.
• Ensure that the surface on which the camera is installed is level. Failure to observe this precaution could cause the camera to
fall, potentially causing serious accidents.
4
4
CAUTIONS
CAUTIONS
• Keep the product out of direct sunlight.
• Do not turn the product on without rst conrming that the power supply is connected correctly.
• The product could cause injury if dropped during transport. Take all precautions necessary to ensure that the product is not
dropped.
• Ensure that the voltage of the power supply matches the product’s rated voltage. Incorrect voltages could damage the product
or result in re or electric shock.
• When connecting or disconnecting the power cable, hold the plug and not the cable. Damage to the cable could result in re
or electric shock.
• Should you detect any abnormalities such as smoke, unusual noises or smells, or the presence of foreign matter inside the
product, disconnect the power supply immediately and contact the original retailer.
• Do not disassemble or modify. Failure to observe this precaution could result in electric shock or product malfunction. Mal-
functions or damage resulting from customers disassembling or modifying the product are not covered under warranty.
• Do not aim the camera at the sun. Direct sunlight focused through the lens could damage the product’s internal parts.
• Install the camera base down. Installing the camera in other orientations could lead to warping that may impair product per-
formance.
General Precautions
General Precautions
• Use the product only as described in this manual.
• The camera and its accessories are precision devices. Under no circumstances should they be subjected to excessive force.
• Install the camera in a housing or other location where it will not be exposed to rain, wind, dust, or direct sunlight.
• Bringing the camera abruptly from a cold location to a warm and humid environment could cause the lens to fog. Take mea-
sures to allow the camera to adapt to the new environment before subjecting it to changes in temperature and humidity.
• Replace the cap if the camera will not be used for an extended period.
• The camera lens has a special anti-reective coating. As a result, the back of the lens may appear spotted, but this has no eect
on performance.

2
NOTICES
Verication
Model Number: SX800
Trade Mark: Fujilm
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interfer-
ence that may cause undesired operation.
Caution:
Caution:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Warning:
FCC Warning:
To assure continued compliance, follow the attached installation instructions. This includes using the provided power cord and
shielded interface cables when connecting to computer or peripheral devices. Also, any unauthorized changes or modications
to this equipment could void the user’s authority to operate this device.
For Customers In Canada
For Customers In Canada
CAN ICES-3(A)/NMB-3(A)
WARNING: This equipment is compliant with Class A of CISPR32. In a residential environment this equipment may cause radio
interference.
This product complies with the following EU Directives:
• RoHS Directive 2011/65/EU
• EMC Directive 2014/30/EU
Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) which are
listed on the EU Declaration of Conformity issued by FUJIFILM Corporation for this product or product family.
This compliance is indicated by the following conformity marking placed on the product:
This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g.Bluetooth).
About the Icons
About the Icons
The symbols on the product represent the following:
AC
DC
Class II equipment (The construction of the product is double-insulated.)

3
NOTICES
Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway,
Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway,
Iceland and Liechtenstein:
Iceland and Liechtenstein:
This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product
shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste
handling of this product.

4
Precautions for Use
Operating Environment
• The camera can be used at temperatures of from −10 to +50°C (temperatures below freezing are only supported if the power
supply is not interrupted) and at humidities of from 10 to 80% (no condensation).
• Prolonged use at high temperatures or humidities could degrade components, shortening product life.
• Do not install the product where it will be exposed to solvents or other chemicals.
Installation
• Do not install LAN or audio cables in close proximity to cables for uorescent lights or other electrical devices. Failure to ob-
serve this precaution could impair sound or image quality. Move the cables if signal quality is aected.
• Using the product in close proximity to powerful electromagnetic elds, such as those produced by television transmitter an-
tennas, electric motors, or transformers, could result in distorted or wavy pictures. Should this occur, use steel cable shielding.
• Use a Category 5 or better shielded twisted pair (STP) LAN cable for LAN connections.
• Plastic cable insulation may sometimes be damaged by crows or other birds. Protect cables using a cable conduit.
• Fix cables in place so that they are not subject to repeated vibration, friction, or tugging. Failure to observe this precaution
could cause the cable to break.
• Install the product base down.
Use
• Do not aim the lens directly at the sun or other bright light sources or reections. Failure to observe this precaution could result
in deterioration of the image sensor color lter, aecting picture color.
• Do not subject the product to strong physical shocks or vibration. Failure to observe this precaution could result in product
malfunction.
• Clean the product with a soft, dry cloth. Never use chemically-treated cloths or solvents such as benzine (petroleum ether),
thinner, or alcohol. Failure to observe this precaution could cause warping or discoloration.
Network Settings
• You will need to supply an IP address, subnet mask, and gateway IP address.
• The frame rate may drop if multiple streams are transmitted via unicast.
• When connected to multiple devices, the product will transmit data to all devices at the rate supported by the device with the
slowest receiving rate.

5
Introduction
Parts of the Camera
The Control Panel
The Control Panel
12345678
Item Name
APower switch
BPower lamp
CREC (record) button
DRESET button
EDIP switches (4 bits)
FPower connector
GAudio input/output connectors
HSerial number
IVideo output connector
JHD-SDI output connector
Item Name
KTELE button
LNEAR button
MFAR button
NOK/MENU button
OBACK button
PWIDE button
QLAN connector
RHDMI connector
SSix-pin connector
Top
(handle screws attach here)
Base (mounting screws
attach here)
Lens Control panel Memory
card slot

6
Installation and Connection
Installation
Use the screw holes on the base to secure the camera to a mount or other surface.
4WARNING
Attach the product securely to a surface that can safely bear the combined weight of the camera and associated hard-
ware. Do not mount the camera in unstable locations or locations subject to frequent vibration or attach it to weak
materials such as drywall, ALC (autoclaved lightweight concrete), concrete blocks, or plywood. Injury could result
should the product fall from its mounting.
4CAUTIONS • Use ¼ʺ, UNC 20 thread screws with a thread engagement length of 6.5 to 10mm.
• Install the camera base down.
A handle can be attached using the screws on top of the camera.
4CAUTIONS
• Use M4 screws with a thread engagement length of at least 4mm and a protru-
sion of no more than 6mm.
• Do not use the screw holes on top of the camera for any other purpose.
Screw Hole Specifications
Screw Hole Specifications
The specications for the screw holes on the top and base of the camera are as follows:
Type Quantity Depth Tightening torque
Top M4 2 Pass through (threaded depth 4mm) 80–100N•cm
Base ¼ʺ, UNC 20 thread 15 10 mm 240–300N•cm
Handle
thickness 4mm
Max. 6mm
