Fujion FR-LT2290V Manual

Contents
2 3
4567
8 9 10 11
12
Warning
Caution
Safety warning
Product structure schematic
Outline dimension
Control panel operation
Precautions
Daily maintenance
Specifications
The installation guide
Electrical schematic diagram
Cleaning and maintainance
Troubleshooting
After service
Warranty notice
2
2
3
4
4
5
5
6
6
7
8
10
10
11
11
12
Packing list

Warning
Caution
Accessible parts may become hot when used with cooking appliances.
3
4567
8 9 10 11
12
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
There shall be adequate ventilation of the room when the cooker hood is used at the same
time as appliances such as burning gas or other fuels.
Please do not use corrosive detergent for cleaning. The proper function of the unit is
conditioned by the regularity of the maintenance.
To protect the main body from corrosive formed by the long time accumulation of dirt, the cooker
hood should be cleaned with hot water with non-corrosive detergent in every two months.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Do not flame under the cooker hood.
The air must not be discharged into a flue that is used for exhausting fumes from
appliances such as burning gas or other fuels.
Regulations concerning the discharge of air must be fulfilled.
●
●
●
●
●
●
●
●
●
The minimum distance between the top most part of the cooking appliance such as gas hob
and the lowest part of the cooker hood, when it is located exactly over the cooking appliance,
shall be at least 650mm. If greater distance is specified in the manual of the cooking appliance,
it must be taken into account.
2
This hood is an external exhaust type cooker hood, and the gas
should not be discharged into the hot flue gas
through burning gas or other fuel.
If the cooker hood is installed above the gas stove, the distance from the bottom of the body
to the focal plane is at least 650mm, which should be considered if the installation instruc-
tions of gas-fired stoves provide a larger installation distance.
It is strictly forbidden to modify the product without authorization, and the power cord shall
not be replaced or modified by itself.
Please do not install the cooker hood machine on the wall of flammable material.
Do not install the cooker hood machine on the top of the stove with solid fuel.
When drilling holes in the wall, avoid electrical wires embedded in the wall to avoid electric
shock hazard.
A special power supply socket shall be used for the cooker hood machine, and the special
power outlet should be reliably grounded (the product must use 10A, 220~V or above).
The wall shall have sufficient supporting strength for the installation of the cooker hood
machine. The hollow core of the wall shall be greater than 30mm, and the concrete
wall can be directly punched and installed. The product must be securely mounted on the
wall.
The cooker hood may have very sharp edges. Please wear protective gloves when
you install or clean the cooker hood.
If your kitchen is under a state of decoration, do not use cooker hood exposed, for building
materials, dust, paint, coatings and their volatile gas cooker hood surface causes corrosion
and lose luster, please install cooker hood in after the decoration.
●
●
●
●
●
●
●
●
●
●
the cooker hood machine
used for the discharge of smoke produced
●

The appliance is not intended for use by young children or infirm
persons without supervisions.
Young children should be supervised to ensure they do not play with
the appliance.
Plug the power cord to socket outlet with earthing continuity terminal.
The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purposes.
the instruction.
Do not use open flame, or allow the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person in order to avoid a hazard.
The replaced power cord should be provided by manufacturer or seller.
There is a fire risk if cleaning is not carried out in accordance to the
instruction.
In case of damaged connecting wire, please refer to the manufacturer,
after-sale service personnel or other qualified technicians.
Use the product according to the instructions to avoid any fire hazard.
The exhaust air must not be introduced into a smoke flue or chimney
that is used for exhausting fumes from appliances such as burning gas.
Follow the local laws applicable for external air evacuation.

Safety warning
The cooker hood and its filter should be cleaned regularly according to
Please ensure that there is an adequate ventilation in the room while
the cooker hood is in operation.
Please ensure that the power plug is disconnected from the socket or
turn off the breaker before cleaning or maintaining the hood.

flame to go beneath
3

Oil Tray
4
1
56
78
11
9
10 12
13
4
1
5
6
7
8
Ref. Qty. Product Components
Screws(ST4.2×16)
Screw (M5×16)
Screws(ST4.2×9.5)
Plastic expansion pipe
Cross - groove countersunk
head wood screw（M5×50）
12
9
10
11
13
Ref. Qty. Product Components
1
1
1
1
1
1
1
4
1
2
7
6
1
Product structure schematic
Packing list
Flexible Tube Duct
Exhaust Outlet
Exhaust Outlet sealing gasket
Hanging Bracket
Duct Cover Fixing Bracket
Rectifier Panel
2
4 5 6 7
8 9 10 11
12
14
14 Screw(ST5×45)
1
15
15 2Screws(ST2.9×9.5)
Limit Block
4
Slide Duct Cover
Duct Cover
Oil Panel
LED Lighting
Rectifier Panel Oil Tray
Switch Panel

Outline dimension(unit: mm)
Control panel operation
407
0~285
316
2 3
5 6 7
8 9 10 11
12
896 494
672
Light
Gesture
Boost
Low
Switch
Short press: Turn on or off the light.
1st Short press: Start up(hight speed);
2nd
min, fan will runs at the low speed;
3rd Twice short press: OFF immediately.
Long press :2~3 seconds
Short preShort press:0.5 second
Short press: Turn on/off gesture control.
7 X Screws(M5*50)
Palm from left to right or from right to left is to start or close
the range hood.
High Short press: Turn on the power.
Press High speed: Turn on high speed .
Press Low speed: Turn on low speed.
(Two speed can't run at the same time)
Short press: Delay 3
Short press: Operation start at boost speed.Please start operation
manually if boost speed is to be used for more than 3 minutes.
5
On off state, Long press: Enter clean mode,except the light, other keys
are not operable.
1st
2nd
Long press: Exit clean mode.
Touch buttons light status: Off, Half on, On, Flickering

Precaution
Daily maintenance
Surface cleaning
Please note that the power supply voltage and frequency should be consistent to the
voltage and frequency required for the product.
Please make sure that the oil tray has been properly installed.
In the cooking process, please keep the kitchen environment well ventilated.
Do not handle the power cord with wet hand.
Do not pull the power cord to pull out the power cord plug.
If you do not use the cooker hood for a long time, please unplug the power cord.
Always clean the surface and screen of the cooker hood. Do not use 1.
2.
3.
●
●
●
●
●
●
●
●
Oil tray window
2 3
46 7
8 9 10 11
12
During operation, if abnormal conditions (abnormal noise, odor, smoke, fever),
When the cooker hood is working, do not place hands into the fan or operation area.
hood body
gets heated) are observed, immediately turn off the power and unplug the power cord from
the breaker.
harsh sponge or
brush to avoid surface scratching of the product.
When oil is visible from the oil tray window, please timely
maintain the oil tray to avoid oil dripping.
Remove the rectifier panel by referring to the disassembly method mentioned below.
Then, clean the rectifier panel by soaking it in warm water with neutral detergent. Use a
soft brush to clean the residue.
NOTE: Make sure to wear gloves during maintenance.
6
Guide for disassembly of rectifier panel
Remove the rectifier panel as indicated
2. After the rectifier panel is opened, hold
the rectifier panel with both hands and
remove it horizontally.
1. Hold the rectifier panel with both hands,
and press the left and right sides to
open the rectifier panel.

2 3
4 5 6 7
910 11
12

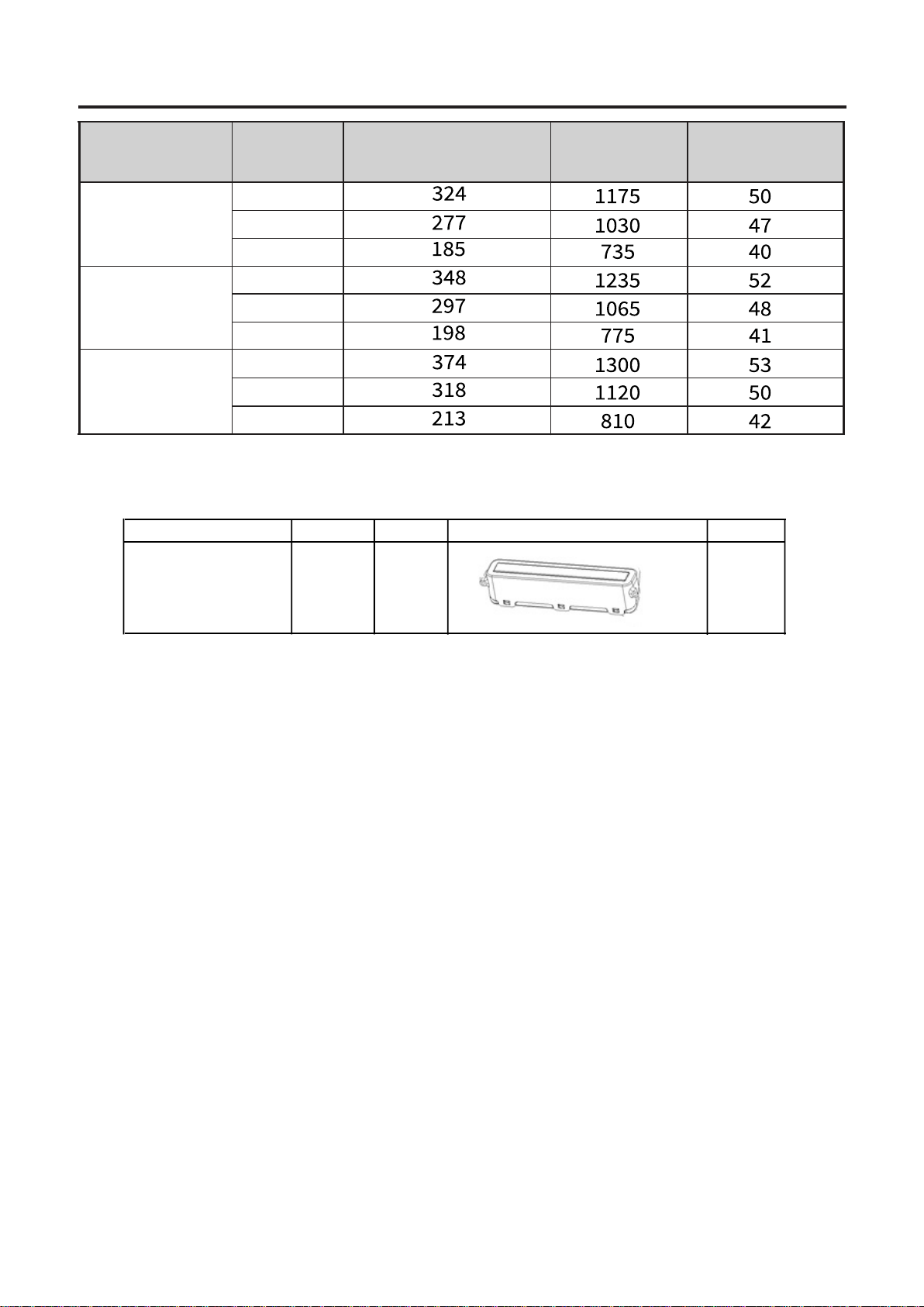

Specifications
87
Rated voltage
(v) Speed (w)
Power consumption Air flow
(m³/h) Sound
(dB)
220
240
230
Boost
High
Low
Boost
High
Low
Boost
High
Low
LED light information
Max Power Voltage Picture Lamp Cap
Square / Dimension:
120mm x 33.2mm 1.5W DC 12 V ——

The installation guide
To determine the location (unit: mm)
1
The range hood machine should be installed horizontally and above the cooker.
The installation diagram is as follows.
Installation of Hanging Bracket (unit: mm)
2
Installation precautions
Exhaust pipe to the cabinet
installation diagram
Schematic diagram of opening size
of exhaust pipe at the ceiling
150
75
200
905~915
672~957
407
316
center line of cooker hood
Hanging Bracket
After installation of the cooker hood, the left and right level should be maintained.
Should avoid excessive windows and air convection in the vicinity of the cooker hood,
otherwise it will affect the efficiency of the cooker hood.
Exhaust pipe requirements.
The exit of the exhaust pipe should not be too long.
●
●
●
●
2 3
4 5 6 7
810 11
12
≥650
As shown in the picture on the right, drill 4 screw
holes with 10mm diameter and 50 to 60mm depth,
install 4 plastic expansion pipes inside the manhole
with 4 M5×50 countersunk head wood screws to fix
the hanging bracket and reliable.
9
8
1300-1600
＞1190 120
20-40
180
310
324
Duct Cover
Fixing Bracket
Limit Block hole

Installation of Exhaust Outlet
3
Installation of the machine
4
The installation of flexible tube duct
5
Installation of Slide Duct Cover
6
Install the exhaust outlet components together with the exhaust
the blade is rotating flexibly.
Align the hole in the rear of the body to the hanger of the
the cooker hood, confirm the installation level of the
machine.Hold the limit block against the machine and
If the flexible tube duct is too long, please adjust the long
tube to the contraction state and fix it with adhesive tape
to prevent the pipe from swinging during the working process.
According to the installation height and duct cover fixing
bracket mounting holes, drill 2 holes in the wall with 10mm
diameter and 50 to 60mm depth, the plastic expansion
pipe pressure inside the hole, provided with 2 M5 x50
cross - groove countersunk head wood screw will cover
duct cover fixing bracket reliable fixation. the slide duct
cover to the corresponding height, and use the 2
ST4.2 x 9.5 screws on the duct cover fixing bracket.
Hang hole
The hanging
2 3
4 5 6 7
8 9 11
12
outlet sealing gasket in the position of the rack outlet, tighten
with 4 ST4.2 x 16 screws , check and make sure that
Exhaust outlet
Exhaust outlet sealign gasket
hanging bracket, and hang it from the top down. After hanging
Flexible Tube Duct
Exhaust Outlet
Slide Duct
Cover
Duct Cover
Fixing Bracket
bracket
10
9
Limit block
and fix the limit block reliably with ST5 x 45 screw to
prevent the machine from falling off accidentally.
Set one side of flexible tube duct in the exhaust outlet
with 2 ST2.9x9.5 as shown, and wrap the aluminum foil
tape around the installation joint of the exhaust outlet
and the flexible tube duct. Then connect the other side
of the flexible tube duct to the outdoor or public flue.

8 Installation Oil
Hold the bottom end of the oil tray with both hands
and place the oil tray horizontally. Insert the oil tray
into the holder and push the oil tray back to the oil
Pins
Oil tray
2 3
4 5 6 7
8 9 10
12
tray stents.
7Installation rectifier panel
The hands hold the rectifier panel, rectifier panel
rotation of a shaft insertion on the oil panel hook
slot, turn up,insert the rectifier panel buckle on
the oil panel in the booth, fixed completely.
Tray
1110
Booth
Rectifier panel
buckle
Hook
Rotating shaft
Rectifier panel
Oil tray stents
Electrical schematic diagram
220V-240V~/50Hz
POWER BOARD
Light
(Black)
(Black)
(White) (Yellow)
(Red)
(Blue)
(Red)
L
N
E
(Brown)
(Orange)
Clean and maintain
●
●
Before cleaning the condenser plate and screen, always make sure to cut off the power and unplug
the power.
It is recommended to maintain regularly. It is recommended to use dry cloth after cooking or to
wipe the inner and outer surface of the hood with a wet and clean cloth soaked with neutral
detergent. Do not use gasoline, acid, benzene, this solvent or any other hemical to clean the
cooker hood.
When the oil tray window in the oil tray is filled with oil,
please clean it in time. The oil tray disassembly procedure
is as follows: hold the lower part of the oil tray with both
hands, and remove the oil tray horizontally; After cleaning,
install the oil tray in reverse order.(the oil tray is longer,
please hold it firmly when the oil tray is removed so as
not to spill the oil.)

Solution
Unplug power plug and reconnect the power supply.
Oil leakage
Oil Tray filled with oil, clean the oil cup.
Insufficient suction
Adjust to max. speed.
Avoid opening windows or doors frequently.
Both light and motor
do not work
Fault
Troubleshooting
After service
Oil Tray installed incorrectly, please reinstall.
Oil path blockage caused due to long time nonattendance of
internal oil path, get professional to clean the hood internal.
Non- artificial breakdown of the product within warranty period from the
purchase date will be offered free repair service based on invoice.
Damage due to improper use, out of warranty and poor maintenance will
be repaired by our company but charging certain maintenance cost.
Please do not tear off the product bar code so that the repairman can verify
the record. Please read the warranty notice concerning other terms and
conditions. In addition, instructions are also available in an alternative
format on official website of the manufacturer.
1311

First, to safeguard your interests, please fill out the installation
service card carefully and retain the receipt for warranty.
Second, the product purchased from our company that has broken-down
due to quality problem can be repaired at designated special service
department based on valid purchase proof. Free repair is offered within
warranty period (from the date of purchase proof issued).
Third, for the following situations, we are not responsible for
"Free Guarantees" repair service but still provide charging service:
1) The product damaged due to improper use or poor safekeeping.
2)
3) The product without valid purchase proof.
4) The product's purchase proof has been altered.
5) The product model and body code registered on installation service
card is inconsistent with the model and body code of the product to
be repaired.
6) The product damaged due to the instability of power voltage or
exceeding normal voltage scope (198-242) V.a.c, or power circuit
installation not meeting the national electrical installation
requirement.
7) The product sold at discounted price or with "OFF-Grade" and
"Substandard Goods" printed on installation service card or the body.
8) Product damaged due to irresistible natural disaster.
9) Product warranty period is expired.
10) The product damaged by the unsuitable and improper method
specified in instruction book.
Fourth, if your reasonable service demand can't be solved by
special service department or dissatisfaction with their service,
please make an immediate call or write a letter to our customer
service center, we will provide you with our service.
Please dispose it at your local community waste collection /
recycling center and ensure that it presents no danger to
Warranty notice
Disposal
The product damaged due to improper installation or maintenance.
children while being stored for disposal. The plug must be
rendered useless and the cable cut off to prevent misuse.
14
12

The manufacturer shall decline all responsibility if the foregoing
recommendations and instruction regarding installation, maintenance
and use are not observed and respected when using the cooker hood.
2 3
4 5 6 7
8 9 10 11
12
1513

网站
www.fujioh.com/my
FUJIOH MARKETING MALAYSIA SDN. BHD.
23, Jalan Serendah 26/39, Section 26, 40400
Shah Alam, Selangor, Malaysia
电话：[phone]
电子邮箱：[email protected]
2022 年第 1版

如在使用吸油烟机时未遵守上述有关安装、维护和使用的建议和
说明，制造商将不承担任何责任。
13

保修
。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
首先，为了维护您的利益，请仔细填写安装服务卡，并保留保修收据。
其次，从我公司购买的产品如因质量问题发生故障，可凭有效购物凭证到指
定特约服务部门维修。保修期（自所出具证明的购买之日起）内提供免费维修。
第三，对于以下情况，我们不负责“免费保修”服务，但仍提供收费服务：
1）由于使用不当或保管不妥造成的产品损坏。
2）由于安装或维护不当造成的产品损坏。
3）没有有效购买凭证的产品。
4）产品的购买凭证有涂改。
5）安装服务卡上登记的产品型号和机身代码与待维修产品的型号和机身代
码不一致。
6）因电源电压不稳定或超过正常电压范围（198-242）V.A.C.或电源电路安
装不符合国家电气安装要求而造成的产品损坏。
7）以折扣价出售的产品或在安装服务卡或机身上印有“不合格品”和“不
合标准品”的产品。
8）由于不可抗自然灾害造成的产品损坏。
9）产品已过保修期。
10）产品因说明书中规定的不适当和不恰当的方法而损坏。
第四，如果特约服务部门无法解决您的合理服务需求或对其服务不满意，请
立即致电或写信给我们的客户服务中心，我们将为您提供服务。
处置
。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
请将废弃电器投放到当地的社区废物收集/回收中心，并确保废弃
电器的存放地点不会对儿童造成危险。必须使插头失效，并切断电缆
以防误用。
12
