Fulgor Milano DWI8011 User manual

DWI8011
14 place settings
Alt function
www.fulgor.com.au

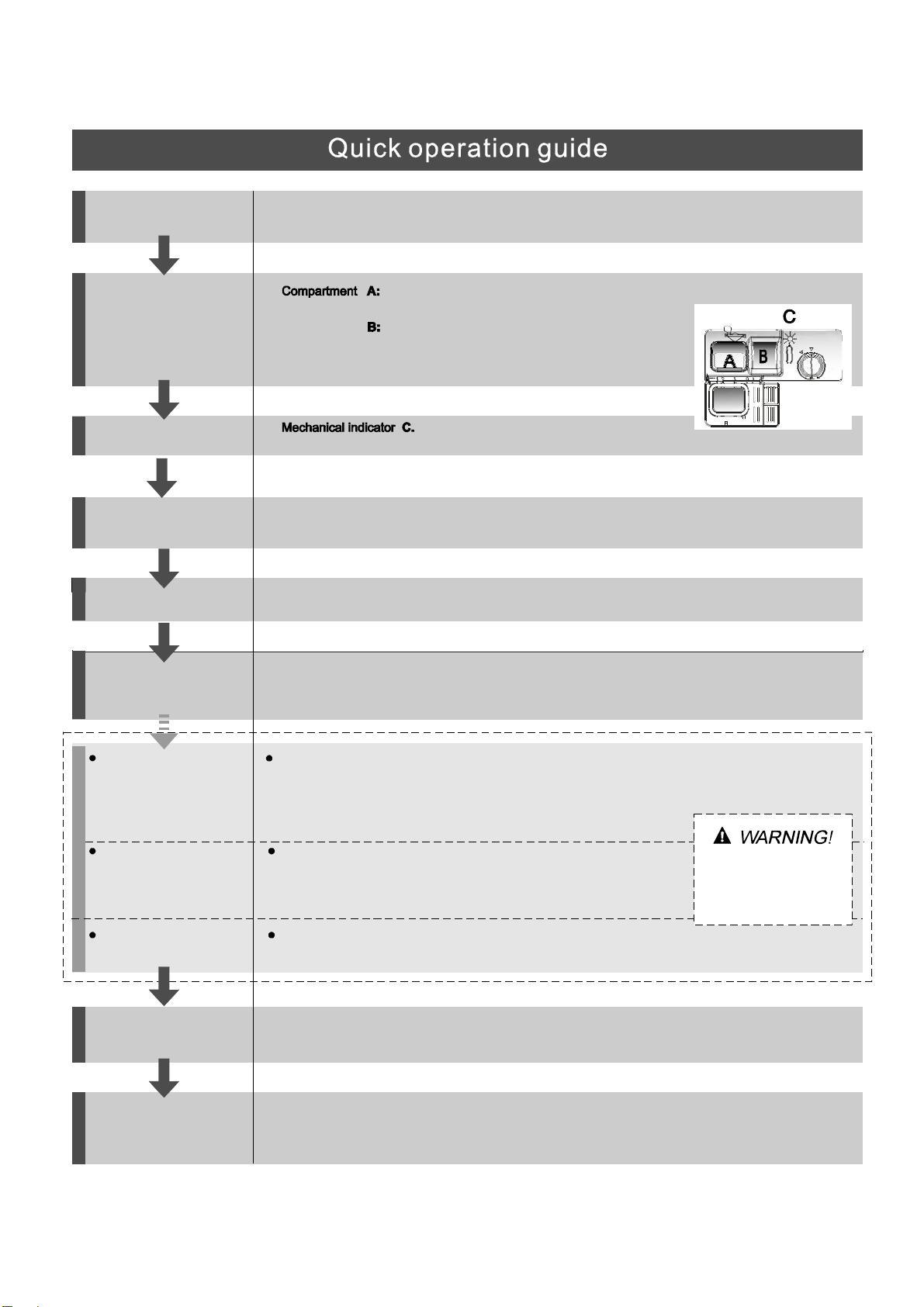

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a programme
Turnonthewatertap,closethedoor.Themachinewillstartworkingafterabout10seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better.Unload the appliance, startingfrom the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off anylarge amount of leftover food. Soften remnants of burnt foodin pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme Button until the selected programme lights up.
( See the section entitled Operation instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
Switch on the appliance Open the door,press the On/Off button to switch on the appliance .
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
For detailed operating method read the corresponding content onthe instruction manual.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door andpress the Programme Button for more than 3 seconds
to cancel the runing progarmme
3.Select a new programme.
4.Close the door,the machine will restart after about 10 seconds.

To review the section on troubleshooting Tips
will help youto solve somecommon problems
by yourself .
Dear Customer,
Please carefully readthismanualbefore usingthe
dishwasher, itwill help you to useand maintain the
dishwasher properly.
Pass it on toany subsequent owner ofthe appliance.
Thismanual contains sections on safety Instructions,
Operating Instructions, InstallationInstructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development andupdating of the product, may
make modifications without giving prior notice.
Keep it as a refer in the later days.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
This appliance is intended tobe used in household
andsimilarapplications suchas:
-staff kitchen areas in shops,offices and other
working environments;
-farm houses;
-byclients inhotels,motels and other residential
type environments;
-bed and breakfast type environments.
Dishwasher Features.................................... ...2
Attention beforeorafter loading the Dishwasher
Baskets..........................................................6
Filtering System.............................................11

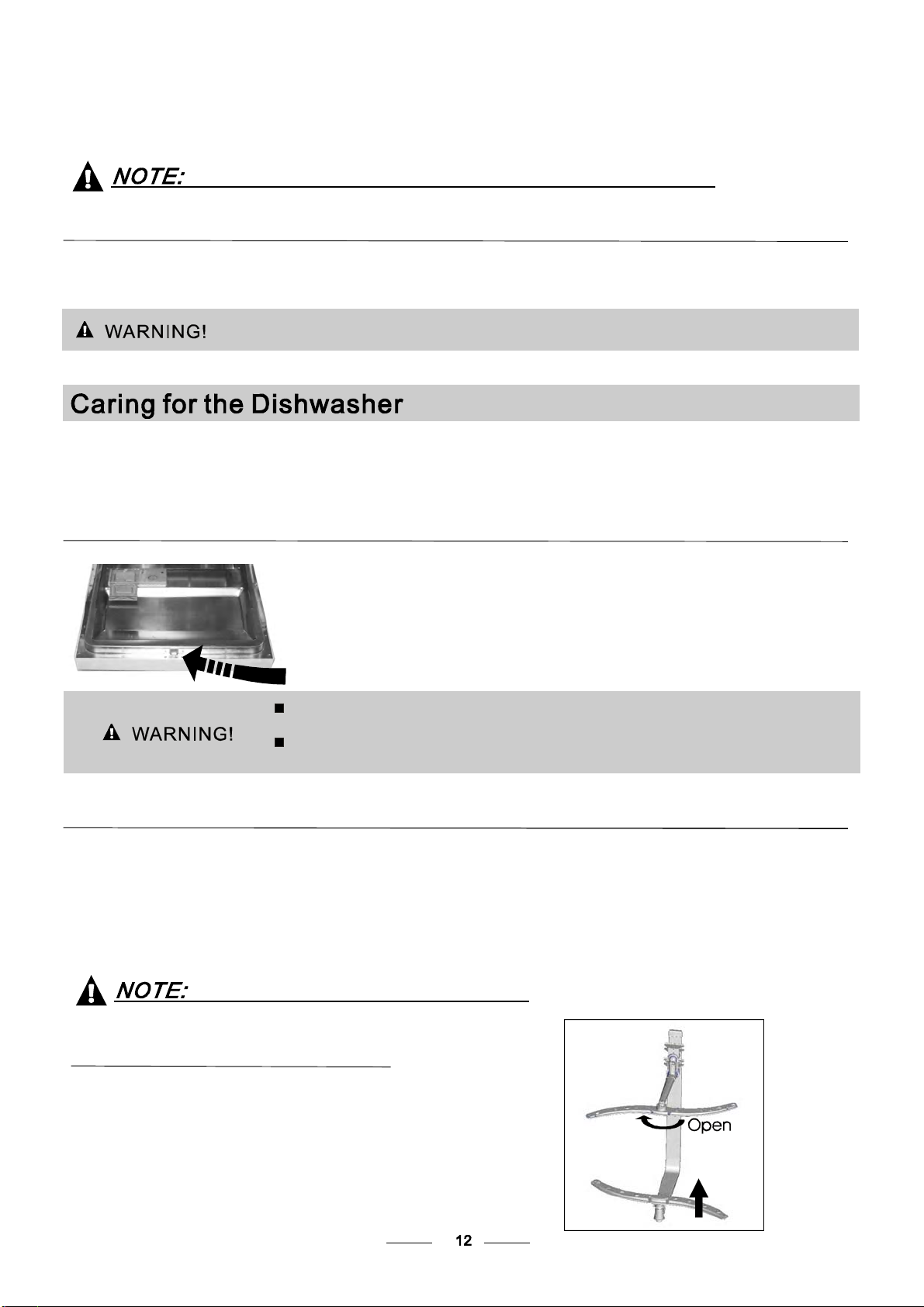

Caring for the Dishwasher..................... .........12.
A Fill the RinseAid Dispenser............. .. ..3、..... ...
B Function of Detergent .........................4、........
..............7 The Method Loading Normal Dishware
Wash CycleTable...........................................9
Turning on theAppliance................................9
Change the Programme.............. ................10....
Atthe End ofthe Wash Cycle...........................10
Before calling for service........................... .....21.
Errorcodes.................................... ..............22.
Technical information.............................. .....23..
Control Panel...................................................2
..................................13Installation preparation ...14Aesthetic panel's dimensions and installation
..............15Tension adjustment of the door spring
.............................. 15Connection of drain hoses ......................... 17Dishwasher installationsteps
AboutElectricity Connecting...........................18
Cold Water Connection.................................. 19
Start of dishwasher................................ ......19..

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loadedin the basket
with their points down orplacedin a
horizontalposition.
)
Ifthesupply cordis damaged, itmust bereplaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerousif swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment is empty
after completion of the wash cycle.
The applianceis to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

beforeusing it forthe firsttime.
To getthe best performance from yourdishwasher, read all operatinginstructions
5.On/Off Button: To turn on/off the power supply.
3.Delay Button : ToPress the buttonto delay.Youcan
delay the start ofwashingfrom1 to 24hours

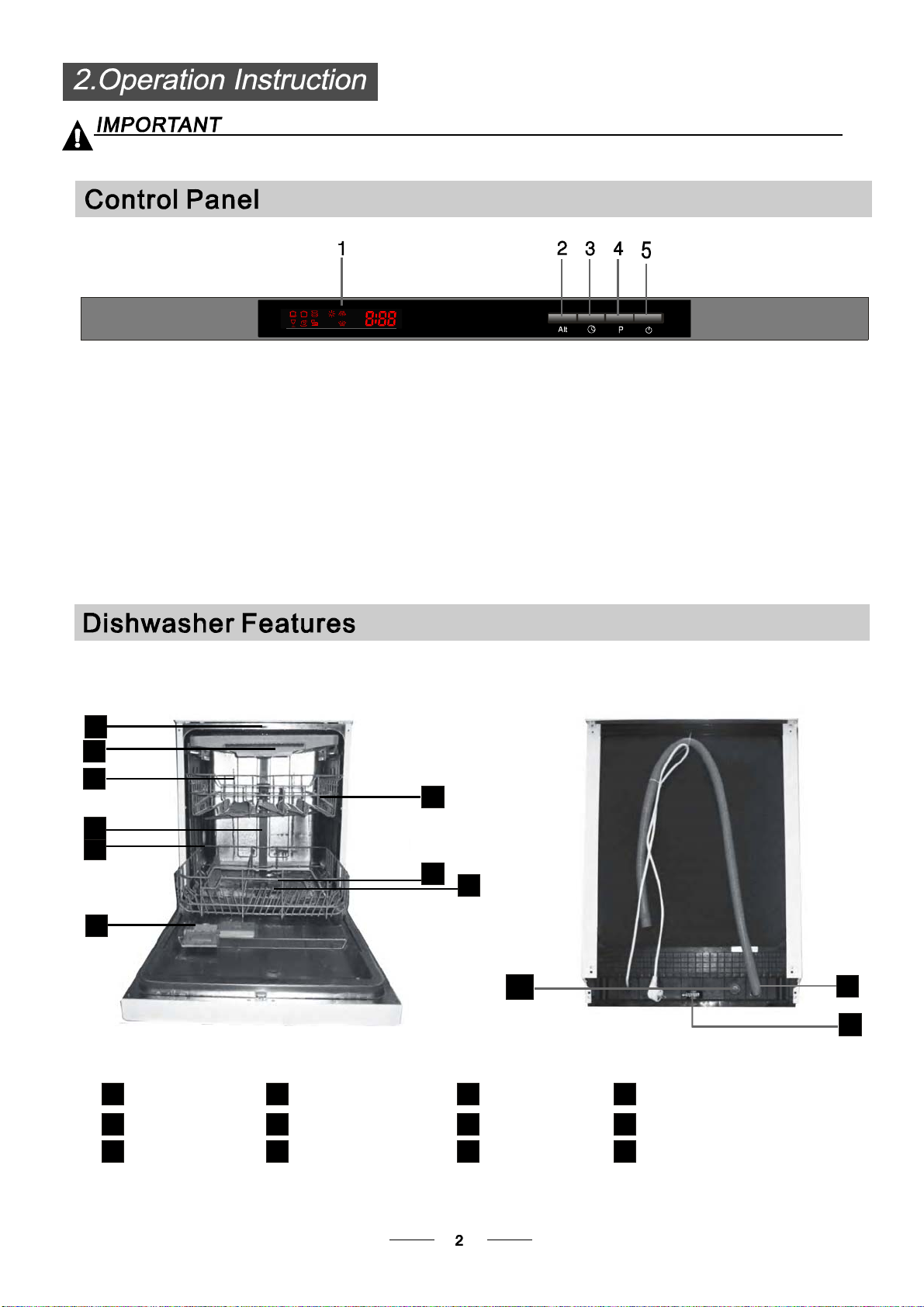

1.Display Window: Program ,fill rinseaid,
,faultcodesandetc
Dual zone
wash remaining time,delaytime,
4. Program Button: To Press the button to select a
wash Program.
2.
Alt Button: Dual zone wash function, press the button
to select either upper basket or lowerbasket loaded, and
theresponse indicatorwillblink.
11
12
Back View
1
2
3
4
5
7
89
10
Front view
Lower basket
Dispenser
Cupshelf
Sprayarms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery rack
Top spray arm
1
Innerpipe
5
6
7
8
9
10
12
11
3
24
6
Adjuster

Before using your dishwasher for the first time:

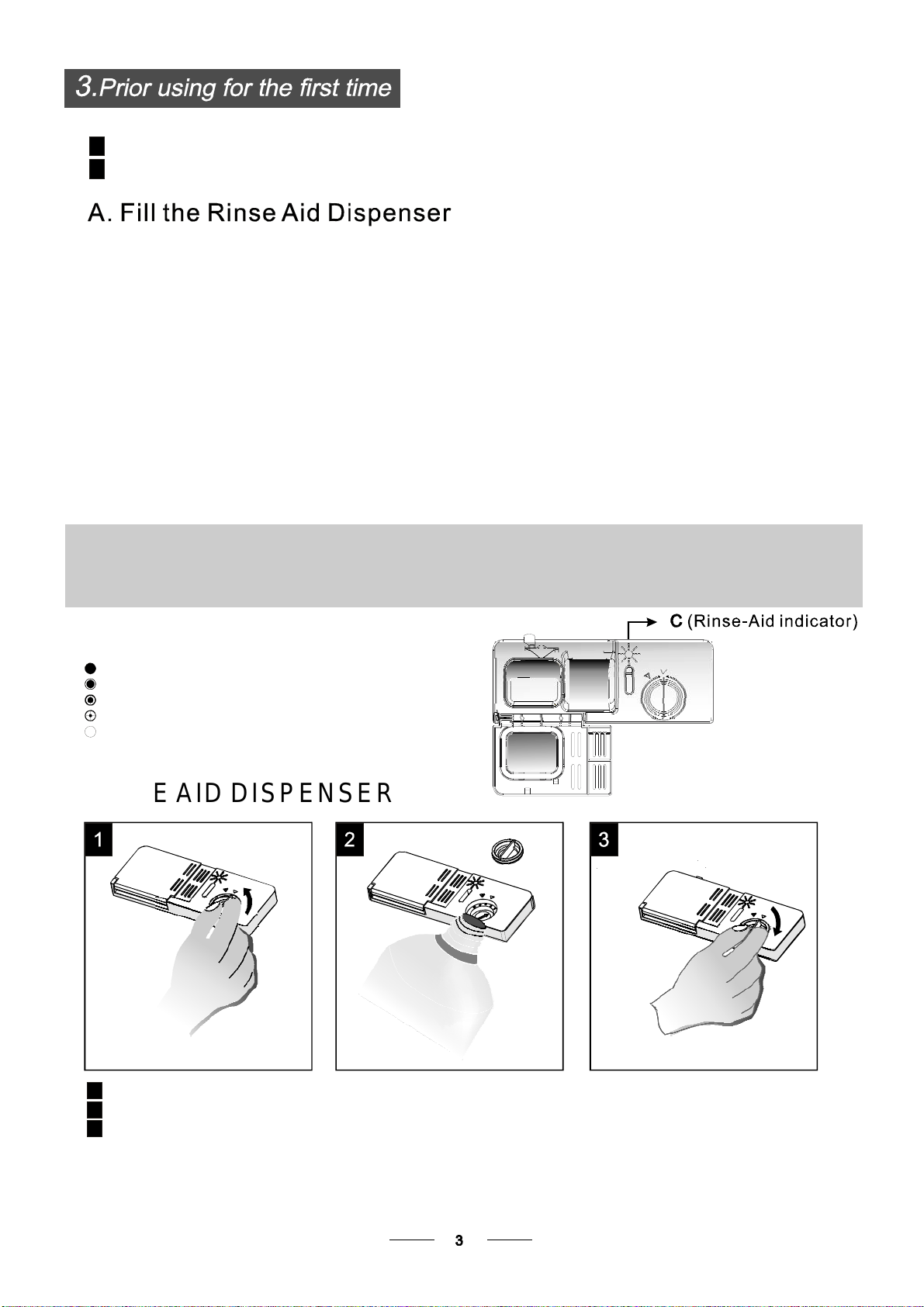

A. Filltherinse aiddispenser
B. Fill in detergent
Therinse aid isreleased duringthe finalrinseto preventwaterfrom forming dropletson your dishes, which can
leave spots and streaks. It also improvesdryingby allowing water to rolloff thedishes. Yourdishwasher is
designedto useliquidrinse aids.The rinseaid dispenser is locatedinside the door next to thedetergent dispenser.
Tofillthe dispenser,open thecapand pour the rinse aidinto thedispenser until the level indicatorturns completely
black.Thevolume ofthe rinseaidcontainerisabout 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically addedduring the last rinse, ensuring thorough rinsing, andspot and streakfree drying.
Attention!
Onlyuse branded rinse aid for dishwasher. Never fill the rinseaid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid levelindicator changes, as illustrated below.
Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
Empty
If there is no rinse-aid warning light in the controlpanel, you can judge the amount of rinse-aid by the color of the
optical level
indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the
rinse-aid
diminishes, thesize of the dark dot decreases. You should never let the rinse aid get below 1/ 4 full.
When to Refill the RinseAid Dispenser
RINSEAID DISPENSER
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour therinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning ittothe closed (right) arrow.
Be careful not tooverfill the dispenser,because thiscould cause over sudsing. Wipe away any spills
witha damp cloth. Don't forget to replace the cap beforeyou close dishwasherdoor.
Attention!
Clean up any rinse aid spill duringfilling with an absorbent cloth to avoid excess foaming
during the nextwash.
1
2
3

Adjusting RinseAid Dispenser
The rinse aid dispenserhas six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aiddispensedby removing thedispenserlidandrotatingthedialto"5".Ifthe
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of wateror limespots on the dishes after washing.
Reduce itif there are sticky whitish stains on your dishes or a bluish film on glassware or
knifeblades.
during thenext wash. Don't forget to replacethe cap before you close dishwasher door.
Cleanupany rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergents are suitable for thispurpose.
Detergents
There are 3 sorts of detergents
1.With phosphate and withchlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
Based on their chemicalcomposition, detergents can be split in two basic types:
Detergent tablets of differentbrands dissolve at different speeds. For this reason some
detergent tabletscannot dissolve anddevelop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the completeremoval of detergent residuals.
The dispenser mustbe refilled before the start of each wash cycle followingthe instructions
provided in the washcycle table . Your dishwasher uses less detergent andrinse aid than
Conventional dishwasher. Generally, only onetablespoon of detergent is needed for
a normal wash load. Moreheavilysoileditems need more detergent.Alwaysaddthe
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
conventional,alkaline detergents with caustic components
low alkalineconcentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thus the water softener function of
phosphate is not given. In this case we recommend tofill salt in the salt container even when
thehardness ofwater isonly6 dH.Ifdetergentswithoutphosphate are used inthecase ofhardwater
often whitespots appearon dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine doonlybleacha little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
°

AmountofDetergenttoUse
ProperUseofDetergent
Use only detergent specifically madefor the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive! Take care tokeepitout of reach ofchildren.
Always add the detergentjustbefore starting eachwash cycle.
Only use branded detergent aid for dishwasher.
If thelid is closed: press release button. The lid will spring open.
Detergent tablet
Detergent powder
Fill the detergent dispenser with detergent.
The markingindicatesthedosinglevels , as
illustratedontheright:
The place of main wash cycle detergent placed.
The place of pre-wash cycle detergent placed.
Please observe the manufacturers dosing andstorage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If thedishesare heavily soiled,placean additional
detergent dose in the pre-wash detergent chamber. This detergent will takeeffect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for the single programme on the last page.
Please aware, that according to the level soiling and the specific hardness of water differences are possible.
Please observe the manufacturer'srecommendations on the detergent packaging.

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that arenot heat resistant
Older cutlery with glued parts that are not
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items madefromsyntheticfibres
Some types of glasses can become
dull after a large number of washes
Silver and aluminum parts have a
tendencyto discolourduring washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishesanditems ofcutlery mustnot lie insideoneanother, orcover each other.
To avoiddamage to glasses,they must not touch.
Load large itemswhich are most difficult to clean into the lower basket.
The upper basket is designed to hold moredelicate and lighterdishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important forgoodresults and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwardsso that
water cannot collect in the container or a deepbase.
Consider buying utensils which are identifiedas dishwasher-proof.
Usea mild detergentthatis describedas'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
For particular items, select a programwithas low a temperature aspossible.
To prevent damage, do not take glassand cutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow theseloading guidelines.
Features and appearance ofbaskets and cutlerybasketsmay vary from your model.)
Scrape off any largeamounts ofleftover food. Soften remnants ofburnt food in pans.
It is not necessary to rinse thedishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray armscan rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend thatyou
empty the lower basket first and thenthe upper basket.

The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, aswell asplates, small bowls
andshallowpans (as long astheyarenot toodirty).
Positionthedishes andcookwareso thatthey will
notgetmovedbythespray ofwater.
We suggest that you place large items and the most
difficultto cleanitemsaretobe placedintothelower
basket: such aspots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that largeror more pots and pans can be loaded.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikescanbefolded down as
show in the picture right.
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutleryshouldbe placed inthecutlery rackseparately
from each other in the appropriate positions, and do
make sure the utensils do not nest together,this may
causebadperformance.
Adjusting the Upper Basket
The height of the upper basket can be adjusted inorder to
create more space for large utensilsboth for the upper
/lower basket. The height of the upper basket can be
adjusted by lift up the basket for the upper position, and up
press the handle to lower the upper basket, see the picture
below:

Position one: lift the left basket up, both left and right
baskets are slanting.
Position two: adjust the left basket to lower position, left
basket is flat and right basket is slanting.
Position three: lift the right basket up, both left and right
baskets are flat.
Position Four: Move the right basket from right to left, two
basket are overlapping.
Position Five: Remove the right basket from the tray,
only has the left basket.
Mode 1
Mode 2
Mode3
Mode 4
Mode 5
Cutlery basket has 5positions:

Startinga cycle wash
Drawout the lower and upper basket, load thedishes and push them back.
It is commended to load the lower basketfirst, then the upper one (seethe section entitled
Loading the Dishwasher ).
Pour in the detergent (see the section entitled Detergent and RinseAid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
“”
“”
Open the door, press the ON/OFF Button, and the Power indicator light will turn on.
Press the program Button , the wash program will be changed asfollows direction:
If a program is selected, the response light will light. Then close the door, the dishwasher
beginsto start.
Intensive->Heavy->Normal->Glass->1Hour->Rapid;
1
2
3
4
5
* : This program is the test cycle. The information for comparability test
in accordance with , as follows:
AS/NZS 2007.1
AS/NZS 2007.1
Capacity: 14 setting
Position Upper basket:upper wheelsonrails
Rinse aid setting: 6
Open thedoor slightly 50mm to assist in drying of the dishes after every wash
Means: need to fill rinse into the Rinse-Aid Dispenser.
()
Glass
For lightlysoiledloads,
such as glasses,
crystal and fine china.
5/27.5g
Pre-wash
wash(40 )
Rinse
Rinse(60 )
Drying
℃
℃
120
0.85 13
Normal
Intensive
Heavy
(Or All )in1
5/27.5g
5
(Or All )
/27.5g
in1
(OrAll )in1
5/27.5g
For normally soiled loads,
such as ,plates,glasses
and lightly soiled pans.
standard daily cycle.
pots
For the heaviest soiled
loads, such as pots, pans,
casserole dishesand dishes
that have been sitting with
dried foodon them for a
while.
A shorter wash for lightly
soiled loads that do not
need drying.
Rapid
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse(65 )
Drying
℃
℃
℃
Pre-wash(45 )
Wash (55 )
Rinse
Rinse(60 )
Drying
℃
℃
℃
Pre-wash
Wash (45 )
Rinse
Rinse(50 )
Drying
℃
℃
Wash (40 )
Rinse
Rinse (45 )
℃
℃
180
165
150
40
1.15
0.74
1.4
0.5
16.5
13
12.6
10
1Hour
Pre-wash(50 )
Wash(60 )
Rinse (50 )
Drying
℃
℃
℃
60 9
0.8
5/27.5g
20g
Daily wash in only 1 hour.
Forlightlyandnormally
soiled plates and pans
foreveryday.
(*AS/NZS 2007.1)
For heavilysoiled loads,
such as pots, plates, glasses
and lightly soiled pans.

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut offthe water supply and open the door of the dishwasher.
Waitfor afew minutesbefore unloading thedishwasher to avoid handlingthe dishes and utensilswhile they
are still hot and more susceptible to breakage.Theywill alsodrybetter.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn offthewatertap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishesshould therefore be allowed to cool downaround 15 minutes
before removing from the appliance.
Open thedishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloadingthedishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in thelowerone.
If you open thedoor , the machine will pause. The program lightwill
stop blinking and thebuzzer will mooingevery minute unless youclosethe door .After
you closethe door ,the machine will keep on workingafter 10 seconds.
duringawashcycle
Premise:
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Open the door ,press the Program button , the machine will be in standby state,
thenyoucan change the programto the desired cycle setting (see thesection entitled " Starting a
wash cycle. . ." ).
more than 3 seconds
1
2
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5
The dishwasher will run after 10 seconds.
Washthearms insoapy and warmwater and use asoftbrush to
clean the jets. Replace them after rinsing them thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to openthe door when washing, because the hot watermay scald you.

The filter preventslarger remnants of food or other objects from getting inside thepump.
Theresidues may blockthefilter, inthis casethey must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
Anda microfilter(Fine filter).
Food and soil particles trapped in thisfilter arepulverizedbya
special jet on the lower spray arm andwasheddown todrain.
Larger items, such as pieces of bonesor glass, that could block
the drainaretrappedin the coarse filter.To removetheitems
caught by the filter, gently squeeze the tap on the top of this
filterandliftout.
Thisfilter holds soil and food residues inthe sumpareaand
prevents itfrom being redepositon the dishes during wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a good idea to
remove the larger foodparticles trapped in the filter after each washcyclebyrinsing the semicircular filterand
cup under runningwater. To remove thefilter device, pull the cup handle in the upward direction.
removes food particles from the wash water, allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacementof the filter may reduce the performancelevel ofthe appliance
and damage dishesand utensils.
Step 1 Turn the filter in anti-clockwisedirection,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1
2

The control panelcan be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Neverusesharp objects, scouring pads or harsh cleaners onany part of the dishwasher.
ProtectAgainst Freezing
1.Cut off the electricalpower to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a sponge to soak up water in the sump.
please take frost protection measures onthe dishwasher in winter. Every fter washing cycles,
please operate as follows time a
：
Cleaning the Filter
CleaningThe Door
To clean the coarsefilter and the fine filter, use a cleaning brush. Reassemble thefilter parts as shown in the figures
on thelast page and reinsert the entire assembly in the dishwasher, positioning itin itsseat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted andtheperformance ofthe dishwasher couldbe decreased.
To clean theedge around the door, you should use only a soft warm, damp cloth.
To avoid penetrationof waterinto the door lock and electrical components,do not
use a spray cleaner of any kind.
Never usea spray cleaner to clean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agents or some paper towels should not be used because of the riskof
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicalswillclogthe sprayarmjetsandbearings.
- Inspect the filters for blockingafter every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeany foodremnants and
cleanthefilters underrunningwater.
Remarks:
The entirefilter assembly shouldbe cleaned once a week.
Toremovethelowerspray arm,pull out the spray arm upward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise toremoveit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.

Itisrecommend thatyourun awashcycle with the
dishwasher emptyand then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolast longer andpreventodoursfromforming
withinthe appliance.
If the appliance must be moved, tryto keep it in the
verticalposition. Ifabsolutelynecessary,itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trapped in the seals.
Periodic cleaning with adamp sponge will preventthis
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasive cleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened withwater ana little
vinegar, or a cleaning product madespecifically for
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
After every wash, turn off the water supply to the
appliance and leave the door slightlyopen sothat
moisture and odours arenot trapped inside.
After EveryWash
When not inUse for aLongTime
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electricalpower before
installingdishwasher.
Failure to do so can result in death or
electrical shock.
The installation position of dishwasher should be near the existing inlet and drain hoses and
powercord.
One side of the cabinetsinkshould be chosen tofacilitate theconnection of drain hoses of
thedishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook foraesthetic panel,screw)
●

Please carefully read theinstallation instruction.

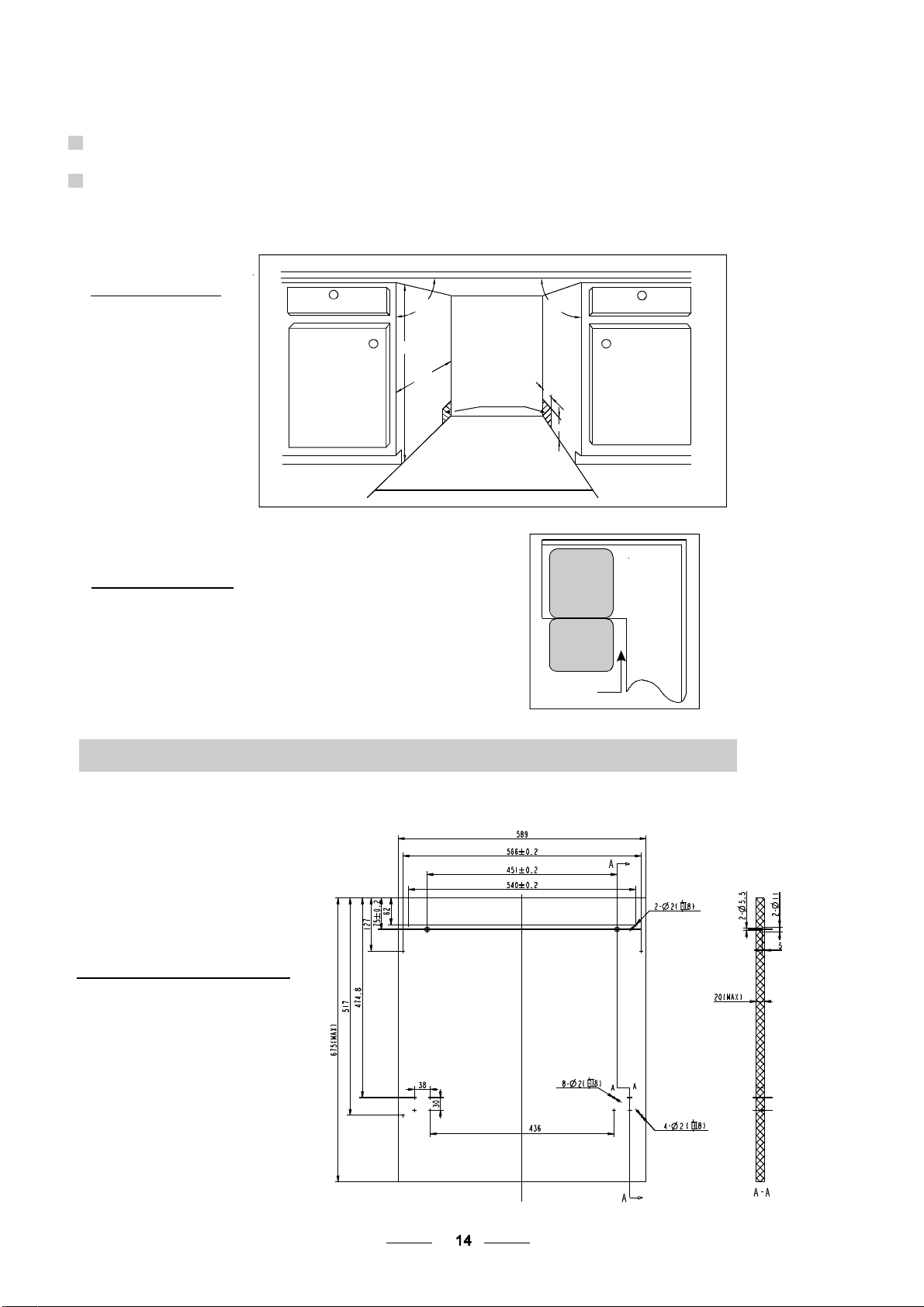

Illustrations of cabinet dimensionsandinstallation position of thedishwasher
Preparations shouldbe made before moving the dishwasher tothe installation place.
Choose a placenearthe sinkto facilitate the installation ofinletanddrain hoses
(see figure 1).
If dishwasher isinstalled at the corner of the cabinet, thereshould be some space
(illustrated in figure2) when the dooris opened.
2
1
Minimumspace when
the door is opened
【】Figure2
Cabinetdimensions
【】Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1 The aesthetic wooden panel could be processed according to the Figure 3.
Theaestheticpanelshould
be processed in accordance
withthe illustrated dimensions
【】Figure3
●Aesthetic panel's dimensions and installation
Less than 5mm
between thetop
of dishwasher and
cabinetand the
outer door aligned
to cabinet.
90 °
90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)

Installation of aesthetic panel
【】Figure4a
2 Install the hook on the aesthetic wooden panel andput the hookinto the slot of the outer door of
dishwasher(see figure 4a).After positioning of the panel , fix the panel onto the outer doorby
screws and bolts(See figure 4b) .
Installation of aesthetic
woodenpanel
【】Figure4b
. take away the four
short screws
. pin up the four long
screws
1
2

Tension adjustment
ofthe door spring
【】Figure5
Tension adjustment of the doorspring
●
Connection of drain hoses
●
The door springsareset at the factoryto the proper tension for the outer door.
If aesthetic wooden panel are installed, you will have to adjust the door spring tension.
Rotate the adjustingscrew to drive the adjustor to strainor relax the steel cable
(seefigure5).
Door spring tension is correct when
the door remains horizontal in the
fully openedposition yetrises
toaclosewiththeslightliftofa
finger.
，
Insert the drainhose into adrainpipe with a minimumdiameter of 40mm,or letit run into the sink, making sureto
avoid bendingor crimping it. The topof the hosemust belessthan 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ40mm
B

【Figure 7】

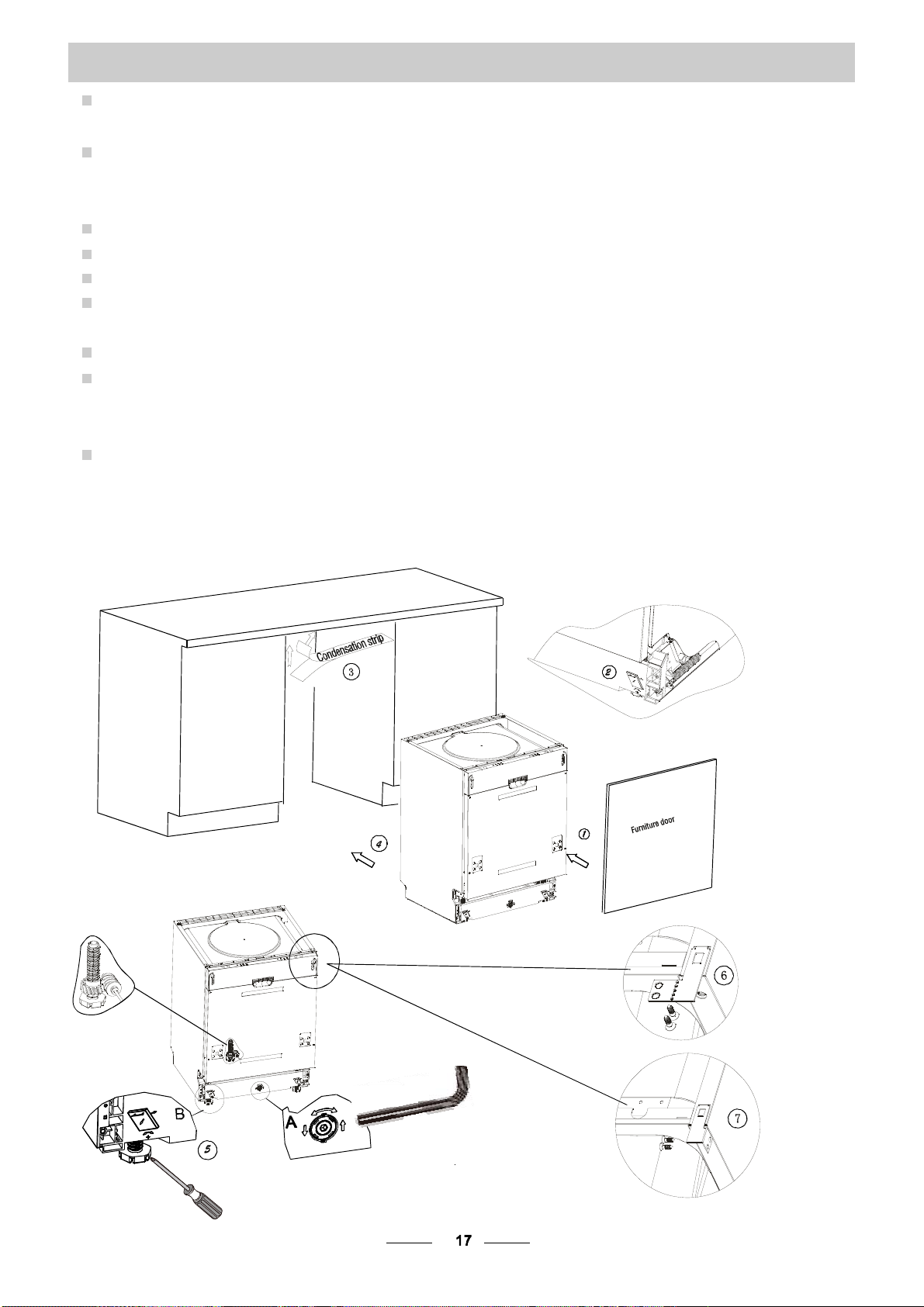

Dishwasher installation steps
●
1
2
.
3.
4.
5.
6
7
8
Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer
to the template for positioning of the brackets.
Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to
tighten the left and right door springs. Failure to do this could cause damage to your dishwasher
(Illustration 2)
Connect the inlet hose to the cold water supply
Connect the drain hose. Refer to diagram (Figure 6)
Connect the power cord
Affix the condensation strip under the work surface of cabinet. Please ensure the condensation
strip is flush with edge of work surface.
Place the dishwasher into position.(Illustration 4)
Level the dishwasher. The rear foot can be adjusted from the front of the dishwasher by turning
the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust
the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: Put the right(left) installation hook into the slot of the right(left) side plane and
secure it to the work surface with two woodscrews (Illustration 6).
B. Marble or granite work top: Bend the right(left) installation hook into right-angle,and put it into the
slot of the right(left) side plane and secure it to the work surface with two woodscrews s (Illustration 7)
.
