To prevent accidents, which could cause serious injury or death, as well as
machine damage read these in󰀬ructions before in󰀬allation and / or use.

1USA
INTRODUCTION
Please read this in󰀬allation manual
and particularly the safety in󰀬ructions
completely and carefully. They will save you
time and e󰀨ort and help to ensure optimum
dishwasher performance.
Be sure to observe all li󰀬ed warnings and
cautions. Look particularly for the icons with
exclamation marks inside. The information
icon also will provide important references.



WARNING:
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
CAUTION:
Indicates a potentially hazardous situation
which, if not avoided, may result in injury.
It may also be used to alert again󰀬 unsafe
practices.
NOTICE:
Indicates a potentially hazardous situation
which, if not avoided, may result in damage
to the dishwasher, the table-ware, the
equipment or the environment.
1. IMPORTANT SAFETY
INSTRUCTIONS
In addition to these in󰀬ructions, the
dishwasher shall be in󰀬alled:
• In accordance with all local codes or, in
absence of a local code,
• In the United States, with the National
Electric Code,
• In Canada, with the Canadian Electric
Code C22.1-late󰀬 edition/Provincial and
Municipal codes and/or local codes.
NOTICE :
Read these in󰀬allation in󰀬ructions
completely before in󰀬alling and follow them
carefully. Save these in󰀬allation in󰀬ructions
and pass them on to any future user.
WARNING
When in󰀬alling the dishwasher, follow
basic precautions, including the
following:
• The dishwasher could only be converted
from cord-connected to permanently
connected by an authorized service
representative. (If needed contact your
dealer to schedule an authorized service
agent for conversion with an appropriate
conversion kit)
• In󰀬allation and repair should be
performed by a qualied in󰀬aller.
Work by unqualied persons could be
dangerous and may void the warranty.
NOTICE :
The dishwasher should be in󰀬alled by
an insured licensed plumber, contractor
or trained in󰀬aller. In󰀬allation performed
by persons other than this could result in
improper in󰀬allation and property damage.
• Do not operate the appliance if damaged,
malfunctioning, partially disassembled or
if it has missing or broken parts.
• Also follow the safety in󰀬ructions of the
user manual.
• To reduce the risk of electric shock, re,
or injury to persons, the in󰀬aller mu󰀬
ensure that the dishwasher is completely
enclosed at the time of in󰀬allation.
• Only connect the dishwasher to the
power supply when all in󰀬allation and
plumbing work is complete.
• If the dishwasher is in󰀬alled in a location
that experiences freezing temperatures
(e.g. in a vacation home, cabin, etc.),
you mu󰀬 drain all the water from the
dishwasher’s interior. Water sy󰀬em
ruptures that occur as a result of freezing
are not covered by warranty.
• Dishwasher mu󰀬 be secured to adjacent
cabinetry using the brackets provided.
Failure to do this may cause damage to
property or bodily injury.
• Connect to a properly rated, protected
and sized power supply circuit to avoid
electrical overload. The dishwasher is

2USA
designed for an electrical supply of 120 V
(volts), 60 Hz (hertz), AC, connected to a
dishwasher-dedicated, properly grounded
electrical circuit with a fuse or breakers
rated for 15 amperes. Electrical supply
conductors shall be a minimum of # 16
AWG copper wire rated at 75 °C (167
°F) or higher. These requirements mu󰀬
be met to prevent injury and machine
damage. Consult a qualied electrician if
in doubt.
• Do not use any extension cord or
portable outlet device to connect the
dishwasher to a power supply.
• Ensure that any pla󰀬ic wrappings, bags,
small pieces etc. are disposed of safely
and kept out of the reach of children.
Danger of su󰀨ocation!
• Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
Ensure that the appliance presents no
danger to children while being 󰀬ored for
disposal.
• Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
NOTICE :
• The dishwasher drain hose mu󰀬 be
in󰀬alled with a drain loop at lea󰀬 28”
(710mm) o󰀨 the cabinet oor; otherwise
the dishwasher may not drain properly.
• This dishwasher is intended for
residential use only, and should not be
used in commercial e󰀬ablishments.
• New in󰀬allation - If the dishwasher is a
new in󰀬allation, mo󰀬 of the work mu󰀬
be done before the dishwasher is moved
into place.
• Replacement - If the dishwasher is
replacing another dishwasher, check
the exi󰀬ing dishwasher connections for
compatibility with the new dishwasher,
and replace parts as necessary.
1.1 INSPECT THE DISHWASHER
After unpacking the dishwasher and prior
to in󰀬allation, thoroughly inspect the
dishwasher for possible freight or cosmetic
damage. Report any damage immediately.
NOTICE :
• Cosmetic defects mu󰀬 be reported within
10 days of in󰀬allation.
• Do not discard any bags or items that
come with the original package until
after the entire in󰀬allation has been
completed.

3USA

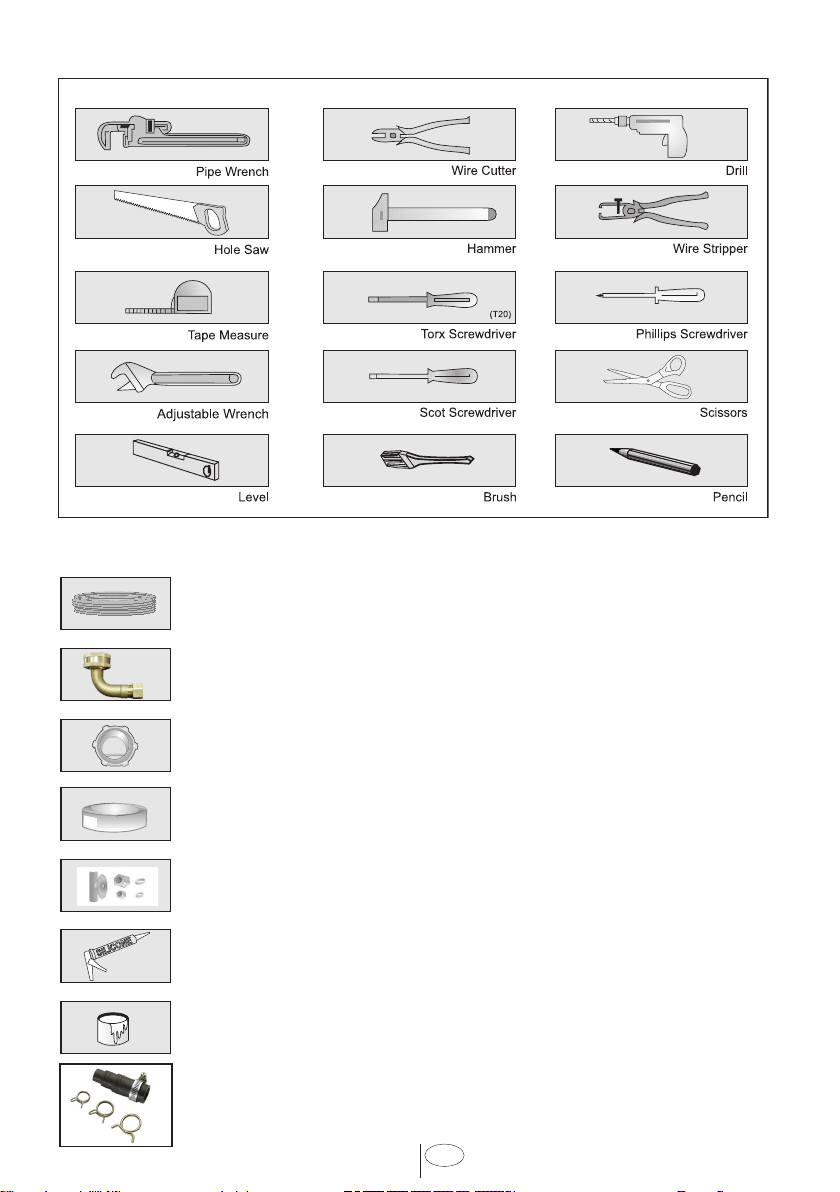

2. TOOLS WHICH MAY BE NEEDED
3. MATERIALS WHICH MAY BE NEEDED
(Additional materials may be required to comply with local codes)
Hot Water Supply Line - Minimum 3/8” O.D. copper tubing or metal braided
dishwasher supply line.
Elbow with 3/4” N.P.T. female thread for dishwasher side, and sized to t
your water supply line (copper tubing/compression tting, or braided hose)
on the other side. Dishwasher connection is 3/4" male.
UL li󰀬ed conduit connector or 󰀬rain relief.
Teon tape or other pipe thread compound to seal plumbing connections.
Shut-o󰀨 valve and ttings appropriate for hot water supply line (copper
tubing/compression tting, or braided hose).
Silicone
Glue
Dishwasher Discharge Hose Adaptor

4USA
4. MATERIALS SUPPLIED
4.1 PARTS SUPPLIED
Parts for your dishwasher will
come in several pla󰀬ic bags.
Check your parts bags shown
to make sure you have all the
parts as li󰀬ed to the left.
4.2 MANUAL BAG
The dishwasher comes with a
manual bag containing:
• User manual,
• In󰀬allation manual
4.3 DISHWASHER
PARTS BAG 1
This dishwasher bag comes
with the following parts:
a. Side Trim Strips (Left)
b. Side Trim Strips (Right)
d. Screws Ø 1/8” x 5/8” (Ø 3.5
mm x 14 mm)
e. Mounting Bracket Left
f. Mounting Bracket Right
h. Screw Clamp
k. Toe Kick Bracket - Left
l. Toe Kick Bracket – Right
n. Timber Centering
o. Timber Centering Screw
p. Toe Kick
s. Template
t. Hook and loop fa󰀬ener
v. Side centering
z. Steam Protection Foil
4.4 DISHWASHER
PARTS BAG 2
(MODEL DEPENDING)
In addition to the manual bag
and the dishwasher parts bag
(dishwasher models which
can accept a wooden kitchen
door) also come with a door
panel in󰀬allation kit which
contains:
y. Screws 4mm x 36 mm =
3/16th x 1-7/16th
yy. Screws Ø 3/16” x 13/4” (Ø
4mm x 43mm)
4.5 PARTS ATTACHED
TO THE REAR OF THE
DISHWASHER
a. Side Trim Strips (Left)
b. Side Trim Strips (Right)
x4
x2

5USA
5. DISHWASHER SPECIFICATIONS


TALL TUB MODELS
STANDART TUB MODELS

6USA
5.1 TECHNICAL FEATURES
Permissible water pressure 4.35 - 145 psi (0.3 - 10 bars)
Electrical connection 120 V (volts), 12 A (amps), 60Hz (hertz)
Total power 1400 W (watts)
Heater power 1100 W (watts)
NOTICE :
Because we continually 󰀬rive to improve our products, we may change our specications
and design without prior notice.
This device corresponds to the following directives:
UL 749 Household Dishwasher directive.

7USA
6. ENCLOSURE PREPARATION
6.1 ELECTRICAL PREPARATION
WARNING
The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC, connected
to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or
breaker rated for 15 amperes.

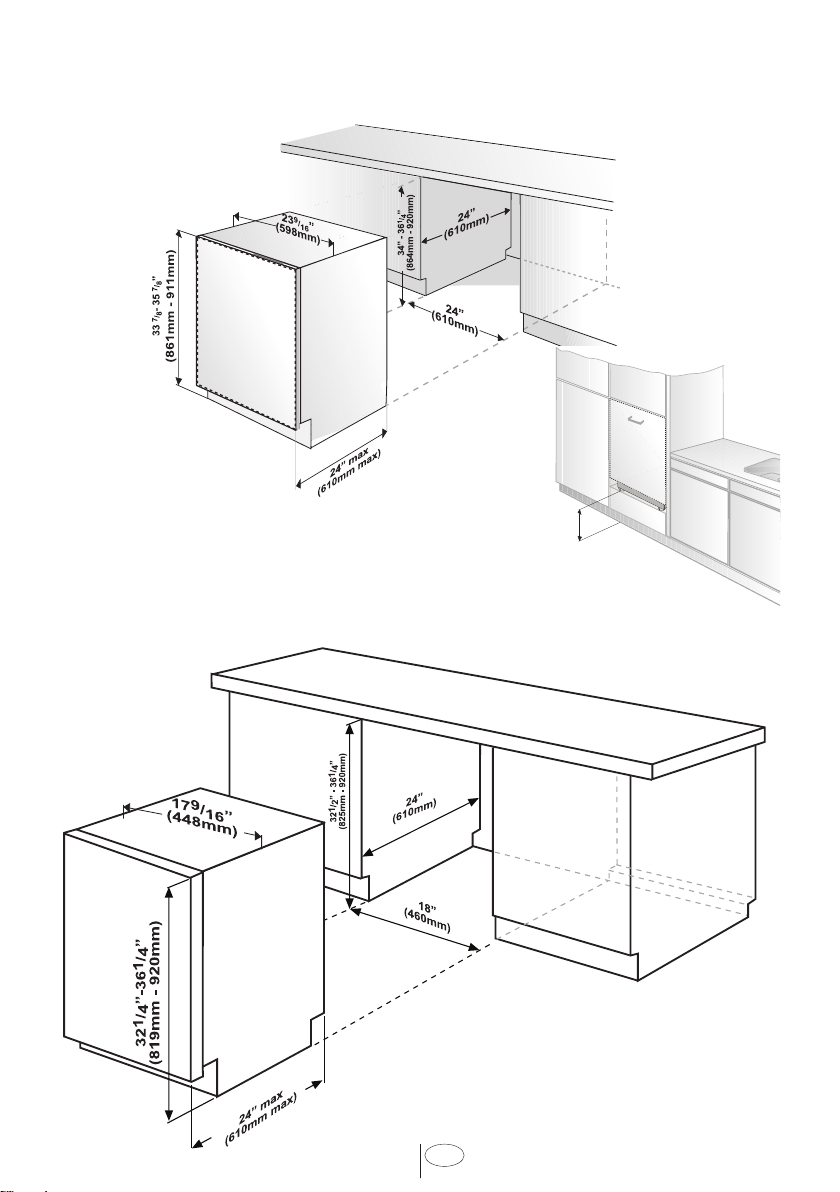

6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS
WARNING
Dishwasher mu󰀬 be secured to adjacent cabinetry using the mounting brackets
provided. Failure to do this may cause damage to property or bodily injury.
e-f)
STANDART TUB MODELS

8USA
?
d)

9USA
(+50mm)
j
+ 50 max
50

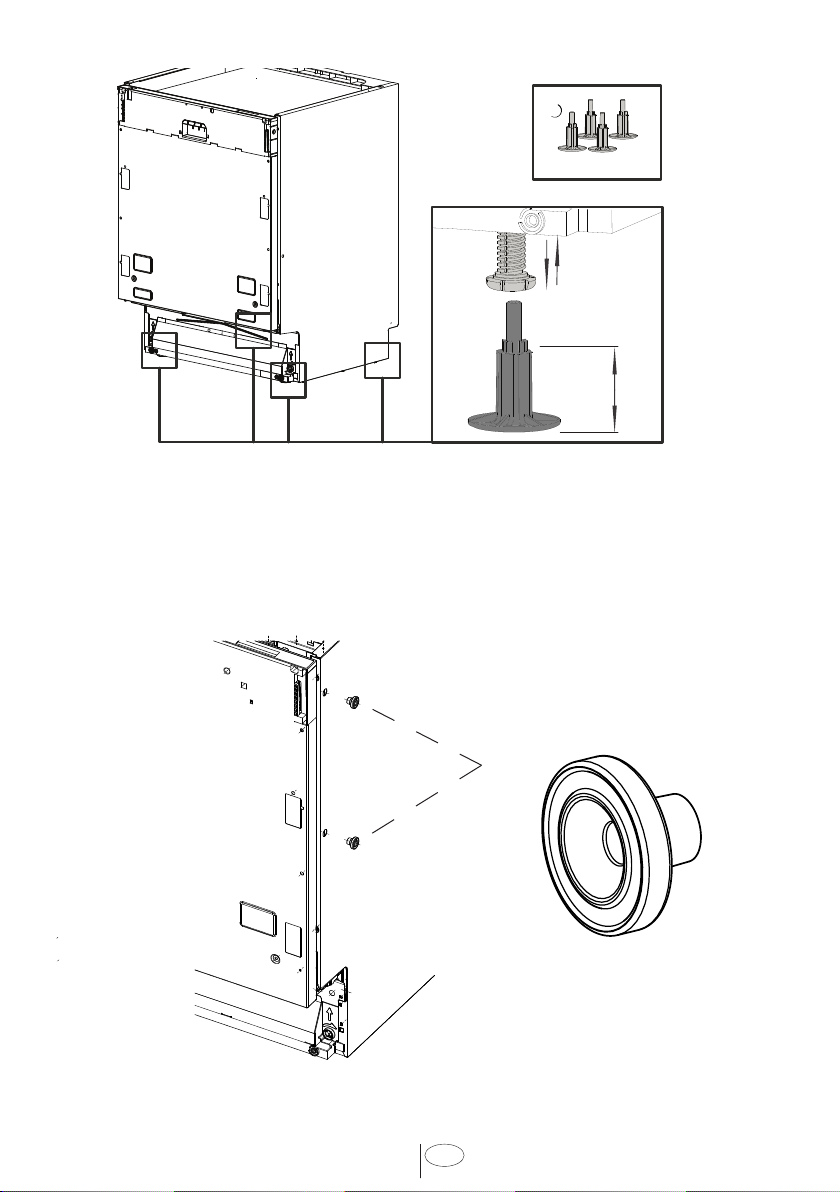

Place the two mounting brackets into the top corners of the dishwasher.
Fix the mounting brackets (A) to the top corners of the dishwasher, with the screws
supplied.
Bend sides of mounting brackets (B) in order to x from sides (if necessary).
(Standart tub models)
Tighten the plugs on both sides
of your machine (v)
TALL TUB MODELS ONLY

10 USA

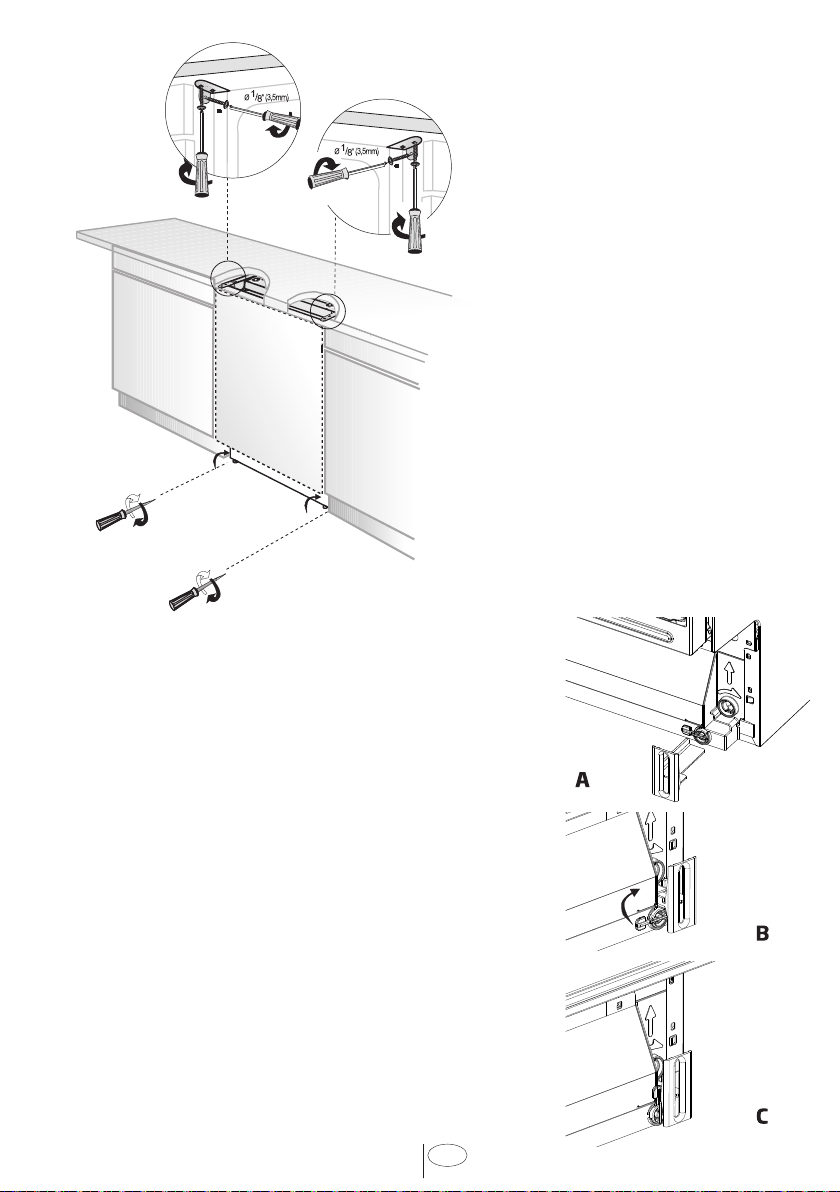

6.3 ADJUSTING HEIGHT
If the height of the enclosure is 337/8” to 357/8”
(861 mm - 911mm) adju󰀬 supports as shown in
the gure.
Supplied (4)
Adju󰀬 the front foot level with the adju󰀬ing
wrench to balance and raise the dishwasher to the
enclosure height.
Adju󰀬 the rear foot level with a screwdriver to
balance and raise the dishwasher to the enclosure
height.
NOTICE :
• Make sure the dishwasher is plumb and
notice dishwasher can be placed with a small
clearance under the counter top.
• Turning the screwdriver in the direction of the
black arrows will bring the dishwasher back feet
up.
• Turning the screwdriver in the direction of the
white arrows will take the dishwasher rear feet
down.

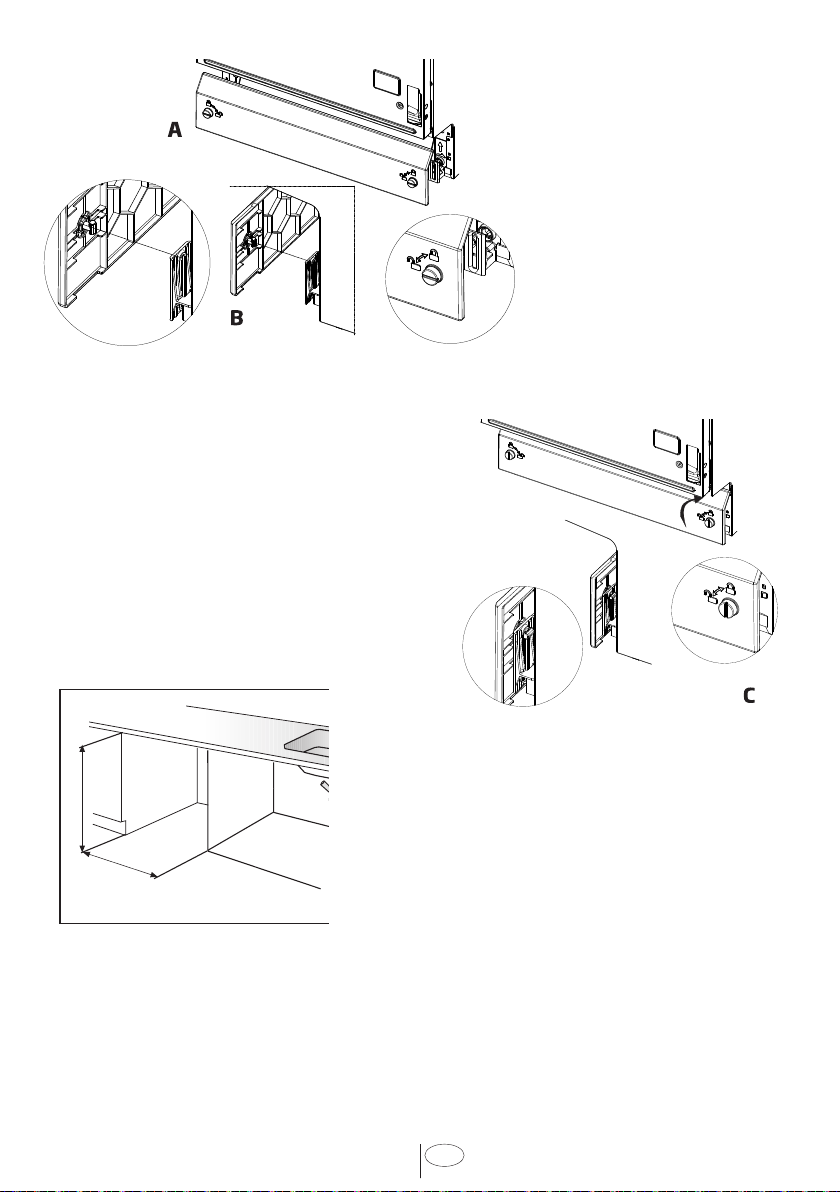

6.4 INSTALLING THE SIDE TRIM STRIPS
Remove the adhesive tape (Figure A).
Place the trim 󰀬rips on the front edge of the side
walls (Figure B).
NOTICE :
• Make sure you use the correct trim 󰀬rip since
there is a left and right side 󰀬rip. The exible
material should be facing forward (Figure B).



11 USA
6.5 PREPARING THE WATER CONNECTION (A)
In󰀬all an easily accessible shut-o󰀨 valve (not supplied) in the water supply line. All solder
connections mu󰀬 be made before the water line is connected to the dishwasher’s water
inlet valve. Water can also be supplied to the dishwasher by using a exible braided hose
line.
Check with your plumbing supply sources for the proper hose and elbow and necessary
ttings for the water supply line. This material is not supplied, and mu󰀬 be purchased
separately.
WARNING
In󰀬allation should be performed by a qualied in󰀬aller. Work by unqualied
persons could be dangerous and may void the warranty.
If the dishwasher is in󰀬alled in a location that experiences freezing temperatures
(e.g. in a vacation home, cabin etc.), you mu󰀬 drain all the water from the
dishwasher’s interior. Water sy󰀬em ruptures that occur as a result of freezing are
not covered by warranty.
6.6 DRAIN PREPARATION
The dishwasher drain hose may be connected to the drain plumbing in one of three ways
(Figure A, B, C).
Water Connection

12 USA
NOTICE :
• Either one of the above methods mu󰀬 be used or the dishwasher will not operate
properly.
• A hose that attaches to a sink spray can bur󰀬 if it is in󰀬alled on the same water line as
the dishwasher. If your sink has one, it is recommended that the hose be disconnected
and the hole plugged.
• The total length of the drain hose is 763/4” (1950mm). If a hose extension is required, a
drainage hose of equal quality mu󰀬 be used.
• The maximum length mu󰀬 not exceed 157 ½” (4000mm). Otherwise, the cleaning
process is negatively inuenced.
6.6.1 UNDER THE SINK DRAIN
In󰀬all a Y-branch tail pipe. (Figure A)
NOTICE :
You mu󰀬 add a loop at lea󰀬 28” (710mm) above the oor of
the cabinet and above the drain connection in the drain hose
to prevent wa󰀬e water from not draining properly, and causing
either poor washing results or a bad odor.
6.6.2 INSTALLING AN AIR GAP
If the local ordinance requires an air gap (Figure B).
NOTICE :
Check with local ordinance for type of air gap required.
6.6.3 DISPOSAL
Remove the drain connection plug before attaching the drain
hose from the dishwasher.
Every disposal has a hook up for a dishwasher; consult your
disposer manual for correct connection. (Figure C)




13 USA
6.7 STEAM PROTECTION FOIL
Steam will form inside the dishwasher during operation. At the end of the cycle, when the
dishwasher door is opened, it is required to use a 󰀬eam protection foil to prevent any
󰀬eam from collecting on the underside of the counter top.
6.6.2 FITTING THE PROTECTION FOIL
Before applying the 󰀬eam protection foil to the
underside of the countertop, clean the area with
a damp cloth (as shown in Figure A). Once the
area dries, apply the 󰀬eam protection foil.
CAUTION
Steam protection foil mu󰀬 be applied
where the 󰀬eam escapes when door is
r󰀬 opened. Failure to in󰀬all the 󰀬eam
protection foil during in󰀬allation can
lead to damage to the cabinets and
countertop.
The 󰀬eam protection
foil will be applied at the
location where the hot
󰀬eam escapes when you
r󰀬 open the door (as
shown in Figure B).



14 USA
7. PLACEMENT OF DISHWASHER INTO THE OPENING
Now place the dishwasher into the opening and get ready to connect all hoses and
electrical connections.
CAUTION
Make sure all hoses
are pulled through the
side opening of the
cabinet, no hoses are
kinked and all slack is
taken out as shown in
the above gure.
7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL
CONNECTIONS
7.1.1 DRAIN HOSE CONNECTION
Connect the drain hose to the drain plumbing.
1. Use the supplied rubber connection hose and drain hose clamps to connect the
dishwasher drain hose to the plumbing drain connection.
2. Use the spring clamp to secure the rubber connection hose to the dishwasher drain
hose. Use the screw clamp to secure the rubber connection hose to the plumbing drain
connection.
Note that the marks
on the rubber
connection hose
should be on the drain
hose side

15 USA
7.1.2 WATER SUPPLY CONNECTION
Water supply may be connected to the
dishwasher in one of two ways:
• With metal braided hose.
• With copper tubing.
CAUTION
• Hot water supply line: Use minimum 3/8”
O.D. copper tubing or metal braided
dishwasher supply line.
• Temperatures required for soldering and
sweating will damage the dishwasher’s
water inlet valve so if any such operation
is needed, keep the heat source
min. 77/8” (200mm) away from the
dishwasher’s water inlet valve.
• There should not be any sharp bends in
the water line that may re󰀬rict the water
ow.
• Teon tape or pipe tread compound
mu󰀬 be used for sealing the connection.
Before connecting the copper water
supply line to the dishwasher, ush it with
hot water to clear any foreign material.
NOTICE :
After connections are made turn on the
water supply to check for leaks.
7.1.3 ELECTRICAL CONNECTION
WARNING
• Make sure the voltage and frequency
li󰀬ed on the data plate correspond with
the household electrical supply. This data
mu󰀬 correspond to prevent injury and
machine damage. Consult a qualied
electrician if in doubt.
• Only connect the dishwasher to the
mains when all in󰀬allation and plumbing
work is complete.
• Do not use any extension cord or
portable outlet device to connect the
dishwasher to a power supply.
• The power-supply receptacle for the
appliance shall be in󰀬alled in a cabinet
or on a wall adjacent to the undercounter
space in which the appliance is to be
in󰀬alled.
• The access hole of the supply cord to the
in󰀬allation compartment mu󰀬 be smooth
and rounded and it mu󰀬 be large enough
for the attachment plug to pass through.
The longe󰀬 dimension of the opening
shall not be more than 1,5” (38 mm).If the
partition is metal, it needs to be covered
with an edge protector.
• Care mu󰀬 be taken when the appliance
is in󰀬alled or removed, to reduce the
likelihood of damage to the power-supply
cord.
7.1.4 GROUNDING INSTRUCTIONS
This appliance mu󰀬 be grounded. In the
event of a malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of lea󰀬
resi󰀬ance for electric current. This
appliance is equipped with a cord having
an equipment-grounding conductor and a
grounding plug. The plug mu󰀬 be plugged
into an appropriate outlet that is in󰀬alled
and grounded in accordance with all local
codes and ordinances. This appliance
mu󰀬 be connected to a grounded metal,
permanent wiring sy󰀬em, or an equipment-
grounding conductor mu󰀬 be run with the
circuit conductors and connected to the
equipment-grounding terminal or lead on
the appliance.
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualied
electrician or service representative if
you are in doubt whether the appliance is
properly grounded. Do not modify the plug
provided with the appliance, if it will not t
the outlet, have a proper outlet in󰀬alled by
a qualied electrician.

16 USA
7.3 ADJUSTING THE MOVABLE TOE KICK
Now that you have successfully in󰀬alled the dishwasher, you
need to attach the toe kick to the dishwasher. The two piece
toe kick can be adju󰀬ed to the height and depth needed for
your kitchen. Be sure to use the slotted toe kick in the front
and the other behind it. They slide into each other.
Place parts K and L to the channel shown in Figure A for both
sides as shown in Figure B. Then x them in the direction
shown with the arrow in Figure C and Figure B.
7.2 READJUSTING FOOT
LEVELS
Now that the dishwasher is in the
cabinet you mu󰀬 readju󰀬 the feet to
bring the dishwasher up to the required
height and attach it underneath the
countertop.
1. Readju󰀬 the front foot levels with
adju󰀬ing wrench to balance the
dishwasher and raise it up under the
countertop, make sure the unit is level.
2. Readju󰀬 the rear foot levels with a
screwdriver to balance the dishwasher
and raise it to the required height using
the brackets supplied.
3. Attach the dishwasher underneath
the countertop with the four screws
supplied (Ø 1/8” x 1/8” - Ø 3.5mm
x 14mm). Make sure you do not go
through the top of the countertop or
damage granite.
TALL TUB MODELS ONLY

17 USA
Open the xing part on the Toe Kick(p). (A)
Place it on the slots, which are on the brackets
xed before, and adju󰀬 the height (max. 40
mm). (B)
Close the xing part on the Toe Kick. (C)



TALL TUB MODELS ONLY

18 USA
7.4 FIXING THE CABINET TO THE COUNTER
(y)
STANDART TUB MODELS
