FULGOR MWOR530A2ASS User manual

Use & Care Manual
for Over The Range Microwave Oven
Models
ENGLISH: Before you begin, read these instructions completely and carefully. Page 3 and 4
IMPORTANT FOR OWNER: Save these instructions for the local electrical inspector use. Leave this manual with owner for
future reference.
FRENCH: Avant de commencer, lisez complètement et soigneusement ces instructions. Page 29 et 30
IMPORTANT POUR LE PROPRIETAIRE : Gardez ces instructions pour une utilisation d’inspection électrique locale. Le
propriétaire doit garder ce manuel pour de futures références.
ESPAÑOL: Antes de empezar lea atenta y completamente estas instrucciones. Pagina 57 y 58
IMPORTANTE PARA EL PROPIETARIO: Guarde estas instrucciones para el uso del inspector eléctrico local. Deje este
manual al propietario para futuras referencias.
The contents are subject to change without notice
MWOR530A2ASS
MWOR530A3ASS

3
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly
and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d)Theovenshouldnotbeadjustedorrepairedbyanyoneexceptproperlyqualiedservicepersonnel.
Table of Contents
Precautions To Avoid Possible Exposure
To Excessive Microwave Energy ....................... 3
Important Safety Instructions............................. 4
Unpacking And Examining Your Oven .............. 5
Electrical Grounding Instructions...................... 5
Information You Need To Know.......................... 6-8
About Your Oven ............................................... 6
About Food........................................................ 6
About Utensils And Coverings ........................... 7
About Children And The Microwave .................. 7
About Microwave Cooking................................. 8
About Safety...................................................... 8
Part Names........................................................... 9

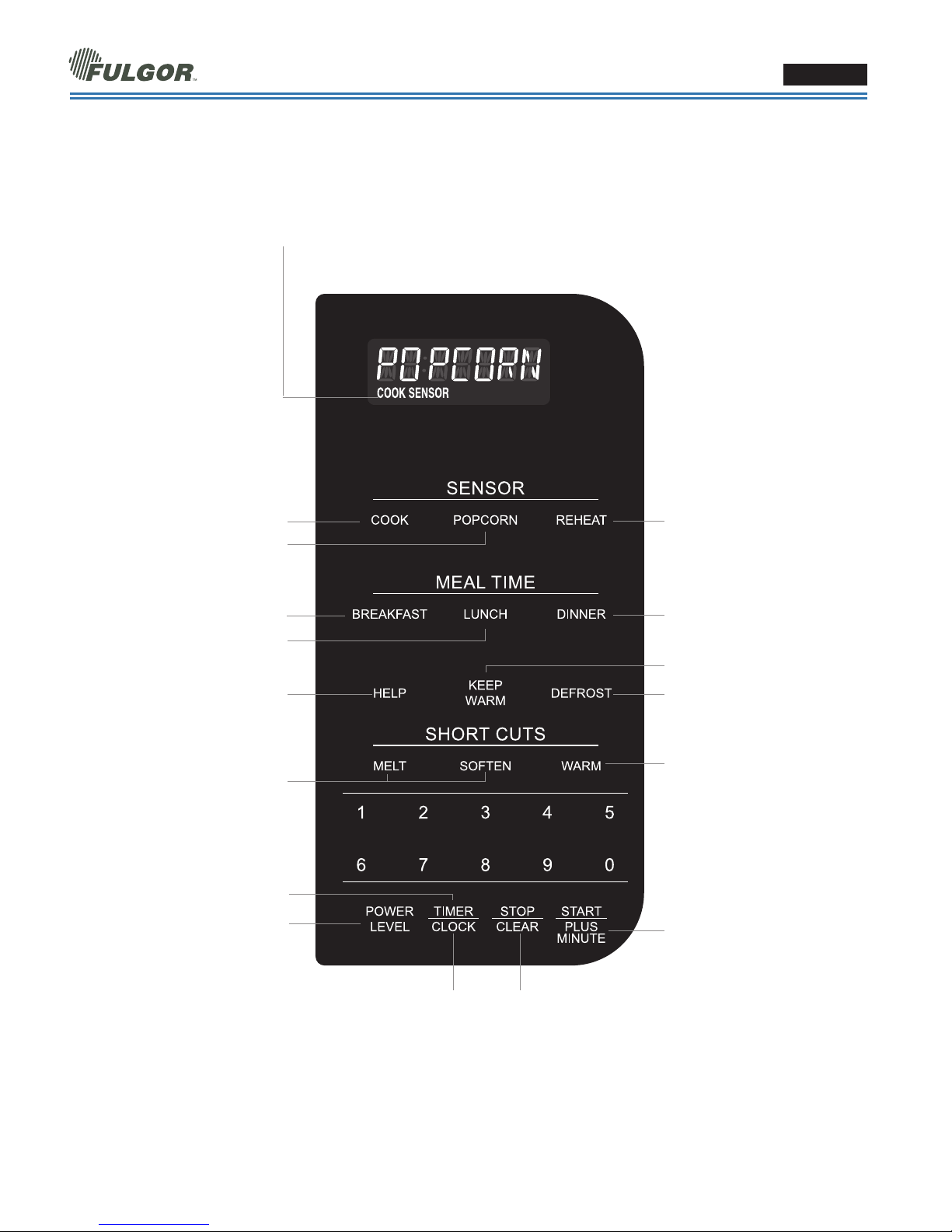

Control Panel..................................................... 10
Before Operating ................................................. 11
To Set The Clock ............................................... 11
Stop/Clear.......................................................... 11
Manual Operation ................................................ 12
Time Cooking..................................................... 12
To Set Power Level............................................ 12
Using The Rack ................................................. 12
Special Features..................................................1 3-21
Sensor Settings ................................................. 13
Cook .................................................................. 13
Cook Chart ........................................................ 14
Popcorn ............................................................. 15
Reheat............................................................... 15
Reheat Chart ..................................................... 15
Meal Time.......................................................... 16
Breakfast ........................................................... 16
Breakfast Chart.................................................. 16
Lunch................................................................. 17
Lunch Chart....................................................... 17
Dinner ....................................................................... 17
Dinner Recipes........................................................
17-18
Defrost............................................................... 19
Defrost Chart ..................................................... 19
Manual Defrost .................................................. 20
Keep Warm........................................................ 20
Short Cuts.......................................................... 21
Short Cuts Chart................................................ 21
Other Convenient Features ................................2 2-23
Help ................................................................... 22
Demonstration Mode ......................................... 22
Multiple Sequence Cooking............................... 23
More Or Less Time Adjustment ......................... 23
Help (In The Display)......................................... 23
Plus Minute........................................................ 23
Timer.................................................................. 23
Light Hi/lo........................................................... 23
Fan Hi/lo ............................................................ 23
Cleaning And Care .............................................. 24
Replacing Parts ................................................... 25
Service Call Check .............................................. 26
Specications ...................................................... 26
Fulgor Warranty For Small Appliances ............. 27
Page Page

4
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
SAVE THESE INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING- Toreducetheriskofburns,electricshock,re,injurytopersonsorexposuretoexcessivemicro-
wave energy:
READ ALL INSTRUCTIONS BEFORE USING1.
THE APPLIANCE.
Readandfollowthespecic2. “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” on page 3.
This appliance must be grounded. Connect only3.
to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” on page 5.
Install or locate this appliance only in accordance4.
with the provided Installation manual.
Some products such as whole eggs and sealed5.
containers—for example, closed glass jars—are
able to explode and should not be heated in this
oven.
Use this appliance only for its intended use as6.
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
ovenisspecicallydesignedtoheat,cookordry
food. It is not designed for industrial or laboratory
use.
As with any appliance, close supervision is neces-7.
sary when used by children.
Do not operate this appliance if it has a damaged8.
cord or plug, if it is not working properly or if it has
been damaged or dropped.
Thisapplianceshouldbeservicedonlybyqualied9.
service personnel. Contact nearest Fulgor Autho-
rized Servicer for examination, repair or adjustment.
Do not cover or block any openings on the appliance.10.
Do not store or use this appliance outdoors. Do not11.
use this product near water—for example, near a
kitchen sink, in a wet basement or near a swimming
pool, or similar locations.
Do not immerse cord or plug in water.12.
Keep cord away from heated surfaces.13.
Do not let cord hang over edge of table or counter.14.
See door surface cleaning instructions on page 24.15.
Toreducetheriskofreintheovencavity:16.
a. Do not overcook food. Carefully attend appli-
ance when paper, plastic or other combustible
materials are placed inside the oven to facili-
tate cooking.
b. Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
c. If materials inside the oven should ignite,
keep oven door closed, turn oven off and
disconnect the power cord or shut off
power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes. Do
not leave paper products, cooking utensils or
food in the cavity when not in use.
Liquids, such as water, coffee or tea are able to17.
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the micro-
wave oven is not always present. THIS COULD
RESULT IN VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway through
heating it.
c. Do not use straight-sided containers with narrow
necks. Use a wide-mouthed container .
d. After heating, allow the container to stand in the
microwave oven at least for 20 seconds before
removing the container.
e. Use extreme care when inserting a spoon or other
utensil into the container.
Cleanventilationopeningsandgreaseltersfre-18.
quently. Grease should not be allowed to accumu-
lateonventilationopenings,louverorgreaselters.
Use care when cleaning the louver and the grease19.
lters.Corrosivecleaningagents,suchaslye-
based oven cleaners, ma damage the louver and
thegreaselters.
Whenamingfoodunderthehood,turnthefanon.20.
This appliance is suitable for use above both gas21.
and electric cooking equipment 36” wide or less.
IMPORTANT SAFETY INSTRUCTIONS

5
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
Openthebottomofthecarton,bendthecartonapsbackandtilttheoven
over to rest on plastic foam pad. Lift carton off oven and remove all packing
materials, Wall and Top Cabinet Template. SAVE THE CARTON AS IT MAY
MAKE INSTALLATION EASIER.
1. Remove the feature sticker from the outside of the door, if there is one.
2. Check to see that there are Installation Manual, a Wall Template and Top
Cabinet Template. Read enclosures and SAVE the Use and Care manual.
Check the oven for any damage, such as misaligned or bent door, damaged
door seals and sealing surfaces, broken or loose door hinges and latches and
dents inside the cavity or on the door. If there is any damage, do not operate
the oven and contact your dealer or FULGOR AUTHORIZED SERVICER.
Unpacking And Examining Your Oven
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug.
It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National
Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of
electric shock by providing an escape wire for the electric current.
WARNING - Improper use of the grounding plug can result in a risk of electric shock.
ELECTRICAL REQUIREMENTS
The oven is equipped with a 3-prong grounding plug. DO NOT UNDER ANY CIRCUM-
STANCES CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG. DO NOT USE
ANEXTENSIONCORD.Ifthepowersupplycordistooshort,haveaqualiedelectricianor
serviceman install an outlet near the appliance.
The Power Supply Cord and plug must be connected to a separate 120 Volt AC, 60 Hz, 15
Amp, or more branch circuit, single grounded receptacle. The receptacle should be located
inside the cabinet directly above the microwave oven mounting location as shown.
NOTE:
1. If you have any questions about the grounding or electrical instruc-
tions,consultaqualiedelectricianorserviceperson.
2. Neither Fulgor nor the dealer can accept any liability for damage to
the oven or personal injury resulting from failure to observe the correct
electrical connection procedures.
RADIO OR TV INTERFERENCE
Should there be any interference caused by the microwave oven to your
radio or TV, check that the microwave oven is on a different electrical
circuit, relocate the radio or TV as far away from the oven as feasible or
check position and signal of receiving antenna.
Electrical Grounding Instructions
Ground
Receptacle
Opening for
Power Cord

6
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
ABOUT YOUR OVEN
This Use and Care manual is valuable: read it carefully
and always save it for reference.
A good microwave cookbook is a valuable asset. Check
it for microwave cooking principles, techniques, hints
and recipes.
ALWAYS have food in the oven when it is on to absorb
the microwave energy.
When using the oven at power levels below 100%, you
may hear the magnetron cycling on and off. It is normal
for the exterior of the oven to be warm to the touch
when cooking or reheating.
Condensation is a normal part of microwave cooking.
Roomhumidityandthemoistureinfoodwillinuence
the amount of moisture that condenses in the oven.
Generally, covered foods will not cause as much con-
densation as uncovered ones. Vents on the oven back
must not be blocked.
The oven is for food preparation only. It should not be
used to dry clothes or newspapers.
Your oven is rated 1200 watts by using the IEC Test
Procedure. In using recipes or package directions,
check food a minute or two before the minimum time
and add time accordingly.
ABOUT FOOD
FOOD DO DON'T
Eggs, sausages,
nuts, seeds, fruits
& vegetables
Puncture egg yolks before cooking to•
prevent “explosion”.
Pierce skins of potatoes, apples,•
squash, hot dogs and sausages so that
steam escapes.
Cook eggs in shells.•
Reheat whole eggs.•
Dry nuts or seeds in shells.•
Popcorn Use specially bagged popcorn for the•
microwave oven.
Listen while popping corn for the pop-•
ping to slow to 1 or 2 seconds or use
special POPCORN pad.
Pop popcorn in regular brown bags or•
glass bowls.
Exceed maximum time on popcorn•
package.
Baby food Transfer baby food to small dish and•
heat carefully, stirring often. Check
temperature before serving.
Put nipples on bottles after heating and•
shake thoroughly. “Wrist” test before
feeding.
Heat disposable bottles.•
Heat bottles with nipples on.•
Heat baby food in original jars.•
General Cutbakedgoodswithllingafterheat-•
ing to release steam and avoid burns.
Stir liquids briskly before and after•
heating to avoid “eruption”.
Use deep bowl, when cooking liquids•
or cereals, to prevent boilovers.
Heat or cook in closed glass jars or air tight•
containers.
Can in the microwave as harmful bacteria•
may not be destroyed.
Deep fat fry.•
Dry wood, gourds, herbs or wet papers.•
Information You Need To Know

7
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
How to use aluminum foil in your microwave oven:
Smallatpiecesofaluminumfoilplacedsmoothly•
on the food can be used to shield areas that are
either defrosting or cooking too quickly.
Foil should not come closer than one inch to any•
surface of the oven.
Should you have questions about utensils or coverings,
check a good microwave cookbook or follow recipe
suggestions.
ACCESSORIES There are many microwave acces-
sories available for purchase. Evaluate carefully before
you purchase so that they meet your needs. A micro-
wave-safe thermometer will assist you in determining
correct doneness and assure you that foods have been
cooked to safe temperatures. Fulgor is not responsible
for any damage to the oven when accessories are used.
ABOUT CHILDREN AND THE
MICROWAVE
Children below the age of 7 should use the microwave
oven with a supervising person very near to them.
Between the ages of 7 and 12, the supervising person
should be in the same room.
The child must be able to reach the oven comfortably; if
not, he/she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing
on the oven door.
Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special
attention to packages that crisp food because they may
be extra hot.
Don’t assume that because a child has mastered one
cooking skill he/she can cook everything.
Children need to learn that the microwave oven is not a
toy. See page 22 for Child Lock feature.
ABOUT UTENSILS AND COVERINGS
It is not necessary to buy all new cookware. Many
pieces already in your kitchen can be used successfully
in your new microwave oven. Make sure the utensil
does not touch the interior walls during cooking.
Use these utensils for safe microwave cooking and
reheating:
glass ceramic (Pyroceram• ®), such as
Corningware®.
heat-resistant glass (Pyrex• ®)
microwave-safe plastics•
paper plates•
microwave-safe pottery, stoneware and porcelain•
browning dish (Do not exceed recommended pre-•
heating time. Follow manufacturer's directions.)
These items can be used for short time reheating of
foods that have little fat or sugar in them:
wood, straw, wicker•
DO NOT USE
metal pans and bakeware•
dishes with metallic trim•
non-heat-resistant glass•
non-microwave-safe plastics (margarine tubs)•
recycled paper products•
brown paper bags•
food storage bags•
metal twist-ties•
Should you wish to check if a dish is safe for microwav-
ing, place the empty dish in the oven and microwave on
HIGH for 30 seconds. A dish which becomes very hot
should not be used.
The following coverings are ideal:
Paper towels are good for covering foods for re-•
heating and absorbing fat while cooking bacon.
Wax paper can be used for cooking and reheating.•
Plastic wrap that is specially marked for micro-•
wave use can be used for cooking and reheating.
DO NOT allow plastic wrap to touch food. Vent so
steam can escape.
Lids that are microwave-safe are a good choice•
because heat is kept near the food to hasten
cooking.
Oven cooking bags are good for large meats or•
foods that need tenderizing. DO NOT use metal
twist ties. Remember to slit bag so steam can
escape.

8
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
ABOUT MICROWAVE COOKING
Arrange food carefully. Place thickest areas towards•
outside of dish.
Watch cooking time. Cook for the shortest amount•
of time indicated and add more as needed. Food
severely overcooked can smoke or ignite.
Cover foods while cooking. Check recipe or cook-•
book for suggestions: paper towels, wax paper,
microwave plastic wrap or a lid. Covers prevent spat-
tering and help foods to cook evenly.
Shieldwithsmallatpiecesofaluminumfoilany•
thin areas of meat or poultry to prevent overcooking
before dense, thick areas are cooked thoroughly.
Stir foods from outside to center of dish once or•
twice during cooking, if possible.
Turn foods over once during microwaving to speed•
cooking of such foods as chicken and hamburgers.
Large items like roasts must be turned over at least
once.
Rearrange foods such as meatballs halfway through•
cooking both from top to bottom and from the center
of the dish to the outside.
Add standing time. Remove food from oven and stir,•
if possible. Cover for standing time which allows the
foodtonishcookingwithoutovercooking.
Check for doneness. Look for signs indicating that•
cooking temperatures have been reached.
Doneness signs include:
- Food steams throughout, not just at edge.
- Center bottom of dish is very hot to the touch.
- Poultry thigh joints move easily.
- Meat and poultry show no pinkness.
- Fishisopaqueandakeseasilywithafork.
ABOUT SAFETY
Check foods to see that they are cooked to the•
United States Department of Agriculture's recom-
mended temperatures.
TEMP FOOD
160˚F For fresh pork, ground meat, boneless white
poultry,sh,seafood,eggdishesandfrozen
prepared food.
165˚F For leftover, ready-to-reheat refrigerated, and
deli and carry-out “fresh” food.
170˚F White meat of poultry.
180˚F Dark meat of poultry.
To test for doneness, insert a meat thermometer in a
thick or dense area away from fat or bone. Never leave
the thermometer in the food during cooking, unless it is
approved for microwave oven use.
ALWAYS use potholders to prevent burns when•
handling utensils that are in contact with hot food.
Enough heat from the food can transfer through
utensils to cause skin burns.
Avoid steam burns by directing steam away from•
the face and hands. Slowly lift the farthest edge of a
dish's covering and carefully open popcorn and oven
cooking bags away from the face.
Stay near the oven while it's in use and check cook-•
ing progress frequently so that there is no chance of
overcooking food.
NEVER use the cavity for storing cookbooks or other•
items.
Select, store and handle food carefully to preserve•
its high quality and minimize the spread of foodborne
bacteria.
Use care when removing items from the oven so that•
the utensil, your clothes or accessories do not touch
the safety door latches.
Keep aluminum foil used for shielding at least 1 inch•
away from walls, ceiling and door.

9
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
BOTTOM VIEW
FRONT VIEW
(Front of Microwave)
(Rear of Microwave)
Part Names
15
2
316
4
5
10
9
8
11
6
7
15
12
4
13
14
Oven door with see-through window1.
Door hinges2.
Oven light3.
It will light when oven is operating or door is open.
Rack holders for two rack positions.4.
Safety door latches5.
The oven will not operate unless the door is
securely closed.
One touch door open button6.
Push to open door.
LIGHT HI/LO7. pad
Press the LIGHT HI/LO pad one time for high,
twice for low and three times to turn off.
FAN HI/LO8. pad
Press the FAN HI/LO pad to turn on the fan.
Press again for low speed. Press a third time to
turn the fan off.
Control panel9.
Time display: Digital interactive display,10.
99 minutes, 99 seconds
Ventilation openings11.
Menu label12.
Rack for 2-level cooking/reheating13.
Light cover14.
Greaselter15.
Raiting label16.

10
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
CONTROL PANEL
Number next to the control panel illustration indicates pages on which
there are feature descriptions and usage information.
Words in the lower portion of the display will light to indicate what function is in progress.
13 15
16
22
17
12
15
17
19
20
21
21
23
11 11
23

11
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
Before operating your new microwave oven make•
sure you read and understand this Use and Care
manual completely.
Before the oven can be used, follow these proce-•
dures:
1. Plug in the oven. Close the door. The oven display
will show
ENJOY YOUR OVEN PRESS
CLEAR AND PRESS CLOCK
.
2. Touch the STOP/CLEAR pad.
:
will
appear.
3. Set clock.
TO SET THE CLOCK
Suppose you want to enter the correct time of day•
12:30 (A.M. or P.M.).
PROCEDURE PRESS
1. Touch TIMER/CLOCK pad
and number 2.
TIMER
CLOCK 2
2. Enter the correct time of day
by touching the numbers in
sequence. 1230
3. Touch TIMER/CLOCK pad
again.
TIMER
CLOCK
This is a 12 hour clock. If you attempt to enter an incor-
rect clock time,
ERROR
will appear in the display.
Touch the STOP/CLEAR pad and re-enter the time.
If the electrical power supply to your microwave oven•
should be interrupted, the display will intermittently
show
ENJOY YOUR OVEN PRESS CLEAR
AND PRESS CLOCK
after the power is rein-
stated. If this occurs during cooking, the program
will be erased. The time of day will also be erased.
Simply touch STOP/CLEAR pad and reset the clock
for the correct time of day.
NOTE: Your oven can be programmed with the door
open except for START/PLUS MINUTE and POP-
CORN.
Before Operating
STOP/CLEAR
Touch the STOP/CLEAR pad to:
Erase if you make a mistake during programming.1.
Cancel timer.2.
Stop the oven temporarily during cooking.3.
Return the time of day to the display.4.
Cancel a program during cooking, touch twice.5.

12
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
TIME COOKING
Your oven can be programmed for 99 minutes 99
seconds (99.99). Always enter the seconds after the
minutes, even if they are both zeros.
Suppose you want to cook for 5 minutes at 100%.•
PROCEDURE PRESS
1. Enter cooking time. 500
2. Touch START/
PLUS MINUTE pad.
START
PLUS
MINUTE
TO SET POWER LEVEL
There are eleven preset power levels.
Using lower power levels increases the cooking time
which is recommended for foods such as cheese, milk
and long slow cooking of meats. Consult cookbook or
recipesforspecicrecommendations.
TOUCH POWER
LEVEL PAD
NUMBER OF TIMES
FOR DESIRED
POWER
APPROX.
PERCENTAGE
OF POWER
COMMON
WORDS
FOR
POWER
LEVELS
POWER LEVEL x 1 100% High
POWER LEVEL x 2 90%
POWER LEVEL x 3 80%
POWER LEVEL x 4 70% Medium High
POWER LEVEL x 5 60%
POWER LEVEL x 6 50% Medium
POWER LEVEL x 7 40%
POWER LEVEL x 8 30% Med Low/
Defrost
POWER LEVEL x 9 20%
POWER LEVEL x 10 10% Low
POWER LEVEL x 11 0%
Manual Operation
Suppose you want to defrost for 5 minutes at 30%.•
PROCEDURE PRESS
1. Enter defrosting time. 500
2. Touch POWER LEVEL pad
eight times to enter a power
level of 30%.
POWER
LEVEL x 8
3. Touch START/
PLUS MINUTE pad.
START
PLUS
MINUTE
When the defrost time is complete, a long tone will
sound and
END
will appear in the display.
USING THE RACK
The rack allows several foods to be cooked or reheated
at one time. There are two available rack positions.
Select the rack position that maximizes space around
and between the foods. Follow directions in REHEAT
for using the rack for reheating two stirrable casseroles.
Otherwise set time and power level manually. Pay close
attention to the cooking/reheating progress. Reposition
the foods and reverse them from rack to oven bottom at
least once during any cooking or reheating time. Using
a lower power level will assist in better cooking/reheat-
ing uniformity.
AVOID:
Storing the rack in the microwave oven when not in use.•
Popping popcorn with the rack in the microwave oven.•
Using any browning dish on the rack.•
Using special features, except• REHEAT with the
rack.
Cooking directly on the rack—use microwave-safe•
cookware.

13
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
SENSOR SETTINGS
Fulgor's SENSOR is a semi-conductor device that
detects the vapor (moisture and humidity) emitted from
the food as it heats. The sensor adjusts the cooking
times and power level for various foods and quantities.
USING SENSOR SETTINGS:
1. After oven is plugged in, wait 2 minutes before us-
ing Sensor settings.
2. Be sure the exterior of the cooking container and
the interior of the oven are dry. Wipe off any mois-
ture with a dry cloth or paper towel.
3. The oven works with foods at normal storage tem-
perature. For example, popcorn would be at room
temperature.
4. Any Sensor settings selection can be programmed
with More or Less Time Adjustment. See page 23.
5. More or less food than the quantity listed in the
chart should be cooked following the guidelines in
any microwave cookbook.
6. Duringtherstpartofsensorcookingorreheating,
the food name will appear on the display. Do not
open the oven door or touch STOP/CLEAR during
this part of the cooking cycle. The measurement
of vapor will be interrupted. If this occurs, an error
message will appear. To continue cooking, touch the
STOP/CLEAR pad and cook manually.
When the sensor detects the vapor emitted from
the food, remainder of cooking time will appear.
Door may be opened when remaining cooking time
appears on the display. At this time, you may stir or
season food, as desired.
7. If the sensor does not detect vapor properly when
popping popcorn, the oven will turn off, and the cor-
rect time of day will be displayed. If the sensor does
not detect vapor properly when cooking other foods,
ERROR
will be displayed, and the oven will turn off.
8. Check food for temperature after cooking. If addi-
tional time is needed, continue to cook manually.
9. Each food has a cooking hint. Touch HELP pad
when the HELP indicator is lighted in the display.
COVERING FOODS:
Some foods work best when covered. Use the cover
recommended in the food charts.
1. Casserole lid.
2. Plastic wrap: Use plastic wrap recommended for
microwave cooking. Cover dish loosely; allow
approximately 1/2 inch to remain uncovered to
allow steam to escape. Plastic wrap should not
touch food.
3. Wax paper: Cover dish completely; fold excess
wrap under dish to secure. If dish is wider than
paper, overlap two pieces at least one inch to cover.
Be careful when removing any covering to allow steam
to escape away from you.
COOK
COOK will automatically compute the microwave power
and cooking time for foods shown in the chart. You
don't need to enter the weight or quantity of the food.
Suppose you want to cook a baked potato.•
PROCEDURE PRESS
1. Touch COOK pad and
the number 1 for Baked
Potatoes.
COOK 1
2. At end, follow the directions in the display.
3. Touch START/
PLUS MINUTE pad.
START
PLUS
MINUTE
Special Features

14
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
COOK CHART
FOOD AMOUNT PROCEDURE
1. Baked Potatoes 1 - 8 medium Pierce with fork in several places. Place inside oven on paper towel.
After cooking, remove from oven, wrap in aluminum foil and let stand 5 to
10 minutes.
2. Fresh Vegetables: Soft Wash and place in casserole. Add no water if vegetables have just been
washed. Cover with lid for tender vegetables. Use plastic wrap for ten-
der-crisp vegetables. Touch COOK pad and number 2. After cooking, stir,
if possible. Let stand, covered, for 2 to 5 minutes.
Broccoli
Brussels sprouts
Cabbage
Caulif.(owerets)
Cauliower(whole)
Spinach
Zucchini
Baked apples
.25 - 2 lb
.25 - 2 lb
.25 - 2 lb
.25 - 2 lb
1 med.
.25 - 1 lb
.25 - 2 lb
2 - 4 medium
3. Fresh Vegetables: Hard Place in casserole. Add 1-4 tbsp water. Cover with lid for tender vegeta-
bles. Use plastic wrap cover for tender-crisp vegetables. Touch COOK
pad and number 3. After cooking, stir, if possible. Let stand, covered, for
2 to 5 minutes.
Carrots, sliced
Corn on the cob
Green beans
Winter squash:
diced
halves
.25 - 1.5 lb
2 - 4
.25 - 1.5 lb
.25 - 1.5 lb
1 - 2
4. Frozen Vegetables .25 - 1.25 lb Do not add water. Cover with lid or plastic wrap. After cooking, stir and let
stand covered for 3 minutes.
5. Frozen Entrees 1 or 2
(6 - 17 oz)
Use this setting for frozen, convenience foods. It will give satisfactory
results for most brands. You may wish to try several and choose your
favorite. Remove package from outer wrapping and follow package di-
rections for covering. After cooking, let stand, covered for 1 to 3 minutes.
6. Ground Meat .25 - 2 lb Use this setting to cook ground beef or turkey as patties or in a casserole
to be added to other ingredients. Place patties on a microwave-safe rack
and cover with wax paper. Place ground meat in a casserole and cover
with wax paper or plastic wrap. When oven stops, turn patties over or stir
meat in casserole to break up large pieces. Re-cover and touch START/
PLUS MINUTE. After cooking, let stand, covered, for 2 to 3 minutes.
7. Rice .5 - 2 cups Place rice into a deep casserole dish and add double quantity of water.
Cover with lid or plastic wrap. After cooking, stir, cover and let stand 3 to
5 minutes or until all liquid has been absorbed.
Rice Water Size of casserole dish
0.5 cup ------- 1 cup ------------1.5 quart
1.0 cup ------- 2 cups ----------2 quart
1.5 cups ------ 3 cups ----------2.5 or 3 quart
2.0 cups ------ 4 cups ----------3 quart or larger
8. Fish/Seafood .25 - 2 lb Arrangeinringaroundshallowglassdish(rolllletwithedgesunder-
neath). Cover with plastic wrap. After cooking, let stand, covered, 3
minutes.
9. Chicken Breast .25 - 2 lb Cover with vented plastic wrap. When oven stops, turn over. Shield with
small,atpiecesofaluminumfoilanyareasthatarecookingtoorapidly.
Re-cover and touch START/PLUS MINUTE. After cooking, let stand,
covered 3 to 5 minutes. Chicken should be 160°F.

15
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
REHEAT
REHEAT allows you to reheat many of your favorite
foods. You don't need to calculate cooking time or
power level.
Suppose you want to reheat lasagna.•
PROCEDURE PRESS
Touch REHEAT pad, number
3 for no stir dishes, and then
press START/PLUS MINUTE
pad.
REHEAT 3
START
PLUS
MINUTE
When vapors are detected from the food, remainder
of reheating time will appear. At end, follow the direc-
tions in the display.
NOTE:
REHEAT and POPCORN have choices. Follow direc-
tions in the Interactive Display to choose desired op-
tion.
REHEAT CHART
FOOD AMOUNT PROCEDURE
1. Regular 4 - 36 oz Place in dish or casserole slightly larger than amount to be reheated. Flatten, if pos-
sible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic wrap or
lids with larger quantities of more dense foods such as stews. After reheating, stir
well, if possible. Re-cover and allow to stand 2 to 3 minutes. Foods should be very
hot. If not, continue to heat with variable power and time.
2. With stir 13 x 9 x 2"
glass utility
casserole
Ideal for reheating stirrable casseroles, such as macaroni and cheese or stew. Cover
withventedplasticwraporwaxpaper.Placeonovenoor.TouchREHEAT, the
number 2 and START/PLUS MINUTE. At signal, stir casserole and rotate dish. Touch
START/PLUS MINUTE. At end, stir and allow to stand covered, for 5 to 10 minutes.
3. No stir 13 x 9 x 2"
glass utility
casserole
Ideal for reheating non-stirrable casseroles, such as lasagna. Cover with vented
plasticwraporwaxpaper.Placeonovenoor.TouchREHEAT, the number 3 and
START/PLUS MINUTE. At signal, rotate dish. Touch START/PLUS MINUTE. At end,
stir and allow to stand covered, for 5 to 10 minutes.
4. With stir,
2 levels
2 - 13 x 9 x 2"
glass utility
casserole
Ideal for reheating stirrable casseroles, such as macaroni and cheese or stew.
Cover with vented plastic wrap or wax paper. Touch REHEAT, the number 4 and
START/PLUS MINUTE. At signal, stir casserole and rotate dishes. Touch START/
PLUS MINUTE. At end, stir and allow to stand covered, for 5 to 10 minutes.
POPCORN
POPCORN will automatically compute the microwave
power time for popcorn amounts shown.
Use only popcorn packaged for the microwave. Try
several brands to decide which you like. Do not try to
pop unpopped kernels.
PROCEDURE PRESS
Touch POPCORN pad once for
Regular or Regular Light (2.85 -
3.5 oz bag).
POPCORN
Touch POPCORN again for Mini
or Snack (1.2 - 1.75 oz bag). POPCORN x 2

16
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
MEAL TIME
Your oven has 3 convenient pads to assist with meal
preparation. There are some foods under BREAKFAST
and LUNCH that use the sensor. See the Sensor Set-
tings information on page 13. For foods not using the
sensor, follow the directions in the Interactive Display to
enter quantity.
NOTE for SPECIAL FEATURES:
1. All MEAL TIME features can be programmed with
More or Less Time Adjustment. Touch the POWER
LEVEL pad once or twice before touching START/
PLUS MINUTE pad. See page 23.
2. Each food has a cooking hint. Touch HELP pad
when the HELP indicator is lighted in the display.
3. Should you attempt to enter more or less than the
allowed amount, an error message will appear in
the display.
More or less than the quantity listed in the chart
should be cooked following the guidelines in any
microwave cookbook.
4. Thenalcookingresultwillvaryaccordingtothe
food condition (e.g. initial temperature, shape, qual-
ity). Check food for temperature after cooking. If ad-
ditional time is needed, continue to cook manually.
BREAKFAST
BREAKFAST is for preparing popular breakfast foods.
Suppose you want to use• BREAKFAST to cook 2
servings of hot cereal.
PROCEDURE PRESS
1. Touch BREAKFAST pad
and the number 5 for hot
cereal.
BREAKFAST 5
2. If you want to cook 2
servings, touch number 2. 2
3. Touch START/
PLUS MINUTE pad.
START
PLUS
MINUTE
After cooking, follow the directions in display.
BREAKFAST CHART * It is not necessary to enter amount or number.
FOOD AMOUNT PROCEDURE
1. Beverage .5 - 2.0 cups This setting is good for restoring a cool beverage to a better drinking temperature.
Touch BREAKFAST pad and number 1 for beverage. Touch number 1 pad for a 0.5
cup increase per touch and press START/PLUS MINUTE pad. Stir after heating.
2. Rolls/
mufns
1 - 10 pcs Usethispadtowarmrolls,mufns,biscuits,bagelsetc.Largeitemsshouldbecon-
sidered as 2 or 3 regular size. Arrange on plate: cover with paper towel. For refrig-
eratedrollsormufns,itmaybenecessarytodoubletheenteredamounttoensure
the proper serving temperature. For example, enter quantity of 2 for 1 refrigerated
mufn.Towarmfreshrollsandmufns,touchBREAKFAST pad and touch number
2forrollsandmufns.ThenenterdesiredquantityandtouchSTART/PLUS MIN-
UTE pad.
3. Frozen
Breakfast*
1 or 2
(3 - 6 oz)
Thissettingworkswellforfrozenbreakfastentrees,pancakes,wafes,burritosetc.
Follow manufacturer’s directions for how to prepare for microwaving. Allow to stand
1 or 2 minutes after cooking.
4. Scrambled
Eggs
1- 8 eggs For each egg, use 1 teaspoon of butter or margarine and 1 tablespoon of milk.
Place butter or margarine in dish, measuring cup or casserole large enough for the
egg to expand. Mix egg and milk together. Pour on to butter or margarine in dish.
Place in oven and program. When audible signals are heard, stir egg mixture mov-
ing the cooked portion to the center of the dish and uncooked portion to the outside.
After cooking, stir and let stand, covered, until set. Note that eggs will be slightly
undercooked when removed from the oven.
5. Hot Cereal 1 - 6
servings
Use individual packets or bulk cereal in your favorite variety: oatmeal, oat bran,
cream of wheat, farina or wheatena. Follow package directions for the correct
amount of water or milk. To prevent boilovers, it is very important to choose a large
container because microwave cooking of cereal causes high boiling. When oven
stops, stir and touch START/PLUS MINUTE. After cooking, stir and let stand, cov-
ered, for 2 minutes.

17
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
LUNCH
LUNCH is for cooking/heating foods that take a short
amount of time!
Suppose you want to use• LUNCH to heat 2 cups of
soup.
PROCEDURE PRESS
1. Touch LUNCH pad and
number 5 for soup. LUNCH 5
PROCEDURE PRESS
2. Touch START/
PLUS MINUTE pad.
START
PLUS
MINUTE
After cooking, follow the directions in display.
LUNCH CHART * It is not necessary to enter amount or number.
FOOD AMOUNT PROCEDURE
1. Chicken
Nuggets
.3 - 1 lb Placefrozenchickennuggetsonaatplateallowingspacebetweeneach.Itisnot
necessary to cover them.
2. Frozen
Snacks*
1 or 2
(3 - 8 oz)
Use for frozen poppers, cheese sticks, appetizers, chicken wings, etc. Remove
from outer package. Follow package directions for how to wrap or cover. Be careful
when removing from the oven as snack may be very hot.
3. Pizza 1
(6 - 8 oz)
Use for frozen microwave pizza. Remove from package and unwrap. Follow pack-
age directions for use of package and/or silver crisping disk.
4. Hot Dogs*
in buns
1 - 6 Place hot dog in bun. Wrap each with paper towel or napkin.
5. Soup* 1 - 8 cups Place in bowl or casserole. Cover with lid or plastic wrap. At end, stir, re-cover and
let stand 1 to 3 minutes.
DINNER
DINNER will cook any of the dinners listed in the
Dinner Recipes by simply following the directions in
the lnteractive Display and follow the Recipe Card for
ingredients and instructions.
Suppose you want to use• DINNER to cook Yellow
Rice and Chicken.
PROCEDURE PRESS
1. Touch DINNER pad and the
number 1 for Yellow Rice and
Chicken.
DINNER 1
2. See recipe card for directions.
3. Touch START/
PLUS MINUTE pad.
START
PLUS
MINUTE
DINNER RECIPES (RECIPES SERVE 6)
1. YELLOW RICE AND CHICKEN
Place in a 3 quart casserole:
1 package (5 - 8 ounces) yellow rice mix with
avorpacket
2 cups chicken broth
Stir well and cover. Touch DINNER, number 1 and
touch START/PLUS MINUTE.
At pause, stir well and add:
1 cup frozen peas
1 red pepper, diced
1 1/4 pounds boneless chicken cutlets, sliced into
thin strips
Re-cover. Touch START/PLUS MINUTE.
At end, garnish with parsley.

18
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
DINNER RECIPES (RECIPES SERVE 6)
2. DRESSED-UP MEAT LOAF
Mix together well:
1 1/2 pounds lean ground beef
1/2 cup soft bread crumbs
1/2 cup red wine
1 egg, beaten
2 tablespoons chopped onion
1/2 teaspoon salt
1/2 teaspoon dry mustard
1/4 teaspoon pepper
1 teaspoon instant beef bouillon
2 tablespoons chopped green pepper
Place in a 9 x 5-inch glass loaf dish.
Touch DINNER, number 2 and touch START/PLUS
MINUTE.
If desired, spread top of meat loaf with 1/2 cup catsup
during last 2 minutes of cooking time.
At end, remove from oven, cover with foil and allow to
stand 3 to 5 minutes before serving.
3. HERB ROAST PORK
Combine in small dish:
1 tablespoon butter, melted
2 cloves garlic, minced
1 teaspoon dried marjoram leaves, crushed
1/2 teaspoon dried oregano leaves, crushed
1/2 teaspoon pepper
Stir well. Brush on:
1 (3 pound) boneless, pork loin, center cut
Place loin in a 13 x 9 x 2-inch casserole. Cover with
vented plastic wrap.
Touch DINNER, number 3 and touch START/PLUS
MINUTE.
4. CREAMY SEAFOOD PASTA
Place in a 3 quart casserole:
8 - 9 ounces fresh tortellini
2 cups water
Stir well and cover. Touch DINNER, number 4 and
touch START/PLUS MINUTE.
At pause, stir well and add:
1 jar (17 ounces) creamy Alfredo sauce or
1-3/4 cups of medium, white cheese sauce
 1-1/4 poundscombinationrawshellsh,freshor
thawed (shrimp, bay scallops, crabmeat)
3 cups mixed, fresh vegetables (sliced mush-
rooms, thinly julienned carrots, green beans)
Re-cover. Touch START/PLUS MINUTE.
At end, garnish with:
1/3 cup grated Parmesan cheese
5. ORZO VEGETARIAN MEDLEY
Place in a 3 quart casserole:
1 cup orzo or other tiny shaped pasta
3 1/2 cups vegetable or chicken broth
1/4 cup pesto sauce (fresh or reconstituted
from dry)
1/2 cup small pieces of sundried tomatoes
1 tablespoon minced garlic
1 tablespoon Italian seasoning
Stir well and cover. Touch DINNER, number 5 and
touch START/PLUS MINUTE.
At pause, stir well and add:
3 cups chopped green, red, orange or
yellow peppers
1 onion, thinly sliced
1 can (14 ounces) artichoke hearts, drained
and quartered
1 can (3 ounces) pitted, ripe olives, drained
and halved
Re-cover. Touch START/PLUS MINUTE.
At end, stir and garnish top with:
1/2 cup freshly shredded Parmesan cheese
1/4 cup pine nuts

19
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
DEFROST
DEFROST automatically defrosts all the foods found in
the DEFROST CHART below.
Suppose you want to defrost a 2.0 pound steak.•
PROCEDURE PRESS
1. Touch DEFROST pad and
press number 2 for steak. DEFROST 2
2. Enter weight 2.0 lb. Touch
START/PLUS MINUTE pad.
The oven will stop and
directions will be displayed.
20
START
PLUS
MINUTE
3. After the 1st stage, open the
door, turn steak over and
shield any warm portions.
Close the door. Touch
START/PLUS MINUTE pad.
START
PLUS
MINUTE
PROCEDURE PRESS
4. After the 2nd stage, open the
door and shield any warm
portions. Close the door. Touch
START/PLUS MINUTE pad.
START
PLUS
MINUTE
After defrost cycle ends, cover and let stand as indi-
cated in chart below.
NOTE:
1. Any DEFROST choice can be programmed with
More or Less Time Adjustment. Touch the POWER
LEVEL pad once or twice after selecting the
amount. See page 23.
2. To defrost other foods or foods above or below the
weights allowed on the DEFROST CHART, use
time and 30% power. See MANUAL DEFROST on
page 20.
3. If you attempt to enter more or less than the al-
lowed amount as indicated in the chart below,
ERROR
will appear in the display.
4. Touch HELP pad when the HELP indicator is lighted
in the display for a helpful hint.
DEFROST CHART
FOOD AMOUNT PROCEDURE
1. Ground meat .5 - 2.0 lb Pull apart and remove any thawed pieces after each stage. Let stand, covered,
for 5 to 10 minutes.
2. Steaks/chops .5 - 3.0 lb After each stage, rearrange and if there are warm or thawed portions, shield
withsmallatpiecesofaluminumfoil.Removeanymeatorshthatisnearly
defrosted. Let stand, covered, for 10 to 20 minutes.
3. Rolls/mufns 1 - 10 Usethispadtodefrostrolls,mufns,biscuits,bagelsetc.Largeitemsshouldbe
considered as 2 or 3 regular size. Arrange on plate; cover with paper towel.
4. Boneless
poultry
.5 - 2.0 lb Use boneless breast of chicken or turkey. After each stage, if there are warm or
thawed portions, rearrange or remove. Let stand, covered, for 5 to 10 minutes.
5. Bone-in
poultry
.5 - 3.0 lb Arrange pieces with meatiest portions toward outside of glass dish or microwave
safe rack. After each stage, if there are warm or thawed portions, rearrange or
remove. Let stand, covered, for 5 to 15 minutes.
NOTE:
Checkfoodswhenovensignals.Afternalstage,smallsectionsmaystillbeicy.Letstandtocontinuethawing.
Do not defrost until all ice crystals are thawed.
Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth strips of
aluminum foil to cover edges and thinner sections of the food.

20
Use & Care Manual
Models MWOR530A2ASS, MWOR530A3ASS ENGLISH
MANUAL DEFROST
If the food that you wish to defrost is not listed on the
DEFROST CHART or is above or below the limits in the
“Amount” column on the DEFROST CHART (see page
19), you need to defrost manually.
You can defrost any frozen food, either raw or previ-
ously cooked, by using POWER LEVEL for 30%. Fol-
low the exact 3-step procedure found under TO SET
POWER LEVEL. Estimate defrosting time and press
POWER LEVEL pad eight times for 30% power.
For either raw or previously cooked frozen food the
rule of thumb is approximately 4 minutes per pound.
For example, defrost 4 minutes for 1 pound of frozen
spaghetti sauce.
Always stop the oven periodically to remove or sepa-
rate the portions that are defrosted. If food is not
defrosted at the end of the estimated defrosting time,
program the oven in 1 minute increments on POWER
LEVEL 30% until totally defrosted.
When using plastic containers from the freezer, defrost
only long enough to remove from the plastic in order to
place in a microwave-safe dish.
KEEP WARM
KEEP WARM allows you to keep food warm for
30 minutes.
DIRECT USE
Suppose you want to keep a cup of soup warm for•
30 minutes.
PROCEDURE PRESS
1. Touch KEEP WARM pad. KEEP
WARM
2. Enter the desired time. 3000
3. Touch START/PLUS MINUTE
pad.
START
PLUS
MINUTE
The oven will start. The display will show
30.00
and count down.
KEEP WARM
will be displayed
during the countdown.
You can program KEEP WARM with manual cooking to
keep food warm continuously after cooking.
WITH MANUAL COOKING
Suppose you want to cook a cup of soup for 2 min-•
utes at 70% and keep the soup warm for 15 minutes.
PROCEDURE PRESS
1. Enter cooking tome 200
2. Touch POWER LEVEL pad
4 times for 70% power.
POWER
LEVEL x 4
3. Touch KEEP WARM pad. KEEP
WARM
4. Enter the desired time. 1500
5. Touch START/PLUS MINUTE
pad.
START
PLUS
MINUTE
The operation will start. When the cooking time is
complete, a long tone will sound and KEEP WARM
will start.
KEEP WARM
will appear in the display
every 10 seconds and count down for 15 minutes.
NOTE: KEEP WARM cannot be programmed with
special features.
