Full Boar FBT-0700 User manual

KNOW YOUR PRODUCT
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
09/15
ROTARY HAMMER
DRILL KIT
INSTRUCTION MANUAL
•9jOULES
•1050w

2
Voltage: 230-240V ~50Hz
Power: 1050W
Impact Power: 9.0J
Impact Rate: 0-4,100/min¹
No Load Speed: 0-500min¹
Accessory Fitment: SDS Max
Drilling Capacity: 38mm
Weight: 6.9kg
SPECIFICATIONS - MODEL NO. FBT-0700
KNOW YOUR PRODUCT
1. SDS Max Accessory Holder
2. Accessory Locking Sleeve
3. Depth Rod Locking Dial
4. Side Mode Selector
5. Grease Cap
6. On/Off Trigger
7. Pressure Indicator
8. Soft Grip Rear Handle
9. Service Indicator LED
10. Side Handle
11. 350mm x 21mm Flat Chisel Bit
12. Depth Rod
13. Dust Cover
123456 7
9
10
11
8
13
12

3
SPECIFICATIONS....................................................... Page 02
KNOW YOUR PRODUCT........................................... Page 02
INTRODUCTION........................................................ Page 04
SAFETY INSTRUCTIONS........................................... Page 04
SET-UP........................................................................ Page 08
CHOOSING AN OPERATION MODE....................... Page 09
OPERATION............................................................... Page 10
MAINTENANCE......................................................... Page 11
TROUBLE SHOOTING .............................................. Page 12
DESCRIPTION OF SYMBOLS.....................................Page 13
CONTENTS................................................................ Page 14
WARRANTY................................................................ Page 16
TABLE OF CONTENTS

4
Congratulations on purchasing a Full Boar Rotary Hammer.
Your Full Boar Rotary Hammer Drill Kit FBT-0700 has been
designed to rapidly drill, chip, chisel and break masonry
products such as concrete.
Read and understand the Owner’s Manual before operating
the rotary hammer. Failure to do so could result in personal
injury or equipment damage.
INTRODUCTION
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of fire, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency,
before operating the tool. Save these instructions and other documents supplied with this tool for
future reference. The manufacturer cannot accept any liability for damage or accidents which arise
due to a failure to follow these instructions and the safety information.
This product has been designed for 230V and 240V only. Always check that the power
supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V is
interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60745-1;
therefore no earth wire is required.
The power supply for this product should be protected by a residual current device (rated at 30mA or
less). A residual current device reduces the risk of electric shock.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord
available through the service organization.
Note: Double insulation does not take the place of normal safety precautions when operating this
tool. The insulation system is for added protection against injury resulting from a possible electrical
insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or
defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead
not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire
and electric shock.
ELECTRICAL SAFETY

5
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings
refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.

6
– Wear ear protectors. Exposure to noise can cause hearing loss.
– Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
– Hold power tool by insulated gripping surfaces, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live”
wire may make exposed metal parts of the power tool “live” and could give the operator an electric
shock.
WARNING! This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Recommendations for the use of a residual current device with a rated residual current of 30mA or
less.
• Beforedrillingintowalls,ceilingsetc,ensuretherearenoconcealedpowercablesorpipesinthe
cavity.
• Alwaysusethesidehandle,thisgivesyougreatercontroliftheaccessoryshouldbecomejammed.
• Keepthecordclearoftheaccessorybeingused,donotwrapthecordaroundyourarmorwrist.
• Holdthetoolbytheinsulatedgrippingsurfaceswhenperforminganoperationwheretheaccessory
may contact hidden wiring or its own cord.
• Usethickcushionedglovesandlimittheexposuretimebytakingfrequentbreaks.
• Vibrationcausedbythehammeractionmaybeharmfultoyourhandsandarms.
• Whenremovinganaccessoryfromthetoolavoidcontactwithskinanduseproperprotectivegloves
when grasping the bit or accessory. Accessories may be hot after prolonged use.
GENERAL POWER TOOL SAFETY WARNINGS
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
ROTARY HAMMER DRILL SAFETY WARNINGS

7
WARNING! Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contain chemicals known to cause cancer, birth defects or other reproductive
harm.
Some examples of these chemicals are:
• Leadfromlead-basedpaints;
• Crystallinesilicafrombricks,cementandothermasonryproducts,and;
• Arsenicandchromiumfromchemically-treatedtimber.
The risk from such exposures vary depending on how often you do this type of work. To reduce
your exposure to these chemicals; work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specifically designed to filter out microscopic particles.
Always wear eye protection and a dust mask for dusty applications and when drilling/chiselling
overhead. Sanding particles can be absorbed by your eyes and inhaled easily and may cause health
complications.
Special requirements:
• Wearearprotectors.Exposuretonoisecancausehearingloss.
• Useauxiliaryhandlessuppliedwiththetool.Lossofcontrolcancausepersonalinjury.
ROTARY HAMMER DRILL SAFETY WARNINGS

8
SET-UP & PREPARATION
WARNING! Ensure the tool is turned off and disconnected from the power supply before
performing any of the following operations.
Using the Depth Rod
The Full Boar FBT-0700 comes with a depth rod that allows you
to drill to a predetermined depth.

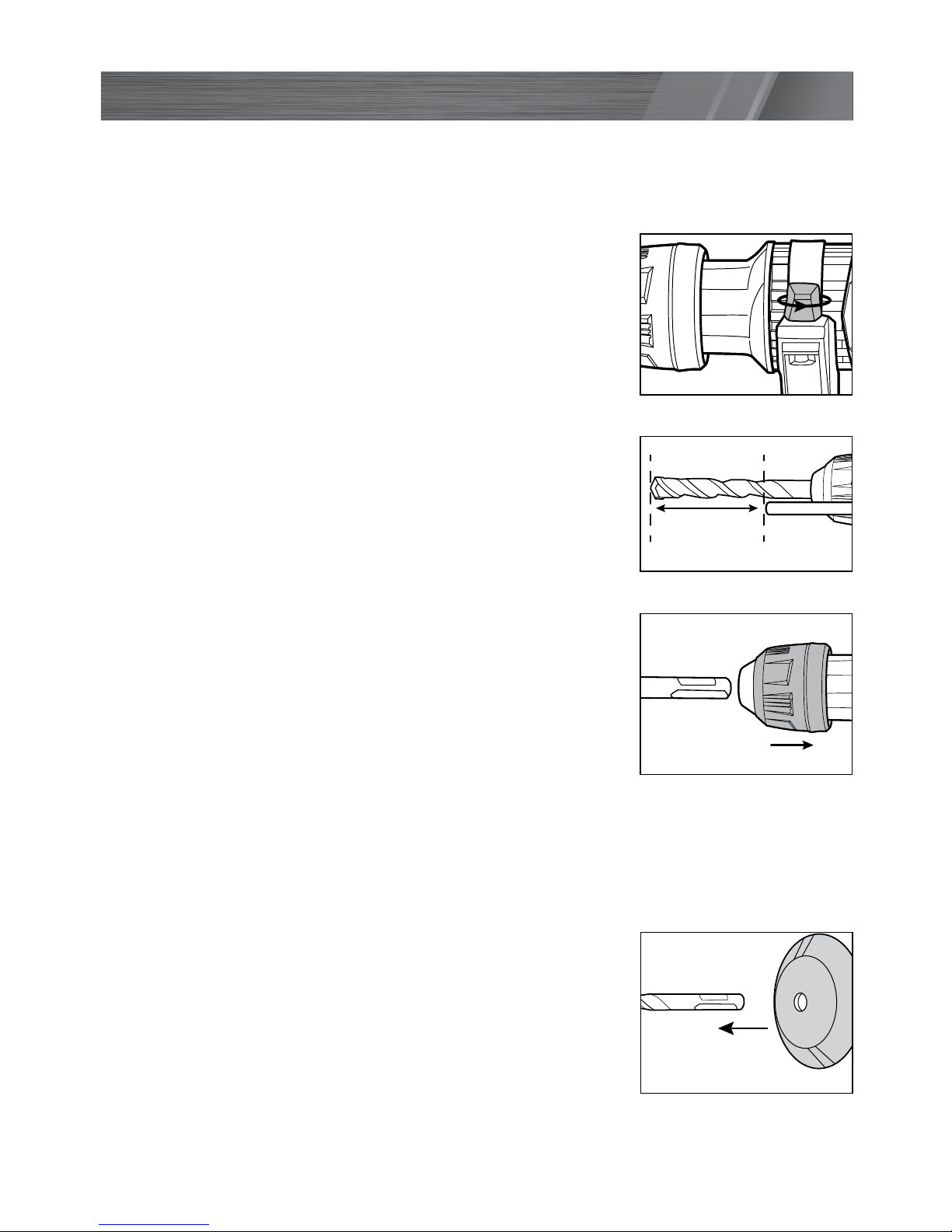

1. Loosen the depth rod securing nut then insert the depth
rod (Fig. 1).
2. Adjust the depth rod so the drill bit extends beyond the end
of the depth rod to the required drilling depth (Fig. 2).
3. Tighten the depth rod securing nut to lock the depth rod
into place.
4. Drill the hole until the end of the depth rod touches the
workpiece.
Fitting SDS Max Accessories
1. Prior to insertion into the chuck, remove any dust and
debris from the SDS Max accessory, then apply some
lubricant to the end of the accessory.
2. Pull and hold the locking sleeve back. Insert the SDS Max
accessory (Fig. 3).
3. Rotate the accessory and continue to insert as far as possible
into the chuck. Release the locking sleeve
4. Check the SDS Max accessory is properly secured in the
chuck by pulling on the accessory. Note: It should have
approx. 10-20mm of movement. This is normal. (Fig. 1).
5. To remove the SDS Max accessory, pull back the locking sleeve and then pull the
accessory out of the chuck.
Fitting the Dust Cover
The dust cover catches dust and debris while using the drill in an upright or overhead
position, helping to avoid dust entering the air vents.
1. Slide the dust cover over the accessory to be fitted (Fig. 4).
Add lubrication to the end of accessory before inserting into
the SDS Max chuck.
2. Pull back the accessory locking sleeve and insert the
accessory. Release the locking sleeve.
3. Press the dust cover into the end of the locking sleeve.
Required Drilling
Depth
Fig. 1
Fig. 2
Fig. 3
Fig. 4

9
CHOOSING AN OPERATION MODE
The Full Boar FBT-0700 has 3 different operating modes: hammer drilling, chiselling (locked)
and chiselling (free rotation). Follow the below instructions to select your desired mode of
operation.
Hammer Drilling
Rotate the side mode selector to the drill and
hammer icon. This setting is recommended for
use when drilling holes in concrete and other
masonry products. The hammer action will be
in operation while simultaneously the drill bit
rotates.
Chiselling (free rotation)
Rotate the side mode selector to the free rotation
chiselling mode. This setting is helpful when you
want to have the chisel in a particular position.
The bit will stop rotating once contact is made
with the material, or you can rotate the bit by
hand. Once you have found the ideal position,
you can change to chiselling (locked) for
continual use.
Side Mode
Selector
Chiselling (locked)
Rotate the side mode selector to the chisel icon.
This setting is recommended for use when you
desire a hammer action without the accessory
rotating which is ideal for “chiselling or chipping”
away at masonry products, pick or chisel
accessory bits should be used.

10

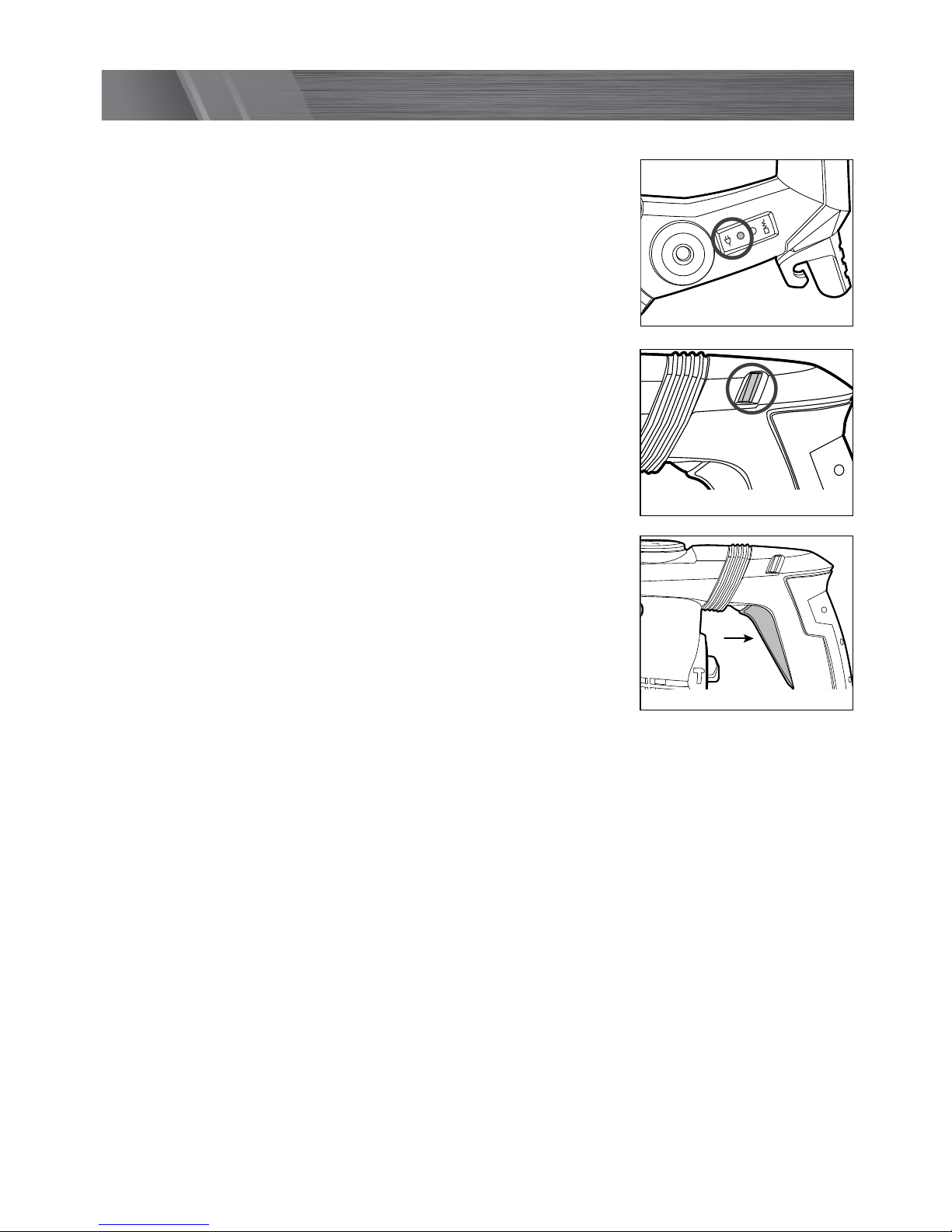

1. Ensure your workpiece is securely clamped where possible.
2. Connect the tool to the mains power supply. The ready for
use indicator LED will illuminate when the tool is connected
to power and ready for use (Fig. 5).
3. Select the desired mode of operation (refer to Choosing an
Operation Mode section of manual).
4. Hold the rotary hammer drill to the work surface. Apply
enough pressure on the rear handle so that the press control
indicator on the side of the housing goes green (Fig. 6). The
rotary hammer drill will work most efficiently in this position.
If you apply excessive pressure the indictor will go red. This
guide prevents overloading of the tool.
5. Squeeze the on/off trigger to start drilling (Fig. 7). Release
the trigger to stop drilling.
NOTE: Prior to changing modes, the on/off switch should be
released and the drill should have come to a complete stop.
OPERATION
Fig. 5
Fig. 6
Fig. 7

11
MAINTENANCE
•Keeptheventilationventsoftherotaryhammerdrillcleanatalltimes.
•Aftereachuse,blowairthroughtherotaryhammerdrillhousingtoensureitisfree
from all dust particles which may build up. Build up of dust particles may cause the
rotary hammer drill to overheat and fail.
•Iftheenclosureoftherotaryhammerdrillrequirescleaning,donotusesolventsbut
a moist soft cloth only. Never let any liquid get inside the rotary hammer drill; never
immerse any part of the rotary hammer drill into a liquid.
Gear Box Grease Replenishment
The grease in the gearbox will require replenishment after approximately 50 hours
accumulative use. After this time, add approximately 50 grams (approx 2 – 3 teaspoons)
of normal ball bearing grease, into the gearbox. First remove the grease cap from the
rotary hammer drill by using a pin spanner or flat head screwdriver. Once removed, add
the grease through this hole. Ensure the grease cap is secured back into position prior to
operation.
Carbon Brushes
The service indicator LED (10) will illuminate when the carbon
brushes need to be replaced. When the carbon brushes wear
out, the rotary hammer drill will spark and/or stop. Discontinue
use as soon as this happens. They should be replaced prior to
recommencing use of the rotary hammer drill. Carbon brushes
are a wearing component of the rotary hammer drill therefore not
covered under warranty. Continuing to use the rotary hammer
drill when carbon brushes need to be replaced may cause permanent damage to the
rotary hammer drill. Carbon brushes will wear out after many uses but when the carbon
brushes need to be replaced, take the rotary hammer drill to an electrician or a power
tool repairer for a quick and low cost replacement. Always replace both carbon brushes
at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused by the
repair of the rotary hammer drill by an unauthorised person or by mishandling of the rotary
hammer drill.

12
TROUBLESHOOTING
Problem Cause Remedy
Rotary Hammer Drill
is not working
No power supplied Make sure all plugs are connected
and power outlet is in working
order
Mode Selector in wrong
position.
Please refer to ‘Operating The
Hammer Drill’ section in the
manual.
Hammer Function
Not Engaging
Excess grease has been
packed
Insert SDS Max accessory and
then set the mode to hammer
function. Turn the drill on, rmly
tap the accessory bit up and down
onto a scrap piece of material to
activate.
Motor brushes binding in brush
holders.
Clean brush holders. Remove
carbon dust by using compressed
air to blow out brush dust
Excessive sparking
visible through air
vents
Service Indicator LED will
illuminate red when carbon
brushes have worn out.
Replace carbon brushes as per
maintenance section. Service
Indicator LED will show green.

13
DESCRIPTION OF SYMBOLS
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
Warning Read instruction manual
Wear eye protection
Double insulated
min-1 Revolutions or
reciprocation per minute n0No load speed
V Volts Hz Hertz
~ Alternating current W Watts
Diameter
Regulator compliance mark
Wear ear protection
mm Millimetres

14
CONTENTS
Distributed by:
Ozito Industries Pty Ltd
AUSTRALIA (Head Office)
1-23 Letcon Drive, Bangholme Victoria, Australia, 3175
Telephone: [phone]
Note. The manufacturer’s liability shall be deemed void if the machine is modified in any way
and the manufacturer shall therefore accept no liability for any damages arising as a result of
modifications.
1 x Rotary Hammer Drill
1 x Depth Rod
1 x 350mm Flat Chisel Bit
1 x Dust Cover
1 x Carry Case

15

16
WARRANTY EXCLUSIONS
The following actions will result in the warranty being void.
If the tool has been operated on a supply voltage other than that specified on the tool.•
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents•
or alterations.
Failure to perform maintenance as set out within the instruction manual.•
If the tool is disassembled or tampered with in any way.
The warranty excludes damage resulting from product misuse or product neglect.
•
•
This warranty is given by Ozito Industries Pty Ltd.
ABN: 17 050 731 756
Ph.1800 069 486
Australia/New Zealand (Head Office)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
FB1
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you under law. The warranty covers manufacturer defects in materials,
workmanship and finish under normal use.
1 YEAR WARRANTY
Your product is guaranteed for a period of 12 months from the original date of purchase.
If a product is defective it will be repaired in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: wheels, bearings.
Our goods come with guarantees that cannot be excluded under Australian Consumer law &
Consumer Guarantees Act 1993 (NZ). You are entitled to a replacement or refund for a major
failure and to compensation for other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired and replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
`Australia 1800 069 486
New Zealand 0508 069 486
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A
CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE (see www.bunnings.com.au or www.bunnings.co.nz for store locations)
WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR
WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:
