FUNAI F42PDME User manual

PLASMA DISPLAY
F42PDME
SERVICE MANUAL
Plasma Display Module Section
IDisassembly Procedures
ITroubleshooting
IExploded Views
IParts List
Main Section
ISpecifications
IAdjustment Procedures
ITroubleshooting
ISchematic Diagrams
ICBA’s
IExploded Views
IParts List

IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and de-
scribed in this service manual are effective methods of performing service
operations. Some of these service special tools should be used when and
as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to under-
stand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai
could not possibly know, evaluate and advice the service trade of all con-
ceivable ways in which service might be done or of the possible hazardous
consequences of each way. Consequently, Funai has not undertaken any
such broad evaluation. Accordingly, a servicer who uses a service proce-
dure or tool which is not recommended by Funai must first use all precau-
tions thoroughly so that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.

MAIN SECTION
PLASMA DISPLAY
F42PDME
TABLE OF CONTENTS
Specifications............................................................................................... 1-1-1
Important Safety Precautions....................................................................... 1-2-1
Standard Notes for Servicing....................................................................... 1-3-1

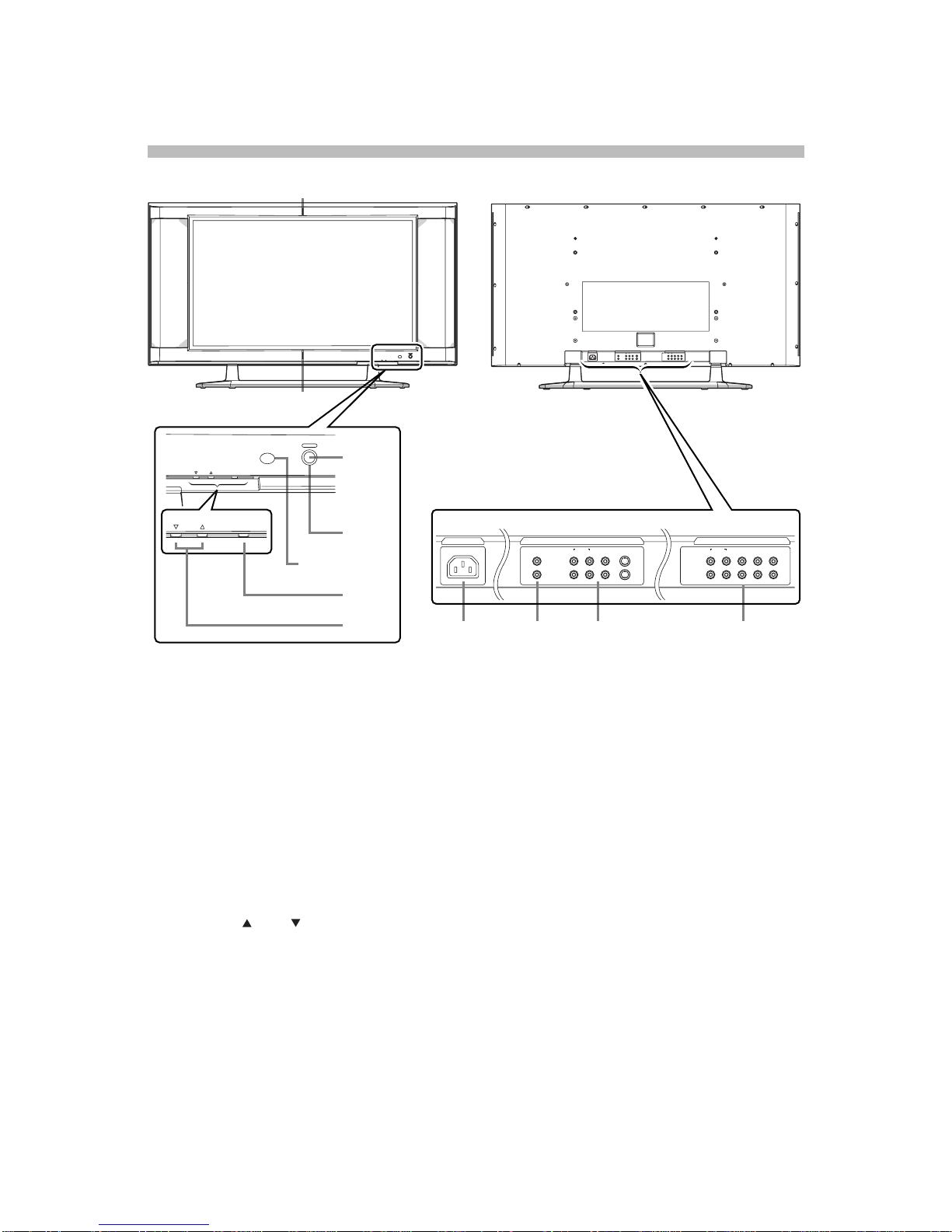

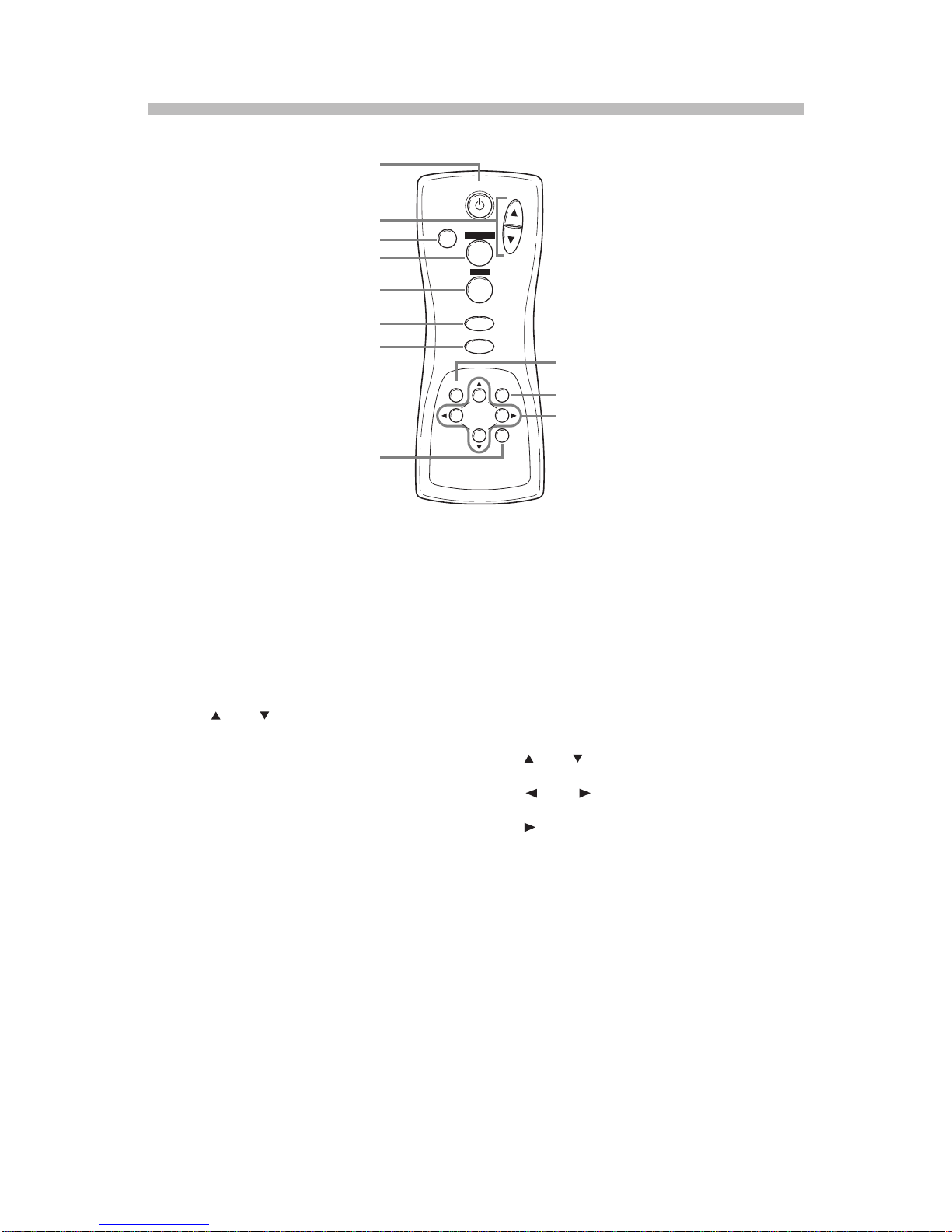

Basic Setup and Operating Guide ............................................................... 1-4-1

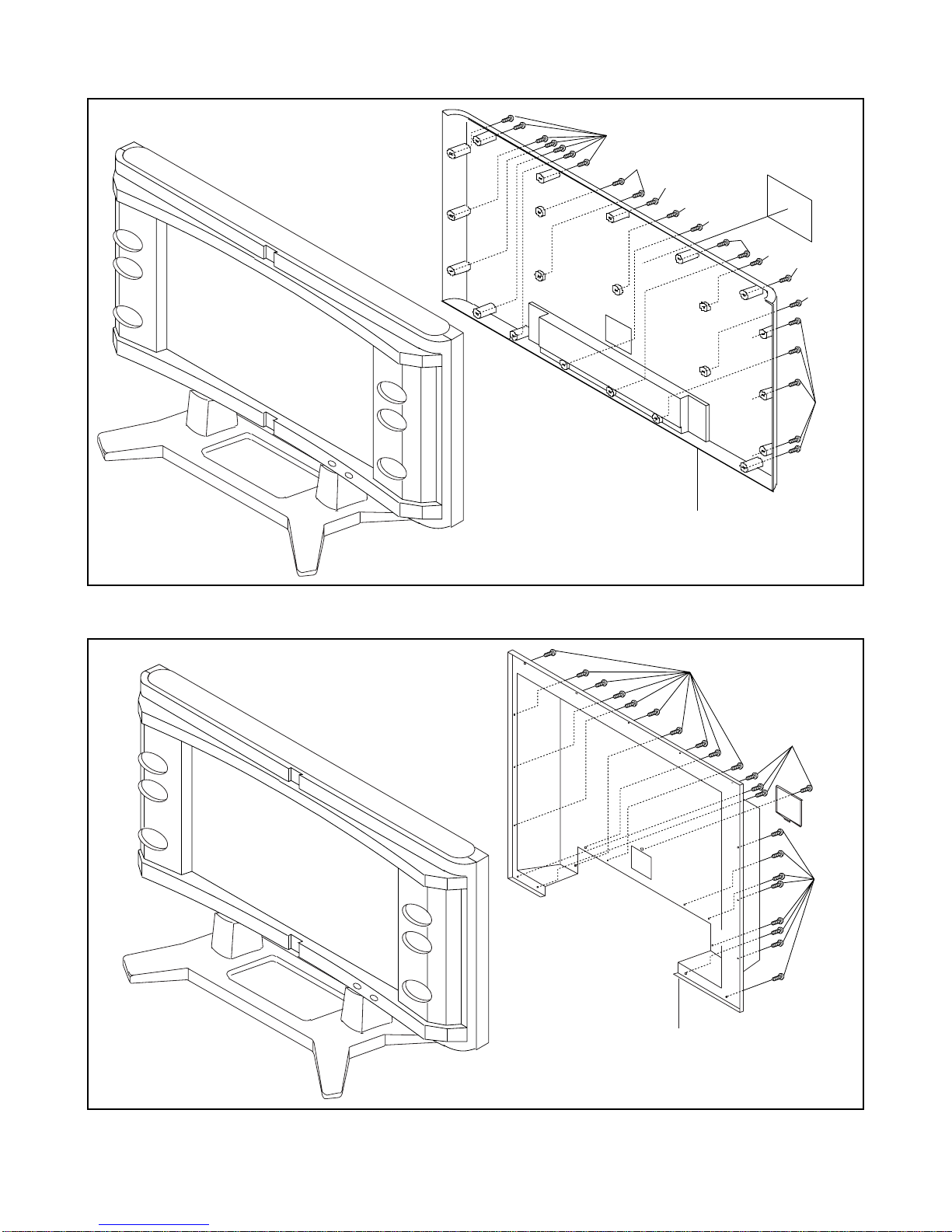

Cabinet Disassembly Instructions................................................................ 1-5-1
Electrical Adjustment Instructions................................................................ 1-6-1
Troubleshooting........................................................................................... 1-7-1
Block Diagrams............................................................................................ 1-8-1
Schematic Diagrams / CBA’s and Test Points............................................. 1-9-1
Waveforms................................................................................................. 1-10-1
Wiring Diagram.......................................................................................... 1-11-1
IC Pin Functions......................................................................................... 1-12-1
Lead Identifications.................................................................................... 1-13-1
Cabinet Exploded Views............................................................................ 1-14-1
Packing Exploded Views............................................................................ 1-14-3
Mechanical Parts List................................................................................. 1-15-1
Electrical Parts List .................................................................................... 1-16-1
Main Section
ISpecifications
IAdjustment Procedures
ITroubleshooting
ISchematic Diagrams
ICBA’s
IExploded Views
IParts List

1-1-1 L0605SP
SPECIFICATIONS
Note:
Nominal specifications represent the design specifications. All units should be able to approximate these. Some
will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute
worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.
Description Condition
Display Features
Screen Size 920.1 (W) x 518.4 (H) mm, 42 in. Wide VGA panel
Pixel Resolution 852 (H) x 480 (V)
Output Colors 16.7 million
Screen Aspect Ratio 16:9
Contrast Ratio 1000:1
Brightness 470 cd/m2(PEAK)
Comb Filter Type 3-Dimensional Y/C Separation
Available Input Format 720p/1080i/480p/480i (720p/1080i/480p: Component 2 only)
Audio Features
Sound Output 5W + 5W, 10% THD
Speaker 3 in Round Type x 4
Audio IN 0.5Vrms
Connectors
Component AV Input (1) SD component video/Y, Cb, Cr, (RCA x 3) - rear
audio L/R (RCA x 2) - rear
Y: 1.0Vp-p (75 Ohm), Cb/Cr: 0.7Vp-p (75 Ohm)
Component AV Input (2) HD component video/Y, Pb, Pr, (RCA x 3) - rear
audio L/R (RCA x 2) - rear
Y: 1.0Vp-p (75 Ohm), Pb/Pr: 0.7Vp-p (75 Ohm)
Composite AV Input (1)
S-Video (1) Composite video (RCA x 1) - rear, 1.0Vp-p (75 Ohm) S-Video (4 pin DIN) - rear
audio L/R (RCA x 2) - rear
Y: 1.0Vp-p (75 Ohm), C: 0.286Vp-p (75 Ohm)
Composite AV Input (2)
S-Video (2) Composite video (RCA x 1) - rear, 1.0Vp-p (75 Ohm) S-Video (4 pin DIN) - rear
audio L/R (RCA x 2) - rear
Y: 1.0Vp-p (75 Ohm), C: 0.286Vp-p (75 Ohm)
Analog Audio output audio L/R (RCA x 2) - rear
General
Power In 120V ±10%, 60Hz/AC
Power Consumption 350 W (standby-condition 1.3W)
Operation Temperature 41F - 104F (5°C - 40°C)
Humidity Under 80%
Dimension 1314 (W) x 692 (H) x 149.5 (D) mm
1314 (W) x 789 (H) x 393 (D) mm (Incl. Stand)
Weight 112.46 lbs (51 kg)

1-1-2 L0605SP

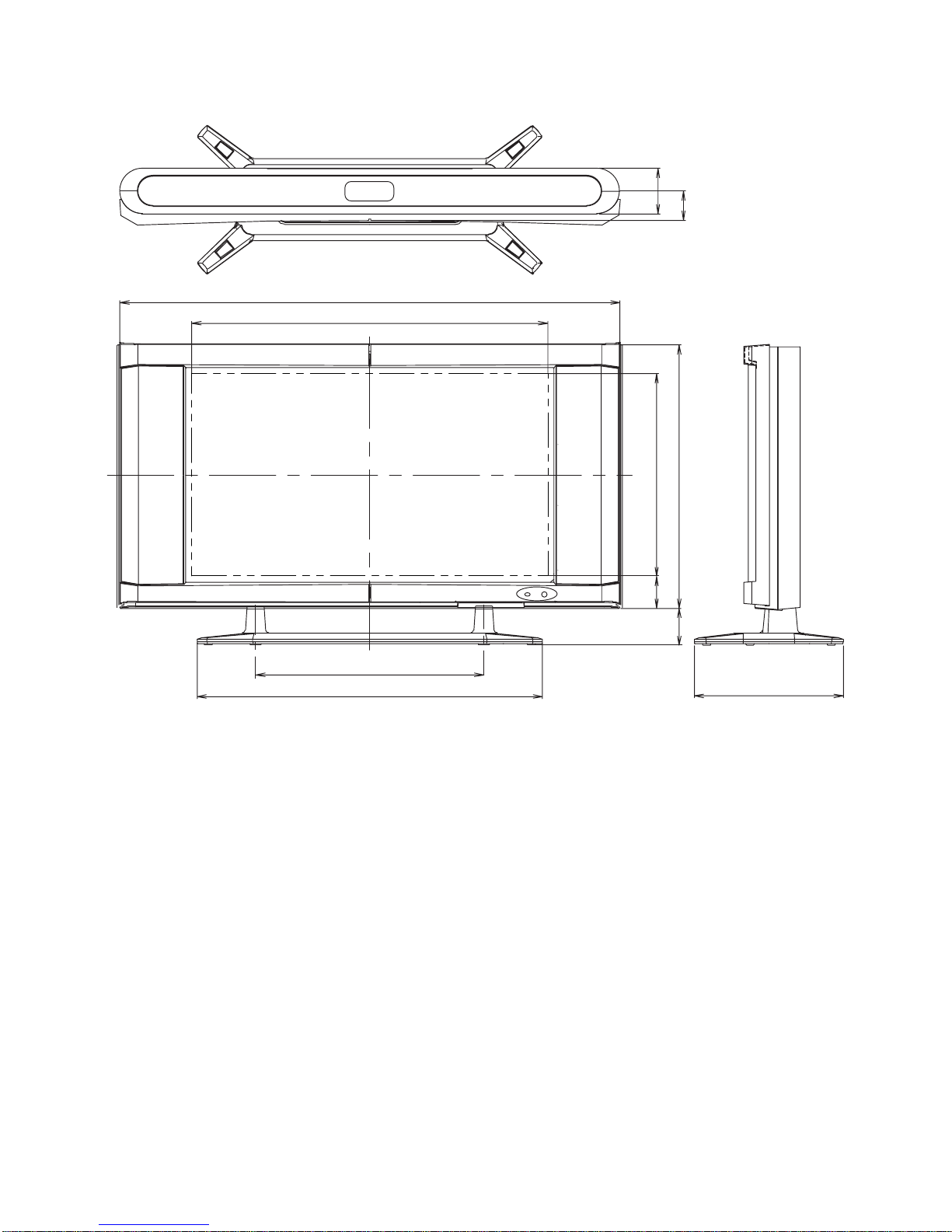

DIMENSIONS
1314
920.1
600
907.47 393
77
120
518.483.6
97 692

1-2-1 L0604IMP
IMPORTANT SAFETY PRECAUTIONS
Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.
Safety Precautions for Monitor Circuit
1. Before returning an instrument to the custom-
er, always make a safety check of the entire instru-
ment, including, but not limited to, the following
items:
a. Be sure that no built-in protective devices are de-
fective and have been defeated during servicing.
(1) Protective shields are provided on this chassis
to protect both the technician and the customer.
Correctly replace all missing protective shields, in-
cluding any removed forservicingconvenience. (2)
When reinstalling the chassis and/or other assem-
bly in the cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating fishpapers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks. Do not oper-
ate this instrument or permit it to be operated
without all protective devices correctly in-
stalled and functioning. Servicers who defeat
safety features or fail to perform safety checks
may be liable for any resulting damage.
b. Be sure that there are no cabinet openings through
which an adult or child might be able to insert their
fingers and contact a hazardous voltage. Such
openings include, but are not limited to, (1) exces-
sively wide cabinet ventilation slots, and (2) an im-
properly fitted and/or incorrectly secured cabinet
back cover.
c. Leakage Current Cold Check - With the instru-
ment AC plug removed from any AC source, con-
nect an electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the on
position. Connect one lead of an ohmmeter to the
AC plug prongs tied together and touch the other
ohmmeter lead in turn to each exposed metallic
cabinet part. If the measured resistance is less
than 1.0 megohm or greater than 5.2 megohm, an
abnormality exists that must be corrected before
the instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off po-
sition.
d. Leakage Current Hot Check - With the instru-
ment completely reassembled, plug the AC line
cord directly into a 120V AC outlet. (Do not use an
isolation transformer during this test.) Use a leak-
age current tester or a metering system that com-
plies with American National Standards Institute
(ANSI) C101.1 Leakage Current for Appliances.
With the instrument AC switch first in the on posi-
tion and then in the off position, measure from a
known earth ground (metal water pipe, conduit,
etc.) to all exposed metal parts of the instrument
(antennas, handle brackets, metal cabinet, screw
heads, metallic overlays, control shafts, etc.), es-
pecially any exposed metal parts that offer an elec-
trical return path to the chassis. Any current
measured must not exceed 0.75 milli-ampere. Re-
verse the instrument power cord plug in the outlet
and repeat the test.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
SPECIFIED HEREIN INDICATE A POTENTIAL
SHOCK HAZARD THAT MUST BE ELIMINATED
BEFORE RETURNING THE INSTRUMENT TO
THE CUSTOMER OR BEFORE CONNECTING
THE ANTENNA OR ACCESSORIES.
2. Read and comply with all caution and safety-relat-
ed notes on or inside the cabinet, or on the chas-
sis,
3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this mon-
itor. Design alterations and additions, including,
but not limited to circuit modifications and the ad-
dition of items such as auxiliary audio and/or video
output connections, might alter the safety charac-
teristics of this receiver and create a hazard to the
user. Any design alterations or additions will void
the manufacturer's warranty and may make you,
the servicer, responsible for personal injury or
property damage resulting therefrom.
4. Hot Chassis Warning -
a. Some monitor chassis are electrically connected
directly to one conductor of the AC power cord and
maybe safety-serviced without an isolation trans-
former only if the AC power plug is inserted so that
the chassis is connected to the ground side of the
AC power source. To confirm that the AC power
plug is inserted correctly, with an AC voltmeter,
measure between the chassis and a known earth
ground. If a voltage reading in excess of 1.0V is
obtained, remove and reinsert the AC power plug
in the opposite polarity and again measure the
voltage potential between the chassis and a
known earth ground.

1-2-2 L0604IMP
b. Some monitor chassis normally have 85V
AC(RMS) between chassis and earth ground re-
gardless of the AC plug polarity. This chassis can
be safety-serviced only with an isolation transform-
er inserted in the power line between the receiver
and the AC power source, for both personnel and
test equipment protection.
c. Some monitor chassis have a secondary ground
system in addition to the main chassis ground.
This secondary ground system is not isolated from
the AC power line. The two ground systems are
electrically separated by insulation material that
must not be defeated or altered.
5. Observe original lead dress.Take extra care to as-
sure correct lead dress in the following areas:a.
near sharp edges,b. near thermally hot parts-be
sure that leads and components do not touch ther-
mally hot parts,c. the AC supply,d. high voltage,
and,e. antenna wiring. Always inspect in all areas
for pinched, out of place, or frayed wiring. Check
AC power cord for damage.
6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or wir-
ing that meet original specifications. Additionally,
determine the cause of overheating and/or dam-
age and, if necessary, take corrective action to re-
move any potential safety hazard.
7 Product Safety Notice - Some electrical and me-
chanical parts have special safety-related charac-
teristics which are often not evident from visual
inspection, nor can the protection they give neces-
sarily be obtained by replacing them with compo-
nents rated for higher voltage, wattage, etc.. Parts
that have special safety characteristics are identi-
fied by a ( #) on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or
other hazards. The product's safety is under re-
view continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are strictly inspected to con-
firm they comply with the recognized product safe-
ty and electrical codes of the countries in which
they are to be sold. However, in order to maintain
such compliance, it is equally important to imple-
ment the following precautions when a set is being
serviced.
General Caution of Plasma Display
1. Since the Panel module and front filter are made of
glass, sufficient care shall be taken when handling
the broken module and filter in order to avoid inju-
ry.
2. If necessary to replace Panel module, this work
must be started after the panel module and the
AC/DC Power supply becomes sufficiently cool.
3. Special care must be taken with the display area to
avoid damaging its surface.
4. The Panel Module shall not be touched with bare
hands to protect its surface from stains.
5. It is recommended to use clean soft gloves during
the replacing work of the Panel module in order to
protect, not only the display area of the panel mod-
ule but also the serviceman.
6. The Chip Tube of the panel module (located upper
left of the back of the panel module) and flexible
cables connecting Panel glasses to the drive cir-
cuitry Printed Wiring Boards (P.W.B.) are very
weak, so sufficient care must be taken to prevent
breaking or cutting any of these. If the Chip Tube
breaks the panel module will never work, replace-
ment for a new plasma panel module will be need-
ed.
7. Signal, power supply P.W.B.’s and PDP driving cir-
cuits P.W.B.’s are assembled on the rear side of
the PDP module, take special care with this fragile
circuitry; particularly, Flexible Printed Circuits
bonded to surrounding edges of the glass panel.
They are not strong enough to withstand harsh
outer mechanical forces. Avoid touching the flexi-
ble printed circuits by not only your hands, but also
tools, chassis, or any other object. Extreme bend-
ing of the connectors must be avoided too. In case
the flexible printed circuits are damaged, the cor-
responding addressed portions of the screen will
not be lit and exchange of a glass panel will be re-
quired.

1-2-3 L0604IMP
PDP Module Handling
When there is need to replace a broken PDP module
which is the displaying device from the Plasma display
unit, consider the following:
1. When carrying the PDP module, two persons
should stand at both shorter-edge sides of the
glass-panel and transport it with their palms. Avoid
touching the Flexible Printed Circuits or the chip
tube on the corner of the glass-panel. Handle only
by the surface of the glass panel.
2. When carrying PDP module, watch surrounding
objects, such as tables, and also do not carry it
alone since it may be dangerous and it will be dam-
aged due to excessive stress to the module (glass-
panel).
3. Please do not stand the module with the edge of
the glass-panel on the table since this might result
in damage to the glass-panel and/or flexible print-
ed circuits due to excessive stress to the module
(glass-panel).
Precautions during Servicing
A. Parts identified by the ( #) symbol are critical for
safety.
Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations ap-
plying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block-
ing capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation Tape
2) PVC tubing
3) Spacers
4) Insulators for transistors.
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder-
ing.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fus-
ible resistors, etc.)
G. Check that replaced wires do not contact sharp
edged or pointed parts.
H. Also check areas surrounding repaired locations.
I. Use care that foreign objects (screws, solder drop-
lets, etc.) do not remain inside the set.
J. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC supply outlet.

1-2-4 L0604IMP
Safety Check after Servicing
Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts and wires have been returned to original posi-
tions. Afterwards, perform the following tests and con-
firm the specified values in order to verify compliance
with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between sol-
dered terminals, and between terminals and surround-
ing metallic parts. (See Fig. 1)
Table 1 : Ratings for selected area
Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current be-
tween B (any two parts or contacts, between any part
or contact and either pole of the power cord plug
prongs) and externally exposed accessible parts (RF
terminals, antenna terminals, video and audio input
and output terminals, microphone jacks, earphone
jacks, etc.) is lower than or equal to the specified val-
ue in the table below.
Measuring Method: (Power ON)
Insert load Z between B (any two parts or contacts,
between any part or contact and either pole of the
power cord plug prongs) and exposed accessible
parts. Use an AC voltmeter to measure across both
terminals of load Z. See Fig. 2 and following table.
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Region Clearance
Distance (d) (d')
110 to 130 V USA or
CANADA ≥3.2 mm (0.126 inches)
Chassis or Secondary Conductor
dd'
Primary Circuit Terminals
Fig. 1
AC Voltmeter
(High Impedance)
Exposed Accessible Metal Part
BOne of Power Cord
Plug Prongs
Z
1.5kΩ0.15µF
Fig. 2
AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:
110 to 130 V USA 0.15µF CAP. & 1.5kΩ RES. connected in
parallel i≤0.75mA peaks Exposed accessible
parts

1-3-1 L14STA2
STANDARD NOTES FOR SERVICING
Circuit Board Indications
a. The output pin of the 3 pin Regulator ICs is indicat-
ed as shown.
b. For other ICs, pin 1 and every fifth pin are indicat-
ed as shown.
c. The 1st pin of every male connector is indicated as
shown.
Pb (Lead) Free Solder
Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb
free mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
(1) Prepare the hot-air flat pack-IC desoldering ma-
chine, then apply hot air to the Flat Pack-IC (about
5 to 6 seconds). (Fig. S-1-1)
(2) Remove the flat pack-IC with tweezers while ap-
plying the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering ma-
chine, whose shape matches that of the Flat Pack-
IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
Pb free mark
Fig. S-1-1

1-3-2 L14STA2
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when remov-
ing it.
With Soldering Iron:
(1) Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
(2) Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering ma-
chine.(Fig. S-1-4)
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
With Iron Wire:
(1) Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA con-
tact pads as shown in Fig. S-1-5.

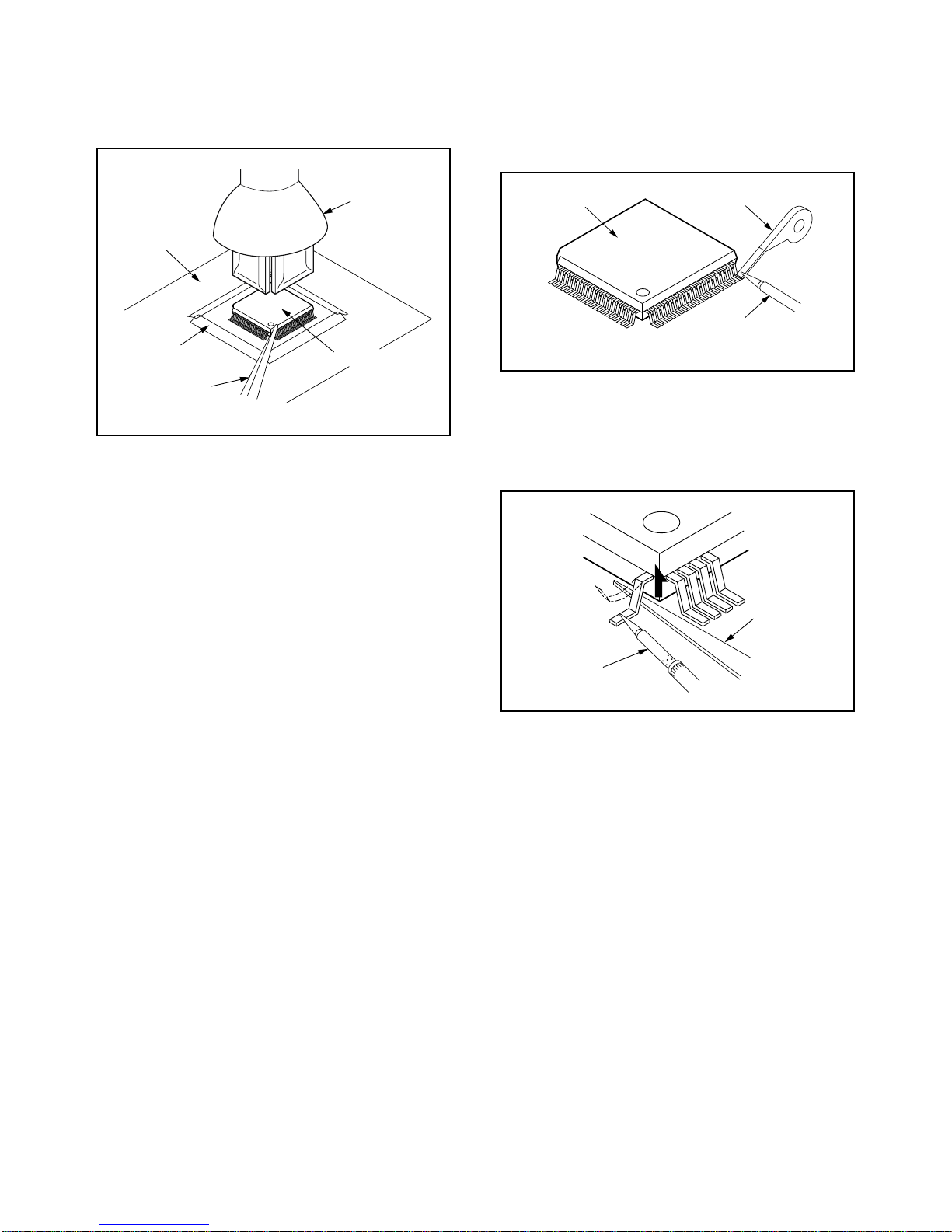

Fig. S-1-2
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape Fig. S-1-3
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-4
Fine Tip
Soldering Iron
Sharp
Pin

1-3-3 L14STA2
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken to
ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
2. Installation
(1) Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
(2) The "I" mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
pre- solder the four corners of the flat pack-IC.
(See Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
Fig. S-1-5
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-6
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-7
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-8
Presolder
CBA
Flat Pack-IC

1-3-4 L14STA2
Instructions for Handling
Semiconductors
Electrostatic breakdown of the semiconductors may
occur due to a potential difference caused by electro-
static charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is prop-
erly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semiconductors are to be
placed. Because the static electricity charge on cloth-
ing will not escape through the body grounding band,
be careful to avoid contacting semiconductors with
your clothing.
CBA
<Incorrect>
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

1-4-1 L0605IB
BASIC SETUP AND OPERATING GUIDE
1
POWER button: Turns the power ON or in
STANDBY.
2
POWER indicator: Lights up (Blue) when
the power is in the standby mode. Lights up
(Green) when the power is ON.
3
STANDBY indicator: Lights up when the
power is in the standby mode. Disappears
when the power is ON.
4
INPUT SELECT button: Selects input termi-
nals.
5
VOLUME (up) / (down) button:
Increases or decreases the volume.
6
AC IN terminal: Connect the supplied
power cable for a standard AC outlet.
7
AUDIO OUT: Output terminals for audio.
8 AUDIO/VIDEO/S-VIDEO: Input terminals fo
r
an audio and video signal. You can select
either VIDEO or S-VIDEO.
9 COMPONENT: Input terminals for a compo
-
nent signal. You can make a Y-Cb-Cr inter-
laced connection to component 1 or Y-Pb-P
r
progressive or interlaced connection to com
-
ponent 2.
M
AIN UNIT
3
3
S-VIDEO
VIDEO
L
R
S-VIDEOVIDEO LR
L
R
VIDEO1
S-VIDEO1
VIDEO2
S-VIDEO2
AUDIO
AUDIO OUT
AC IN
AUDIO
Pr
LYPb
R
Cr
LYCb
R
COMPONENT1
COMPONENT2
Input Terminals
6 7 8 9
INPUT SELECTVOLUME
POWER ACIN
S-VIDEO
VIDEO
L
R
L
R
AUDIO
AUDIOOUT
AUDIO
Pr
LYPb
R
Cr
LYCb
R
COMPONENT1
COMPONENT2
VIDEO1
S-VIDEO1
VIDEO2
S-VIDEO2
S-VIDEOVIDEO LR
2
1
4
Infrared Sensor
5
INPUT SELECTVOLUME
POWER
INPUT SELECTVOLUME
Front Rear

1-4-2 L0605IB
R
EMOTE CONTROL
1
POWER button: Turns the main power ON
or in STANDBY.
2
VOL (up) / (down) button: Increases or
decreases the volume.
3
MUTE button: Turns the audio off or on.
4
SCREEN MODE button: Selects aspect
ratios available for the screen.
5
STILL button: Pauses the image shown on
the screen.
6
INPUT SELECT button: Selects input termi-
nals.
7
DISPLAY button: Displays the name of the
selected input terminal on the screen.
8
SLEEP button: Sets the sleep timer.
9MENU button: Accesses the setup menu,
allowing you to access various settings.
10 PREVIOUS button: Moves up one level in
the setup menu.
11 (up) / (down) button: Selects the vari-
ous modes in the setup menu.
(left) / (right) button: Selects and
adjusts levels for the various settings.
(enter) button: Also used as the enter
button.
POWER
INPUT SELECT
DISPLAY
MENU PREVIOUS
SLEEP
VOL
MUTE
SCREEN MODE
STILL
1
2
3
4
5
6
7
8
9
10
11

1-5-1 L0605DC
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.
2. Disassembly Method
↓↓ ↓ ↓ ↓
(1) (2) (3) (4) (5)
Note:
(1) Order of steps in procedure. When reassembling,
follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.
(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of part to be removed, unhooked, un-
locked, released, unplugged, unclamped, or des-
oldered.
S=Screw, P=Spring, L=Locking Tab, CN=Con-
nector, *=Unhook, Unlock, Release, Unplug, or
Desolder
2(S-2) = two Screws (S-2)
(5) Refer to the following "Reference Notes in the
Table.
Step/
Loc.
No. Part Removal
Fig.
No Remove/*unlock/release/ unplug/unclamp/desolder Note
1 Back Cabinet 1 17(S-1), 5(S-2) 1
2 Rear Cabinet 2 22(S-3) 2
3 PCB Shield Plate 3 12(S-4), CLN8 3
4 Speaker Cover(s) 3 14(S-5) 4
5 Digital CBA 4 4(S-6), 3(S-7) 5
6 Analog CBA 4 4(S-8), 4(S-9) 6
7 Filter CBA 4 2(S-10), Two connectors 7
8 PCB Holder 4 4(S-11) 8
9Front Cabinet
Assembly 5 14(S-12) 9
10 Brand Plate 5 2(S-13) 10
[13] Decoration
Panel
[1] Back Cabinet
[11] LED A CBA
and LED B CBA
[22] Filter
Holder(L)(s)
[9] Front Cabinet
Assembly
[21] Jack Cover
[2] Rear Cabinet
[3] PCB Shield
Plate
[5] Digital CBA
[8] PCB Holder
[4] Speaker
Cover(s)
[14] Speaker-1
[15] Speaker-2
[16] Speaker-3
[17] Speaker-4
[18] Speaker
Spacer(s)
[19] Speaker
Holder(L)
[20] Speaker
Holder(R)
[10] Brand Plat
e
[33] Panel Holde
r
Assembly
[7] Filter CBA
[25] Stand Unit
[26] Stand
Cover
[27] Stand(s)
[28] Stand Base
[29] Chassis
Bracket(s)
[30] Panel
Spacer(s)
[31] SP Holder
Plate(s)
[32] Plasma
Display Module
[6] Analog CBA
[12] Switch CBA
[24] Optical
Filter [23] Filter
Holder(S)(s)
11 LED A CBA and
LED B CBA 5 ---------- -
12 Switch CBA 5 3(S-14) 11
13 Decoration Panel 6 20(S-15), 2(S-16) 12
14 Speaker-1 7 2(S-17) 13
15 Speaker-2 7 2(S-18) 14
16 Speaker-3 7 2(S-19) 15
17 Speaker-4 7 2(S-20) 16
18 Speaker Spacer(s) 7 ---------- -
19 Speaker Holder(L) 7 4(S-21) 17
20 Speaker Holder(R) 7 4(S-22) 18
21 Jack Cover 7 2(S-23) 19
22 Filter Holder(L)(s) 7 6(S-24) 20
23 Filter Holder(S)(s) 7 6(S-25) 21
24 Optical Filter 7 ---------- -
25 Stand Unit 8 4(S-26) 22
26 Stand Cover 9 8(S-27), 10(S-28) 23
27 Stand(s) 9 4(S-29), 6(S-30) 24
28 Stand Base 9 ---------- -
29 Chassis Bracket(s) 10 8(S-31), 8(S-32) 25
30 Panel Spacer(s) 10 8(S-33) 26
31 SP Holder Plate(s) 10 4(S-34) 27
32 Plasma Display
Module 10 12(S-35) 28
33 Panel Holder
Assembly 10 ---------- -
Step/
Loc.
No. Part Removal
Fig.
No Remove/*unlock/release/ unplug/unclamp/desolder Note

1-5-2 L0605DC
Reference Notes in the Table
Caution:
Refer to "General Caution of Plasma Display" and
"PDP Module Handling" of "IMPORTANT SAFETY
PRECAUTIONS" section not to injure and/or break the
Plasma Display Module.
1. Removal of the Back Cabinet. Remove screws
17(S-1) and 5(S-2).
2. Removal of the Rear Cabinet. Remove screws
22(S-3).
3. Removal of the PCB Shield Plate. Remove screws
12(S-4) and wire assembly CLN8.
4. Removal of the Speaker Cover(s). Remove screws
14(S-5).
5. Removal of the Digital CBA. Disconnect connec-
tors *CN1701, *CN1702, *CN1703, *CN1704, and
*CN1709, and remove screws 4(S-6) and 3(S-7).
6. Removal of the Analog CBA. Disconnect connec-
tors *CN201, *CN203, *CN204, *CN501, *CN502,
*CN701, *CN801, and *CN802, and remove
screws 4(S-8) and 4(S-9).
7. Removal of the Filter CBA. Disconnect connector
*CN801, and remove two connectors, then remove
screws 2(S-10).
8. Removal of the PCB Holder. Remove screws 4(S-
11).
9. Removal of the Front Cabinet Assembly. Remove
screws 14(S-12).
10.Removal of the Brand Plate. Remove screws 2(S-
13).
11.Removal of the Switch CBA. Remove screws 3(S-
14) and disconnect connector *CN751.
12.Removal of the Decoration Panel. Remove screws
20(S-15) and 2(S-16).
13.Removal of the Speaker-1. Remove screws 8(S-
17).
14.Removal of the Speaker-2. Remove screws 8(S-
18).
15.Removal of the Speaker-3. Remove screws 8(S-
19).
16.Removal of the Speaker-4. Remove screws 8(S-
20).
17.Removal of the Speaker Holder(L). Remove
screws 4(S-21).
18.Removal of the Speaker Holder(R). Remove
screws 4(S-22).
19.Removal of the Jack Cover. Remove screws 2(S-
23).
20.Removal of the Filter Holder(L)(s). Remove screws
6(S-24).
21.Removal of the Filter Holder(S)(s). Remove screws
6(S-25).
22.Removal of the Stand Unit. Remove screws 4(S-
26).
23.Removal of the Stand Cover. Remove screws 8(S-
27) and 10(S-28).
24.Removal of the Stand(s). Remove screws 4(S-29)
and 6(S-30).
25.Removal of the Chassis Bracket. Remove screws
8(S-31) and 8(S-32).
26.Removal of the Panel Spacer(s). Remove screws
8(S-33).
27.Removal of the SP Holder Plate(s). Remove
screws 8(S-34).
28.Removal of the Plasma Display Module. Remove
screws 12(S-35).

1-5-3 L0605DC
Fig. 1
[1] Back Cabinet
(S-1)
(S-2)
(S-2)
(S-2)
(S-2)
(S-1)
(S-1)
(S-1)
(S-1)
(S-1)
Fig. 2
[2] Rear Cabinet
(S-3)
(S-3)
(S-3)

1-5-4 L0605DC
Fig. 3
[4] Speaker Cover
[3] PCB Shield Plate
[4] Speaker
Cover
(S-5)
(S-5)
(S-5)
(S-5)
(S-5)
(S-5)
(S-5)
(S-4) (S-4)
CLN8 (S-4)
(S-4)

1-5-5 L0605DC
Fig. 4
[6] Analog CBA
[7] Filter CBA
Connectors
(to AC Inlet)
[8] PCB Holder
[5] Digital CBA (S-6)
(S-11)
(S-11)
(S-11)
(S-7)
(S-9)
(S-8)
(S-8)
(S-10
)
