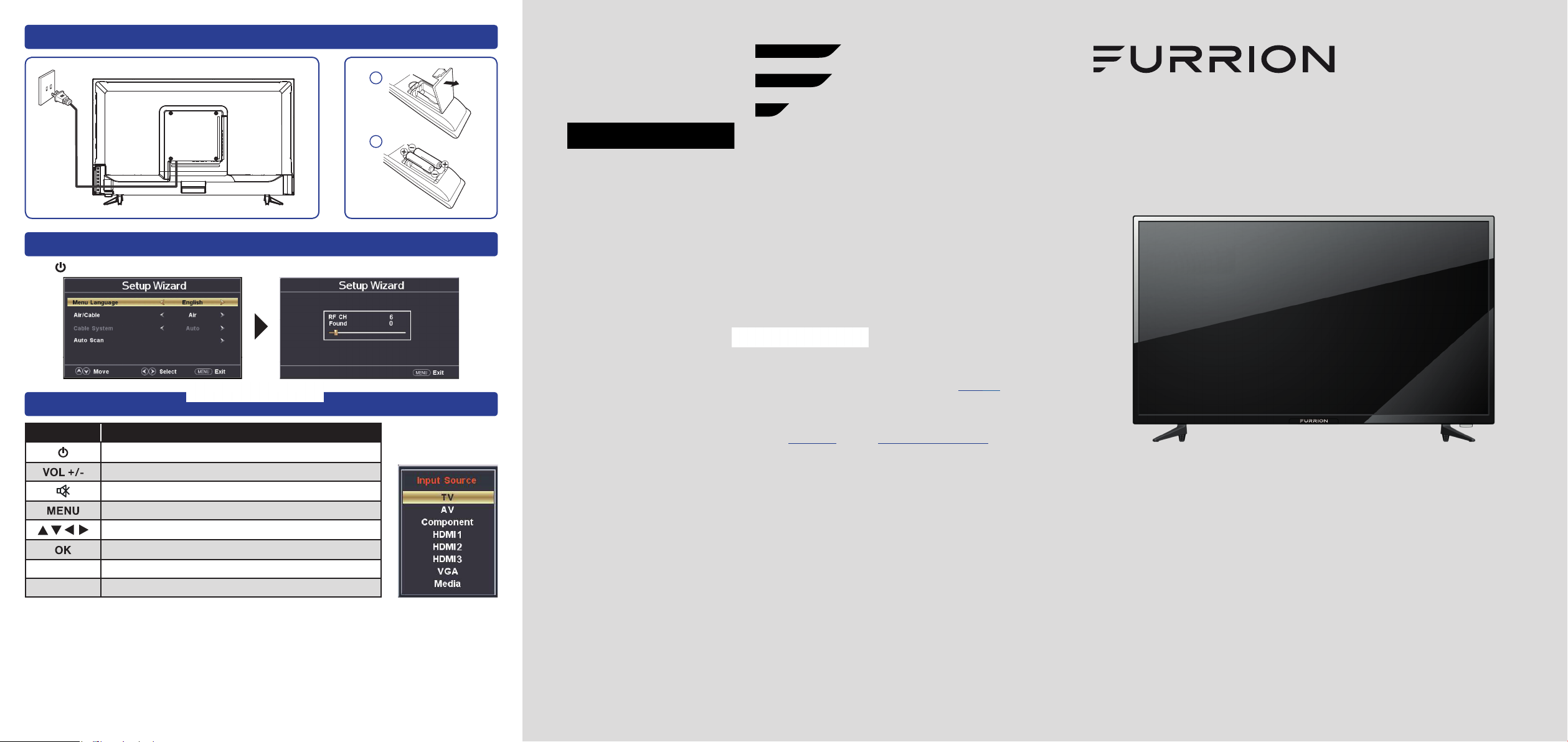

Furrion FDHS39Y1A User manual

Quick Start Guide
39” HD LED TV
Model: FDHS39Y1A
IG-FAV00052 V1.0
CONNECT POWER & INSTALL BATTERY
1
2
INITIAL SETUP
Press to power on and follow the on-screen instructions to finish initial setup.
BASIC OPERATION
Button Function
Power on/off.
Adjust volume.
Mute or un-mute the audio output.
Enter the main menu or return to the previous menu.
Navigate each menu.
Confirm your selection.
CH +/- Select the channels.
SOURCE Select the input source.
1. Press SOURCE button to bring up the input source selection screen.
2. Choose the appropriate input source.
●If the selected source is TV, press CH +/- to choose your desired channel.
●For other AV connections, use the remote control of the connected AV device to operate.
Tip:
See the complete user manual online for detailed functional explanation.
Furrion Ltd. (Furrion) is a wholly owned subsidiary of LippertComponents, Inc. (Lippert)
Furrion Ltd.
Furrion Innovation Center & Institute of Technology
●22244 Innovation Drive, Elkhart, IN 46514-5514, USA
●Toll free/Numéro gratuit/Línea telefónica gratuita:1-800-789-3341
●Email/Courriel/Correo electrónico: [email protected]
©2007-2023 Furrion Ltd. Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the
U.S. and other countries.
FURRION.COM
For Patent Info: www.Lippert.com/patents
The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination
of portions of this manual unless prior written consent from an authorized Lippert representative has been provided. Any
unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without
notice and at the sole discretion of Lippert. Revised editions are available for free download from lippert.com.
Please recycle all obsolete materials.
For all concerns or questions, please contact Lippert.
Ph: 432-LIPPERT (432-547-7378) | Web: lippert.com | Email: [email protected]
CCD-0005849 Rev. 07.24.23

This quick start guide will help you install and use the device properly. For further support and to
download the complete user manual please visit www.furrion.com/support.
WHAT’S IN THE BOX
AAA
AAA
Warranty Manual
Warning Card
Quick Start Guide
Warranty Manual
Warning Card
Quick Start Guide
Warranty Manual
Warning Card
Quick Start Guide
TV stands screw x 4
Wall mount screw
(M6*10mm) x 4
INSTALL
A. Use the supplied TV stands
TV stands screws (ST4*16mm) x 4
B. Wall mount
Choose an appropriate location and VESA mount.
Follow the installation guide supplied with the Wall-Mount Bracket when installing the TV and
contact a professional for installation.
VESA MOUNTING PATTERN
Model Width mm Height mm Screw Size Quantity
FDHS39Y1A 200 200 M6*10 mm 4
CONNECT
WARNING: Do not connect the power source before making connections.
RF
IN
HDMI3
IN
PC AUDIO
IN
VGA
IN
HDMI2
IN
USB 2.0
(5V 500mA) L R
AUDIO
OUT
V/Y Pb PrCOAXIAL
OUT
HDMI1 IN
ARC
L R
AUDIO
IN
Note: All external devices and cables shown in the diagram are for reference only and not included
in the package.
1. Choose one or more of the TV signal/AV connections
RF
IN
USB
5V 500mA
A
OR
HDMI3
IN
VGA
IN
HDMI2
IN
Pb Pr HDMI1 IN
ARC
B
Pb (Blue)
Y (Green)
R (Red)
AUDIO
Pr (Red)
L (White)
VIDEO
V/Y Pb Pr
HDMI1
IN(ARC)
L R
AUDIO
IN
C
R (Red)
VIDEO (Yellow)
AUDIO
L (White)
V/Y
Pb Pr HDMI1
IN(ARC)
L R
AUDIO
IN
D
2. Connect for more features
R (Red)
L (White)
OR
L R
AUDIO
OUT
COAXIAL
OUT
EARPHONE
OUT
PC AUDIO
IN
VGA
IN
USB 2.0
(5V 500mA) L R
AUDIO
OUT
Y
VIDEO
COAXIAL L R
AUDIO
IN
