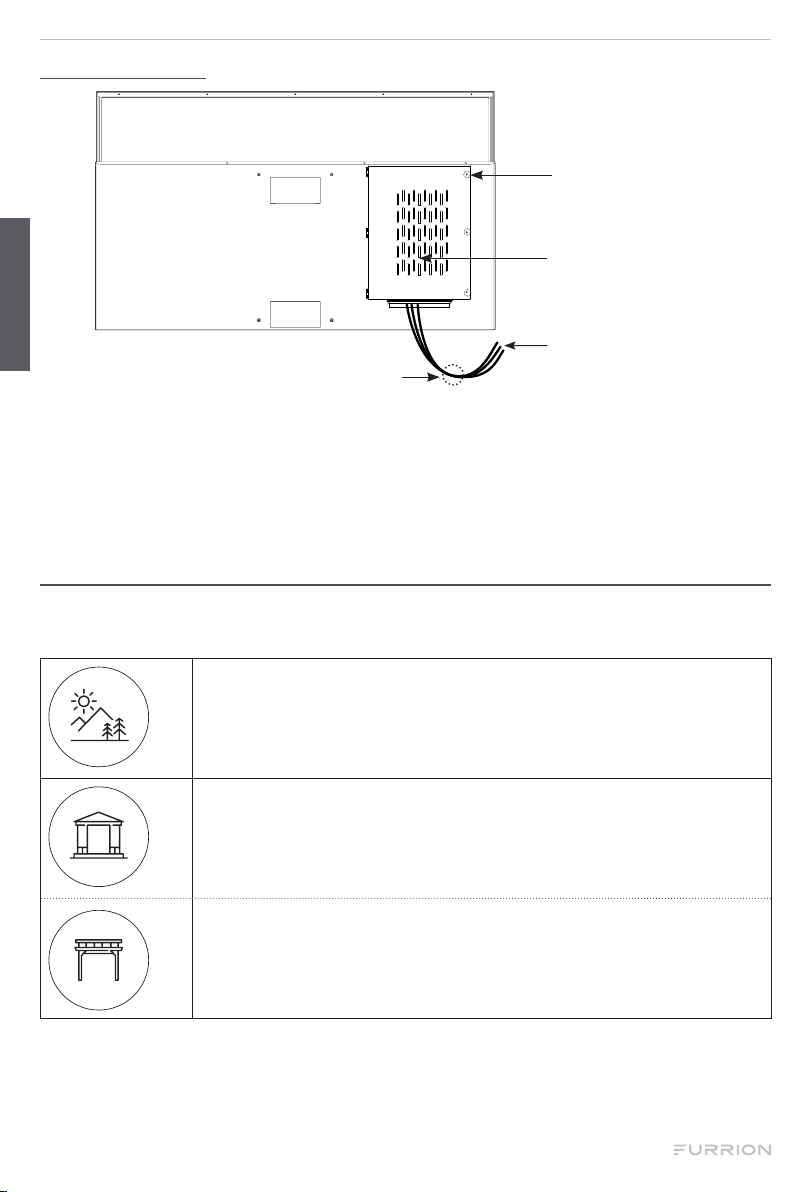

Cable management
50˝ TV Shown
Cables
Drip Loop
Thumb Screws x 3
Cable Access Door
–After all connections are completed, lead all connecting cables downwards through the
duct at the bottom of the cable access door.
–Leave a drip loop when cables enter the compartment. This will prevent water from
dripping down the cord and possibly entering the door area.
–Close the door and tighten the thumb screws for the best weatherproof effect.
INSTALL
It is recommended you install the TV in an area shaded by trees, landscape and/or
structures, or under a patio cover or gazebo.
Full Sun
TV designed for direct bright sunlight outdoor spaces.
(Model: FDUB43CSA, FDUB55CSA, FDUB65CSA)
Full Shade (Covered gazebos, patios, porches)
TV designed for fully shade outdoor spaces.
(Model: FDUF43CSA, FDUF50CSA, FDUF55CSA, FDUF65CSA,
FDUF43CSA-CA, FDUF50CSA-CA, FDUF55CSA-CA, FDUF65CSA-CA)
Partial Sun (Pergolas, partially covered decks)
TV designed for partial sun exposure and brighter outdoor spaces.
(Model: FDUP43CSA, FDUP50CSA, FDUP55CSA, FDUP65CSA,
FDUP43CSA-CA, FDUP50CSA-CA, FDUP55CSA-CA, FDUP65CSA-CA)

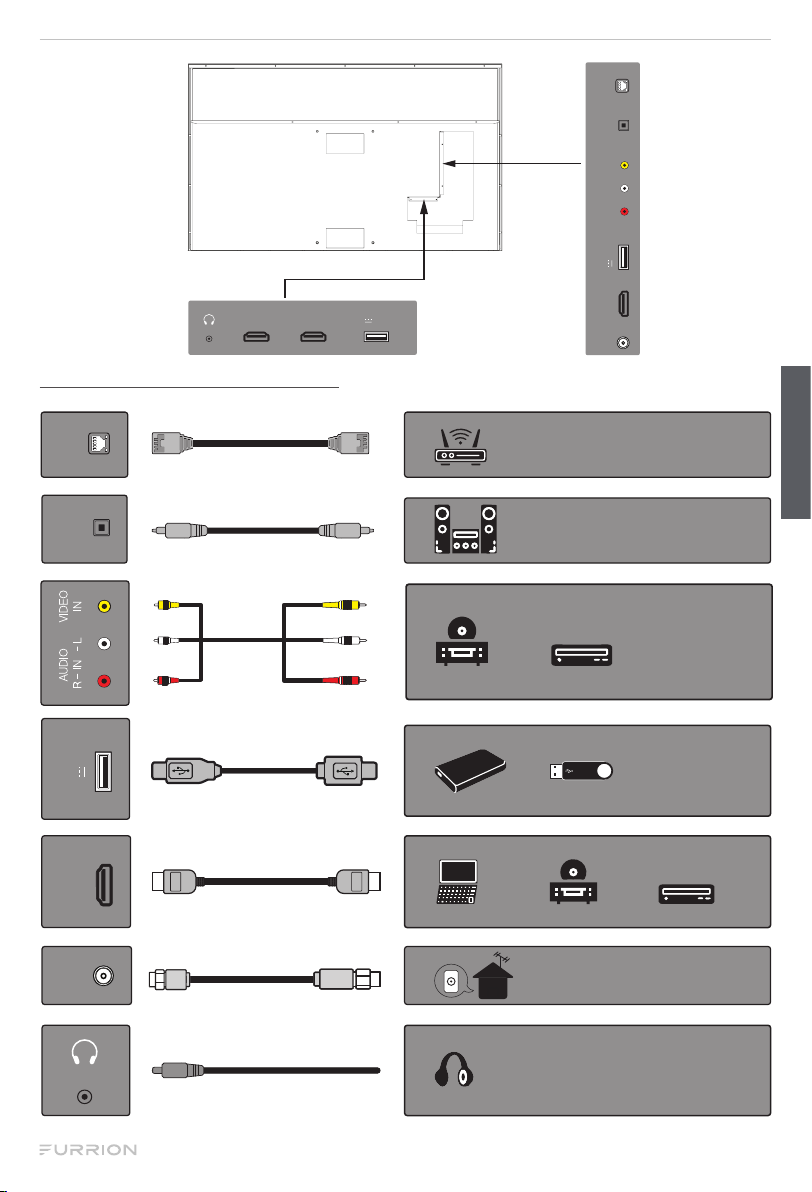

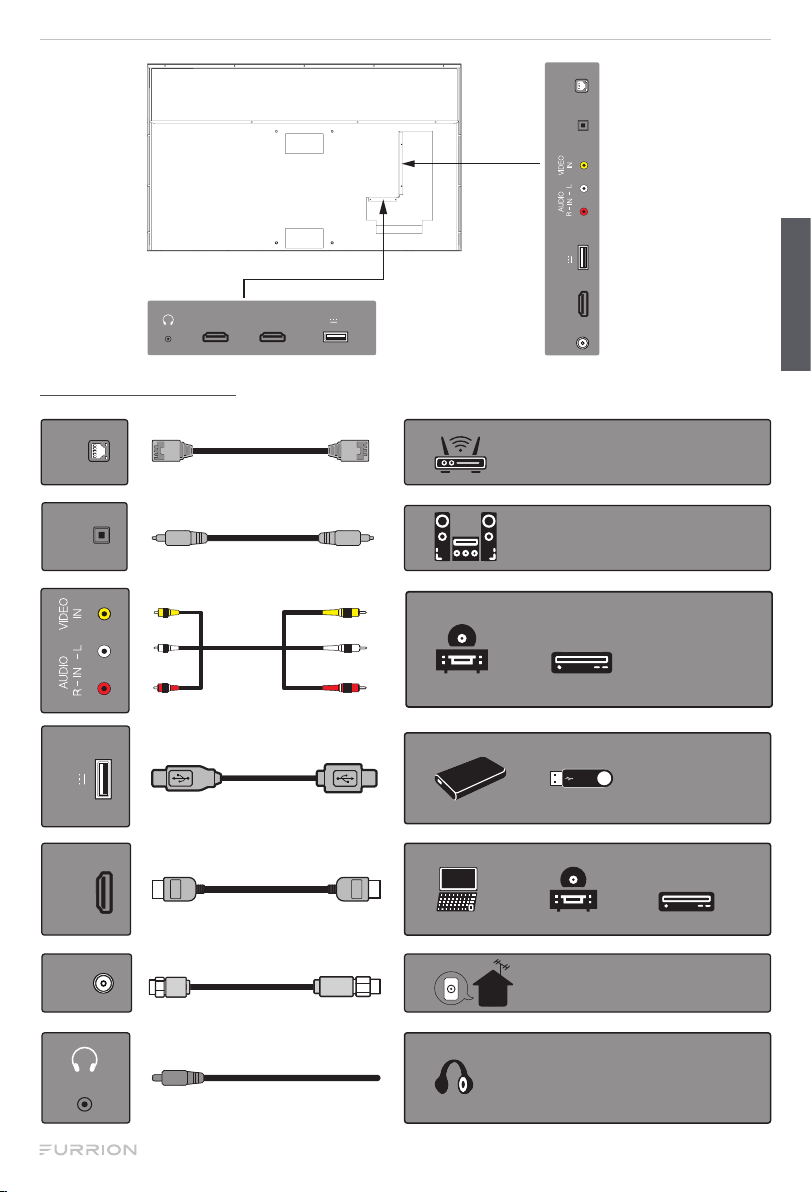

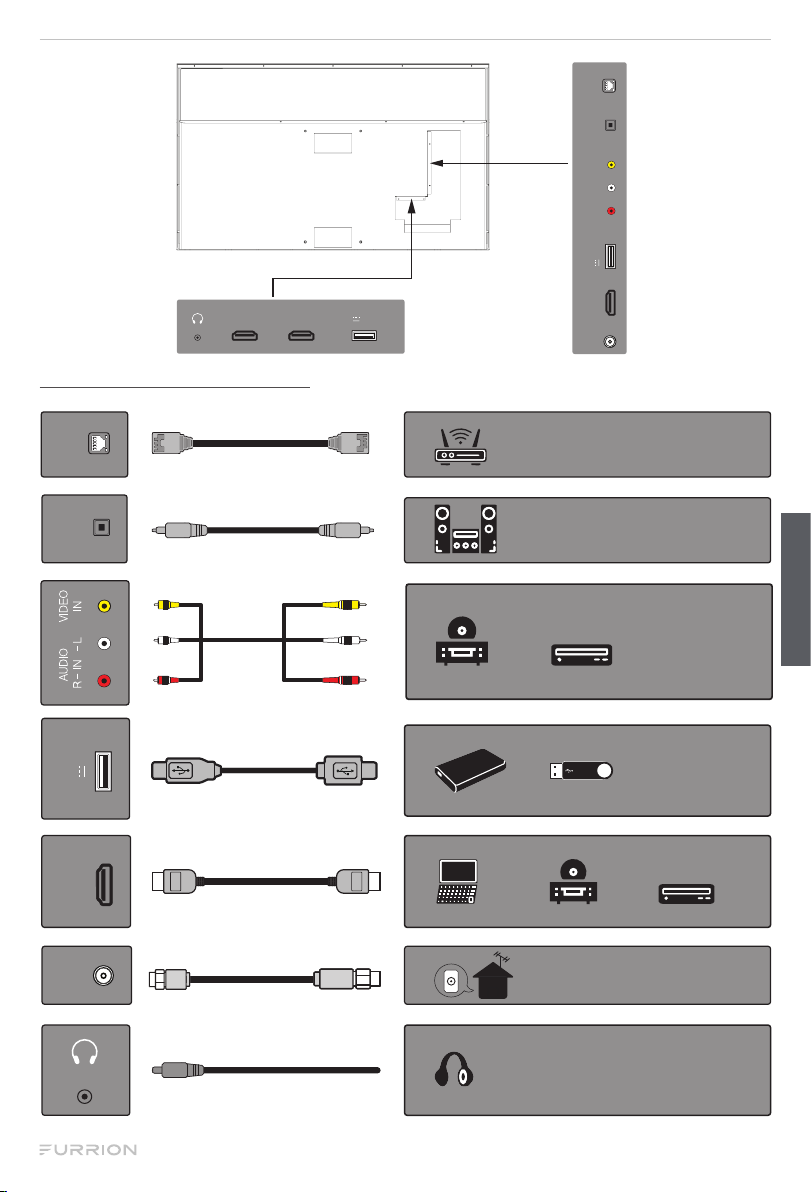

NOTE: Connect all cables prior to mounting the TV on the wall or TV mount. The cable access
door on the rear panel will be obstructed once the TV is mounted.

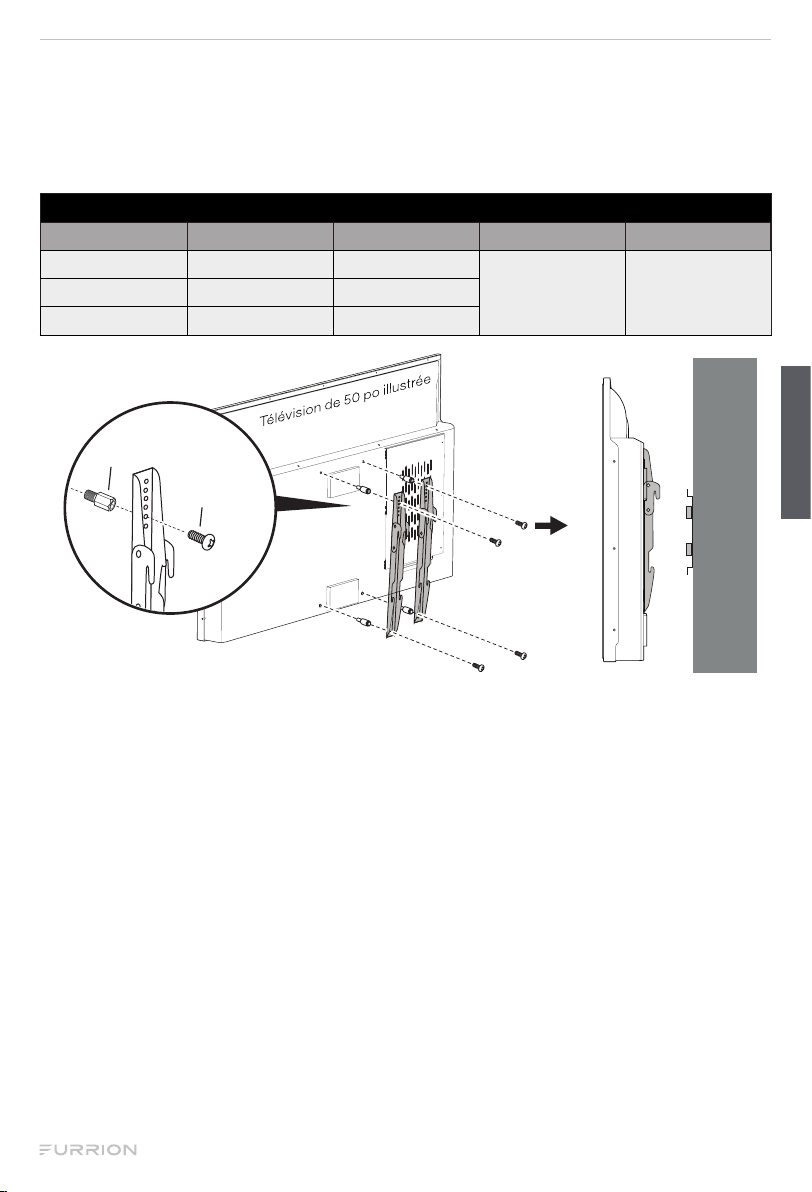

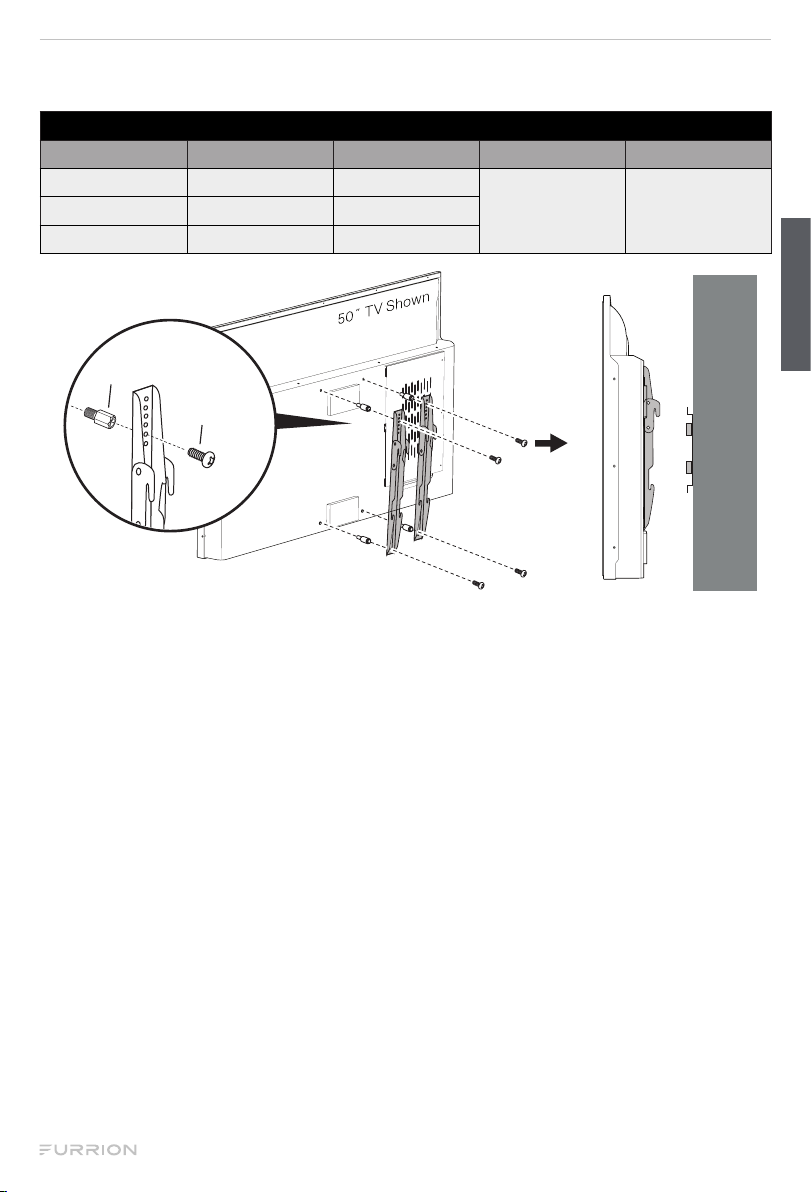

–Follow the installation guide supplied with the Wall-Mount Bracket when installing the TV.
–Choose an appropriate location and refer to the VESA pattern for mounting.
