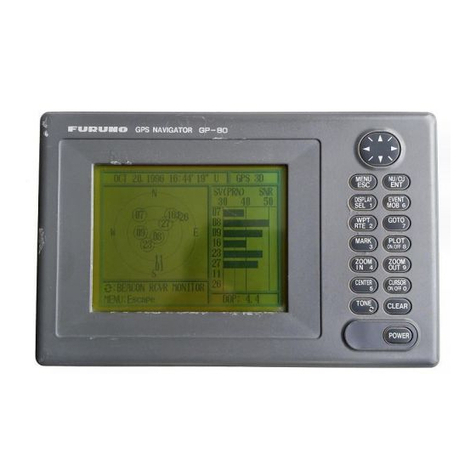

GPS NAVIGATOR GP-80
Operator's Guide
The purpose of this operator's guide is to provide the basic operating procedures for this equip-
ment. For detailed information, refer to the operator's manual.
Selecting Display Mode
Press [DISPLAY SEL].
Plotter 1/Plotter 2
Highway
Navigation
Data
Enlarging/Shrinking the
Display
Enlarging: Press [ZOOM IN].
Shrinking: Press [ZOOM OUT].
Shifting the Cursor
1) Press [CURSOR ON/OFF] to turn on the
cursor.
2) Operate the cursor keys to shift the cursor.
Shifting the Display
1) Press [CURSOR ON/OFF] to turn off the
cursor.
2) Operate the cursor keys to shift the display.
Centering Cursor Position
1) Press [CURSOR ON/OFF] to turn on the
cursor.
2) Operate the cursor keys to position the cur-
sor where desired.
3) Press [CENTER].
Entering/Erasing Marks
1) Press [CURSOR ON/OFF] to turn on the
cursor.
2) Operate the cursor keys to position the cur-
sor where desired.
3) Press [MARK].
To erase any mark (except MOB), place the
cursor on the mark and press [CLEAR].
234°
DGPS 3D
34° 23.456´ N 135° 45.678´ E
BRG
345°
BRG To +
11.5
RNG To +
nm
123°
CSE
001
30
40
20
50
H
2nm
234°
DGPS 3D
34°23.456´N 135°45.678´E
BRG
345°
RNG
123
12.3
SPD
nm
kt
CSE
001
H
002
1.0 1.0 nm
E
3D
N
S
12.3
DGPS 3D
SPD
10.3
123
RNG
789
TRIP
nm
kt
VTD
kt
nm
BRG
23:45'
17H 45M
TO; 012
0.1nm 0.1nm
15
63°
123°
CSE
ETA TTG
Graphic display
of steering data
3D view of ship's
track overlaid on
intended course
Ship's track and
data
Comprehensive
navigation data
display
SEP 12, 1995 23:59'59" U DGPS 3D
12° 23.456' N
123° 23.456' E
POSITION
RNG
31.23nm
SPD
12.3 kt
BRG
223.4°
CSE
123.4°
TO : 001
MARINE
POINT1
NEXT : 002
MARINE
POINT2
Does not appear
on Plotter 2 display.

Registering Routes
1) Press [WPT RTE].
2) Press [5] to select Route Planning.
3) Press ▲ or ▼ to select route number.
4) Press s.
5) Enter waypoint number (three digits).
6) Press ▼to enter next waypoint number.
7) Repeat steps 6 and 7 to complete the route.
8) Press [NU/CU ENT].
Setting/Cancelling
Destination
Destination can be set four ways. Below is the
method for setting destination by the cursor.
1) Press [GOTO].
2) Press [1] to select Cursor.
3) Place the cursor on position to set as desti-
nation.
4) Press [NU/CU ENT] twice.
To cancel destination, press [GOTO] [5]
[NU/CU ENT].
Setting the Arrival Alarm
1) Press [MENU ESC] [4].
2) Press ▲ or ▼ to select Arrival/Anchor.
3) Press t to select Arr.
4) Press ▼to select Alarm Range.
5) Enter arrival alarm range.
6) Press [NU/CU ENT].
7) Press [MENU ESC].
The buzzer may be silenced by pressing
[CLEAR].
Selecting Mark Shape/Line
Type
1) Press [MENU ESC] [2].
2) Press ▲ or ▼ to select Mark Shape (or
Mark Line).
3) Press t or s to select mark shape (or
mark line) desired.
4) Press [NU/CU ENT].
5) Press [MENU ESC].
Entering Event Mark
Press [EVENT MOB].
Entering MOB Mark
Press [EVENT MOB] until "Save MOB posi-
tion" appears (about three seconds).
Stopping/Starting Plotting
and Recording of Track
Press [PLOT ON/OFF]. "
H
" appears when
recording is off.
Registering Waypoints
A waypoint can be entered four ways. Below
is the procedure for entry by the cursor.
1) Press [WPT RTE].
2) Press [1] to select Cursor.
3) Operate the cursor keys to place cursor on
position desired for waypoint.
4) Press [NU/CU ENT].
5) Press ▼.
6) Press t or s to select mark shape.
7) Press [NU/CU ENT].
8) Enter comment (maximum 12 alphanu-
meric characters).
9) Press [NU/CU ENT].
950950KO PUB.NO.OSE-43740-A
(0000,TATA) GP-80
