Furuno DS-80 User manual

Installation Manual
DOPPLER SPEED LOG
Model DS-80
SAFETY INSTRUCTIONS...................................i
SYSTEM CONFIGURATION..............................ii
EQUIPMENT LISTS ..........................................iii
1. MOUNTING ....................................................1
1.1 Category of Equipment.................................1
1.2 Display Unit ..................................................2
1.3 Transceiver Unit............................................3
1.4 Transducer Unit ............................................ 4
1.5 Distribution Box ..........................................21
1.6 Terminal Box (option)..................................21
1.7 Digital Indicator, Distance
Indicator (option) .......................................22
1.8 Junction Box (option) ..................................22
1.9 Dimmer (option)..........................................22
2. WIRING ........................................................23
2.1 Precautions for Cable Installation ...............23
2.2 Wiring of Distribution Box ...........................23
2.3 Wiring of Transceiver Unit...........................26
2.4 Wiring of Terminal Box................................27
2.5 Display Unit (Digital Indicator,
Distance Indicator).....................................28
2.6 Grounding................................................... 28
2.7 Wiring Check ..............................................28
3. SYSTEM SETTINGS....................................29
3.1 Transducer Adjustment...............................29
3.2 Setting of System Menu 2...........................30
3.3 Checking the Interconnection .....................31
3.4 Setting of Maximum Speed Range .............32
3.5 Ship's Speed Adjustments ..........................32
3.6 Setting for Analog Display...........................33
3.7 DIP Switch Settings .................................... 34
4. CHANGING AC POWER TAP ..................36
CALIBRATION ............................................. AP-1
PACKING LISTS ............................................ A-1
OUTLINE DRAWINGS ................................... D-1
INTERCONNECTION DIAGRAMS ................ S-1
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
www.furuno.com

The paper used in this manual
is elemental chlorine free.
・FURUNO Authorized Distributor/Dealer
9 52 Ashihara cho,
Nishinomiya, 662 8580, JAPAN
A
:
FEB
2000
.
Printed in Japan
All rights reserved.
X2
:
DEC
.
14, 2020
Pub. No.
IME-72470-X2
(
TAYA
)
DS-80
0 0 0 8 0 8 8 9 8 1 9

i
SAFETY INSTRUCTIONS
CAUTION
Confirm that the power supply voltage
is compatible with the voltage rating
of the equipment.
Connection to the wrong power supply
can cause fire or equipment damage. The
voltage rating appears on the label at the
rear of the display unit.
Ground the equipment.
Ungrounded equipment can give off or
receive electromagnetic interference or
cause electrical shock.
Keep the following compass safe
distances.
WARNING
Only qualified personnel
should work inside the
equipment.
This equipment uses high
voltage electricity which can
shock, burn, or cause serious
injury.
Turn off the power at the
mains switchboard before
beginning the installation.
Post a sign near the switch
to indicate it should not be
turned on while the equip-
ment is being installed.
Fire, electrical shock or
serious injury can result if the
power is left on or is applied
while the equipment is being
installed.
Display Unit
Digital Indicator
Distance Indicator
Distribution Box 2.15 m 1.45m
Transceiver Unit 2.00 m 1.15 m
Terminal Box 0.85 m 0.50 m
Standard Steering
0.30 m 0.30 m
Careful consideration is required to avoid
ingress of water through the transducer
tank. The tank shall be strong enough to
withstand the water pressure in fully loaded
conditions in rough weathers. FURUNO
Electric Co., Ltd. is not liable to any loss of
ship and personnel which is caused by in-
stallation procedures.

ii
SYSTEM CONFIGURATION

iii
EQUIPMENT LISTS
Standard supply
Name Type Code No. Qty Remarks
Display Unit DS-800 - 1
Distribution Box DS-801-100 -
1
100 VAC
DS-801-110 - 110 VAC
DS-801-115 - 115 VAC
DS-801-200 - 200 VAC
DS-801-220 - 220 VAC
DS-801-230 - 230 VAC
Transceiver Unit DS-810 - 1
Transducer Unit DS-820 - 1 select 10/20/30/40m cable
Terminal Box DS-802 - 1
Spare Parts SP65-00700 000-029-046 1 set w/SP65-00701,
SP65-00702, SP65-00601
Installation
Materials CP65-00900 000-029-047 1 set
w/CP65-00901,
CP65-00902, CP65-903
Optional equipment
Digital Indicator (000-029-020)
Name Type Code No. Qty Remarks
Digital Indicator DS-830 - 1
Spare Parts SP65-00601 002-889-730 1 set Fuse
Accessories FP65-00400 000-029-028 1 set FP65-00401, FP65-00402,
FP65-00403
Installation
Materials CP65-00800 000-029-027 1 set
CP65-00801,
MJ-A7SPF-005-020,
MJ-A6SPF-003-020
Remote Distance Indicator (000-029-022)
Name Type Code No. Qty Remarks
Distance Indicator DS-840 - 1
Spare Parts SP65-00601 002-889-730 1 set Fuse
Accessories FP65-00400 000-029-028 1 set FP65-00401, FP65-00402,
FP65-00403
Installation
Materials CP65-00800 000-029-027 1 set
CP65-00801,
MJ-A7SPF-005-020,
MJ-A6SPF-003-020

iv
Optional equipment
Name Type Code No. Qty Remarks
Terminal Box DS-802 000-029-048 1 set w/CP65-00903
Dimmer DS-F25 - 1 set 100-120 VAC, flush mount
DS-FE25 - 1 set 200-240 VAC, flush mount
DS-S25 - 1 set 100-120 VAC, bulkhead
DS-SE25 - 1 set 200-240 VAC, bulkhead
Junction Box CI-630 000-069-770 1 set w/CP66-02201
Seachest DS-850 000-029-050 1 set w/tightening handle
DS-781 000-029-051 1 set
Projection type
Through-hull Pipe
[TFB-5000 (1)]
DS-782 000-029-052 1 set Gate valve, projection type
DS-783 000-029-053 1 set Flush mount type
DS-784 000-029-054 1 set Flush type
DS-786 000-029-055 1 set Gate valve type
Transducer Tank DS-854 - 1 set Ball valve type
Alarm unit AU-12 - 1 set
Range Switch Box MF-22R-1 - 1 set flush mount
MF-22R-2 - 1 set bulkhead
Analog Indicator FE-90 - 1 set Displayed scale range: -10
to 30 kn, panel flush mount
FL-90 - 1 set
Displayed scale range: -10
to 30 kn, panel flush mount
SL-200-1W - 1 set
Displayed scale range: -10
to 30 kn, bulkhead,
Degree of protection: IP56
SL-200-5W - 1 set
Displayed scale range: 30
to -10 kn, bulkhead,
Degree of protection: IP56
SL-200-2 - 1 set
Displayed scale range: -10
to 40 kn, bulkhead,
Degree of protection: IP56
SL-200-3 - 1 set
Displayed scale range: -10
to 20 kn, bulkhead,
Degree of protection: IP56
FL-200S-1 - 1 set
Displayed scale range: -10
to 30 kn, flush mount,
Degree of protection: IP5X
FL-200S-1W - 1 set
Displayed scale range: -10
to 30 kn, flush mount,
Degree of protection: IP5X

1
1. MOUNTING
NOTICE
Do not apply paint, anti-corrosive sealant
or contact spray to coating or plastic
parts of the equipment.
Those items contain organic solvents that
can damage coating and plastic parts,
especially plastic connectors.
1.1 Category of Equipment
Equipment for protected area
•Display Unit
•Distribution Box
•Transceiver Unit
•Terminal Box (one standard, other optional)
•Digital Indicator (option)
•Distance Indicator (option)
•Range Switch Box (option)
•Dimmer (option)
•Junction Box (option)
•Analog Display (option)
Equipment to be submerged
•Transducer

2
1.2 Display Unit
1.2.1 Mounting considerations
The display unit can be installed on a tabletop, on the overhead, on the bulkhead or flush
mounted in a console or panel.
When selecting a mounting location for the display unit keep the following in mind.
•Keep the display unit out of direct sunlight.
•The temperature and humidity of the mounting location should be moderate and stable.
•Locate the unit away from exhaust pipes and vents.
•Keep the unit away from electromagnetic field-generating equipment such as motors and
generators.
•For maintenance and checking purposes, leave sufficient space at the sides and rear of the
unit and leave slack in cables.
•A magnetic compass will be affected if the display unit is too close to it. Observe the
compass safe distances to prevent disturbance to the magnetic compass.
Tabletop Overhead
Display unit, tabletop and overhead mounting method
1.2.3 Mounting procedure (tabletop, overhead)
1. Fix the hanger with four tapping screws (M5x20).
2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts.
1.2.4 Flush mounting
There are two types of flush mount kits, F type and S type. For details, see the outline diagrams
at the back of this manual.

3
F type
1. Make a cutout of 167 X 92 mm.
2. Attach the cosmetic panel (supplied) to the display unit with hex bolts (M6X12, supplied)
and spring washers (M6, supplied).
3. Fix the display unit to the mounting location with four tapping screws (5X20, supplied).
S type
1. Make a cutout 167 X 92 mm.
2. Attach two fixing metals (supplied) to the display unit with hex bolts (M6X12, supplied) and
spring washers (M6, supplied).
3. Screw four wing bolts (supplied) to wing nuts (supplied).
4. Fasten the display unit to the mounting location with four wing bolts and nuts assembled at
step 3.
1.3 Transceiver Unit
1.3.1 Mounting considerations
•Since the transceiver unit generates heat, install it in a dry, well-ventilated place. The cooling
fans at the top of the unit must not be obstructed, to allow heat to escape.
•This unit is designed for bulkhead mounting to permit dissipation of heat. If bulkhead
mounting is absolutely impossible, mount the unit on the floor leaving at least 50 mm
clearance between it and the floor to permit dissipation of heat.
•The unit weights 7.1 kg. Reinforce the mounting area, if necessary.
•Leave space around the unit for maintenance and checking. Refer to the drawing at the end
of this manual for minimum recommended maintenance space.
•A magnetic compass will be affected if the transceiver unit is placed too close to it. Observe
the compass safe distances to prevent disturbance to the magnetic compass.
1.3.2 Mounting procedure
Fasten the transceiver unit with four tapping screws (6X30, supplied).
For bulkhead mounting, make sure there is 5 mm clearance between lower edge screw head
and bulkhead.

4
1.4 Transducer Unit
The performance of this equipment is directly dependent on the installation of the transducer.
The installation of the transducer and the tank should be accomplished by a dockyard referring
to the installation drawings at the later part of this manual.
1.4.1 Mounting Location
To decide the location of the transducer, the following points should be taken into account.

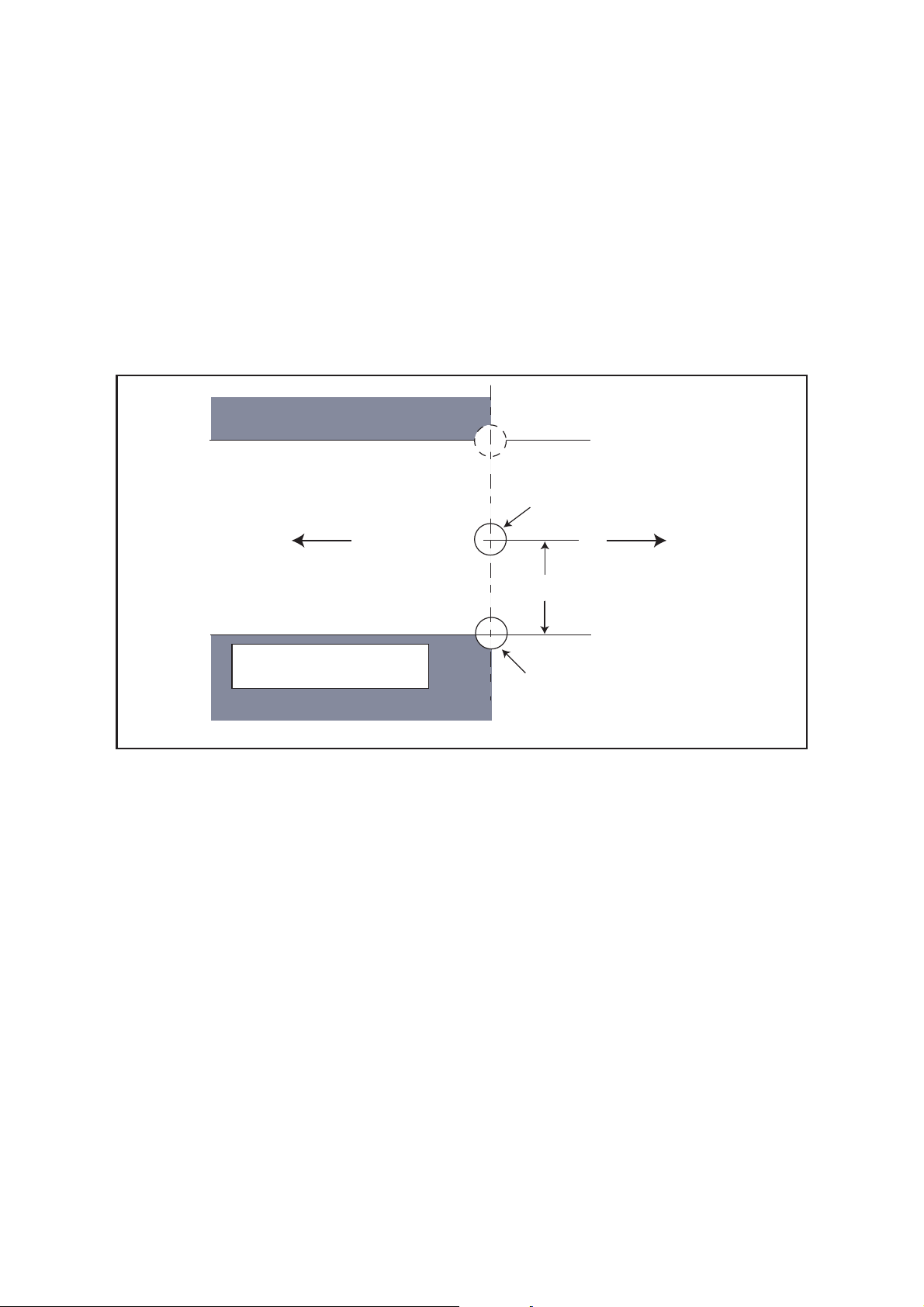

•Locate the transducer of DS-80 at least 2.5 m from the transducer of an echo sounder.
STERN BOW
2500 mm or more
Recommended location
for echo sounder transducer ECHO SOUNDER TRANSDUCER
(a or b)
DOPPLER SPEED LOG TRANSDUCER
a
c
b
Transducer, mounting location
•Separate as far as possible from air bubble sources; e.g., side thruster and water disposal
pipes.
•Install in close proximity to the keel, for uniform water flow.
•Generally, best performance is obtained by mounting on the bow; the stern side is
influenced more easily by air bubbles and propeller caviation.
•Never apply ordinary paint to the transducer face. Whenever the ship is dry docked, the
transducer face should be cleaned off oysters and foreign materrial.

5
1.4.2 Mounting of transducer

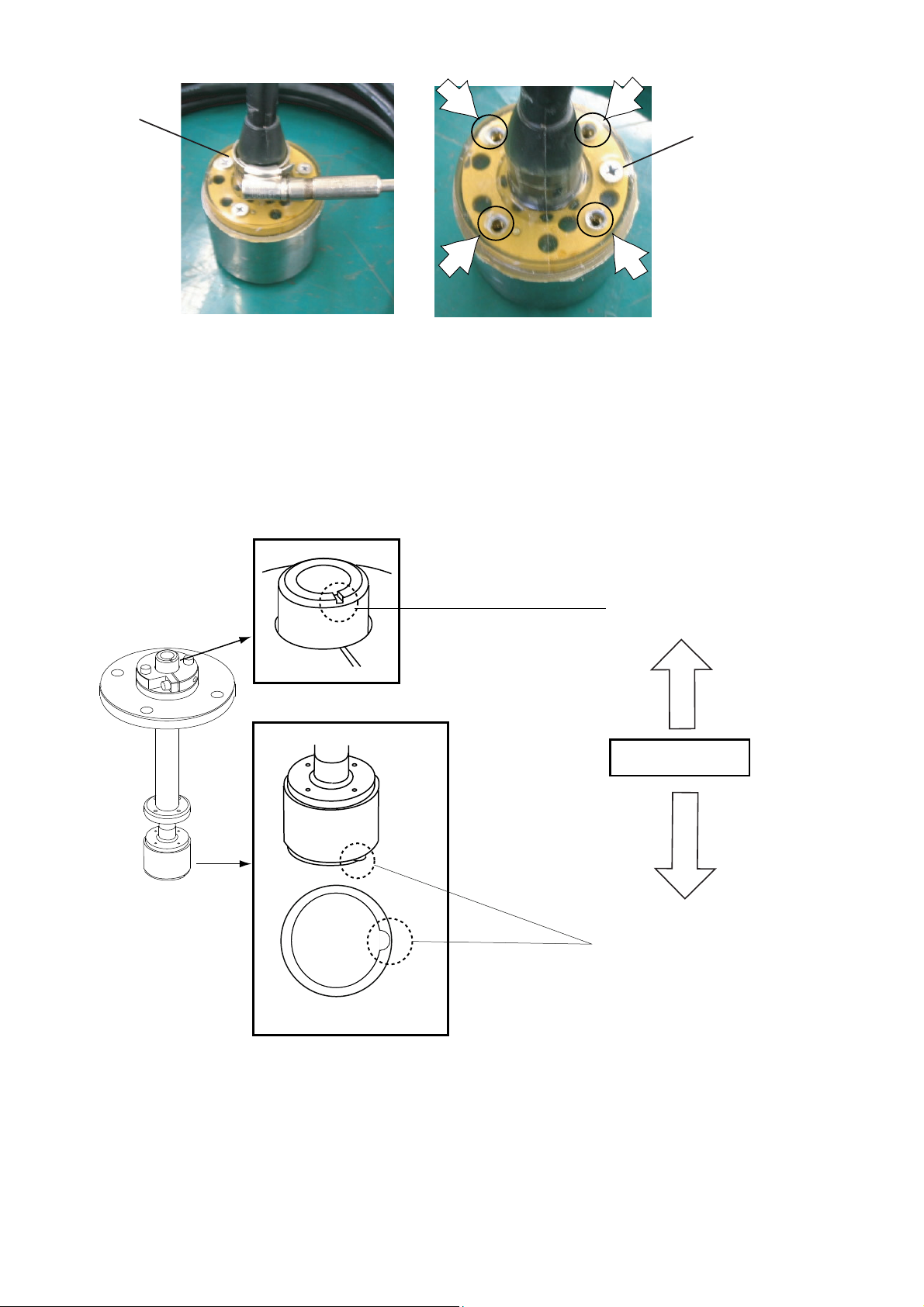

Confirm that a metal cover is attached to the transducer. For seachest except DS-850, remove
the hose clamp from the top of transducer.

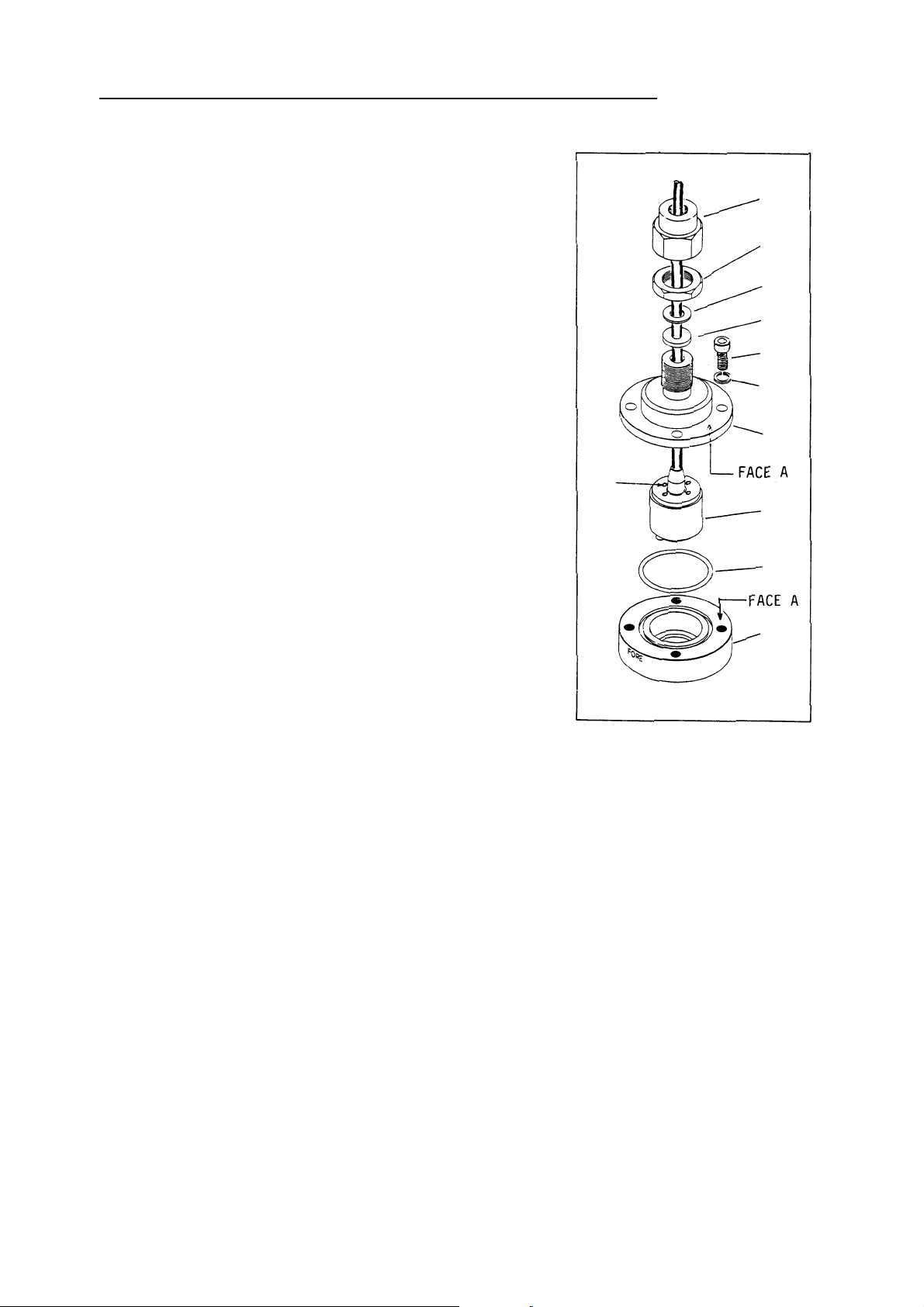

Mounting of Flush Type Seachest DS-850
1. Fit the transducer (1) and spacer (7) to the bottom plate (3).
2. With the “FORE” mark on the fixing plate (8) facing upward, pass the transducer cable
through the slot in the fixing plate (8).
3. Face the fixing plate (8) and bottom plate (3) in the ship’s bow direction, and then screw
three bolts (4) in the tapped holes of the bottom plate.
4. Fasten the fixing plate (8) with three flat washers (9), spring washers (10) and nuts (11) until
the fixing plate (8) contacts the spacer (7).
5. Set the tightening nut (12), washer (13) and gasket (14) to the transducer cable in that
order from the cable end.
6. Pass the transducer cable end through the though-hull pipe from below the hull.
7. Fasten the tightening nut (12) with the tightening handle (supplied) so that the length of the
cable between the tightening nut and the top of the transducer is 300 mm.
8. Mate the bottom plate (3) and barrel (2), and fasten them with six spring washers (6) and
hex. Bolts (5).
Note: The tank barrel needs not be filled with oil or any filler. Sea water will get into when the
ship is placed in the water.
Do not seal the bottom plate to stop ingress of water into the tank.
88
66
1212
5533
191+1
152
42
FOREFORE FOREFORE
1. TRANSDUCER 1 pc
2. CASING 1 pc
3. FIXING FLANGE 1 pc
4. FIXING BOLT 3 pcs
5. HEX. BOLT 6 pcs
6. SPRING WASHER 6 pcs
7. SPACER 1 pc
8. FIXING PLATE 1 pc
9. FLAT WASHER 3 pcs
10. SPRING WASHER 3 pcs
11. HEX. NUT 6 pcs
12. TIGHTENING NUT 1 pc
13. WASHER 1 pc
14. GASKET 1 pc
FORWARD DIRECTION
AAAA
A-A viewA-A view
1414
1313
22
1111
1010
99
44
77
11
SOLDERING DIMMENSIONS
DECIDED BY SHIPYARD.
HULL PLATE
240
300
35
25
FOREFORE

6
See Note
on page 6.
(4)
(5)
(4)
(7)
(6)
(9)
(10)
(3)
(1)
(8)
(2)

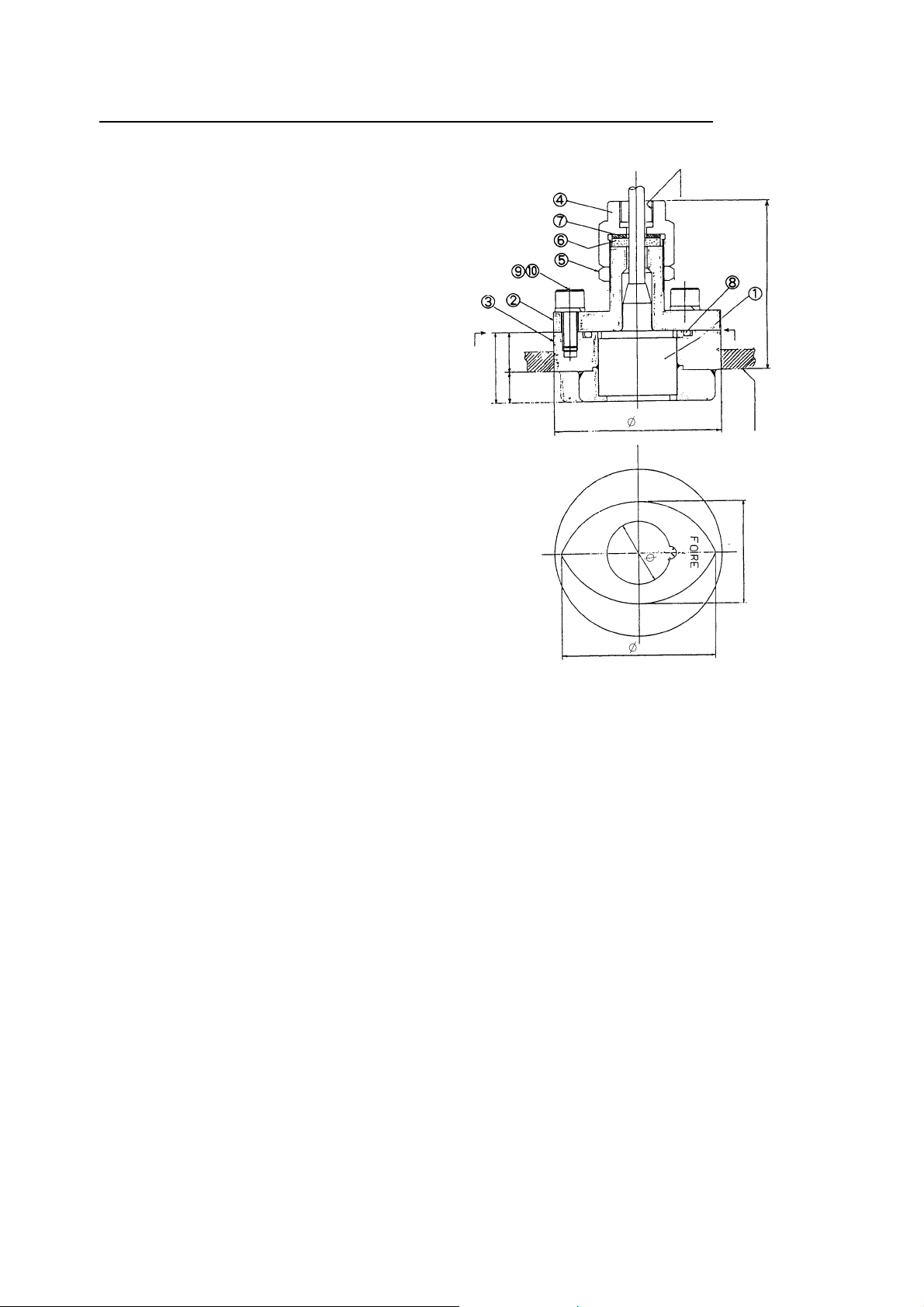

Mounting of Flush Type Seachest DS-784 (ref. Dwg. C7222-T06)
The seachest DS-784 is delivered temporarily assembled with the transducer.
1. Loosen lock nut (5) with a wrench (hex. size: 50 mm)
and take off cap nut (4) from top cover (3) together
with gasket (6) and flat washer (7). (It is not necessary
to draw the cap nut completely out from the cable.)
2. Unscrew hex. socket head bolts (9) (M12X25, 4 pcs.)
by using a socket screw wrench (size: 10 mm).
Separate the seachest (2) and transducer (1) from top
cover (3). Handle O-ring (8) carefully.
3. Weld the seachest (2) to the hull plate. Confirm that
the “FORE” alignment mark on the side of the
seachest faces the fore-aft line of the ship within 1
degree. The seachest should also be level with ship’s
normal trim within 1 degree.
4. Finish the outside hull plate with a grinder to ensure
smooth water-flow.
5. Apply “Kinoruster (Anti-crevice corrosive sealant)” to
face A of seachest (2), O-ring groove on the hull flange,
O-ring (8) and face A of the stop cover (3).
6. Fit O-ring (8) onto the O-ring groove.
7. Place transducer (1) into seacjest (2) so that the
alignment nipple on the transducer face fits into the notch on the hull flange.
8. Clean the hull flange face with a clean cloth and settle stop cover (3) on the hull flange.
9. Tighten hex. socket bolts (9) with a socket screw wrench.
10. Put gasket (6) and flat washer (7) over the transducer flange and tighten cap nut (4)
securely with a wrench (hex. size: 50 mm). Screw lock nut (5).
11. When running the transducer cable inside the conduit pipe, screw the pipe onto the cap nut
(PS3/4) for watertightness.
Note : Never remove the four flat head screws which seal screw holes, to maintain
watertighness.

7
PS3/4
129
HULL PLATE
130
30 24
54
A
R5
48
Bottom View
120
A

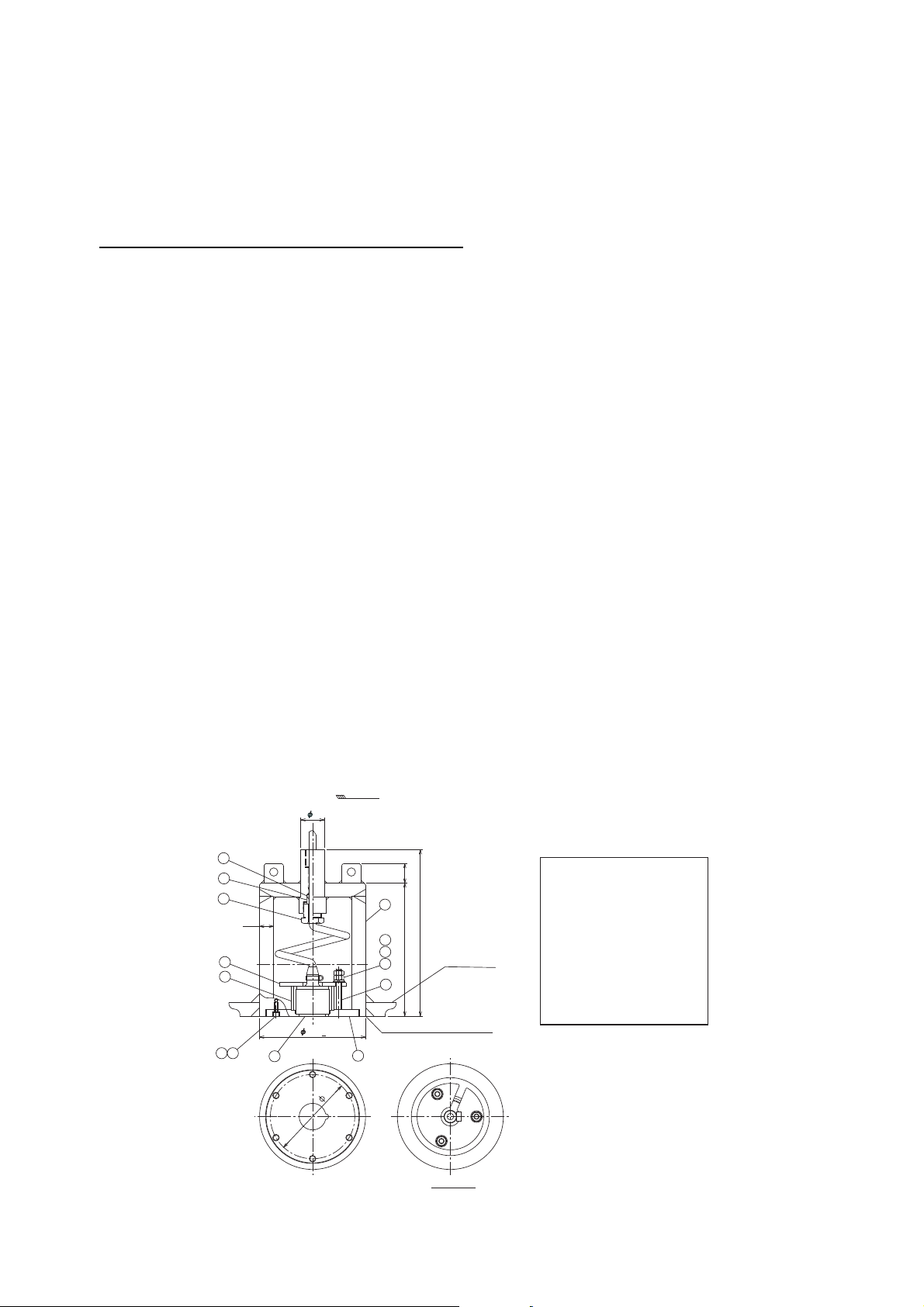

Flush mount, Projection Type Seachest DS-783 (ref. Dwg. E7222-T-03)
1. Loosen lock nut (5) with a wrench (hex.
size: 50 mm) and take off cap nut (4) from
hull flange (3) together with gasket (6) and
flat washer (7). (It is not necessary to
draw the cap nut completely out from the
cable.)
2. Unscrew hex. socket head bolts (10)
(M12X32, 4 pcs.) by using a socket screw
wrench (size: 10 mm). Separate flange (2)
and transducer (1) from hull flange (3).
Handle O-ring (8) carefully.
3. Weld hull flange (3) to the hull plate.
Confirm that the “FORE” mark alignment
line on the side of the hull flange faces the
fore-aft line of the ship within 1 degree.
The hull flange should also be horizontal
within 1 degree at ship’s normal trim.
4. Finish the outside hull flange with a
grinder to ensure smooth water-flow.
5. Apply “Kinoruster (Anti-crevice corrosive sealant)” to face A of hull flange (3), O-ring groove
on the hull flange, O-ring (8) and face A of the flange.
6. Fit O-ring (8) onto the Ｏ-ring groove.
7. Place transducer (1) into hull flange (3) so that the alignment nipple on the transducer face
fits into the notch on the hull flange.
8. Clean the hull flange face with a clean cloth and settle flange (2) on the hull flange.
9. Tighten hex. socket bolts (10) with a socket screw wrench.
10. Put gasket (6) and flat washer (7) on top of the transducer flange and tighten cap nut (4)
securely with a wrench (hex. size: 50 mm). Screw lock nut (5).
11. When running the transducer cable inside the conduit pipe, screw the pipe end onto the cap
nut (PS3/4) for watertightness.
Note: Never remove the four flat head screws which seal screw holes, to preserve watertight
integrity.

8
Mounting of Projection Type Seachest DS-781 (ref. Dwg. C72222-T05)
1. Weld doubling plate (supplied by shipyard) to hull plate.
2. Remove the M10 bolts, and take out transducer fixing flange (2) (including transducer) from
transducer housing (1).
3. Determine the projection distance, and cut transducer housing (1). The horizontal error
should be within 1°.
4. Before beginning this step, remove the rubber gasket inside the thru-hull pipe to prevent it
from melting. After cutting a hole through the hull plate for the thru-hull pipe (φ36), weld the
thru-hull pipe to the hull plate.
5. Weld transducer housing (1) to doubling plate. Direction error from fore-aft line should be
within 1°. At stern side of transducer housing, make air exhaust holes (φ10-20).
6. Through the thru-hull pipe, pull up the transducer cable into the ship. Be careful not to jam
the cable between the flange and housing. Next, using the two M10X30 bolts, fasten the
transducer fixing flange to the transducer housing.
Note: Never remove the four flat head screws.
(1)
(2)

9
Gate valve, Projection Type Transducer DS-782 (ref. Dwg. C7222-T02)
Face A
Face B
(10)
(11)
(9)
(8)
(21)(22)(23)
(4)
(12)(13)(14)
(19)
(16)(17)(20)
(18)
(5)
(2) (15)(16)(17)
(18)
(3)
(1) (7)
(6)
DS-782
1. Separate hull flange (3) and flange (4) (with transducer (1) and shaft (5)) from gate valve (2)
by removing hex. Nut (17).
2. Weld hull flange (3) to the hull plate. Confirm that the “FORE” and align marks on the side
of the hull flange face the fore-aft line of the ship within 1 degree. The hull flange should
also be horizontal within 1 degree at ship’s normal trim. Finish the outside hull plate flat with
a grinder.
3. Apply “Kinoruster (Anti-crevice corrosive sealant)” to face A of hull flange ③, both faces of
gasket (18) and flange of gate valve (2).
4. Put gasket (18) onto hull flange (3).
5. Mount gate valve (2), considering the direction of the handle (aft direction normally or
selectable every 45 degrees) so as to allow enough space for operation.
6. Apply “Kinoruster” to face B of flange (4), both faces of gasket (18) and the flange of gate
valve (2).
7. Put gasket (18) onto the flange of gate valve (2).
8. Mount flange (4) (with transducer and shaft) to gate valve.
9. Loosen the hex. socket head bolts (23)and (26), then check that shaft (5) moves upward
and downward smoothly by hand.

10
10. Lower shaft (5) completely and fasten hex. socket bolt (23) and (26)
11. Lower the transducer by turning the handle until the transducer case (6) touches the hull
flange (3).
12. Confirm that the hull plate projects by 24 mm.
Note: Never weld the hull flange or transducer tank when the transducer is being fitted, nor
weld near the transducer of other equipment.
Gate valve, Projection Type Transducer DS-786 (ref. Dwg. C7222-T04)
(7)(8)(19)
(13)(14)
(17)
(17)
(2)
(13)(14)
(21)
(13)(14)
(6)
(12)
(4)
(18)
(10)(11)
(5)
(20)
(15)(16)
(9)(10)(11)
(18)
(3)
(1)
DS-786 gate valve, sectional view
Note: The gate valve requires service space of 700 mm. For details, see the installation drawing
at the back of this manual.

11

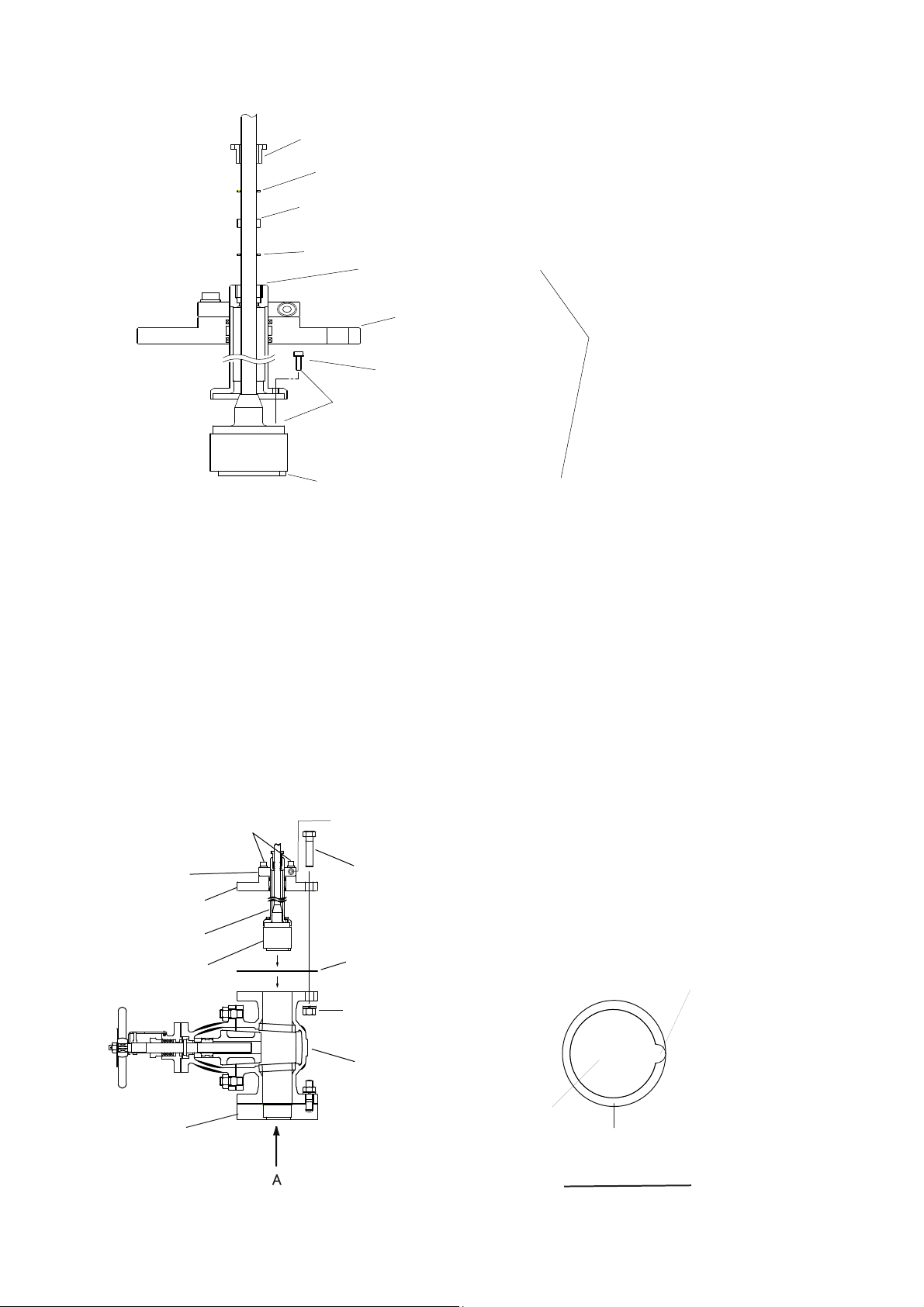

1. Unfasten M16 nut (3) and spring washer (11) from the assembled gate valve to remove the
five items shown below.
•Gate valve (20)
•Spacer (3)
•Gasket 1(18)
•Gasket 2(18)
•Shaft assy.
2. Set the spacer (3) to the mounting location.
The “FORE-AFT” line on the spacer must be
parallel with the ship’s fore and aft line (within
1゜). For horizontal direction, the bottom of the
spacer must be parallel with the ship’s draft.
Note: Handle the top side of the spacer (3) carefully to preserve the waterproof effect.
3. Weld the spacer (3) to the ship’s hull. The welding and doubling methods are left up to the
shipyard.
4. Apply Kinoruster (supplied) to both sides of the gasket1 (18), and put it on the spacer (3).
5. Apply Kinoruster (supplied) to the hollow side of the spacer (3).
6. Clean the top and bottom of the gate valve (20), and put it on the gasket1 (18) set on the
spacer (3).
7. Fasten M16 nut (10) and M16 spring washer (11) loosely to the stud bolt of the spacer (3).
8. Paint the gate valve (20) and the spacer (3) the same color as ship’s body. Paint only
gray-colored areas; for other part, seal with a masking tape. Remove the tape when the
paint dries.
Gate valve (20)
M16 Nut (10)
M16 Spring washer (11)
Gasket1 (18)
(Apply Kinoruster to both sides.)
Spacer (3)
Apply Kinoruster to the hollow side.
9. Unfasten two sets of hex. bolt (13) and M8 spring washer (14) from the top side of the shaft
to remove the fixing plate (21).
10. Remove the gland (19), gasket (7) and washer (8)(2 pcs.) from the shaft.
11. Remove Jubilee clip located at the base of the transducer (1) cable and M4 flat-head Phillips
screw at the top side of the transducer (1).
Shaft assy.
Gasket2 (18)
Gate valve (20)
Gasket1 (18)
Spacer (3)

12
Jubilee clip
Do not remove this screw.
Remove these four screws.
Removing Jubilee clip Removing flat-head Phillips screws
12. Pass the transducer cable through the shaft from the flange side.
13. Apply Three Bond (1104 200G:local supply) to the top side of the transducer evenly.
14. Apply Three Bond to the thread part of hex. bolt (15) with seal washer (16) and use them to
fasten the transducer.
Check that the fore mark on the shaft is aligned with the projection at the bottom of the
transducer.
The fore mark on the shaft
Align them.
The projection on the transducer
Bottom view
15. Pass the flat washer (8), gasket (7), washer (8), and the gland (19) onto the transducer
cable.

13
16. Fasten the gland (19) to the top of the shaft (5).
Gland (19)
Flat washer (8)
Gasket (7)
Flat washer (8)
The projection on the transducer (1)
Flange (4)
Hex. nut (15)(M4x16)
Seal washer (16)(M4)
Apply Three Bond here.
(1104 200G:local supply)
The fore mark on the shaft
Check that they are aligned.
17. Apply Kinoruster to both sides of the gasket2 (18), and put it on the gate valve (20).
18. Put the shaft on the gasket2 (18), and align the hollow side on the spacer (3) with the
projection of the transducer (1).
19. Remove M8 hex. bolt (13) and M8 spring washer (14) from the lock ring to free the shaft (5).
20. Use the M16 hex. bolt (12), M16 nut (10) and M16 spring washer (11) to fasten the
flange (4) loosely.
21. Insert the shaft so the projection on the transducer fits in the groove on the spacer (3). Move
the shaft up and down by hand to confirm that it moves smoothly.
22. Tighten the M16 nut(8 pcs.) on the gate valve (20).
Hex. bolt (13)(M8x30)
Spring washer (14)(M8)
Lock ring (6)
Flange (4)
Shaft (5)
Transducer (1)
Hex. bolt (12)(M16x60)
Gasket2 (18)
(Apply Kinoruster to both sides.)
Nut (10) (M16)
Spring washer (11)(M16)
Gate valve (20)
Spacer (3)
Align the hollow side of
the spacer (3) with the projection
on the transducer (1).
Transducer (1)
Spacer (3)
View from "A"
Hex. bolt (13)(M8x30)
Spring washer (14)(M8)

14
23. Loosely fasten two sets of M8 hex. bolt (13) and M8 spring washer (14) at the top side of the
lock ring (6).
24. Tightly fasten the M8 hex. bolt (13) tightly and the M8 spring washer (14) at the lateral side
of the lock ring.
25. Loosely fasten two sets of M8 hex. bolt (13) and M8 spring washer (14) fastened at step 23.
Hex. bolt (13)(M8x30)
Spring washer (14)(M8)
1. Fasten "A" loosely (step. 23)
2. Fasten "B" tightly (step. 24)
3. Fasten "A" tightly (step. 25)
Hex. bolt (13)(M8x30)
Spring washer (14)(M8)
26. Put the fixing plate (21) between the shaft (5) and gland (19). Fasten the plate with two sets
of M8 hex. bolt (13) and M8 spring washer (14).
Check the clearance between the fixing plate (21) and the lock ring (6). If the clearance is
more than 3 mm, be sure to check that the hollow side of the spacer (3) is aligned with the
projection on the transducer (1).
0-3mm
Lock ring (6)
Gland (19)
Fixing plate (21)
Hex. bolt (13)(M8x30)
Spring washer (14)(M8)
27. Check that all bolts are fastened tightly.
