OPERATOR'S MANUAL
www.furuno.com
LOUD HAILER
Model
LH-3000
LH-3000CG

i
Ni-Cd Pb
IMPORTANT NOTICES
General
•This manual has been authored with simplified grammar, to meet the needs of international
users.
•The operator of this equipment must read and follow the descriptions in this manual. Wrong
operation or maintenance can cancel the warranty or cause injury.
•Do not copy any part of this manual without written permission from FURUNO.
•If this manual is lost or worn, contact your dealer about replacement.
•The contents of this manual and equipment specifications can change without notice.
•The example screens (or illustrations) shown in this manual can be different from the screens
you see on your display. The screens you see depend on your system configuration and
equipment settings.
•Save this manual for future reference.
•Any modification of the equipment (including software) by persons not authorized by
FURUNO will cancel the warranty.
•The following concern acts as our importer in Europe, as defined in DECISION No
768/2008/EC.
- Name: FURUNO EUROPE B.V.
- Address: Ridderhaven 19B, 2984 BT Ridderkerk, The Netherlands
•All brand and product names are trademarks, registered trademarks or service marks of their
respective holders.
How to discard this product
Discard this product according to local regulations for the disposal of industrial waste. For
disposal in the USA, see the homepage of the Electronics Industries Alliance
(http://www.eiae.org/) for the correct method of disposal.
How to discard a used battery
Some FURUNO products have a battery(ies). To see if your product has a battery, see the
chapter on Maintenance. Follow the instructions below if a battery is used. Tape the + and -
terminals of battery before disposal to prevent fire, heat generation caused by short circuit.
In the European Union
The crossed-out trash can symbol indicates that all types of
batteries must not be discarded in standard trash, or at a trash
site. Take the used batteries to a battery collection site
according to your national legislation and the Batteries Directive
2006/66/EU.
In the USA
The Mobius loop symbol (three chasing arrows) indicates that
Ni-Cd and lead-acid rechargeable batteries must be recycled.
Take the used batteries to a battery collection site according to
local laws.
In the other countries
There are no international standards for the battery recycle symbol. The number of symbols
can increase when the other countries make their own recycling symbols in the future.
Cd

ii
SAFETY INSTRUCTIONS
WARNING
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
Do not place liquid-filled containers on
the top of the equipment.
Fire or electrical shock can result if a liquid
spills into the equipment.
Immediately turn off the power at the
switchboard if the equipment is emitting
smoke or fire.
Continued use of the equipment can cause
fatal damage to the equipment. Contact a
FURUNO agent for service.
Make sure no rain or water splash leaks
into the equipment.
Fire or electrical shock can result if water
leaks in the equipment.
Keep heater away from equipment.
A heater can melt the equipment's power
cord, which can cause fire or electrical
shock.
Use the proper fuse.
Use of a wrong fuse can result in damage
to the equipment.
Do not open the equipment.
Only qualified personnel should work inside
the equipment.
CAUTION
Do not use the equipment for other than
its intended purpose.
Use of the equipment for other than its
intended purpose may result in damage to
the equipment or cause bodlily injury.
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
LH-3000 1.55 m 1.00 m
Standard
compass
LH-3010 2.15 m 1.40 m
Steering
compass

iii
TABLE OF CONTENTS
FOREWORD ........................................................................................................ iv
SYSTEM CONFIGURATION................................................................................. v
EQUIPMENT LIST................................................................................................ vi
1. INSTALLATION ................................................................................................ 1
1.1 Mounting the Loud Hailer ................................................................................................1
1.2 Intercom Speaker (option) ...............................................................................................3
1.3 Wiring ..............................................................................................................................4
2. OPERATIONAL OVERVIEW............................................................................ 9

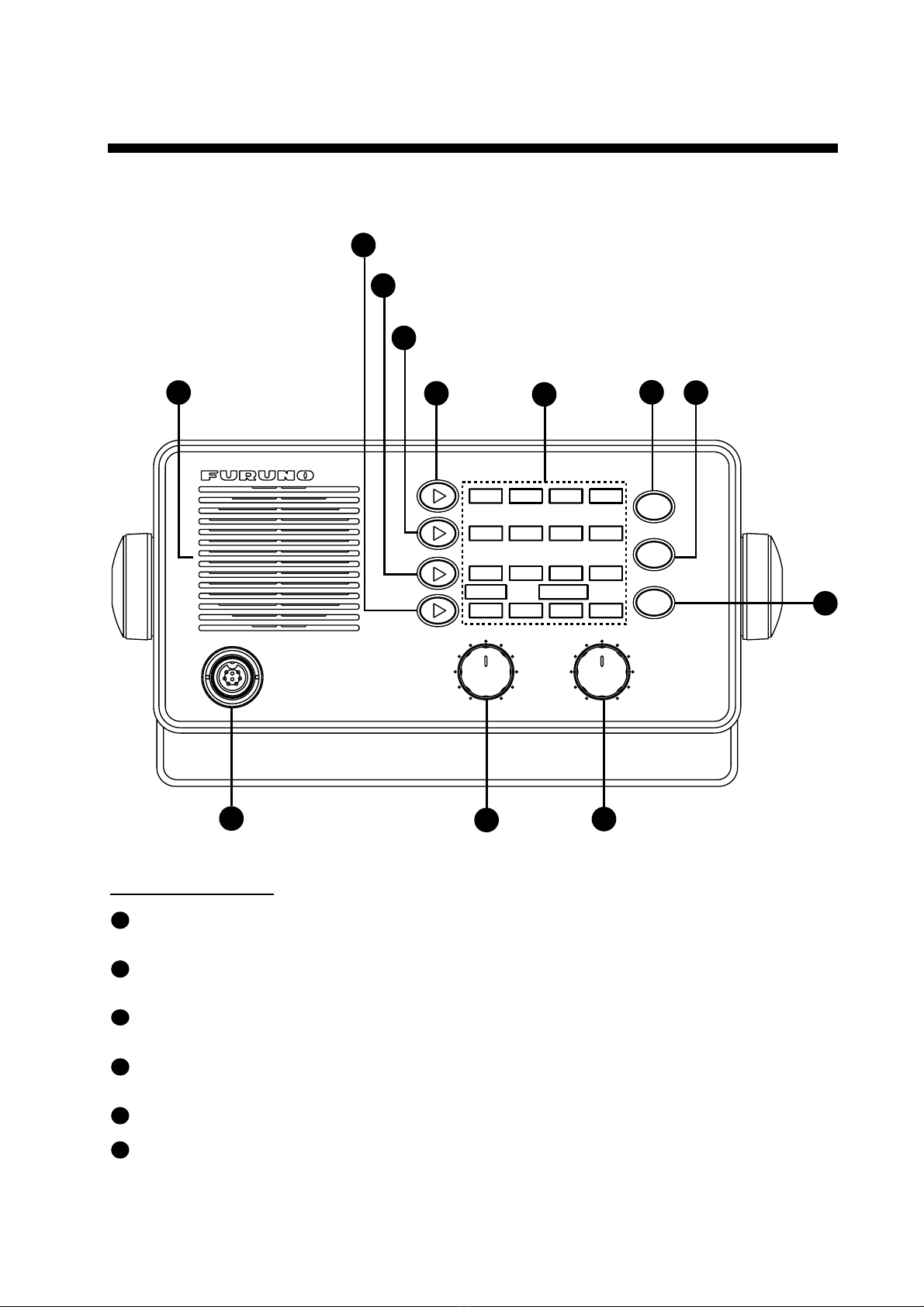

2.1 Controls ...........................................................................................................................9
2.2 Turning the Power On/Off..............................................................................................10
2.3 Adjusting Key Backlighting ............................................................................................11
2.4 Adjusting Output Level ..................................................................................................11
2.5 Adjusting Listening Volume ...........................................................................................11
2.6 Calling All Intercom Stations..........................................................................................11
2.7 Calling a Specific Intercom Station ................................................................................12
2.8 Receiving a Call from an Intercom Station ....................................................................12
2.9 Hailing by Voice.............................................................................................................13
2.10 Sounding Warning Signals ............................................................................................14
2.11 Transmitting the Auxiliary Signal ...................................................................................18
2.12 Alarm Mode ...................................................................................................................18
2.13 Siren Mode (LH-3000-CG) ............................................................................................20
3. MAINTENANCE, TROUBLESHOOTING....................................................... 21
3.1 Preventive Maintenance ................................................................................................21
3.2 Replacing the Fuse .......................................................................................................22
3.3 Troubleshooting.............................................................................................................22
SPECIFICATIONS........................................................................................... SP-1
PACKING LIST.................................................................................................. A-1
OUTLINE DRAWINGS ...................................................................................... D-1
INTERCONNECTION DIAGRAM ......................................................................S-1

iv
FOREWORD
A Word to the Owner of the LH-3000, LH-3000-CG
Congratulations on your choice of the FURUNO Loud Hailer LH-3000, LH-3000-CG. We are
confident you will see why FURUNO has become synonymous with quality and reliability.
Since 1948, FURUNO Electric Company has enjoyed an enviable reputation for innovative
and dependable marine electronics equipment. This dedication to excellence is furthered by
our extensive global network of agents and dealers.
Your Loud Hailer is designed and constructed to meet the rigorous demands of the marine
environment. However, no machine can perform its intended function unless installed,
operated and maintained properly. Please carefully read and follow the recommended
procedures for installation, operation and maintenance.
We would appreciate hearing from you, the end-user, about whether we are achieving our
purposes.
Thank you for considering and purchasing FURUNO equipment.
Features
•Two types of specifications are available: LH-3000 and LH-3000-CG (for U.S. Coast
Guard). The two are almost identical; the LH-3000-CG is additionally equipped with a
Siren Mode. (Unless otherwise noted “LH-3000” refers to both LH-3000 and
LH-3000-CG.)
•20 W audio output power to get another boat’s attention under almost any condition.
•Eight internationally accepted warning signals can be selected for automatic operation for
a variety of different maritime situations alerting nearby vessels of your presence and
status in low visibility conditions.
•Four intercom stations (speakers) may be connected to get 2-way communications
between master station and one or all intercom stations.
•LED indicators alert you to equipment status.
•Keys are backlit for nighttime operation.
•Smartly designed and intuitive front panel for ease of operation.
•An auxiliary audio input allows transmission of music or other external audio signals (from
cassette player, CD player, radio, etc.) to the intercom speakers, external horns or both.
CE declaration
With regards to CE declarations, please refer to our website (www.furuno.com), for further
information about RoHS conformity declarations.

v
SYSTEM CONFIGURATION
Intercom Speaker
(Max. 4)
Forward Horn
After Horn
External Speaker
Remote Microphone
Auxiliary Audio
Source
Alarm Sensor
13.6 VDC
: Standard Supply
: Optional Supply
: Local Supply
Microphone
DIM
AFT BOTH FWD ALL
AUX
FUNC
IC 4IC 3
TOW SAIL
HAIL
VOL
ANCH AGND
IC 2
UNWY
IC 1
YELP
FUNC/PTT
LISTEN
STOP
VOL
MAN
AUTOMATIC
PWR OFF
MIC
Junction
Box
System configuration

vi
EQUIPMENT LIST
Standard supply
Name Type Code No. Qty Remarks
LH-3000Loud Hailer
LH-3000-CG
1
Microphone Set DM-2003 1 set
Installation
Materials
1 set
Spare Parts 1 set
Template E52-00303 000-149-157 1
See packing list for details.
Optional supply
Name Type Code No. Qty Remarks
Intercom Speaker LH-3010 000-149-111 1 Max. 4
Flush Mount Kit LH-3020 000-149-112 1 See packing list.
000-111-680 1 5 m
000-120-792 1 10 m
000-120-793 1 15 m
Twisted Pair Cable CO-SPEVV-SB-C
0.2X2P
000-120-794 1 20 m

1
1. INSTALLATION
NOTICE
Do not apply paint, anti-corrosive sealant
or contact spray to coating or plastic
parts of the equipment.
Those items contain organic solvents that
can damage coating and plastic parts,
especially plastic connectors.
1.1 Mounting the Loud Hailer
The Loud Hailer can be mounted on a desktop, on the overhead, on a bulkhead or flush
mounted in a panel (optional kit required). Refer to the mounting template (supplied) for
installation instructions.
Mounting considerations
When planning the location for the Loud Hailer, keep in the mind the following
considerations.
• Locate the unit where the front panel can be easily viewed and operated.
• Leave sufficient space at the sides and rear of your unit for ease of maintenance.
• Locate the unit as near to the power source as possible.
• The location should be out of direct sunlight because of heat that can build up inside the
cabinet.
• Choose a location not subject to rain and salt spray.
• Locate the unit well away from sources of noise such as motors, alternators and
generators.
Mounting procedure
Desktop, bulkhead, overhead mounting
1. Attach rubber cushions (supplied) to the body of the Loud Hailer. Position the cushions
so they locate across from the bottom of the slot in the hanger regardless of mounting
method.
Rubber
cushion

1. INSTALLATION
2
2. Fix the hanger to the mounting location with tapping screws (6x20).
3. Screw knob bolts into the Loud Hailer.
4. Set the Loud Hailer to the hanger and tighten knob bolts.
Flush mounting
Requires flush mount kit LH-3020 (Code No. 000-149-112). See the flush mount outline
drawing for details.
Contents of flush mount kit
Name Type Code No. Qty
Flush Mounting Plate TZ7300012A 999-999-025 2
Screw 6X12 SUS304 999-999-026 2
Wing Screw M4X35 SUS304 999-999-027 4
Wing Nut M4 SUS304 999-999-028 4
1. Make a cutout in the mounting location referring to flush mount outline drawing.
2. Place the Loud Hailer in the cutout.
3. Fix the two flush mounting plates to the Loud Hailer with screws.
4. Screw the wing nuts on the wing screws.
5. Fix the Loud Hailer with the wing bolts and then tighten the wing nuts.
Loud hailer, flush mount

1. INSTALLATION
3
1.2 Intercom Speaker (option)
Four intercom speakers (maximum) may be connected to get 2-way communications
between master station and one or all intercom speakers. For mounting dimensions and
fixing instructions, see the outline drawing.
Intercom speaker

1. INSTALLATION
4
1.3 Wiring

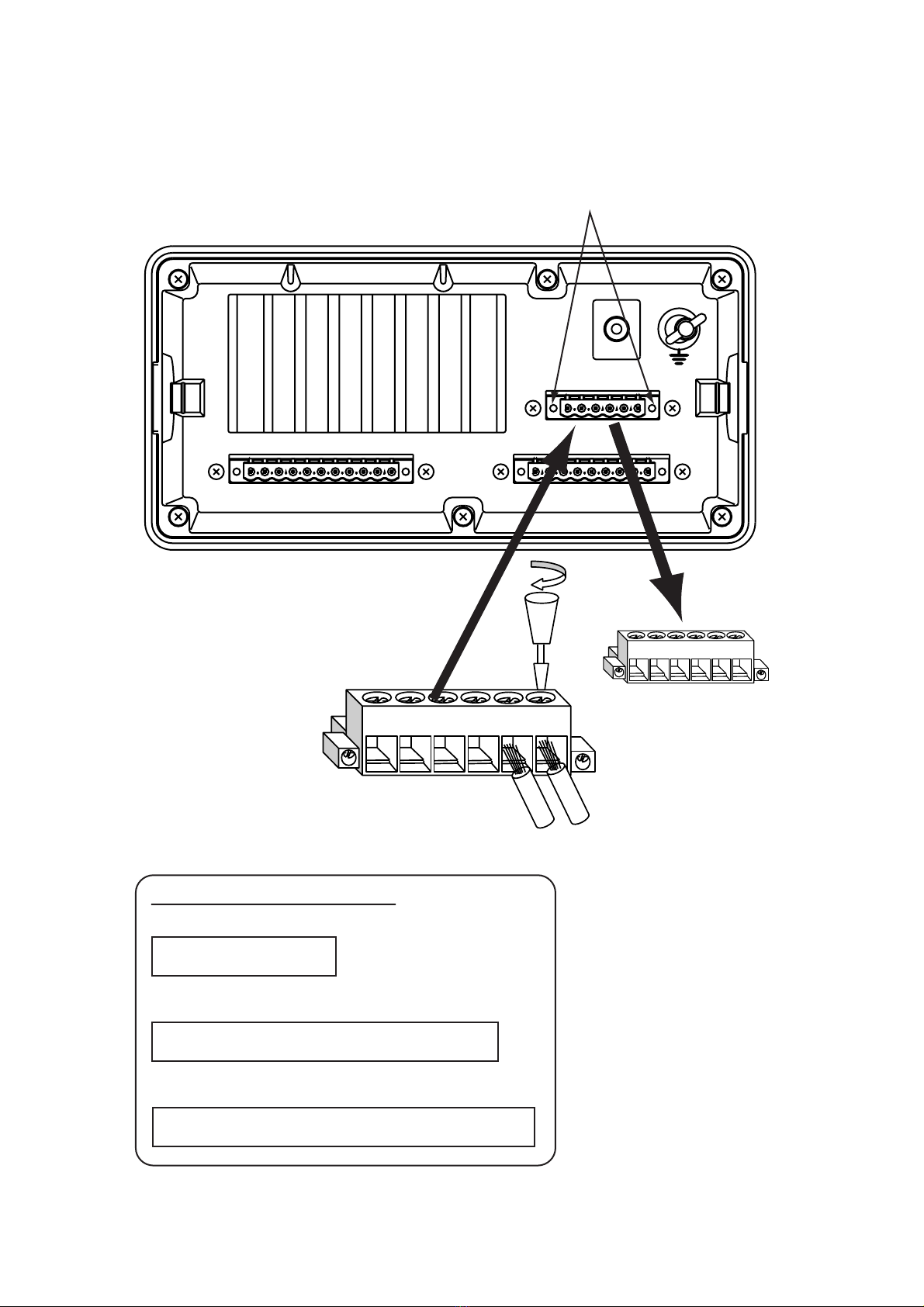

All equipment are terminated at the rear panel of the LH-3000. See the illustration on the
next page for how to connect equipment to terminals. Refer to the interconnection diagram
for detailed information.

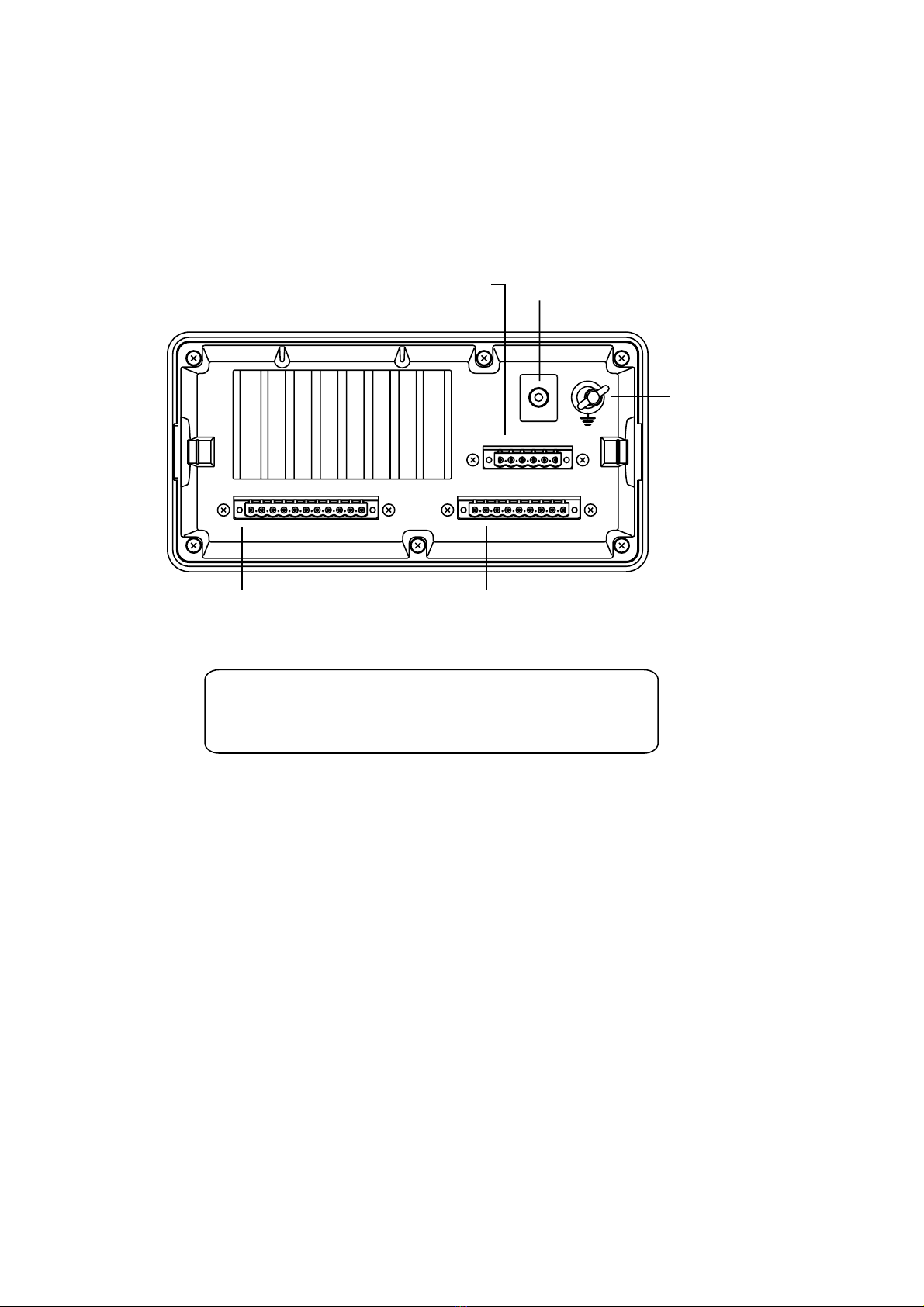

Rear panel layout
Ground
Terminal
External Speaker
J2
J3
J1
13.6 VDC (Power),
FWD and AFT
terminals
SP and CAL (intercon
station #1 - #3) terminals
MIC, AUX, ALRM, PTT, CAL
and SP (intercom speaker #4)
terminals
Connect drain wires of armored cables to the ground terminal.
Do not short them to the heat sink.
NOTICE
LH-3000, rear panel

1. INSTALLATION
5
Wiring
The illustration below shows how to connect the power supply. Other equipm ent are
connected similarly.
J1
(1) Unfasten screws.
(2) Pull out terminal.
- +
(3) Insert wire into terminal,
and tighten screw at top
of terminal.
J2
J3
AFT FWD 13.6V
- + - + - +
TERMINAL ARRANGEMENT
0V 0V 0V 0V 0V4 CAL4
MIC PTT AUX ALRM SP4
J3
- + - + - +
AFT FWD 13.6V
J1
0V3 CAL3 SP2 0V1 CAL1
SP3 0V2 CAL2 SP1
J2
(4) Set terminal;
tighten screws.
Jeweler's
screwdriver
Note 1 : Connect power cables
to the battery correctly.
Note 2: Connection of intercom
speaker cable to J2 or J3:
Brown: CAL
Red: SP1
Black: OV1
    
     
LH-3000, rear panel, how to wire terminals

1. INSTALLATION
6
Power connection
The LH-3000 is intended for
use with a 13.6 VDC power
supply. Connect the power
cable (local supply) to the
terminals labeled “13.6V”.
Use cable type DPYC-1.5 or
equivalent. Fabricate the
cable as shown right.For
longer runs the wire size of
leads should be increased
accordingly to minimize line
losses. The wire connected to the positive (+) terminal must be connected to the positive
terminal on the DC power source, and the wire connected to the negative terminal (-) must
be connected to the negative terminal on the DC power source. If the power leads are
reversed the fuse (inside the Loud Hailer) will blow.

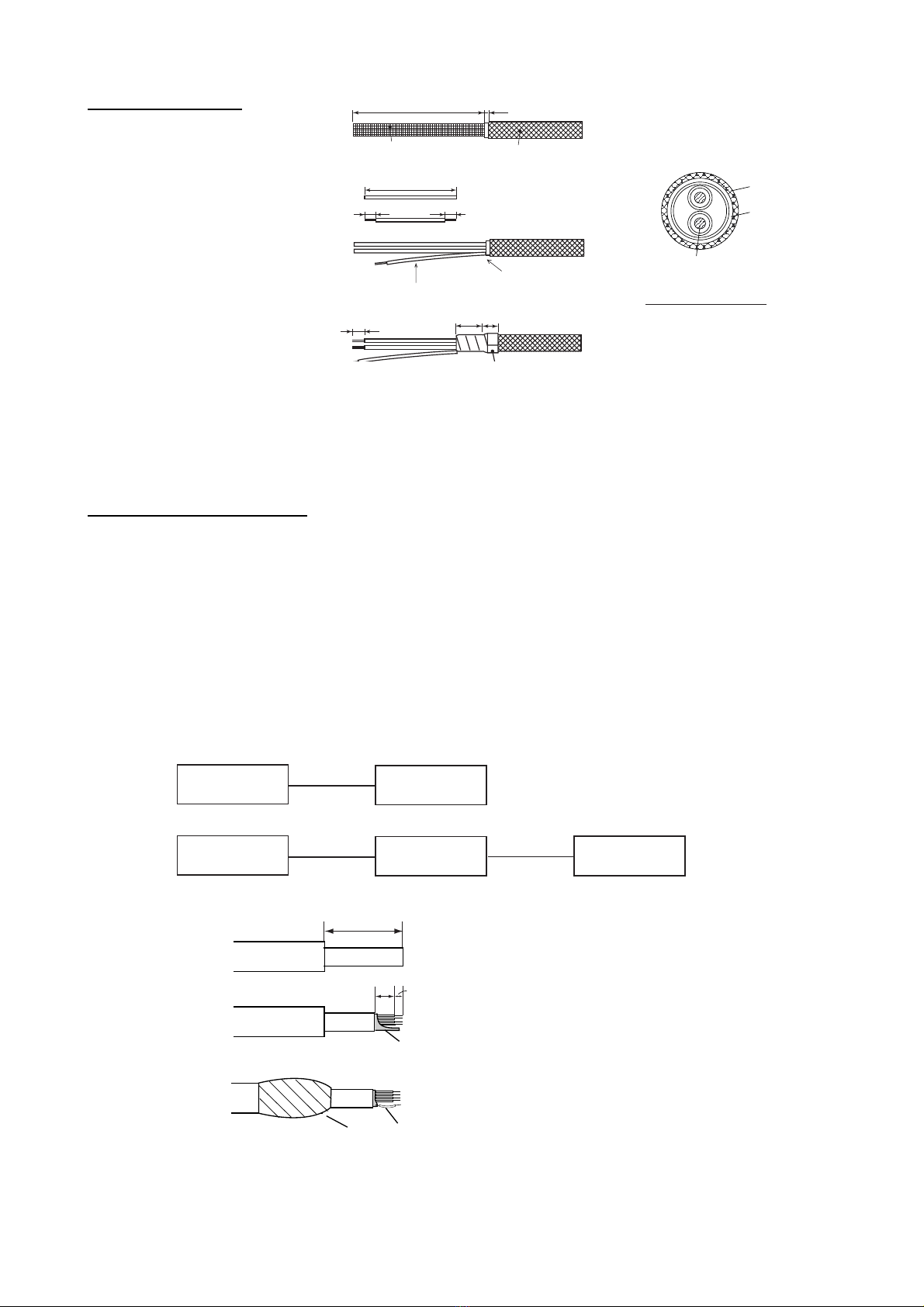

Intercom speaker (option)
Up to four intercom speakers may be connected to the intercom speaker terminals labeled
CAL1-CAL4. Connect each speaker to the terminal block according to desired intercom
speaker selection. The cable end is prefabricated. However, to meet EMC requirements the
length of the cable must be less than 1 m. If the distance between the Loud Hailer and
intercom speaker is greater than 2 m (max. 20 m), use a junction box (local supply). For the
connection to the junction box use cable type CO-SPEVV-SB-C 0.2X2P (option) and
fabricate it as below. In this case, the length of the cable between the junction box and an
intercom speaker must no be more than 1 m regardless of whether the equipment must
meet EMC requirements or not.
Loud Hailer Intercom
Speaker
2 m max.
Distance between loud hailer and intercom speaker is less than 2 m.
Loud Hailer Junction
Box 1 m max.
Distance between loud hailer and intercom speaker is 2-20 m.
Intercom
Speaker
2-20 m max.
Connection of speaker cable to
J2 or J3 on Loud Hailer:
Brown: CAL, Red: SP1, Black: OV1
45
11 7
Outer sheath
Twist and trim the shield.
Inner sheath
Remove the outer sheath and
armor by 45 mm.
Remove the inner sheath by 11 mm,
and the sheath of the cores by 7 mm.
Cut the unused cores.
Solder a vinyl wire to the shield.
Tape the sheath.
Vinyl wire
Vinyl
tape
Fabrication of speaker cable
Conductor
S = 1.5 mm
φ= 1.56 mm
2
Armor
Sheath
φ =
11.7 mm
DPYC-1.5 Sectional view
77 3
7
Armor
Cut the sheath.
Sheath
15 10
L*
515
Drain wire fabrication
Solder drain wire
* Length long enough to
reach ground terminal.

1. INSTALLATION
7
Hailer horn (local supply)
Mount the hailer horns (local supply) facing away from the Loud Hailer to prevent feedback.
They should also be pointed in the opposite direction of the microphone as you are
speaking into it. Before mounting any horn, you should test it with the HAIL feature with the
horn in the desired location to check for suitability of mounting location.
Connect horns to the Loud Hailer with cable type DPYC-1.5 or equivalent. (See page 6 for
how to fabricate this cable.) Be sure the cable is suitable for all-weather use. The
terminating point on the terminal is either FWD or AFT depending on the location of the
speaker.

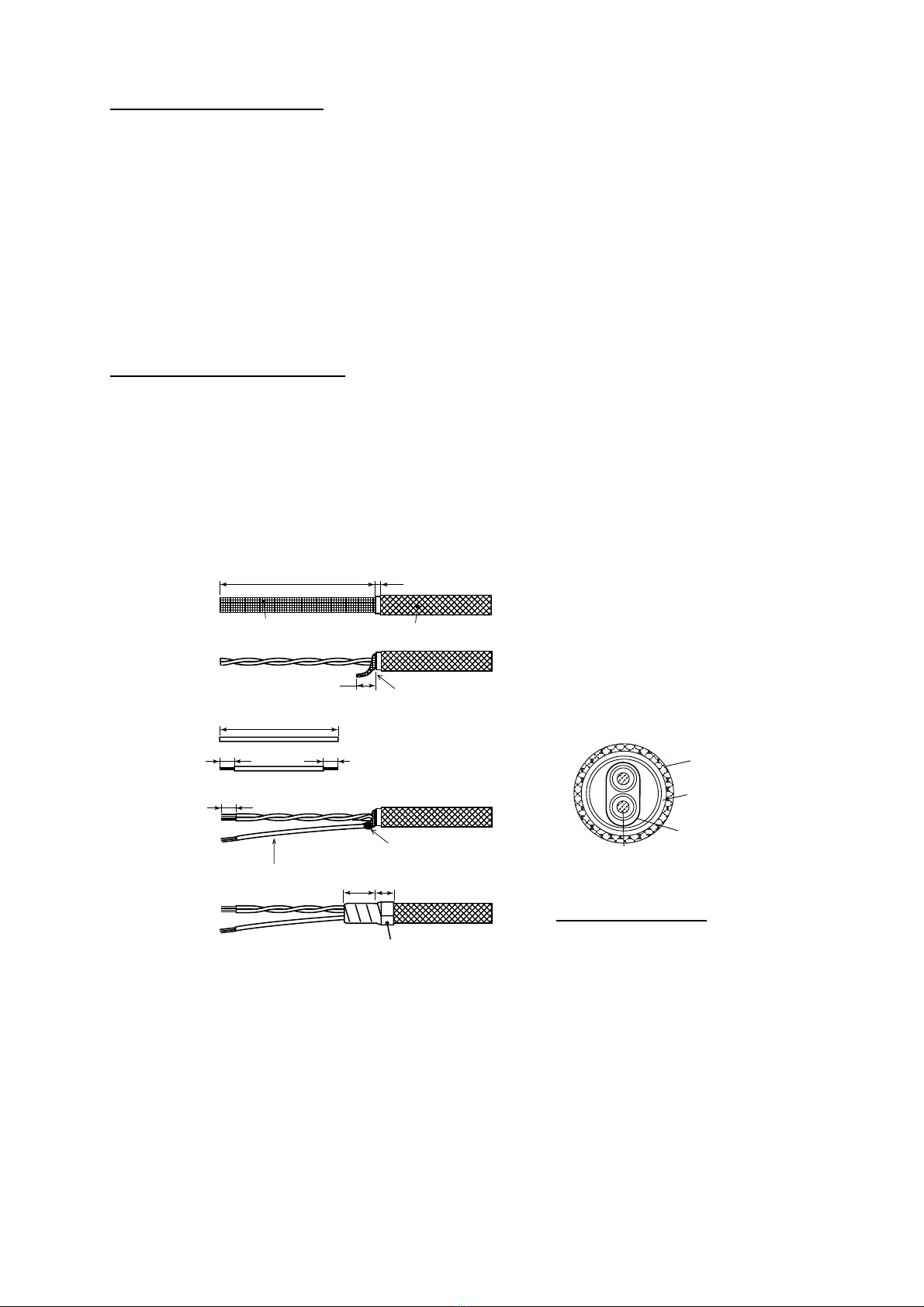

Burglar alarm (local supply)
The unit can function as a burglar alarm by connecting an external alarm sensor (local
supply) to the ALRM terminals. The alarm sensor should be a “normally open switch”. Use
cable type TTYCS-1 or equivalent to connect the sensor. Fabricate the cable as shown
below.
When the sensor connected to the ALRM terminal becomes shorted and the alarm function
is active, the yelp signal is released at maximum volume through both hailer horns.
77
3
8
L*
5
15
7
Armor
Drain wire fabrication
Drain wire
Twist and cut
Vinyl tape
Shield
Solder
15 10
2
Armor
Conductor
S = 0.75 mm
φ= 1.11 mm
Shield
Sheath
φ =
10.1 mm
TTYCS-1 Sectional view
* Length long enough to
reach ground terminal.
Fabrication of cable TTYCS-1

1. INSTALLATION
8

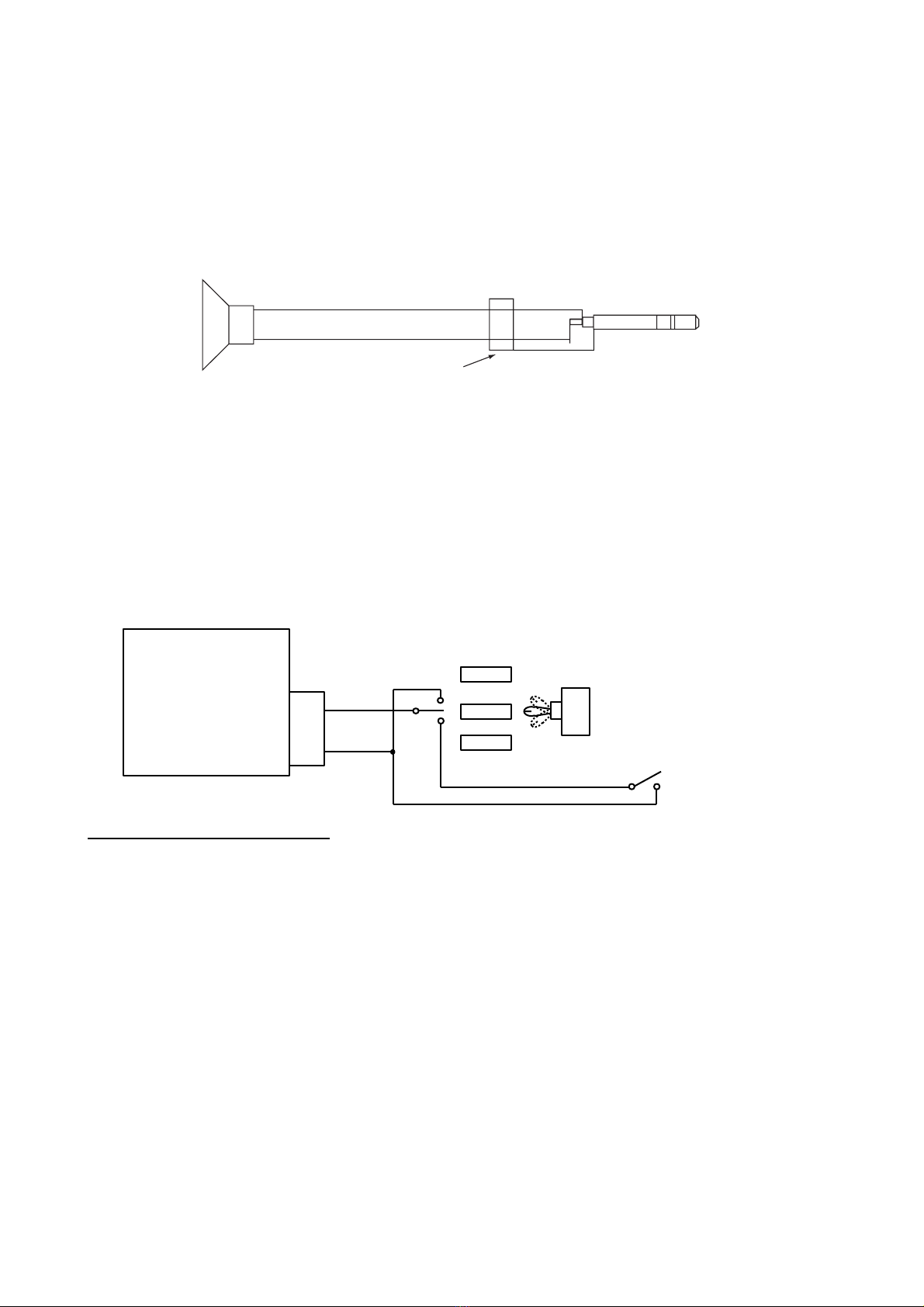

Floating ground
The LH-3000 has a floating ground. What this means is that the heat sink ground is floating
and will not ground batteries if they are connected to the ship’s chassis. To maintain a
floating ground:
1. Use a stereo plug when connecting a 4 ohm speaker to the external speaker plug.
Connect it as shown in the illustration below.
Do not use for battery -
use for ship's earth only
Stereo plug
2. Do not connect any of the output connectors on the rear panel to the ship’s ground.
3. SP outputs are floating and must not be connected to either battery or the rear panel.
Use a normal two conductor insulated speaker wire for the horn speaker.
Siren mode switch (for LH-3000-CG)
To use the siren mode function, connect a toggle switch whose specifications are as shown
below to the burglar alarm terminal.
LH-3000C
ALRM
4
5
J3
SIREN
ALARM
OFF
A
larm SENSOR
Toggle switch specifications
Circuit: SPDT (3P)
Switching function: ON-OFF-ON
Rating: 6A, 250 VAC
Insulation resistance: 500 VDC, 100 Mohms min.
Voltage breakdown: 1500 VAC (one minute)
Contact resistance: less than 20 Mohms max.

9
2. OPERATIONAL OVERVIEW
2.1 Controls
DIM
AFT BOTH FWD ALL
AUX
FUNC
IC 4IC 3
TOW SAIL
HAIL
VOL
ANCH AGND
IC 2
UNWY
IC 1
YELP
FUNC/PTT
LISTEN
STOP
VOL
MAN
AUTOMATIC
PWR OFF
MIC
1
2
3
4
5
6
7
89
10
11
12
LH-3000, front view
Control description
1
[Hail Select] Key
Chooses loud hailer speaker to use (ALL, FWD, AFT,
BOTH).
2[Intercom Select] Key
Chooses which intercom station (IC1, IC2, IC3, IC4) to
call.
3
[Upper Signal Select] Key
Chooses warning signal among YELP, UNWY, SAIL and
TOW.
4
[Lower Signal Select] Key
Chooses warning signal among MAN, STOP, ANCH and
AGND.
5[DIM] Key
Adjusts indicator backlighting, in five levels, including off.
6
[AUX] Key
Transmits audio signal from external source to all intercom
stations.

2. OPERATION
10
7[FUNC] Key
Activates automatic and manual warning signals.
8[LISTEN VOL] Control
Adjusts listening volume from the internal speaker; turns
power on/off.
9[HAIL VOL] Control
Adjusts output volume from the horn speakers or intercom
station speakers.
10 LED Indicators
From top row:
- Hail indicators (ALL, FWD, AFT BOTH)
- Intercom indicators (IC1 – IC4)
- Alarm signal indicators (YELP(manual), UNWY, SAIL,
TOW)
- FUNC/PTT and AUTOMATIC indicators
- Alarm signal indicators (MAN(manual), STOP, ANCH,
AGND)
11
MIC
MIC input
12
Speaker
2.2 Turning the Power On/Off
Turn the [LISTEN VOL] control clockwise to turn on the Loud Hailer. The “ALL” indicator
lights, which means the Loud Hailer is in standby and awaiting your command.
The equipment is in the standby mode when the “ALL” indicator is lit. Normally, the
equipment should be returned to the standby mode after a function has been completed. In
the standby mode the Loud Hailer is ready to call all stations, including both horn speakers
and all intercom stations, and is ready to receive a call from any intercom station.

2. OPERATION
11
2.3 Adjusting Key Backlighting
You may adjust the intensity of the key backlighting cyclically with the [DIM] key, in five
levels, including off.
2.4 Adjusting Output Level
Turn the [HAIL VOL] control to adjust the output volume from the horn speakers or intercom
speakers. Clockwise rotation increases volume; counterclockwise rotation decreases it.
2.5 Adjusting Listening Volume
Turn the [LISTEN VOL] control to adjust the listening volume from the Loud Hailer’s internal
speaker and external speaker (if connected).
2.6 Calling All Intercom Stations
1. In the standby mode, hold the microphone 2-3 cm from your mouth and press the PTT
switch on the microphone. Speak into the microphone. All intercom stations and both
horn speakers will hear you.
2. After speaking, release the PTT switch to return the equipment to the standby mode.
Note:To call all intercom stations while sounding warning signals, see page 17.

2. OPERATION
12
2.7 Calling a Specific Intercom Station
1. Press the [Intercom Select] key until the indicator lights on the desired intercom station.
After a one-second delay, a short tone sounds from the selected intercom station.
2. Press the PTT switch on the microphone and speak into the microphone.
3. Release the PTT switch to listen for a reply from the selected intercom station. If
necessary, adjust listening volume with the [LISTEN VOL] control.
4. After completing your conversation, press the [Hail Select] key to return to the standby
mode.
Note:To call a specific intercom stations while sounding warning signals, see page 17.
2.8 Receiving a Call from an Intercom Station
When an intercom station is calling the main station, the indicator for the calling station
flashes on the main station’s indicator and a tone sounds while the intercom station
operator is pressing the station’s calling switch.
Automatically selecting a single calling station
1. In the standby mode, press the PTT switch on the microphone to answer the call. The
LH-3000 automatically switches to the calling station and the flashing indicator then
lights steadily.
2. If necessary, adjust listening volume with [LISTEN VOL] control.
3. After you have finished your conversation, press the [Hail Select] key to return to the
standby mode.
Automatically selecting multiple calling stations
When you receive a call from more than one station, the appropriate intercom station
indicators flash and a tone sounds.
1. In the standby mode, press the PTT switch on the microphone. When calls are received
simultaneously, the low-number station will be selected first.
2. After you have completed your conversation, press the [Hail Select] key to return to the
standby mode.
3. Press the PTT switch on the microphone again and the next low-number station will
automatically be selected.
4. After you have finished all intercom conversations, press the [Hail Select] key to return
to the standby mode (“ALL” indicator lights).
Calling all intercom stations while an intercom voice is selected
1. Press and hold the [Hail Select] key.
2. Press the PTT switch on the microphone and speak into the microphone. All station
indicators flash.
