Nolan NSTX3C2 Series User manual

GETTING STARTED
Remove all components from the package. Items in the pack
include: – Bluetooth stereo transmitter, User Guide. Please
check the contents carefully and contact your local dealer
immediately if there are any shortages.
GETTING TO KNOW YOUR TX
This Bluetooth Stereo transmitter (TX) offers the latest innovation
in Bluetooth technology. It can transfer stereo audio from music
or audio players such as MP3 players or Apple iPod to Bluetooth
stereo headset/receiver wirelessly and freely. As a kind of easy
control product, TX will finish Searching, Pairing, and connecting
by itself automatically. Users just need to power on TX to start the
operation.
CHARGING THE TX
Before using the TX, you must charge it for approximately two
hours. After fully charged, the battery provides up to 6 hours of
music transfer time.
To Charge the TX
1. Plug the USB charging cable into TX mini USB holder.
2. Plug the other side of the USB charging cable into a
powered USB holder. When charging, the LED will be
lighted
3. Unplug the USB charging cable from Tx when charging
finished, the LED will turn off
PAIR TX TO YOUR BLUETOOTH STEREO HEADSET/ AUDIO
RECEIVER
Pairing is the process of linking the TX with your Bluetooth
stereo headset/receiver. Before you using the Tx with
Bluetooth stereo headset/ audio receiver, you should pair both
devices. After pairing completed, you can use the Tx only with
the paired Bluetooth stereo headset/ audio receiver. If you
wish to use the Tx with a different Bluetooth stereo headset/
audio receiver, you need to redo the pairing process with the
new devices. In this case, the Tx will no longer work with the
previous Bluetooth stereo headset/ audio receiver. Before you
commence pairing the Tx, ensure that the battery is fully
charged.
To pair the Bluetooth receiver device
1. With the Tx turned off, turn on the Tx, the Blue LED will
flash in fast speed. Now the Tx is in pairing mode.
2. Turn on the Bluetooth stereo headset/ audio receiver
and place it within 10 feet to the Tx
3. Place the Bluetooth stereo headset/ audio receiver into
pairing mode. Refer to the Bluetooth stereo headset/
audio receiver user guide for instructions for this feature.
4. If you want to pair with another device, you should
turned off the paired device first, and follow the step 2
and 3 to let the new device into paring mode. Tx will try
to pair with the new device after it gets the power off
indication from the last paired device.
Tips: Please make sure the PIN code of Bluetooth stereo
headset/ audio receiver is 0000. Otherwise, Tx will not pair
with it. For this part, please refer to your Bluetooth Stereo
headset/ audio receiver venders.
If disconnection or lost link occurs, it maybe due to the
following reason
a) The range is over 10 feet between both Bluetooth stereo
headset/ audio receiver and the Bluetooth Tx.
b) Bluetooth stereo headset/ audio receiver disconnected
the link for some certain conditions.
c) Either device has been switched off.
Note: The Tx, in normal operation, should maintain the
connection with the Bluetooth stereo headset/ audio receiver
at all times once the pairing mode and connection has been
established between the two devices.
POWERING YOUR TX
As a so-called easy control device, power on/off Tx is the only
operation for Tx, and all the needed operation will be done by
Tx itself automatically.
To turn on your Tx - Move the Power button to “On”, the
blue LED will be in flashing to indicate Tx turned on.
To turn off your Tx - Move the power button to “Off”, the blue
LED will be off.
Note: If any thing unexpected happened, and the music can’t
transfer out from Tx, user should restart the Tx (by power off
and power on).
USING TX TO TRANSFER MUSIC
1. With the Tx turned on, plug your Tx into the audio jack.
2. Place your stereo headset/ audio receiver within 10
feet to Tx.
3. With the Bluetooth stereo headset/ audio receiver
paired with Tx, turn on the paired Bluetooth stereo
headset/ audio receiver. The Tx will connect to your

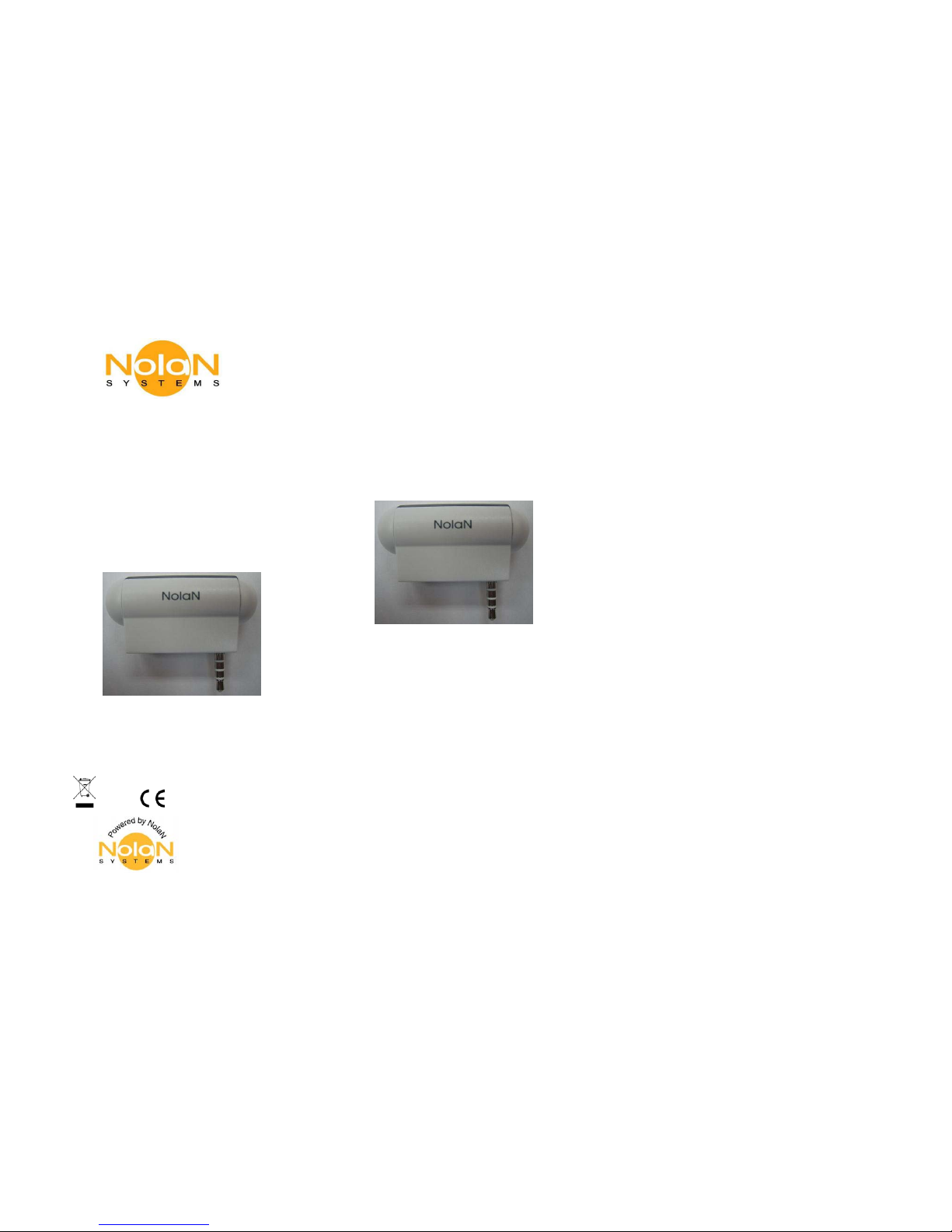

Bluetooth Wireless
Stereo Transmitter
Tx
P/N NSTX3C2XXX
USER GUIDE
Declaration of Conformity. We declare that product
NSTX3C2XXX conforms to the R&TTE Directive
1999/5/RC.
FCC ID:

headset/ audio receiver. The blue LED will flash in
middle speed to indicate Tx is transferring audio.
4. If the connection lost by out of range, take the
Bluetooth stereo headset/ audio receiver back to Tx
within 10 feet. Tx will reconnect it automatically.
Tips: The auto-reconnection function will just effect in 15
seconds after the connection lost. If a new Bluetooth stereo
headset/ audio receiver is available (in pairing mode), Tx will
try to pair with it and continuous the music transfer with the
new paired Bluetooth stereo headset/ audio receiver.
Otherwise Tx will goes into Idle mode to save power, the blue
LED will flash in slow speed.
VISUAL INDICATION
LED can also indicate the status of Tx
Statues indication
paring or
connecting to
the other device
High speed flash, which flashes 10
times per second
Connected, or
music
transferring to
the other device
Middle speed flash, which flashes once
per second
Idle mode Low speed, which flashes once per 5
seconds
TROUBLE SHOOTING
Please note that you should also be familiar with the
operation of your Bluetooth stereo headset/ audio receiver.
Please read your Bluetooth stereo headset/ audio receiver
user guide carefully. Please note that the Tx will only work
with Bluetooth stereo headset/ audio receiver or receiver with
support the Bluetooth AV profiles.
Symptom/Problem
Solution
When power on Tx, no
LED flashes
• Check battery power.
• Consult authorized dealer
Tx powers on with
blue LED quick
flashing but no
connection to
Bluetooth stereo
headset/ audio
receiver
• Check power of your
Bluetooth stereo headset/
audio receiver
• Check the pin code of you
Bluetooth stereo headset/
audio receiver, refer to the
user guide of your stereo
headset/ audio receiver
• Ensure Rx & phone are within
range
CUSTOMER SERVICE INFORMATION
For other Nolan Bluetooth products or support, please
view our website – www.nolan-sys.com or email
[email protected] or contact your local representative.
DISCLAIMER
Whilst every effort has been made to ensure that the
information in this manual is accurate and complete, no
liability will be accepted for any errors and/or omissions
made. The manufacturer reserves the right to make
changes and improvements to the specifications and
features of the hardware and firmware of the products
described in this document without prior notice.
Reproduction, transfer, distribution or storage of part or all
of the contents in this document in any form is prohibited
without prior permission of the manufacturer. All
trademarks acknowledged.
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly
approved by the part responsible for compliance could void the
user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
You are cautioned that changes or modifications not expressly
approved by the party responsible for compliance could void
your authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. End users must follow the
specific operating instructions for satisfying RF exposure
compliance. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Notice: Any changes or modification not expressly approved by
the party responsible could void the user's authority to operate
the device.
