Fusion PowerPlant PP?CM40 User manual

POWERPLANT
COMPONENT SPEAKER MODELS
PP−CM40, PP−CM525, PP−CM65, PP−CMST1

2
FUSION CULTURE
There’s no point doing something if no one notices. We’ve always believed
the way to make things happen is by getting noticed. From our product, to our
demo cars to our events, FUSION is about making some noise.
And now you’re about to. Step out of the shadows. Announce you’ve
arrived in a world where the old limits are left behind. Where technology is
creatively combined with the latest in product innovation. Where new levels
of entertainment are delivered with outstanding performance and quality. Our
development team evolve distinctively different products; subwoofers, amplifiers,
speakers and peripherals that redefine what can be done in car audio.
Leave the old behind and push the limits of what can be achieved in car audio.
Make some noise.
For more information about FUSION Car Audio visit our website at www.fusioncaraudio.com
or email [email protected]
POWERPLANT
Explore the limits of car audio and PowerPlant will get you there. Fusion PowerPlant delivers
accurate clear sound reproduction with real power. Push sound further than it’s gone before,
confident that PowerPlant products have been engineered, designed and manufactured to
ensure consistent and reliable performance
To optimise your Fusion experience, we recommend you have your FUSION product installed by
an Authorised FUSION Dealer. Please read the warranty policy, keep your purchase receipt and
original packaging.
If after reading this manual you still have questions regarding this product, please contact
Technical Customer Services via email [email protected]

3
RECORD YOUR PRODUCT DETAILS HERE:
MODEL NUMBER _______________________________ DATE OF PURCHASE______________________
AFFIX RECEIPT HERE
WARNING! Audio Systems can produce sound levels over 135dB. Continuous exposure to sound
pressure levels over 100dB may cause permanent hearing loss!
Please watch for emergency vehicles as warning signals may not be heard. USE COMMON SENSE!
TABLE OF CONTENTS
•COMPONENT SPEAKER FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 4
•SPEAKER THEILE/SMALL PARAMETERS . . . . . . . . . . . . . . . . . . . . . . . . .pg 4
•SPEAKER DIMENSIONS PP-CM40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 5
•SPEAKER DIMENSIONS PP-CM525 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 7
•SPEAKER DIMENSIONS PP-CM65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 9
•SPEAKER DIMENSIONS PP-CMSTI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 11
•INSTALLATION ............................................pg 13
•WIRING..................................................pg14
•WOOFER AND MIDRANGE INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . .pg 15

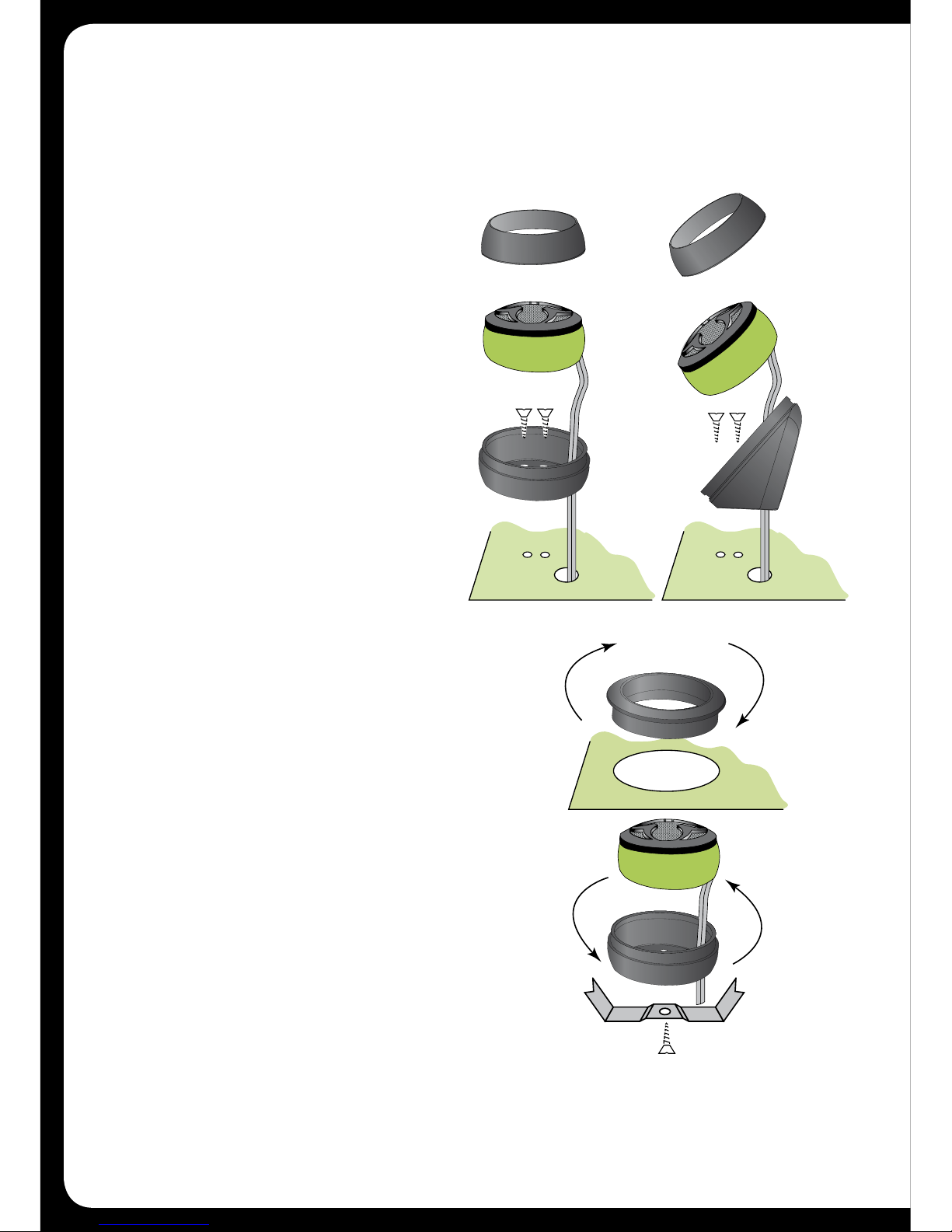

•TWEETERINSTALLATION ....................................pg16
•X-OVERINSTALLATION......................................pg17
•WIRINGDIAGRAM2-WAYX-OVER..............................pg18
•WIRINGDIAGRAM3-WAYX-OVER..............................pg18
•TECHTIPS ...............................................pg19
•TROUBLESHOOTING .......................................pg 20

4
COMPONENT SPEAKER FEATURES
PowerPlant Component Speaker Systems feature an industrial cast basket with a protective
finish, green top and bottom plate and a light-weight polypropylene cone complimented by a
soft dome tweeter. The PowerPlant Component Speaker Systems provide style and great sound
reproduction for the car audio specialist.
Component Parameters PP-CM40 PP-CM525 PP-CM65 PP-CMST1
Max Power Rating (Watts) 120 150 180 180
Rms Power Rating (Watts) 40 50 60 60
Compliance (Cms) 503.3 722.1 676.3 676.3
Cone Area (Sd) 5.67 8.99 13.68 13.68
D.C.coil Resistance (Re) 3.3 3.3 3.3 3.3
Electrical Q (Qes) 0.89 0.61 0.73 0.73
Force Factor (Bl) 3.57 4.2 4.48 4.48
Free Air Resonance (Fs) 94 67 55 55
Frequency Response 65Hz – 21kHz 57Hz – 21kHz 52Hz – 21kHz 52Hz – 21kHz
Impedance (Nominal) 4 4 4 4
Mechanical Excursion 8 9 12 12
Mechanical Q (Qms) 5.4 7.97 7.04 7.04
Sensitivity: (dB) (1w/1m) 88 91 91 91
Total Loudspeaker Q (Qts) 0.77 0.57 0.66 0.66
Magnet Structure 7.3 10.9 12.6 12.6
SPEAKER THEILE/SMALL PARAMETERS
X-Over
2 Way Passive Butterworth X-Over Network
12dB/Octave
Adjustable 3 point Tweeter level
High Pass: 3.0 kHz
Low Pass: 4.5 kHz

5
TWEETER
WOOFER

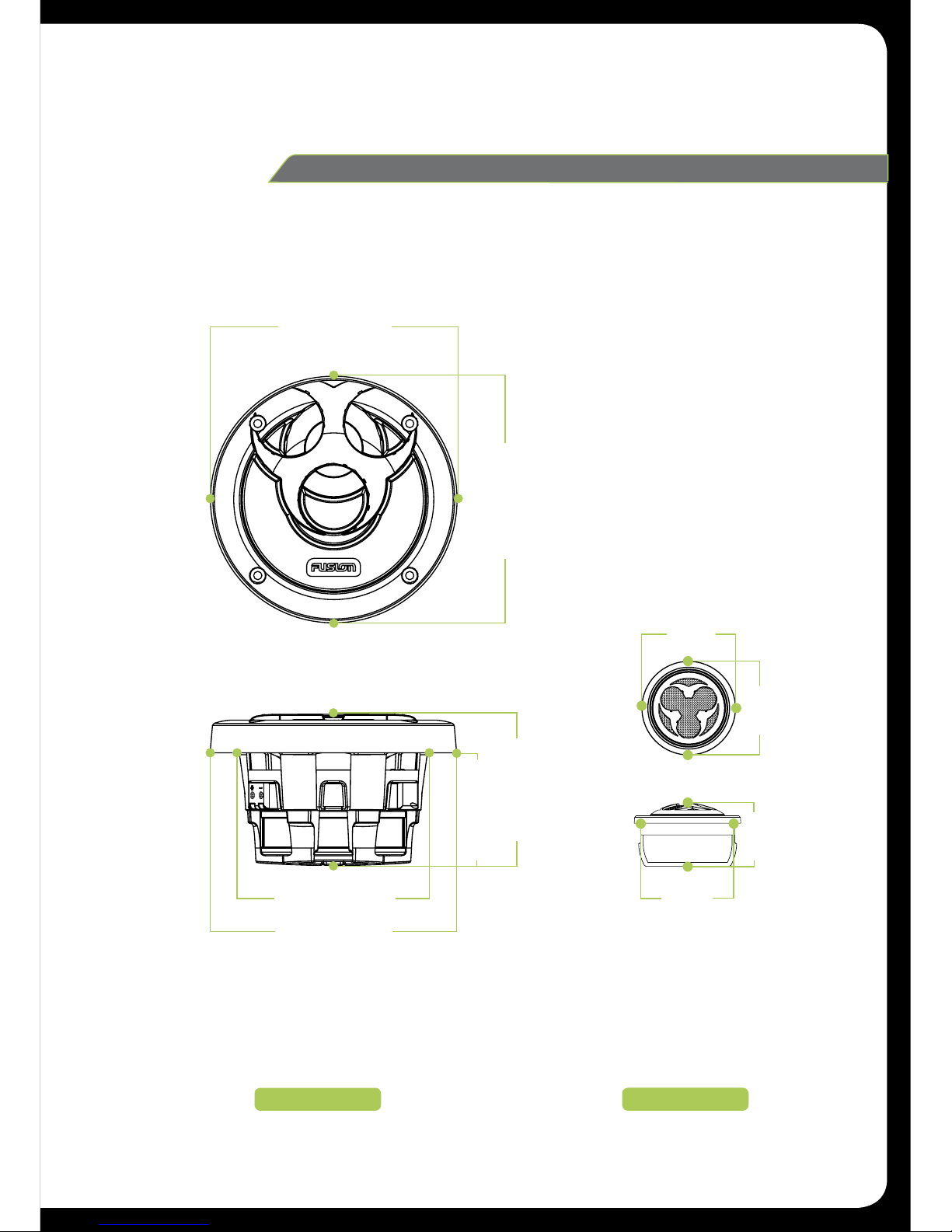

SPEAKER PP-CM40
DIMENSIONS
128mm (5 -1/16")
128mm (5 -1/16")
79mm (3-1/8")
59mm (2-5/16")
128mm (5 -1/16")
100mm (3 -15/16") 51mm
(2")
51mm
(2")
51mm
(2")
32mm
(1-1/4")

6

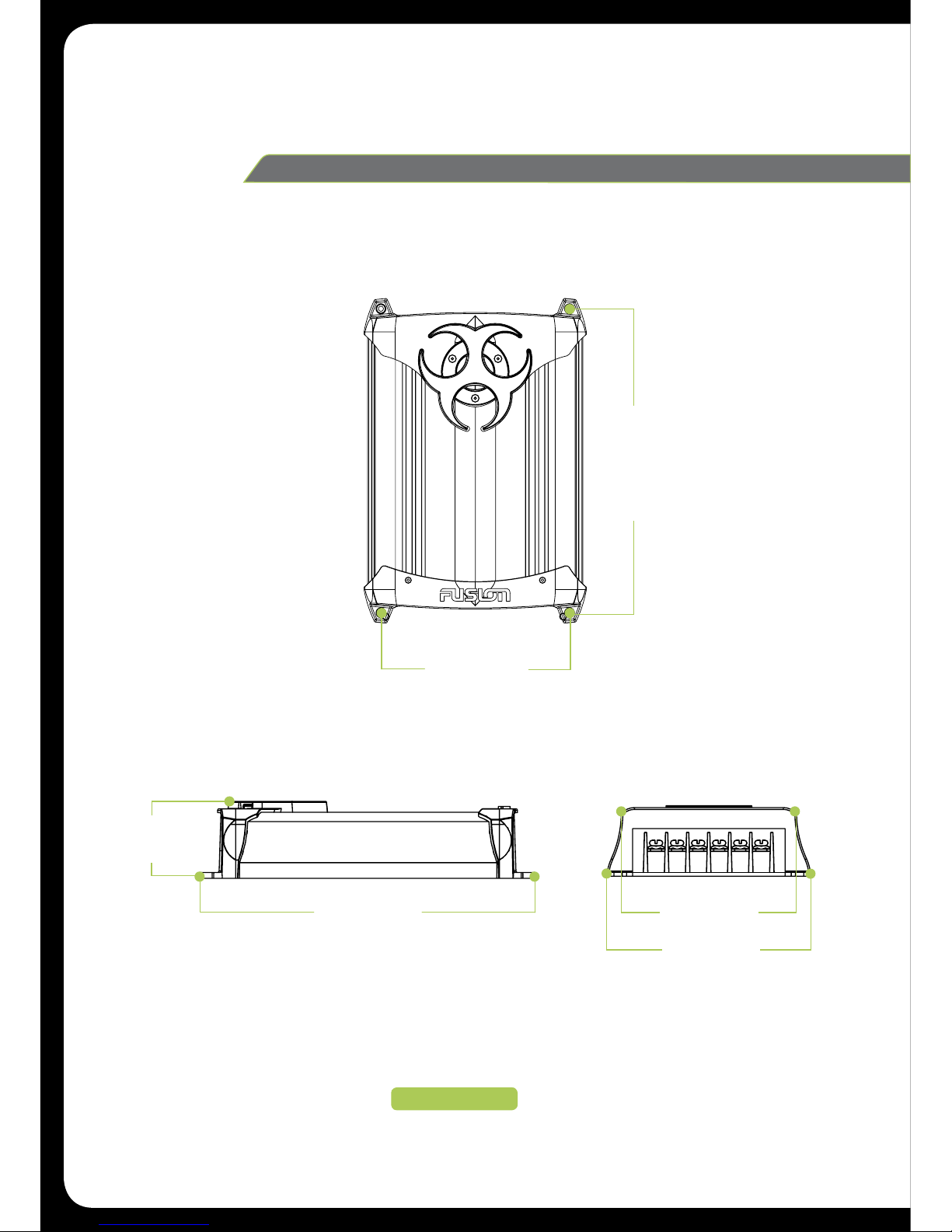

X-OVER
X-OVER PP-CM40
DIMENSIONS
92mm (3-5/8")
IN+ IN- W+ W- T+ T-
92mm (3-5/8")
107mm (4-1/4")
175mm (6-7/8")
162mm (6-3/8")
40mm
(1- 9/16")

7

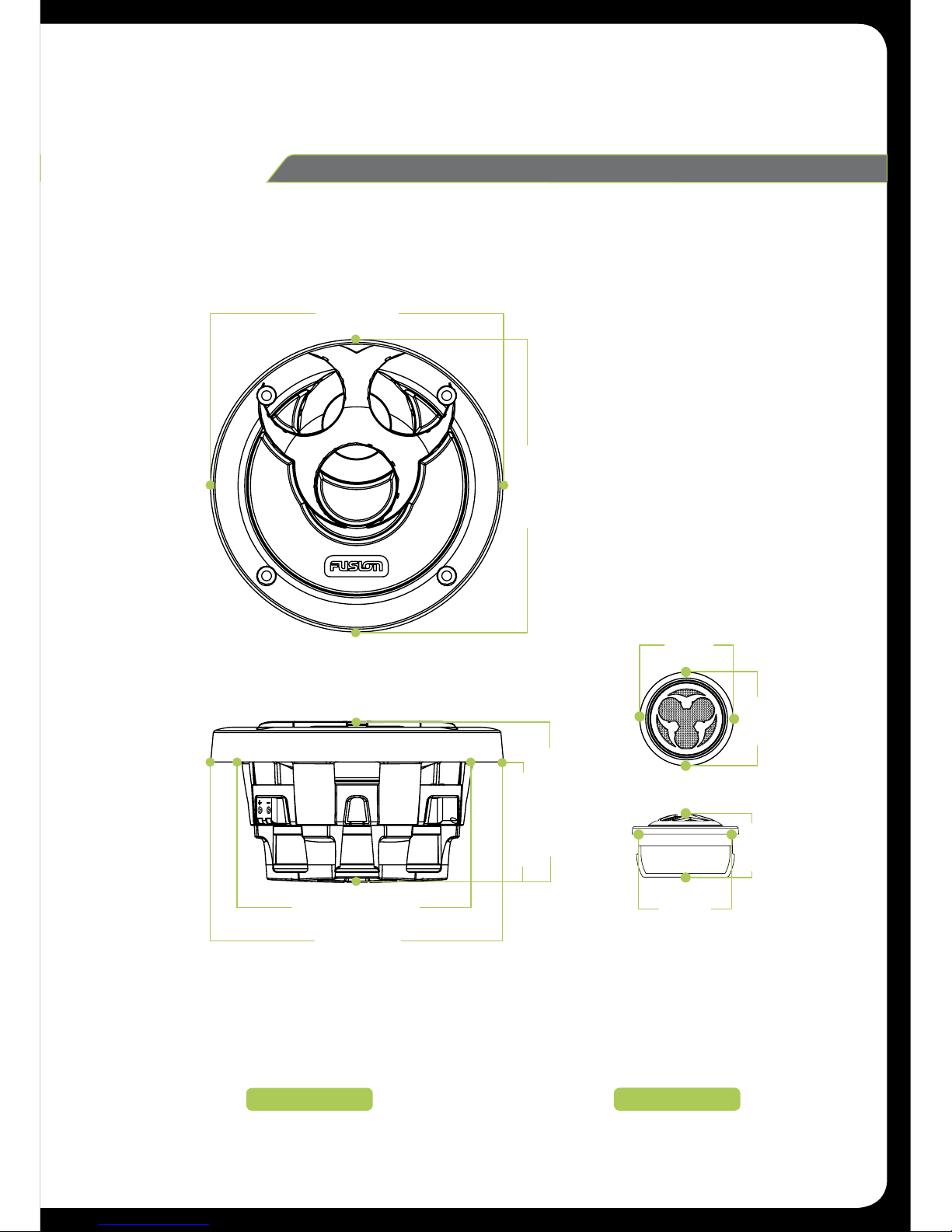

SPEAKER PP-CM525
DIMENSIONS
TWEETER
WOOFER
152mm (6")
152mm (6")
84mm (3-5/16")
63mm (2-1/2")
152mm (6")
122mm (4-13/16") 51mm
(2")
51mm
(2")
51mm
(2")
32mm
(1-1/4")

8
X-OVER PP-CM525
DIMENSIONS
X-OVER
92mm (3-5/8")
IN+ IN- W+ W- T+ T-
92mm (3-5/8")
107mm (4-1/4")
175mm (6-7/8")
162mm (6-3/8")
40mm
(1- 9/16")

9
SPEAKER PP-CM65
DIMENSIONS
TWEETER
WOOFER
176mm (6-15/16")
176mm (6-15/16")
89mm (3-1/2")
67mm (2-5/8")
146mm (5-3/4")
176mm (6-15/16")
51mm
(2")
51mm
(2")
51mm
(2")
32mm
(1-1/4")

10
X-0VER PP-CM65
DIMENSIONS
X-OVER
92mm (3-5/8")
IN+ IN- W+ W- T+ T-
92mm (3-5/8")
107mm (4-1/4")
175mm (6-7/8")
162mm (6-3/8")
40mm
(1- 9/16")
