Fusion 33061 User manual

Operator Manual
Fusion™
Drill-Powered Cultivator
Model Number:
33061
© 2020 Ardisam
All Rights Reserved
P/N: 33299
ECN: 12860
REV 1: 03/30/2020
Get parts or technical assistance online at
www.fusiondrillpowered.com
or call [phone]
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Drill not included.

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST.
2
STOP
ACTIVATE YOUR
WARRANTY
BEFORE USE
All products must be registered within 30
days from the date of purchase in order
to be covered under warranty. You can
register your warranty online by visiting
www.fusiondrillpowered.com, or by
scanning the QR code above. You may
also call our Customer Service depart-
ment at [phone] Mondays through
Fridays from 8 a.m. to 5 p.m. CST. For
more information regarding Warranty and
Registration please review the Warranty
and Registration terms and conditions
expressed in this manual.
TABLE OF CONTENTS
Introduction/Contents . . . . . . . . . . 2-3
Warnings and Safety Precautions. . . .3-7
Features and Specications . . . . . . . 8-9
Assembly. . . . . . . . . . . . . . . . . . 9-14
Operation . . . . . . . . . . . . . . . . 12-13
Maintenance and Storage . . . . . . . . 14
Troubleshooting and Repair . . . . . 14-15

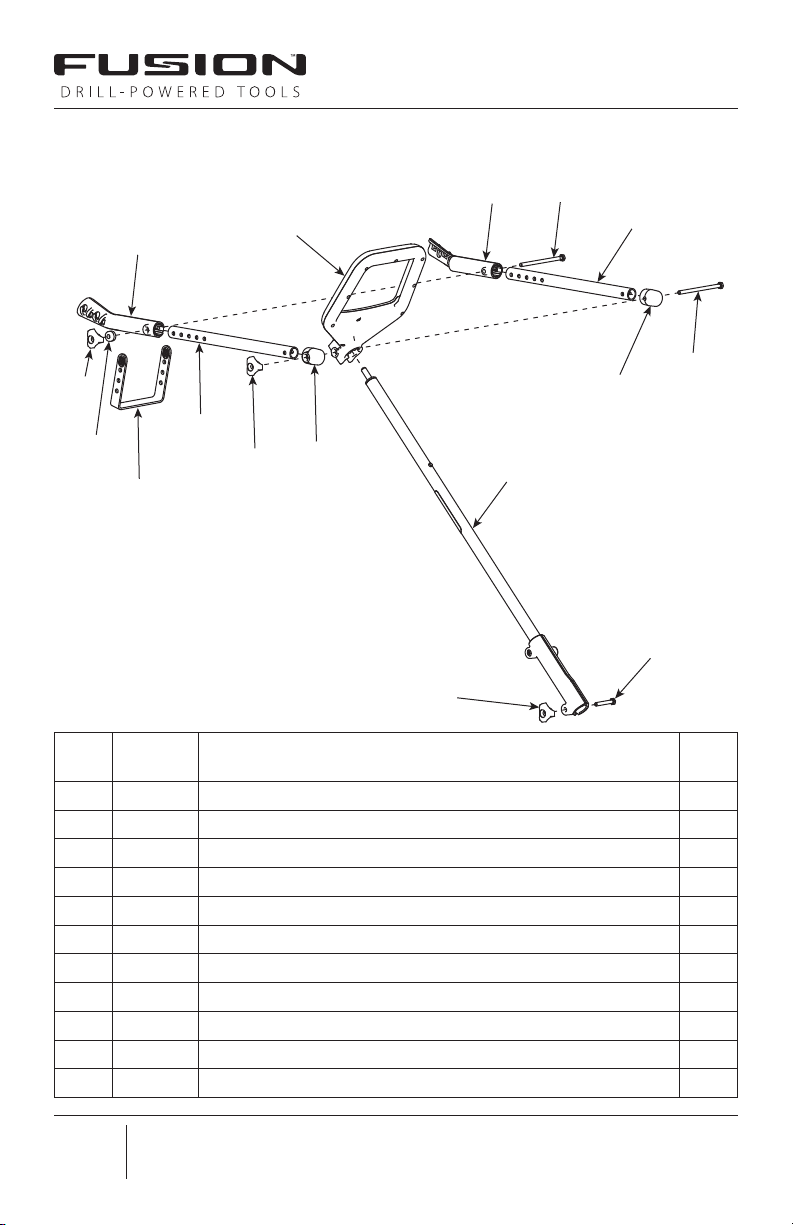

Illustrated Parts Breakdown . . . . . 16-17
Warranty . . . . . . . . . . . . . . . . . 18-19
INTRODUCTION
Thank you for purchasing your product
from Fusion™. We have worked to ensure
that this product meets the highest
standards for usability and durability. With
proper care, your product will provide
many years of service.
Please read this entire manual before
installation and use.
Fusion™ reserves the right to change,
alter or improve the product and this
document at any time without prior no-
tice. Due to continuous product improve-
ments, product images may not be exact.
Some assembly may be required.
Read and keep this manual for future ref-
erence. This manual contains important
information regarding safety, assembly,
operation and maintenance. The own-
er must be certain that all the product
information is included with the unit.
This information includes the manual,
the replacement parts and the warran-
ties. This information must be included
Serial Number
Location
Serial Number
_________________________________
Date of Purchase
_________________________________

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST. 3
WARNINGS & SAFETY
PRECAUTIONS
OWNER’S RESPONSIBILITY
Accurate assembly and safe and eective
use of the tool is the owner’s responsi-
bility.
• Read and follow all safety
instructions.
• Carefully follow all assembly
instructions.
• Ensure that anyone who uses
the tool is familiar with all
safety precautions.
SPECIAL MESSAGES
Your manual contains special messages
to bring attention to potential safety
concerns, tool damage as well as helpful
operating and servicing information.
Please read all the information carefully to
avoid injury and tool damage.
NOTE: General information is given
throughout the manual that may help
the operator in the operation or set-up of
the tool.
This symbol points out important
safety instructions which if not followed
could endanger your personal safety.
Read and follow all instructions in this
manual before attempting to operate this
equipment.
BEFORE OPERATING EQUIPMENT:
PLEASE READ THIS
SECTION CAREFULLY.
Read entire operating and set-up instruc-
tions for this product. Failure to follow
instructions could result in serious injury
or death. Operate the tool according to
the safety instructions outlined here and
inserted throughout the text. Anyone
who uses this tool must read the instruc-
tions and be familiar with its operation.
INTENDED USE / FORESEEABLE
MISUSE
IMPORTANT: This is a drill-powered
rotary tiller cultivator that works the soil
by means of rotating tines. It is pedes-
trian-controlled, but not self-propelled,
using a cordless electric drill to power the
tines. It shall not be used for any other
purpose.
to make sure state laws and other laws
are followed. All persons to whom rent/
loan this unit must have access to and
understand this information. This manual
should remain with the product even if it
is resold.

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST.
4
DANGER
KEEP AWAY FROM ROTATING TINES.
ROTATING TINES WILL CAUSE INJURY.
SRT CRT
NOTICE
NOTICE INDICATES YOUR TOOL CAN BE DAMAGED IF THE SAFETY
INSTRUCTIONS THAT FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
IMPORTANT
IMPORTANT INDICATES HELPFUL INFORMATION FOR PROPER AS
SEMBLY, OPERATION OR SETUP OF YOUR TOOL.
CAUTION
CAUTION INDICATES A HAZARD WHICH, IF NOT AVOIDED, COULD
RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE.
WARNING
WARNING INDICATES A HAZARD WHICH, IF NOT AVOIDED, COULD
RESULT IN DEATH OR SERIOUS INJURY AND/OR PROPERTY DAMAGE.
DANGER
DANGER INDICATES A HAZARD WHICH, IF NOT AVOIDED, CERTAIN
LY WILL RESULT IN DEATH OR SERIOUS INJURY AND/OR PROPERTY
DAMAGE.

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST. 5
WARNING
YOU MUST READ, UNDERSTAND AND COMPLY WITH ALL SAFETY
AND OPERATING INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPT
ING TO SETUP AND OPERATE YOUR TOOL. FAILURE TO COMPLY WITH
ALL SAFETY AND OPERATING INSTRUCTIONS CAN RESULT IN LOSS
OF TOOL CONTROL, SERIOUS PERSONAL INJURY TO YOU AND/OR
BYSTANDERS, AND RISK OF TOOL AND PROPERTY DAMAGE. THE TRI
ANGLE IN THE TEXT SIGNIFIES IMPORTANT CAUTIONS OR WARNINGS
WHICH MUST BE FOLLOWED.
GENERAL SAFETY RULES
• Read, understand, and follow all instruc-
tions on the tool and in the manual(s). Be
thoroughly familiar with the controls and
the proper use of the tool before starting.
Know how to stop the tool and disen-
gage the controls quickly.
• Use this tool for its intended purpose
only.
• Familiarize yourself with all of the safety
and operating decals on this tool and on
any of its attachments or accessories.
• Do not put hands or feet near or under
rotating parts.
• Only allow responsible individuals
who are familiar with the instructions to
operate the tool. Never allow children to
operate this tool. Never allow adults to
operate the tool without proper instruc-
tion.
• Thoroughly inspect the area where the
tool is to be used and remove all for-
eign objects. Your tool can propel small
objects at high speed causing personal
injury or property damage. Stay away
from breakable objects, such as house
windows, automobiles, greenhouses, etc.
• Keep the area of operation clear of all
persons, particularly small children and
pets.
• Do not operate in shorts or open-toed
shoes. Wear proper Personal Protective
Equipment (PPE) at all times, such as
gloves, proper footwear, and eye protec-
tion.
• Do not wear loose clothing or jewelry.
They can get caught in moving parts.
Always keep hands, feet, hair and loose
clothing away from any moving parts on
the tool.
• Always wear safety goggles or safety
glasses with side shields when operating
the tool to protect your eyes from foreign
objects which can be thrown from the
unit.
• Always wear work gloves and stur-
dy footwear. Wear footwear that will
improve footing on slippery surfaces.
Leather work shoes or short boots work
well for most people. These will protect
the operator’s ankles and shins from
small sticks, splinters, and other debris.

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST.
6
• Do not operate tool when fatigued or
under the inuence of alcohol, drugs
or other medication which can cause
drowsiness or aect your ability to oper-
ate this tool safely.
• Prolonged exposure to vibration from
drill-powered equipment should be
avoided. Take intermittent breaks and/or
wear work gloves to reduce vibration in
the hands.
• Check local regulations for age restric-
tions on use of this tool.
• If vegetation clogs the tines, stop and
remove the drill from the cultivator
before removing the vegetation by hand.
If necessary, remove the tines to remove
vegetation.
• Do not overload the tool capacity by at-
tempting to till too deep at too fast a rate.
Attempts to force the tool may result in
wrist injury.
• To prevent accidental starting, always
disconnect the drill from the tool during
storage.
• Do not operate the tool without proper
guards or other safety protective devices
in place.
• See manufacturer’s instructions for
proper operation and installation of ac-
cessories. Only use accessories approved
by the manufacturer.
• Operate only in daylight or good arti-
cial light.
• Never operate tool in wet grass. Always
be sure of your footing; keep a rm hold
on the handle and walk; never run.
• Stop the drill when crossing gravel
drives, walks, or roads.
• Watch for trac when operating near, or
when crossing roads.
• If the tool should start to vibrate
abnormally, stop the drill and lock or
disconnect its power source. Check im-
mediately for cause. Vibration is generally
a warning of trouble. If the noise or vibra-
tions of the tool increase, stop immedi-
ately and perform an inspection.
• After striking a foreign object, stop the
drill and lock or disconnect its power
source. Inspect the cultivator for dam-
age. If damaged, repair before starting
and operating the tool.
• Never leave the cultivator unattended
when the drill is attached. Lock or dis-
connect the drill’s power source.
• Regularly inspect the cultivator. Make
sure parts are not bent, damaged or
loose.
• Do not cultivate above underground
utilities, including water lines, gas lines,
electric cables, or pipes. Do not operate
the tool on terrain/soil with large rocks
and foreign objects which can damage
the equipment.
• If an object becomes lodged in the
tines, stop and remove the drill from the
cultivator before attempting to remove
the foreign object.
DRILLSPECIFIC SAFETY RULES
• Never set drill and battery in standing
water or wet soil.
• Do not run the drill in reverse while the
tool is contacting the ground. Doing so

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST. 7
may cause loss of control.
• Always run the drill on its lowest speed
and with the clutch torque adjusted to its
lowest operable setting. Failure to do so
may cause damage to the drill or the tool
attachment.
• Ensure that the drill chuck is tight
frequently throughout use. If the chuck
is not secured, it may slip and cause dam-
age to the unit, drill, or user.
• Always put the drill switch in its locked
position and disconnect battery before
transporting the tool.
CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the equip-
ment and its activity. Never assume that
children will remain where you last saw
them.
• Keep children out of the working area
and under the watchful care of a respon-
sible adult.
• Be alert and turn equipment o if chil-
dren enter the area.
• Before and while moving backwards,
look behind and down for small children.
• Never allow children to operate the
equipment.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
• Inspect equipment before storage.
When not in use, disconnect the drill and
store indoors in a dry place locked or
otherwise inaccessible to children.
SERVICE
• Always disconnect the drill whenever
you leave the equipment, before clean-
ing, repairing, or inspecting the unit.
Never make adjustments or repairs with
the drill attached.
• Always wear eye protection when mak-
ing adjustments or repairs.
• Never tamper with safety devices.
Check their proper operation regularly.
• Stop and inspect the equipment if an
object is struck. Repair, if necessary,
before restarting.
• Clean and replace safety instruction
decals as necessary.
• Use only original equipment, accesso-
ries, and authorized replacement parts.
SAFETY DECALS AND WARNINGS
Pictured below are safety and hazard
symbols on the unit or in this manual.
Before you operate your unit, learn and
understand the purpose for each symbol.
Dress appropriately and wear
sturdy footwear.
Avoid injury from
rotating tines.
Wear eye protection
at all times.
Read and understand the operator
manual before running tool.
Do not operate when children
or others are around.

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST.
8
FEATURES
Read this operator manual and safety rules before operating your cultivator. Take time
to compare the following illustration with the cultivator to familiarize yourself with the
product.
Stretch Strap
for all Sizes
Tool-less Adjustable
Torque Arms for
One-hand Operation
Tool-less
Extension
Connection
Quick-release
Tine Mounting
Stamped
Steel Tines
Tine Dirt
Shield
Metal Gear
Transmission
Stabilizing
Handle
Powered by
Your Own Drill
(drill not included)
COMPACT KNEELING
CONFIGURATION

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST. 9
SPECIFICATIONS
TILLING WIDTH 4.25 IN MIN.  8 IN MAX
TILLING DEPTH 5.5 IN
TRANSMISSION GEAR RATIO 1.2:1
TINE SPEED / ROTATION VARIABLE / DUAL DIRECTION
INPUT HEX SIZE 8 MM
UNIT WEIGHT EXCLUDING DRILL 6.5 LB
UNIT DIMENSIONS 51.3 X 8.7 X 23.6 IN
UNIT DIMENSIONS COMPACT CONFIG. 19.3 X 8.7 X 11.2 IN
MINIMUM DRILL REQUIREMENTS
TORQUE 300 INLB MAX
CHUCK SIZE 3/8 INCH
DRILL DESIGN BRUSHLESS MOTOR
POWER 18 VOLT
POWER SOURCE LITHIUM ION BATTERY
BATTERY CAPACITY 3.0 AH
UNPACKING & ASSEMBLY
CARTON CONTENTS
• Manual
• Hardware Parts Bag
(A) 4x Bolts
(M4 X 14MM Socket Head)
(B) 4x Nuts
(M4 Nylock)
(C) Bolt
(M4 X 12MM Socket Head)
(D) 3x Hand Knob Nuts
(E) 2x Bolts
(M6 X 100MM Hex Head)
(F) Spacer (S) (optional)
(G) L-Wrench
(H) Bolt
(M6 X 40MM Hex Head)
( ) Rubber Strap
• Transmission (J)
• Tine Shield Bracket (K)
• Tine Shield (L)
• 4x Tines (M) with 4x Hair Pins (N)
• Handle (O)
• Extension (P)
• Torque Arm Assembly Right (Q)
• Torque Arm Assembly Left (R)
WARNING
USE THE CORRECT PERSONAL PROTECTION.
WEAR SAFETY GLASSES OR EYE SHIELDS WHILE
ASSEMBLING OR OPERATING THE CULTIVATOR.

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST.
10
FIGURE 2
J
L
C
A
K
B
FIGURE 3
M
N
Q
P
R
E
D
F
O
ASSEMBLY
1. Remove contents from packaging and
open hardware parts bag.
2. Assemble tine shield bracket (K) to
transmission (J) with four bolts (A) and
four nuts (B) using L-wrench (G), provided
in hardware parts bag. SEE FIGURE 2
3. Assemble tine shield (L) to trans-
mission assembly with bolt (C) using
L-wrench (G). SEE FIGURE 2
4. Assemble four tines (M) to transmis-
sion assembly with four hair pins (N).
SEE FIGURE 3
5. Assemble handle (O), along with right
torque arm assembly (Q) and left torque
arm assembly (R) to extension (P) with
two bolts (E) and two hand knob nuts
(D). Though the handle can be installed
in either direction on the extension, it is
most common to have the Fusion™ logo
facing toward the op-
erator and drill. Be sure
the locator stud on the
aluminum tube of the
extension ts snuggly
all the way into one of
the ve pocket posi-
tions of the handle de-
pending on the user’s
desired angle position
of the handle. Then
tighten the hand knob
nut rmly by hand on
the bolt to secure the
handle, and the left
and right torque arm
assemblies tightly to
the extension. Thread

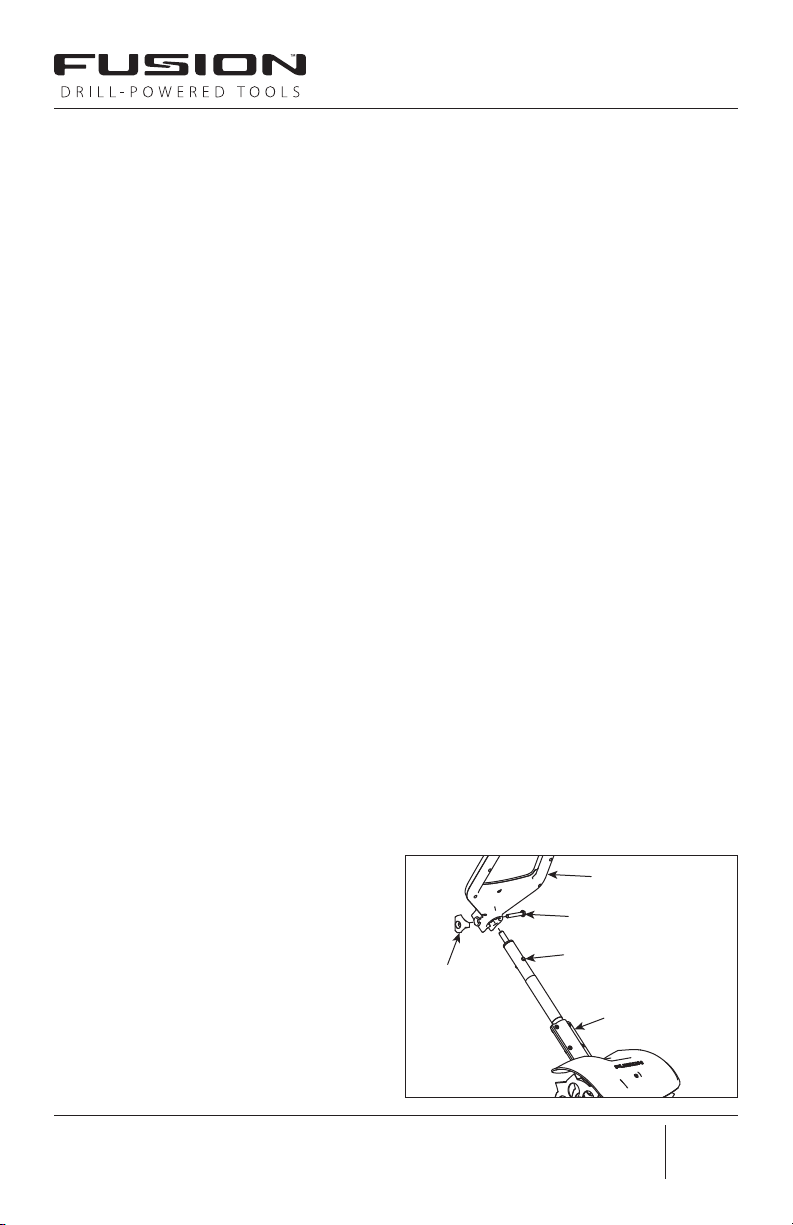

FIGURE 4
Locator
Stud

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST. 11
the other hand knob nut onto the other
bolt that passes through the left and
right torque arms, but do not tighten.
SEE FIGURE 4
6. Assemble extension assembly to trans-
mission assembly with hand knob nut
(D) and bolt (H). Be sure the two locator
studs on opposite sides of the aluminum
tube of the transmission t snuggly all
the way into the two corresponding
channels of the extension coupler. It may
be necessary to rotate the input hex shaft
of the extension by hand slightly in order
to mate properly with the hex shaft of
the transmission. Tighten the hand knob
nut rmly by hand on the bolt to secure
the extension assembly tightly to the
transmission assembly.
SEE FIGURE 5

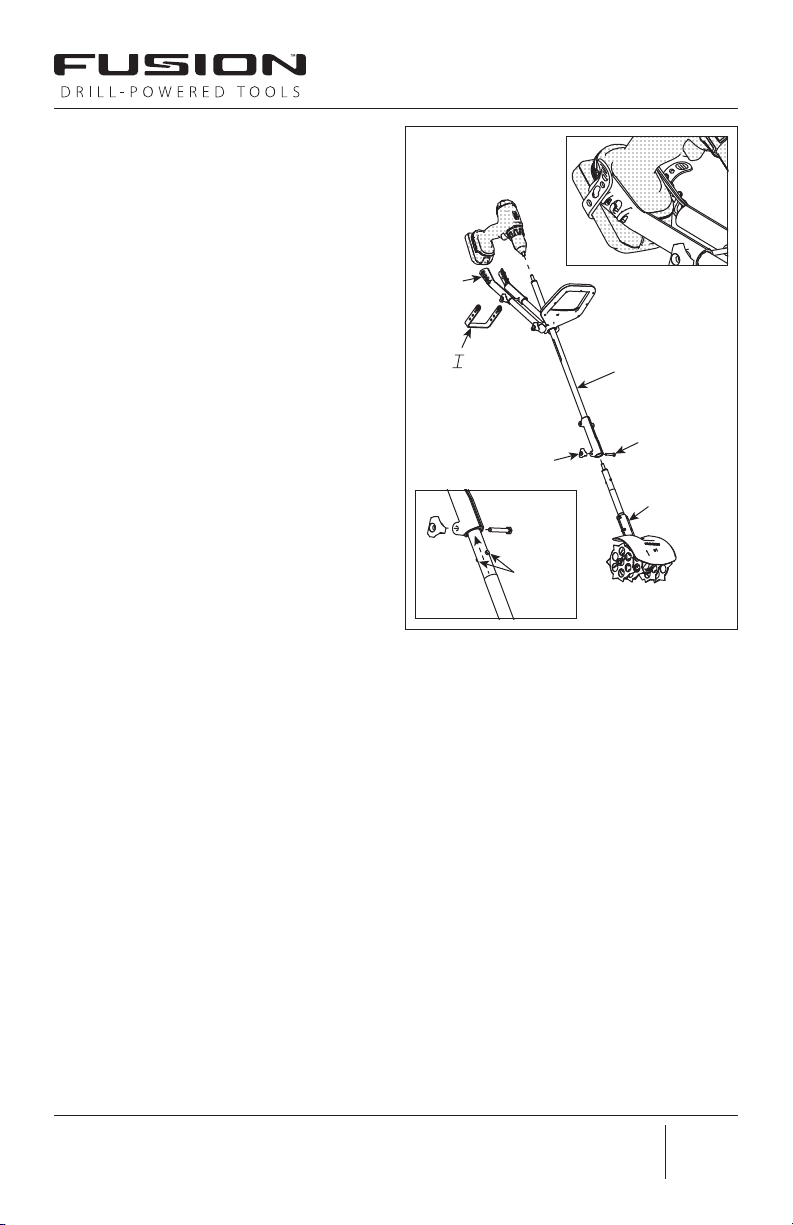

FIGURE 5
H
D
Extension
Assembly
Torque
Arm
Wing
Transmission
Assembly
DRILL PREPARATION
1. Review the drill manufacturer’s instruc-
tions information on safety, operation,
maintenance, and storage.
2. Ensure the drill meets the minimum
requirements.
• 300 in-lb max. torque
• 3/8 inch drill chuck
• Brushless motor design
• 18 Volt or higher
• Lithium Ion Battery (3.0 Ah or higher)
3. Set the drill to the lowest speed set-
ting (Level“1” or “Lo”on most drills).
SEE FIGURE 6 Failure to do so may
cause loss of control of the tool.
4. Adjust the clutch setting to“screw”, or
the lowest clutch torque setting number
that is still operable for cultivating soil.
Never set to “drill” or “hammer drill” mode.
Failure to do so may cause damage to the
drill or the tool attachment.
SEE FIGURE 6
ATTACHING DRILL TO
TOOL WITH EXTENSION
SEE FIGURE 5
1. Pivot the left and right torque arms up
toward the input hex shaft to facilitate
attachment of the drill.
2. Insert the input shaft into the drill
chuck, align the chuck jaws with the ats
on the hex of the shaft and tighten the
Locator
Studs

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST.
12
FIGURE 6
No
Drill
No
Hammer
Drill
Clutch
Torque
Adjustment
Speed
Adjustment
chuck to secure the drill to the tool.
3. Pivot the left and right torque arms
back down so that the left and right
wings nest over the foot of the drill that
holds the drill’s battery. Depending on
the drill used, the plastic wing ends of the
torque arms may be extended by remov-
ing the tool’s hand knob nut (D) and bolt
(E) closest to the drill and extending the
plastic ends to the appropriate bolt hole
position in the left and right aluminum
tubes of the torque arms.
SEE FIGURE 4
4. Secure the wing ends of the torque
arm with the rubber strap ( ) hooked
onto the best available hook of one
torque arm wing, stretching the strap
around the bottom of the battery and
hooking it onto the best available hook
on the other side. Multiple holes are
available on the rubber strap to ensure a
secure stretch t around most any avail-
able battery size. SEE FIGURE 5
5. Tighten the hand knob nut on the
torque arm closest to the drill by hand
to apply a slight clamping force of the
OPERATION
OPERATION TIPS
1. Before cultivating, check that the drill
is properly aligned and tightened on the
input shaft, and that the drill is set to the
lowest speed setting.
2. Every drill is dierent. To set the ideal
clutch torque setting, start by operating
the cultivator tines in the soil with the
drill clutch torque set to its lowest setting
“1”. Then incrementally increase the
clutch torque level step-by-step, testing
the engagement of the cultivator with
the soil each time until the cultivator
tines are able to turn the soil without
slipping the drill’s clutch or causing the
drill to stop too easily in the soil that is
being cultivated.
3. Cultivate without placing excessive
body weight on the unit.
4. The Fusion™ cultivator can function
moving forward and back, or side-to-side
in a sweeping motion, and will cultivate
deepest when pulling backward in the
soil.
5. In softer soil, the Fusion™ cultivator
can be operated with just one hand,
much like a household vacuum cleaner.
To direct the cultivator leftward in the
soil when moving forward, rotate the
torque arms against the drill.
DO NOT OVERTIGHTEN.
For smaller drills, use optional spacer (F)
between hand knob nut and torque arm
to prevent threaded end of bolt from
protruding through knob nut.
SEE FIGURE 4

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST. 13
TINE REMOVAL &
INSTALLATION
SEE FIGURE 3
TO REMOVE TINES:
1. Remove the hairpins from each end of
the tine shaft.
2. Slide the four tines o the shaft.
TO INSTALL TINES:
1. Slide two tines onto each side of the
tine shaft, with the shoulders facing
outward.
2. Insert the hairpins into tine holes to
lock the tines in place.
Note: To reduce cultivating width,
remove outer tines and hairpins.
STARTING AND STOPPING
THE UNIT
Review the drill manufacturer’s
instructions for safe operation of the drill.
drill with the hand counterclockwise. To
direct the cultivator rightward in the soil,
rotate the drill clockwise.
6. Lifting the tines o the ground while
running the drill in reverse can help
remove most weeds that might wrap
around the tines. Do not operate drill
in reverse while tines are touching the
ground.
EXTENSION REMOVAL
AND INSTALLATION
This tool is equipped with an extension
that allows for normal cultivating oper-
ation while in a standing position. The
extension can be removed for cultivating
from a kneeling position or when culti-
vating in a tall raised garden bed. The
shorter kneeling conguration of the cul-
tivator can be eective for cultivating in
tightly spaced gardens and ower beds.
To remove the extension and convert
from standing to kneeling conguration,
do as follows:
1. Remove the drill from the tool if
attached.
2. Remove the left and right torque arms
(R) and (Q) from the handle (O) by loosen-
ing and removing two hand knob nuts
(D) and two bolts (E). SEE FIGURE 4
3. Slide the handle (O) o of the exten-
sion (P) and set aside.
4. Remove the extension from the
transmission assembly by loosening and
removing hand knob nut (D) and bolt (H).
SEE FIGURE 5
5. Slide the handle (O) onto the trans-
mission assembly so that the upper
locator stud on the aluminum tube of the
transmission assembly ts snuggly all the
way into the middle position pocket of
the handle. Though the handle can be
installed in either direction on the alumi-
num tube of the transmission assembly,
it is most common to have the Fusion™
logo facing toward the operator and drill.
SEE FIGURE 7
FIGURE 7
O
H
D
Transmission
Assembly
Locator
Stud

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST.
14
6. Secure the handle (O) to the transmis-
sion assembly using hand knob nut (D)
hand tightened rmly onto bolt (H).
SEE FIGURE 7
CAUTION: Because the left and
right torque arms are not used in
the shortened kneeling congura-
tion, two hands must always be used
when operating the cultivator. One
hand on the drill and the other hand
on the handle. Failure to do so will
result in loss of control of the tool.
To convert from kneeling to standing
congurations, simply reverse the pre-
vious steps. Always check to ensure all
components are attached according to
assembly instructions in this manual and
all hardware is securely fastened.
WARNING
PRACTICE SAFETY AT ALL TIMES. DRILL MUST BE TURNED OFF AND
REMOVED FROM UNIT BEFORE ATTEMPTING ANY MAINTENANCE OR
REPAIR.
TO PREVENT ACCIDENTAL STARTING, DO NOT STORE THE UNIT
WITH THE DRILL ATTACHED.
CHECK UNIT OFTEN FOR LOOSE NUTS, BOLTS, AND PINS. KEEP
THESE ITEMS TIGHTENED.
AN ADULT MUST ALWAYS DO MAINTENANCE AND REPAIR ON UNIT.
MAINTENANCE &
STORAGE
\STEPS FOR WORKING
ON EQUIPMENT
1. Turn o drill and remove from unit.
2. Replace or repair the part on the unit.
3. Check all parts that were repaired,
or removed during repair, that they are
secure and t correctly.
Note: All repair parts must come
from the factory. Never replace parts
that are not specically designed for
the unit.
4. Reattach drill to unit.
STORAGE
When the unit is put in storage, follow
the steps below to make sure the culti-
vator is in good condition the following
season.
CULTIVATOR
Completely clean the cultivator.
Remove drill from cultivator. Remove
all dirt and debris from cultivator com-
ponents. Put the cultivator in a building
that has good ventilation.
DRILL
Store according to drill manufacturer’s
recommendations.
TROUBLESHOOTING &
REPAIR
At Ardisam, we build quality and durabili-
ty into the design of our products; but no

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST. 15
amount of careful design by us, and care-
ful maintenance by you, can guarantee a
repair-free life for your Fusion™ cultivator.
Most repairs will be minor and easily xed
by following the suggestions in the trou-
ble-shooting guide in this section.
The guide will help you pinpoint the
causes of common problems and identify
remedies.
For more complicated repairs, you may
want to rely on an authorized service
center. A parts breakdown is located in
this manual.
We will always be glad to answer any
questions you have, or help you nd suit-
able assistance. To order parts or inquire
about warranty, call or email us using the
contact information found below or listed
on the ‘Contact Us’page on our website.
For any problems and/or repair with your
drill, please consult your drill’s manu-
facturer. Ardisam is not responsible for
damage to the drill due to misuse of the
cultivator.
ORDERING REPLACEMENT PARTS
Parts can be obtained direct from
the factory. To order parts, visit
www.fusiondrillpowered.com or call
[phone]. Please include the fol-
lowing information with your order:
Part Number(s), Part Description(s), Quan-
tity, Model Number and Serial Number.
TROUBLE CAUSE CORRECTION
Drill does not start Drill is not properly
connected to unit
Check connection and secure according to
assembly instructions
Extension is not
connected properly to
the transmission
Check connection and secure according to
assembly instructions
Defective or broken drill Contact drill manufacturer or replace drill
Defective or dead
battery
Replace or charge battery on drill
Tines spin but
performance is not
desirable
Drill speed setting is
too fast
Decrease drill speed setting to slower speed
Broken transmission Inspect and replace damaged parts
Drill stops or clutch slips
when cultivating
Debris or object is stuck
in the tines
Remove debris or object from tines
Drill clutch torque
setting is too low
Increase clutch torque setting until
cultivator is operable in soil
Cultivator operates for a
few minutes, then slows
to a stop
Drill battery charge is
low
Check battery charge level and replace or
charge if necessary
Capacity of the drill’s
battery is insucient
Replace battery with one that has a
capacity of 3.0 Ah or greater

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST.
16
6
9
2
3
11
11
8
8
1
1
7
4
5
1
10 7
REF. /
REP.
PART NO.
/ N° RÉF. DESCRIPTION
QT Y.
/ QTÉ
1 34078 KNOB NUT M6X1.0 3
2 34585 EXTENSION 1
3 18103 BOLT M6X1.0X40 MM 1
4 34582 RUBBER STRAP 1
5 35789 SPACER M6X17.5X10 MM (Optional) 1
6 34292 DRILL CAPTURE ARM RIGHT 1
7 34289 DRILL CAPTURE TUBE 2
8 34291 DRILL CAPTURE END CAP 2
9 34290 DRILL CAPTURE ARM LEFT 1
10 33679 HANDLE 1
11 34581 BOLT M6X1.0X100 MM 2
ILLUSTRATED PARTS BREAKDOWN  Extension Assembly

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST. 17
REF. /
REP.
PART NO.
/ N° RÉF. DESCRIPTION
QT Y.
/ QTÉ
1 33106 TINE 4
2 33107 HAIR PIN 4
3 34589 TRANSMISSION 1
4 23866 NUT M4X0.7X5 MM 4
5 34806 TINE SHIELD BRACKET 1
6 33065 BOLT M4X0.7X14 MM 4
7 35775 TINE SHIELD 1
8 33064 BOLT M4X0.7X12 MM 1
- 33294 PARTS BAG ASSEMBLY (Not Shown) 1
2
4
1
1
6
2
78
5
3
ILLUSTRATED PARTS BREAKDOWN  Transmission Assembly

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST.
18
Fusion™Drill-Powered Cultivator
Warranty Terms and Conditions
PRODUCT WARRANTY: 1YEAR LIMITED WARRANTY
Ardisam, Inc., warrants this Fusion™ Drill-Powered Cultivator under a one-year
limited warranty to be free from defects in materials or workmanship or both
for a period not exceeding twelve consecutive months from the date of original
purchase by the rst retail consumer or commercial end user. “Consumer use”
means personal recreational use by a retail consumer. “Commercial use” or
“commercial application” means all other uses, including use for commercial,
income producing or rental purposes. Once a product has experienced
commercial use, it shall thereafter be considered as a commercial product for
purposes of this warranty. This warranty applies to the original owner that
provides a proof of purchase. The warranty is not transferable. The warranty
period begins on the date of purchase by the rst retail consumer or commercial
end user, and continues for the twelve month consecutive period thereafter. Any
unit used in a commercial application is covered for a period of 90 days after
purchase. For the warranty to be valid, the product must be registered online
at www.fusiondrillpowered.com within 30 days of purchase. Ardisam, Inc.
shall not be obligated to ship any repair or replacement product to any location
outside of the United States of America or Canada.
*This warranty applies only to products which have not been subjected to
negligent use, misuse, uses other than those indicated in the product’s owner’s
manual, alteration, accident, use of unauthorized parts, failure to perform periodic
maintenance as specied in product’s owner’s manual, normal wear and tear, use of
unauthorized parts or repairs performed at non-authorized service centers. There is no
other expressed warranty. Implied warranties, including those of merchantability and
tness for a particular purpose, are limited to one year from purchase, or to the extent
permitted by law. All other implied warranties are excluded. Liability for incidental
or consequential damages are excluded to the extent exclusion is permitted by law.
Ardisam, Inc. does not assume, and does not authorize any other person to assume for
us, any liability in connection with the sale of our products. To obtain warranty service,

Drill-Powered Cultivator
Model Number: 33061
Get parts online at www.fusiondrillpowered.com or call 800-345-6007 M-F 8-5 CST. 19
Fusion™, Division of Ardisam, Inc.
1160 8th Avenue, PO Box 666
Cumberland, WI 54829
800-345-6007 |Fax [phone]
E-mail: [e-mail]
Check for parts online at www.fusiondrillpowered.com
or call 800-345-6007 M-F 8-5 CDT
you must have prior approval by calling our customer service department at 1-800-
345-6007. If you choose to ship your product to Ardisam for warranty repair, you must
rst have prior approval from Ardisam by calling our customer service department
for a return material authorization number (RMA#). Under these circumstances, all
items must be shipped prepaid. Ardisam will at no charge, repair or replace, at their
discretion, any defective part which satises all conditions stated above. Ardisam
retains the right to change models, specications and price without notice. Ardisam,
Inc. shall not be obligated to ship any repair or replacement product to any location
outside of the United States of America or Canada.

1160 Eighth Avenue
PO Box 666
Cumberland, WI 54829
Phone: [phone]
Fax: [phone]
www.fusiondrillpowered.com
