Futek IPM650 User manual

10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
IPM650 Product Manual

- 2 -
10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
Table of Contents
1Receiving & Unpacking .........................................................................................................................- 5 -
1.1 Unpacking.......................................................................................................................................- 5 -
1.2 Storage.............................................................................................................................................- 5 -
1.3 Accessories Supplied ......................................................................................................................- 5 -
2Safety Considerations & Care for Your Device ....................................................................................- 5 -
3Important Information for IPM650........................................................................................................- 6 -
3.1 Performance ....................................................................................................................................- 6 -
3.2 Product Introduction ......................................................................................................................- 6 -

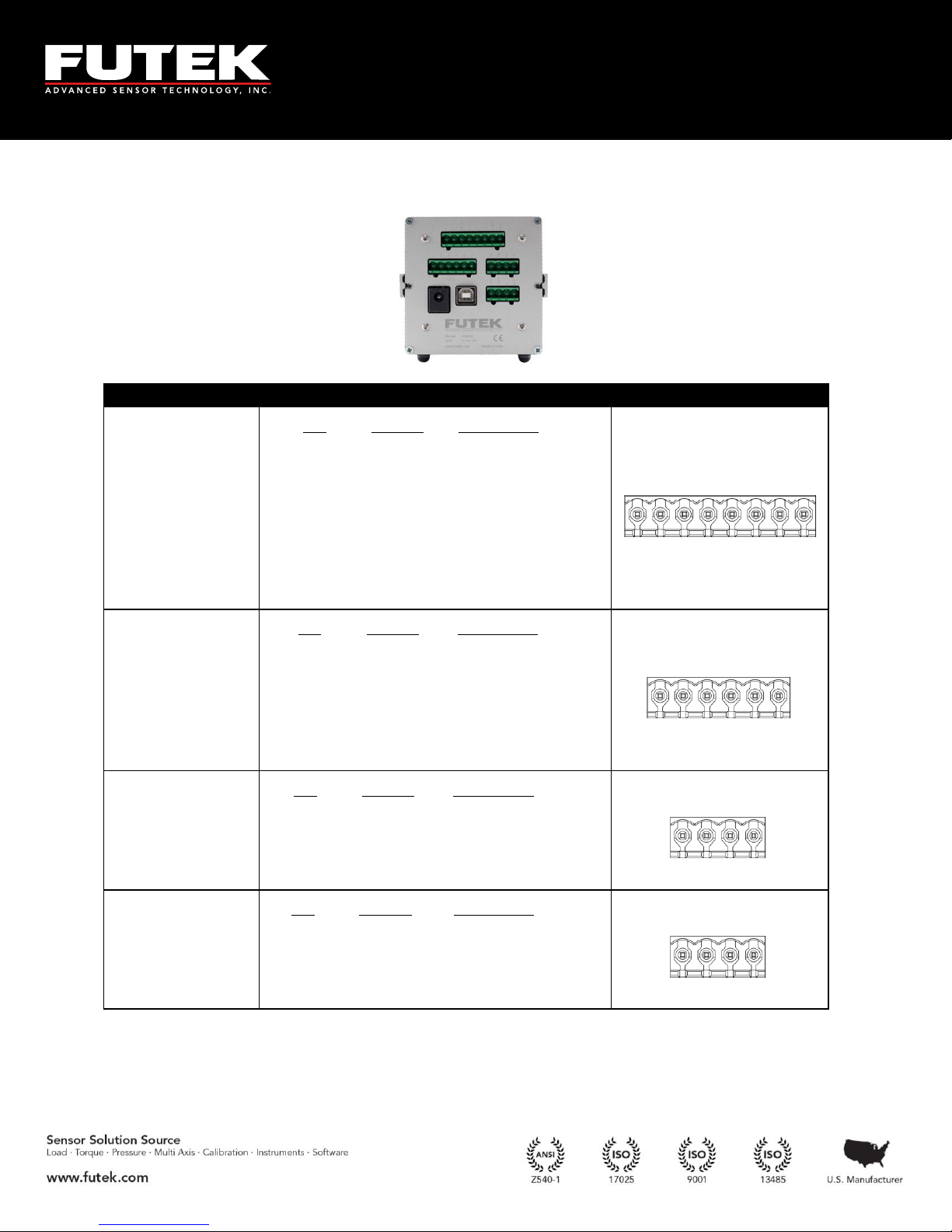

4Connector & Wiring Diagram ...............................................................................................................- 8 -
5Features...................................................................................................................................................- 9 -
5.1 IPM650 Overview ...........................................................................................................................- 9 -
5.2 IPM650 Structure ..........................................................................................................................- 13 -
5.3 Main Display.................................................................................................................................- 14 -
6Main Menu Overview..........................................................................................................................- 18 -
6.1 Sensor Profile ................................................................................................................................- 21 -
6.1.1 Existing Channels ...................................................................................................................- 22 -
6.1.2 View Channel..........................................................................................................................- 23 -
6.1.3 New Channel ..........................................................................................................................- 24 -
6.1.3.1 Sensor Configuration .........................................................................................................- 26 -
6.1.3.2 Direction .............................................................................................................................- 27 -
6.1.3.3 Unit selection......................................................................................................................- 28 -
6.1.3.3.1 Force (MASS)...............................................................................................................- 29 -
6.1.3.3.2 Torque..........................................................................................................................- 30 -
6.1.3.3.3 Pressure........................................................................................................................- 31 -
6.1.3.3.4 Displacement ...............................................................................................................- 32 -
6.1.3.3.5 mV/V ............................................................................................................................- 33 -
6.1.3.4 Sensor Capacity..................................................................................................................- 34 -
6.1.3.5 Sensitivity (+)......................................................................................................................- 35 -
6.1.3.6 Sensitivity (-).......................................................................................................................- 36 -
6.1.3.7 Calibration ..........................................................................................................................- 38 -
6.1.3.7.1 Zero Load (+) ...............................................................................................................- 38 -
6.1.3.7.2 Full Scale (+).................................................................................................................- 39 -
6.1.3.7.3 Zero Load (-)................................................................................................................- 39 -
6.1.3.7.4 Full Scale (-) .................................................................................................................- 39 -
6.1.3.8 Serial number .....................................................................................................................- 40 -
6.1.3.9 Limit & THD.......................................................................................................................- 41 -
6.1.3.9.1 First Peak THD ............................................................................................................- 42 -
6.1.3.9.2 First Valley THD..........................................................................................................- 43 -
6.1.3.9.3 MIN/MAX Differentiation ..........................................................................................- 45 -
6.1.3.9.4 Alarm Limit High........................................................................................................- 47 -
6.1.3.9.5 Alarm Limit Low.........................................................................................................- 48 -

- 3 -
10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
6.1.3.9.6 Auto Reset Timer.........................................................................................................- 50 -
6.1.4 Edit Channel............................................................................................................................- 51 -
6.1.4.1 Sensor Configuration .........................................................................................................- 53 -
6.1.4.2 Direction .............................................................................................................................- 53 -
6.1.4.3 Unit selection......................................................................................................................- 53 -
6.1.4.3.1 Force (MASS)...............................................................................................................- 53 -
6.1.4.3.2 Torque..........................................................................................................................- 53 -
6.1.4.3.3 Pressure........................................................................................................................- 53 -
6.1.4.3.4 Displacement ...............................................................................................................- 53 -
6.1.4.3.5 mV/V ............................................................................................................................- 53 -
6.1.4.4 Sensor Capacity..................................................................................................................- 53 -
6.1.4.5 Sensitivity (+)......................................................................................................................- 53 -
6.1.4.6 Sensitivity (-).......................................................................................................................- 53 -
6.1.4.7 Calibration ..........................................................................................................................- 53 -
6.1.4.7.1 Zero Load (+) ...............................................................................................................- 53 -
6.1.4.7.2 Full Scale (+).................................................................................................................- 53 -
6.1.4.7.3 Zero Load (-)................................................................................................................- 54 -
6.1.4.7.4 Full Scale (-) .................................................................................................................- 54 -
6.1.4.8 Serial number .....................................................................................................................- 54 -
6.1.4.9 Limit & THD.......................................................................................................................- 54 -
6.1.4.9.1 First Peak (THD)..........................................................................................................- 54 -
6.1.4.9.2 First Valley (THD).......................................................................................................- 54 -
6.1.4.9.3 MIN/MAX Differentiation ..........................................................................................- 54 -
6.1.4.9.4 Alarm Limit High........................................................................................................- 54 -
6.1.4.9.5 Alarm Limit Low.........................................................................................................- 54 -
6.1.4.9.6 Auto Reset Timer.........................................................................................................- 54 -
6.1.5 Save Changes ..........................................................................................................................- 55 -
6.1.6 Delete Channel........................................................................................................................- 57 -
6.2 System Setting...............................................................................................................................- 60 -
6.2.1 Digit Select ..............................................................................................................................- 61 -
6.2.2 Channel Select.........................................................................................................................- 62 -
6.2.3 Moving Average .....................................................................................................................- 63 -
6.2.4 Sampling Rate.........................................................................................................................- 65 -
6.2.5 Peak/ Valley.............................................................................................................................- 66 -
6.2.6 Auto Reset ...............................................................................................................................- 68 -
6.2.7 Alarm Configuration ..............................................................................................................- 69 -
6.2.8 Alarm Activity ........................................................................................................................- 70 -
6.3 Data Logging.................................................................................................................................- 71 -
6.3.1 Logging Rate ...........................................................................................................................- 72 -
6.3.2 Duration (SEC)........................................................................................................................- 73 -
6.3.3 Action ......................................................................................................................................- 75 -
6.4 Output Configuration...................................................................................................................- 77 -
6.4.1 Digital ASCII...........................................................................................................................- 78 -
6.4.2 Alarm Relay 1..........................................................................................................................- 79 -

- 4 -
10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
6.4.3 Alarm Relay 2..........................................................................................................................- 80 -
6.4.4 Voltage Configuration............................................................................................................- 81 -
6.4.5 Current Value..........................................................................................................................- 82 -
6.4.6 Current Configuration............................................................................................................- 83 -
6.5 Interfaces .......................................................................................................................................- 84 -
6.5.1 USB Output .............................................................................................................................- 85 -
6.5.2 ASCII output ...........................................................................................................................- 86 -
6.5.3 Relay 1 Output........................................................................................................................- 87 -
6.5.4 Relay 2 Output........................................................................................................................- 88 -
6.5.5 Voltage Output .......................................................................................................................- 89 -
6.5.6 Current Output .......................................................................................................................- 90 -
6.5.7 Power Output .........................................................................................................................- 91 -
6.5.8 Bridge Input ............................................................................................................................- 92 -
6.5.9 Voltage Input ..........................................................................................................................- 93 -
6.5.10 Current Input ..........................................................................................................................- 94 -
6.6 LCD Setting...................................................................................................................................- 96 -
6.6.1 Contrast ...................................................................................................................................- 97 -
6.6.2 Brightness................................................................................................................................- 98 -
6.6.3 Auto LCD off...........................................................................................................................- 99 -
6.7 Lock Settings ...............................................................................................................................- 100 -
6.7.1 Lockout Profile......................................................................................................................- 101 -
6.7.2 Unlock profile .......................................................................................................................- 102 -
6.7.3 Change Password .................................................................................................................- 103 -
6.8 TEDS Data ...................................................................................................................................- 105 -
6.8.1 TEDS Device..........................................................................................................................- 106 -
6.8.2 TEDS Page.............................................................................................................................- 107 -
6.8.3 Load Data..............................................................................................................................- 108 -
6.8.4 Auto Detection......................................................................................................................- 109 -
6.9 Diagnostic....................................................................................................................................- 110 -
6.9.1 Internal or External...............................................................................................................- 111 -
7Appendix A (List of Probable Errors) ...............................................................................................- 112 -
8Appendix B (List of Messages)..........................................................................................................- 113 -
9Appendix C (Device Specifications)..................................................................................................- 115 -
10 Appendix D TEDS IEEE 1451.4 Introduction ...................................................................................- 118 -
10.1 What is TEDS?.............................................................................................................................- 118 -
10.2 Basic Concept ..............................................................................................................................- 119 -
10.3 How it works...............................................................................................................................- 119 -
11 Appendix E (System Performance) ...................................................................................................- 120 -

- 5 -
10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
1Receiving & Unpacking
1.1 Unpacking
Check all parts to ensure no damage occurred during transit. If you suspect that your product is
damaged, contact FUTEK at [e-mail] for immediate support.
1.2 Storage
If the device is to be stored for a prolonged period, take the following safety precautions:
The storage temperature should be between 0°C and +70°C (32°F to 158°F)
Store in a dry environment
If possible, store the instrument in its original packaging when not in use
1.3 Accessories Supplied
Power supply adapter
8 pin connector plug
6 pin connector plug
4 pin connector plug (2)
Bumpons (4)
Caution
FUTEK is not responsible for any damage or
injury caused by misuse, misunderstanding, or
abuse of this product.
2
3Safety Considerations & Care for Your Device
Do not disassemble for modifications or repair
Make sure to disconnect the power adapter and turn the device off when connecting or
disconnecting any of the connectors
Do not operate the device in the following environments:
oDirect sunlight
oWhere the product will be splashed with water, oil, and chemicals
Do not throw, drop, or scratch with any sharp objects

- 6 -
10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
4Important Information for IPM650
4.1 Performance
The IPM650 is a microcontroller based digital panel meter that monitors the activity of a vast range of
sensors. This includes Wheatstone bridge strain gauge and amplified output Torque/ Force/ Pressure/
Displacement sensors. All of the measurements are based on a high accuracy, low noise, 24 bit resolution,
Analog to Digital Converter with a non-linearity of 0.001%, and a temperature coefficient factor of less
than 5 PPM (zero and span drift). All analog components, not only the ones that provide the
requirements for ADC, such as reference voltage, but also the ones which are employed for analog
output, excitation voltage, and input/output buffers are low noise, low distortion, low temperature
coefficient, and high precision/accuracy parts. The combination of these components, along with a high
speed micro-controller integrated with a precision DAC controller has provided a high accuracy
instrument, which is able to measure the activity of a 2 mV/V sensor with up to a 500,000 count (total)
noise free base! The high precision DAC controller has been exploited to provide a ±5 V output with 100
μV resolution and/or (0-25mA) current output with a 0.5 μA resolution. A wide range of bridge
resistances and input/output impedances of external instruments can be applied to this device without
any lack of performance.
The IPM650 accepts amplified voltage input (±12 VDC), current input (up to 30 mA), and bridge input
(up to 500 mV/V), and has the capability to provide power to FUTEK rotary torque sensors (24 VDC/ 1 W
and 5 VDC/ 0.05 W).
4.2 Product Introduction
TEDS IEEE 1451.4 compliant with template 30 for High level voltage output sensors and
template 33 for bridge sensors
Ability to interact with TEDS data by using the SENSIT Test and Measurement software.
Selectable calibration method
oLive calibration: Applying an actual load
oManipulating method: Entering the sensitivity
Ability to measure bridge resistance
Automated sensitivity calculation based on calibration value
Dual scaling calculation for bi-directional sensors
Selectable units of measure for Force, Torque, Pressure, and Displacement with automatic
conversion of units between readings
Selectable sampling rate from 5 samples per second to an ultra-fast signal sampling rate of 4800
samples per second with 16 different speeds
Selectable moving average method for software filtering
Peak/ Valley and First Peak/ First Valley functions
Manual and auto peak/valley reset functions
Tare/ Gross functions with indicator
Tracking/Hold functions with indicator

- 7 -
10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
Built-in shunt calibration features with indicator
Lockout feature to prevent inadvertent changes
Data logging with up to 21,000 points
Supports USB link port
Built-in load cell excitation voltage
Selectable automatic display shutoff for period of inactivity (up to 15 minutes)
Selectable latched or non-latched alarm configuration
ASCII Stream Output.
Two independently isolated solid state alarm relays, each one able to be disabled or enabled
individually, with normally open or closed operations and protected at 110mA/110V
Selectable voltage output as bipolar (±5 V) or uni-polar (0-5 V) with 2.5V offset
Selectable current output as bidirectional and unidirectional
Selectable 0-20mA, 0-25mA, 4-20mA, 5-25mA current output
Selectable alarm configuration (Latched or non-Latched)
Provides a +5.000 V (±1 mV) excitation voltage to bridge resistances as low as 30 Ohms and as
high as 30k Ohms with a limited current to 160 mA
Default channel calibrated to 0-4 mV/V using precision BLH
Back lit 4x16 character LCD with selectable brightness, contrast, and auto shut off
Selectable digit height size (4.75 mm and 12.55 mm)
Selectable number of digits to be displayed, excluding the decimal point (3, 4, 5, or 6)
Equipped with the diagnostic mode to measure bridge resistance, sensitivity, internal voltage
(Analog and digital), and temperature
User friendly navigation menu directs users to enable/disable or select/unselect various features
with easy to follow instructions
Ability to store 14+1 sensor profiles including calibration values such as Offset, Full scale,
Loading point(s) , Engineering unit , Serial number, Sensor type (Bridge, Voltage , Current) ,
Sensitivity, Alarm limits (High and Low), and all Peak/ Valley (First, Hold, Auto reset)
Threshold values
Active channel number indicator
Black powder coated aluminum enclosure
Lead free/ RoHS compliant parts
ESD, EMI, EFT and short circuit protected input and output, which covers the CE approval

- 8 -
10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
5Connector & Wiring Diagram
* Sensor cable shield should only be grounded on one end, either the sensor side or the instrument side, to avoid
potential ground loops. If connected on instrument side use the following directions: Connect shield to pin 1 or pin
2 of Amplified Input if sensor is amplified. Connect shield to pin 1 of Strain Gauge Input if sensor is strain gauge.
Connectors
Description
Diagram
Amplified Input
Pin
Symbol
Description
1
G
Ground/Shield*
2
G
Ground/Shield*
3
24V OUT
24VDC Output
4
5V OUT
5VDC Output
5
-V
-V from sensor
6
+V
+V from sensor
7
PLEAD
n/a
8
PLAG
n/a
1 2 3 4 5 6 7 8
Strain Gauge
Input
Pin
Symbol
Description
1
G
Ground/Shield*
2
TEDS
TEDS Data
3
-S
-Signal
4
+S
+Signal
5
-E
-Excitation
6
+E
+Excitation
1 2 3 4 5 6
Relays
Pin
Symbol
Description
1
-R2
Solid state relay 2
2
+R2
Solid state relay 2
3
-R1
Solid state relay 1
4
+R1
Solid state relay 1
1 2 3 4
Analog Output
Pin
Symbol
Description
1
-VOUT
Voltage output (-)
2
+VOUT
Voltage output (-)
3
G
Ground (current)
4
IOUT
Current output
1 2 3 4

- 9 -
10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
6Features

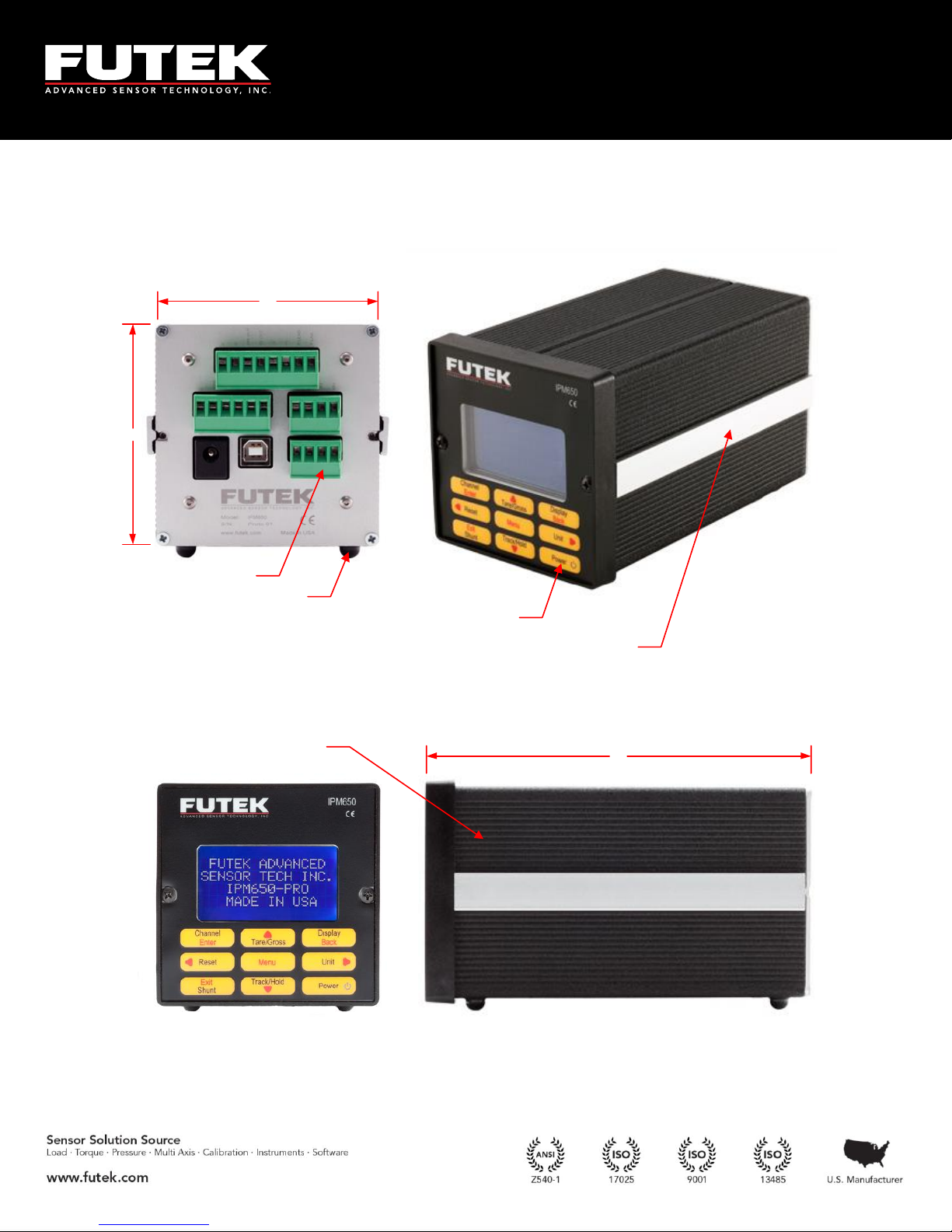

6.1 IPM650 Overview

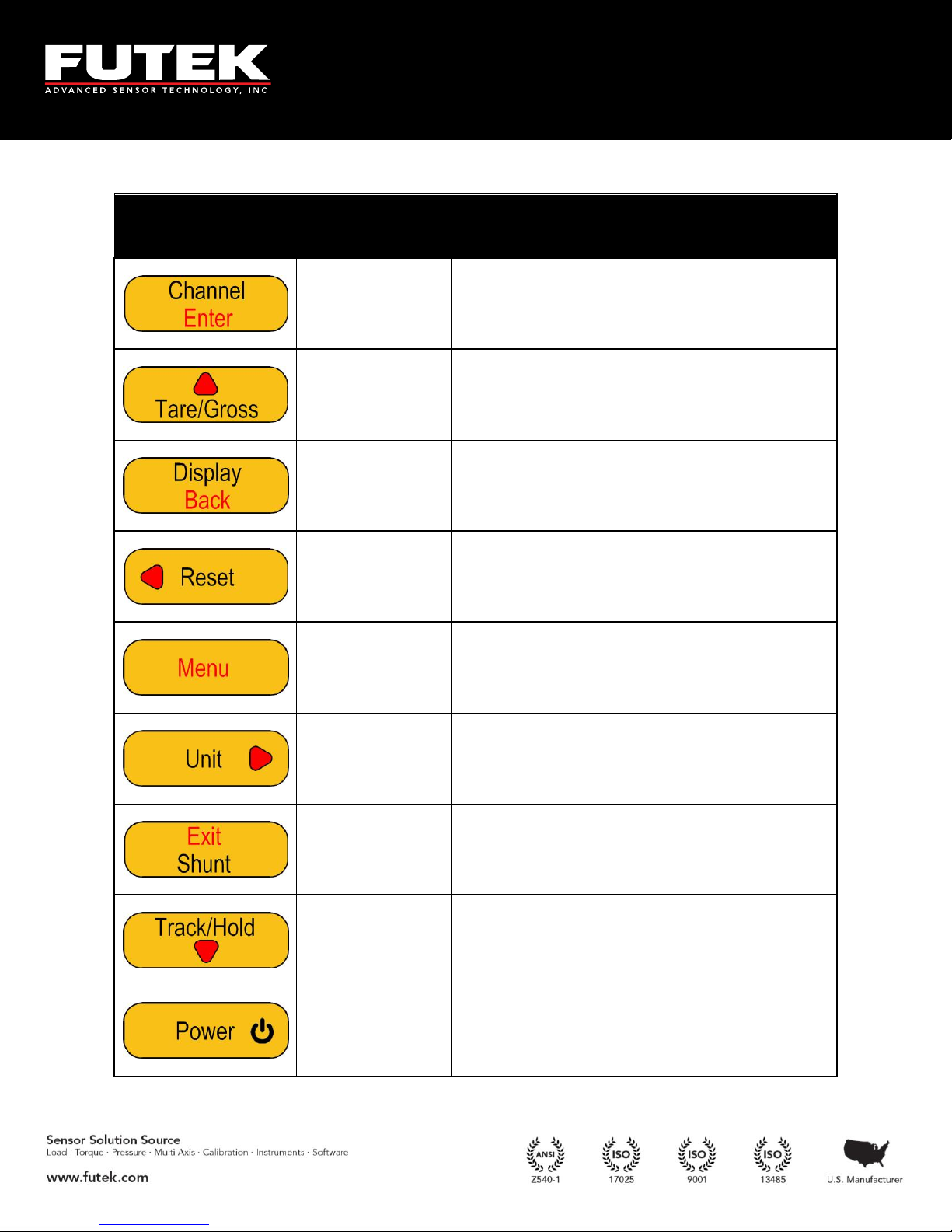

Navigation Keys
16x4 Character
LCD
Active Channel
Number
Display Larger Font
Sampling Rate
Valley Value
Tracking Value
Peak Value
Channel Information
Peak/Valley Reset
Shunt Calibration
Verification Power Key
Power
Strain Gauge Input
Amplified Input
Relays
Analog Output
USB

- 10 -
10 Thomas, Irvine, CA 92618 USA
Tel: [phone]
Fax: [phone]
3.5"
3.5"
6.5"
Screw Terminals
Panel Mount Jacks
Tactile Buttons
Bumpons
Black Powder Coated
Aluminum Enclosure
