1. Important safety instructions before commissioning
If the power cable has a defect, it must be replaced by the manufacturer or a specialist dealer.
The device is not intended for use by persons with physical, mental, or psychological disabilities.
Children should be kept away from the device. The use of the device by the persons above should
only take place under observation.
The following substances can be vacuumed with this device: cold ashes, cold charcoal, ashtrays,
and cooled grills.
"Cold ash" means sufficiently cooled ash residue without any glowing nests. To do this, check the
ashes for embers with a suitable metal rod before vacuuming.
Empty and clean the ash vacuum cleaner before and after use to prevent the accumulation of
materials responsible for a fire. Do not suck sooty or easily flammable substances.
Please check the suction hose and ash extractor for heating with each use. If the temperature
rises above average, please turn off the device immediately and contact your dealer.
2. Field of application
For efficient cleaning of the open fireplace, grill, etc. Also particularly suitable for removing
sawdust and residual parts. The device is not ideal for professional use.
WARNING NOTE! Please read this manual and the general safety instructions
thoroughly before operating the device for your safety. If you hand over the device
to a third party, always enclose these operating instructions.

Original User Manual ash vacuum cleaner K416_rev05
4

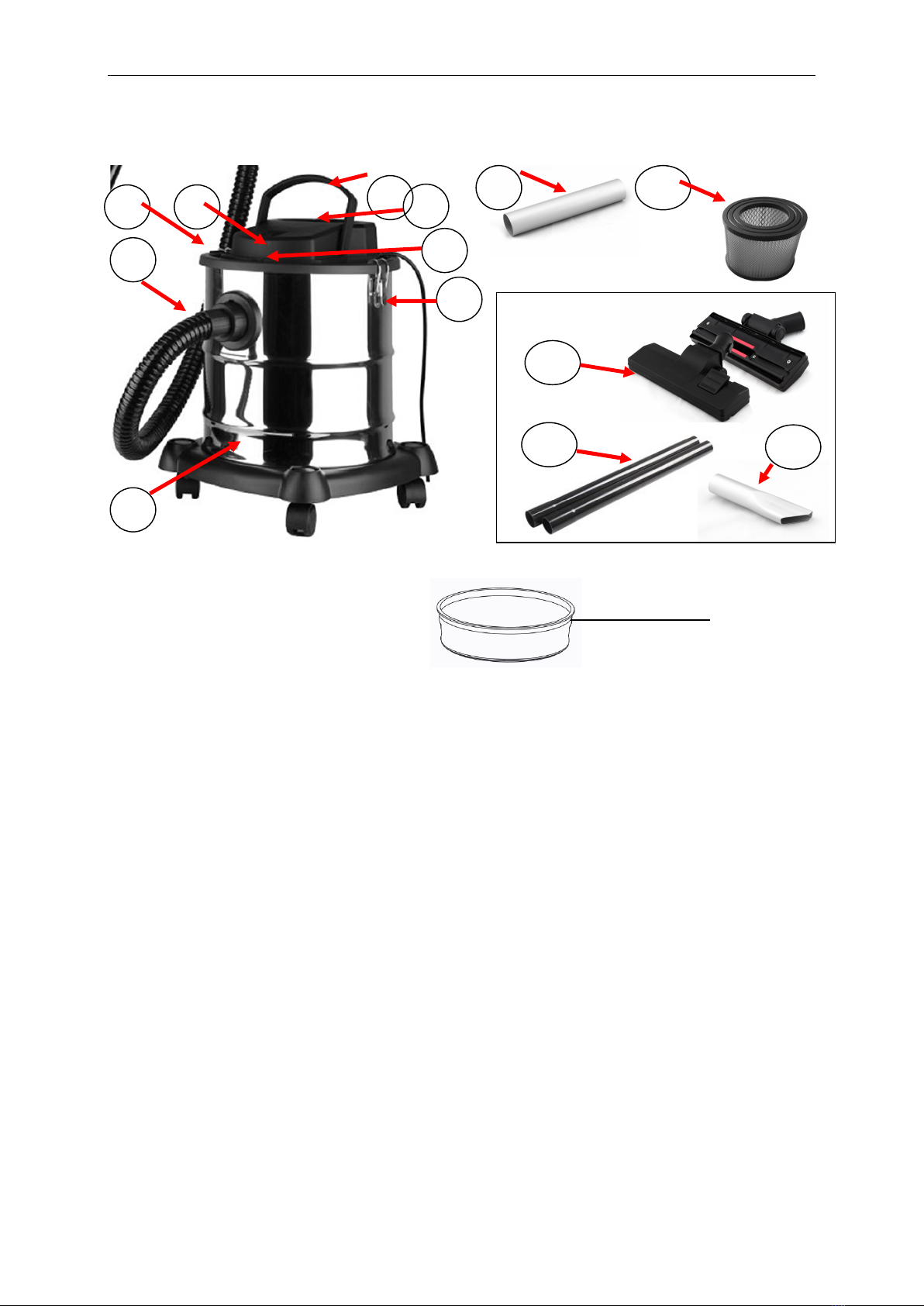

3. Description of the device
Optionally available
1) Container (tank)
2) Ash suction hose
3) Cover
4) Switch
5) Handle
6) Air sampling opening
7) Filter display
8) Clamping device for cover
9) Attachment aluminium tube
10) HEPA Filter
11) floor brush (optionally available)
12) Plastic tubes (optionally available)
13) Aluminium nozzle (optionally available)
1
2
3 4 5 6
7
8
9 10
11
12 13
Fiberglass
Dual Filter

Original User Manual ash vacuum cleaner K416_rev05
4. Package contents
 Remove the packing material
 Remove the packing and transport locks (if present)
 Check that the delivery is complete
 Check the device and accessories for transport damage
 If possible, keep the packaging until the end of the warranty period
 Then please dispose of them in an environmentally friendly way
WARNING: Packaging material is not a toy for children! Children must not play with
plastic bags! There is a danger of suffocation!
1 Device ash vacuum cleaner
1 User manual
1 Ash suction hose
1 HEPA Filter
If parts are missing or damaged, please contact your dealer.
5. Explanation of the symbols
The following symbols are used in this manual and on the device:
WARNING NOTE! Risk of injury or damage to the device. Read the manual carefully before using
the device.
Read the operating manual
before use
Attention Pay special attention to
the warning notice
Corresponds to all important
security standards and the
relevant EU regulations
Class II - The device is
double insulated, an underground
cable is
therefore not necessary

Original User Manual ash vacuum cleaner K416_rev05
6
6. General safety instructions for power tools
Please read all instructions and warnings carefully. Failure to follow instructions and warnings
may result in electric shock, fire, and severe injury. Please keep the instructions and warnings in a
safe place. The term "device" here means electrically operated devices, either mains operated
(with mains cable) or battery-operated (without mains cable).
Workplace
Always keep the work area clean, tidy, and well-lit. Untidy and dark regions are prone to accidents.
The device must not be operated in explosive areas, e.g., in the vicinity of flammable liquids,
gases, or dust. The device can cause sparks that can cause the dust or vapours to explode.
When working with the device, other persons, especially children, must always maintain a safe
distance. If distracted by others, you may lose control of the device.
Electrical safety
The mains voltage must always correspond to the corresponding specifications for the
current-voltage on the device's type plate. The power plug of the device must fit into the socket.
The pin must not be changed in any way. Do not use adapter plugs together with grounded
electrical devices. Unchanged plugs and suitable sockets reduce the risk of electric shock.
Avoid any physical contact with earthed surfaces, such as pipes, heaters, stoves, and
refrigerators. There is an increased risk of electric shock if your body is earthed. Keep the device
away from rain or moisture. Water entering the device increases the risk of electric shock.
Please do not use the cord to carry the device, hang it up, or unplug it from the wall outlet. Always
keep the cable away from heat, oil, sharp edges, or moving parts. Damaged or tangled lines
increase the risk of electric shock.
If you (must) work with the device outdoors, only use extension cables suitable for outdoor use.
Using an extension cord suitable for outdoor use reduces the risk of electric shock.
If the device's operation in a humid environment cannot be avoided, always use an earth leakage
circuit breaker. The use of an earth leakage circuit breaker reduces the risk of electric shock.

Original User Manual ash vacuum cleaner K416_rev05
7
Safety of persons
Be attentive, pay attention to what you are doing, and use caution when working with any
electrical appliance. Do not use the device if you are tired or under the influence of drugs, alcohol,
or medication. A moment of carelessness while using the device can cause serious injury.
Wear personal protective equipment and always wear safety goggles. Wearing personal
protective equipment such as a dust mask, non-slip safety shoes, hard hat, or ear protection,
depending on the type and use of the device will reduce the risk of injury.
Avoid unintentional start-up. Ensure that the device is switched off before connecting it to the
power supply. If you have your finger on the switch when carrying the device or connect the
device to the power supply while it is switched on, this can easily lead to accidents.
Remove all adjustment tools or wrenches before turning on the device. An agency or wrench in a
rotating part of the machine can cause injury. Avoid any abnormal posture. Ensure that you stand
securely and maintain balance at all times. That allows you to control them better
the device in unexpected situations.
Always wear suitable work clothing. Do not wear loose clothing or jewellery. Keep hair, clothing,
and gloves away from moving parts. Loose-fitting or lose clothing, jewellery, or long hair can
easily be caught by moving parts. If dust extraction and collection devices can be mounted, make
sure they are connected and used correctly. The use of such equipment can reduce dust hazards.
Use and maintenance of electrically operated devices
Do not overload the device. Only use tools suitable for your work. With the appropriate device,
you will work better and safer in the specified performance range.
Do not use a device whose switch is defective. A device that can no longer be switched on or off
is dangerous and must be repaired.
Please disconnect the power socket and remove the cordless high hedge trimmer before
adjusting the device, changing accessories, or putting it away. This precaution prevents the
machine from starting up accidentally.
Always keep unused devices out of the reach of children. Do not allow people who are not familiar
with this device or have not read it to use it. Electrically operated devices are dangerous if
inexperienced persons use them.

Original User Manual ash vacuum cleaner K416_rev05
8
Maintain the device regularly and take good care of it. Check that the moving parts work properly
and do not jam, that parts are not broken or damaged so that the device's function is impaired.
Have all damaged components repaired before using the tool? Poorly maintained machines
cause many accidents.
Keep cutting tools (inserts) sharp and clean. Carefully maintained cutting tools with sharp cutting
edges are less likely to jam and are easier to handle.
Use the device, accessories, inserts, etc., according to these instructions. Take into account the
working conditions and the task to be performed. The use of electrically operated devices for
applications other than those intended can lead to dangerous situations.
Maintenance / Repair
Has your device repaired only by a qualified specialist company using original spare parts
or by our customer service? That ensures that the safety of the device is maintained.
7. Additional Safety Instructions
 Do not suck in sharp-edged, hot, or flammable parts.
 This device must not be exposed to heat. It may only be used with
cooled ashes. (≤ 60°C)
 Do not suck in moisture or liquids. The device must not be exposed to
water.
 Disconnect the device from the power supply after each use and before all maintenance
and cleaning work. To do this, remove the socket plug, do not
pull the cable.
 Do not insert any objects into the openings. The device must not be operated with
blocked entrances,
these must always be kept free of dust, dirt, fluff,
hair, etc.
 Do not use the vacuum cleaner without a dust bag or dust filter inserted.
 Do not suck in powder, cement dust, etc., as this can overload the device.
 Only use a dry or damp cloth to clean the device; under no circumstances should it be

Original User Manual ash vacuum cleaner K416_rev05
9
 exposed to water. Do not use solvents for cleaning.
 This device may only be used for private purposes, professional
use is not allowed.
 The nozzle or brush must not come into contact with furniture.
 Never carry the device by the power cord. The power cable must not be laid over sharp
edges.

Original User Manual ash vacuum cleaner K416_rev05
8. Assembly
1. Insert the dual filter bag into the container
2. Slide the HEPA filter (10) from below onto the cover
(1)
3. Place the cover (3) of the suction cup on the
container (1) and close it with the clamping devices
(9)
4. Insert the ash suction hose (2) into the suction
opening and twist
5. Optional: Attach the aluminium nozzle (8) to the ash
suction hose (2)
6. Optional: For vacuuming with the additionally
available plastic tubes (11), attach them to the ash
suction hose (2)
7. Optional: For vacuuming with the additionally
available brush (12), place it on the plastic tubes
(11)
8. To blow, insert the end of the ash suction hose (2)
into the suction opening (6)

Original User Manual ash vacuum cleaner K416_rev05
11
ATTENTION: Before using the ash vacuum, check all connections and the dust filter
for a firm and secure connection. The container and the dust filter must be dry.
9. Operation of the device
 The filter bag must be inserted before starting the device.
 Unroll the power cord.
 Connect the device to the power supply and switch it on.
 After use, disconnect the device from the power supply.
 If the filter indicator is red, the filter element must be
cleaned or replaced.
ATTENTION! Only use the device when the ashes have cooled down! The temperature
must not be higher than 60°C.
10. Cleaning and maintenance
Open the cover (3)
Remove the HEPA filter (10)
Empty the collection container (1)
Clean the HEPA filter from ashes by shaking
Reassemble the ash aspirator as described in chapter
assembly
ATTENTION: Do not clean the plastic parts of the device with a (chemical) cleaning

Original User Manual ash vacuum cleaner K416_rev05
12
agent. We recommend using a cloth moistened with a mild soap solution. Caution: The device
must not come into direct contact with water!
11. Troubleshooting
Problem Cause Solution
The motor does not start - Check if the power plug is
inserted correctly
- The socket does not carry
electricity; please check
the fuse
- The device is not switched
on
- Insert the power plug until
the stop
- Check socket
- Switch on the device at
the on/off switch
Not enough suction power - Device is clogged
- Dust filter must be
emptied
- Dust container not
adequately attached
- Filter clogged
- Remove blockage
- Cleaning the dust filter
- Attach dust container
correctly
- Cleaning the filter
12. Technical data
Model K416 - 1200
Voltage 220-240V / 50Hz
Power intake 1.200 Watts
Tank volume 20 Liters
Size of the container Ø 295mm, Height 310mm
Ash suction hose Ø 37,5mm, Length 1.000mm

Original User Manual ash vacuum cleaner K416_rev05
13. Customer Service
Have your purchased device repaired only by qualified personnel and only with original spare
parts. That ensures that the safety of the device is maintained.
If necessary, please contact the FUXTEC customer service at in[email protected]
14. Warranty
The warranty period is 24 months from the date of purchase. Keep your proof of purchase in a
safe place. Excluded from the warranty are wearing parts and damage caused by improper use,
use of force, technical modifications, wrong accessories or non-original spare parts, and repair
attempts by non-qualified personnel. Authorized dealers may only carry out warranty repairs.
15. Disposal information
Please contact your local community for the disposal of the device. Please dispose of all
functional materials such as gasoline and oil in advance. Please ensure that the cutting chain is
protected accordingly when disposing of it.

Original User Manual ash vacuum cleaner K416_rev05
16. EC Declaration of Conformity
-------------------------------------------------------------------------------------------
Herewith we, FUXTEC GMBH
KAPPSTRAßE 69, 71083 HERRENBERG, GERMANY
Declare that the machine described below, due to its design and construction and in the version
marketed by us, complies with the relevant essential health and safety requirements of the EC
directives.
Designation of the machine: Ash vacuum cleaner
Machine type:
K-416
Trademark:
FUXTEC
Relevant EC straightening thread:
Applied standards:
2014/35/EU
EN 62233:2008
EN 60335-2:2010+A11:2012+A1:2013
EN 60335-1:2012+AC:2014+A13:2017+A1:2019+A2:2019
Storage of the technical documentation:
FUXTEC GmbH ● Kappstrasse 69 ● 71083 Herrenberg ● Germany
T. Zelic, Management

Original User Manual ash vacuum cleaner K416_rev05
15
