Gaggia SUP 049EU User manual

All parts of this document are the property of Philips.
All rights reserved. is document and all the information herein is provided without liability deriving from any errors or omissions. Furthermore, no part may be reproduced, used or
collected, except where express authorisation has been provided in writing or through a contractual agreement.
Published by Philips Subject to modication EN 4219 400 00051
Service
Coee Machine
Gaggia Cadorna
2019-May-06
ServiceManual
Rev. 00 JULY 2019
TYPE SUP 12NC DESCRIPTION
RI9600/01 SUP049 886960001010 GAG.CADORNA STY CMF BK 230V WE
RI9601/01 SUP049E 886960101010 GAG CADORNA PLUS CMF BK 230V
RI9603/01 SUP049EP 886960301010 GAG CADORNA MILK BK 230V
RI9604/01 SUP049EU 886960401010 GAG.CADORNA PRES OTC AN 230 WE
SUP 049EU SUP 049EP SUP 049E SUP 049

GAGGIA CADORNA
Technical specication
Power supply and output: 230V ~ 50Hz 1900W
Power consumption: During heating phase- approx. 5.6 A
Boiler: Stainless steel 230V ~ 1900W for coee, hot water and steam dispensing
Safety system: 2 thermostats at 190°C one shot
Temperature monitoring: (NTC) variable resistor sensor - transmits the value to the electronic card
Automatic dosage: Dose adjustment controlled by the electronic system
Gear motor: 2 rotation directions; power supply 24VC
Coee grinder Direct current motor with at ceramic grinder blades
Pump: Ulka Type EP5/FMGW 230V, 50 Hz
approx. 13-15 bar with reciprocating piston and thermal switch 100°C 48 W.
Overpressure valve: Opening at approx. 16-18 bar
Water circuit lling time: Approx. 15 sec Max. on rst lling cycle
Heating time: Approx. 45 sec.
Grinding time: Approx. 8-10 sec.
Auto shut o time: Can be set by the consumer
Adjustable spout height: 115-160 mm (SUP049E-SUP049EP-SUP049EU) 75-120 mm (SUP049)
Housing material ermoplastic material
Size (w x h x d) 260 x 385 x 400 mm (SUP049E-SUP049EP-SUP049EU) 260 x 345 x 400 (SUP049)
Weight 11,5 kg (SUP049E-SUP049EP) 12,0 Kg (SUP049EU) 10,5 Kg (SUP049)
Power Cord length 1200 mm
Cup size Up to 160 mm (SUP049E-SUP049EP-SUP049EU) up to 120 mm (SUP049)
Water tank 1,5 litres - Removable type
Water leter Brita Filter 12NC-996530010484(RI9113/60 for EUR-ASIA) / 12NC-996530010528(RI9113/67 for US-CAN)
Coee bean hopper capacity 300 g
Coee grounds drawer capacity 10 pucks
Milk carafe capacity 0,6 l (SUP049EU) 0,5 l (SUP049EP)
Energy saving mode consumption < 1 Wh
Pump pressure 15 bar
Boiler Stainless steel type
Safety devices ermal fuse
Nominal voltage - Power rating –
Power supply Data stored on the below label placed inside the service door

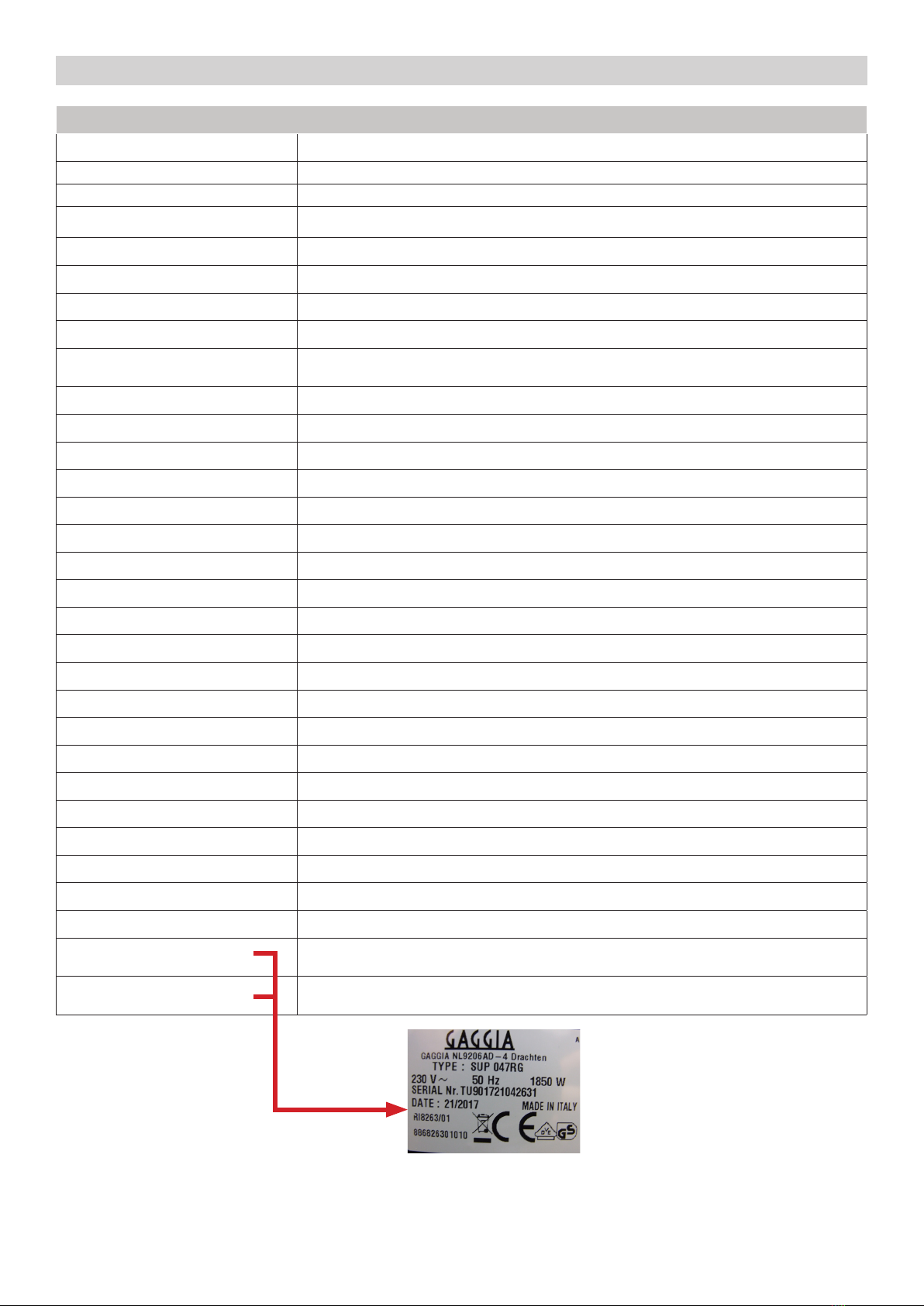

Serial Number TU901721042631 TU90= product + production location - 1721 = year & Production week - 042631 = unique following
number

GAGGIA CADORNA
6. Machine Repair Flow
6.1. Repair Flow 1
7. Disassembly
7.1. Outer Shell 1
7.2. Dispay 2
7.3. Coee dispenser 3
7.4. Steam tube (SUP049 - SUP049E - SUP049EP) 3
7.5. Carafe connection (SUP049EU) 3
7.6. Boiler 4
7.7. Coee grinder 4
7.8. Coee grinder support plate 4
7.9. Pump 4
7.10. Flowmeter 5
7.11. Casing bottom insert 5
7.12. Valve and ow selector faucet 5
7.13. Gear motor 6
7.14 Grinder blades 7
7.15. CPU board 8
7.16. Programming access 8
7.17. Fitting and removing Oetiker clamps 8
7.18. Casing bottom 9
7.19. Tightening torques 9
Table of contents Page
1. Introduction
1.1. Specic tools and equipment 1
1.2. Maintenance Products 1
1.3. Safety warnings 1
1.4. Water circuit diagram 2
1.5 Electrical diagram 3
1.6. Service POLICY grid as used for coee machine 4
1.7. External machine parts 4
1.8. Error codes 5
1.9. Brew Unit mainteinance: Where to grease. 5
1.10. Position of the Brew Unit 6
1.11. Internal machine parts 6
2. Technical specications
2.1. Specication for the measurement of the coee products
temperature.
1
2.2 Specication for the measurement of the Milk products
temperature.
2
2.3. Machine parameters and performance 4
3. Operating logic

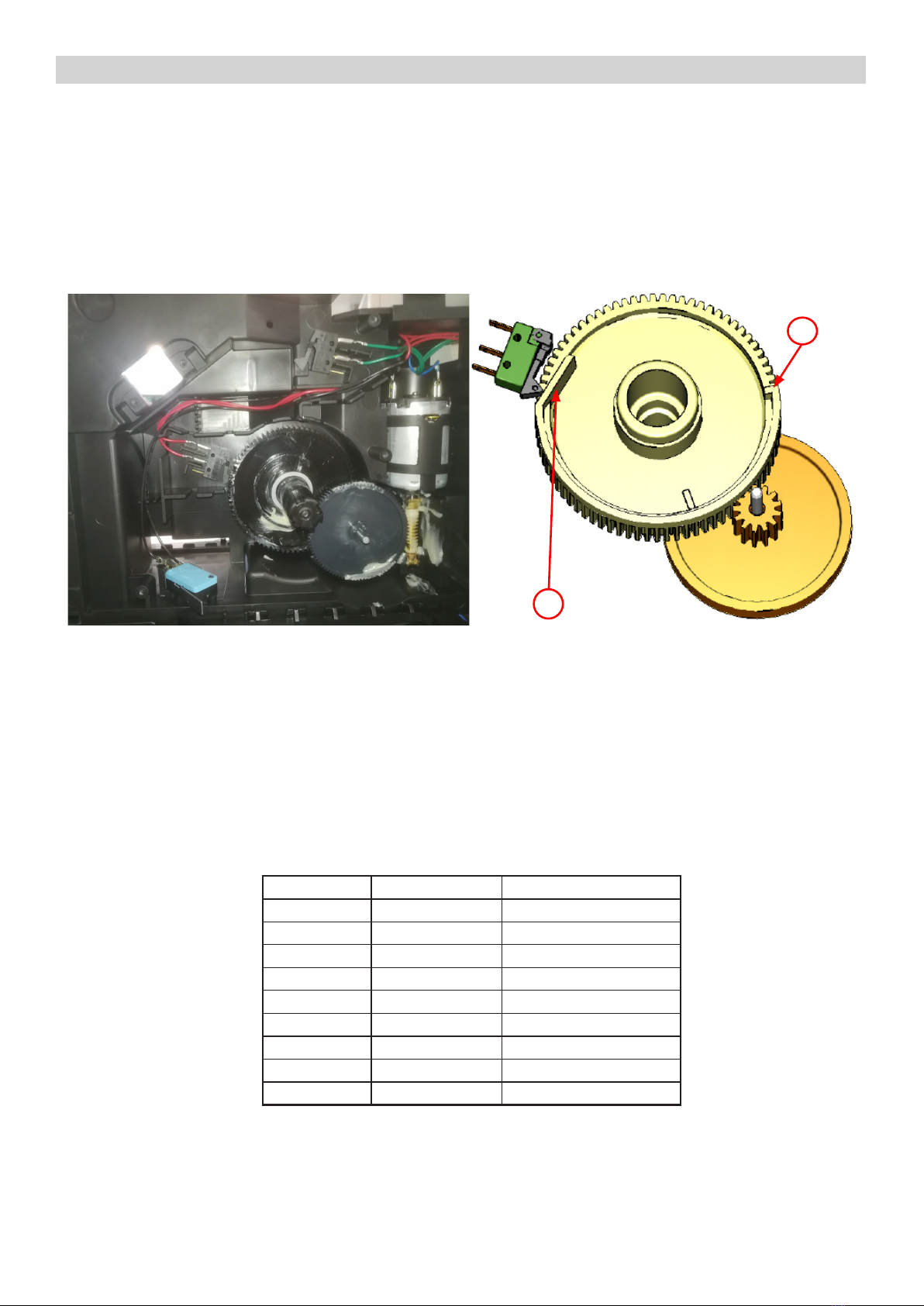

3.1. Single microswitch gear motor 1
3.2. Temperature sensor (adjustment) 1
3.3. Coee grinder 2
3.4. Detection of coee bean absence, dose adjustment,
blocked coee grinder
2
3.5. Coee lack detection and coee grinder blocked 3
3.6. Coee cycle 4
3.7. Milk Carafe 5
3.8. Water level detection (water tank) 5
3.9. Descaling request 6
3.10. Water lter 6
3.11. Descaling cycle frequency 6
4. Test mode and steam
out
4.1. Test Mode and Steam Out 1
Table of contents Page
5. Espresso Philips Service Center
5.1. Espresso Philips Service Center 1

GAGGIA CADORNA
CHAPTER 1
INTRODUCTION

GAGGIA CADORNA 01 INTRODUCTION
1/6
1.1. Specic tools and equipment
As well as the standard equipment, the following is required:
12NC Description Notes
-Flathead screwdriver # 0, # 2
-Torx screwdriver (T10,T20)
-Cutter
-Cable tie tightening tool
-Pliers for Oetiker clamps
- Digital ermometer Type K (accuracy for temperature of 0,05 % or ± 0,3°C)
- Temperature probe 80PK-22 (80AK-A ermocouple adapter required)
- Scale KERN EMB 500-1 or comparable device with a base
accuracy of 0,05 % or ± 0,5 g
- Power meter Voltcra EnergyCheck 3000 or comparable device with
a base accuracy of 1 % or ± 5W
-Stopwatch Basic model
996530009845 Serkit Tool needed for programming with our service tool
1.2. Maintenance Products
12NC Code Material Description
-ermal paste Heat resistance > 200°C
996530067222 Descaler “ACC SAE DECALCIFIER 5 L 1 UNIT”
132253695601 Jar of Grease “PARALIQ GB 363”
996530045784 Silicone grease “ACC TUBE FIN FOOD GREASE 2 400 ML”
1.3. Safety warnings
Please, read the Service manual of the machine before starting any maintenance.
Operation, maintenance and/or repair of this device has to be carried out only by qualied persons, trained
for work at or with electric devices.
During the machine disassembly the operator has to pay attention to hot and under pressure parts.
All parts involved can be nd in the hydraulic circuit below schema.
e machine hydraulic circuit can reach maximum pressure of 16/18 bar.
When the machine arrives at the Service Center in descaling mode interrupted, or making Descaling , take
EXTREME CARE to avoid any unintentional contacts with the descaler.
Aer the product has been repaired, it should function properly and has to meet the safety requirements and
legal regulations as ocially laid down at this moment.
e technicians to operate under safety conditions, needs to:
1. Use personal safety devices;
2. Disconnect the appliance from the power mains before repairing;
3. Before and aer repair, it is recommended to perform dielectric strength tests (is domestic
appliance is rated as insulation class 1).

GAGGIA CADORNA 01 INTRODUCTION
2/6
Flowmeter
Silicon tube 5x10 L=130mm
Silicon tube 5x10 L=130mm
Silicon tube 5x10 L=290mm
Silicon tube 5x8,9 L=190mm
Silicon tube 5x8,9 L=290mm
Silicon tube 5x8,9 L=120mm
Silicon tube 5x8,9 L=200mm
Teon tube assy
Water tank
Pump
Boiler
Flow selector faucet
Solenoid valve
Steam tube SUP049 SUP049E SUP049EP
SUP049EU Carafe
Pin for ow selector faucet Brew unit
Safety valve Water discharge
From this point circuit
High temperaure
From this point circuit
in pressure
1.4. Water circuit diagram
Water
Hot water /steam

GAGGIA CADORNA 01 INTRODUCTION
3/6
1.5. Electrical diagram

GAGGIA CADORNA 01 INTRODUCTION
4/6
1.6. Service POLICY grid as used for coee machine
During the repair is always recommended to use, if possible, single parts rather than the correspondent
assembly.
1.7. External machine parts
1 Bean coee container lid
2 Bean coee containe
3 Cup socket
4 Removable water tank
5Ground coee hopper lid
6 Bean coee grinder insert
7Display
8Coee spout
9 Dump box
10 Drip tray
11 Grate for drip tray
12 Float for drip tray
13 Rest cups (SUP049E-SUP049EP-SUP049EU)
14 Steam tube (SUP049-SUP049E-SUP049EP)
15 Rubber (SUP049-SUP049E-SUP049EP)
16 Power cable
17 Grease
18 Coee measure smart
19 Sticker for water hardness
1/2 Multifunction buttons
3 On/o button
4 My favourites button
5Home button
6 Clean/setting button
7 Start/stop button
20 Service door
21 Brew unit drawer coee
22 Brew unit
23 Pannarello (SUP049-SUP049E)
24 Steam tube insert (SUP049EP)
25 Cappuccinatore (SUP049EP)
26 Capincup (SUP049EP)
27 Carafe (SUP049EP)
28 Water spout (SUP049EU)
29 Carafe (SUP049EU)
Display
4
1
16
23
17 1918
3
9
10
11
5
8
7
13
2
6
22 2021
12
14
15
START/STOP
ON/OFF
my favourites
HOME
clean/setting
3 4 5 6 7
21
ESPRESSO
CAPPUCCINO LATTE MACCHIATO
COFFEE
4
1
16
23
17 1918
3
9
10
11
5
8
7
13
2
6
22 2021
12
14
15
28
24
25
26
27
29
4
1
16
23
17 1918
3
9
10
11
5
8
7
13
2
6
22 2021
12
14
15

GAGGIA CADORNA 01 INTRODUCTION
5/6
1.8. Error codes
ERROR
CODES DESCRIPTION
01 The coffee grinder is blocked
02 The grinder is disconnected (Only coffee grinder without electronic sensor)
03 The brewing unit is blocked in work position
04 The brewing unit is blocked in home position
05 The hydraulic circuit is clogged
10 The temperature sensor is in short circuit
11 The temperature sensor is opened
14 The temperature was up to 170°
19 The net is not stable
20 Boiler coffee overheating
Piston slide guides
Piston
Piston spring
Piston bush
Connecting rod
Coee container

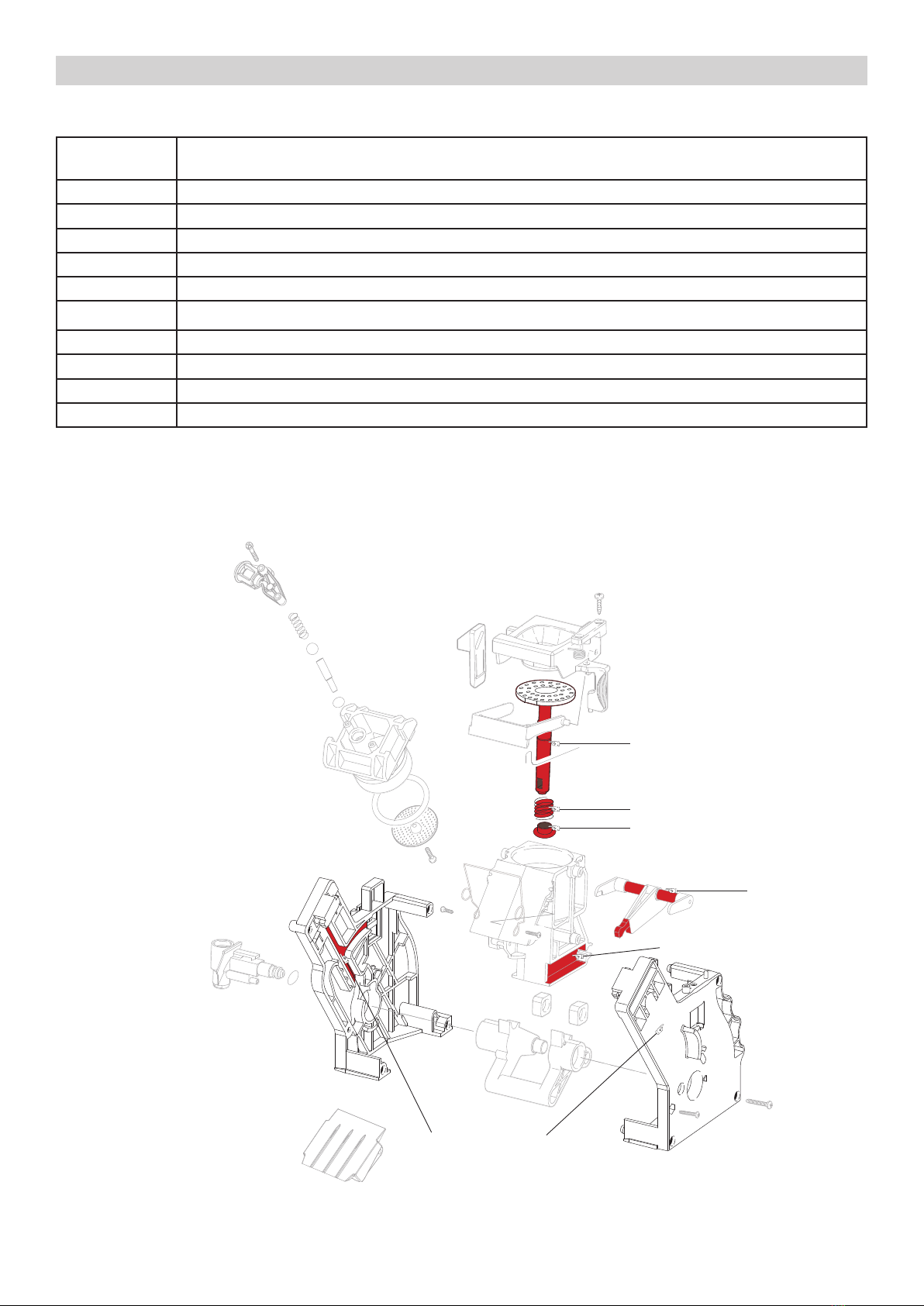

1.9. Brew Unit mainteinance: Where to grease.

GAGGIA CADORNA 01 INTRODUCTION
6/6
1.11. Internal machine parts
Boiler pin
Flowmeter
Flow selector
faucet
Pump
PW/CPU P.C.B.
Solenoid valve
Valve
Coee grinder motor
Boiler
Coee grinderCoee grinder insert
Home Position Work Position
1.10. Position of the Brew Unit
Brew Unit

GAGGIA CADORNA
CHAPTER 2
TECHNICAL
SPECIFICATIONS

GAGGIA CADORNA 02 TECHNICAL SPECIFICATIONS
1/4
2.1. Specication for the measurement of the coee products temperature.
e below procedure is also contained in the Symptom Cure 97832.
e temperature is inuenced by the ow from the dispenser and stratication of temperatures in
the glass. In order to consider these phenomena and to introduce measures that allow comparisons
in controlled conditions, below guidelines must be followed:
Conditions:
a) Water temperature in tank: 23°C (+/-2°C).
b) It must be used a plastic cup (see picture N°1).
c) It must be used a thermocouple thermometer (e.g. type K - see picture N°2).
d) e coee machine is tested without any change of parameters or calibrations, which may aect the
temperature of products, so the measurement of temperature must be done with machine in default factory
setting.
Procedure:
1. e temperature must be measured in the cup, immediately aer dispensing. Cup has to be placed on a non-
metal surface using a thermocouple thermometer (Picture 1).
2. e temperature in the cup is measured by immersing the probe of the thermometer up to touch the bot
tom.e probe then must be moved in a circular motion for 5/6 rotations. At the of the rota- tions, stop in the
center of the cup (Picture 2).
3. e highest temperature measured during the rotations is the value we are searching for, and that must be
reported;
4. Test measurement: from end of dispensing to the end of rotations must be completed within 12 seconds.
5. e distance of the probe from the bottom of the glass is a function of the quantity of coee dis- pensed:
10mm for 35gr - 17mm for 60gr - 35mm for 120gr and superior (Picture 3).
Limits of acceptability
e acceptance limits are divided by features and
products and are the following:
Espresso Q.ty 40 ml.
Temperature of 1st product 72°C ≤ 80°C
Temperature of 2nd product 75°C ≤ 85°C
Caee Q.ty 120 ml.
Temperature of 1st product 72°C ≤ 80°C
Temperature of 2nd product 75°C ≤ 85°C
Picture 1 Picture 2
OFF Tare ON
10 mm
for 120gr and
superior
Ø max 2mm
17 mmfor 60gr
35 mm
for 35gr
Picture 3
DISPLAY

GAGGIA CADORNA 02 TECHNICAL SPECIFICATIONS
2/4
2.2. Specication for the measurement of the Milk products temperature.
Milk evaluation
To carry out the test, a partially skimmed UHT milk with a percentage of grease between 1.5-1.8% at a refrige-
rator temperature Trefr. (between 4 to 10°C) must be used.
e milk product must be checked on a beaker of 250 ml of capability and with an inner diameter of 70mm,
brewing 100gr of product.
Parameters to be respected:
e parameters to be respected are: milk temperature and height of the cream. Each of these parameters, ho-
wever, must be evaluated depending on the type of system used for the production of hot milk. Actually
three types of devices are present on the appliances:
• Manual system (pannarello)
• Semi-Automatic system (cappuccinatore)
• Automatic system (carafe, Pinless wonder system)
Milk temperature in the beaker:
System with Pinless Wonder: With milk at Trefr. (about 4-10 °C): ≥ 45
how does it work:
1. The milk is heated in the rst chamber of the carafe thanks to the steam.
2. Then, it is mixed with air and frothed in the middle chamber.
3. Finally, in the outlet chamber, the ‘typhoon eect’ perfects the milk texture by removing
the large bubbles
Height of the milk cream in the beaker:
Manual system (pannarello) ≥ 15mm on 100gr. of brewed product
Semi-automatic system (cappuccinatore) ≥ 20mm on 100gr. of brewed product
Automatic system: carafe, Pinless wonder system ≥ 20mm on 100gr. of brewed product
How to measure the temperature of the milk.
1. e measurement is carried out in the beaker, immediately aer the end of milk brew, positioned on a non-
metallic surface, using a thermocouple thermometer (eg. Type K). Stop the preparation of mixed product:
at the end of milk brewing, where “One Touch product” function is present.
2. e temperature is measured by immersing the probe of the thermometer, positioning the probe inside
the beaker at about 10mm from the bottom of the container, then the probe moves in a circular motion for
3-5 turns, stopping at the end, at the center of the beaker. It detects the maximum temperature reached in
a time of relief between 3 to 5 seconds. e measurement has to be taken at 10mm from the bottom of the
beaker. Stir the milk before measuring to keep a constant temperature.
Emulsied milk
Emulsion chamber
Steam
Milk

GAGGIA CADORNA 02 TECHNICAL SPECIFICATIONS
3/4
How to measure the milk cream.
e temperature (Trefr or Tamb) of the milk doesn’t aect as much the test result on measuring the milk cream;
by convection is assumed to always use milk at refrigerator temperature Trefr..
Manual systems (Pannarello)
Pour 100cc. of milk at Trefr. in a beaker of 250 ml of capacity and with a inner diameter of 70 mm; with ma-
chine in steam mode:
1. Open the steam knob to discharger water circuit for 4 sec, then close the knob.
2. Place the beaker with the frother dipped in milk, open the steam knob to maximum and
start the chronometer.
3. Aer about 30 to 60 seconds, close the knob and check the result on milk.
Semi-automatic systems (cappuccinatore)
Pours milk at Trefr. in a container ; with the machine in steam mode:
1. Open the steam knob to discharge water circuit for 4 sec. then close the knob.
2. Insert the silicone tube in the milk container, placing a beaker of 250 ml capacity and with an inner
diameter of 70 mm under the cappuccino maker and open the steam knob.
3. Aer having provided 100gr. of product, close the knob and check the result obtained on milk.
Note: e same applies to machines which have a steam key on the user interface and a solenoid valve in
place of the steam tap.
Automatic: Carafe, Pinless Wonder System
Aer setting the machine to brew of 100gr. of product:
1. Launch the “hot milk” function.
2. Collect the product in a beaker with a 250ml of capacity and with an inner diameter of 70 mm, and verify
the result obtained on milk. Carry out the test using milk at a Trefr..
In case the machine allows modify of the emulsion through the menu, use the machine with the default value.
Related to the above testing procedure derives the following table of acceptability:
Manual, Semi-Automatic and Automatic’s Milk System
Grams of Product Minimun Height of the milk cream
≥ 130 ≥ 30mm
120 ≥ 25mm
110 ≥ 22mm
100 ≥ 20mm
90 ≥ 16mm
80 ≥ 13mm
70 ≥ 11mm

GAGGIA CADORNA 02 TECHNICAL SPECIFICATIONS
4/4
2.3. Machine parameters and performance
PRODUCT SUP049-SUP049E SUP049EP SUP049EU Default quantity
coee (ml)
Default quantity
milk (ml)
Default quantity
water (ml)
Ristretto X X X 30 +/- 10%
Espresso X X X 40 +/- 10%
Espresso lungo X X X 80 +/- 10%
Caè X X X 120 +/- 15%
Americano X X X 40 +/- 10% 110 +/- 15%
Cortado X 40 +/- 10% 30 +/- 10%
Cafè au lait X X 90 +/- 10% 90 +/- 10%
Flat white X 80 +/- 10% 80 +/- 10%
Cappuccino X X 40 +/- 10% 120 +/- 15%
Cappuccino XL X 70 +/- 10% 180 +/- 20%
Latte macchiato X X 40 +/- 10% 240 +/- 20%
Latte macchiato XL X 50 +/- 10% 300 +/- 20%
Froth milk X X 180 +/- 20%
Hot water X X X 150 +/- 20%
WATER TANK Description
Water reserve (pulses) with water lter 200
Water reserve (pulses) with no water lter 200
Water reserve modiable by Production/Service departments No
"Fill tank" alarm Ye s
Connect to water mains No
DREG DRAWER Description and values
Time-out for dreg drawer 5 sec.
Reset dreg counter Dreg emptying alarm, if the dreg drawer
is removed for more than 5 seconds.
STANDBY Description and values
Time (default) 30 minutes
Time programmed by Consumer/Service Ye s
Boiler temperature during Standby Boiler OFF

GAGGIA CADORNA
CHAPTER 3
OPERATING LOGIC

GAGGIA CADORNA 03 OPERATING LOGIC
1/6
Switching on
When the machine is switched on, the gear motor repositions itself as follows:
- It acts on microswitch 1
- e gear motor changes its rotation direction and moves upwards again by approx. 1-2 mm.
- e boiler starts heating to heat the water for approx. 45 sec, in order to reach the optimal temperature.
A thermistor, NTC type (Negative temperature coecient), is used as a temperature sensor; in the event of
overheating this reduces boiler element power consumption. e electronic system detects the current boiler
temperature from the drop in voltage of the sensor and adjusts it accordingly. Heating element values and
corresponding temperatures: see table Temperature sensor (adjustment)
3.2. Temperature sensor (adjustment)
Temp. (°C) R nom (kΩ) ΔR (+/- %)
20 61.465 8.6
50 17.599 5.9
75 7.214 4.1
80 6.121 3.7
85 5.213 3.4
90 4.459 3.1
100 3.3 2.5
125 1.653 3.9
150 0.893 5.1
3.1. Single microswitch gear motor
e gear motor is powered by a direct current motor that engages with the smaller double toothed wheel us-
ing a worm screw. e unit is mounted on the axle of the large gear wheel and when a coee is requested, it
moves from the standby position to the dispensing position, and then back to the standby position again.
e microswitch indicates to the gear motor when the brew group is in the work position or home position.
- Standby position: 1
- Dispensing position: 2
2
1

GAGGIA CADORNA 03 OPERATING LOGIC
2/6

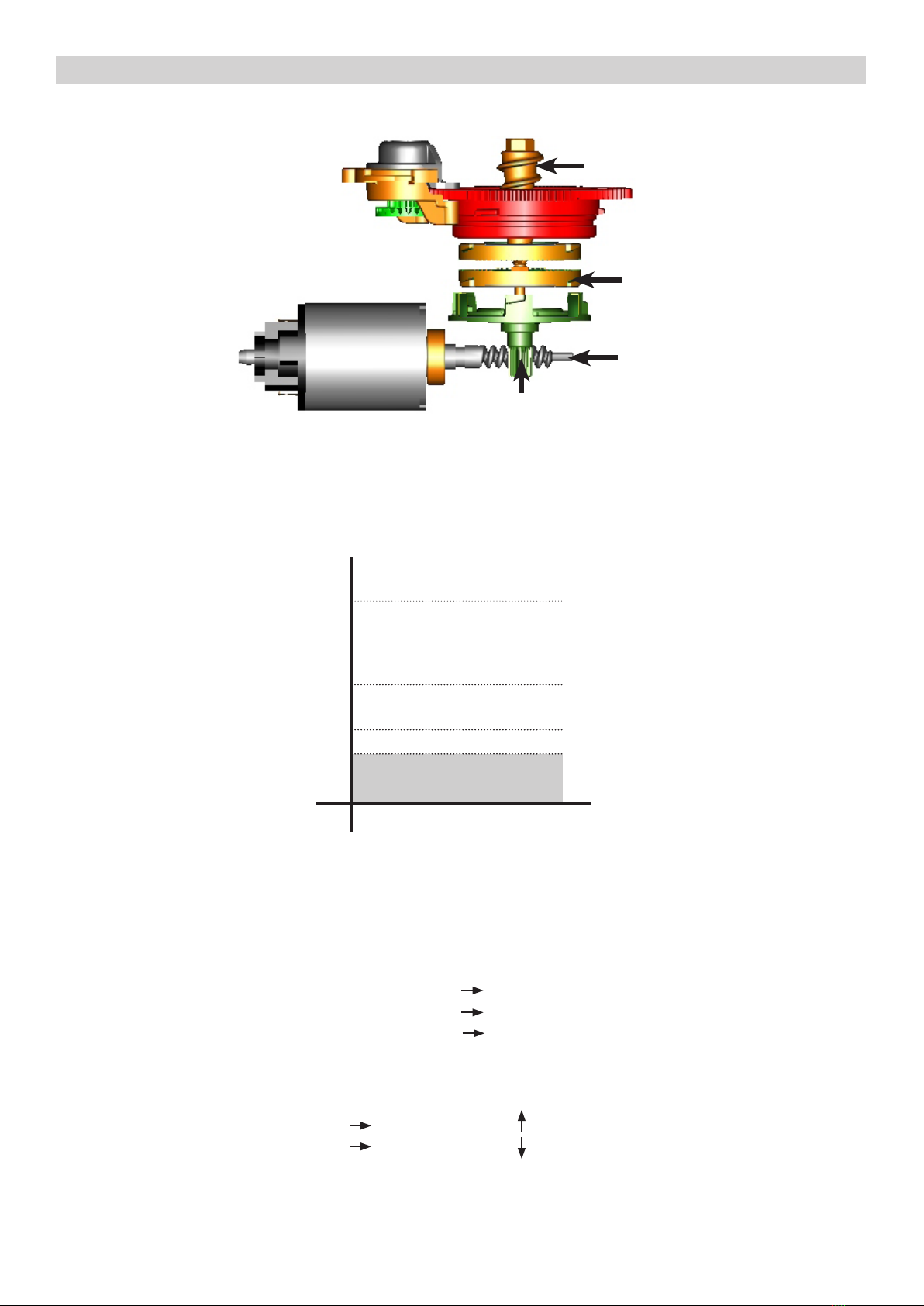

3.3. Coee grinder
2
3
4
5
1
e coee grinder is driven by a direct current motor (1) using a worm screw helicoidal wheel transmission
(2).
e worm screw (2) drives a plastic gear wheel (3), which turns the lower grinder (4) and the increment pin
(5)
3.4. Autodose system description
mA
I0
I0 + 100
I0 + 55
I0 + 200
Aroma 4/5
Aroma 2/3
Aroma 1
Auto-Zero
100≤ I0 ≤300
I0 = current when the BU is moving without load, i.e. without coee. It occurs, for example, during the rins-
ing phase of coee spout.
Current targets:
Aroma 1 55mA
Aroma 2/3 100mA
Aroma 4/5 200mA
100 mA ≤ I0 ≤300 mA
If the BU current is ≤the current target the grinding time
If the BU current is ≥the current target the grinding time

GAGGIA CADORNA 03 OPERATING LOGIC
3/6
When the coee grinder is working, the soware monitors the current consumption. If the current value is
very low, the machine concludes that coee is missing; if the current value is very high, the machine concludes
that the coee grinder is blocked; instead, if the current value is in the middle, the machine concludes that all
is ok and it goes on to do the product.
Because the current consumption of grinder changes depending on the situations (motor new or old, cold or
hot, etc., coee blends), these current thresholds are not static, but dynamic.
1) When the system get the stability (i.e. the system got the current target) the coee doses should be:
A1 A2/3 A4/5
7,5 9,0 10 ±1,5 grams
with medium grinding (500±60μm) and using coee of test.
2) the 3 grinding times are always:
T1<T2<T3
beside, every grinding time is, respectively:
4,0s ≤T3 ≤10s (10000ms)
3,5s ≤T2 ≤9s (9000ms)
3,0s ≤T1 ≤8,1s (8100ms)
3.5. Coee lack detection and coee grinder blocked
DOSE ADJUSTMENT
5 levels Grinder
Time
Min
Grinder
Time
Max
Grinder
Time
Curret target
Aroma
of the
grinded
product
Aroma1 Very Light T13s 8,1s I0 + 55mA
Aroma2 Light T2 3,5s 9s I0 + 100mA
Aroma3 Med
Aroma4 Strong T34s 10s I0 + 200mA
Aroma5 Very Strong

GAGGIA CADORNA 03 OPERATING LOGIC
4/6

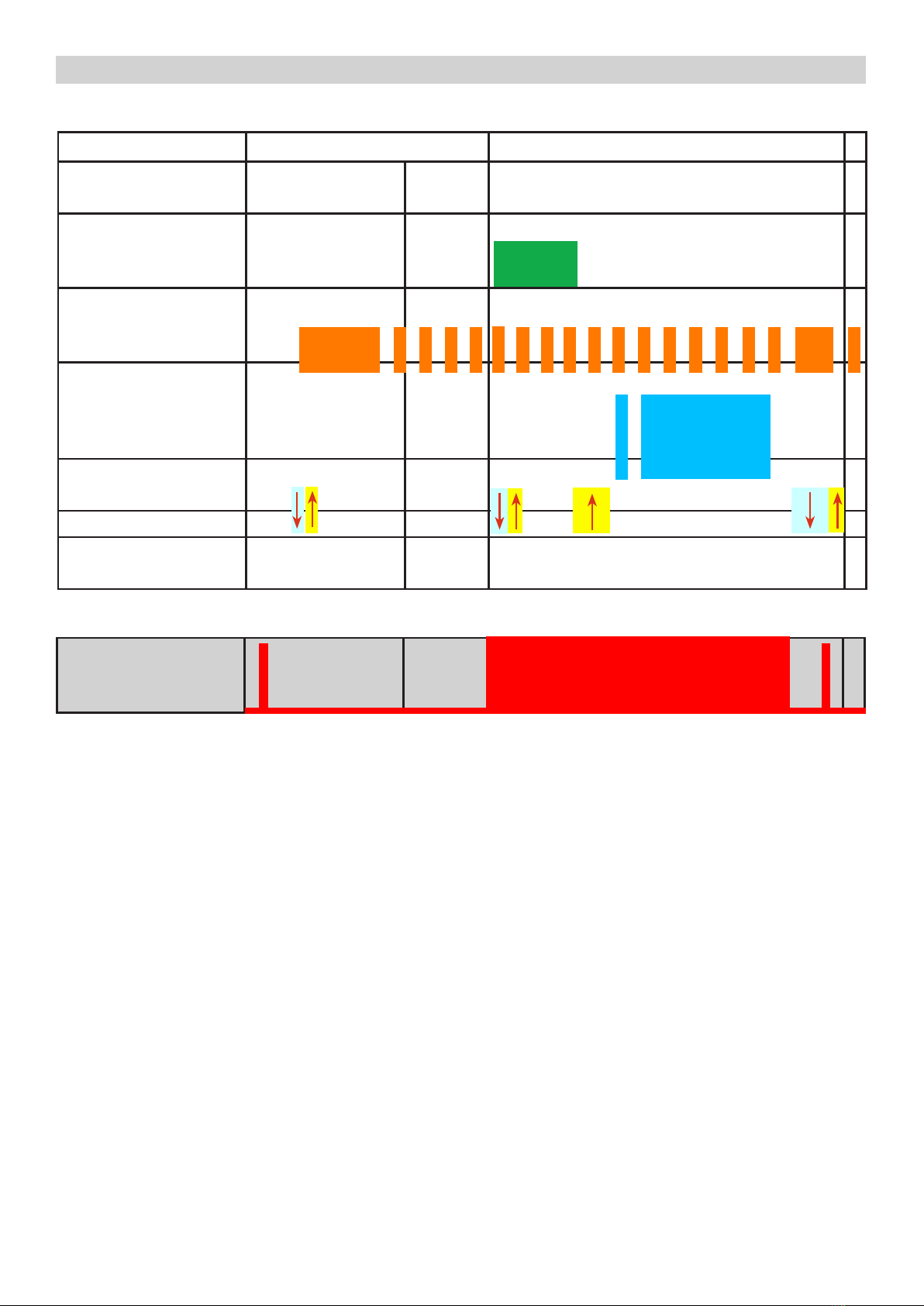

3.6. Coee cycle
Main switch ON START STOP
Time
Coee grinder
Heating
Pump
Brewing unit gear
motor
Status Heating Ready Coee cycle
Time
(Dosage)
Pump operation (ow
meter pulses) in
accordance with the
amount of product
selected.
approx.
45 sec.
*
Notes: * Only with Pre-brewing
Status
Microswitch
(gear motor)
OFF ON
Coee cycle
see below the steps related both coee and milk cycle:
1. e coee grinder starts the grinding process (controlled by Time);
2. e brewing unit moves to the brewing position;
3. e preliminary dispensing phase starts (short pump activity, short pause);
3.1. e solenoid valve opens (For milk products);
3.2. e dispensing milk phase starts (For milk products);
3.3. e solenoid valve closes (For milk products);
4. the machine starts dispensing coee (the pump operation period is dened by the amount of product
dispensed);
5. e gear motor moves to its home position (the dregs are expelled automatically);
