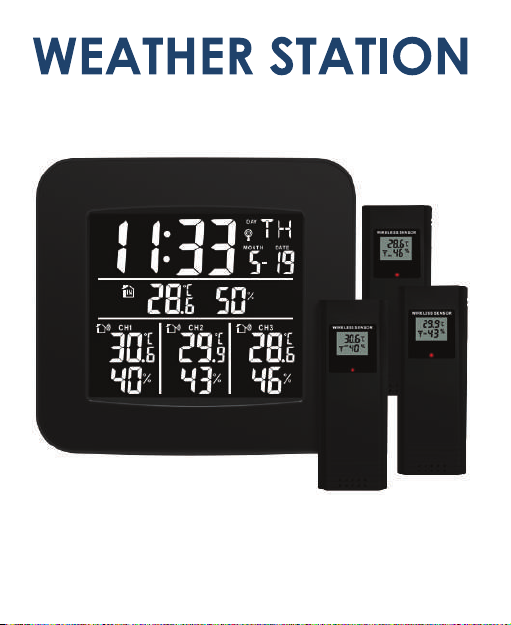

• Time display in English
• Time display as hour and minute
• Calendar in month and year from 2000 to 2099
• Hour in 12H/24H
• Temperature in °C/°F
• Three sensors displaying at the same time
• Indoor and Outdoor Temperature and Humidity
• Low battery display for monitor and sensors
• Max. and Min. indoor temperature and humidity
• Max. and Min. outdoor temperature and humidity
• Alarm and Snooze function
• LED black light

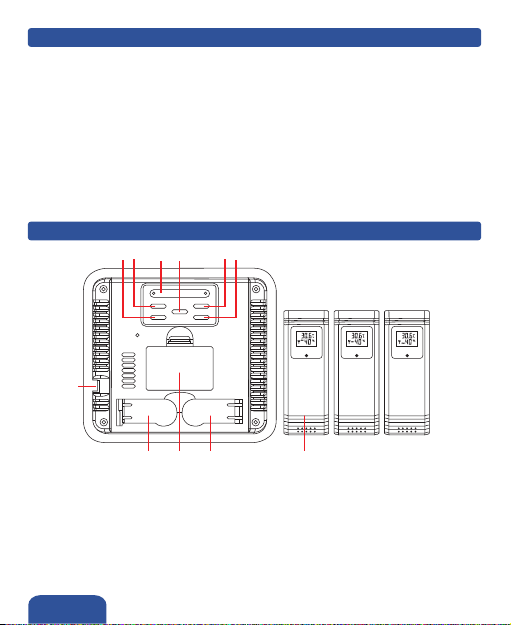

1. Power supply socket
It can be powered by the provided USB line or 3 pieces AAA batteries
2. Alarm button
For displaying / setting / deactivating / activating the alarm functions
3. CH button
For selecting the channel and re-registering the channels under normal mode
111098
1
2 3 4 5 6 7
SNZ/LIGHT
UPCH
DOWNALARM
SET
WIRELESS SENSOR
1
WIRELESS SENSOR
2
WIRELESS SENSOR
FEATURES
MAIN PARTS
ENGLISH
- 1 -

1 3
4
5 6 7
LCD FULL DISPLAY
4. SNZ/LIGHT button
For snoozing the alarm function while the alarm is ringing
For turning-on the back light when powered by batteries only
5. SET button
For setting date and time
6. UP button
For adjusting the date and time in the setting mode and alarm mode
For checking the maximum and minimum temperature and humidity of the
past 24 hours
Under Max/Min Mode, hold and press this button to clear the
maximum/minimum values.
7. DOWN button
For adjusting the date and time in the setting mode and alarm mode
For switching Celsius or Fahrenheit unit
8. & 10. Fold-out stand
9. Battery compartment
11. 3 Sensors
2
ENGLISH
- 2 -

SENSOR PARTS
PACKAGE INCLUDES

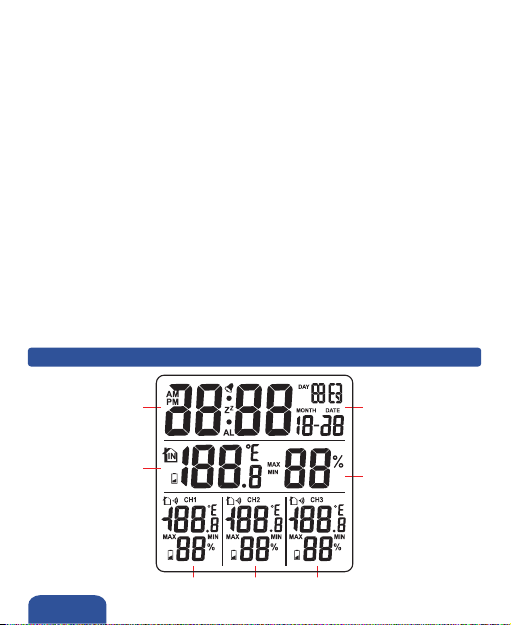

1. Time
2. Indoor temperature
3. Day of the week + date + calendar month
4. Indoor humidity
5. Outdoor temperature / outdoor humidity channel 1 (CH1),
low battery level display for sensor 1
6. Outdoor temperature / outdoor humidity channel 2 (CH2),
low battery level display for sensor 2
7. Outdoor temperature / outdoor humidity channel 3 (CH3),
low battery level display for sensor 3
1. Display Outdoor temperature / Humidity / Low battery / Channel
2. Transmission indicator light
3. Recess for wall mounting
4. CH button - For selecting channel 1, 2 or 3
5. Battery compartment
• 1 x Base station for indoors
• 3 x Sensors for outdoors
• 1 x USB line for main power
• 1 x User manual
CH
WIRELESS SENSOR
1
5
4
3
1
2
ENGLISH
- 3 -

a. Time: AM 00:00
b. Date: Jan 1st, 2015
c. Temperature °C
d. Alarm function off
NOTE:
This weather station will be reset when changing new batteries. A “BI” sound
follows by the restarting of the weather station. The weather station will need
two minutes to reconnect to the sensors.
a. It is suggested to set all the 3 sensors and channels before turning on the
main unit.
b. Insert the batteries with the correct polarity into the battery compartment and
press “CH” button at the back of the sensors to set the channel 1, 2 and 3
accordingly.
c. The channel number should appear at the left-hand-side of the humidity to
indicate which channel is it using.
d. Insert the USB line connector into the connection socket of the main unit or
insert the batteries with the correct polarity into the battery compartment of main
unit to turn it on.
e. After turning on the main unit, it will automatically receive the signals from the
sensors.
f. It may take three minutes to warm up; all the data in the first three minutes
may not be accurate.
g. If the main unit cannot receive the signal after three minutes, you can press
“CH” at the back of main unit to select a channel, and then press and hold “CH”
at the back of main unit to re-register or take out the batteries and repeat the
previous steps from a~ e.
h. The sensors will be reset after changing new batteries. Please be reminded
to go through the previous steps to set up the weather station again after
changing the new batteries
DEFAULT SETTINGS
OPERATIONS
ENGLISH
- 4 -

NOTE:
1. If the symbol is displayed on the sensor or main unit, please replace new
batteries for them.
2. Backlight:
a. When you use the battery, press the “SNZ/LIGHT” button to light up the
display for approximately 5 seconds.
b. When you use the USB line, the backlight will light up all the time.
c. We recommend best using the original USB line for the main power
supply and the battery for the backup power supply.
TIME SETTING
a. Press “Set” to enter the time setting mode
b. Press “Up” or "Down" button to adjust the time
c. Press “Set” again to confirm the setting and go on for the next setting
d. Setting order is year → month → day → hour → minute → 12/24HR → exit.
e. Press SET to confirm setting and go on for next setting.
f. Setting will be auto-saved once without any operation for 20 seconds
ALARM SETTING
• Alarm time setting
a. Press “Alarm” button to check the alarm time
b. Press “Alarm” button again to turn on or off the alarm function
c. Press and Hold “Alarm” button for about 4 seconds to enter the alarm setting
mode
d. Press “Up” and “Down” button to adjust the time
e. Press “Alarm” button again to confirm the setting and go on to the next
setting
f. Setting order is hour → minute → exit.
g. When the alarm is on, press “SNZ/LIGHT” button and it will repeat after five
minutes.
h. To “Snooze” for another five minutes, press “SNZ/LIGHT” again when the
alarm is on again.
i. Press other keys to exit alarm status.
j. Setting will be auto-saved once without any operation for 20 seconds
• Turning on / off alarm
a. Press “Alarm” button to enter the alarm mode
b. If the alarm function is switched on, there will be an alarm icon between the
time
SETTING UP THE MAIN UNIT
ENGLISH
- 5 -

a. Only install the main unit & sensors once the appropriate settings have been
made and a stable wireless connection is established.
b. Please refer to the setting up the main unit part for the main unit settings.
c. The wireless transmission range between the sensor and main unit is up to
30M in open spaces.
d. Before installation, ensure that wireless transmission will not be disrupted by
interference or obstacles like buildings, trees, vehicles, high-voltage lines, etc.
e. Before the final installation, ensure that there is sufficient reception between
the intended installation locations.
f. When installing the sensor, ensure that it is protected from direct sunlight and
rain.
g. The international standard height for measuring air temperature is 1.25 m
(4 ft) above ground.
h. Buy special or suitable installation material from a specialized dealer for
wall-mounting.
i. Ensure that no faulty or damaged parts are installed.
j. Never apply force during installation. This could damage the product.
k. Before installation, ensure that the chosen wall is suitable for the weight to be
mounted, and make sure that there are no electrical wires, water, gas or
other lines at the installation site on the wall.
c. The alarm will ring when the set time comes, starting with
BI sounds for 1st – 10th seconds
BIBI sounds for 11st – 20th seconds
BIBIBI sounds for 21st – 30th seconds
BIBIBI… sounds for 31st seconds – 2 minutes
d. Press “SNZ/LIGHT” button to snooze, the alarm will ring again after 5 minutes
e. Press any other key than the “SNZ/LIGHT” to turn off the alarm
INSTALLATION
ENGLISH
- 6 -

Operating Range
Measure range
Accuracy
Resolution
Temperature Cycle
NOTE:
If the operating area is higher than the range, the temperature will display “HI”
If the operating area is lower than the range, the temperature will display “LO”
NOTE:
If the operating area is higher than the range, the temperature will display “HI”
If the operating area is lower than the range, the temperature will display “LO”
0°C ~ 50°C (32°F ~ 122°F)
0°C ~ 50°C (32°F ~ 122°F)
0°C ~ +50°C: ±1°C (32°F ~ 122°F: ±1.8°F)
1°C or 1°F
One minute
INDOOR TEMPERATURE (MAIN UNIT)
DETAIL SPECIFICATIONS
Operating temp. Range
Measure range
Accuracy
Resolution
Temperature Cycle
-40°C ~ 70°C (-40°F ~ 158°F)
-40°C ~ 70°C (-40°F ~ 158°F)
-40°C ~ -20°C: ± 4°C (-40°F ~-4°F: ±7.2°F);
-20°C ~ 0°C: ± 2°C (-4°F ~ 32°F: ±3.6°F);
0°C ~ +50°C: ±1°C (32°F ~ 122°F: ±1.8°F)
1°C or 1°F
30 seconds
OUTDOOR TEMPERATURE (SENSORS)
Operating humidity range
Accuracy
Resolution
20% RH ~ 95%RH
± 5% RH (@25°C, 30%RH ~ 80%RH)
± 8% RH (@25°C, 20%RH ~ 29%RH;
80%RH ~ 95%RH)
1% RH
INDOOR/OUTDOOR HUMIDITY (MAIN UNIT AND SENSORS)
ENGLISH
- 7 -

a. The product is intended for private, non-commercial use only.
b. Do not operate the product outside the power limits given in the
specifications.
c. Do not use the product in moist environments and avoid splashes.
d. Do not use the product in the immediate vicinity of heaters or other heat
sources or in direct sunlight.
e. Do not use the product in areas where the use of electronic devices is not
permitted.
f. Do not use the product near interference fields, metal frames, computers,
TVs, etc. Electronic devices and window frames can negatively affect the
product’s functionality.
g. Do not drop the product and do not expose it to any major shocks.
h. Do not open the device or continue to operate it if it becomes damaged.
i. Do not attempt to service or repair the product yourself. Leave any and all
service work to qualified experts.
j. Keep the packaging material out of the reach of children due to the risk of
suffocation.
k. Do not modify the product in any way. Doing so voids the warranty.
a. Immediately remove and dispose of dead batteries from the product.
b. Only use batteries (or rechargeable batteries) that match the specified type.
c. Do not mix old and new batteries or batteries of a different type or make.
d. When inserting batteries, note the correct polarity (+ and - markings) and
insert the batteries accordingly. Failure to do so could result in the batteries
leaking or exploding.
e. Do not charge batteries.
f. Keep batteries out of the reach of children.
g. Do not short circuit the batteries/rechargeable batteries and keep them away
from uncoated metal objects.
h. The batteries is only used for backup power supply, please use the
provided USB line for the main power supply.
SAFETY NOTES
WARNING - BATTERIES AND USB LINES
ENGLISH
