Gainsborough LINCOLN User manual

Linc inst v2.1
1

Linc inst v2.1
2
LINCOLN
These products have been designed to the highest standard with safety and strength in mind.
Follow the recommendations in this guide to ensure maximum benefits from your Lincoln bath.
GENERAL INFORMATION
READ THESE INSTRUCTIONS COMPLETELY BEFORE INSTALLING THE
PRODUCT. IF YOU HAVE ANY QUESTIONS CALL YOUR LOCAL SUPPLIER.
YOU MUST FOLLOW ALL INSTRUCTIONS IN THIS MANUAL.
FAILURE TO DO SO WILL RESULT IN YOU ASSUMING LIABILITY FOR THE
PRODUCT.
FAILURE TO COMPLY WITH ALL INSTRUCTIONS MAY RESULT IN SERIOUS
INJURY.
INTENDED USE
To provide assistance when bathing by means of a fixed bathing platform, with a backrest & adjustable
footrest. Allowing the user to be bath by mechanical means through the provision of a moving bath,
within the confines of the bath footprint.
The bath also incorporates access for a mechanical hoist should this facility be required.
The application is to provide a method of assisting with the action of entering and exiting of a bathtub
for the purposes of bathing when it is difficult or impractical to do so safely through conventional
means.
Excluding the taps, there are two buttons employed on the side of the bath to control the raising and
lowering of the powered bath. These buttons are typically pneumatically controlled. The platform
always’ remain in the static position, it is the bathtub that raise’s & lowers.
Prior to entry, the helper / carer should ensure that the bath is in the fully lowered position. This can be
done by depressing the lowering button located on the top roll of the bath. The taps should then be
opened to allow water to fill the tub at the required temperature. Once the tub is approximately half full,
the helper / carer can close the tap.
With the user on the bathing platform the bath can be lifted to a comfortable bathing height by the
helper / carer. Exit is a reversal of the above procedure, with the exception that the water should be
drained from the tub using the drain control situated on the top bath flange.

Linc inst v2.1
3
RESPONSIBILITY OF THE INSTALLER
THE INSTALLER MUST INSPECT THE PRODUCT PRIOR TO INSTALLATION TO
ENSURE THE UNIT IS FREE OF DEFECT OR DAMAGE. IN THE EVENT OF A
PROBLEM, THE UNIT MUST NOT BE INSTALLED. IF THE PACKAGING OR
PRODUCT HAS BEEN DAMAGED, PLEASE CALL YOUR LOCAL SUPPLIER
IMMEDIATELY.
THIS PRODUCT IS DESIGNED TO BE INSTALLED BY A LICENSED
TRADESPERSON. LICENSED PLUMBERS AND ELECTRICIANS SHOULD BE
EMPLOYED TO ENSURE PROPER INSTALLATION. INSTALLERS ASSUME ALL
LIABILITY FOR THE CORRECT INSTALLATION PROCEDURES.
ONLY ACCESSORIES AUTHORISED BY THE MANUFACTURER
SHOULD BE USED WITH THIS PRODUCT
SAFETY WARNING
In the event of mains failure during operation of the bath, back-up batteries are used
to enable the bather to exit the bath. Immediately after installation, or following
extended periods, without power it is vital that the bath be connected to a mains
supply for at least 24 hours before initial use, to ensure the batteries are fully charged.
Failure to observe this requirement could result in the user not being able to exit the
bath in the event of a mains failure.
SAFETY INSTRUCTIONS

Linc inst v2.1
4
WARNING THE BATHER REQUIRES THE ASSISTANCE OF A HELPER / CARER
& SHOULD NOT ATTEMPT TO USE THIS UNIT UNAIDED
WARNING! WHEN USING THIS PRODUCT, BASIC PRECAUTIONS SHOULD
ALWAYS BE FOLLOWED. READ AND FOLLOW ALL INSTRUCTIONS
PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.
DANGER: TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE
THIS PRODUCT UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
WARNING! USE THIS UNIT ONLY FOR ITS INTENDED PURPOSES AS DESCRIBED
IN THIS MANUAL.
USE ONLY AS INSTRUCTED BY THE MANUFACTURER. RISK OF HYPERTHERMIA
AND POSSIBLE DROWNING.
THIS PRODUCT IS TO BE FITTED WITH A THERMOSTATIC CONTROL VALVE, SET
AT A SUITABLE BATHING TEMPERATURE 43° TO AVOID SCALDING.
Read and follow all instructions
DANGER: To reduce the risk of injury, do not permit children or persons with infirmities to
use this product unless they are closely supervised at all times.
To avoid injury, exercise care when entering or exiting the Lincoln bath.
Never drop or insert any objects into any openings.
Always check the underside of the platform for any obstructions before raising the bath.
Risk of electrical shock; connect only to a separate circuit protected by an RCCB
WARNING! Risk of electric shock; do not permit electric appliances (such as a hair dryer, lamp,
telephone, radio or television) within 1.5m of this bath.
The unit must be connected to a RCCB. Such a circuit is provided by the installer and should be tested
on a routine basis. To test the RCCB push the test button; the RCCB should interrupt power. Push the
RESET button; power should be restored. If the RCCB fails to operate in this manner there is a ground
current flowing, indicating the possibility of an electrical shock. Do not use this unit. Disconnect the unit
and have the problem corrected by a qualified service representative before any further use.
Risk of electrical shock; spa motors where fitted must be connected to a RCCB protected outlet.
Avoid the abuse of alcohol, drugs, or medication whilst using your Lincoln bath.
WARNING! If this unit is to be utilized by many different bathers, we would strongly recommend that it
is cleaned regularly with a medical disinfectant.
CLEANING INFORMATION
The Lincoln bath does not require any major maintenance, but you should follow these simple
instructions.
To clean the bath correctly the backrest & footrest must be removed.
The bath must be in the fully lowered position before lifting the platform (fig 8)

Linc inst v2.1
5
Platform in the cleaning position (Fig 9)
Fig 8 Fig 9
WARNING
DO NOT RAISE THE BATH
WITH THE PLATFORM IN THE
UPRIGHT POSITION AS THIS WILL
DAMAGE THE BATH & PLATFORM
The bath should be wiped down, preferably whilst the bath is draining, with a soft, damp cloth.
To retain the surface quality of the bath, clean weekly using bathroom cleaning mousse or washing-up
liquid. Warm water and a soft cloth is recommended. Stubborn stains may require a non-scratch liquid
cleaner.
Do not use oven cleaners, scouring powders or bleach on any of the surfaces. These may spoil the
appearance of your bath.
Chalk mark deposits from the water or mild scratches may be removed from the bath surface with a
mild cutting fluid such as 'T' Cut or Brasso. This should be applied to the affected area with a soft cloth
and rubbed vigorously until a satisfactory finish is affected. The shine to the area may then be brought
back using a wax-based polish.
DO NOT APPLY ANY FORM OF WAX TO THE TOP PLATFORM SURFACE, AS THIS WILL MAKE
THE SURFACE SLIPPERY FOR THE BATHER.
The shafts connecting the platform to the bath should be cleaned weekly using a silicone-based spray
when not in use, the bath should be left in the down position & the platform in the lowered bathing
position.
TECHNICAL DATA
Not suitable for use in the presence of flammable anaesthetic mixture with air or with oxygen
or nitrous oxide
Rated Supply 230V 50-60 Hz
Output voltage 24v DC

Linc inst v2.1
6
Typical amp 24v at full load 3amps
Battery backup system
Maximum patient weight 26stone (165kg)
Unit weight empty 185kg
Water volume
Maximum weight of bath, patient & water
Suitable for intermittent use only –2 minutes on –18 minutes off
Hot water controlled by thermostatic TMV 3 valve
1800
750
682
1077
920
150
INSTALLATION INSTRUCTIONS
Installation to be carried out by suitably skilled personnel
WARNING: This unit is heavy –minimum of
two people are required to move it.
Please read through these instructions
carefully before commencing any work

Linc inst v2.1
7
Unit weight empty 185kg
Maximum user weight 26stone (165kg)
Electrical supply 230V -50-60Hz –refer to label
Switched fuse spur rated 5 Amp
RCCB rated 30mA
System operating voltage 24 volt
Typical amp 24v at full load 3 amps
Preparation of Site
(a) Carefully remove all packaging and inspect bath thoroughly.
Note: Do not use sharp knives or instruments to remove packaging around the finished surface
areas of the bath.
(b) Ensure all component parts are present before proceeding to remove any existing facilities.
(c) Remove any existing equipment and materials as necessary to prepare the site.
(d) Prepare the floor area and ensure it is flat, level and structurally sound.
(e) A switched fuse spur rated at 5A, fitted with a RCCB rated at 30mA will also be required.
Electrical Work
All electrical work must comply with current local regulations and should only be carried out by a
qualified electrician.
The electrical supply should be fed via the mains through a RCCB to a switched fused spur rated at 5
Amps where the power cable (supplied with the bath) is hard-wired connected. Please note this must be
accessible by the property owner to allow them to switch the unit off if required (i.e. NOT BEHIND
PANELS OR BOXED IN).
Test the unit is functioning by operating the up and down buttons so that the bath lifts & lowers, and
ensure the green power indicator light is visible on the control box check using a mirror.
Bath Fitting
(a) Remove the transportation bars & wheels.
It is imperative that the bath is correctly level in all planes, as any distortion will cause
the 4 stainless platform rods to judder & possible leakage through the bath glands.
(b) Fit bath to the floor using the powered bath installation kit provided –see page14.
Make sure the floor is sound in the bath fixing area; offer the bath into the required
position.

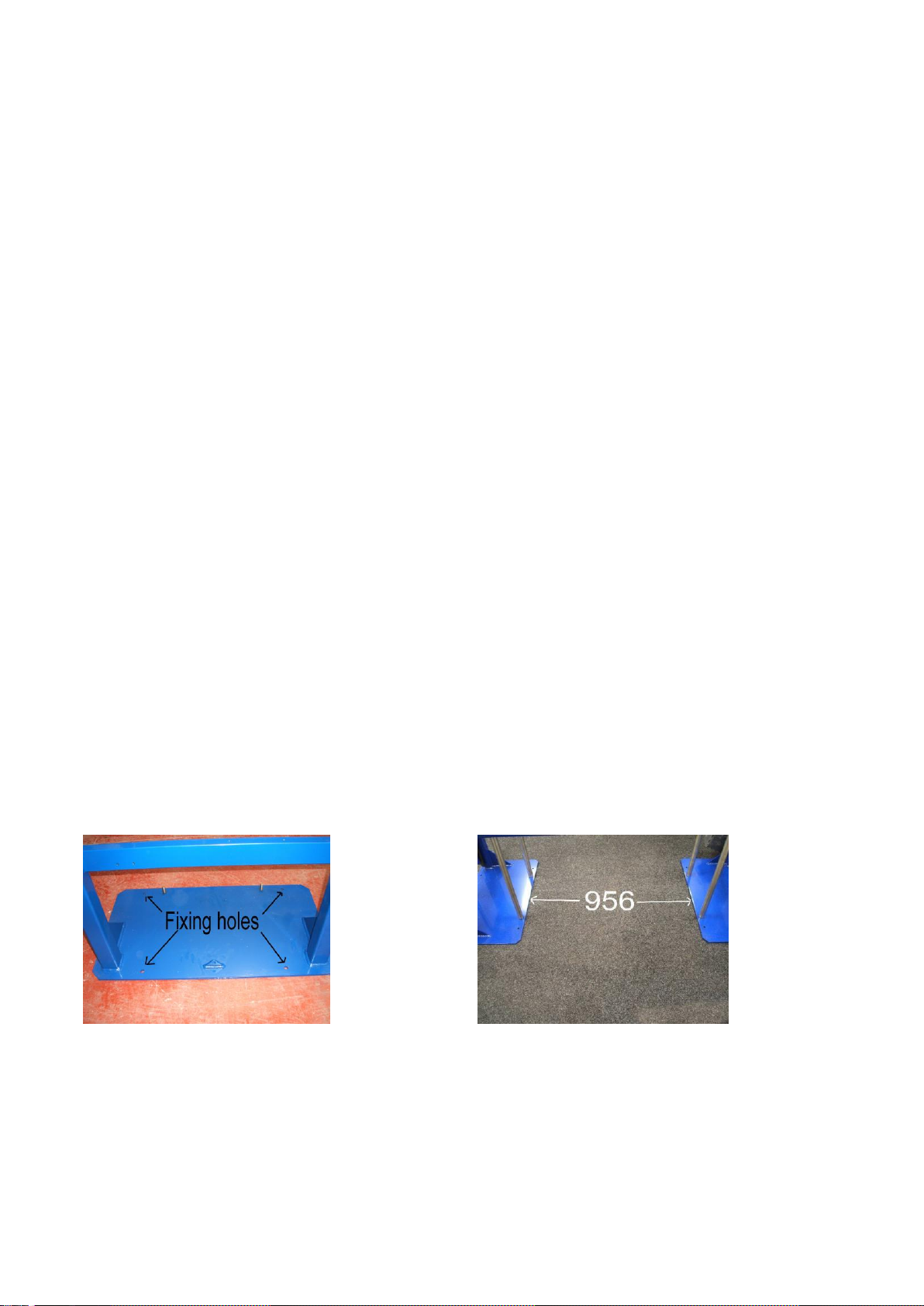

Mark the fixing center’s for the tap end base plate fig (10) & fit to the floor using the
installation kit provided, making sure the stainless rod’s are vertical in both planes pack
as required to achieve this.
Repeat the same for the opposite end making sure the dimension between the base
plates is 956mm see fig (11) & making sure the stainless rod’s are vertical in both
planes pack as required to achieve this
Plumbing
Water & waste Connection are situated at the tap end of the unit there are 2 x 22mm tail
Pipes for the hot supply marked red & cold supply marked blue.

Linc inst v2.1
8
The 40mm flexible waste kit supplied must be connected to the waste trap & to the drain
provided.
Please discuss temperature setting with the customer before setting the valve to confirm
their preference for bathing temperature, taking into account local regulations. See

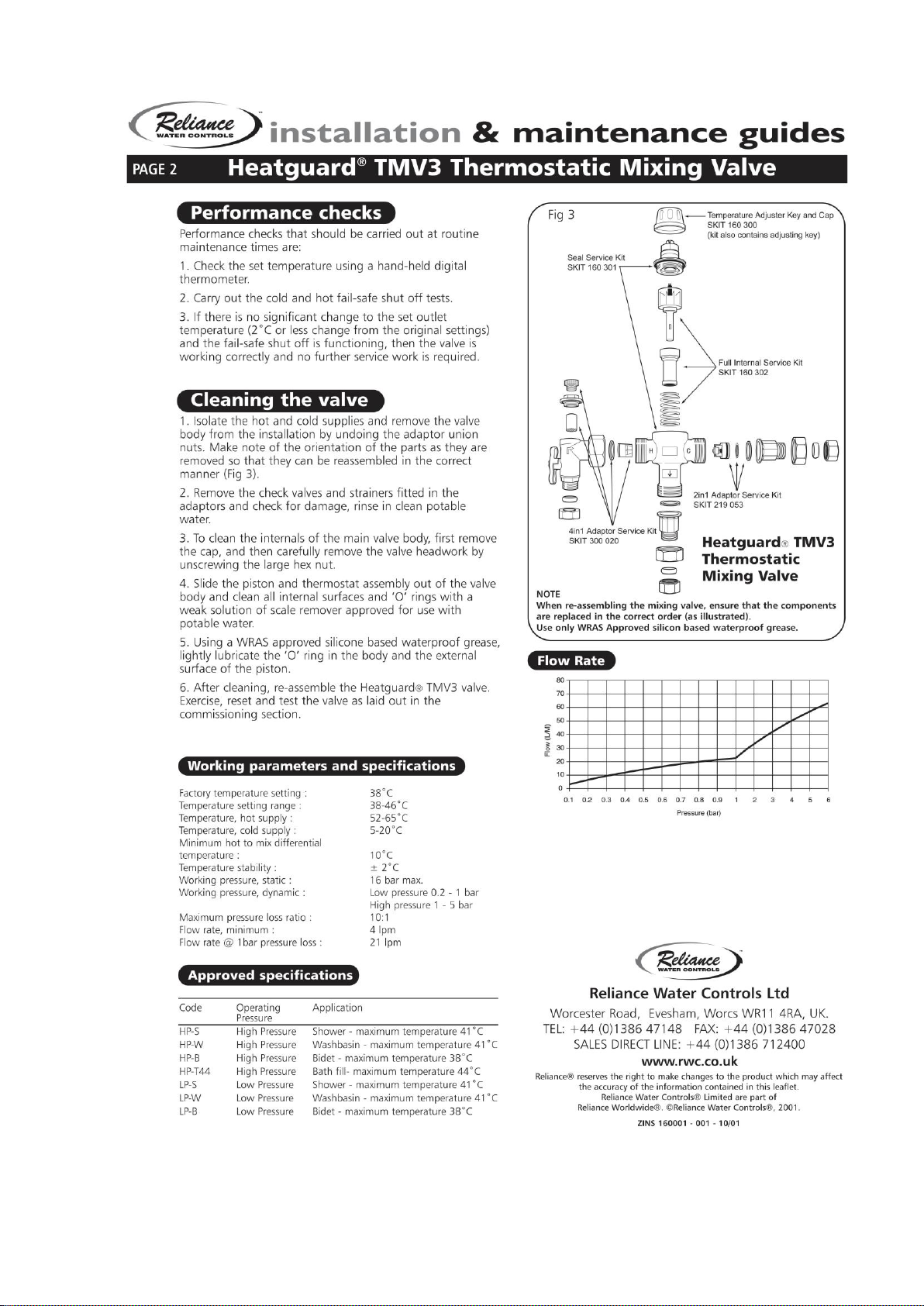

Addendum at back of this pack for setting TMV.
Electrical Connection
The main power unit is located at the rear end of the bath. The lead from this is located at the
tap end of the bath in a junction box. This lead should be connected to the mains supply.
Check to make sure this is a switched fused spur, protected by an RCCB. (Customers
responsibility)
Earth Bonding
Earth bonding and cross bonding is mandatory for this appliance.
All metal fittings must be cross-bonded (joined together) to ensure that should electricity be present, it is
grounded to earth as quickly as possible. This means that should a bath be installed, the metal legs of
the bath and the hot and cold taps must be cross-bonded. This also applies to any other metal fittings.
Appropriately rated earth wire is to be connected to every metal fitting of the installation and then fed
back to the earthing system of the building. If plastic pipe is used then the earth wire needs to be looped
back to the copper feeds. This should be carried out by a qualified electrician and comply with current
local regulations.
The correct gauge of earthing cable should be chosen according to current local regulations, and
connected to the appliance using earth clamps or straps as required (not supplied).
Water Supply
Local Water By-Laws must be followed at all times.
Panel Fitting
Inner Skirt Fitting
These consist of 5 items; 2 inner side panels 1 tunnel panel & 2 flat access panels 1 for each
end. With the bath in the raised position, place both side panels into position note panels are
marked for their position Fig (12) slide the tunnel into position & secure using the self tapping
screws & white cover caps provided note these panels are free standing & do not require
fixing to the floor.
Outer panel fixing
These consist of 4 items; 2 outer side panels & 2 flat access panels 1 for each end. With the
bath in the raised position, place 1 side panel into position note panels are marked for their
position Fig (13) & secure using the self-tapping screws & white cover caps provided.

Linc inst v2.1
9
Final Checks
Operate the bath controls to make sure the unit functions correctly the bath raises & lowers ok
check all cables are not snagging with any items & the water pipes are not snagging. Check all
plumbing connections for leaks. Check the water outlet temperature from the bath taps is
43°C.
Inner access hatch fitting
Offer up the tap end panel & carefully mark the waste, water pipe, & electrical cable supply
positions then carefully trim to fit to give a neat appearance. Split the fastener, place into the
hole, & push the head in to firmly secure the panels. Repeat the above for the opposite end
note the panel will note require cutting.
Outer access Panel Fixing
Operate the unit up / down to finally check that the inner panels do not scuff the outer skirt &
all services are correctly installed. Fit the outer access panels with drive fasteners supplied.
Backrest & footrest
Place into position see fig (4) These should be firmly located into the lugs in the platform
using the metal rods. The rods may be adjusted slightly altering the spacing to ensure a firm fit
to the platform.
Testing
(a) Immediately after installation, it is vital that the bath be connected to a mains supply for at least
24 hours before initial use, to ensure the batteries are fully charged. Failure to observe this
requirement could result in the user not being able to exit the bath in the event of a mains failure.
(b) The installation unit is now complete. Ensure the bath is free from debris. Clean the bath with
clean soapy water, removing any grit or build-up of dirt. Fill bath with water and check for leaks.
(c) Should the finished surface of the bath become marked or scratched, it is normally
possible to rectify quite simply. Firstly, apply 1000/1200 grade wet and dry paper,
initially using it dry.
After the mark has been reduced, use with soapy water. To restore the finish to the bath, apply
a mildly abrasive cutting paste, and finally finish off with a silicone-based polish such as car wax
or furniture polish.
Fig 10 Fig 11

Linc inst v2.1
10
Fig 12 Fig 13
TMV 3 valve Control box
Earth lead Wheels Transportation bars
POWERED BATH INSTALLATION KIT
Contents:-
M6 x 70 Coach Screws Qty 8 Fixing foot brackets to floor
6 x 30 Nylon Plugs Qty 8 Fixing foot brackets to floor
WARRANTY INFORMATION
This product is warranted as being free from defects during the period of warranty. This does not cover
minor blemishes, etc. which may be part of normal manufacturing processes.

Linc inst v2.1
11
The warranty covers manufacturing defects in the products, starting from the date of manufacture.
Contact your Supplier to find out more about the warranty period. The warranty is limited to the value of
the purchase price paid.
The warranty is only valid if the product has been used correctly. Where there are any mechanical or
electrical parts, any damage, misuse or tampering with them will render the warranty invalid. Any sealed
electrical boxes must remain unopened or this will invalidate any warranty.

Linc inst v2.1
12

Linc inst v2.1
13

Linc inst v2.1
14
Recommended Regular Inspections
These regular inspections are essential to both the health of your bath as well as the safety
and care of clients. If, for ANY reason, you have concerns over the bath operation or any part
of these checks fail, please contact us immediately.
WARNING SAFETY NOTICE
Maximum user weight as the Safety label.
Make sure the area outside the bath is kept clear to allow free access.
Make sure the floor area around the bath is kept free from excess water to avoid
persons slipping.
Do not allow unauthorised persons to operate this bathing system.
Monthly Checks
Operate the bath controls to make sure the unit functions correctly.
Ensure the bath is free to move up and down and that all panels are securely
fastened.
Chalk mark deposits from the water or mild scratches may be removed from the bath
surface with a mild cutting fluid such as ‘T’ Cut or Brasso.
Lincoln - The 4 x rods holding the platform should be cleaned using a silicone-based
furniture polish. (i.e. Mr. Sheen.) Please do not use wax-based products. Also carry
out a visual inspection of the seals around the rods for signs of damage.
If there is a Bathing/Changing platform fitted (Lincoln bath) check it will lift easily and
that all hinge retaining screws are in place and tight & the platform anti lift brackets
operate correctly.
If there is a Shepherds crook fitted ensure the Shepherds crook /Shower pole is firm
and vertical –see below.

Linc inst v2.1
15
Shepherds Crook
Where a Shepherds Crook (Shower Pole) has been supplied and installed on the bath
it is important to carry out the following monthly check:
VISUAL
1/ Check that the base plate of the pole is flat to the rim of the bath.
2/ The Shower Pole should not be bent or out of vertical.
3/ The Shower handset should be in its holder.
PHYSICAL
4/ Grasp the base plate and ensure it will not rotate. (Note the Shower pole can rotate as it is
screwed into place so please ensure it is fully hand screwed into place.)
4/ Grasp the pole and ensure it will not ‘rock’
Six Monthly Checks
In addition to the monthly checks the following should be carried out.
Visually inspect the bath all over ensuring there are no exposed wires or pipes. Panels
should all be fitted tightly and screws and fixings in place.
Load the bath to its SWL. Operate the bath through its full sequence. Your
maintenance company should be able to carry out this LOLER test but if not please
contact us so we can arrange.
Ensure that the tap and waste fittings are all working correctly and that the seat
fixings are all in good order.
Check condition and operation of the handset control.
Ensure your bath is serviced regularly. Please ask for details of the Gainsborough
Bathrooms Ltd. Service and Maintenance Agreement.
Gainsborough Bathrooms
Hewell Road, Enfield, Redditch, Worcs, B97 6BW
Phone: Service Desk: 01527 594224
Email: [e-mail]
