TB2007B
TV Box
User Manual
TB2007BUserManual
i
FCC Information and Copyright
Any Changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
TB2007BUserManual
ii
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment
and receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV
technician for help.
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment .This equipment should be installed
and operated with minimum distance 20cm between
the radiator& your body.
This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
The symbol means that the unit complies with
European safety and electrical interference directives.
The vendor makes no representations or warranties
with respect to the contents here and specially
disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor
reserves the right to revise this publication and to
make changes to the contents here without
TB2007BUserManual
iii
obligation to notify any party beforehand. Duplication
of this publication, in part or in whole, is not allowed
without first obtaining the vendor’s approval in
writing.
The content of this user manual is subject to be
changed without notice and we will not be
responsible for any mistakes found in this manual.
All the brand and product names are trademarks of
their respective.
Safety Precautions
1. Don’t use the TV box near water.
2. Clean only with a dry cloth.
3. Don’t block any of the ventilation openings,
install according to the manufacturer’s
instructions.
4. Don’t install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus(including amplifiers) that produce
heat.
5. Don’t defeat the safety purpose of the polarized
or grounding - type plug. When the provided
plug does not fit into your AC power outlet,
consult an electrician for replacement of the
obsolete outlet.
6. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
7. Only use attachments/accessories specified by
the manufacturer.
TB2007BUserManual
iv
8. Unplug this apparatus during lightning storms
or unused for long periods of time.
9. Refer all servicing to qualified service
personnel. Servicing is required when the unit
has been damaged in any way.
Accessories
•AC adapter/Power cable
•Remote control
•TVBox
•User Manual
Contents
FCC INFORMATION AND COPYRIGHT ..................I
SAFETY PRECAUTIONS..........................................III
ACCESSORIES...........................................................IV
CONTENTS..................................错误！未定义书签。
CHAPTER 1 BASICS ....................................... 1
PARTS AND CONTROL ................................................. 1
REMOTE CONTROL...................................................... 2
POWER SUPPLY............................................................ 5
CONNECTIONS............................................................. 6
TRANSFERRING CONTENTS......................................... 7
HOME SCREEN............................................................. 8
MAIN MENU............................................................... 10
BUTTONS................................................................... 10
TB2007BUserManual
v
ONSCREEN KEYBOARD.............................................. 11
CHAPTER 2 GETTING STARTED .......................12
WEB BROWSER.......................................................... 12
WATCHING VIDEOS................................................... 14
PLAYING MUSIC........................................................ 16
VIEWING PHOTOS ...................................................... 19
FILE EXPLORER......................................................... 22
MANAGING THIRD PARTY APPLICATIONS ................. 24
CHAPTER 3 SETTINGS .......................................25
WIRELESS &NETWORKS........................................... 25
SOUND....................................................................... 26
DISPLAY .................................................................... 26
STORAGE ................................................................... 26
APPS .......................................................................... 26
ACCOUNTS &SYNC................................................... 26
LOCATION SERVICE................................................... 26
SECURITY .................................................................. 26
LANGUAGE &INPUT ................................................. 27
BACKUP &RESET...................................................... 27
DATE&TIME............................................................. 27
ACCESSIBILITY.......................................................... 27
DEVELOPER OPTIONS ................................................ 27
TB2007BUserManual
vi
ABOUT DEVICE ......................................................... 27
CHAPTER 4 TROUBLESHOOTING.....................28
CHAPTER 5 APPENDIX.......................................29
UPGRADING FIRMWARE ............................................ 29
MAINTENANCE.......................................................... 29
PRODUCT SPECIFICATIONS........................................ 30
DISPOSAL AND RECYCLING INFORMATION .............. 31
Chapter1Basics
1
TB2007B is a smart TV box based on Android
operating system. It supports HDTV, network
function and third party software.

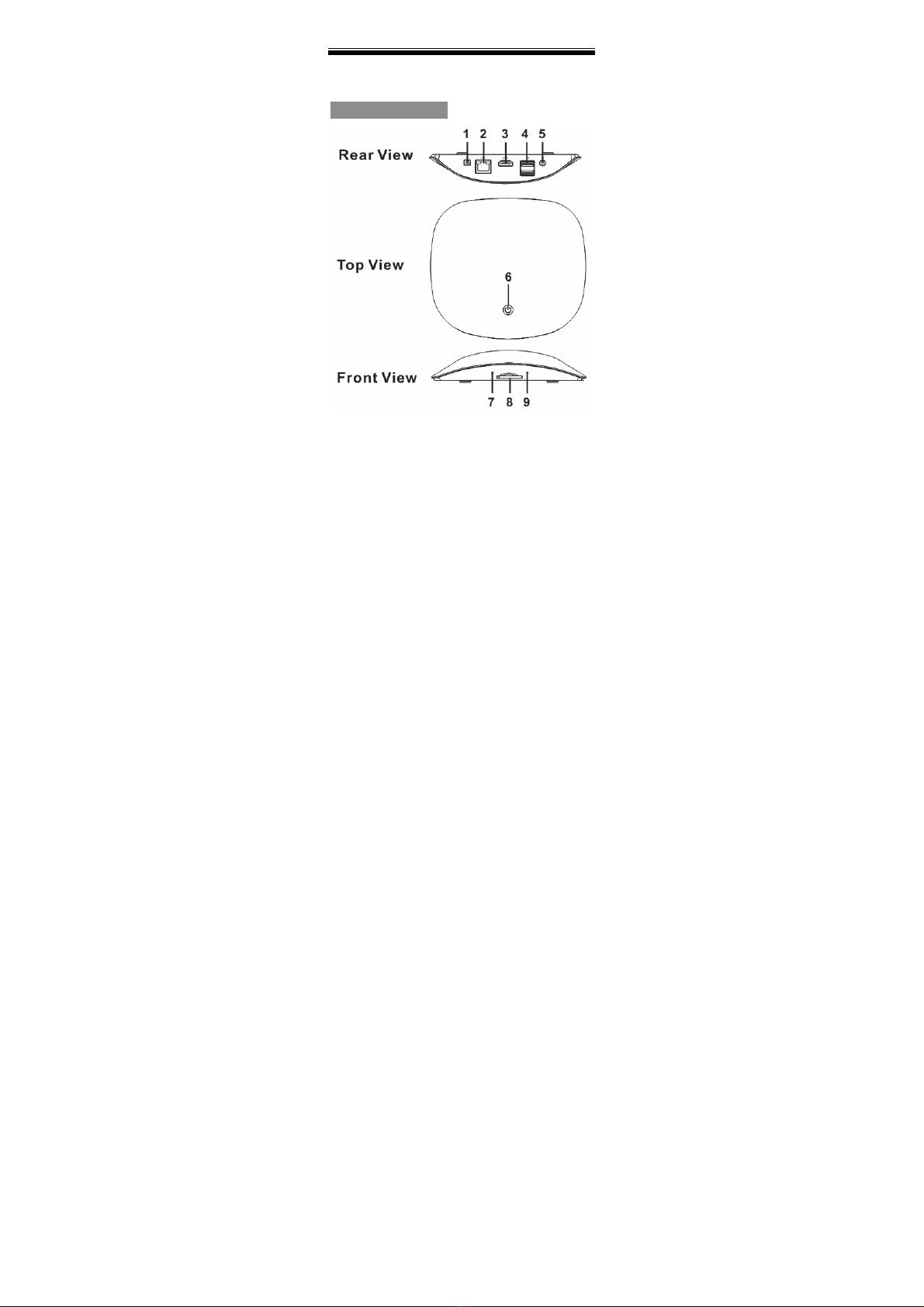

Parts and Control
1. DC in jack – for connecting power cable to
power adapter.
2. Lan port –to connect Ethernet network via
RJ45 cable.
3. HDMI port – to connect HDTV via HDMI
cable.
4. Mini USB jack – for connecting with
external USB device.
Chapter1Basics
2
5. AV jack – to connect TV/monitor via AV
cable.
6. Standby button – Press to go to standby or
wake-up mode.
7. IR window –To receive IR signal from IR
remote control.
8．Memory card slot – supports Micro SD
card
9．Status indicator – blue light for working
mode, red light for standby mode.

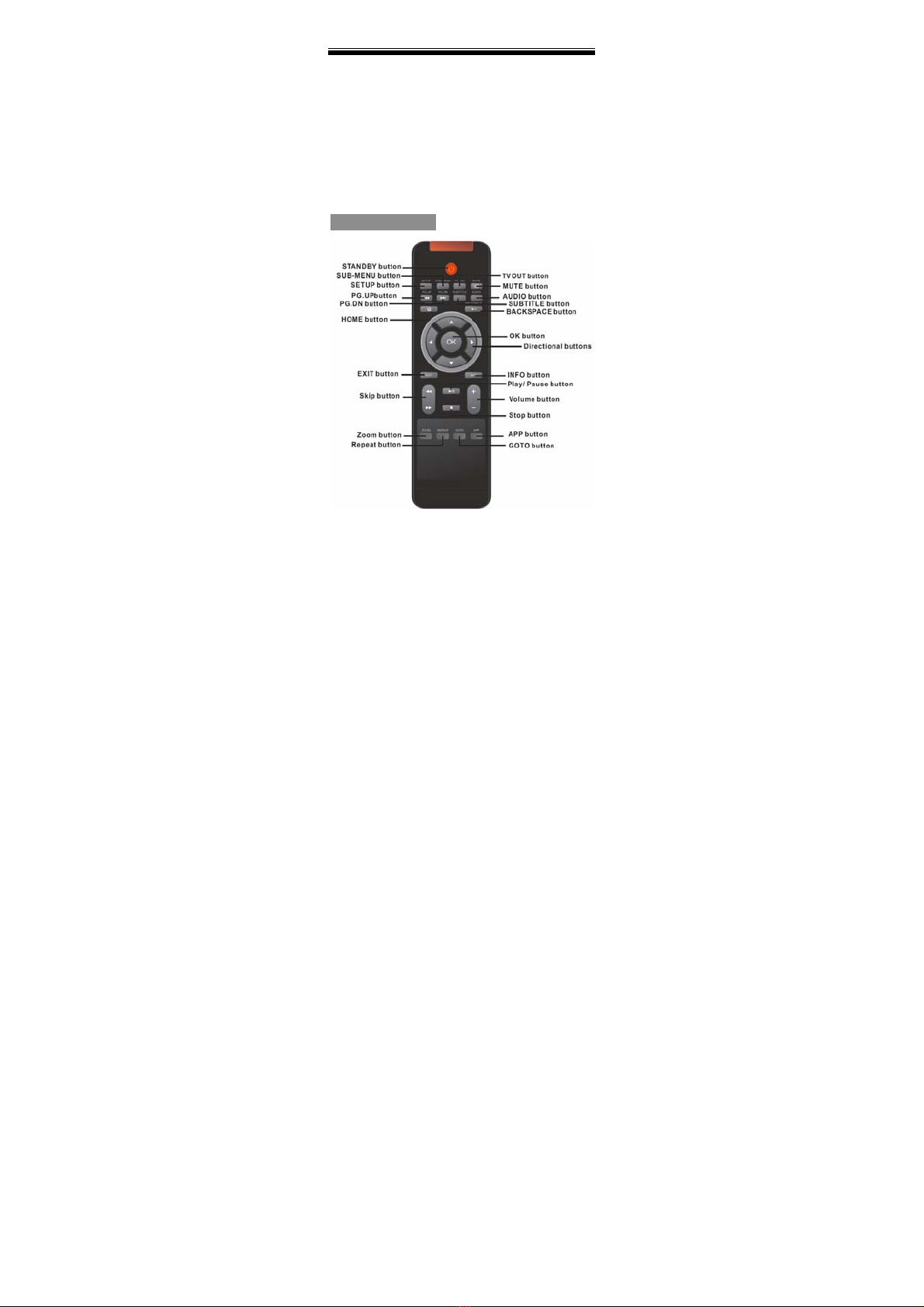

Remote Control
Chapter1Basics
3
STANDBY button
– press to go to standby/wake-up mode
SUB MENU button
– press to display the option menu
SETUP button
– press to enter into settings
PG.UP/DN button
– press to go to previous/next song/video
HOME button
– press to return to home screen
Exit button
– return button, to return the previous screen
Skip button
– press to fast rewind/ fast forward
Zoom button
– press to Zoom in/out
Repeat button
– press to set repeat mode
MUTE button
– press to mute the TV box.
TV OUT button
– press to select TV out mode.
AUDIO button
– press to select Audio mode.
SUBTITLE button
– press to change subtitle.
Chapter1Basics
4
BACKSPACE button
– press to delete a character
OK button
– press to confirm the selection
Directional buttons
– press to move the cursor left/right/up/down.
INFO button
– press to display the media file information.
PLAY/PAUSE button
– press to play or pause the playback
Volume button
– press to increase or decrease the volume.
STOP button
– press to stop the playback
APP button
– press to display the main menu
GOTO button
– press to go to the desired playback
Using the remote control
•Remove the plastic sheet before using the
remote control.
•To use the remote control, point the remote
control at the IR window located on the unit
and press the buttons.
•The recommended effective distance for
Chapter1Basics
5
remote operation is about 5 meters.
Battery Replacement
When the battery become weak, the operating
distance is greatly reduced and you will need to
replace them.
1. Take out the Lithium battery at the bottom
of the unit cover.
2. Insert a new identical Lithium battery.
Note: you can also use the wireless remote
control with mouse and keyboard (not
included) for quick operation and more
control on TV screen.
Power supply
Using the AC adapter
•The supplied 5V/2A adapter operates on AC
100-240V, 50/60HZ.
•Connect the AC adapter to DC-in jack, and
then plug the AC adapter into AC outlet.
Note: While the AC adapter is connected and
the unit is on standby, power will still be
consumed.
Chapter1Basics
6
Connections
Connecting to HDTV using HDMI cable
1. Use the HDMI cable to connect the TV box to
the HDTV.
2..Use the AC adapter to connect a suitable
wall outlet.
3. Turn on your HDTV and then power on the
TV box.
Connecting to a TV using AV cable
1. Use the AV cable to connect the unit to
TV/Monitor.
2. Use the AC adapter to connect a suitable
wall outlet.
3. Turn on your TV and then power on the TV
box.
Connecting to the internet
Wi-Fi connection: if the unit detects Wi-Fi signal,
in Settings < Wi-Fi to set (See page25) .
LAN connection: connect RJ45 cable, in
Settings < Wireless and network< More <
Ethernet to set (See page25).
Chapter1Basics
7
Transferring Contents
From USB Device
•The TV box supports USB Mass Storage
Device function.
•To import contents (video, audio, photo etc)
into the TV box, insert the USB device.
•Upon successful connection to TV box, go to
[File Explorer], click to open.
From memory card
This unit supports SD card up to 32 GB
To insert a Memory card
Insert the card correctly with its label facing up
until it clicks into the place. You may damage
the card and the TV box if SD card is not
inserted correctly.
To remove SD card, push the card once again
until it clicks.
•When a SD card is inserted in or ejected
from the TV box, it may take few seconds for
the TV box to update the content.
Chapter1Basics
8
•Please avoid inserting or ejecting SD card
when other operation is running as this may
cause the system hang.
•Do not remove the card if the content inside
the card is being played. This will halt the
operation of the TV box and cause the TV
box to restart.
Home screen
When the TV box is turned on, it will enter into
the Home screen.
•Press anytime to return to the Home
screen.
•Use the Directional buttons on the remote
control to press any icon to get started.
•Press Apps button on the remote control or
on TV screen to show the Main menu.
Chapter1Basics
9
Enter into system settings
Enter into music player
Enter into file explorer
Enter into play store to download the
desired APP.
Enter into web browser
Customizing Home screen
Adding icons on home screen
You can add shortcuts or widgets to home
screen.
Press Menu ÆAdd widgets to workplace,
press the desired options to add to home
screen.
Removing icons on home screen
Press Menu ÆDelete widget from workplace,
use the directional buttons to press the desired
options to remove from the home screen.
Setting wallpaper for home screen
Press MenuÆSet the wallpaper, press the
desired picture as wallpaper.
Chapter1Basics
10
Main menu
All application icons are on the Main menu.
•On home screen, press Apps button or
on TV screen to show the Main menu.
•Press an icon on the Main menu to open the
desired application.
•Press to return to home screen.
•On Main menu screen, press the Menu button
to uninstall the application.
Buttons
•Use the Directional buttons and press
OK/Enter button to select an item.
•Select an icon to open an application.
•Press the Return button (Exit or ESC
button) on the Remote control to return to
previous screen.
Chapter1Basics
11
•Press button anytime to return to
Home screen.
•Press the Menu button on the Remote
control anytime to display the option menu.
Scrolling
•Use the Directional-up/down button to
scroll file list.
•On webpage, use the directional buttons to
scroll around the page（be careful so as not to
click the link）.
Onscreen keyboard
Use the onscreen keyboard to enter text, such
as web addresses.
•Press on the text field to bring up the
keyboard.
Uppercase key Backspace
key
Numeric/punctuation/symbol key
Chapter2GettingStarted
12
Web browser
View a webpage
•From Home screen or Main menu, press
Browser icon to open web browser.
•On address bar, type the web address and
press OK button on the remote control.
•Press the link on the webpage to open a new
webpage.
•Use the Directional buttons to scroll around
the webpage.
•To return to the previous page, press the
Exit or ESC button.
Notice：
•Browser start page always defaults to
Google home page.
Add bookmark
Press to add the current visited webpage
as bookmark.
Bookmarks List
Press to show bookmarks list, press a
bookmark to open the webpage. Touch and
hold the bookmark to display the option menu
for bookmark.
•History
Access to view history lists. To remove these
Chapter2GettingStarted
13
lists, press Menu then select Clear history.
•Settings
Press to use more available function,
including Privacy & security, Accessibility and
so on.
Refresh/Stop
Press to refresh on the current page, press
Xto stop loading the current page.
Forward
Press ←/→ go to previous/next webpage
screen.
Using the option menu
Press Menu to display the browser option menu.
Press on the desired item to use webpage
viewing control.
Table of contents
