REFRIGERATOR INSTRUCTION MANUAL
Thank you for purchasing a Galanz product please read this manual carefully for correct usage and safety,
and keep for future reference.For service,support and warranty information,call 800-562-0738.
@2020 Galanz Americas Limited Company.

CONTENT
CONTENT
1
Product Overview .............................................................................
Safety Warnings ...............................................................................
Installation Instructions ....................................................................
Reversing the Door...........................................................................
Install the Handles............................................................................
Operation Instructions......................................................................
Packing and Moving.........................................................................
Maintenance......................................................................................
Defrost...............................................................................................
Disconnecting the Appliance............................................................
User Notifications..............................................................................
Troubleshooting Tips.........................................................................
Specifications and Parameters.........................................................
Packing List......................................................................................
Warranty............................................................................................
1
2
3
4
5
6
7
8
8
9
9
10
11
12
12

PRODUCT OVERVIEW
PRODUCT OVERVIEW
1. Door Bin
2. Glass shelf
3. Crisper
4. Freezer upper drawer
5. Freezer lower drawer
1
1
3
4
5
2

SAFETY WARNINGS
SAFETY WARNINGS
SAVE THESE INSTRUCTIONS
SAFETY WARNINGS
2
It is recommended that electrical
appliances such as power outlets,
regulators, microwave ovens and
unstable items (heavy objects,
containers containing water)
should not be placed on the top
of the refrigerator. It is not
allowed to use electrical
appliances in the refrigerator
except our recommended models.

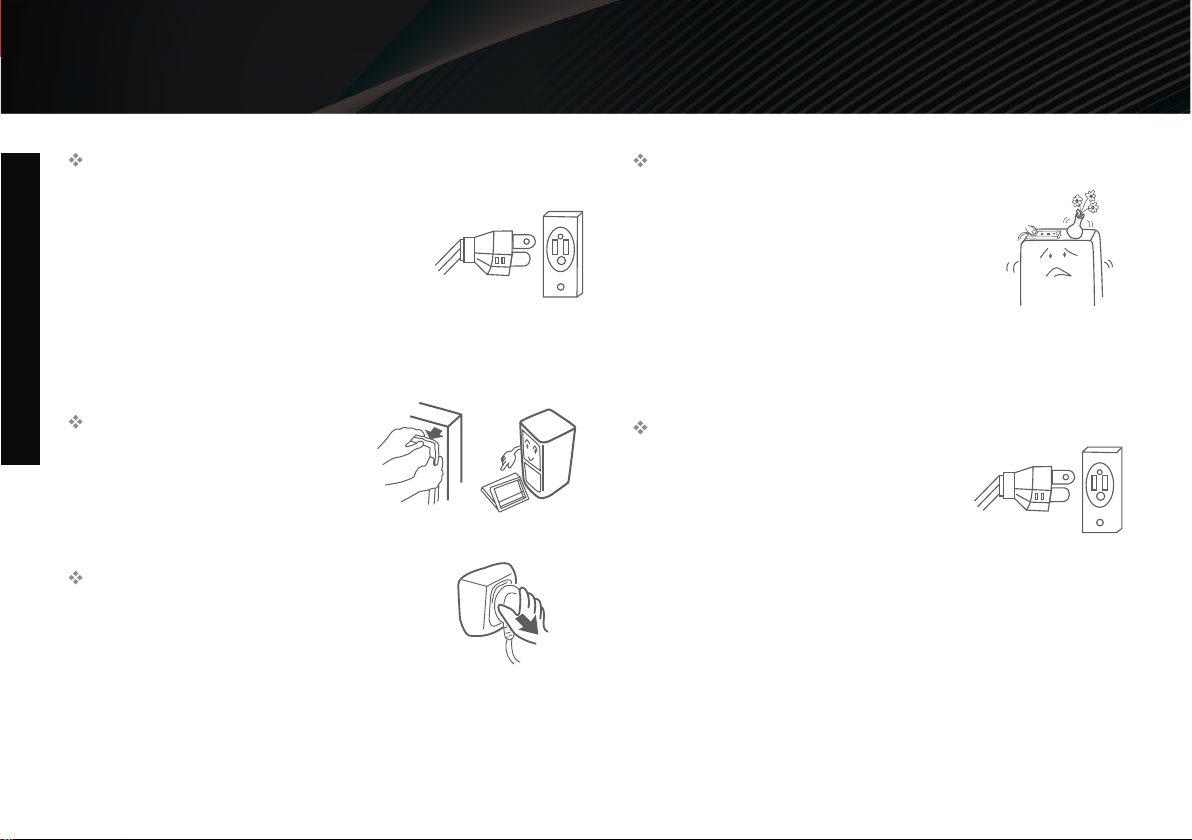

The refrigerator you purchased uses a
power supply voltage of 120V single-
phase AC, with a frequency of 60HZ. It
must be operated with a dedicated
socket (above 10A) and reliably
grounded. Do not remove the third
pin (ground wire) of the power cord.
The power cord plug should be
firmly in contact with the socket,
otherwise it may cause a fire.
When your refrigerator is
disused, please remove the
door and door seal, to avoid
an accident with children
playing with the refrigerator.
Before cleaning and maintenance,
please unplug the power to
avoid electric shock.
Do not pull the plug of the
refrigerator by pulling on the power
cord. When the refrigerator is
moved away from the wall, please
operate carefully. Do not roll over or
damage the power cord. Do not
continue to use when the power
line is damaged or the plug is worn,
and must be replaced by the repair
point designated by the
manufacturer.

SAFETY WARNINGS
SAFETY WARNINGS
SAVE THESE INSTRUCTIONS
3
Strictly prohibit self dismantling
and transforming the refrigerator
as well as damaging the refrigerant
line of refrigerator. When it is found
that the refrigerant line is damaged
or the combustible gas has leaked,
the leakage valve should be closed,
the doors and windows should
be opened and the repair points
specified by the manufacturer should
be contacted in time.
Glass bottles or cans with liquid in
them should not be placed in the
freezer to prevent bursting.
Watch out for children
and make sure they don't
play in the refrigerator.
Besides, do not let
anyone climb, sit, stand
or lean on the refrigerator
door.
Do not touch the cold
surface of the freezer,
otherwise it may cause
frostbite easily due to
low temperature.
Note: the spark generated by pulling the plug
of the power supply may ignite the leaked gas.
USE METHOD AND PRECAUTIONS OF
DIFFERENT COMPARTMENTS
TIPS FOR USE OF REFRIGERATOR COMPARTMENT
3. Raw food and cooked food need to stored in different
containers. In order to prevent bacterial contamination,
raw vegetables and fruits should not be exposed to raw
meat or fish. Vegetables and fruits should be wrapped
by film and stored in the crisper.
2. Raw meat and seafood need to be packed in different
containers and stored for not more than 3 days.
1. The common refrigerating temperature of food stored in
refrigerator is from 39°F to 46°F. In this environment,
cooked meat can not be stored for more than 4 days, and
vegetables should not exceed one week at most.fruits and
CAUTION:
Flammable Gas
This symbol alerts you to take care as the appliance
contains a flammable refrigerant. Do not expose it
to high heat, sparks or open flames
4. Before freezing food, wrap in freezer safe cling, bag or
container. The temperature of freezer is - 0.4°F, In order
to make sure they taste fresh and delicious, and to look in the
nutrition of food, the food in the freezer should not be stored for
more than three months.

PRODUCT INTRODUCTION
PRODUCT INTRODUCTION
Do not place in area that gets below 41°F and do not use
in area that will get wet.
Please pull the power plug and remove all the food in
the fridge when handling.
Use tape to fix the movable parts of refrigerator, like
glass shelves of fridge, vegetable crisper and freezer
drawer. Close the door and fix it with adhesive tape so
as not to be opened when moving.
It is not appropriate to lift sideway or reverse the
refrigerator during the handling. If you have to tilt, the
inclination between the cabinet and the ground should
not be less than 45 degrees. Do not use the
mobile pulley on the prone scratched floor, it may
scratch the floor.

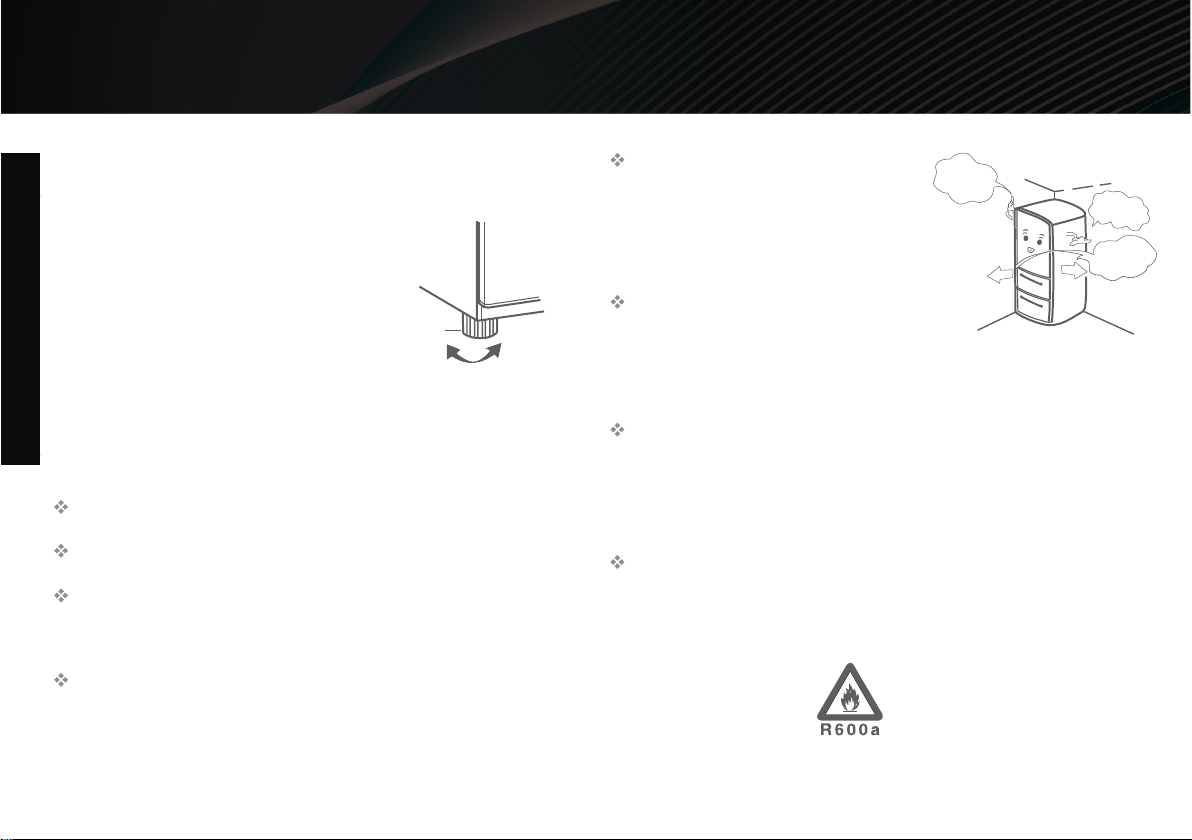

The refrigerator should be placed on a
flat and solid surface.
Do not use the foam pad of the
refrigerator to make it higher. If there is a
slight instability, the adjustable feet at
the front of the refrigerator can be
adjusted. Rotate the adjustable foot
clockwise to raise the height of the
refrigerator and reduce the height by
counterclockwise.
Refrigerator should be placed in a
dry, well ventilated place. The
sides and back of the refrigerator
should be retained more than 1/4 inch
of space, and the top to retain
more than 1 inch of space.
Refrigerator should not be placed in wet places.
If the refrigerator is accidentally splashed with water or
other dirt, please clean it with a soft cloth.
Refrigerator should be placed far
away from any heat source and
space of direct sunlight, so as not
to affect the performance of the
refrigerator.
HANDLINGANDPLACEMENT
hcni1>
>
1/4 inch
1/4 inch
>
The refrigerator you purchased uses R600a
refrigerants that are very flammable. When you are
transporting and placing the refrigerator, please avoid
collisions or violent shocks to prevent
damage of the refrigeration system or fire accidents.
Do not hold the handles to move the refrigerator in the
process of transportation. You should lift the
refrigerator from the bottom.
4

PRODUCT INTRODUCTION
PRODUCT INTRODUCTION
INSTRUCTIONFORUSAGE
All the packaging components,
including the foam pad (which cannot
be used to make the refrigerator
higher) and the adhesive tape used
for fixing accessories, must also be
removed. Check the
accessories and information, as well
as the items in the package according
to the packing list in the instructions.
Responsible disposal of the appliance
DANGER. Risk of child entrapment: When discarding
a refrigerator, make sure to take off the door and the
spring action or bolt catch. Leave the shelves in
place so that children cannot easily climb in, get
trapped inside and suffocate.
After the power supply is switched
on, the refrigerator will continue to
work for a long time in order to
reach the predetermined
temperature. During this time,
please try to reduce the number of
times you open the doors. For the
first and a longer working time,
the noise of the refrigerator may
be slightly louder, and the
temperature of both sides may be
higher. After a period of time, when
the refrigerator is fully cooled, it can
be used and put food into.
At the end of its working life, do not throw this appliance
out with your household trash. Electrical and
electronic appliances contain materials and substances
which, if handled or disposed of incorrectly, could be
potentially hazardous to the environment and human
health.
Observe any local requlations regarding the disposal of
electrical consumer goods and dispose of it
appropriately for recycling and recovery of the
refrigerant. This appliance contains the flammable
refrigerant isobutane (R600a) and cyclopentane (R141b)
in the cabinet insulation, and must be disposed of in a
separate waste collection. Contact your local authorities
for advice on recycling facilities in your area
Take care not to damage the pipework at the back of the
appliance before or during transportation so that the
refrigerant gas cannot escape. The plug must be
rendered useless and the cable cut off directly behind
the appliance or the machine to prevent misuse
5
Note: Refrigerators cannot be transported upside
down or laying flat. If they are transported incorrectly,
refrigerators must be placed upright for 2 hours before
they can be plugged in.

PRODUCT INTRODUCTION
PRODUCT INTRODUCTION
Please do not rush to connect the power supply after the
stable placement and cleanness of the refrigerator. It
should be stand for at least 2 hours, and then switch on the
power to ensure the normal operation of the refrigerator.
Place the refrigerator in the right place (see the foregoing
points for attention), and make a full cleaning of the
refrigerator before use (refer to the latter section of
cleaning methods).of the refrigerator.
Note:The power cord should not be pressed by
the refrigerator itself and other heavy objects, so
as to avoid damaging the power line and causing
accidents.
The temperature of refrigerating chamber is usually
around 32-50°F, which is used to store fresh food for a
short time, such as vegetables, fruits and beverages,etc..
Refrigerated food should be wrapped in plastic wrap and
placed evenly on the shelf to prevent taint of odor or
excessive evaporation of moisture.
The storage of goods in the refrigerating chamber should
not be too dense. It should leave proper space for the cold
air circulation.
Hot food should be cooled to room temperature and then
put into the fridge.
Radish or similar food should cut off leaves to prevent
nutrition from being absorbed by leaves.
The amount of fresh food placed in the freezer should not
exceed the freezing capacity listed in the technical
parameters of the refrigerator.
Note:It should be noted that food should not
obstruct the air outlet when storing food, so as not
cause bad circulation of the cool air and affect
normal performance of the refrigerator.
to
the
Minimize the number of opening and closing times to
reduce the loss of cold air. So that the storage period
can be extended.
Frozen foods should not be refrozen after thawing. They
should be eaten as quickly as possible.
Use sealed packages or fresh-keeping bags to freeze food
as far as possible, so that they can be stored for a longer
time and can reduce freezer burn on the food chamber.
After a loss of power, please reduce the number of open
doors, and try not to put in the new food ( to prevent the
temperature in the cabinet to pick up faster).
If a power outage is known change pick up to rise, you
should make more ice cubes that placed in a watertight
container, and put them in the upper of the refrigerating
chamber.
6

INSTRUCTIONFORUSAGE
If the refrigerator needs to be stopped for a long time, the
power plug should be removed, the power
should be cut off, and the refrigerator should be cleaned
according to the method described above. In general, do
not block up the refrigerator, otherwise it will affect the
service life of the refrigerator.
When the refrigerator is not in use, please open the door to
prevent the bad smell from the residue of the food in the
refrigerator.
The food that can be washed is best to be stored after
cleaning and drying.
The freezing drawer is used for storing something that need to
be preserved for a long time, such as meat, fish and so on.
Package the food to be frozen as flat as possible to facilitate
freezing and thawing.
After pulling off the power, it should be kept the refrigerator
at least 5 minutes apart before it is reenergized. vertically,
so that the storage period can be extended.
PRODUCT INTRODUCTION
PRODUCT INTRODUCTION
USAGE
MAINTENANCE AND CLEANING
Defrost
This product is frost-free refrigerator, and there is no
need for manual defrosting.
Cleaning
The refrigerator should be cleaned often to avoid
unpleasant smells.
Note: Do not spray the water directly when
cleaning, so as not to affect the insulation
performance of electrical components. Use a
dry rag when cleaning electrical components
such as switch and light.
Note:Do not use hard brushes, wire brushes,
detergents, gasoline, lacquer thinner, acetone
and other organic solvents, hot water or acid,
alkali to clean the refrigerator.
Before cleaning, you must remove
the plug.
Use a soft towel or sponge dipped in warm water (neutral
detergent can be added) to clean the cabinet except the
door seal. When the door seal is cleaned, you must use
rinsing and wipe it with dry cloth.
7

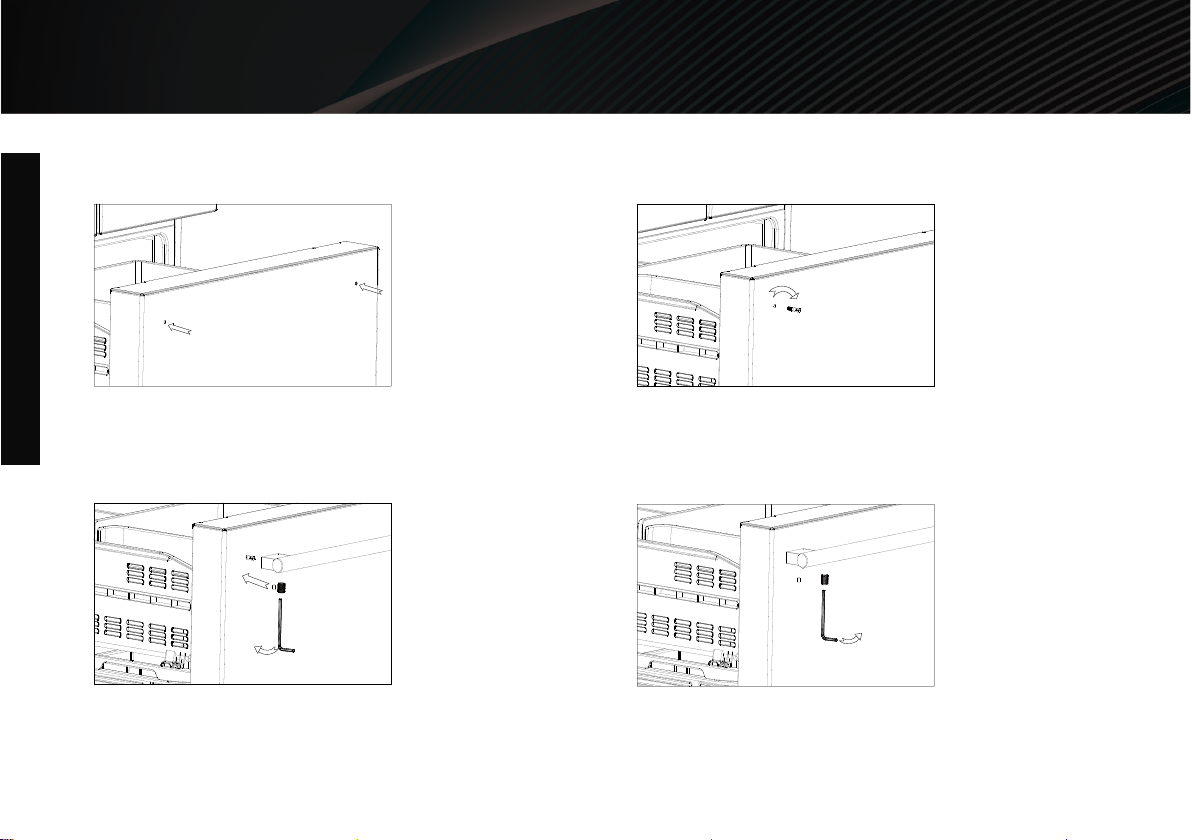

1. Before the refrigerator door handle is installed (note:
the anchor bolts of the handle are in the accessory
bag, and all steps should be performed at the right and
left two mounting positions simultaneously.
2. Screw the locating bolt into the bolt
hole of the door body and secure it.
3. Loosen the locking screw inside the handle part with a
hexagonal wrench first, then align the handle with the
positioning bolt and insert it into the positioning bolt
(note: the handle locking screw is installed facing down).
4. Wait until the handle fits perfectly with the door
body, and then use a hexagonal wrench to tighten
the locking screw inside the handle part.
DOOR HANDLE INSTALLATION
PRODUCT INTRODUCTION
PRODUCT INTRODUCTION
8

9
INSTRUCTION FOR USAGE
INSTRUCTION FOR USAGE
5. Finish installing the handle.
1. Place the tray above the mounting position and force the door
up to the bottom, completing the installation when it cannot
continue to move down.

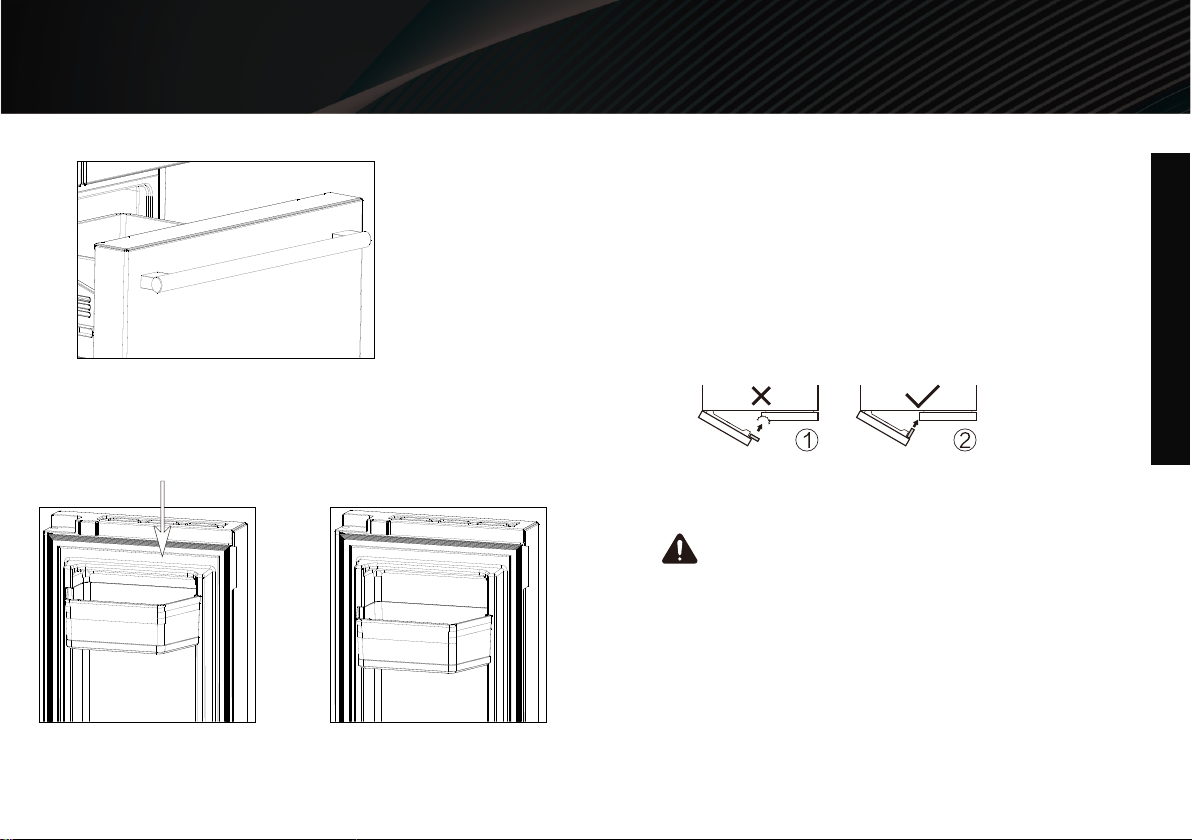

When the door mullion is positioned unfolded as
illustrated in figure 1, the door will not close properly.
Please fold the door mullion inside as shown in figure
2 before closing the door. In order to prevent
damage, do not try to close the door when the
mullion is unfolded as shown in figure 1.
Installing d tray off upward. oor bin:
Door Mullion
Notice: in order to prevent condensation,
the door mullion is provided with heater
for heating. Door mullion heating is
normal phenomenon and has no effect on
frozen food.

WARNING: Connect to potable water supply only.
CONNECT WATER SUPPLY (GLR16FS2K16)
What you need:
10
PRODUCT INTRODUCTION
1. Basic tools:adjustable wrench,flat blade screwdriver,and
Phillips TM screwdriver.
2. Access to a household cold water line with water pressure
between 20 and 120 psi.
3. A water supply line made of 1/4inch(6.4mm)OD, copper tubing,
PVC or Braided Stainless. To determine the length of connector
needed,you will need to measure the distance from the ice maker
inlet valve at the back of the refrigerator to your cold water pipe.
Then add approximately 7 feet(2.1 meters), so the refrigerator can
be moved out for cleaning.
4. A shutoff valve to connect the water supply line to your
household water system. DO NOT use a self-piercing type
shutoff valve.
5. A compression nut and ferrule(sleeve)for connecting the water
supply line to the ice maker inlet valve.
NOTE: Before making the connection to the refrigerator, be sure
that the refrigerator power cord is not plugged into the wall
outlet.
1. Place end of water supply line into sink or bucket. Turn On
water supply and flush supply line until water is clear. Turn OFF
water supply at shut off valve.
2. Remove the plastic flexible cap from the water valve inlet.
3. Place the compression nut and ferrule(sleeve) onto the end of
the tubing.
4. Insert the end of the water supply line into the connection as far as
possible. While holding the tubing, tighten the fitting.
5. Turn ON water supply at shutoff valve and tighten any
connections that leak.
water supply line
1/4"Comperession nut
Ferrule
(Sleeve)
Water inlet
Water valve
Plastic water tubing
to ice maker fill tube

After turning on your refrigerator, the ice will start
to be made between 12 and 24 hours.
The ice maker produces 3.5 lbs ice per day,
depending on the temperature of the
freezer, the times in which the door opens,
and other conditions (amount of food
in the freezer, etc).
In order to turn on/off the ice maker, press
the power button for 2 seconds.
Power Button
Sensor
The ice maker wil ll up (and start making ice) between 12 and 24
hours after the refrigerator is turned on.
Throw away th rst batch of ice. Make sure that nothing
interferes with the sensor.
When the ice reaches the sensor, the ice maker will stop making
ice immediately.
It’s normal that some ice gets stuck. If the ice is not used
frequently, the older cubes of ice will be opaque in color, smaller,
and with a strang avor.
The ice maker is not producing ice or not
enough ice.
- If it is new installation. Wait 12 to 24 hours after
icemaker installation for ice production to begin. It will
take 72 hours for full ice production.
- Check if the refrigerator is connected to a water supply
or the supply shut off valve is turned on.
-Reverse osmosi ltration systems can reduce the water
pressure below the minimum amount and result in
icemaker issues.
-A kink in the line can reduce wateow. Straighten the
water source line.
-Con rm ice maker is in the ON position.
-The recommended temperature for the freezer
compartment for normal ice
production is 0°F. If the freezer temperature is warmer, ice
production will be affected.
-If the doors are not properly closed, ice production will
be affected.
Ice Maker (on some models)
USAGE
11
USAGE

INSTRUCTION FOR USAGE
NSTRUCTION FOR USAGE
BUTTONINSTRUCTIONOFDISPLAY
The below picture is a schematic diagram of an electronic
display.
Button instruction
“Fridge” button: adjust the setting temperature of refrigerating
chamber (press down is effective).
“Freezer” button: adjust thesetting temperature of freezing
chamber (press down is effective).
“Select”button: with eachclick (within 5 seconds), the
corresponding function icon flickers, and then switch among
quick freezing- intelligence successively (press
down is effective). No operationwithin 5 seconds will end.
Warning: The temperature will be set finally and
the flash will disappear without setting operation
over 5 seconds.
The LED display turns bright when the door is open. Push the
“Fridge” button. The buzzer rings. Then the refrigerating room
turns into the setting condition. The temperature patterns turns
flash and the temperature of the refrigerating room increase 1.
The temperature will recyclesas “33”—“45”.
THE SETTING OF THE FREEZING ROOM
The LEDdisplay turns bright when the door isopen. Push the
'freezer' button. The buzzer rings. Then the freezing room turns
into thesetting condition. The temperature turns flash and the
temperature of the freezing room increase 1. It will recycle from
“5” — “-8”.
Warning: The temperature will be set successfully
and the flash will disappear if stop setting over 5
seconds.
12
Function mode
area di splay
F ri dge button F re ezer button Select bu tton
F reezing temperature
di splay
Refr ige ration
te mpe ra ture display
THE SETTING OF THE REFRIGERATOR COMPARTMENT

INSTRUCTION FOR USAGE
Entering the smart mode: Push the “Select” button.
When the smart pattern turns bright, it is in the smart mode.
Flashing 5 times
Exiting the smart mode: Push the “Select” button.
When the smart pattern disappears, it is exiting the smart
mode.
Disappear
The zone shown is for humidity adjustment. Users can
slide the module left or right in accordance with the food
situation. When the module locates in the "LOW" side,
the humidity is low in crisper. When the module locates
in the "HIGH" side, the humidity is high in crisper.
Warning:Push the “Select” button, exit the smart mode,
and all selects pattern disappear, then it exit the setting
of select modes. regulate the temperature automatically.
The setting of the functions
The LED display turns bright when the door is open. Push
the “Select” button.
Then it turns into the condition of setting functions.
Entering the quick freezing mode: Push the “Select” button.
When the quick freezing pattern turns bright, it is
in the quick freezing mode.
Flashing 5 times
Exiting the quick freezing mode: Push the “Select” button.
When the quick freezing pattern disappears, it is exiting the
quick freezing mode.
Disappear
Note: In quick freezing mode, the temperature of freezer room
is fixed at low temperature, and it cannot be regulated. It will
exit the quick freezing mode within 24 hours after finishing
freezing.
INSTRUCTION FOR USAGE
13
Note:In the smart mode, the temperature of
refrigerator and freezer change asthe
change of the environmental temperature and
regulate the temperature automatically.

INSTRUCTION FOR USAGE
INSTRUCTION FOR USAGE

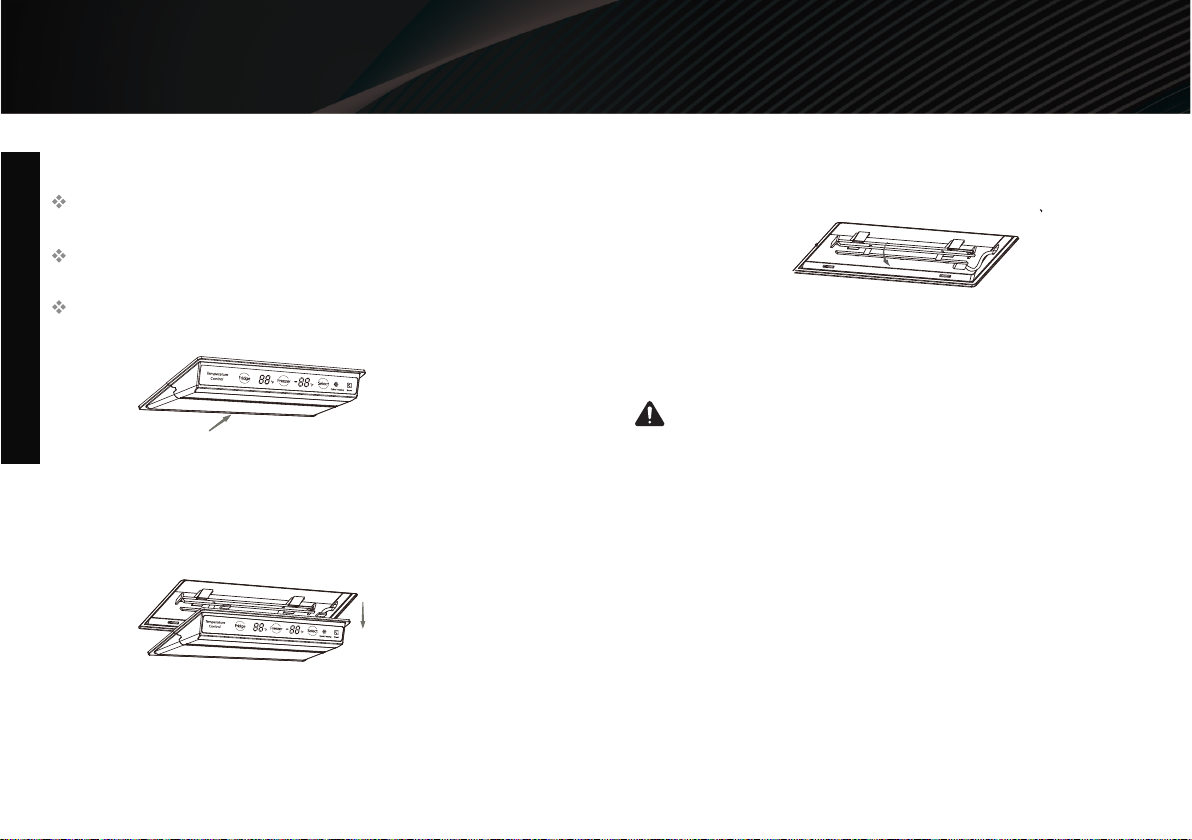

1.Please move the lampshade and the thermostat out 3-5mm
in the direction of the arrow.
2.Take out the lamp shade and thermostat downwards.
the arrow.
3.Pull the connection terminal, use the screwdriver to remove
the LED light board and replace it.
Note:If the LED lamp is abnormal, it should be
replaced by professionals. Do not take dismantling
and replace it privately in order to avoid damage.
14
LIGHTING AND ITS REPLACEMENT
When the door of refrigerating chamber opens, the LED light
turns on.
When the lighting is damaged, please remove the lampshade
first and then replace the LED lighting.
The specific operations are shown in the following diagram:

15
TROUBLESHOOTINGS
TROUBLESHOOTINGS
Compressor runs for a long time.
This is a normal phenomenon for a long time operation
when used for the first time.
Put a large number of food that needs to be
refrigerated or frozen at a time.
The weather is hot and the environment temperature
is too high.
Open the refrigerator door frequently.
The refrigerator door is not closed tightly.
Low temperature is set.
The refrigerator is noisy when running.
A part of the refrigerator is whether exposed to
external objects or walls.
Is the refrigerator power connected (plugs,
sockets, insurance, etc.)?
Lighting doesn't work.
Is the floor flat? Does the refrigerator place stably?
The refrigerator doesn't work.
Is the refrigerator power connected (plugs,
sockets.)?
Is the supply voltage too low?
Is the odorous food wrapped tightly?
Check whether there is any spoiled food.
The interior of the refrigerator needs cleaning.
Door not closed tightly, frequent opening of the
door, door left open for too long, air outlet is blocked
by food.
The position of refrigerator is either under the direct
sunlight or near the stove, heater and other heat
producing appliances.
Poor ventilation, the sides or backboard blocked by
something or too dirty of the cabinet.
Setting the temperature too high will cause the temperature
inside the cabinet not to be low enough.
There is an unusual smell in the refrigerator.
The temperature inside the cabinet is not low enough.
Is LED lamp (bulb) damaged?
Note: If detected by the above method, your
refrigerator is still abnormal, please contact our
after-sales service department or local
authorized maintenance department in time.

SPECIFICATIONS AND PARAMETERS
SPECIFICATIONS AND PARAMETERS
16
SPECIFICATIONS AND PARAMETERS
Climate class
Electric shock protection type
Capacity( cu.ft)
Voltage( V)
Frequency( Hz)
Current( A)
Voice [dB(A)]
T
I
120
60
1.3
<42
16
Freezer
Refrigerant
Weight( lbs)
Interior
temperature (ºF)
Di mension( inch)
Width
Depth
Height
Refrigerator
R600a/2.3oz
187
33~45
28.35
31.10
70.00
5 ~ -8

PACKING LIST
PACKING LISTS
17
Parts
Shelf bar
Glass shelf
Freezer upper drawer
Freezer lower drawer
Crisper
Number
6pcs
3pcs
Ice Bucket 1pcs
Owner's manual 1pcs
1pcs
1pcs
2pcs

LIMITED WARRANTY
LIMITED WARRANY
1
owner’ s manual.
For 12 months from the date of original retail purchase, Galanz will
repair or replace any part free of charge, including labor, that fails
due to a defect in materials or workmanship. Galanz may replace or
