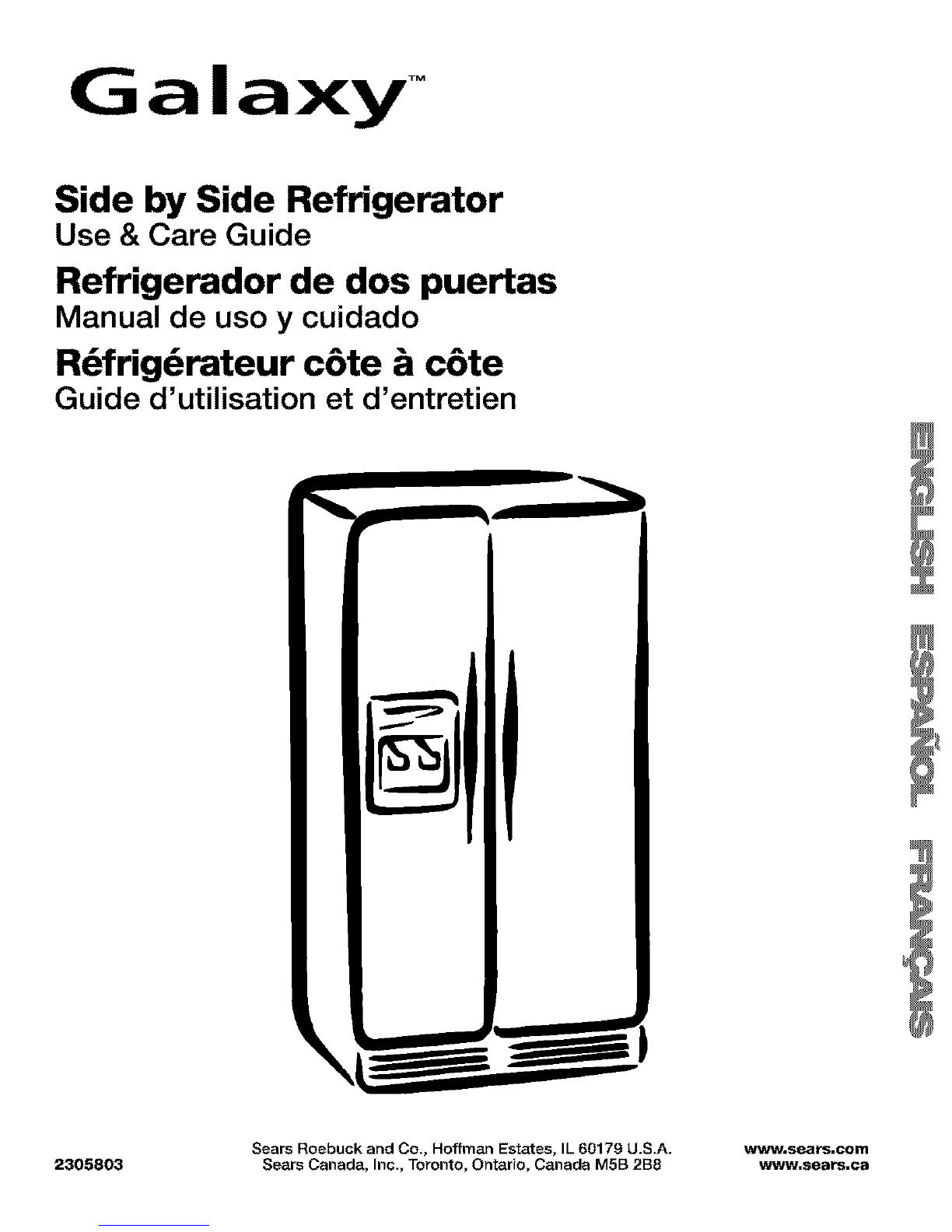

Galaxy Galaxy Side by side refrigerator User manual

Gal
Side by Side Refrigerator
Use & Care Guide
Refrigerador de dos puertas
Manual de uso y cuidado
Rdfrig_mteur c6te &c6te
Guide d'utilisation et d'entretien
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
2305803 Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B6 www.sears.ca

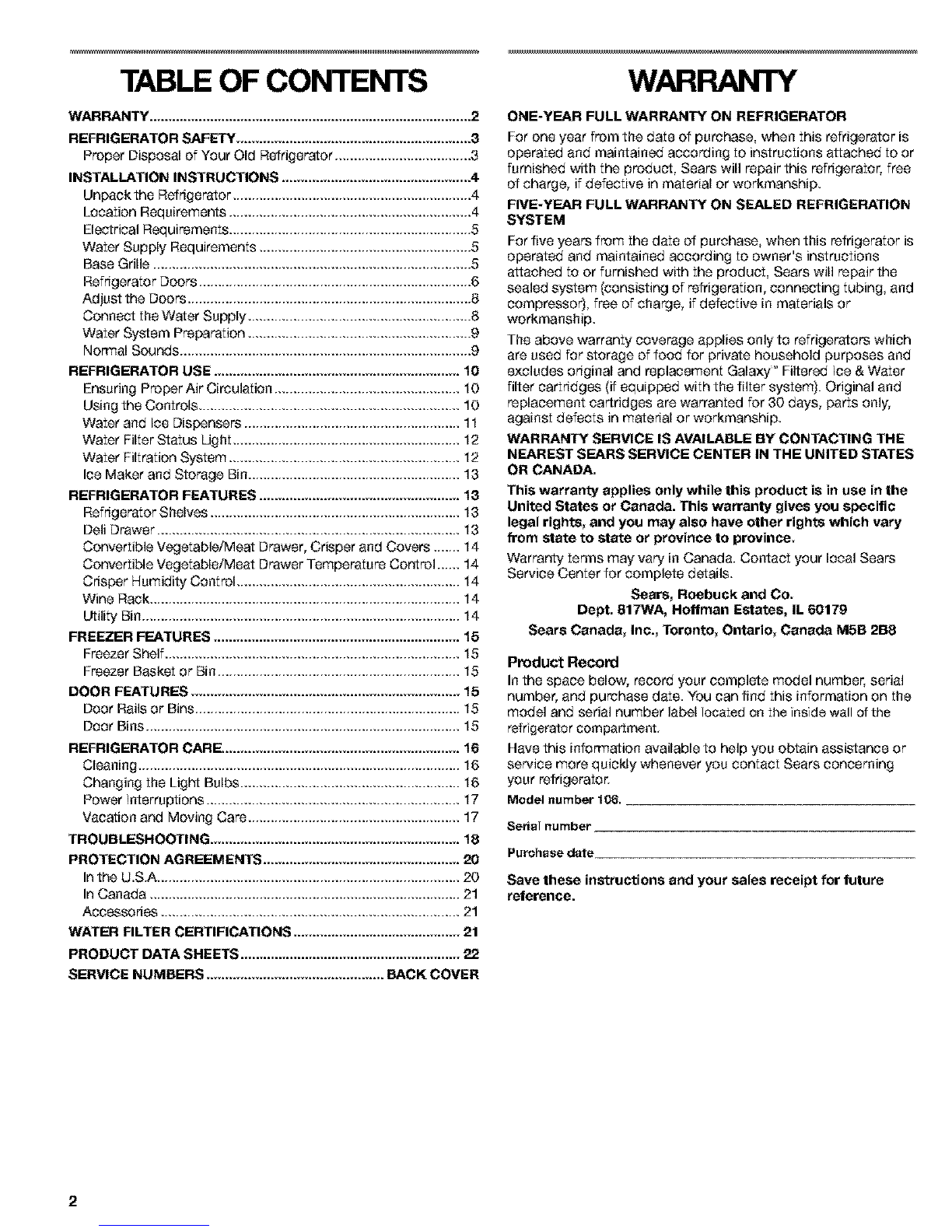

TABLE OF CONTENTS
WARRANTY ..................................................................................... 2
REFRIGERATOR SAFETY .............................................................. 3
Proper Disposal of Your Old Refrigerator .................................... 3
INSTALLATION INSTRUCTIONS .................................................. 4
Unpack the Refrigerator ............................................................... 4.
Location Requirements ................................................................ 4
Electrical Requirements ................................................................ 5
Water Supply Requirements ........................................................ 5
Base Grille .................................................................................... 5
Refngerator Doors ........................................................................ 6
Adjust the Doors ........................................................................... 8
Connect the Water Supply ........................................................... 8
Water System Preparation ........................................................... 9
Normal Sounds ............................................................................. 9
REFRIGERATOR USE ................................................................. 10
Ensuring Proper Air Circulation ................................................. 10
Using the Controls ..................................................................... 10
Water and Ice Dispensers ......................................................... 11
Water Filter Status Light ............................................................ 12
Water Filtration System ............................................................. 12
Ice Maker and Storage Bin........................................................ 13
REFRIGERATOR FEATURES ..................................................... 13
Refngerator Shelves .................................................................. 13
Dell Drawer ................................................................................ 13
Convertible Vegetable/Meat Drawer, Crisper and Covers ....... 14
Convertible Vegetable/Meat Drawer Temperature Control ...... 14
Cnsper Humidity Control ........................................................... 14
Wine Rack .................................................................................. 14
Utility Bin.................................................................................... 14
FREEZER FEATURES ................................................................. 16
Freezer Shelf .............................................................................. 15
Freezer Basket or Bin ................................................................ 15
DOOR FEATURES ....................................................................... 15
Door Rails or Bins ...................................................................... 15
Door Bins ................................................................................... 15
REFRIGERATOR CARE ............................................................... 16
Cleaning ..................................................................................... 16
Changing the Light Bulbs .......................................................... 16
Power Interruptions ................................................................... 17
Vacation and Moving Care ........................................................ 17
TROUBLESHOOTING .................................................................. 18
PROTECTION AGREEMENTS .................................................... 20
Inthe U.S.A ................................................................................ 20
In Canada .................................................................................. 21
Accessones ............................................................................... 21
WATER FILTER CERTIFICATIONS ............................................ 21
PRODUCT DATA SHEETS .......................................................... 22
SERVICE NUMBERS ............................................... BACK COVER
WARRANTY
ONE-YEAR FULL WARRANTY ON REFRIGERATOR
For one year from the date of purchase, when this refrigerator is
operated and maintained according to instructions attached to or
furnished with the product, Sears will repair this rafdgerator, free
of charge, if defective in material or workmanship.
FIVE-YEAR FULL WARRANTY ON SEALED REFRIGERATION
SYSTEM
For five years from the date of purchase, when this refrigerator is
operated and maintained according to owner's instructions
attached to or furnished with the product, Sears will repair the
sealed system (consisting of refrigeration, connecting tubing, and
compressor), free of charge, if defective in materials or
workmanship.
The above warranty coverage applies only to refrigerators which
are used for storage of food for private household purposes and
excludes odginal and replacement Galaxy _Filtered Ice & Water
filter cartndges (ff equipped with the filter system). Original and
replacement cartridges are warranted for 30 days, parts only,
against defects in matedal or workmanship.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE
NEAREST SEARS SERVICE CENTER IN THE UNITED STATES
OR CANADA.
This warranty applies only while this product is in use in the
United States or Canada. This warranty gives you specific
legal rights, and you may also have other rights which vary
from state to state or province to province.
Warranty terms may vary in Canada. Contact your local Sears
Service Center for complete details.
Sears, Roebuck and Co.
Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada, Inc., Toronto, Ontario, Canada MSB 2B8
Product Record
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label located on the inside wall of the
refrfgerafor compartment.
Nave this infomnation available to help you obtain assistance or
service more quickly whenever you contact Sears concerning
your refrigerator.
Model number 106,
Serial number
Purchase date
Save these instructions and your sales receipt for future
reference.
2

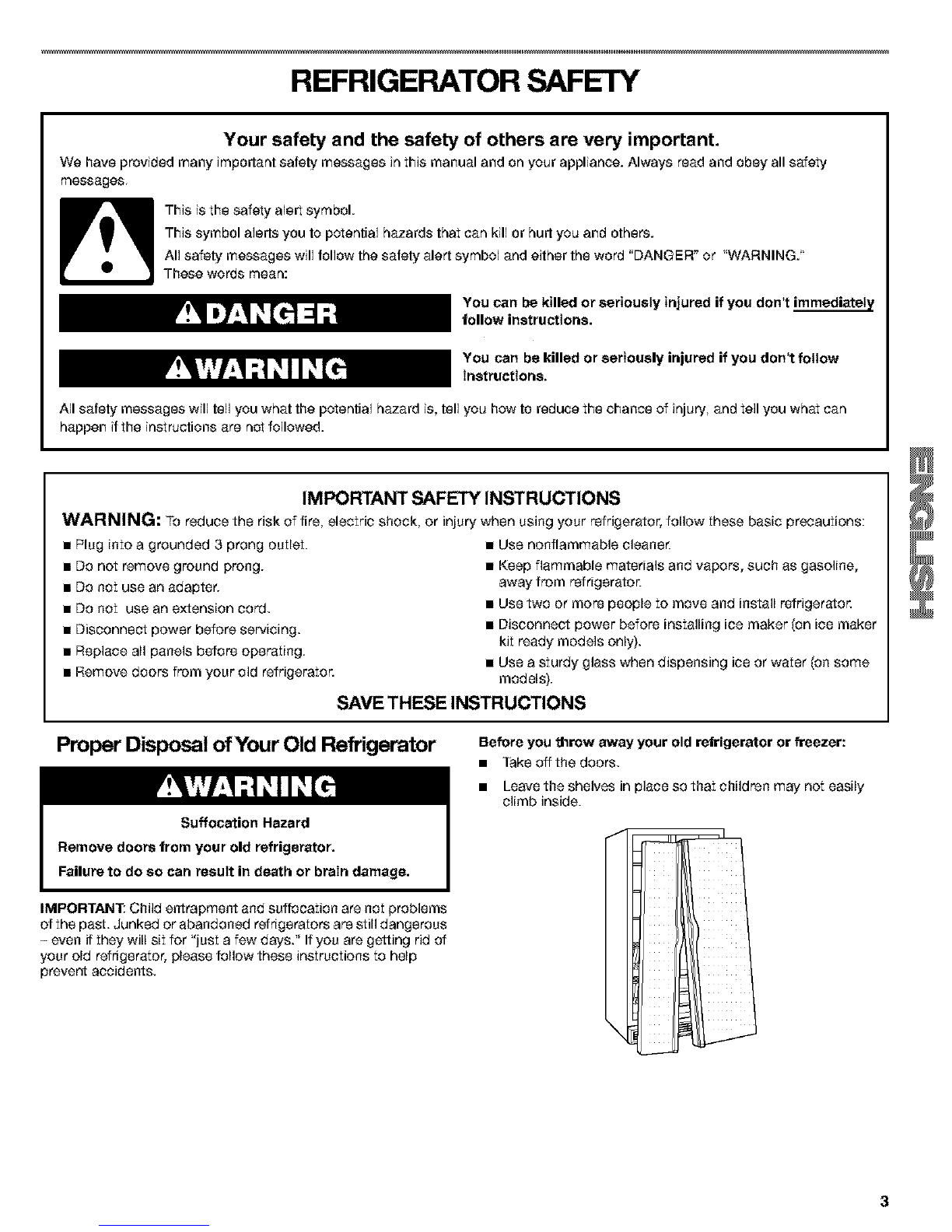

REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages,
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and ethers.
All safety messages will fellow the safety alert symbol and either the word "DANGER _ or "WARNING.'
These words mean:
You can be killed or seriously injured if you don't immediatel_t
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are net followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
•Plug into a grounded 3 prong outlet.
•DO not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
•Disconnect power before semicing.
• Replace all panels before operating.
• Remove doors from your old refrigerator.
iUse nonflammable cleaner.
i Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
i Use two or more people to move and install refrigerator.
i Disconnect power before installing ice maker (on ice maker
kit ready models only).
i Use a sturdy glass when dispensing ice or water (on some
models).
SAVE THESE INSTRUCTIONS
Proper Disposal ofYour Old Refrigerator Before you "_row away your old refrigerator or freezer:
•Take off the doors.
•Leave the shelves in place so that children may not easily
climb inside.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." Ifyou are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.

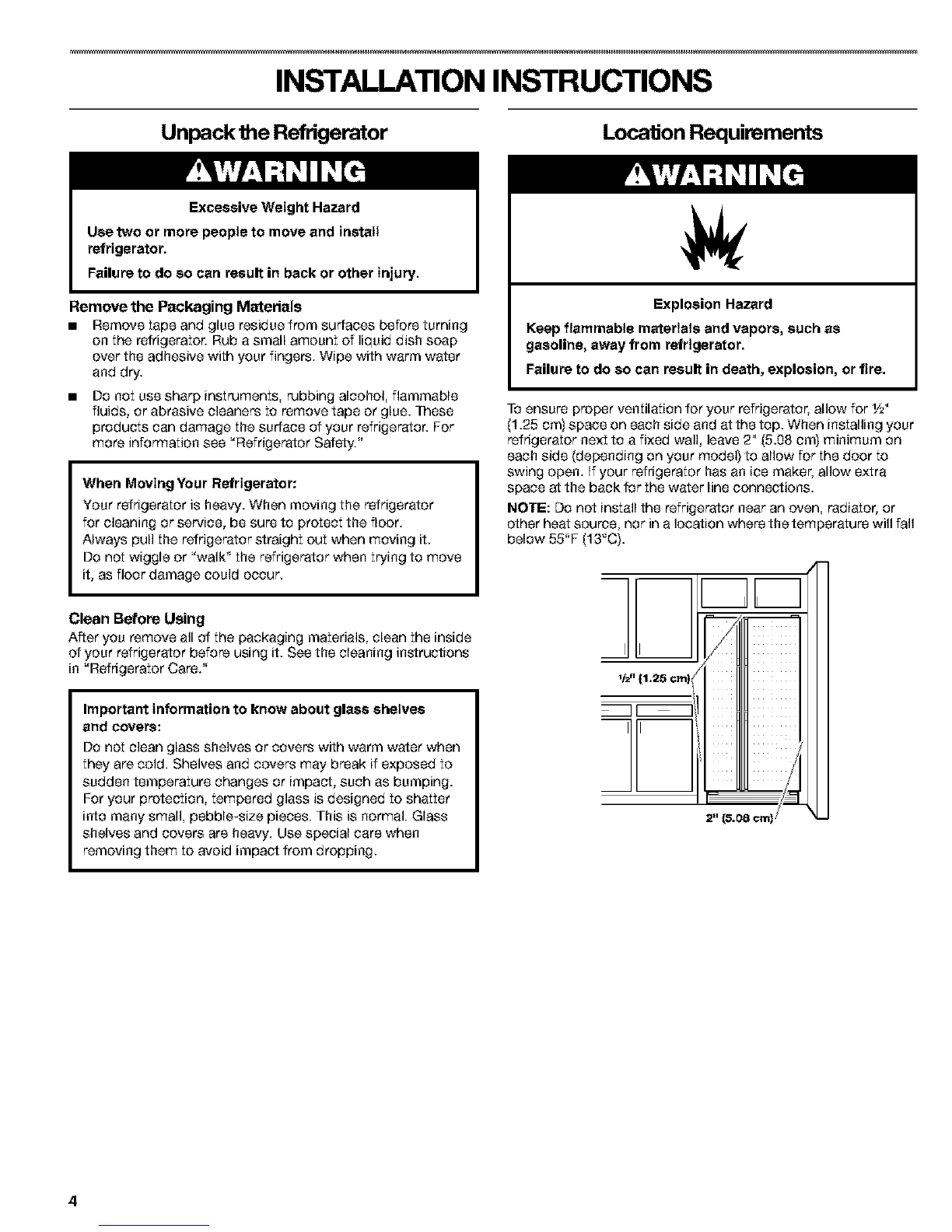

INSTALLATION INSTRUCTIONS
Unpack the Refrigerator Location Requirements
Remove the Packaging Materials
• Remove tape and glue residue from surfaces before turning
on the refrigerator. Rub asmall amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information see "Refrigerator Safety."
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator
for cleaning or service, be sure to protect the floor.
Always pull the refrigerator straight out when moving it.
Do not wiggle or "walk" the refrigerator when trying to move
it, as floor damage could occur.
Clean Before Using
After you remove all of the packaging materials, clean the inside
of your refrigerator before using it. See the cleaning instructions
in "Refrigerator Care."
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when
removing them to avoid impact from dropping.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
To ensure proper ventilation for your refrigerator, allow for 1/£,,
(1.25 cm) space on each side and at the top. When installing your
refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on
each side (depending on your model) to allow for the door to
swing open. If your refrigerator has an ice maker, allow extra
space at the back for the water line connections.
NOTE: Do not install the refrigerator near an oven, radiator, or
other heat source, nor in a location where the temperature will fall
below 55"F (13°C).
JL
II_' {1.;;_5 ore} (// IIIIII
iIIIIII /
2" (5.08 _ml
4

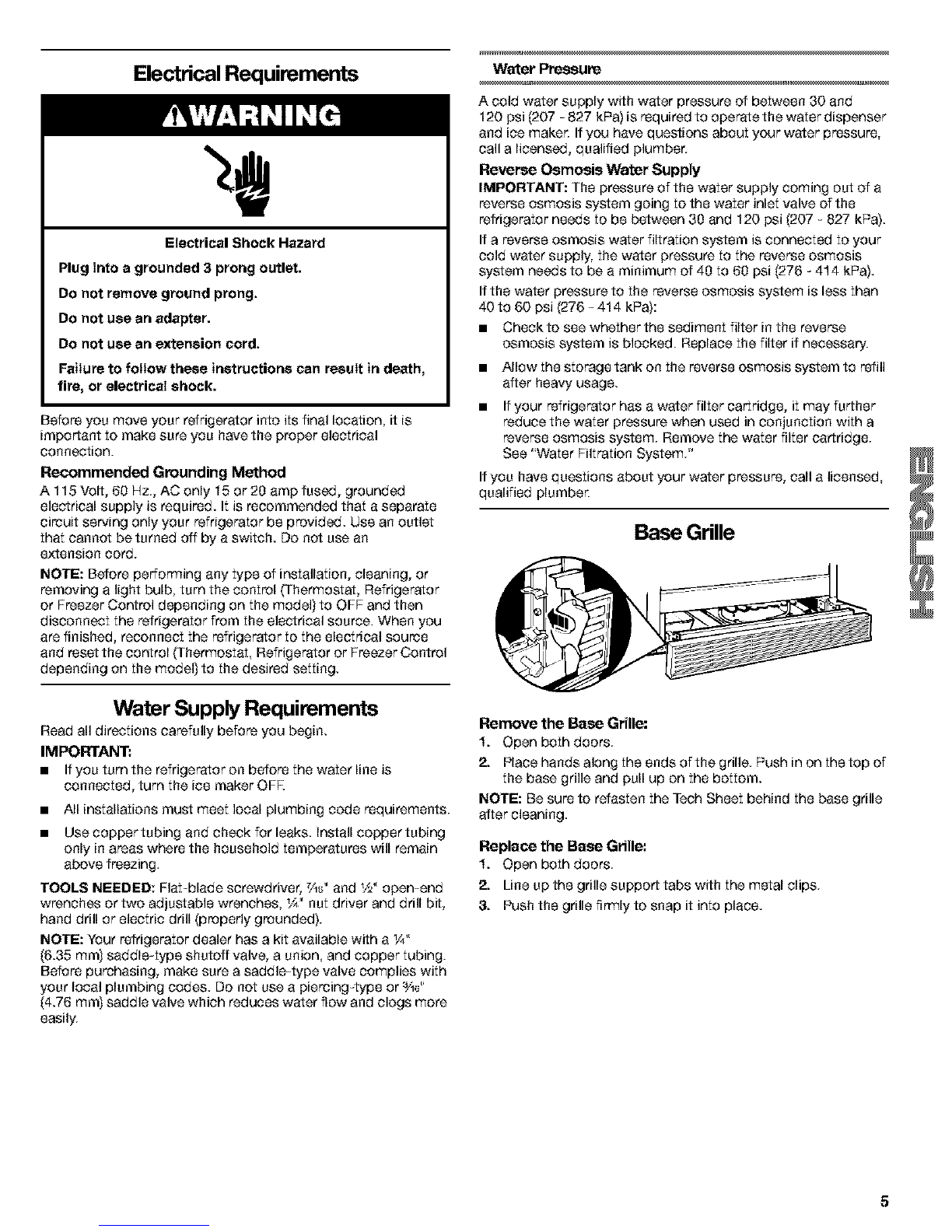

Electrical Requirements
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical
connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the control (Thermostat, Refrigerator
or Freezer Control depending on the model) to OFF and then
disconnect the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting.
Water Supply Requirements
Read all directions carefully before you begin.
IMPORTANT:
• If you turn the refrigerator on before the water line is
connected, turn the ice maker OFF.
• All installations must meet local plumbing code requirements.
•Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain
above freezing.
TOOLS NEEDED: Flat-blade screwdriver, _s" and W' open-end
wrenches or two adjustable wrenches, _A"nut driver and drill bit,
hand drill or electric drill (properly grounded).
NOTE: Your refrigerator dealer has a kit available with a 1/;¢,
(6.35 ram) saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, make sure a saddle-type valve complies with
your local plumbing codes. Do not use a piercing-type or %d'
(4.76 ram) saddle valve which reduces water flow and clogs more
easily.
Water Pressure
A cold water supply with water pressure of between 30 and
120 psi (207 - 827 kPa) is required to operate the water dispenser
and ice maker. Ifyou have questions about your water pressure,
call a licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi (207 - 827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 - 414 kPa).
Ifthe water pressure to the reverse osmosis system is less than
40 to 60 psi (276 - 414 kPa):
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
•If your refrigerator has a water filter cartridge, it may further
reduce the water pressure when used in conjunction with a
reverse osmosis system. Remove the water filter cartridge.
See "Water Filtration System."
Ifyou have questions about your water pressure, call a licensed,
qualified plumber.
Base Grille
Remove the Base Grille:
1. Open both doors.
2. Place hands along the ends of the grille. Push in on the top of
the base grille and pull up on the bottom.
NOTE: Be sure to refasten the Tech Sheet behind the base grille
after cleaning.
Replace the Base Grille:
1. Open both doors.
2. Line up the grille support tabs with the metal clips.
& Push the griUe firmly to snap it into place.

Refrigerator Doors
TOOLS NEEDED: _/&"hex=head socket wrench, _Ad' hex=head socket wrench and a flat-blade screwdriver.
IMPORTANT: Before you begin, turn the refrigerator control OFK Unplug refrigerator or disconnect power. Remove food and any
adjustable door or utility bins from doors.
NOTE: It may only be necessary to remove either the door handle or the doors to get your product through the doorway of your home.
Measure the doorway to see whether you need to remove the refrigerator handles or the doors.
Top Left Hinge
A. Do Not Remove Screw
Water Dispenser
Tubing Connection
I
A. Red Outer Ring
Base Grille
Door Removal
I
/
Level
I
Door Alignment
Top Right Hinge
A, Do Not Remove Screw
Handle
Removal
(Optional)
Bottom Hinge
A. Do Not
Remove Screw
Front Leveling
6

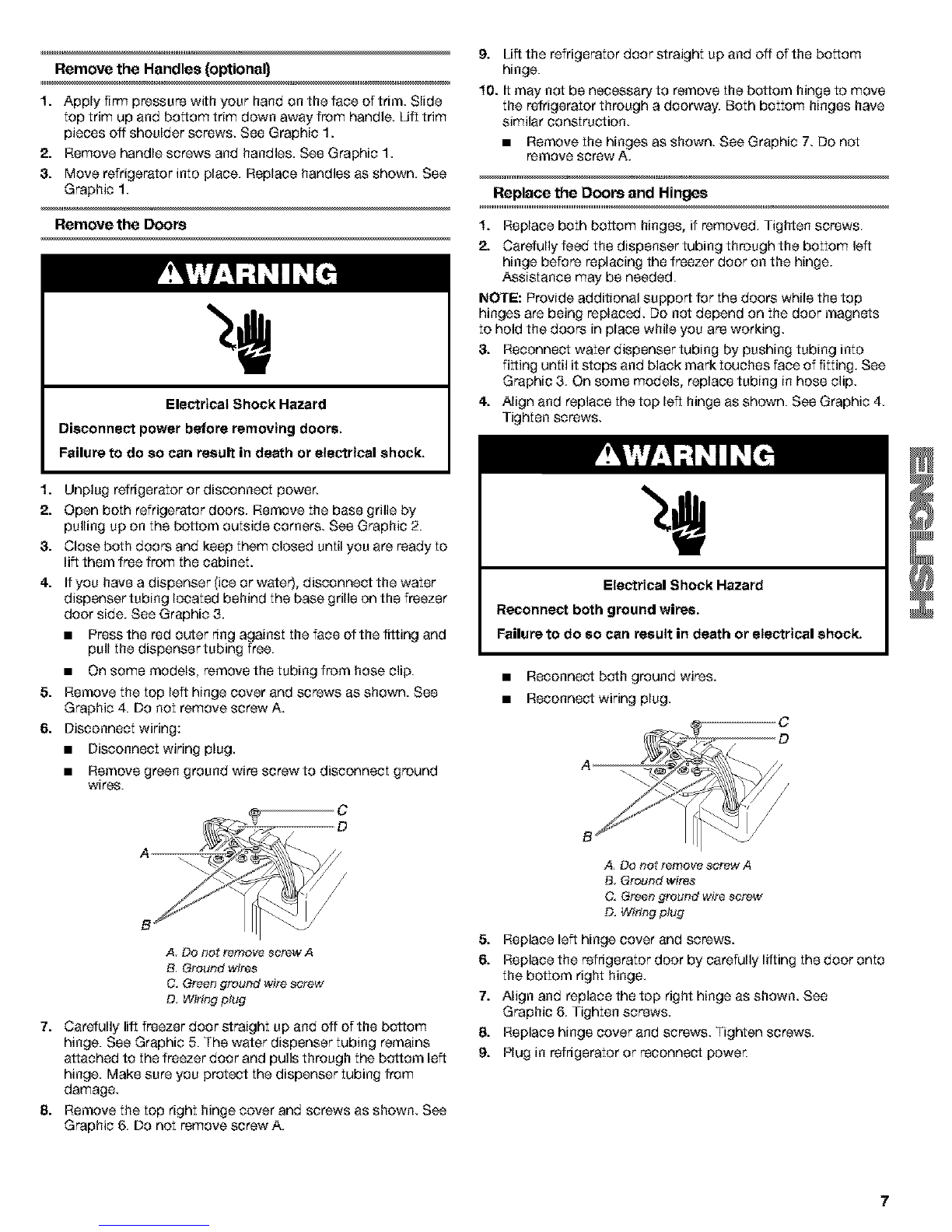

Remove the Handles {optional)
1. Apply fimn pressure with your hand ee the face of trim. Slide
top trim up and bottom trim down away from handle. Lift trim
pieces off shoulder screws. See Graphic 1.
2. Remove handle screws and handles. See Graphic 1.
& Move refrigerator into place. Replace handles as shown. See
Graphic 1.
9. Lift the refrigerator deer straight up and off of the bottom
hinge.
10. It may not be necessary to remove the bottom hinge to move
the refrigerator through a doorway. Both bottom hinges have
similar construction.
•Remove the hinges as shown. See Graphic 7. Do not
remove screw A.
Replace the Doors and Hinges
Remove the Doors
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
1. Replace both bottom hinges, if removed. Tighten screws.
2. Carefully feed the dispeneer tubing threegh the bottom left
hinge before replacing the freezer door on the hinge.
Assistance may be needed.
NOTE: Provide additional support for the doors while the top
hinges are being replaced. Do not depend on the door magnets
to hold the doors in place while you are working.
& Reconnect water dispenser tubing by pushing tubing into
fitting until it stops and black mark touches face of fitting. See
Graphic 3. On some models, replace tubing in hose clip.
4. Align and replace the top left hinge as shown. See Graphic 4.
Tighten screws.
1. Unplug refrigerator or disconnect power.
2. Open both refrigerator doors. Remove the base grille by
pulling up on the bottom outside corners. See Graphic 2.
& Close both doors and keep them closed until you are ready to
lift them free from the cabinet.
4. If you have a diepeneer (ice or water), disconnect the water
dispenser tubing located behind the base grille on the freezer
door side. See Graphic 3.
• Press the red outer ring against the face of the fitting and
pull the dispenser tubing free.
•On some models, remove the tubing from hose clip.
5. Remove the top left hinge cover and screws as shown. See
Graphic 4. Do not remove screw A.
6. Disconnect wiring:
• Disconnect wiring plug.
• Remove green ground wire screw to disconnect ground
wires.
C
A
ADO not remove screw A
B, Ground wires
C. Green ground wire screw
D. Wiring plug
7. Carefully lift freezer door straight up and off of the bottom
hinge. See Graphic 5. The water dispenser tubing remains
attached to the freezer door and pulls through the bottom left
hinge. Make sure you protect the dispenser tubing from
damage.
8. Remove the top right hinge cover and screws as shown. See
Graphic 6. Do not remove screw A.
Electrical Shock Hazard
Reconnect both ground wires.
Failure to do so can result in death or electrical shock.
Reconnect beth ground wires.
Reconnect wiring plug. C
A, Do nor remove _crew A
BGround wire_
C. Green ground wire screw
D. Wiling plug
5. Replace left hinge cover and screws.
6. Replace the refrigerator door by carefully lifting the door onto
the bottom right hinge.
7. Align and replace the top right hinge as shown. See
Graphic 6. Tighten screws.
8. Replace hinge cover and screws. Tighten screws.
9. Plug in refrigerator or reconnect power

Adjust the Doors
Door Closing
1. Move the refrigerator into its final position.
2. Place a level inside the refrigerator at the back of the top
shelf. See Graphic 8.
8. Locate the leveling screws behind the base grille of the
refrigerator on either side.
4. Use a hex-head socket wrench to adjust the rear roller
leveling screws until the refrigerator is level. Turn the rear
roller leveling screw to the right to raise that side of the
refrigerator or turn the leveling screw to the left to lower that
side. See Graphic 10. Make sure refrigerator is level before
proceeding.
5. Cheek the deer alignment efter leveling the rofrigerator.
Align the Doors
IMPORTANT: First level the back of the refrigerator as described
in "Door Closing."
The doors may be uneven after leveling the refrigerator. See
Graphic 9. The doors are preset at the factory so that the
refrigerator door is higher than the freezer door by approximately
the thickness of a quarter. Once the doors are loaded with food,
they should be even. if the door height needs to be adjusted
AFTER the doors have been loaded with food, follow the these
steps.
1. Use a hex-head socket wrench to adjust the front roller
leveling screws until the doors are even. Turn the front roller
leveling screw to the right to raise that side of the refrigerator
or turn the leveling screw to the left to lower that side. See
Graphic 10.
NOTE: Open and close both the refrigerator and freezer
doors after each adjustment to check the door alignment.
2. Open the doors and replace the base grille. Line up the grille
support tabs with the metal clips. Push the grille firmly to
snap it into place.
NOTE: Be sure to refasten the Tech Sheet behind the base
grille.
Connect the Water Supply
Read all directions before you begin.
IMPORTANT: If you turn the refrigerator on before the water line
is connected, turn the ice maker OFK
Connect to Water Une
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
& Locate a _" to 1_A"(1.25 cm to 3.18 ore) vertical cold water
pipe near the refrigerator.
IMPORTANT:
• Make sure it is a cold water pipe.
•Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.
4. Determine the length of copper tubing you need. Measure
from the connection on the lower left rear of refrigerator to the
water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/_,,
(6.35 ram) O.D. (outside diameter} copper tubing. Be sure
both ends of copper tubing are cut square.
5. Using a grounded drill, drill a %" hole in the cold water pipe
you have selected.
j_A
"_ JO
A. Cold we_er pipe
B. P_pe clamp
C. Copper tubing
D. Compreeeion nut
E. Compreeeion eleeve
F_Shutoff valve
&Packing nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the %" drilled hole
in the water pipe and that the washer is under the pipe clamp.
Tighten the packing nut. ]]ghten the pipe clamp screws
carefully and evenly so washer makes a watertight seal. Do
not overtighten or you may crush the copper tubing.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten.
8. Place the free end of the tubing in a ceetainer or sink, and
turn ON the main water supply. Flush the tubing until water is
clear. Turn OFF the shutoff valve on the water pipe. Coil the
copper tubing.
Connect to Refngerator
Style 1
1. Unplug refrigerator or disconnect power.
2. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. DO
not overtighten.
8. Uee the tube clamp ee the back of the refrigerator to seeura
the tubing to the refrigerator as shown. This will help prevent
damage to the tubing when the refrigerator is pushed back
against the wall.
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any conneetions (including
connections at the valve} or nuts that leak.
B
C
D
A. Tube clamp
B, Copper tubing C Compressio# nut
D, Valve inlet
6. The ice maker is equipped with a built4n water strainer. If
your water conditions require a second water strainer, install
it in the _/_"(6.35 ram) water line at either tube connection.
Obtain a water strainer from your nearest appliance dealer.
7. Plug in refrigerator or reconnect power.
8. Flush the water system. See "Water System Preparation."
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to
completely fill ice container.
8

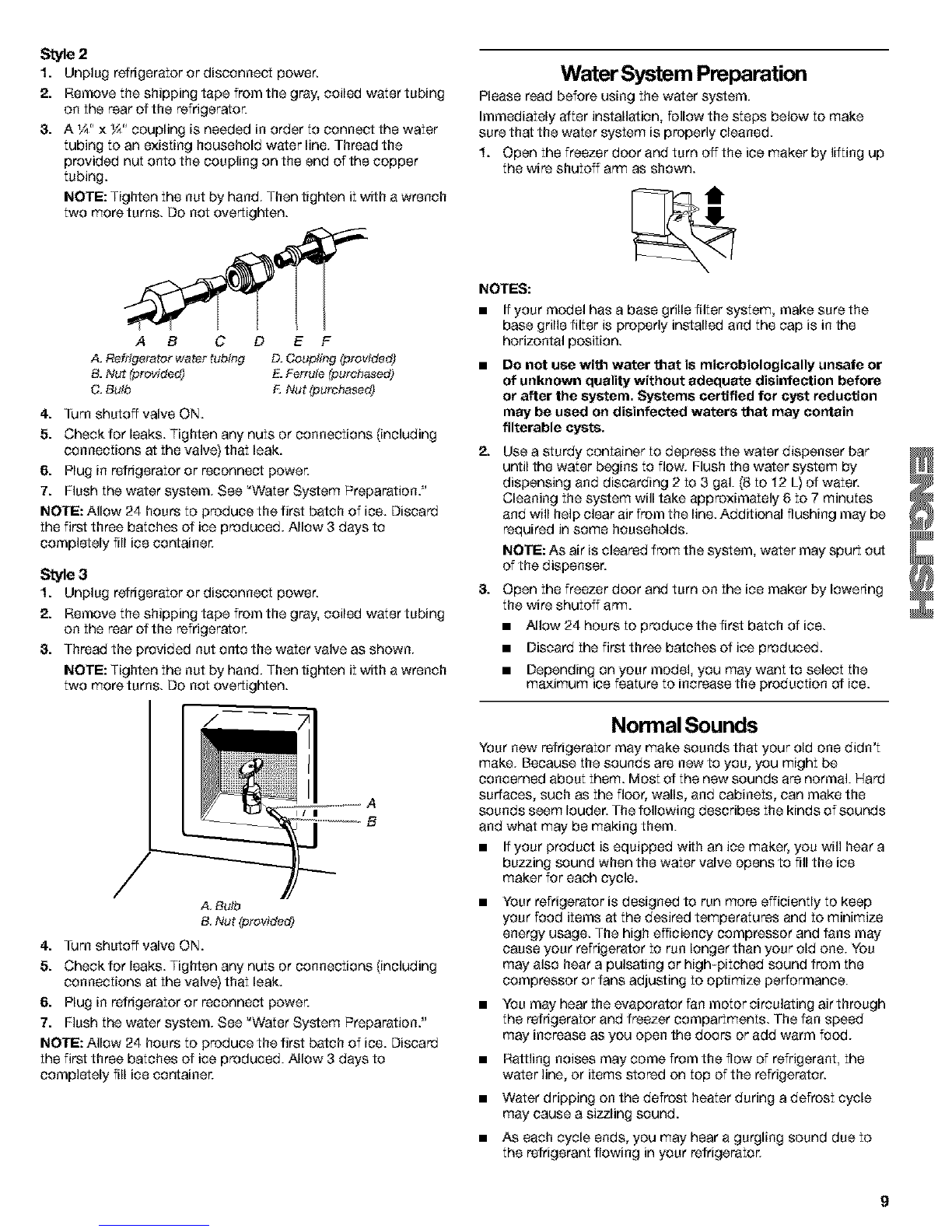

Style2
1. Unplug refrigerator or disconnect power.
2. Remove the shipping tape from the groy, coiled water tubing
on the roar of the refrigerator.
& A _A"x 1A,,coupling is needed in order to connect the water
tubing to an existing household water line. Thread the
provided nut onto the coupling on the end of the copper
tubing.
NOTE: Tighten the nut by hand. Then tighten it with a wrench
two more turns. Do not overtighten.
A B CD E F
A. Refrigerator water tubing D. Coupfing (provided)
B. Nut (provided) E.Ferrule (puroha._e_}
C. Bulb F.Nut (purchased)
4. Turn shutoff valve ON.
5. Cheek for leaks. Tighten any nuts or ceeneetions (including
connections at the valve) that leak.
6. Plug in refrigerator or reconnect power.
7. Flush the water system. See "Water System Preparation."
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to
completely fill ice container.
Style3
1. Unplug refrigerator or disconnect power.
2. Remove the shipping tape from the groy, coiled water tubing
on the roar of the refrigerator.
& Thread the provided nut onto the water valve as shown.
NOTE: Tighten the nut by hand. Then tighten it with a wrench
two more turns. Do not overtighten.
A
A Bulb
B Nut (provided)
4. Turn shutoff valve ON.
5. Cheek for leaks. Tighten any nuts or ceeneetions (including
connections at the valve) that leak.
6. Plug in refrigerator or reconnect power.
7. Flush the water system. See "Water System Preparation."
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to
completely fill ice container.
Water System Preparation
Please read before using the water system.
Immediately after installation, follow the steps below to make
sure that the water system is properly cleaned.
1. Open the froezer door and turn off the ice maker by liftieg up
the wire shutoff arm as shown.
NOTES:
• If your model has a base grille filter system, make sure the
base grille filter is properly installed and the cap is in the
horizontal position.
Do not usa wi'dl water "dlatis microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters _at may contain
filterable cysts.
2. Use a sturdy container to depress the water dispenser bar
until the water begins to flow. Flush the water system by
dispensing and discarding 2 to 3 gal. (8 to 12 L) of water.
Cleaning the system will take approximately 6 to 7 minutes
and will help clear air from the line. Additional flushing may be
required in some households.
NOTE: As air is cleared from the system, water may spurt out
of the dispenser.
& Open the freezer door and turn on the ice maker by lowering
the wire shutoff arm.
• Allow 24 hours to produce the first batch of ice.
• Discard the first three batches of ice produced.
•Depending on your model, you may want to select the
maximum ice feature to increase the production of ice.
Normal Sounds
Your new refrigerator may make sounds that your old one didn't
make. Because the sounds are new to you, you might be
concerned about them. Most of the new sounds are normal. Hard
surfaces, such as the floor, walls, and cabinets, can make the
sounds seem louder. The following describes the kinds of sounds
and what may be making them.
• If your product is equipped with an ice maker, you will hear a
buzzing sound when the water valve opens to fill the ice
maker for each cycle.
Your refrigerator is designed to run more efficiently to keep
your food items at the desired temperatures and to minimize
energy usage. The high efficiency compressor and fans may
cause your refrigerator to run longer than your old one. You
may also hear a pulsating or high-pitched sound from the
compressor or fans adjusting to optimize performance.
•You may hear the evaporator fan motor circulating air through
the refrigerator and freezer compartments. The fan speed
may increase as you open the doors or add warm food.
•Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.
•Water dripping on the defrost heater during a defrost cycle
may cause a sizzling sound.
• As each cycle ends, you may hear a gurgling sound due to
the refrigerant flowing in your refrigerator.

Contractionandexpansionoftheinsidewallsmaycausea
poppingnoise.
Youmayhearairbeingforcedoverthecondenserbythe
condenserfan.
• Youmayhearwaterrunningintothedrainpanduringthe
defrostcycle.
REFRIGERATOR USE
Ensuring Proper Air Circulation
In order to ensure proper temperatures, you need to permit air to
flow between the two sections. Cold air enters the bottom of the
freezer section and moves up. It then enters the refrigerator
section through the top vent. Air then returns to the freezer as
shown.
• If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
For your convenience, your controls are preset at the factory.
When installing your refrigerator, make sure that the controls are
still preset to the "mid-settings" as shown.
Rotary Controls
FREEZER REFRIGERATOR
mI
23. 3 4 .
COLD COLDER I_U) 1 8 COLDER
Slide Controls
Freezer Re|rigeratet
Do not block any of these vents with food such as soda, cereal,
bread, etc. If the vents are blocked, airflow will be prevented and
the temperature controls will net function properly.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To prevent
odor transfer from food, wrap or cover foods tightly.
Using the Controls
Your model may have Rotary Controls or Slide Controls.
IMPORTANT:
• Your refrigerator will not ceel when the Refrigerator Control is
set to OFK
The Refrigerator Control adjusts the refrigerator compartment
temperature. The Freezer Control adjusts the freezer
compartment temperature. Higher numbered settings make
the compartment colder. Lower numbered settings make the
temperature less cold.
Wait 24 hours before you put food into the refrigerator. If you
add food before the refrigerator has cooled completely, your
food may spoil.
NOTE: Adjusting the Refrigerator and Freezer Controls to a
higher (colde¢} setting will not cool the compartments any
faster.
•The preset settings should be correct for normal household
usage. The controls are set correctly when milk or juice is as
cold as you like and when ice cream is firm.
cold 1 2 -34colder off 12A34colder
AdjuslJng Controls
NOTE: Wait at least 24 hours between adjuetrnents and then
recheck the temperatures.
Ifyou need to adjust temperatures, adjust the refrigerator
temperature first.
Rotary Controls
Turn the control right (clockwise) to make the cor'npartr'nect
colder. Turn the control left (counterclockwise) to make it less
cold.
Slide Controls
Slide the control one setting to the right to make the
compartment colder. Slide the control one setting to the left to
make it less cold.
CONDITION/REASON: SETTING
ADJUSTMENT:
REFRIGERATOR tee cold REFRIGERATOR
- Not set correctly for your Control one setting
conditions lower
REFRIGERATOR tee warm REFRIGERATOR
-Boor opened often, large amount Control one setting
of food added or room temperature higher
very warm
FREEZER toe cold FREEZER Control one
-Not set correctly for your setting lower
conditions
FREEZER tee warm/toe little ice FREEZER Control one
-Boor opened often, or large setting higher
amount of food added or very cold
room temperature (can't cycle often
enough) or heavy ice usage
lO

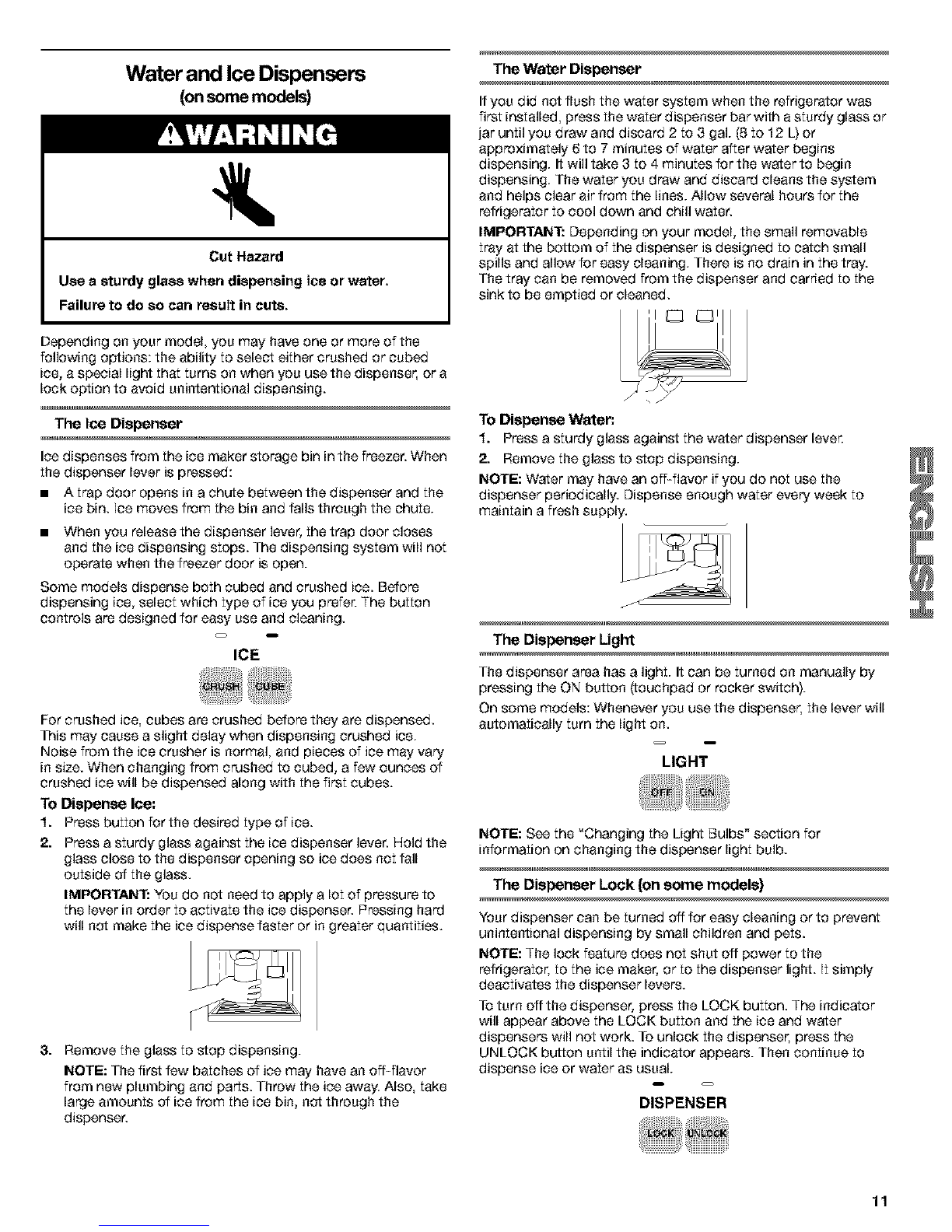

Water and Ice Dispensers
(on some models)
Cut Hazard
Use a sturdy glass when dispensing ice or water.
Failure to do so can result in cuts.
The Water Dispenser
Ifyou did not flush the water system when the refrigerator was
first installed, press the water dispenser bar with a sturdy glass or
jar until you draw and discard 2 to 3 gal. (8 to 12 L) or
approximately 6 to 7 minutes of water after water begins
dispensing. It will take 3to 4 minutes for the water to begin
dispensing. The water you draw and discard cleans the system
and helps clear air from the lines. Allow several hours for the
refrigerator to cool down and chill water.
IMPORTANT: Depending on your model, the small removable
tray at the bottom of the dispenser is designed to catch small
spills and allow for easy cleaning. There is no drain in the tray.
The tray can be removed from the dispenser and carried to the
sink to be emptied or cleaned.
Depending on your model, you may have one or more of the
following options: the abilily to select either crushed or cubed
ice, a special light that turns on when you use the dispenser, or a
lock option to avoid unintentional dispensing, j
The Ice Dispenser To Dispense Water.
__ 1. Press a sturdy glass against the water dispenser lever.
Ice dispenses from the ice maker storage bin in the freezer. When
the dispenser lever is pressed:
• A trap door opens in a chute between the dispenser and the
ice bin. Ice moves from the bin and falls through the chute.
•When you release the dispenser lever, the trap door closes
and the ice dispensing stops. The dispensing system will not
operate when the freezer door is open.
Some models dispense both cubed and crushed ice. Before
dispensing ice, select which type of ice you prefer. The button
controls are designed for easy use and cleaning.
ICE
For crushed ice, cubes are crushed before they are dispensed.
This may cause a slight delay when dispensing crushed ice.
Noise from the ice crusher is normal, and pieces of ice may vary
in size. When changing from crushed to cubed, a few ounces of
crushed ice will be dispensed along with the first cubes.
To Dispense lee:
1. Prass button for the desirad type of ice.
2. Press a sturdy glass against the ice dispenser lever. Hold the
glass close to the dispenser opening so ice does not fall
outside of the glass.
IMPORTANT: You do not need to apply a lot of pressure to
the lever in order to activate the ice dispenser. Pressing hard
will not make the ice dispense faster or in greater quantities.
9. Remove the glass to step dispensing.
NOTE: The first few batches of ice may have an off-flavor
from new plumbing and parts. Throw the ice away. Also, take
large amounts of ice from the ice bin, not through the
dispenser.
2. Remove the glass to step dispensing.
NOTE: Water may have an off-flavor if you do not use the
dispenser periodically. Dispense enough water every week to
maintain a fresh supply.
_eDispenserUg_
The dispenser area has a light. It can be turned on manually by
pressing the QN button (teuchpad or rocker switch).
Qn some models: Whenever you use the dispenser, the lever will
automatically turn the light on.
LIGHT
NOTE: See the "Changing the Light Bulbs" section for
information on changing the dispenser light bulb.
The Dispenser Lock {on some models}
Your dispenser can be turned off for easy cleaning or to prevent
unintentional dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the
refrigerator, to the ice maker, or to the dispenser light. It simply
deactivates the dispenser levers.
To turn off the dispenser, press the LOCK button. The indicator
will appear above the LOCK button and the ice and water
dispensers will not work. To unlock the dispenser, press the
UNLOCK button until the indicator appears. Then continue to
dispense ice or water as usual.
DISPENSER
11

Water FilterStatus Light
(on some models)
The water filter status light, located at the top of the refrigerator
compartment, will help you know when to change your water
filter cartridge. When the indicator light changes from green to
yellow, this tells you that it is almost time to change the water
filter cartridge (90% of the filter life has been used). It is
recommended that you replace the water filter cartridge when the
water filter indicator light changes to red OR water flow to your
water dispenser or ice maker decreases noticeably. To change
the water filter cartridge, see "Changing the Water Filter
Cartridge" later in this section.
After changing the water filter cartridge, reset the water filter
indicator light by pressing the light switch 5 times within
10 seconds. The indicator light will change from red to green
when the system is reset.
A. Status light
B. LJght switch
Non-Indicator Water Filter (on some models)
Ifyour refrigerator does not have the water filter status light, you
should change the water filter cartridge every 6 to 9 months
depending upon your usage. If the water flow to the water
dispenser or ice maker decreases noticeably before 6 months
have passed, replace the water filter cartridge more often.
Water Filb'ationSystem
NOTE: Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction may
be used on disinfected waters that may contain filterable
cysts,
Changing the Water Filter Cartridge
The base grille water filter is located below the freezer
compartment door Depending on your model, you may have a
filter that is installed behind the base grille (Style f) or a filter that
is installed through the base grille (Style 2).
Style 1: Behind the base grille
1. Remove the base grille (see "Refrigerator Doors" section).
Rotate the cartridge counterclockwise to a vertical position
and pull the filter cartridge out.
NOTE: There will be water in the cartridge. Some spilling may
OCCUR
2. Take the new cartridge out of its packaging and remove
protective cover from O-rings.
& Push the new filter Cartridge into the base until it stops.
Rotate the cartridge clockwise to a horizontal position. Flush
the water system (see "Flushing the water system after
replacing filter" later in this section).
Style 2: Through the base grille
1. Locate the water filter cartridge cap in the front base grille.
Rotate the cap counterclockwise to a vertical position and
pull the cap and filter cartridge out through the base grille.
NOTE: There will be water in the cartridge. Some spilling may
OCCUR
2. Remove the cartridge cap by sliding it off the end of the old
cartridge. The cap will slide to the left or right.
IMPORTANT: Do net discard the cap. It is part of your
refrigerator. Keep the cap to use with the replacement filter.
& Take the new cartridge Out of its packaging and remove
protective cover from O-rings.
4. Slide the cartridge cap onto the new cartridge. See
illustration in Step 2.
& With cartridge cap in the vertical position, push the new filter
cartridge into the base grille until it stops. Rotate the cartridge
cap clockwise to a horizontal position. Flush the water
system (see "Flushing the water system after replacing filter"
later in this section).
I
Flushing the Water System After Replacing Filter
Use a sturdy container to depress the water dispenser bar until
the water begins to flow. Flush the water system by dispensing
and discarding 2 to 3 gal. (8 to 12 L) of water. Cleaning the
system will take approximately 6 to 7 minutes and will help clear
air from the line. Additional flushing may be required in some
households.
NOTE: As air is cleared from the system, water may spurt out of
the dispenser.
Using the Dispenser Without the Water Filter
You can run the dispenser without a water filter cartridge. Your
water will net be filtered.
1. Remove the base griUe water filter cartridge. For Style f,
replace the base grille after removing the filter.
12

2. For Style 2, slide the cartridge cap off the end of the filter
cartridge. With the cartridge cap in the vertical position, insert
the cap into the base grille until it stops.
IMPORTANT: Do not discard the cap. It is part of your
refrigerator. Keep the cap to use with the replacement filter.
8. Rotate the cartridge cap to a horizontal position. The
cartridge cap might not be even with the base grille.
Ice Maker and Storage Bin
(on some models - Accessory)
Turning the Ice Maker On/Off
NOTE: DO not force the wire shutoff arr'n up or down.
The ee/off switch for the ice maker is a wire shutoff arm located
on the side of the ice maker.
1. To turn the ice maker on, simply lower the wire shutoff arm.
NOTE: Your ice maker has an automatic shutoff. As ice is
made, the ice cubes will fill the ice storage bin and the ice
cubes will raise the wire shutoff arm to the OFF (arm up)
position.
2. To manually turn the ice maker off, lift the wire shutoff arm to
the OFF (arm up) position and listen for the click to make sure
the ice maker will not continue to operate.
Increasing Ice Production Rate
The ice maker should produce approximately 7to 9 batches of
ice in a 24-beer period. If ice is not being made fast enough, turn
the Freezer Control toward a higher (colder) number in half
number steps. (For example, if the control is at 3, move it to
between 3 and 4.)Wait 24 hours between each increase.
Remember
•Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
•The quality of your ice will be only as good as the quality of
the water supplied to your ice maker. Avoid connecting the
ice maker to a softened water supply. Water softener
chemicals (such as salt) can damage parts of the ice maker
and lead to poor quality ice. If a softened water supply cannot
be avoided, make sure the water softener is operating
properly and is well maintained.
•Do not store anything on top of the ice maker or in the ice
storage bin.
REFRIGERATOR FEATURES
Your model may have some or all of theee features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
Ifyou are interested in purchasing one of the accessories, please
call the toll-free number on the cover or in the "Accessories"
section.
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when
removing them to avoid impact from dropping.
Refrigerator Shelves
Your model may have glass or wire shelves. Store similar foods
together and adjust the shelves to fit different heights. This
reduces the time the refrigerator door is open and saves energy.
Shelves and Shelf Frames
To Remove and Replace a Shelf/frame:
1. Remove the shelf/frame by tilting it up at the front and lifting it
out of the shelf supports.
2. Replace the shelf/frame by guiding the rear shelf hooks into
the shelf supports. Tilt the front of the shelf up until rear shelf
hooks drop into the shelf supports. Check to make sure that
the shelf is securely in position.
Dell Drawer
(on some models)
The dell drawer stores raisins, nuts, spreads, and other small
items at normal refrigerator temperatures.
To Remove and Replace the Dell Drawer:.
1. Remove the dell drawer by sliding it straight Out to the stop.
Lift the front and slide the drawer out the rest of the way.
2. Replace the deli drawer by sliding it back past the stop.
13

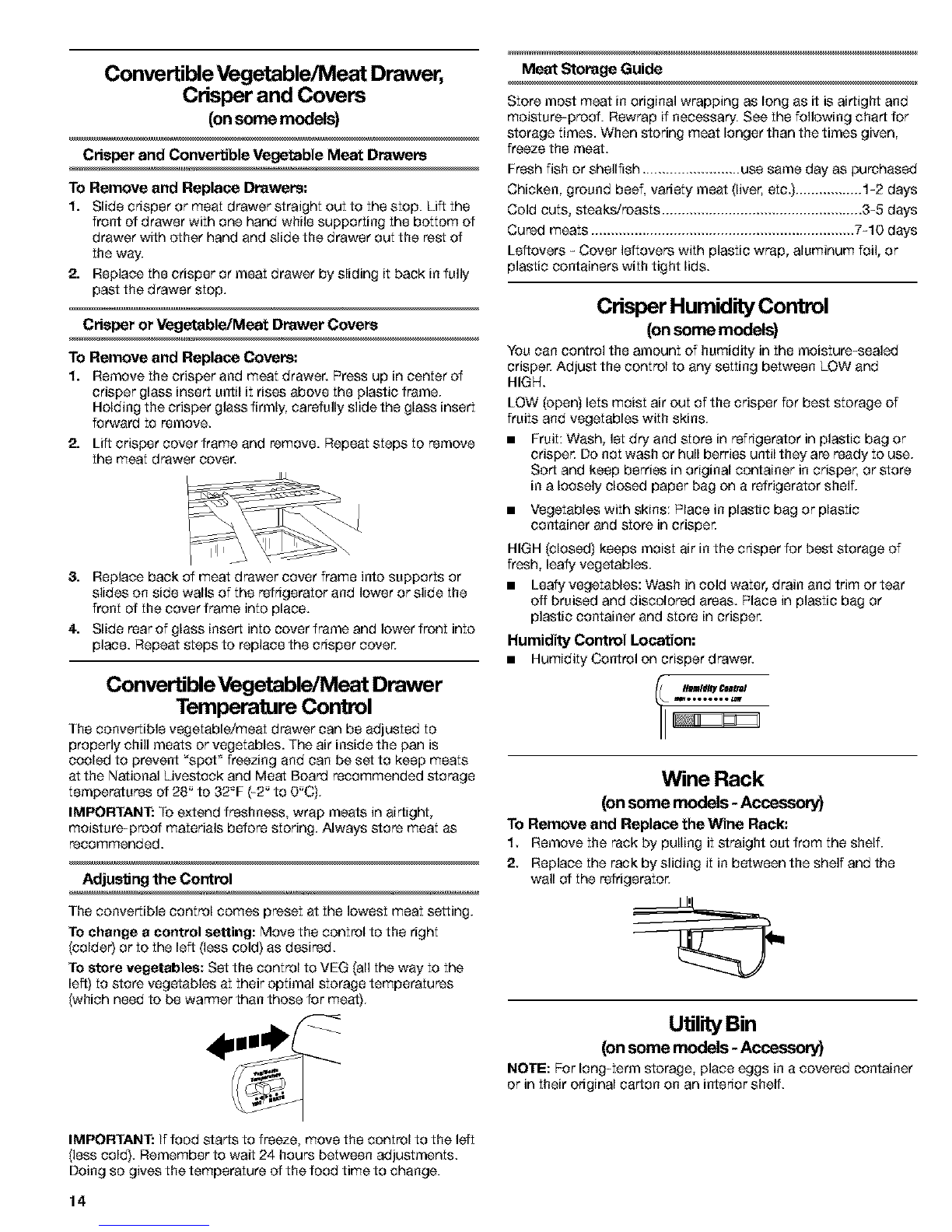

Convertible Vegetable/Meat Drawer,
Crisper and Covers
(onsomemodels)
Crisper and Convertible Vegetable Meat Drawers
To Remove and Replace Drawers:
1. Slide crisper or meat drawer straight out to the stop. Lift the
front of drawer with one hand while supporting the bottom of
drawer with other hand and slide the drawer out the rest of
the way.
2. Replace the crisper or meat drawer by sliding it back in fully
past the drawer stop.
Crisper or Vegetable/7_leat Drawer Covers
To Remove and Replace Covers:
1. Remove the crisper and meat drawer. Press up in center of
crisper glass insert until it rises above the plastic frame.
Holding the crisper glass firmly, carefully slide the glass insert
forward to remove.
2. Lift crisper cover frame and remove. Repeat steps to remove
the meat drawer covet.
3. Replace back of meat drawer cover frame into supports or
slides on side walls of the refrigerator and lower or slide the
front of the cover frame into place.
4. Slide rear of glass insert into cover frame and lower front into
place. Repeat steps to replace the crisper cover.
Convertible Vegetable/Meat Drawer
Temperature Control
The convertible vegetable/meat drawer can be adjusted to
properly chill meats or vegetables. The air inside the pan is
cooled to prevent "spot" freezing and can be set to keep meats
at the National Livestock and Meat Board recommended storage
temperatures of 28" to 32_F (-2" to 0"C).
IMPORTANT: To extend freshness, wrap meats in airtight,
moieture_proof materials before storing. Always store meat as
recommended.
AdjuslJng the Control
The convertible control comes preset at the lowest meat setting.
To change a control setting: Move the control to the right
(colder) or to the left (less cold} as desired.
To stere vegetables: Set the control to VEG (all the way to the
left} to store vegetables at their optimal storage temperatures
(which need to be warmer than those for meat}.
Meat Storage Guide
Store most meat in original wrapping as long as it is airtight and
moieture_proof. Rewrap if necessary. See the following chart for
storage times. When storing meat longer than the times given,
freeze the meat.
Fresh fish or shellfish ......................... use same day as purchased
Chicken, ground beef, variety meat (liver, etc.) ................. 1-2 days
Cold cuts, steaks/roasts ................................................... 3-5 days
Cured meats ................................................................... 7-10 days
Leftovers -Cover leftovers with plastic wrap, aluminum foil, or
plastic containers with tight lids.
Crisper Humidity Control
(on some models)
You can control the amount of humidity in the moisture-sealed
crisper. Adjust the control to any setting between LOW and
HIGH.
LOW (open) lets moist air out of the crisper for best storage of
fruits and vegetables with skins.
• Fruit: Wash, let dry and store in refrigerator in plastic bag or
crisper. Do not wash or hull berries until they are ready to use.
Sort and keep berries in original container in crisper, or store
in a loosely closed paper bag on a refrigerator shelf.
• Vegetables with skins: Place in plastic bag or plastic
container and store in crisper
HIGH (closed} keeps moist air in the crisper for best storage of
fresh, leafy vegetables.
• Leafy vegetables: Wash in cold water, drain and trim or tear
off bruised and discolored areas. Place in plastic bag or
plastic container and store in crisper.
Humidity Control Location:
• Humidity Control on crisper drawer.
Wine Rack
(on some models - Accessory)
To Remove and Replace the Wine Rack:
1. Remove the rack by pulling it straight out from the shelf.
2. Replace the rack by sliding it in between the shelf and the
wall of the refrigerator.
Utility Bin
(on some models - Accessory)
NOTE: For long-term storage, place eggs in a covered container
orin their original carton on an interior shelf.
IMPORTANT: If food starts to freeze, move the control to the left
(less cold}. Remember to wait 24 hours between adjustments.
Doing so gives the temperature of the food time to change.
14

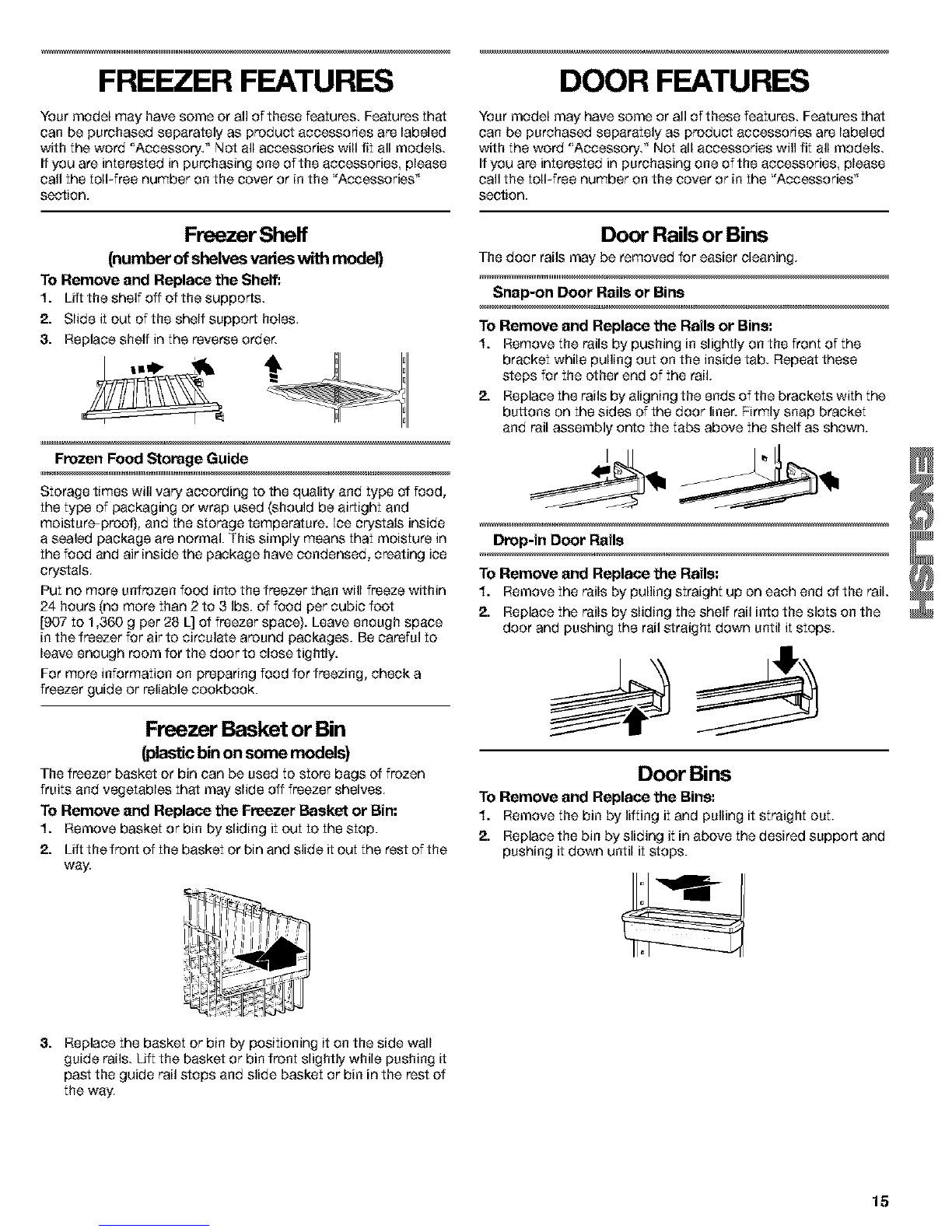

FREEZER FEATURES
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
Ifyou are interested in purchasing one of the accessories, please
call the toll-free number on the cover or in the "Accessories"
section.
Freezer Sheff
(number of shelves varies with model)
To Remove and Replace the Shelf:
1. Lift the shelf off of the supports.
2. Slide it out of the shelf support holes.
& Replace shelf in the reverse order.
Frozen Food Storage Guide
Storage times will vary according to the quality and type of food,
the type of packaging or wrap used (should be airtight and
moisture-proofS, and the storage temperature. Ice crystals inside
a sealed package are normal. This simply means that moisture in
the food and air inside the package have condensed, creating ice
crystals.
Put no more unfrozen food into the freezer than will freeze within
24 hours (no more than 2to 3 Ibe. of food per cubic foot
[907 to 1,360 g per 28 L] of freezer space). Leave enough space
in the freezer for air to circulate around packages. Be careful to
leave enough room for the door to close tightly.
For more information on preparing food for freezing, check a
freezer guide or reliable cookbook.
Freezer Basket or Bin
(plas_c bin on some models)
The freezer basket or bin can be used to store bags of frozen
fruits and vegetables that may slide off freezer shelves.
To Remove and Replace the Freezer Basket or Bin:
1. Remove basket or bin by sliding it out to the stop.
2. Lift the front of the basket or bin and elide it out the rsst of the
way.
DOOR FEATURES
Your model may have some or all of thsse features. Features that
can be purchased separately as product accessories are labeled
with the word "Aecessory. " Not all accessories will fit all models.
Ifyou are interested in purchasing one of the accessories, please
call the toll-free number on the cover or in the "Accessories "
section.
Door Railsor Bins
The door rails may be removed for easier cleaning.
Snap-on Door Rails or Bins
To Remove and Replace the Rails or Bins:
1. Remove the rails by pushing in slightly on the front of the
bracket while pulling out on the inside tab. Repeat these
steps for the other end of the rail.
2. Replace the rails by aligning the ends of the brackets with the
buttons on the sides of the door liner. Firmly snap bracket
and rail assembly onto the tabs above the shelf as shown.
Drop-in Door Rails
To Remove and Replace the Rails:
1. Remove the reils by pulling straight up on each ecd of the rail
2. Replace the rails by sliding the shelf rail into the slots on the
door and pushing the rail straight down until it stops.
Door Bins
To Remove and Replace the Bins:
1. Remove the bin by lifting it and pulling it straight out.
2. Replace the bin by sliding it in above the desired ecpport and
pushing it down until it stops.
9. Replace the basket or bin by positioning it on the side wall
guide rails. Lift the basket or bin front slightly while pushing it
past the guide rail stops and slide basket or bin in the rest of
the way.
15

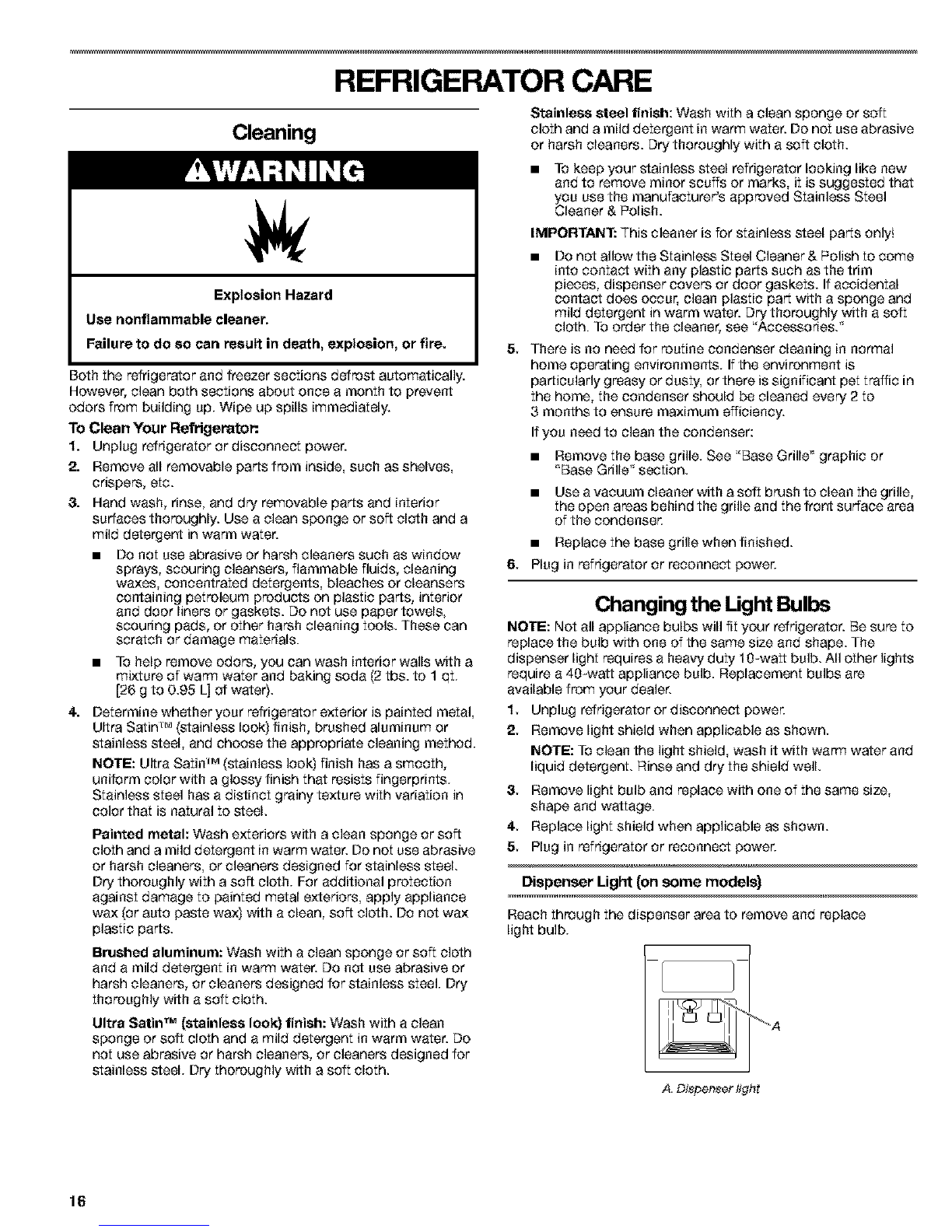

REFRIGERATOR CARE
Cleaning
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to prevent
odors from building up. Wipe up spills immediately.
To Clean Your Refrigerato_
1. Unplug refrigerator or disconnect power.
2. Remove all removable parts from inside, such as shelves,
crispers, etc.
& Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
• Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning
waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on plastic parts, interior
and door liners or gaskets. Do not use paper towels,
scouring pads, or other harsh cleaning tools. These can
scratch or damage materials.
• To help remove odors, you can wash interior walls with a
mixture of warn water and baking soda (2 the. to 1 qt.
[26 g to 0.95 L] of water).
4. Determine whether your refrigerator exterior is painted metal,
Ultra Satin _,_(stainless look) finish, brushed aluminum or
stainless steel, and choose the appropriate cleaning method.
NOTE: Ultra Satin _,_(stainless look) finish has a smooth,
uniform color with a glossy finish that resists fingerprints.
Stainless steel has a distinct grainy texture with variation in
color that is natural to steel.
Painted metal: Wash exteriors with a clean sponge or soft
cloth and a mild detergent in warm water. Do not use abrasive
or harsh cleaners, or cleaners designed for stainless steel.
Dry thoroughly with a soft cloth. For additional protection
against damage to painted metal exteriors, apply appliance
wax (or auto paste wax) with a clean, soft cloth. Do not wax
plastic parts.
Brushed aluminum: Wash with a clean sponge or soft Cloth
and a mild detergent in warTn water. Do not use abrasive or
harsh cleaners, or cleaners designed for stainless steel. Dry
thoroughly with a soft cloth.
Ultra Satin TM (stainless look) finish: Wash with a clean
sponge or soft cloth and a mild detergent in warm water. Do
not use abrasive or harsh cleaners, or cleaners designed for
stainless steel. Dry thoroughly with a soft cloth.
Stainless steel finish: Wash with a clean sponge or soft
cloth and a mild detergent in warm water. Do not use abrasive
or harsh cleaners. Dry thoroughly with a soft cloth.
• To keep your stainless steel refrigerator looking like new
and to remove minor ecuf[s or marks, it is suggested that
you use the manufacturer s approved Stainless Steel
Cleaner & Polish.
IMPORTANT: This cleaner is for stainless steel parts only!
Do not allow the Stainless Steel Cleaner & Polish to come
into contact with any plastic parts such as the trim
pieces, dispenser covers or door gaskets. If accidental
contact does occur, clean plastic part with a sponge and
mild detergent in warm water. Dry thoroughly with a soft
cloth. To order the cleaner, see "Accessories."
There is no need for routine condenser cleaning in normal
home operating environments. Ifthe environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to
3 months to ensure maximum efficiency.
Ifyou need to clean the condenser:
• Remove the base grille. See "Base Grille" graphic or
"Base Grille" section.
•Use avacuum cleaner with a soft brush to clean the grille,
the open areas behind the grille and the front surface area
of the condenser
• Replace the base grille when finished.
6. Plug in refrigerator or reconnect power.
Changing the Ught Bulbs
NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to
replace the bulb with one of the same size and shape. The
dispenser light requires a heavy duty 10-waft bulb. All other lights
require a40-watt appliance bulb. Replacement bulbs are
available from your dealer.
1. Unplug refrigerator or disconnect power.
2. Remove light shield when applicable as shown.
NOTE: To clean the light shield, wash it with warTn water and
liquid detergent. Rinse and dry the shield well.
& Remove light bulb and replace with one of the same size,
shape and wattage.
4. Replace light shield when applicable as shown.
5. Plug in refrigerator or reconnect power.
Dispenser Light {on some models)
Reach through the dispenser area to remove and replace
light bulb.
_A
A, Dispenser li_jht
16

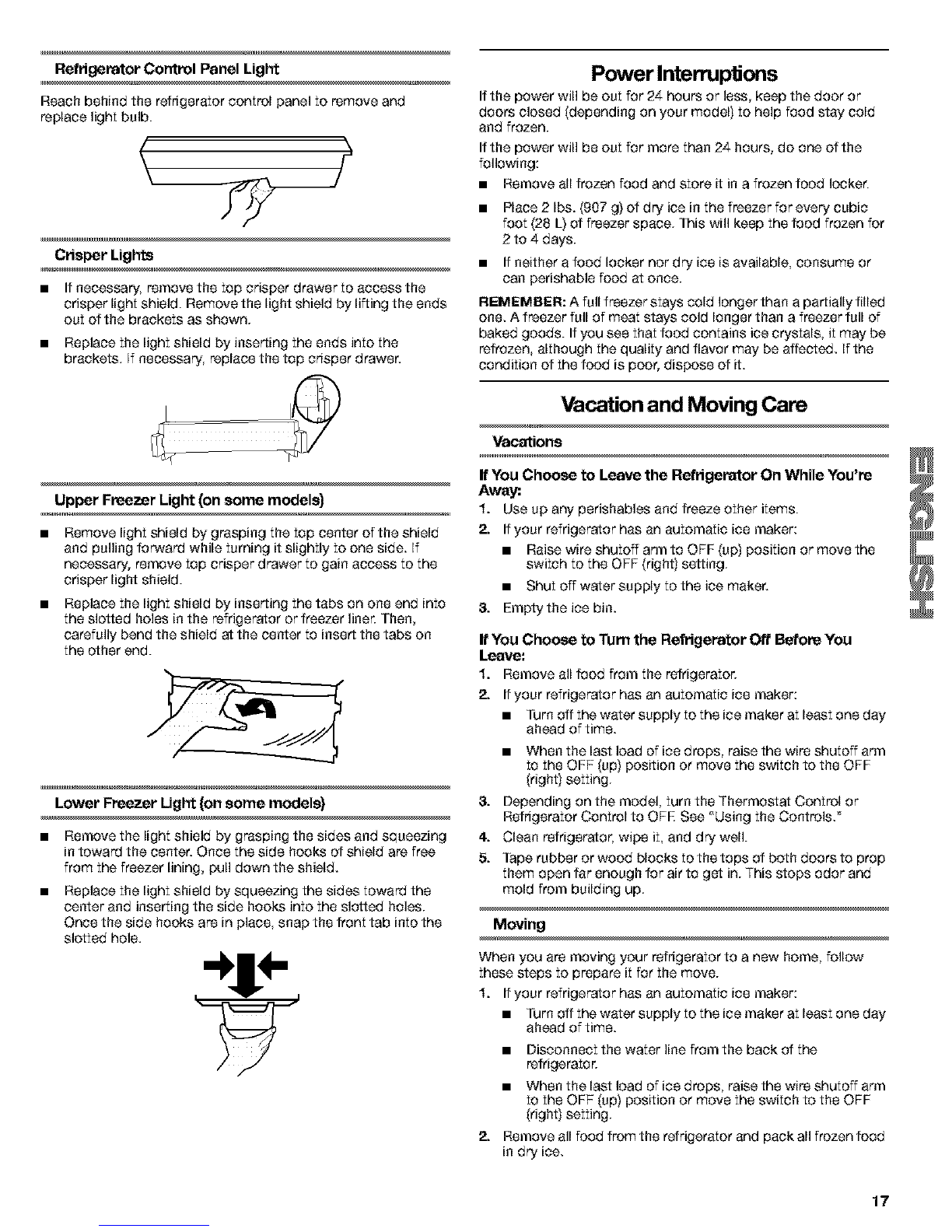

Refrigerator Control Panel Light
Reach behind the refrigerator control panel to remove and
replace light bulb.
Crisper Lights
•If necessary, remove the top crisper drawer to access the
crisper light shield. Remove the light shield by lifting the ends
out of the brackets as shown.
• Replace the light shield by inserting the ends into the
brackets. If necessary, replace the top crisper drawer.
Upper Freezer Light (on some models)
Remove light shield by grasping the top center of the shield
and pulling forward while turning it slightly to one side. If
necessary, remove top crisper drawer to gain access to the
crisper light shield.
Replace the light shield by inserting the tabs on one end into
the slotted holes in the refrigerator or freezer liner. Then,
carefully bend the shield at the center to insert the tabs on
the other end.
Lower Freezer Ught (on some models}
• Remove the light shield by grasping the sides and squeezing
in toward the center. Once the side hooks of shield are free
from the freezer lining, pull down the shield.
Replace the light shield by squeezing the sides toward the
center and inserting the side hooks into the slotted holes.
Once the side hooks are in place, snap the front tab into the
slotted hole.
•" ILI" '
Power Interruptions
Ifthe power will be out for 24 hours or less, keep the door or
doors closed (depending on your model) to help food stay cold
and frozen.
Ifthe power will be out for more than 24 hours, do one of the
following:
• Remove all frozen food and store it in a frozen food locker.
• Place 2 Ibs. (907 g) of dry ice in the freezer for every cubic
foot (28 L)of freezer space. This will keep the food frozen for
2 to 4 days.
• If neither a food locker nor dry ice is available, consume or
can perishable food at once.
REMEMBER: A full freezer stays cold longer than a partially filled
one. A freezer full of meat stays cold longer than a freezer full of
baked goods. If you see that food contains ice crystals, it may be
refrezen, although the quality and flavor may be affected. If the
condition of the food is poor, dispose of it.
Vacation and Moving Care
Vacations
If You Choose to Leave the Refrigerator On While You're
Away_.
1. Use up any perishables and freeze other items.
2. If your refrigerator has an automatic ice maker:
• Raise wire shutoff arm to OFF (up) position or move the
switch to the OFF (right) setting.
• Shut off water supply to the ice maker.
8. Emply the ice bin.
ff You Choose to Turn the Refrigerator Off Before You
Leave:
1. Remove all food from the refrigerator.
2. Ifyour refrigerator has an automatic ice maker:
• Turn off the water supply to the ice maker at least one day
ahead of time.
9.
4.
5.
•When the last load of ice drops, raise the wire shutoff arm
to the OFF (up) position or move the switch to the OFF
(right) setting.
Depending on the model, turn the Thermostat Control or
Refrigerator Control to OFE See "Using the Controls."
Clean refrigerator, wipe it, and dry well.
Tape rubber or wood blocks to the tops of both doors to prop
them open far enough for air to get in. This stops odor and
mold from building up.
Moving
When you are moving your refrigerator to a new home, follow
these steps to prepare it for the move.
1. If your refrigerator has an automatic ice maker:
• Turn off the water supply to the ice maker at least one day
ahead of time.
•Disconnect the water line from the back of the
refrigerator.
•When the last load of ice drops, raise the wire shutoff arm
to the OFF (up) position or move the switch to the OFF
(right) setting.
2. Remove all feed from the refrigerator and pack all frozen feed
in dry ice.
17

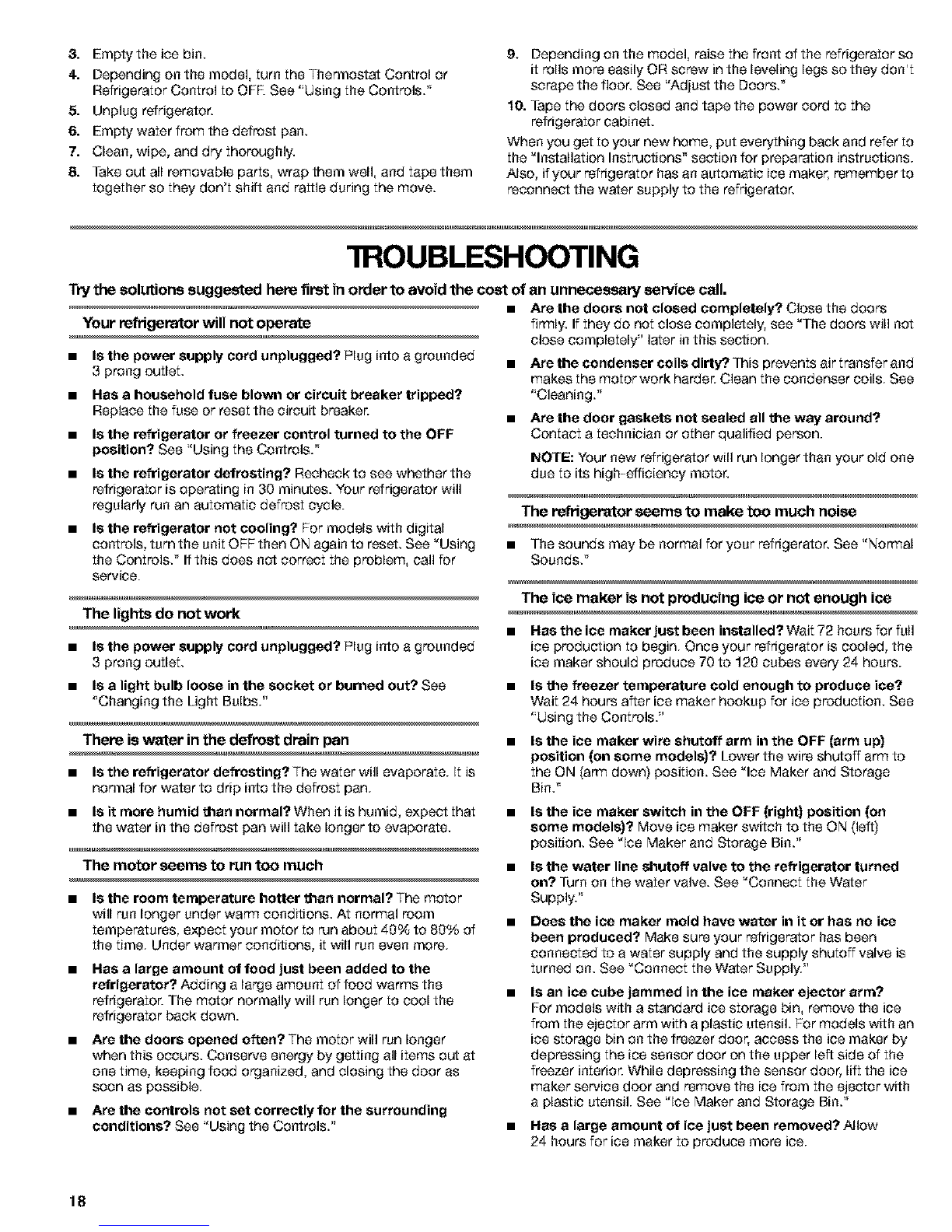

8. Empty the ice bin.
4. Depending on the model, turn the Thermostat Control or
Refrigerator Control to QFK See "Using the Controls."
5. Unplug refrigerator.
6. Empty water from the defrost pan.
7. Clean, wipe, and dry thoroughly.
8. Take out all removable parts, wrap them well, and tape them
together so they don't shift and rattle during the move.
g. Depending ee the model, raiee the freer ef the refrigerator ee
it rolls more easily OR screw in the leveling legs so they don't
scrape the floor. See "Adjust the Doors."
18. Tape the doors closed and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back and refer to
the "Installation Instructions" section for preparation instructions.
Also, if your refrigerator has an automatic ice maker, remember to
reconnect the water supply to the refrigerator.
"IROUBLESHOOTING
Try the solutions suggested hero first in order to avoid the cost of an unnecessary service call.
__ • Are the doors not closedcompletely?.Close the doors
Your refrigerator will not operate
• Is the power supply cord unplugged? Plug into a grounded
3 prong outlet.
Has a household fuse blown or circuit breaker tripped?
Replace the fuse or reset the circuit breaker.
Is the refrigerator or freezer control turned to the OFF
position? See "Using the Controls."
Is the refrigerator defrosting? Recheck to see whether the
refrigerator is operating in 30 minutes. Your refrigerator will
regularly run an automatic defrost cycle.
Is the refrigerator not cooling? For models with digital
controls, turn the unit OFF then ON again to reset. See "Using
the Controls." Ifthis does not correct the problem, call for
service.
The lights do not work
•Is the power supply cord unplugged? Plug into a grounded
3 prong outlet.
•Is a light bulb loose in the socket or burned out? See
"Changing the Light Bulbs."
There is water in the defrost drain pan
• Is the refrigerator defrosting? The water will evaporate. It is
normal for water to drip into the defrost pan.
•Is it more humid l_an normal? When it is humid, expect that
the water in the defrost pan will take longer to evaporate.
The motor seems to run too much
Is the room temperature hotter l_an normal? The motor
will run longer under warm conditions. At normal room
temperatures, expect your motor to run about 40% to 80% of
the time. Under warmer conditions, it will run even more.
Has a large amount of food just been added to the
refrigerator? Adding a large amount of food warms the
refrigerator. The motor normally will run longer to cool the
refrigerator back down.
•Are the doors opened often? The motor will run longer
when this occurs. Conserve energy by getting all items Out at
one time, keeping food organized, and closing the door as
soon as possible.
•Are the controls not set correctly for the surrounding
conditions? See "Using the Controls."
fifthly. If they do not close completely, see "The doors will not
close completely" later in this section.
•Are the condenser coils dirty?. This prevents air transfer and
makes the motor work harder. Clean the condenser coils. See
"Cleaning."
•Are the door gaskets not sealed all l_e way around?
Contact a technician or other qualified person.
NOTE: Your new refrigerator will run longer than your old one
due to its high-efficiency motor.
The refrigerator seems to make too much noise
•The sounds may be normal for your refrigerator. See "NorTnal
Sounds."
The ice maker is not producing ice or not enough ice
Has the ice maker just been installed? Wait 72 hours for full
ice production to begin. Once your refrigerator is cooled, the
ice maker should produce 70 to 120 cubes every 24 hours.
Is l_e freezer temperature cold enough to produce ice?
Wait 24 hours after ice maker hookup for ice production. See
"Using the Controls."
Is the ice maker wire shutoff arm in the OFF (arm up)
position (on some models)? Lower the wire shutoff arm to
the ON (arTndown) position. See "Ice Maker and Storage
Bin."
Is the ice maker switch in the OFF (right) position (on
some models)? Move ice r'nakerswitch to the ON (left)
position. See "Ice Maker and Storage Bin."
Is the water line shutoff valve to the refrigerator turned
on? Turn on the water valve. See "Connect the Water
Supply."
Does the ice maker mold have water in it or has no ice
been produced? Make sure your refrigerator has been
connected to a water supply and the supply shutoff valve is
turned on. See "Connect the Water Supply."
Is an ice cube jammed in the ice maker ejector arm?
For models with a standard ice storage bin, remove the ice
from the ejector arm with a plastic utensil. For models with an
ice storage bin on the freezer door, access the ice maker by
depressing the ice sensor door on the upper left side of the
freezer interior. While depressing the sensor door, lift the ice
maker service door and remove the ice from the ejector with
a plastic utensil. See "Ice Maker and Storage Bin."
Has a large amount of ice just been removed? Allow
24 hours for ice maker to produce more ice.
18

• Are the controls set correctly? See "Using the Controls. '_
• Is there a water filter installed on the refrigerator? The
filter may be clogged or installed incorrectly. Check the filter
installation instructions to ensure that the fitter was installed
correctly and is not clogged. If installation or clogging is not a
problem, call a technician or other qualified person.
• Is a reverse osmosis water filtration system connected to
your cold water supply?. See "Water Supply Requirements. "
NOTE: If not due to any of the above, there may be a problem
with the water line. Call for service.
Off-taste, odor or gray color in the ice
•Are the plumbing connections new, causing discolored or
off-flavored ice? Discard the first few batches of ice.
•Have the ice cubes been stored too long? Throw old ice
away and make a new supply.
•Does the freezer and ice storage bin need to be cleaned?
See "Cleaning '_or "Ice Maker and Storage Bin.'_
•Has food in the freezer or refrigerator been wrapped
properly?. Use airtight, moieture-preof packaging to help
prevent odor transfer to stored food.
•Does the water contain minerals (such as sulfur)? A filter
may need to be installed to remove the minerals.
• Is there a water filter installed on the refrigerator? Gray or
dark discoloration in ice indicates that the water filtration
system needs additional flushing. Run additional water
through the water dispenser to flush the water filtration
system more thoroughly (at least 2 to 3 gal. [8 to 12 L] or 6 to
7 minutes initially). Discard discolored ice.
The ice dispenser will not operate properly
• Is the freezer door closed completely?. Push the door firmly
closed. If it will not close all the way, see "The doors will not
close completely" later in this section.
• Is the ice storage bin installed correctly? For models with a
standard ice storage bin, push the ice storage bin in all the
way. For models with an ice storage bin on the freezer door,
the bin should sit level. Remove and replece the bin in the
door making sure it is preperly aligned and snapped securely
into place. See "Ice Maker and Storage Bin."
•Has the wrong ice been added to l_e bin? Use only cubes
produced by the current ice maker` If other cubes have been
added, remove all cubes and check to see that none have
become stuck in the delivery chute.
•Has the ice frozen in the ice storage bin? Shake the ice
storage bin to separate cubes, if cubes de not separate,
empty bin and wait 24 hours for ice to restock.
•Has the ice melted around the auger (metal spiral} in l_e
ice storage bin? Dump the ice cubes and clean the ice
storage bin completely. Allow 24 hours for the ice maker to
restock. Do not try to remove the melted ice with a sharp
object. You could damage the ice storage bin.
• Is ice stuck in the delivery chute? Clear the ice from the
delivery chute with a plastic utensil. Do not use anything
sharp to remove the ice. You could cause damage.
• IS the ice dispenser stalling while dispensing _=crushed"
ice? Stop dispensing ice. Change the ice button from
"crushed" to "cubed." Depress the ice dispenser arm using a
sturdy glass, if cubed ice dispenses correctly, depress the
button for "crushed" ice and begin dispensing again. See
"Water and ice Dispensers."
• Is there ice in the storage bin? See "The ice maker is not
producing ice or enough ice" earlier in this section.
•Has the dispenser arm been held in too long? Release
dispenser arm. Ice will stop dispensing when the arm is held
in too long. Wait 3 minutes for dispenser motor to reset
before using again. It is best to take large amounts of ice
directly from the ice storage bin, not through the dispenser.
Ice storage bin difficult to remove
• Is the ice storage bin difficult to remove (on some
models)? For models with an ice storage bin located on the
freezer door, select "cubed" ice. Using a sturdy glass, quickly
depress and release the ice dispenser arm. Open the freezer
door, depress the release button on the ice storage bin and
lift upward. See "Ice Maker and Storage Bin."
The water dispenser will not operate properly
•Has the water system not filled? The water system needs
to be filled the first time it is used. Use a sturdy container to
depress the water dispenser bar until the water begins to
flow. Flush the water system by dispensing and discarding
2 to 3 gal. (8 to 12 L) of water. Cleaning the system will take
approximately 6 to 7 minutes and will help clear air from the
line. Additional flushing may be required in some households.
See "Water and Ice Dispensers."
Is the water shutoff valve not turned on or the water line
connected at the source? Make sure the water shutoff valve
is turned on and the water source is connected to the
refrigerator. See "Connect the Water Supply."
• Is the water shutoff valve clogged or incorrectly installed?
See "Connect the Water Supply." If clogging or installation is
not a problem, call for service or contact a plumber.
• Is there a kink in l_e home water source line? Ifyou find or
suspect a kink in the water line, contact a licensed, qualified
plumber.
Is there a water filter installed on the refrigerator? The
filter may be clogged or incorrectly installed. First, check the
filter installation instructions to ensure that the filter was
installed correctly and is not clogged. If installation or
clogging is not a problem, call for service.
• Is a reverse osmosis water filtration system connected to
your cold water supply?. See "Water Supply Requirements. "
Water or ice is leaking from the dispenser
• Is the glass not being held under the ice dispenser long
enough, causing the ice to spill? Hold the container under
the ice chute for 2 to 3 seconds after releasing the dispenser
lever. Water or ice may continue to dispense during this time.
Is an ice cube stuck in the chute and holding the trap
door open? Remove the cube.
Is there a water filter installed on the refrigerator? The
water filtration system may have air in the lines, causing water
to drip. Additional flushing may help clear air from the lines.
Normal dispenser use should flush air from the lines within 24
to 72 hours.
19

_ _l_lmlmlmlmlmlml_lmlmlmlmlmlm

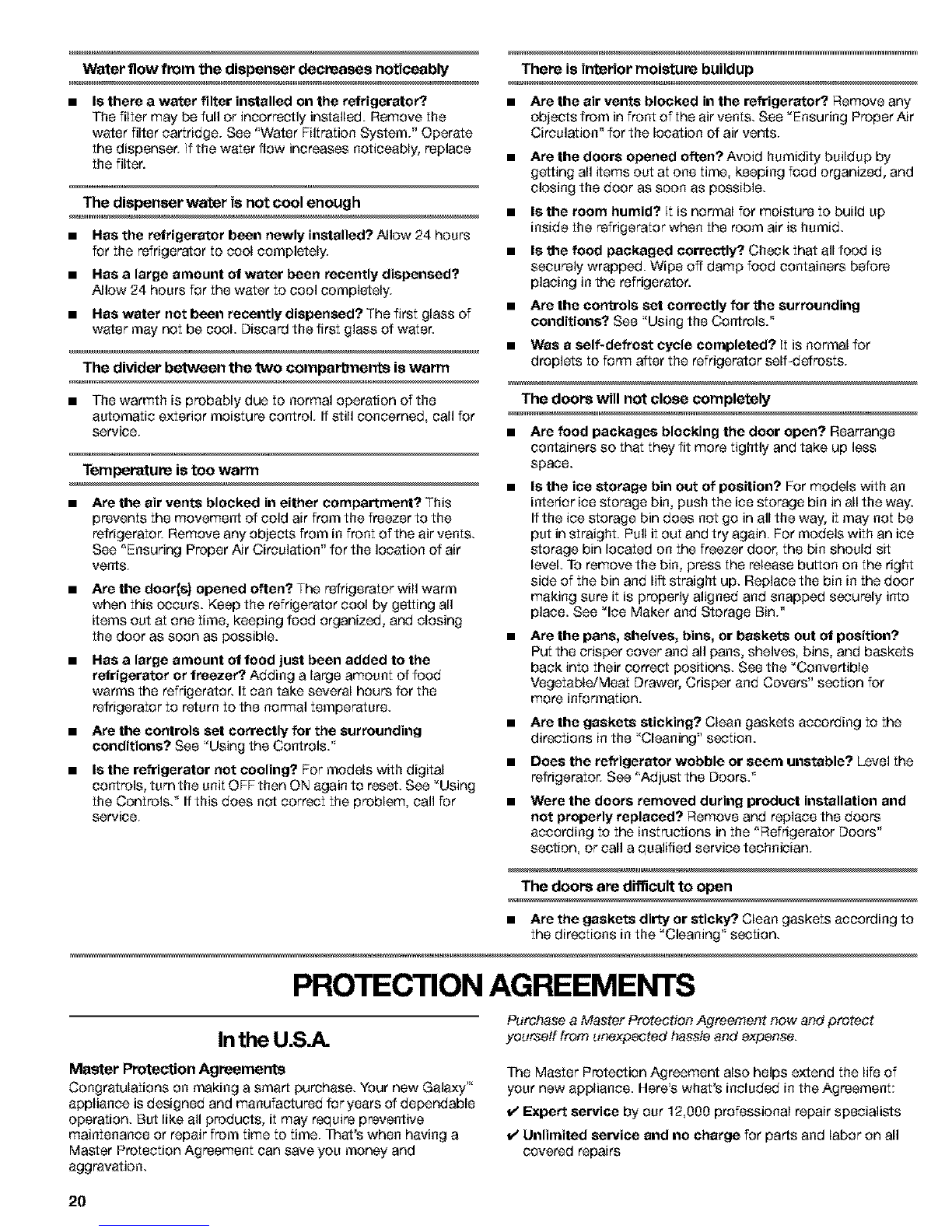

Water flow from the dispenser decreases noticeably There is interior moisture buildup
• Is there a water filter installed on the refrigerator? •Are the air vents blocked in the refrigerator? Remove any
The filter may be full or incorrectly installed. Remove the
water filter cartridge. See "Water Filtration System." Operate
the dispenser. If the water flow increases noticeably, replace
the filter.
The dispenser water is not cool enough •
•Has the refrigerator been newly installed? Allow 24 hours
for the refrigerator to cool completely. •
•Has a large amount of water been recently dispensed?
Allow 24 hours for the water to cool completely.
•Has water not been recently dispensed? The first glass of
water may not be COOLDiscard the first glass of water.
The divider between the two compartments is warm
objects from in front of the air vents. See "Ensuring Proper Air
Circulation " for the location of air vents.
Are the doors opened often? Avoid humidity buildup by
getting all items out at one time, keeping food organized, and
closing the door as soon as possible.
Is the room humid? It is normal for moisture to build up
inside the refrigerator when the room air is humid.
Is l_e food packaged correctly?. Check that all food is
securely wrapped. Wipe Off damp food containers before
placing in the refrigerator.
Are the confrols set correctly for l_e surrounding
conditions? See "Using the Controls. '_
Was a self-defrost cycle completed? It is normal for
droplets to form after the refrigerator eeff-detrests.
• The warmth is probably due to normal operation of the The doors will not close completely
automatic exterior moisture control. If still concerned, call for __
service. • Are food packages blocking the door open? Rearrange
Temperature is too warm
•Are the air vents blocked in either compartment? This
prevents the r'nover'nentof cold air from the freezer to the
refrigerator Remove any objects from in front of the air vents.
See "Ensuring Proper Air Circulation" for the location of air
vents.
•Are the door(s) opened often? The refrigerator will warm
when this occurs. Keep the refrigerator ceel by getting all
items Out at one time, keeping food organized, and closing
the door as soon as possible.
Has a large amount of food just been added to the
refrigerator or freezer? Adding a large amount of food
warms the refrigerator. It can take several hours for the
refrigerator to return to the normal temperature.
•Are the controls set correctly for the surrounding
conditions? See "Using the Controls. '_
Is the refrigerator not cooling? For models with digital
controls, turn the unit OFF then ON again to reset. See "Using
the Controls." Ifthis does not correct the problem, call for
service.
containers so that they fit more tightly and take up less
space.
Is the ice storage bin out of position? For models with an
interior ice storage bin, push the ice storage bin in all the way.
Ifthe ice storage bin does not go in all the way, it may not be
put in straight. Pull it Out and try again. For models with an ice
storage bin located on the freezer door, the bin should sit
level. To remove the bin, press the release button on the right
side of the bin and lift straight up. Replace the bin in the door
making sure it is properly aligned and snapped securely into
place. See "Ice Maker and Storage Bin."
Are the pans, shelves, bins, or baskets out of position?
Put the crisper cover and all pans, shelves, bins, and baskets
back into their correct positions. See the "Convertible
Vegetable/Meat Drawer, Crisper and Covers" section for
more information.
Are the gaskets sticking? Clean gaskets according to the
directions in the "Cleaning" section.
Does the refrigerator wobble or seem unstable? Level the
refrigerator. See "Adjust the Doors."
Were the doors removed during product installation and
not properly replaced? Remove and replace the doors
according to the instructions in the "Refrigerator Doors"
section, or call a qualified service technician.
The doors are difficult to open
•Are the gaskets dirty or sticky? Clean gaskets according to
the directions in the "Cleaning" section.
PROTECTION AGREEMENTS
Inthe U.S=A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new Galaxy '_
appliance is designed and manufactured for years of dependable
operation. But like all products, it may require preventive
maintenance or repair from time to time. That's when having a
Master Protection Agreement can save you money and
aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life of
your new appliance. Here's what's included in the Agreement:
Expert service by our 12,000 professional repair specialists
1/Unlimited service and no charge for parts and labor on all
covered repairs
28
