Galaxy Galaxy Top mount User manual

Galaxy
Refrigerator
Top Mount
Use & Care Guide
Refrigerador
Congelador Superior
Gufa para su uso y cuidado
R6frig_rateur
Compartiments Superpos_.s
Guide d'utilisation et d'entretien
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Sears Canada, inc., Toronto, Ontario, Canada M5B 2B8 www,sea ts,com
240506405 (0408)
Z
m

Welcome &
Congratulations
Congratulations on your purchase of a new refrigerator! We
here at Sears are very proud of our product and we are
completely committed to providing you with the best
service possible, Your satisfaction is our #1 priority,
We know you'll enjoy your new refrigerator and ThankYou
for choosing our product, We hope you consider us for
future purchases,
PLEASE READ AND SAVE THESE
INSTRUCTIONS
This Owner's Guide provides specific operating
instructions for your model, Use your refrigerator only as
instructed in this manual, These instructions are not meant
to cover every possible condition and situation that may
occur, Common sense and caution must be practiced
when installing, operating and maintaining any appliance,
PJeaee record your model and serial numbers beJow
for future reference.This information is found on the
serial plate located inside the refrigerator
compartment.
NOTE: use 0n!y soap and water to c!ean sei!al pUate
Model Number: 253
or: 970
SeriaJ Number:
Purchase Date:
TABLE OF CONTENTS
Welcome ............................................. 2
Safety Instructions .............................. 2 - 3
Warranty .............................................. 3
Canada - Limited Warranty .................. 4
Protection Agreements ........................ 5
tnstallation==lncludes connecting optional ice
Maker To Water Supply ..................................... 6 - 7
Door Removal & Reversal .................. 8

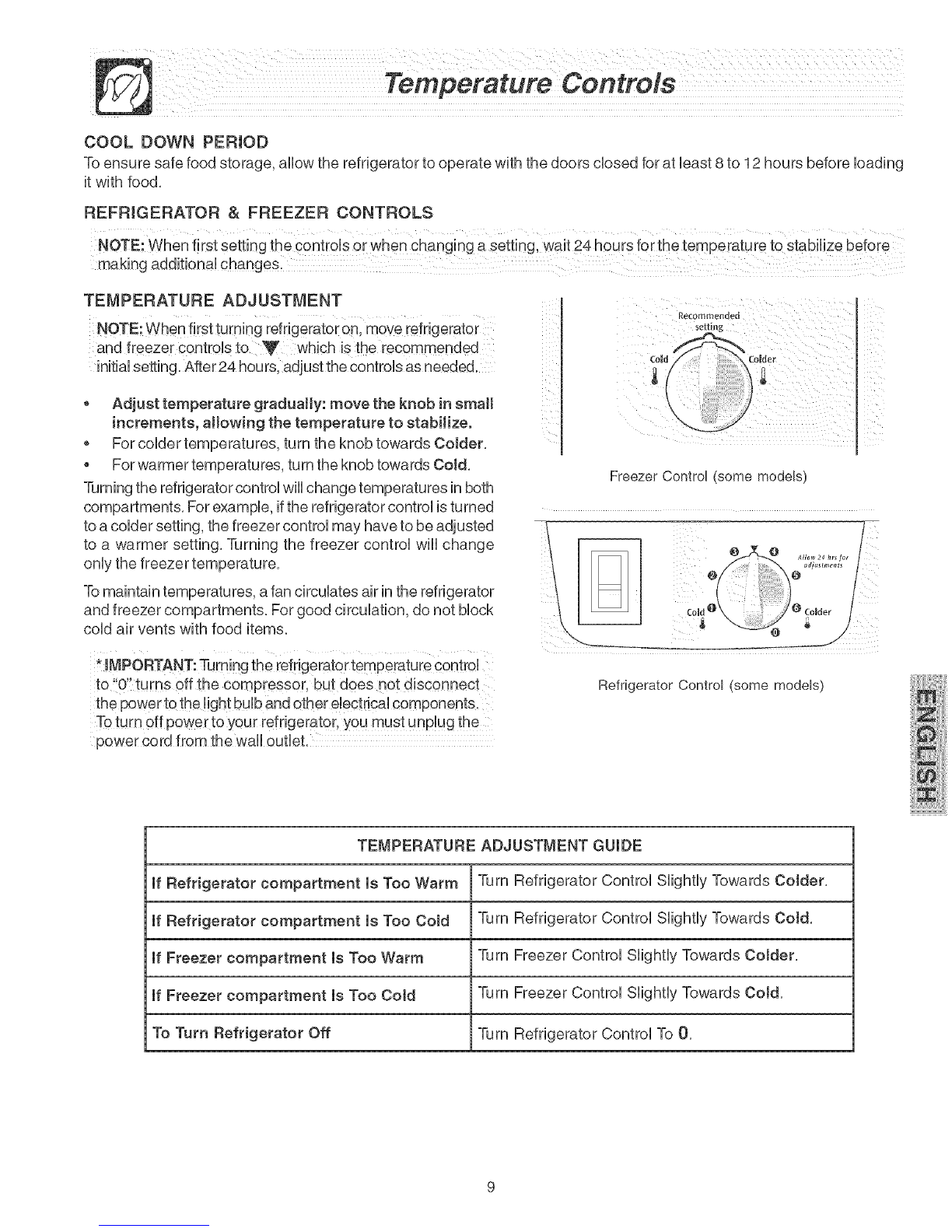

Temperature Controls .......................... 9
Looking Inside ..................................... 10
ice Service .......................................... 11
Food Storage & Energy Saving Tips ... 12
Normal Operating Sounds & Sights .... 13

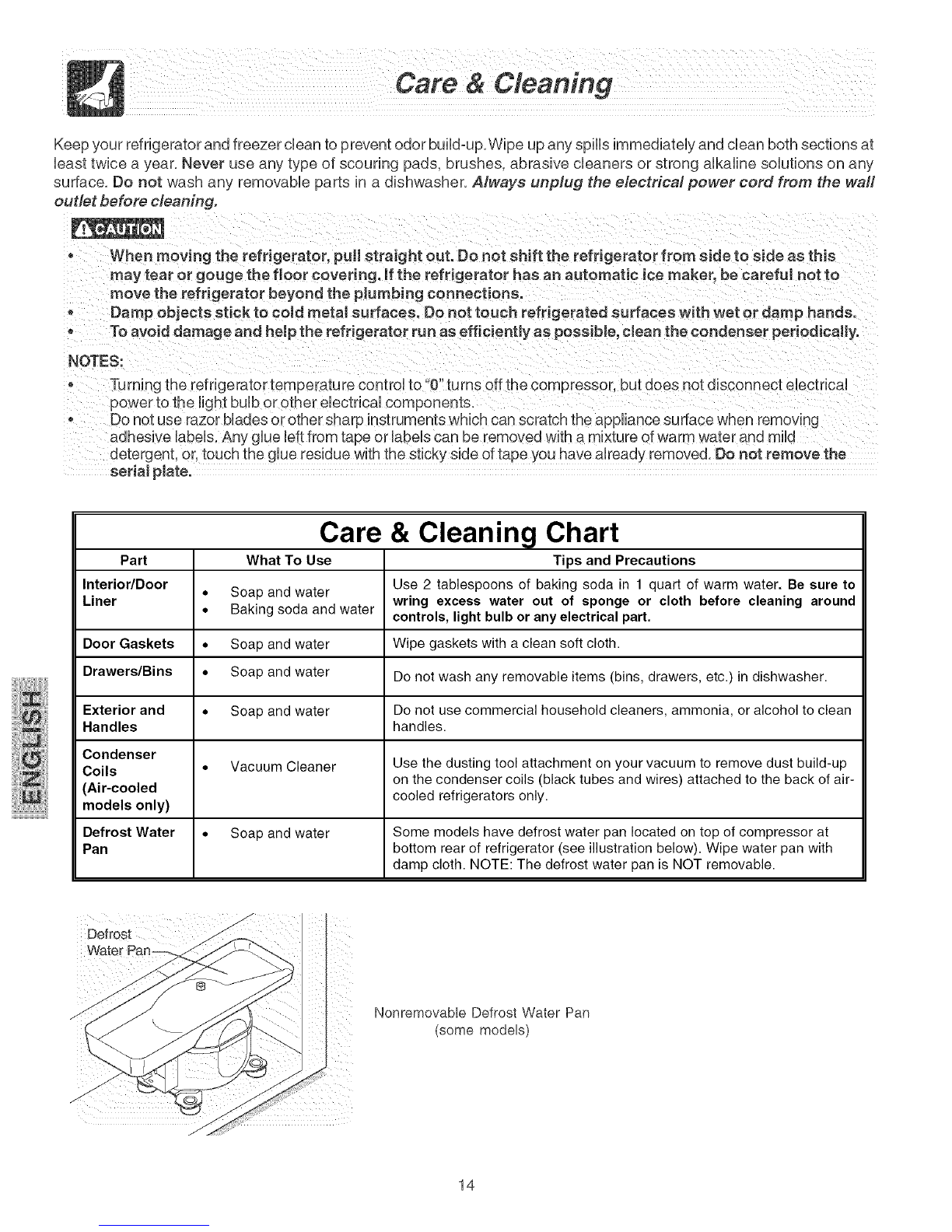

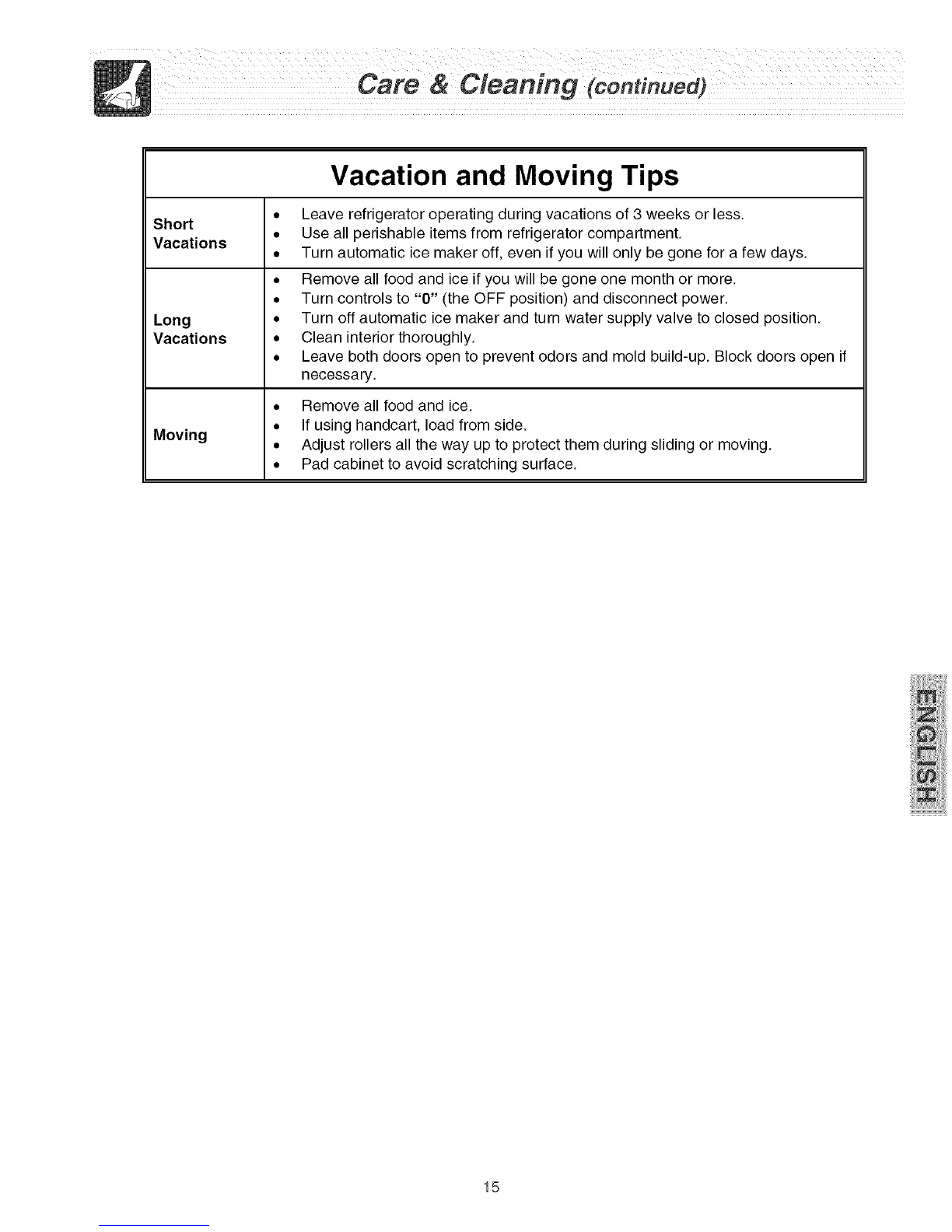

Care & Cleaning .................................. 14 =15
Before You Call .................................... 16
important Safety
Instructions
Please Read AJJinstructions Before
UsingThis Refrigerator.
FOR YOUR SAFETY
*Do not store or use gasoline, or other flammable liquids
in the vicinity of this or any other appliance, Read product
labels for warnings regarding flammability and other
hazards,
*Do not operate the refrigerator in the presence of
explosive fumes,
*Avoid contact with any moving parts of automatic ice
maker,
*Remove all staples from the carton, Staples can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture,
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any
exterior wrapping material immediately after the refrigerator
is unpacked, Children should NEVER use these items to
play, Cartons covered with rugs, bedspreads, plastic
sheets or stretch wrap may become airtight chambers,
and can quickly cause suffocation,
PROPER DISPOSAL OF YOUR REFRIGERATOR
OR FREEZER
Risk of child entrapment
Child entrapment and suffocation l_b--_ _
are not problems of the past,
Junked or abandoned refrigerators
or freezers are still dangerous -
even if they will sit for "just a few
days," if you are getting rid of your
old refrigerator or freezer, please
follow the instructions below to
help prevent accidents,
Before you throw away your
old refrigeratod freezer:
*Remove doors,
Leave shelves in place so children may not easily climb
inside,
Have refrigerant removed by a qualified service
technician,

These Guidelines Must Be FoHowedTo EnsureThat
Safety Mechanisms InThis Refr!getat0rW!lJ Operate
Properly.

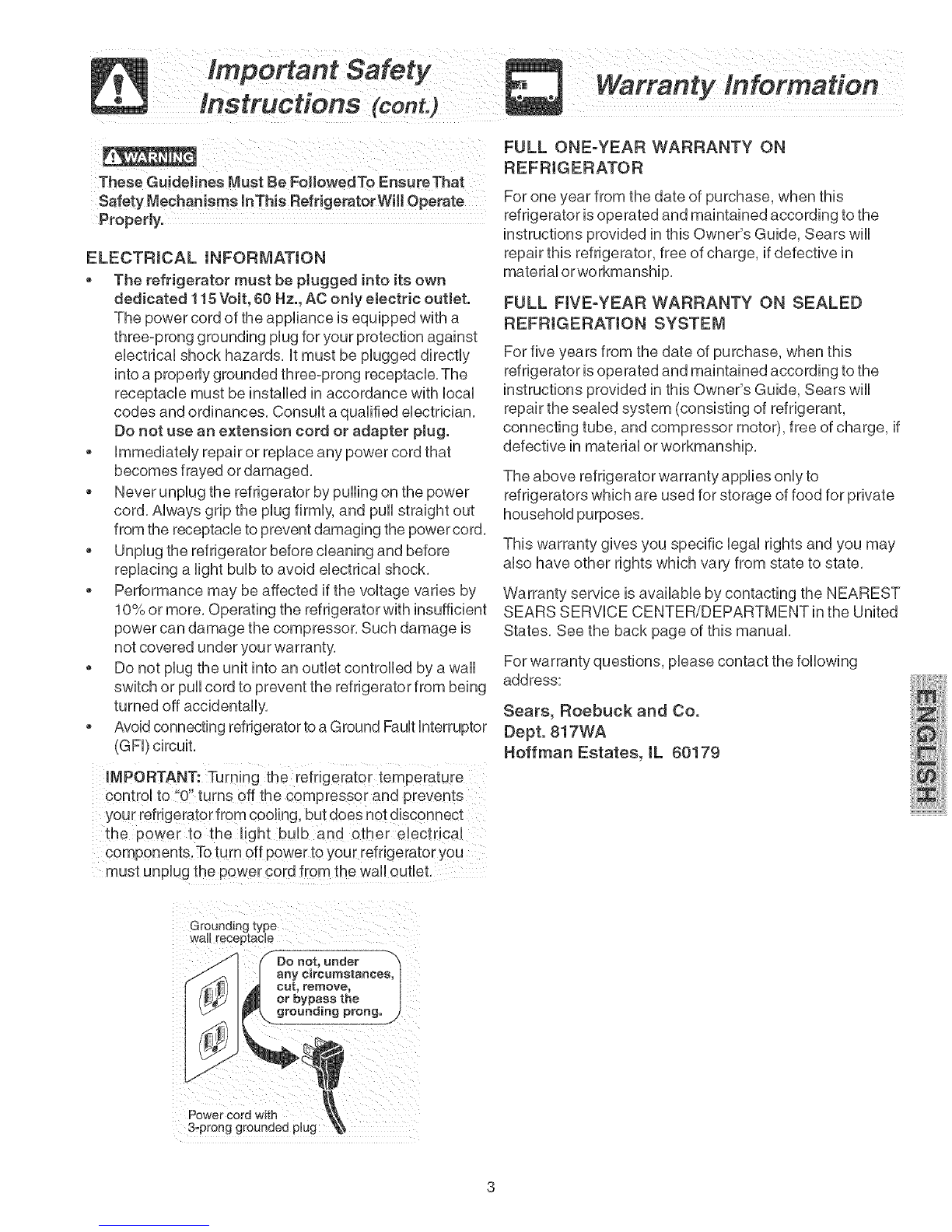

ELECTRICAL iNFORMATiON
*The refrigerator must be plugged into its own
dedicated ! 15 VoJt,60 Hz., AC only etectric outlet.
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
electrical shock hazards, it must be plugged directly
into a properly grounded three-prong receptacle, The
receptacle must be installed in accordance with local
codes and ordinances, Consult a qualified electrician,
Do not use an extension cord or adapter plug.
*Immediately repair or replace any power cord that
becomes frayed or damaged,
Never unplug the refrigerator by pulling on the power
cord, Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord,
Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock,
Performance may be affected if the voltage varies by
10% or more, Operating the refrigerator with insufficient
power can damage the compressor, Such damage is
not covered under your warranty,
Do not plug the unit into an outlet controlled by awall
switch or pull cord to prevent the refrigerator from being
Avoid connecting refrigerator toa Ground Fault Interruptor
(GFi) circuit,
IMPORTANT: Turn ng the refrigerator temperature
control to "0" turns off the compressor and prevents
your refrigerator from cooling, but does not disconnect
the power to the light bulb and other eiectrica
components, Toturn off power to your refrigerator you
must unplug the power cord from the wall outlet.
FULL ONE-YEAR WARRANTY ON
REFRIGERATOR
For one year from the date of purchase, when this
refrigerator is operated and maintained according to the
instructions provided in this Owner's Guide, Sears will
repair this refrigerator, free of charge, if defective in
FULL FIVE-YEAR WARRANTY ON SEALED
REFRIGERATION SYSTEM
For five years from the date of purchase, when this
refrigerator is operated and maintained according to the
instructions provided in this Owner's Guide, Sears wiii
repair the sealed system (consisting of refrigerant,
connecting tube, and compressor motor), free of charge, if
defective in material or workmanship,
The above refrigerator warranty applies only to
refrigerators which are used for storage of food for private
household purposes,
This warranty gives you specific legal rights and you may
also have other rights which vary from state to state,
Warranty service is available by contacting the NEAREST
SEARS SERVICE CENTER/DEPARTMENT in the United
States, See the back page of this manual,
For warranty questions, please contact the following
address:
Sears, Roebuck and Co.
Dept. 817WA
Hoffman Estates, mL 60179
Grounding type
wall receptaclef -.,
Do not. under
any circumstances.
cut. remove,
or bypass the
Power cord with
3-prong grounded plug

TE
Sears Canada Inc,, warrants every new refrigerator to be free from defects in material or workmansMp, What Sears wifl do, free
of charge, in case of defect:
The Compressor TEN (10) YEARS TEN (10) YEARS FiVE (5) YEARS
The Sealed System
(consisting of refrigerant, FiVE (5) YEARS FiVE (5) YEARS FiVE (5) YEARS
evaporator, and condenser)
All other parts or ONE (1) YEAR ONE (1)YEAR ONE (1) YEAR
adjustments
Norma_ Responsibility of the Customer
The following items, since they are not manufacturing defects, are not included in the warranty, but are the responsibility of
the customer:
1) Damage to finish after delivery,
2) improper power supply, low voltage, or any defects in the house wiring system or appliance not connected
to electric outlet,
3) Replacement of light bulbs,
4) Damage caused by moving the product from its original installation,
5) Service required as a result of alteration, abuse, fire, floods, or acts of God,
6) Providing adequate air circulation to the refrigerating system,
7) Proper use and care of product as listed in the customer's manual; proper setting of the controls,
SM
if any service is required under this warranty, simply carl 1-800-4-MY-HOME (1-800-469-4663),
This warranty is in addition to any statutory warranty, The above warranty covers Refrigerators sold and operated in
Canada only and shaft not apply if the refrigerator is used for other than domestic purposes,
Sears Maintenance Agreement
Maintain the value of your refrigerator with a Sears Maintenance Agreement,
SEARS CANADA INC. o Toronto, Canada o M5B 2B8
PRINTED iN U.S.A.

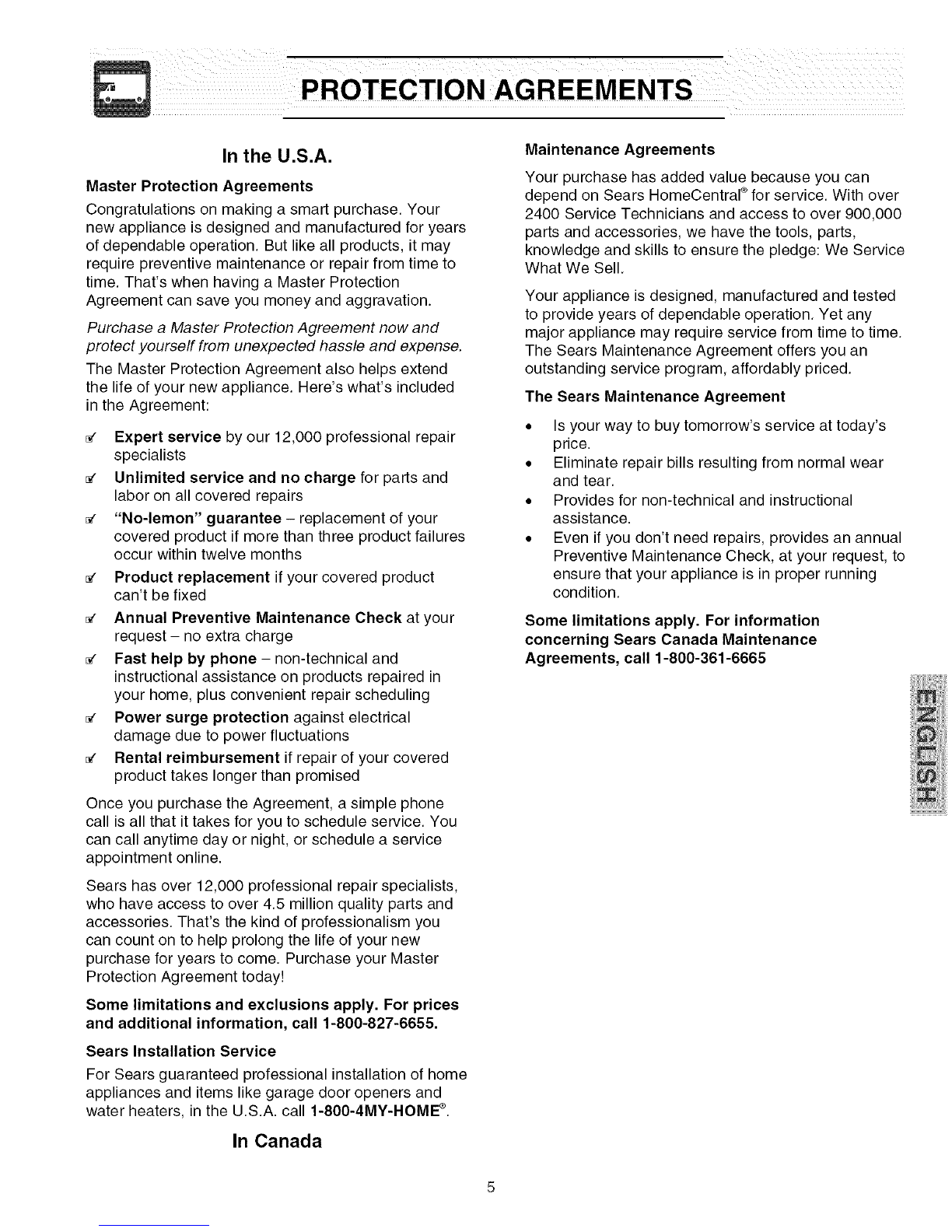

In the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your
new appliance is designed and manufactured for years
of dependable operation. But like all products, it may
require preventive maintenance or repair from time to
time. That's when having a Master Protection
Agreement can save you money and aggravation.
Purchase a Master Protection Agreement now and
protect yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend
the life of your new appliance. Here's what's included
in the Agreement:
_" Expert service by our 12,000 professional repair
specialists
•"Unlimited service and no charge for parts and
labor on all covered repairs
_" "No-lemon" guarantee- replacement of your
covered product if more than three product failures
occur within twelve months
•"Product replacement if your covered product
can't be fixed
_" Annual Preventive Maintenance Check at your
request - no extra charge
•"Fast help by phone - non-technical and
instructional assistance on products repaired in
your home, plus convenient repair scheduling
_" Power surge protection against electrical
damage due to power fluctuations
•"Rental reimbursement if repair of your covered
product takes longer than promised
Once you purchase the Agreement, a simple phone
call is all that it takes for you to schedule service. You
can call anytime day or night, or schedule a service
appointment online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you
can count on to help prolong the life of your new
purchase for years to come. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply. For prices
and additional information, call 1-800-827-6655.
Sears Installation Service
For Sears guaranteed professional installation of home
appliances and items like garage door openers and
water heaters, in the U.S.A. call 1-800-4MY-HOME ®.
In Canada
Maintenance Agreements
Your purchase has added value because you can
depend on Sears HomeCentral ®for service. With over
2400 Service Technicians and access to over 900,000
parts and accessories, we have the tools, parts,
knowledge and skills to ensure the pledge: We Service
What We Sell.
Your appliance is designed, manufactured and tested
to provide years of dependable operation. Yet any
major appliance may require service from time to time.
The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.
The Sears Maintenance Agreement
•Is your way to buy tomorrow's service at today's
price.
• Eliminate repair bills resulting from normal wear
and tear.
• Provides for non-technical and instructional
assistance.
• Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your appliance is in proper running
condition.
Some limitations apply. For information
concerning Sears Canada Maintenance
Agreements, call 1-800-361-6665

iiiii!iWiiili!
This Use & Cars ManuaU provides specific operating
instructions for your model Use the refrigerator onUyas
instructed in this Use & Cars Manual Before starting the
refrigerator, foltow these important first steps.
LOCATION
*Choose a pUacethat is near a grounded sUectrbaUoutbt.
Do Not use an extension cord or an adapter pUug.
o if possibb place the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
sources,
o The rsfrigsrator must be installed on a floor that is bvsl
and strong enough to support a fully loaded rsfrigsrator,
oConsider water supply availability for modsb equipped
with an automatic ice maker,
mNSTALLATION
Do Not install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C). At these
temperature extremes, the compressor will not be
able to maintain proper temperatures inside the
refrigerator.
Do Not block the toe grille on the lower
front of your refrigerator. Sufficient air circulation is
essentiaJ for the proper operation of your refrigerator.
Installation Clearances
Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides & Top ............... 3/8
Back ........................ 1'
NOTE: ff YOUSee black Coils/tubing Onthe back of your
refrigerator (air-coo!sd condenser) !eave 3"clearance at
top of refrigerator.
DOOR OPENING
LEVELING
All four corners of your refrigerator must rest firmly on a
solid floor, Your refrigerator is equipped with adjustable front
rollers to help level your unit,
To Level Your Refrigerator:
1, Use fiat-blade screwdriver or 3/8" socket wrench
to adjust front rollers,
NOTE: Raise the front of the refrigerator enough so the
doors close freely when opened halfway.The refrigerator
should slope W' to Y5"from front-to-back. Then level the
refrigerator from side to side,
Raise
©
side against a wail, you may have to allow additional
space so the door can be opened wider.
Your refrigerator should be positioned to allow easy access
to a counter when removing food. To make this possible, the
direction in which the doors open can be reversed. See Door
Removal & Reversal Instructions on page 8.

IRstallatiorl o Connecting Optional Ice Maker To Water Supply
To avoid electric shock, which can cause death or severe personal injury, disconnect the
refrigerator from electrical power before connecting a water supply line to the refrigerator.
To Avoid Property Damage:
- Copper tubing is recommended for the water supply line. Water supply tubing made of 1A"plastic is not
recommended since itgreatly increases the potential for water leaks. Manufacturer wilJ not be responsible for
any damage if plastic tubing is used for supply line.
•DO NOT install water supply tubing in areas where temperatures fall below freezing.
•Chemicals from a malfunctioning softener can damage the ice maker, ff the ice maker is connected to soft
water, ensure that the softener is maintained and working property.
IMPORTANT: Ensure that your water supply line connections comply with all local plumbing codes.
Before Installing The Water Supply Line, You W/fl Need
,, BasicTools: adjustable wrench, flat-blade screwdriver, and Phillips TM screwdriver
o Access to a household cold water line with water pressure between 20 and 120 psi.
• A water supply line made of ¼ inch (6.4 mm) OD, copper tubing or braided water line. To determine the length of
copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out
for cleaning (as shown).
A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type
shutoff valve.
o A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.
To Connect Water Supply Line To Ice Maker Inlet Valve
1. Disconnect refrigerator from electric powersource.
2. Place end of water supply line into sink or bucket. Turn ON water supply
and flush supply line until water is clear. Turn OFF water supply at shut
off valve.
3. Unscrew plastic cap from water valve inlet and discard cap.
4. Slide brass compression nut, then ferrule (sleeve) onto water supply line,
as shown.
5. Push water supply line into water valve inlet as far as it wiii go (¼ inch).
Slide ferrule (sleeve) into valve inlet and finger tighten compression nut ....
onto valve. Tighten another half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to rear panel of
refrigerator as shown.
7. Coil excess water supply line (about 2Y2turns) behind refrigerator as shown
and arrange coils so they do not vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten any connections that
leak.
9. Reconnect refrigeratortoelectrical powersource.
10. Toturn ice maker on, lower wire signal arm (see ice maker front cover for ON/
OFF position of arm).
Clamp
Brass
Compression
Vanve runlet
Water Valve
from household water supply
ice. Air in new plumbing lines may
cause ice maker to cycle two or three times before making a fu!!tray of !ce_New plumb!ng may cause !ceto be discobred
or have poor flavor. Discard ice made during the first 24 hours.

Door Removal and Reversal Instructions
ToolsNecessor
Ph iDS 1@o0
Dr
Quodr6_ n6oo
5C+_WQT Vel Ahonch Sot
_ _/_/ _ Pule/
_ Knife
AOIUSTOD o
wreDcc
J
/Door
Screw J stop
Washer
Hinge
DOOr Stop J DOOr
i--+°+°,
_j+ j_.] +Ip+++
"/Z_ ++ Bott+m
DOOR REMOVAL AND REVERSAL iNSTRUCTIONS:
NOTE: The direction in which you r refrigerator doors open (door swing)
can 9e reversed, from left to right or right to left, by moving the door
hinges from one side to the other. Reversing the door swing should be
performed by a qual fied person.
IMPORTANT: Before you begin, turn the refrigerator temperature control
to "0" and remove the electrical power cord from the wall outlet. Remove
any food from door shelves.
1. Removetop hinge cover.
2. Remove top hinge with 3/8" hex driver and lift freezer door off of
center hinge pin. Set door aside.
8. Unscrew center hinge pin using adjustable wrench and save for
reassembiy. Ensure plastic washer stays on hinge pin
4. Lift refrigerator door off of bottom hinge and set aside.
5. Remove center hinge and shim by removing inside screw and
loosening two outside screws enough to allow hinge and shim to
slide out. Tighten screws.
6. Loosen two outside screws on opposite side of refrigerator, remove
inside screw and install center hinge.
7. Remove bottom hinge with 8/8" hex driver. Reinsert two outside
screws in hobs and tighten, nside screw wiii go to opposite side
in step 8.
8. Remove two outside screws on opposite side of refrigerator and
install bottom hinge, insert and tighten screw saved from step 7.
9. Unscrew bottom hinge pin using adjustable wrench. Move hinge pin
to other hob in hinge and tighten with adjustable wrench.
10. Move freezer and refrigerator door stops to opposite side. Before
starting screws, use an awl to puncture the foam.
11. Position refrigerator door onto bottom hinge pin and screw center
hinge pin through center hinge into top of door. Close refrigerator
door to help align hinge hob.
12. Tighten center hinge pin with adjustable wrench.
13. Remove cabinet and hinge hob plugs and move to opposite side.
14. Lower freezerdooronto center hinge pin.
15. Close freezer door. Have an assistant lift up on opposite side of
door while tightening screws to install top hinge.
16. Replace top hinge cover.
17. Plug n electrical powercord and turn refrigerator temperature control
to center position. Adjust setting as necessary.

COOL DOWNPERmOD
Toensuresafefoodstorage,allowtherefrigeratortooperatewiththedoorsdosedforatUeast8to12hoursbeforeloading
itwithfood.
REFRIGERATOR & FREEZER CONTROLS
NOTE: When first setting the controls or when changing a setting, wait 24 hours for the temperature to stabilize before
making additional changes.
TEMPERATURE ADJUSTMENT
NOTE: When first turning refrigerator on. move refrigerator
and freezer controls to _' which is the recommended
initialsetting. After 24 hours, anjust the controls as needed.
Adjust temperature gradually: move the knob in small
increments, allowing the temperature to stabilize.
oForcoUderternperatures, turn the knob towards Colder.
• For warmer temperatures, turn the knob towards CoM
Turning the refrigerator control wHUchange temperatures in both
compartments, For example, ifthe refrigerator control isturned
to a colder setting, the freezer control may have to be adjusted
to a warmer setting, Turning the freezer control will change
only the freezer temperature,
Tomaintain temperatures, a fan circulates airin the refrigerator
and freezer compartments. For good circulation, do not block
cold air vents with food items.
*iMPORTANT: Turning the refr!gerator temperature control
the power to the !!ght bulb and other electrica! components.
To turn off power to your refrigerator ,you must unp!ug the
power cord from the wall outlet.
Re_ommended
seEl_}g
CO_d¢, '%_ CO_e}"
Freezer Control (some models)
Refrigerator Control (some models)
TEMPERATURE ADJUSTMENT GUIDE
if Refrigerator compartment is Too Warm Turn Refrigerator Control Slightly Towards CoMer,
If Refrigerator compartment Is Too Cold Turn Refrigerator Control Slightly Towards Cold.
If Freezer compartment Is Too Warm Turn Freezer Control Slightly Towards CoMer.
If Freezer compartment Is Too CoM Turn Freezer Control Slightly Towards CoM.
To Turn Refrigerator Off Turn Refrigerator Control To O.

Looking inside
To avoid personal injury or property damage, handJe
tempered gJass shelves carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden temperature change=
SHELF ADJUSTMENT
Refrigerator sheUvesare easily adjusted tosuit individuaUneeds, Before adjusting
the sheUves,remove aHfood,
To adjust sliding shelves:
O Remove sheff by pulling forward to stop position,
Lift front edge up and pull out,
RepUacethe sheff on any pair of rails by reversing this procedure, Sliding Wire Shelf
DOOR STORAGE
Door bins, sheUves,and racks are provided for convenient storage of jars,
bottUes,and cans, FrequentUy used items can be quicMy selected,
Some models have door racks or bins that can accommodate gallon-sized
plastic drink containers and economy-sized jars and containers, Some racks
are adjustable for maximum storage capacity,
The dairy compartment, which iswarmer than the general foodstorage section,
is intended for short term storage of cheese, spreads, or butter,
CRISPERS (SOME MODELS)
The crispers, located under the bottom refrigerator shelf, are designed for
storing fruits, vegetables, and other fresh produce, Wash items in clear water
and remove excess water before placing them in the crispers, Items with
strong odors or high moisture content should be wrapped before storing,
Door Rack
Crisper Drawer
10

Ifyourrefrigeratorhasanautomaticicemaker,it wHIprovideasufficient
supplyoficefornormaluse,Duringtheinitialstartupofyourrefrigerator,
however,noicewillbeproducedduringthefirst24hoursofoperation,Automatic
icemakersarealsooptionalaccessoriesthatmaybeinstalledinmostmodels
atanytime,Callyourlocaldealerforinformation,
Theicemakerproduces2to5poundsoficeevery24hoursdependingon
usageconditions,Iceisproducedatarateof8cubesevery80to160minutes,
TURNINGYOURICEMAKERON
Aftertheplumbingconnectionshavebeencompleted,thewatersupplyvalve
mustbeopened,Placetheicecontainerundertheicemaker,pushingitasfar
backaspossible,Lowerthewiresignalarmtoits"down" or ON position, New
plumbing connections may cause the first production of ice cubes to be
discolored or have an odd flavor, These first cubes should be discarded until
the cubes produced are free of discoloration and taste,
TURNING YOUR iCE MAKER OFF
To stop the ice maker, lift the wire signal arm until it clicks and locks in the
"up" or OFF position, The ice maker also turns off automatically when the ice
container is full, if your model has an adjustable freezer shelf, place the shelf
in the lower position, so that the wire signaHarm wiHHhit the ice when the
container is full,
Signal Arm
ice Maker
Chemioais from a ma!funetion!ng softener can damage the ice maker, ffthe ice maker is connected
to soft water, ensure that the softener is maintained and working properly,
iCE MAKER TIPS
o ice cubes stored too long may develop an odd flavor, Empty the ice container and ensure that the wire signal arm is
in its "down" or ON position, The ice maker will then produce more ice,
o Occasionally shake the ice container to keep ice separated,
Keep the wire signal arm in its "up" or OFF position until the refrigerator is connected to the water supply or whenever
the water supply is turned off,
The following sounds are normal when the ice maker is operating:
Motor running
o ice loosening from tray
o ice dropping into ice container
Running water
Water valve opening or closing
ooNotplaoetheioeContainerinyourdishwasher.
Wash the ice container in warm water with mild detergent, Rinse well and dry,
Stop the ice maker when cleaning the freezer and during vacations,
o if the ice maker will be turned off for a long period of time, turn the water supply valve to the closed position,
11

FOODSTORAGEmDEAS
Fresh Food Storage
oThe fresh food compartment shouUdbe kept between 34 ° F and 40° Fwith an optimum temperature of 37° R
o Avoid overcrowding the refrigerator sheUves,This reduces the circulation of air around the food and resuUtsin uneven
cooling,
Fruits and Vegetables
oStorage in the crisper drawers traps moisture to heUppreserve the fruit and vegetabUe quality for Uongertime periods,
Meat
o Raw meat and pouUtryshouUdbe wrapped secureUyso Ueakageand contamination of other foods or surfaces does not
Occur,
Frozen Food Storage
*The freezer compartment should be kept at 0° F or lower,
*A freezer operates most efficiently when it is at least 2/3 full,
Packaging Foods for Freezing
o To minimize dehydration and quality deterioration, use aUuminumfoil, freezer wrap, freezer bags or airtight containers,
Force as much air out of the packages as possiMe and seaUthem tightUy,Trapped air can cause food to dry out,
change color, and deveUopan off-flavor (freezer burn),
*Wrap fresh meats and poultry with suitable freezer wrap prior to freezing,
o Do not refreeze meat that has completely thawed,
Loading the Freezer
o Avoid adding too much warm food to the freezer at one time, This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods,
,Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible,
*Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves, These foods are
best stored in the freezer interior where the temperature varies less,
/
ENERGY SAVING IDEAS
o Locate the refrigerator in the coolest part of the room, out of direct sunlight,
and away from heating ducts or registers, Do not place the refrigerator
next to heat-producing appliances such as a range, oven, or dishwasher,
f this is not possible, a section of cabinetry or an added layer of insulation
between the two appliances will help the refrigerator operate more
efficiently,
o Level the refrigerator so that the doors close tightly,
o Refer to this Use & Care Manual for the suggested temperature control
settings,
° Periodic cleaning of the condenser will help the refrigerator run more
efficiently, See the Care and Cleaning Charton page 14,
Do not overcrowd the refrigerator or block cold air vents, Doing so causes
the refrigerator to run longer and use more energy,
o Cover foods and wipe containers dry before placing them in the
refrigerator, This cuts down on moisture build-up inside the unit,
o Organize the refrigerator to reduce door openings, Remove as many
items as needed at one time and close the door as soon as possible,
12

Normal Operating Sounds ts
UNDERSTANDING THE SOUNDSYOU MAY HEAR
Your new high-efficbncy refrigerator may make unfamiliar
sounds, Don"t be alarmed, these are aftnormal sounds, Hard
surfaces, such as vinyl or wood floors, wafts, and kitchen
cabinets may make sounds more notbeabb, Listed bebw
are descriptions of some of the most common sounds you
may hear, and what is causing them,
but is not a sound insulatoL
8
C
8
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound,
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan,
Co Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound, After
defrosting, a popping sound may occur,
may notice a red glow in the vents on the back wall of
your freezer compartment, This is normal during the
defrost cycle,
Do Automatic ice Maker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin,
E. Cold Control & Defrost Timer
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off. The timer also
produces sounds similar to an electric clock.
KCompressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high@itched hum or pulsating sound.
Go Water Valve
If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water valve
opens to fill the ice maker during each cycle,
H. Drain Pan (Nonremovable)
You may hear water running into the drain pan during
the defrost cycle, The drain pan will be located on top
of the compressor for air-cooled condensers (black coils
on back of refrigerator),
iii iiiii
ili@iiii
t. Condenser Coits
13

Keepyourrefrigeratorandfreezerdeantopreventodorbuild-up.Wipeupanyspillsimmediatelyanddeanbothsectionsat
leasttwiceayear.Neveruseanytypeofscouringpads,brushes,abrasivecleanersorstrongalkalinesolutionsonany
surface.Donotwashanyremovablepartsinadishwasher.Always unplug the electrical power cord from the wag
oudet before Meaning.
o When moving the refrigerator, pull straight out. Do not shift the refrigerator from side to side as this
may tear or gouge the floor covering, if the refrigerator has an automatic ice maker, be carefuJ not to
move the refrigerator beyond the pJumbing connections.
oDamp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
To avoid damage and heJpthe refrigerator run as efficientJy as possibJe, clean the condenser periodically.
NOTES:
Turning the refrigerator temperature control to "O'turns off the compressor, but does not disconnect electrical
power to the Jight bulb or other electrical components.
Do not use razor blades or other sharp instruments which can scratch the appliance surface when removing
adhesive Jabels.Any glue Jeftfrom tape or labels can be removed with a mixture of warm water and mild
detergent, or, touch the glue residue with the sticky side of tape you have already removed, Do not remove the
seriaJ plate.
Care & Cleaning Chart
Part What To Use Tips and Precautions
Interior/Door •Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to
wring excess water out of sponge or cloth before cleaning around
Liner ° Baking soda and water controls, light bulb or any electrical part.
Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.
Drawers/Bins • Soap and water Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Exterior and • Soap and water Do not use commercial household cleaners, ammonia, or alcohol to clean
Handles handles.
Condenser
Coils ° Vacuum Cleaner Use the dusting tool attachment on your vacuum to remove dust build-up
on the condenser coils (black tubes and wires) attached to the back of air-
(Air-cooled cooled refrigerators only.
models only)
Defrost Water ° Soap and water Some models have defrost water pan located on top of compressor at
Pan bottom rear of refrigerator (see illustration below). Wipe water pan with
damp cloth. NOTE: The defrost water pan is NOT removable.
Defrost
Water
Nonremovable Defrost Water Pan
(some models)
14

Vacation and Moving Tips
Short
Vacations
Long
Vacations
•Leave refrigerator operating during vacations of 3 weeks or less.
•Use all perishable items from refrigerator compartment.
•Turn automatic ice maker off, even if you will only be gone for a few days.
•Remove all food and ice if you will be gone one month or more.
•Turn controls to "0" (the OFF position) and disconnect power.
•Turn off automatic ice maker and turn water supply valve to closed position.
•Clean interior thoroughly.
•Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
•Remove all food and ice.
•If using handcart, load from side.
Moving •Adjust rollers all the way up to protect them during sliding or moving.
•Pad cabinet to avoid scratching surface.
15

See
To Properly lnsta# Your Refrigerator
"Installation" Section On Pages 6-7
OR
To Reverse The Doors
"Door Removal & Reversal" Section On Page 8
Common Before calling for service, review this list. It may save you time and
expense. This list includes common occurrences that are not the result of
Occurrences defective workmanship or materials in this appliance.
• Ensure plug is tightly pushed into electrical outlet.
• Check/replace fuse with a 15 amp time-delay fuse. Reset circuit
Refrigerator does not run. breaker.
• The temperature control is turned to "O".
• Refrigerator may be in defrost cycle. Wait 20 minutes and check again.
Freezer temperature too cold. • Set freezer control to a warmer setting until freezer temperature is
Refrigerator temperature is satisfactory. Allow 24 hours for the temperature to stabilize.
satisfactory.
Refrigerator temperaturetoocold. • Set refrigerator control to a warmer setting. Allow 24 hours for
Freezer temperature is temperature to stabilize. Then check freezer temperatures and adjust
satisfactory, as needed.
• The cabinet is not level.
*Refrigerator is noisy or vibrates. • Floor is weak.
• Interior needs to be cleaned.
Odors in refrigerator. • Foods that produce odors should be covered or wrapped.
Cabinet light not working.
Automatic ice maker not working.
(some models)
Replace light bulb,
Ensure plug is tightly pushed into electrical outlet,
Light switch may be stuck, Push in light switch, located on the
refrigerator control box, to release.
Ensure the Wire Signal Arm is not in UP position.
Ice maker should produce 4 to 5 pounds of ice in a 24 hour period.
Water supply is turned off.
Water pressure is too low,
The freezer is not cold enough,
*See Normal Operating Sounds and Sights section on page 13.
16
