Galileo G-2030M User manual

G-2030M Instruction
Right eyepiece
Left eyepiece
Zoom Ring
Stage
Clip
LED illuminator
Battery
compartment
Focus Wheel
Power Switch

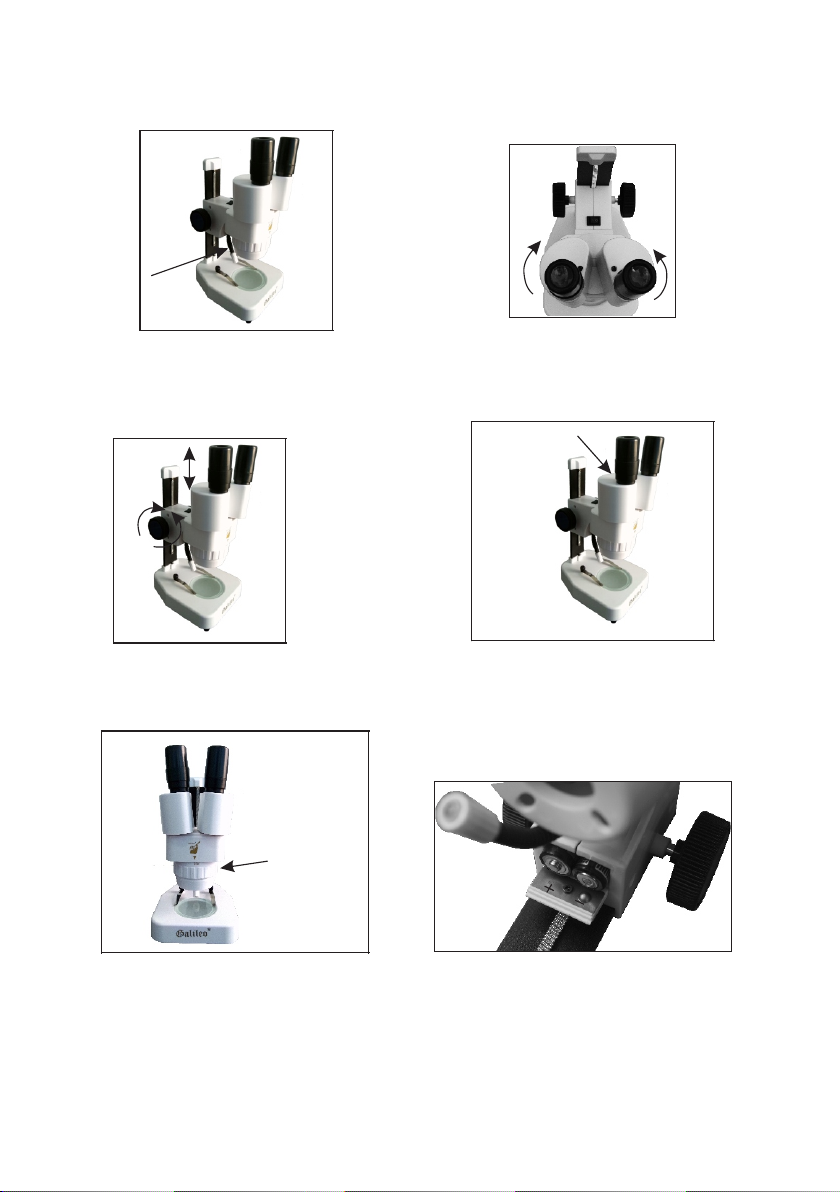

How to use your stereomicroscope
1. Put the viewing object on the Stage,
fixed with the clip.
2. Turn on the switch,
the LED light is on.
OFF
ON
1

8.Battery installation
Open the cover of Battery case,
insert 2X AA batteries into the case,
there is a indication +, – on the cover,
then close the cover.
SPECIFICATION
1. Magnification: 20X / 30X 2. Field of view: 8mm / 5.5mm
3. Working diatance: 80mm / 67mm 4. Interpupillary distance:52-74mm
5. Illumination:LED 6. Power: DC3V 2AA batteries
7. Weight: 780g
4. Set the interpupillary distance by
grasping the eyepiece base and
bending it until you can see one
circle of view.
5. Close your left eye and sight the
viewing object with your right eye,
rotating the Focus wheel until the
image is sharp and clear.
6. Open your left eye and rotating the
left eyepiece until the viewing
object is sharp and clear.
7. You can rotating the Zoom ring to
change the magnification 20X or
30X.
left eyepiece
Zoom ring
3. Adjust flexible LED light to
proper position lighting
object.
2
