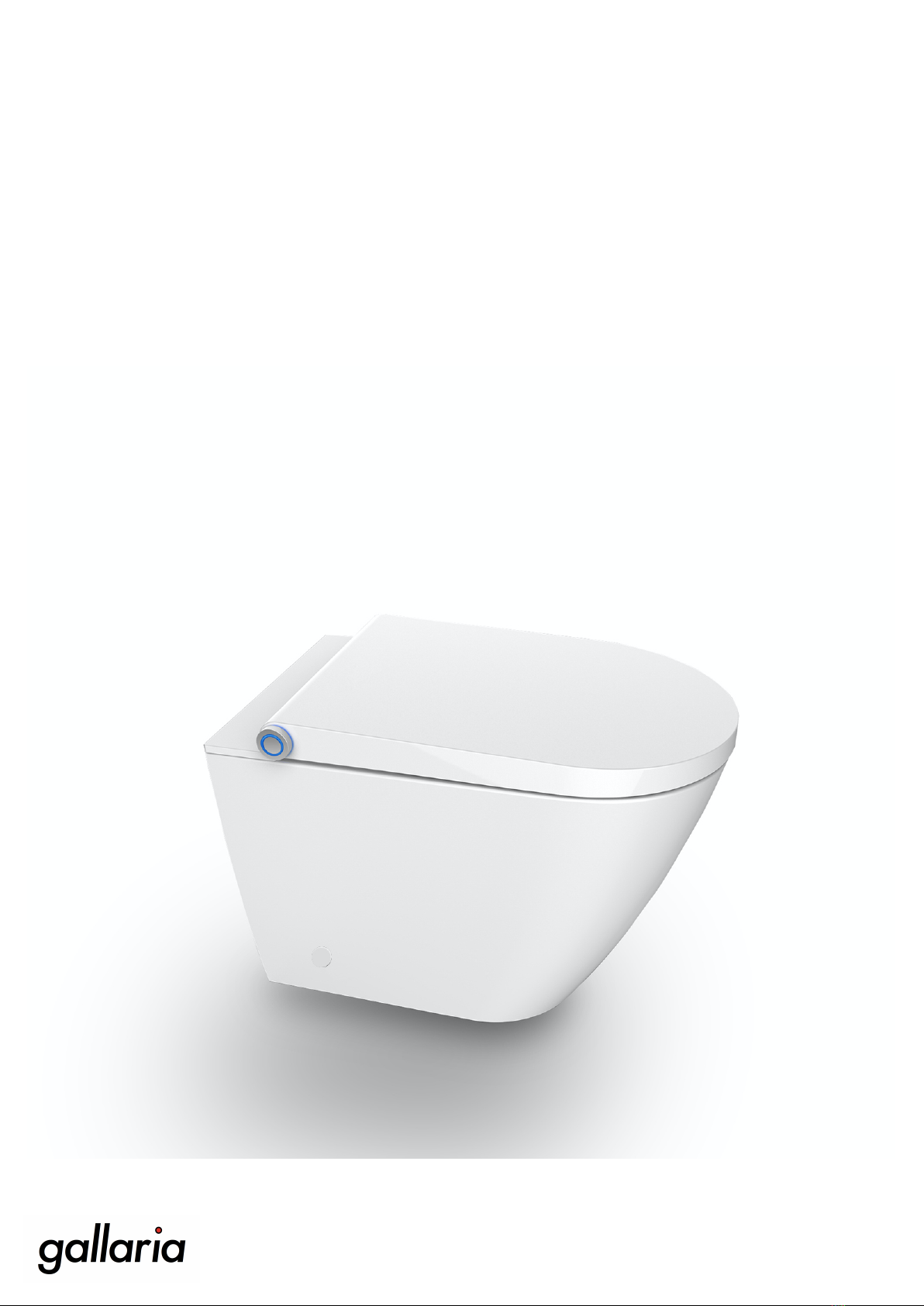

gallaria ALTACOMFORT+ AT210 User manual

!
OPERATION
INSTRUCTIONS
intelligentbathrooms
ALTACOMFORT+
WALL FACE PAN
CODE: AT210

!
intelligentbathrooms
Refers to a potentially dangerous
situation that may cause serious
injury or death .
Refers to a potentially dangerous
situation that may cause injury or
damage to property.
Do not touch or interfere.
Follow the instructions
accordingly.
DANGER
CAUTION
STOP
TAKE NOTICE
EXPLANATION OF SYMBOLS
Gallaria shall not be liable for any loss arising
from the failure to comply with the following:"
1. This toilet is considered to be a Class I (1)
electric appliance, and therefore must be
‘grounded’ by a qualified and licensed electrician
to prevent damage, injury or death."
2. Please ensure the electrical components are
not installed where it can easily be splashed with
water."
3. Please ensure the toilet is installed in a
bathroom with adequate ventilation, e.g. window
ventilation or a bathroom exhaust fan(s)."
4. If the supply cord is damaged, please ensure
it is replaced by a qualified service agent or
similarly qualified persons in order to prevent
damage, injury or death. "
CAUTION
ALTACOMFORT+
WALL FACE PAN
CODE: AT210

!
SAFETY ADVICE
DO NOT Insert or remove power plug with wet
hands.
To avoid the risk of electric shock, short-
circuiting, fire, water leakage and damage
to the product:
DO NOT damage the power cord and plug.
Inspect both before installation to ensure all is
intact.
DO NOT disassemble, attempt to repair or
reassemble the product.
DO NOT splash water, detergents or urine on
the product and the power plug.
DO NOT bend or distort the inlet hose.
intelligentbathrooms

!
intelligentbathrooms
Specifications
ALTACOMFORT+ (AT210)
Carbon filtration

!

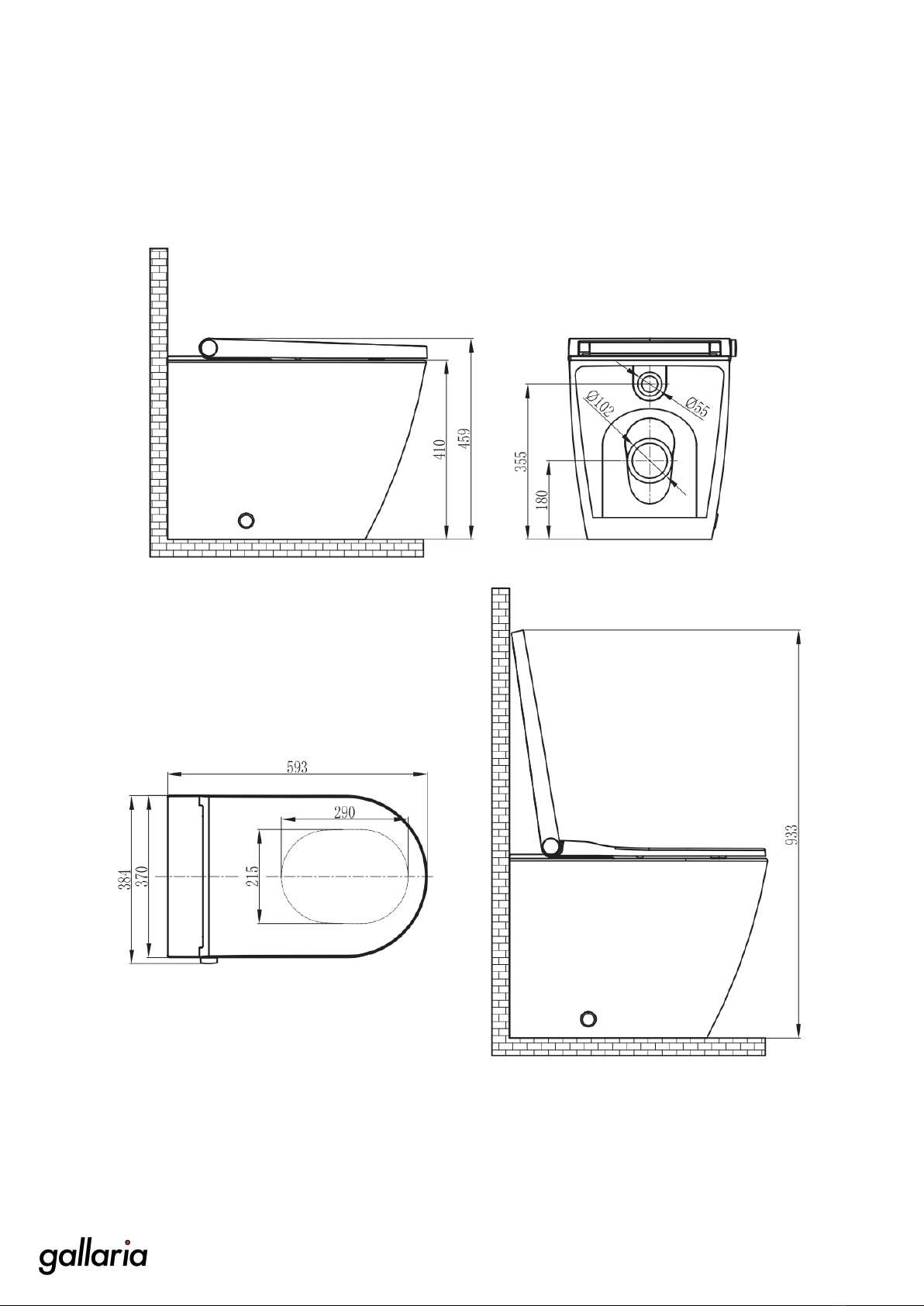

TECHNICAL DRAWING
intelligentbathrooms

!

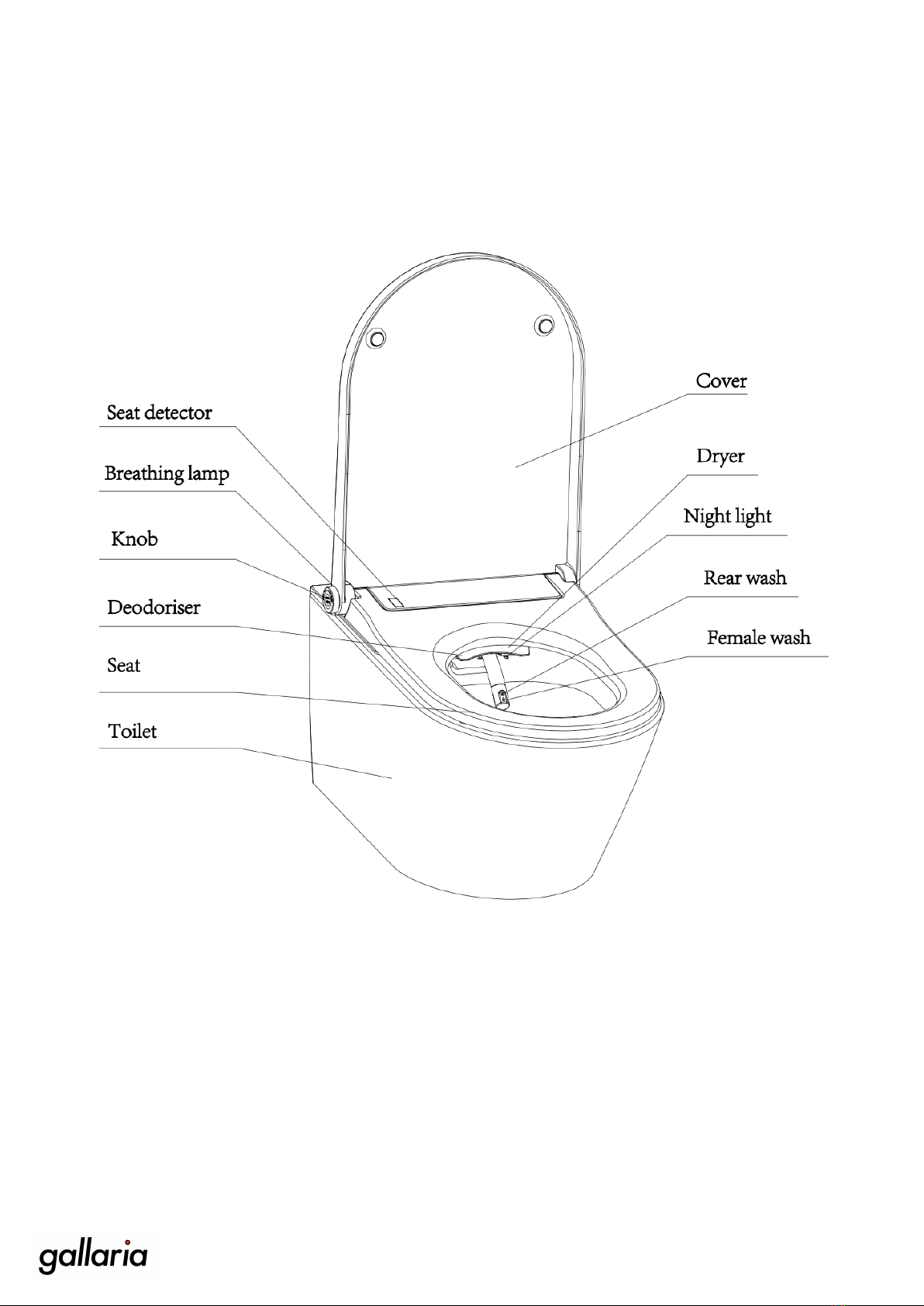

OVERVIEW
intelligentbathrooms

!
intelligentbathrooms
REMOTE CONTROL
Note:"
- The remote control requires 2 x AAA batteries (type 1.5V LR3/AAA) - which
are not included."
- Software version : V1.0. Software updates will not be provided.
TAKE NOTICE

!
EXPLANATION OF FUNCTIONS
intelligentbathrooms
WASH MODES
Press the ‘Wash’ button on the remote control or on the control knob.
The bidet seat will commence washing."
Washing can be stopped by simply pressing the ‘Stop’ button on either
the remote control on control knob."
Alternatively, the wash will automatically stop after 3 minutes.
Rear Wash
Female Wash
DRY FUNCTION
Press the "Dry" button on the
remote control or centre button on
the control knob to commence the
drying process."
Drying can be stopped by pressing
the ‘Stop’ button."
The drying function will
automatically stop after 3 minutes.
MASSAGE FUNCTION
Repeatedly press the ‘Massage’
button on the remote control your
desired spray mode is chosen.
Oscillating: indicated by one light
Pulsating: indicated by two lights
Oscillating & Pulsating: indicated by
three lights

!
EXPLANATION OF FUNCTIONS
WASH FLOW RATE
Alternatively, the wash flow rate can be
controlled via the control knob."
The flow rate will increase in the
clockwise direction and decrease in the
anticlockwise direction.
NOZZLE POSITION
During the washing process, press the ‘Adjust
position’ button on the remote control."
Press the ‘Increase’ or ‘Decrease’ button to
adjust the nozzle position forward or backward.
During the washing process, press the ‘Adjust flow’
button on the remote control to either decrease or
increase the wash flow rate.
WATER TEMPERATURE
During the washing process, repeatedly press the
‘Adjust temperature’ button on the remote control
until ‘Water temperature’ icon is highlighted, then
press ‘Increase’ or ‘Decrease’ button to adjust the
water temperature."
Alternatively press the control knob and rotate it
clockwise direction to increase the temperature and
anticlockwise to decrease the temperature. "
intelligentbathrooms

!
EXPLANATION OF FUNCTIONS
intelligentbathrooms
DRYING TEMPERATURE
During the drying process, repeatedly press
the ‘Adjust temperature’ button on the remote
control until ‘Air temperature’ icon is
highlighted, then press ‘Increase’ or ‘Decrease’
button to adjust the air temperature.
DEODORISER
Note: Smart deodorisation mode is set by default. "
Deodorisation will automatically activate once the user is seated and will
automatically shut off, 1 minute after the user leaves the unit.
Repeatedly press the ‘Deodorisation’ button
on the remote control to switch on or turn off
the deodorisation function.
Smart mode: indicated
by 2 lights
Dedorisation off:
indicated by 1 light
NIGHT LIGHT
Repeatly press the ‘Night light’ button on the remote control
to select the desired mode.
Note: Smart night light mode is set by default."
(Light will switch on in dark bathroom environments)"
Night light off: indicated by 1 light
Night light on: indicated by 2 lights
Smart mode: indicated by 3 lights
Alternatively press the control knob and rotate it
clockwise direction to increase the temperature
and anticlockwise to decrease the temperature. "
Alternatively, open the
cover (without sitting
down). Pull the knob
and rotate it in the
anticlockwise direction
to select the desired
night light mode.

!
EXPLANATION OF FUNCTIONS
intelligentbathrooms
SOUND/BEEP SETTINGS
Open the cover and seat. Push control knob and turn:"
- In a clockwise direction to turn on"
- In an anticlockwise direction to turn off"
Note: Sound is turned on by default.
USER SETTINGS
To Save
Once all desired settings have been set, press and hold
down either the ‘User 1’ or ‘User 2’ buttons for more
than 3 seconds to save the current setting."
To Retrieve
Simply press the ‘User 1’ or ‘User 2’ button prior to
washing and drying to engage the respective user
setting.
STANDBY MODE
To engage standby mode, press and hold the middle button of
the control knob for more than 6 seconds."
Press and hold the middle button again for more than 6
seconds to restart."

"
!

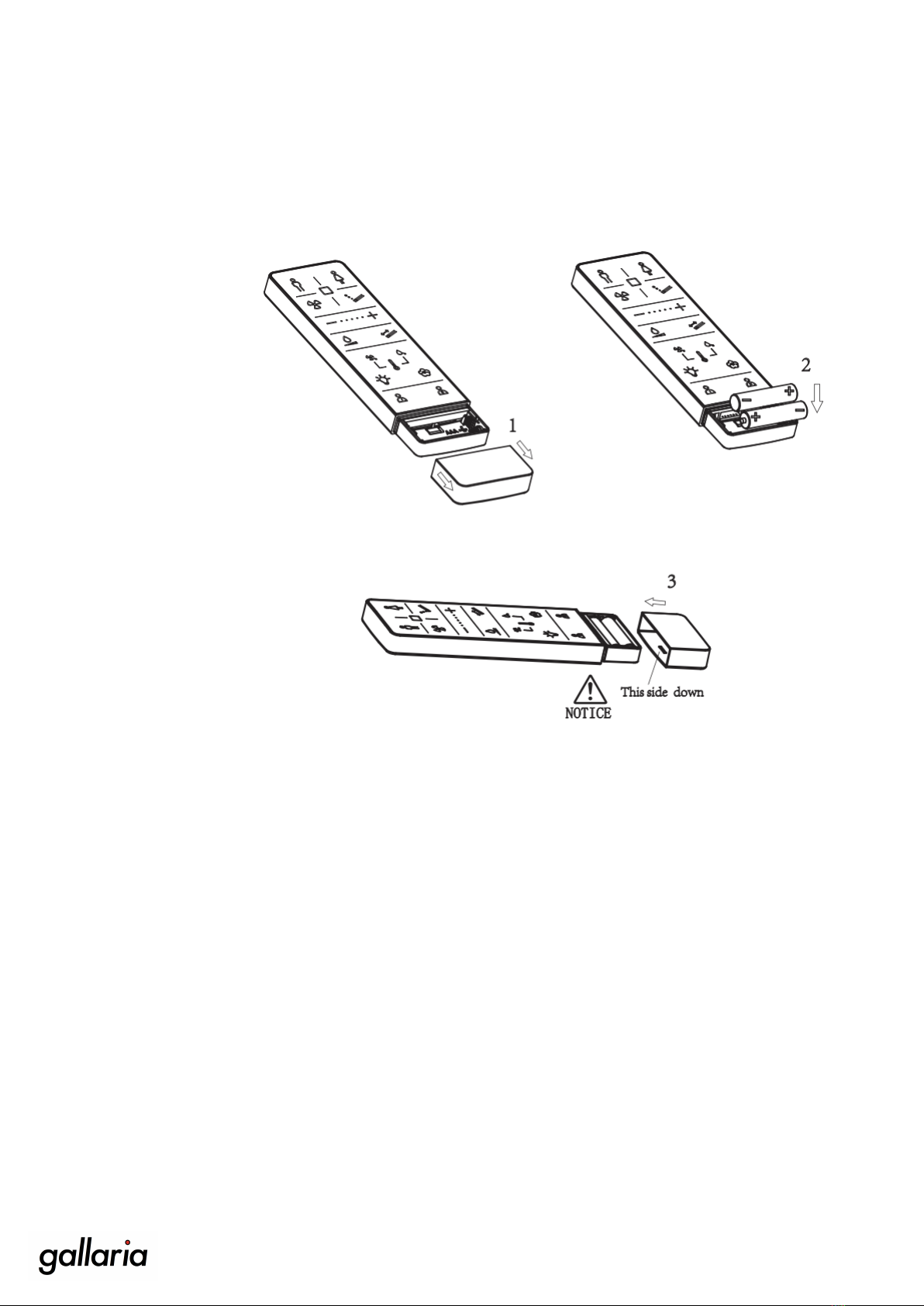

BATTERY REPLACEMENT OF REMOTE CONTROL
intelligentbathrooms
The remot control requires
2 x AAA batteries (type
1.5V LR3/AAA)"
"
When the User lights flash
continuously, this is an
indication that the batteries
should be replaced."

"
!
GENERAL CARE & CLEANING ADVICE
intelligentbathrooms
COMFORT+ SEAT
Soft, lint free cloths
Non-abrasive, mild cleaning
agents"
TOILET PAN
Soft, lint free cloths
Low acidic cleaning agents"
Toilet brush"
TAKE NOTICE
AUTOMATIC SELF CLEANING
If the unit is not used for more than 72 hours, the self-cleaning
will operate for approximately 3 minutes when the user operates
the wash function. All buttons on the remote control become
invalid during the self-cleaning function.
SUGGESTED INTERVAL
SUGGESTED CLEANING ACTIVITY
Daily
Wipe down water droplets with a soft lint free cloth to avoid limescale
stains.
Weekly
Throughly wipe down and clean all surfaces. Clean the spray nozzle if
required (see Nozzle Cleaning).
Monthly
Clean the toilet pan with a low acidic cleaning agent.
Every 6 months
Replace the filter if required (see Replacing Filter’).

"
!
NOZZLE CLEANING
intelligentbathrooms
The nozzle will automatically clean itself before washing and after washing."
Should you wish to clean the nozzle manually, please do as follows:"
A. Open the cover and seat"
B. Rotate the knob in a clockwise direction"
C. The nozzle will extend itself and commence a water cleansing process"
D. If required, manually use a soft bristled brush to clean the nozzle"
E. Press the ‘Stop’ button once finished (nozzle will automatically return after 5 minutes if
left unattended

"
!

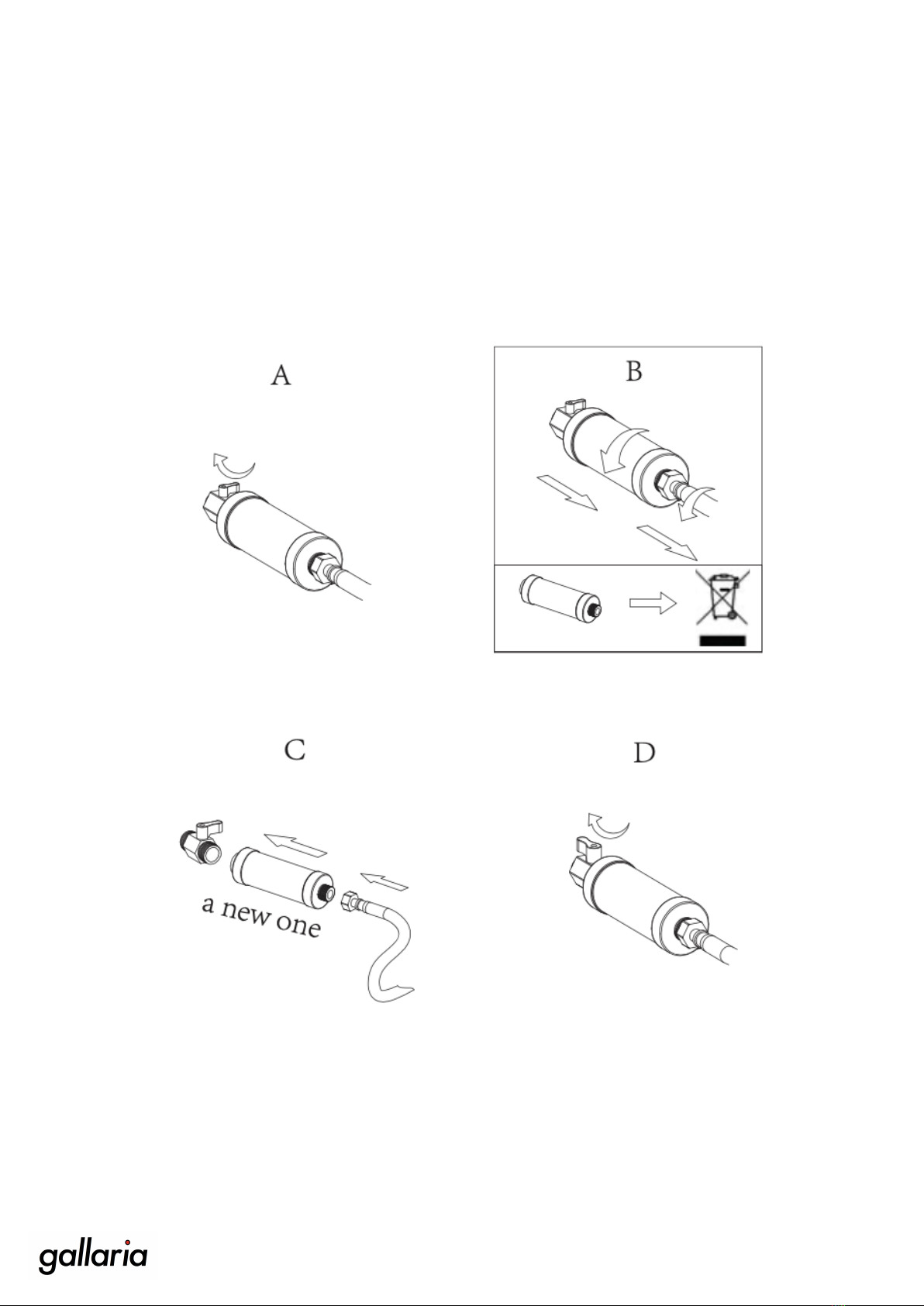

FILTER REPLACEMENT
intelligentbathrooms
The filter has a service life of approximately 6 months. Naturally, this is dependent on the
harshness of water the filter is subjected to."
If the filter is not replaced at the suggested interval of 6 months, then we recommend that it be
replaced when the wash flow is noticeably reduced. A reduced wash flow would be an indication
of a blocked filter.

"
!
DRAINING THE WATER TANK
intelligentbathrooms
1. The water and power must be cut before you disassemble the Comfort+ Seat"
2. Do not invert or tilt the Comfort+ Seat before you finish draining the water tank
DANGER
1. Turn the plug to the "OPEN"
position and pullout. The water will
start to drain."
2. After the tank has drained, insert
the plug and turn to the "CLOSE"
position. "

"

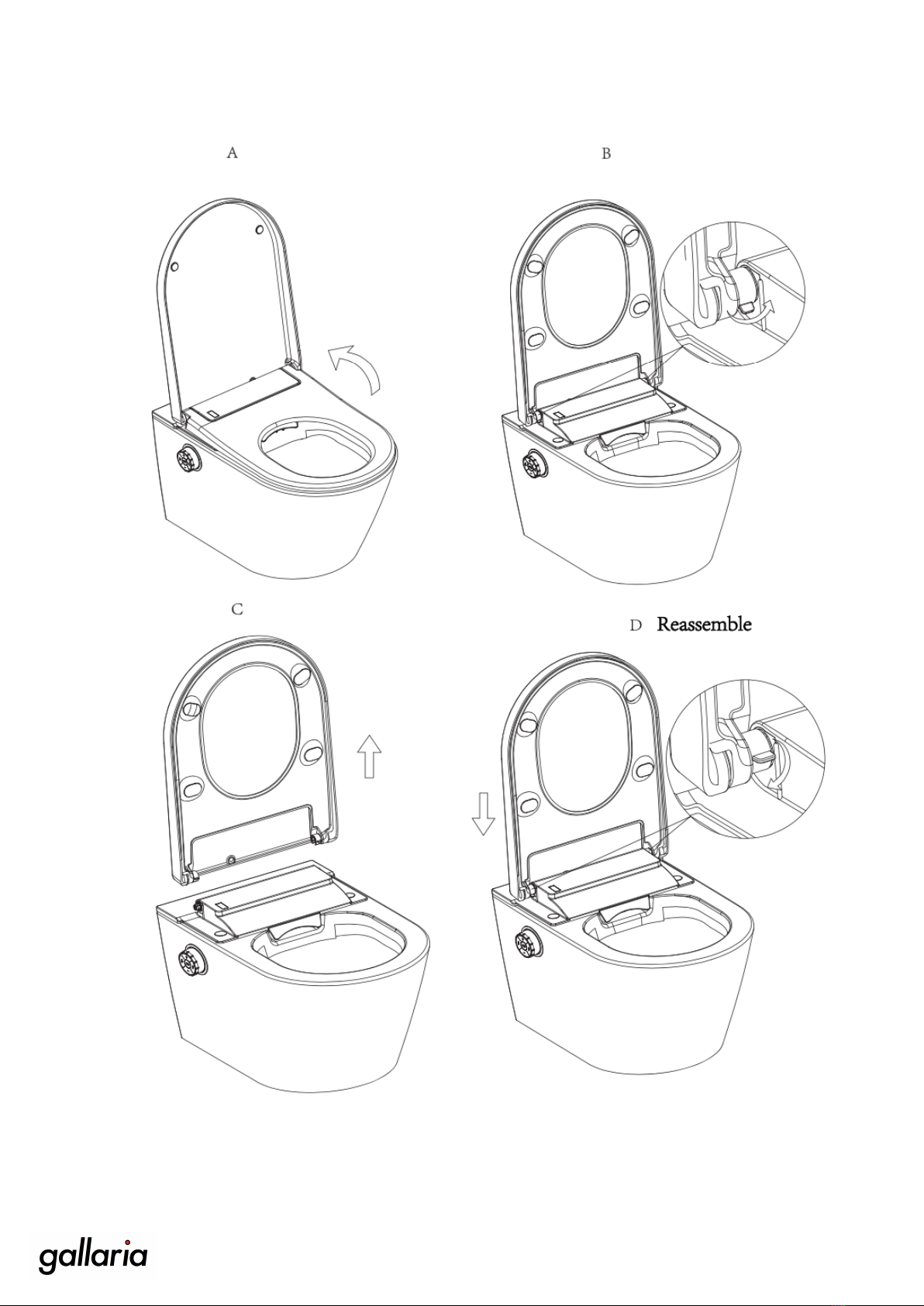

RELEASING AND REASSEMBLING THE COVER AND SEAT
intelligentbathrooms

"
!

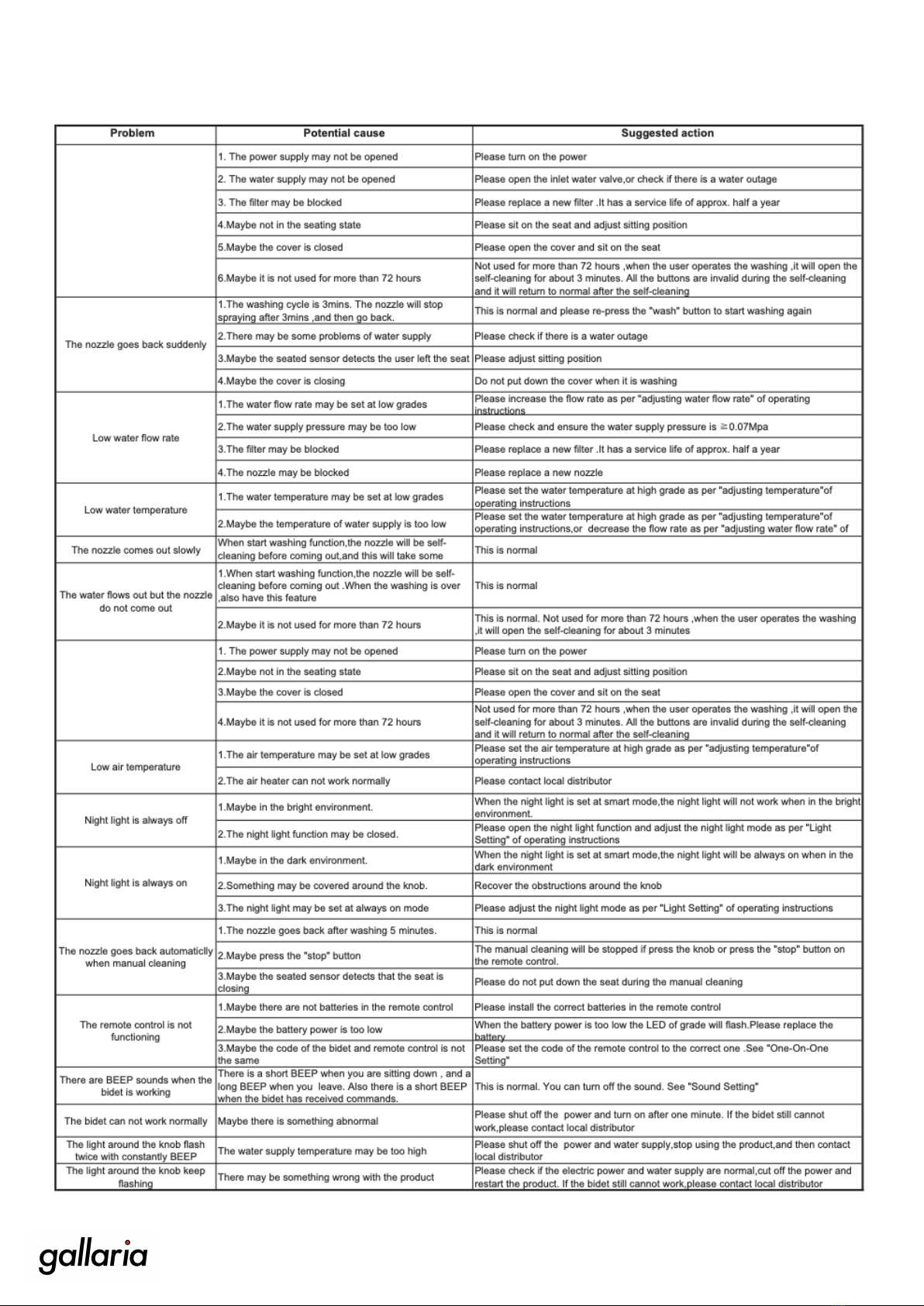

TROUBLESHOOTING
intelligentbathrooms
The wash function is not
working
The drying function is not
working

"
Do not dispose electrical appliances in general municipal
waste. Use the appropriate separate collection facility
provided by your local council."
$
Contact your local government for information regarding the
collection and/or disposal options available."
Incorrect disposal of electrical appliances may cause
hazardous substances to leak into groundwater and food
chain supplies, damaging the health and well-being of natural
environments."
When replacing old appliances with new ones, the retailer is
legally obligated to take back your old appliance for
disposals at least free of charge. "
intelligentbathrooms
For further information or help, please contact us:
www.gallaria.com.au
[phone]
Head Office: 27 Helles Avenue,!
Moorebank, NSW 2170
