Galvin Engineering TCS9J150C Instruction sheet

© Galvin Engineering Pty Ltd
Version 1, 4 November 2022, Page 1of 7
Product Installation Guidelines
Document No.: 001.00.10.16
Version 1, 4 November 2022, Page 1of 7
CliniLever CP-BS Hospital Shower Set w/ Medi Hand
Shower & 900 SS Grab Rail
PRODUCT CODES:
- TCS9J150C
- TCS9C150C
- TCS9J80C
- TCS9C80C
SPECIFICATIONS
−Grade 304 stainless steel grab rail with satin finish
−Hygienic health safe flange covers
−ABS slide cradle fastened and tensioned to the grab rail for handset support and movement
−Strong and stylish ABS hand piece
−PVC reinforced smooth and flexible spiral hose
−Chrome on brass wall outlet elbow which features 9 L/min flow
−Interchangeable spigot and separate licensed dual check/non return valves to prevent back
siphonage
−80/150 mm CliniLever® contra rotating lever handles make showering easier for users with
disabilities or limited hand mobility
−Handles are finished in bright chrome plate finish for added durability and easy cleaning
−Suitable for installation and will assist in compliance to AS1428.1 –Design for access and mobility-
General requirements for access - New building work
IMPORTANT: All Galvin Engineering taps are tested in accordance with AS/NZS 3718 and leave our
premises in good working order.
TECHNICAL DATA
Inlet
½” BSP –Female
Outlet
Handheld Shower
Headwork
TCS9J150C / TCS9J80C
Jumper Valve
TCS9C150C / TCS9C80C
Ceramic Disc
Working Pressure Range (kPa)
Min
150
Max
500
Working Temperature Range (°C)
Min
5
Max
55
Finish
Chrome
NOTE: Galvin Engineering continually strive to improve their products. Specifications may change
without notice.
TOOLS REQUIRED
−Power drill
−Spanner or adjustable crescent

© Galvin Engineering Pty Ltd
Product Installation Guidelines
Document No.: 001.00.10.16
Version 1, 4 November 2022, Page 2of 7
PRE-INSTALLATION

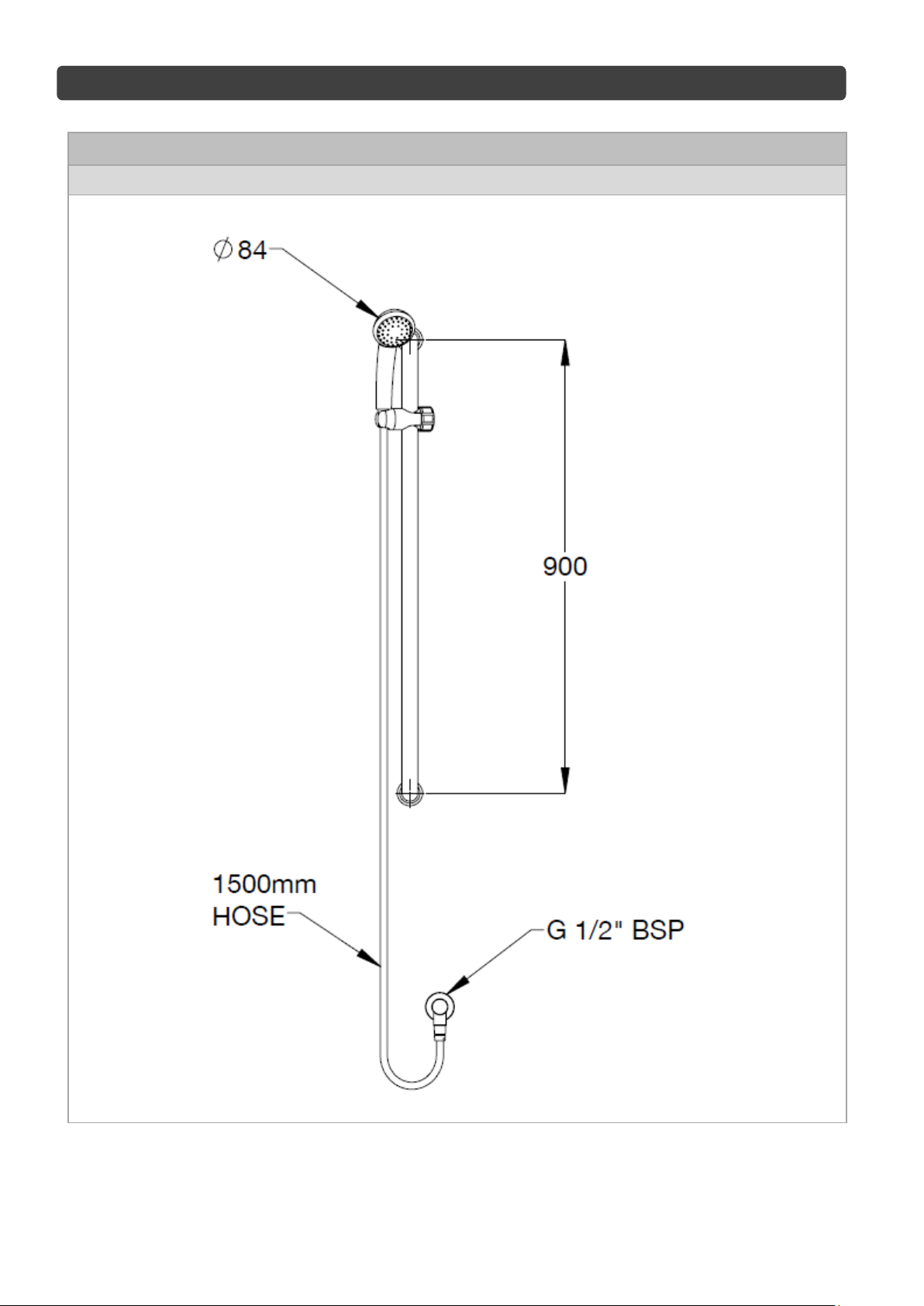

MOUNTING DETAILS - SHOWER

© Galvin Engineering Pty Ltd
Product Installation Guidelines
Document No.: 001.00.10.16
Version 1, 4 November 2022, Page 3of 7
MOUNTING DETAILS –WALL TOP ASSEMBLY
Wall body
−Wall body must be G5/8” FI and body should be between
0 and 15mm behind the finished wall surface.
80/150 mm Wall Top Assembly

© Galvin Engineering Pty Ltd
Product Installation Guidelines
Document No.: 001.00.10.16
Version 1, 4 November 2022, Page 4of 7
INSTALLATION - SHOWER
INSTALLATION COMPLIANCE: Galvin Engineering products must be installed in accordance with these
installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements.
Water and/or electrical supply conditions must also comply to the applicable national and/or state standards.
Failing to comply with these provisions shall void the product warranty and may affect the performance of the
product.
WARNING: Install with stainless steel
304 or 316 screws. Other type of
screws may rust and void warranty.
When marking out the grab
rails, use centre base holes of
flange protector.
When marking out corner grab rails
follow the fixing guide lug diagram
shown above to suit grab rail
orientation.
1. Install straight grab rails including the
horizontal section of any grab rail (if
applicable) as per AS 1428.1, 800-810mm
from floor to top of rail. Make sure the wall
surface is flat and free from contaminants.
2. For straight grab rails, position the flange
protector guide lugs either vertical or
horizontal.
3. Remove flange protector from grab rail
flange. Align guide lug marks from step 2 and
mark wall through base holes to pinpoint
screw holes.
4. Fit dress ring if applicable. Drill spot
marks with 7mm bit. Screw wall mount
plate to wall. Ensure screws engage wall
stud or other solid substrate.

© Galvin Engineering Pty Ltd
Product Installation Guidelines
Document No.: 001.00.10.16
Version 1, 4 November 2022, Page 5of 7
5. Fit grab rail into wall mount plate and tighten
lock nut firmly.
6. Screw flange cover to wall mount plate.
7. Cradle Installation
- Fit the shower cradle to the grab rail as shown.
- Position the cradle as desired then tighten the
cover of the cradle.
8. Connect Flange Wall Outlet Elbow
- Apply thread tape to wall spud. When applying
thread tape or sealant to the wall spud, ensure
the opening is not obscured. Failure to do so
may restrict or block the flow restrictor,
affecting the flow of water.
- Remove spigot by loosening grub screw in
elbow.
- Fit spigot to wall spud, ensuring the flow
regulator is in place and not damaged when
tightening the spigot.
9. Connect Flange Wall Outlet Elbow
- Fit elbow over spigot and secure with grub
screw.
- Using 2.5mm hex key supplied, tighten 5mm
grub screw.
10. Check Shower for correct operation
and leaks
-Connect hose and shower head ensuring the
connection is secured, then turn on water supply.
Check for any leaks.
Hex Key
Elbow
Grub Screw
Spigot
Flow Regulator

© Galvin Engineering Pty Ltd
Version 1, 4 November 2022, Page 6of 7
Product Installation Guidelines
Document No.: 001.00.10.16
Version 1, 4 November 2022, Page 6of 7
INSTALLATION –WALL TOP ASSEMBLY
IMPORTANT: Galvin Specialised products must be installed in accordance with these installation instructions and
in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical supply
conditions must also comply to the applicable national and/or state standards. Failing to comply with these
provisions shall void the product warranty and may affect the performance of the product.
1. Fit spindle assembly
−Remove handle and flange from cartridge
assembly. Unscrew the ¼ turn ceramic head part
from the threaded sleeve assembly and screw
ceramic cartridge into the valve body by hand,
tighten using a 17mm spanner.
−Refit threaded sleeve and spindle.
−The ¼ turn ceramic head part MUST be fitted
into the wall body prior to refitting the
threaded sleeve and spindle. DO NOT tighten
cartridge by using the spindle or the threaded
sleeve.
2. Fit wall flange
−Ensure o-ring is fitted to the bottom of the wall
flange, and then hand-tighten the wall flange
onto the threaded sleeve.
3. Fit handle
−Ensure the spindle is in the closed position
and firmly press the CliniLever®lever handle
onto the spindle in the desired orientation.
−Check operation of CliniLever®lever handle.
They should turn freely for a full ¼ turn.
−Secure the handle in position using the
supplied washer and stainless steel cap
screw.
4.Fit water temperature indicator & testing
−Once CliniLever®lever handle is secure; fit the
appropriate water temperature indicator.
−Once temperature indicator is fitted, check the
operation of the unit and inspect for any leaks.

© Galvin Engineering Pty Ltd
Product Installation Guidelines
Document No.: 001.00.10.16
Version 1, 4 November 2022, Page 7of 7
TROUBLESHOOTING
PROBLEM
CAUSE
RECTIFICATION
Water is not flowing or has
inconsistent flow
Shower is blocked with debris.
Remove debris from shower.
Leak from elbow
Insufficient sealant
Ensure thread tape has been used
during installation.
Taps are dripping water
Ceramic discs are worn or damaged
Remove and inspect SBA. Remove
debris and/or replace SBA if damaged.
Tap seat is damaged
Refurbish tap seat using a reseating
tool.
Water is leaking from spindle
O-ring on jumper valve spindle is
damaged or worn
Replace o-ring
Water is not flowing from tap
Water is turned off
Turn on water
Aerator or flow regulator is blocked
by debris
Remove aerator and/or flow regulator
from tap and remove debris. Install an
inline strainer.
Spindle is difficult to turn
Build up of scale on spindle, spindle
worn or o-ring has been damaged
Remove cartridge sleeve, clean and
regrease. Replace o-ring. Complete
SBA may need to be replaced.
Handle is loose
Screw has come loose
Tighten handle screw
Flange does not screw down onto
wall surface
Wall bodies are set too far out
Re-position tap bodies
