Gama Sonic Vantage Bollard Solar Pathway Light User manual

Vantage Bollard Solar Pathway Light
Part #: 314B50000
Version 1.1
Instruction Manual
US Patent #9458970

What's in the Box
page 2
Thank you for your purchase! GAMA SONIC®solar charged lights are brighter and last
all night with a typical solar charge. Unique design, superior light output and numerous
installation options confirm the outstanding value of our product. GAMA SONIC®has
been recognized as a worldwide leader in the lighting industry for over 20 years.
Technical Assistance/Warranty Claims/Replacement Parts
Toll Free Number: [phone] (only within the US) or www.gamasonic.com
Visit our website or download the latest version of your instruction manual:
www.gamasonic.com or www.gamasonic.com/user-guides
Please read the instruction manual carefully to obtain the best results from your purchase.
For best results, the solar light must be charged in the “ON” position (High or
Low) for at least 2 days of full direct sunlight.
Gama Sonic’s patented Bulb technology
gives your solar lamp the look and feel
of a traditional incandescent lamp. This
helps to distribute light further than
traditional solar lamps.
A = Top
B = Fixture
C = Pole (x2)
D = Threaded coupler
E = Flat Mount
F = Stake
Bulb
A
B
C
C
D
F
E
For optimum light duration throughout
the night, it is very important to mount
your solar lamp in a spot where it will
receive the maximum amount of direct
sunlight throughout the day.
Gama Sonic’s Bulb Technology
Solar Lamp Location
Concrete
Anchors

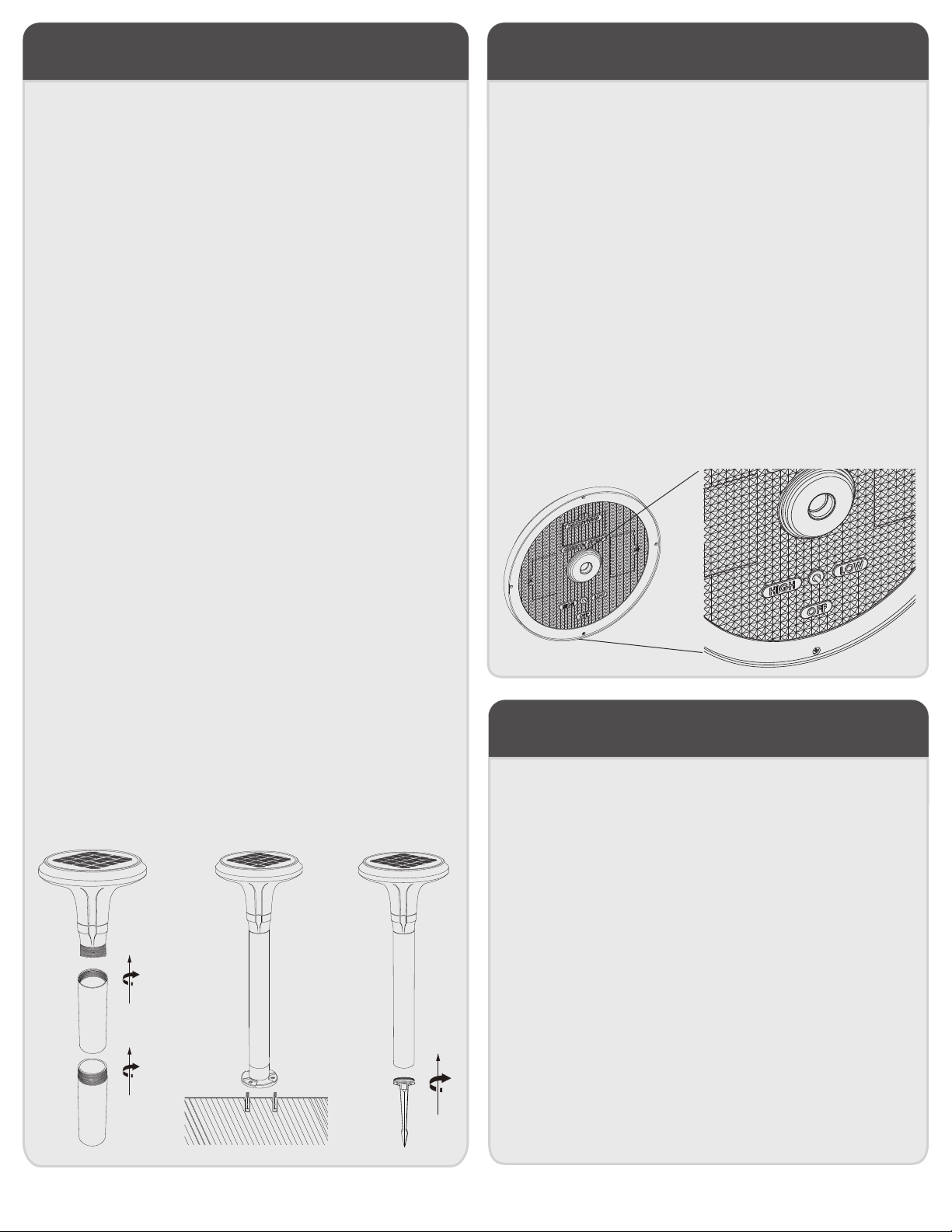

Assembly Instructions Operation Instructions
page 3
• Follow the Operation Instructions to install
the bulb and turn the unit on.
•Assemble the Fixture (B) to one of the pole
sections (C) by twisting clockwise.
•Assemble the second pole section (C) to
the first one using the threaded coupler
(D) and twisting clockwise.
NOTE: the threaded coupler (D) should be
preinstalled in one of the pole sections (C).
Stake Mount Installation
•Attach the stake (F) to the bottom of pole
section (C) by twisting clockwise.
•Push the lamp into the ground in the
desired mounting location.
Flat Mount Installation
•Attach the flat mount (E) to the bottom of
pole section (C) by twisting clockwise.
•Please the lamp in the desired mounting
location.
•Using the flat mount (E) as a template
mark and drill three 10mm holes in the
concrete.
•Insert the concrete anchors into the holes
and place the lamp over the anchors.
•Secure the lamp to the anchors by
tightening the three nuts on the anchors
using a 14mm wrench.
•Place the lamp head upside down and
remove the fixture (B) from the top (A) by
removing the four screws.
•Insert the GS Solar LED Bulb into the
fixture by twisting clockwise.
•Move the operation switch to the Low
or High position according to your
preferences:
Low = softer light, longer duration
High = brighter light output
•Re-attach the fixture (B) to the top (A) and
secure using the four screws.
•Your lamp will operate automatically at
dusk.
Replacement Parts
Replacement Batteries and Bulbs are
available at www.gamasonic.com or via our
Toll Free number: [phone].
Your Lamp can use the following bulbs:
A60WW20W – included bulb with Warm
White LEDs (2700K)
A60BW20W – bulb with Bright White LEDs
(6000K)
Your lamp uses three of the following
battery:
GS32V30
x 3
A
B
Φ10mm
14mm
x 3
A
B
Φ10mm
14mm
x 3
A
B
Φ10mm
14mm
A
F
E
B
C

Replacing the Batteries
After several years of use, the batteries may need replacing.
Steps
1. Place the lamp head upside down and remove the
fixture (B) from the top (A) by removing the four screws.
2. Switch the unit to the OFF position and remove the bulb.
3. Remove the battery compartment screw and cover.
4. Remove the battery and unclip the connector.
5. Make sure the new battery is a 3.2V/3000mAh Li-Ion battery
with matching connector (Item# GS32V30)
6. Clip in the new battery and install the battery in the compartment.
7. Replace the battery cover and screw.
8. Repeat steps 3-7 for the second and third batteries.
9. Re-install the bulb and switch the lamp back on.
10. Re-attach the fixture (B) to the top (A) and secure using the four screws.
Maintenance
Clean the solar panels regularly with a damp towel to guarantee optimum performance. Do not
use any type of solvent for cleaning and be careful not to put too much pressure on the solar
panels while cleaning.
Troubleshooting
If your solar light does not come on as expected despite observance of all the instructions, please try
the following steps:
1. Make sure that the solar lamp is not being affected by any other light source.
2. Ensure the solar lamp is not positioned in the shade during the day.
3. Check that the batteries are installed correctly.
NOTE: The performance of the solar lamp will vary with the time of year. It will last longer when it has
had a full day in the sun rather than a day in overcast weather.
WINTERTIME TIPS: For optimal performance, be sure to remove any snow or debris
accumulation from solar panel(s). A solar panel free of debris will charge the batteries much
more efficiently.
WARNING: Please keep out of reach of children. Do not dispose of the Li-Ion battery in the regular trash,
municipal waste stream or by fire as batteries may leak or explode. Do not open, short circuit, or mutilate
batteries as injury may occur. Preserve our environment by recycling Li-Ion batteries or disposing of them in
accordance with local, State and federal regulations. Do not mix old and new batteries.
page 4
Replacement Batteries and Bulbs are available at
www.gamasonic.com
