Gamma Led Vision Torrent 760 IP User manual

Torrent 760 IP
420w IP65 LED Wash Light
GAMMA LED Vision – Torrent 760 IP Page 1 o 26
User Manual

Table of Contents
1. Introduction and Setup....................................................................................................................................3
Unpacking and In the Box..............................................................................................................................3
Features...................................................................................................................................................................3
Mounting and Operation................................................................................................................................4
Sa ety Precautions..............................................................................................................................................4
Customer Support..............................................................................................................................................6
2. Setup and Operation.........................................................................................................................................7
Using the LCD Menu and Buttons..............................................................................................................7
Menu Operation..................................................................................................................................................7
Using the DMX+Art-Net or DMX+sACN Modes:.........................................................................10
DMX Setup..........................................................................................................................................................10

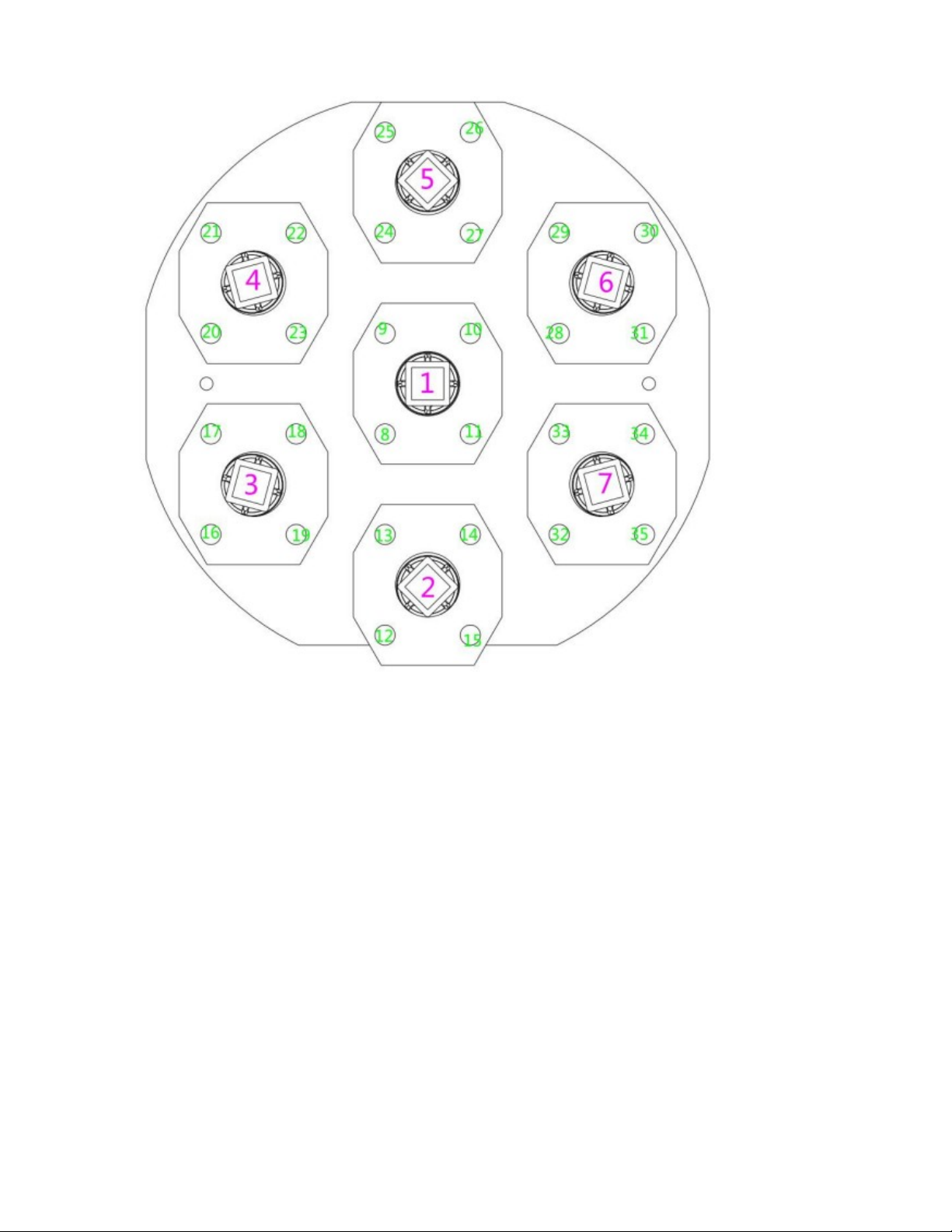

Patching/Pixel Mapping Guidelines:....................................................................................................10
DMX Basics....................................................................................................................................................11

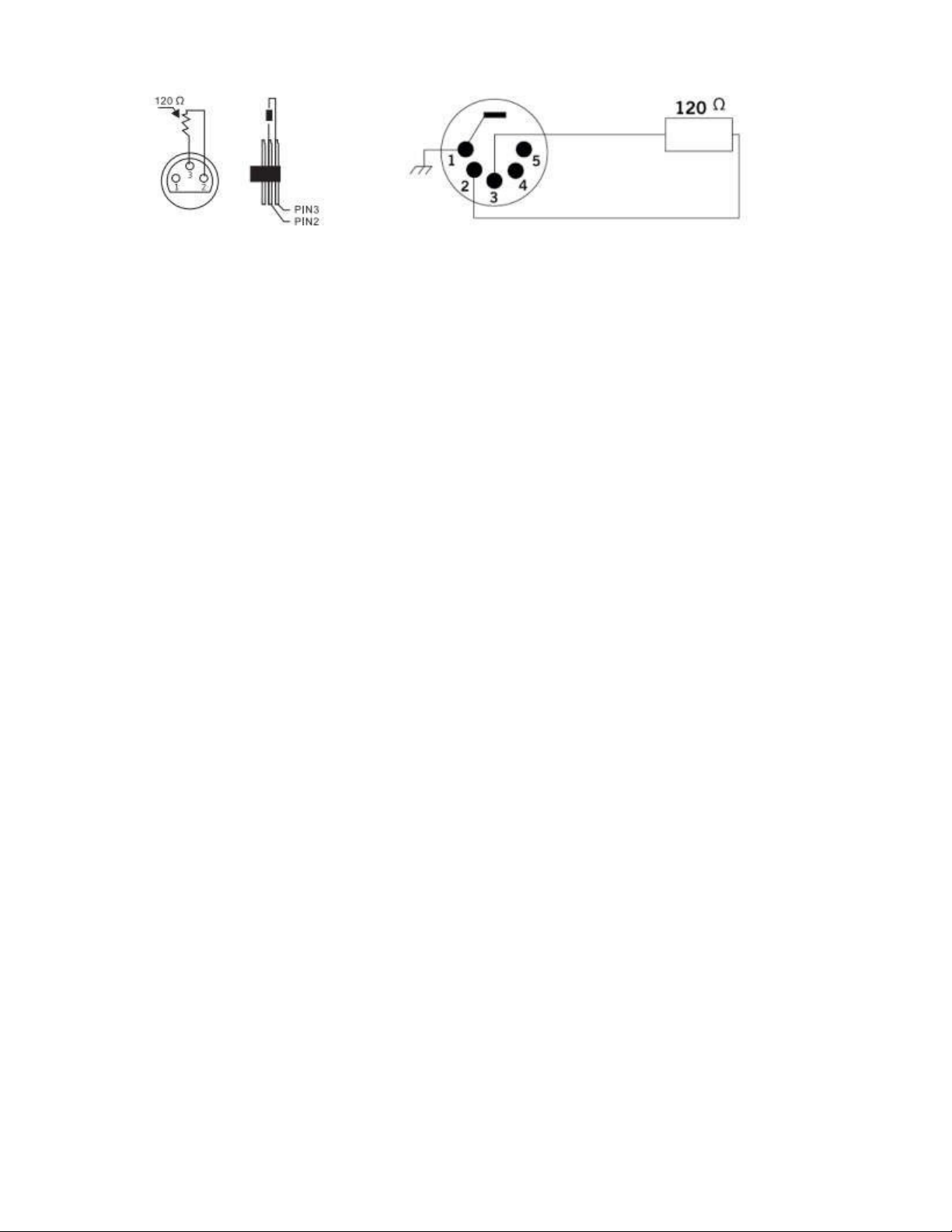

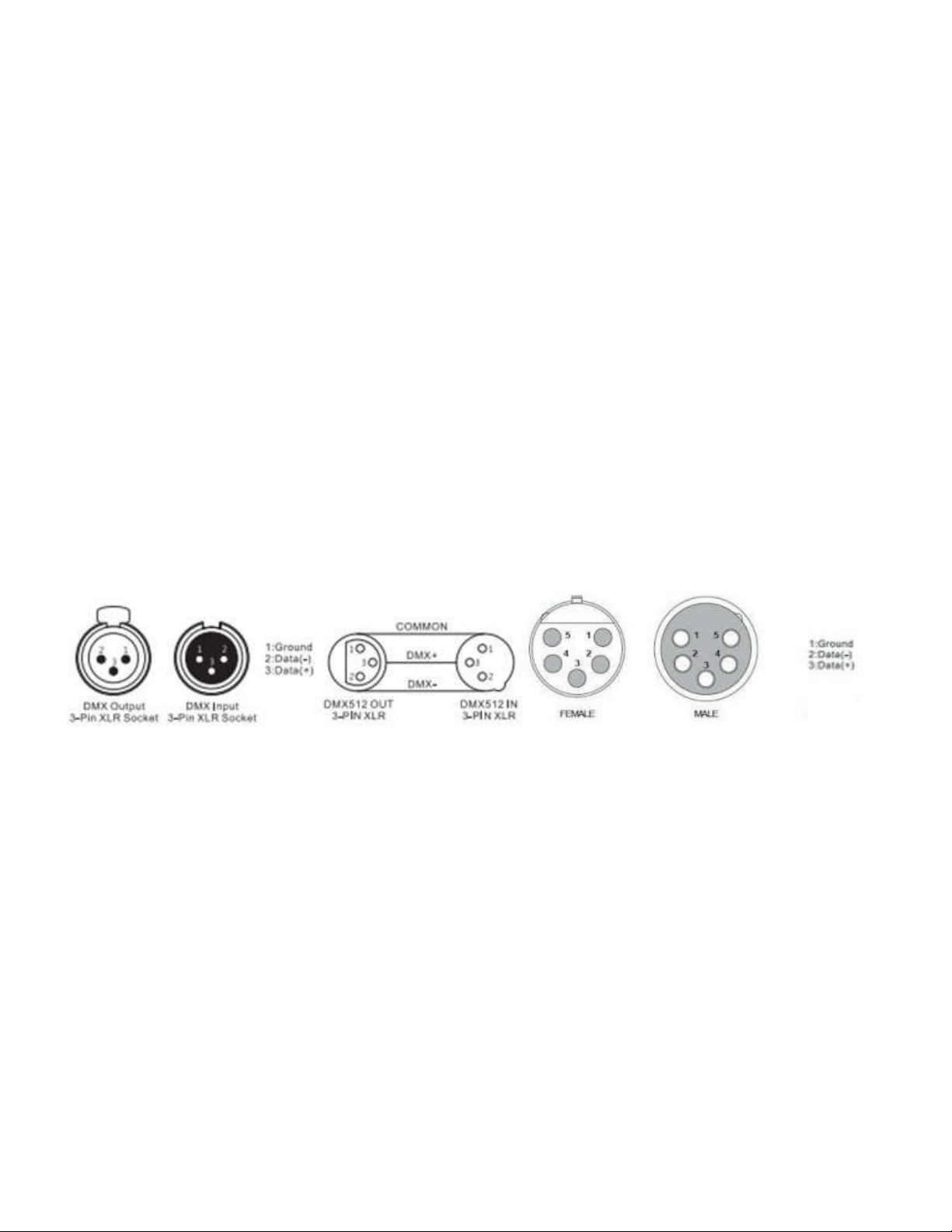

DMX Wiring...................................................................................................................................................12
DMX Modes and Con iguration.................................................................................................................13
3. Maintenance.......................................................................................................................................................22
Routine Maintenance......................................................................................................................................22
Troubleshooting Problems............................................................................................................................22
A. The unit does not work:................................................................................................................22
B. Not Responding to the DMX Controller................................................................................22
4. Technical Speci ications..................................................................................................................................23
5. Photometrics.......................................................................................................................................................25
GAMMA LED Vision – Torrent 760 IP Page 2 o 26

1. Introduction and Setup
Unpacking and In the Bo
Thank you for choosing our Torrent 760 IP. For your own safety, please read this manual
before installing or using the de ice. This manual co ers the important information on
installation and applications. Please install and operate the fixture with following instructions.
Meanwhile, please keep this manual for future needs.
In the box you will find:
•Torrent 760 IP Fixture 1
•Omega Brackets 2
•True1 compatible power cable 1
•Waterproof Network Cable 5’ 1
•Waterproof 3-Pin DMX Cable 5’ 1
Features
•7 x 60w RGBW LED’s – 9200 Lumens Total Output
•28 .5w Backlight RGB LED’s
•3°- 45° Degree Motorized Zoom
•Rotating Lens Beam FX
•Pan: 540°, 16 Bit
•Tilt: 205°, 16 Bit
•Dimmer: 16 Bit
•Supports RDM addressing and mode setting.
•Variable-speed cooling ans
•3 pin DMX and RJ-45 input and output
•12kg / 26.46lb
GAMMA LED Vision – Torrent 760 IP Page 3 o 26

Mounting and Operation
Clamp Mounting: The Torrent 760 IP pro ides omega brackets which you can attach
clamps to for typical clamp mounting. Once the clamps are attached to the omega
brackets, you can attach the omega brackets to the fixture ia the 1/4 turn fasteners.
As an added safety measure be sure to attach at least one properly rated safety cable to
the fixture using one of the handles.
Orientation/Power and Data Cables:
The Torrent 760 IP may be hung on it’s side, howe er, to maintain the IP-65 rating care
must be taken to orient all cables downward:
The included waterproof RJ-45 network cable is for fixture-to-fixture use. The waterproof
connector is not guaranteed to work with all RJ-45 plugs.
Power and Data Guidelines:
Ensure all connections and end caps are properly sealed with dielectric grease when
used outdoors in order to pre ent water corrosion at the connection point.
To maintain the IP-65 rating, seal all unused connection rubber caps.
Safety Precautions
Please keep this User Guide or uture consultation. I you sell the unit to another user, be
sure that they also receive this instruction manual.
Do NOT operate if the fixture is not capable of a full range of unrestricted motion.
GAMMA LED Vision – Torrent 760 IP Page 4 o 26

Mo e any objects away from the unit, do not allow the mo ing head to hit any objects.
Failure to do so may cause damage outside of scope of the warranty.
Caution: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the de ice’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Ne er stand directly below the de ice when mounting, remo ing, or ser icing the fixture.
From a ceiling, or set on a flat le el surface (see illustration below). Be sure this fixture is kept
at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to pre ent accidental
damage and/or injury in the e ent the clamp fails.
DO NOT connect the de ice to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the de ice is defecti e, and it will decrease gradually within 15 minutes.
Don’t try to modify the fixture without any instruction by the manufacturer.
Warranty is oided if there are any malfunctions from not following the user manual while
operating or any hazardous operation, like shock, short circuit, electronic shock, etc.
Fixture must be 1’ from any flammable materials. Do not light any flammable objects closer
than 6.5 feet.
Do not allow other fixtures to shine a focused beam upon the display of this fixture.
