Gamma Led Vision Starburst Versa User manual

SS
Starburst Versa
18x30w RGBWA+UV (6IN1)
User Manual

SS
Table of Contents
1. Introduction and Setup ..................................................................................................................................... 3
Unpacking and In the Box ............................................................................................................................... 3
Features .................................................................................................................................................................... 3
Safety Precautions………………………………………………………………………………………………………………..4
Customer Support………………………………………………………………………………………………………………..5
2. Setup & Operation……………………………………………………………………………………………………………….6
LCD Buttons Operation………………………………………………………………………………………………………...6
Menu Operation………………………………………………………………………………………………………………..7/8
DMX Setup……………………………………………………………………………………………………………………………9
DMX Basics/Wiring…………………………………………………………………………………………………………10
DMX Modes/Channels……………………………………………………………………………………….12/13/14/15
3. Maintenance……………………………………………………………………………………………………………………….16
4. Technical Specifications………………………………………………………………………………………………………17

SS
1. Introduction and Setup
Unpacking and In the Box
Thank you for choosing our Rayon. For your own safety, please read this manual before installing or
using the device. This manual covers the important information on installation and applications.
Please install and operate the fixture with following instructions. Meanwhile, please keep this manual
for future needs.
In the box you will find:
• Starburst Versa Fixture: 1
• PowerCon Cable: 1
• DMX Signal Cable 1
• Omega Brackets
• Quick Release Pins 2
Optional Accessories
• Base Plate
• Vertical Adapter
•
Mounting and Operation
Use a clamp rated for the full weight of the Starburst Versa to hang the fixture from the
mount(s) on the fixture’s yoke.
As an added safety measure be sure to attached at least one properly rated safety cable to the
fixture using on of the safety cable rigging point integrated in the base assembly or on the yoke.
Vertical Installation:
1. Floor Standing: Using the base Plate, align the grooves from the fixture with the grooves
from the base plate. Then slide a pin on each side. Give a quick tug to make sure the pins
locked in properly. Repeat the same steps to mount one Starburst Versa on top of
another Starburst Versa.
2. Vertical Hanging: Using the Vertical Adapter, align its grooves with the grooves of the
Starburst Versa. Then insert a quick release pin on each side and attach a clamp to the
top of the vertical adapter.
Horizontal Installation:
3. Horizontal Floor Installation: Using the Tilt Brackets, align and tilt the fixture to the
position desired and then tighten the knobs on each side. If you’re looking to attach 2

SS
fixtures together horizontally, align the grooves and connect the quick release pins on
each side for a seamless design.
4. Horizontal Hanging Installation: Using the Omega Brackets, each fixture should get 2
Omega brackets locked into the backside of the fixture. Then attach a clamp on each one
and you’re now ready to horizontally hang the fixture.
Safety Precautions
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction manual.
Caution: For added protection mount the fixtures in areas outside walking paths, seating areas, or in
areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a minimum
point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at
least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Don’t try to modify the fixture without any instruction by the manufacturer.
Warranty is voided if there are any malfunctions from not following the user manual while operating
or any hazardous operation, like shock short circuit, electronic shock, lamp broken, etc.

SS
Customer Support
WARRANTY POLICY
GAMMA LED Vision warrants its products for the periods set below from the date of purchase to
be free of manufacturer and workmanship defects. Warranty does not cover normal wear and
tear caused by force, negligence or misuse of products. GAMMA LED Vision is not responsible
for any damages or injury caused by misuse or improper handling of the products and in
accordance with instructions and specifications of manual.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussing Related Products and Accessories: 1 Year
Please visit WWW.GAMMALEDVISON.COM for complete Limited Warranty terms and contact
information.

SS
2. Setup and Operation

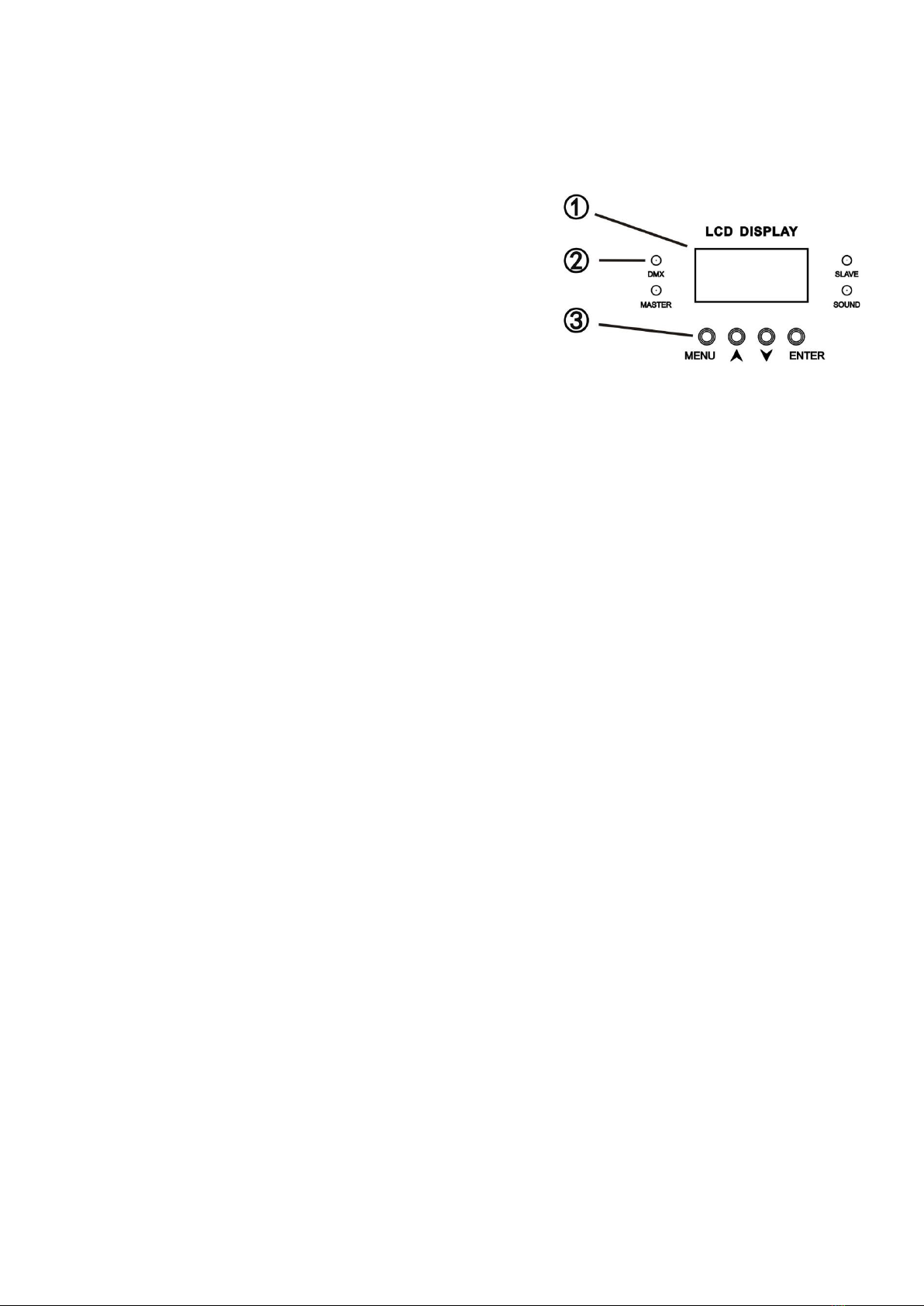

Using the LCD Menu and Buttons
Turn on the light, press the MENU button to enter the menu
mode, use the UP and DOWN buttons to find the menu,
When the preset menu is displayed on the display screen,
press the ENTER button to confirm, use the UP and
DOWN buttons to select the sub menu, press the ENTER
button to save the settings or automatically return to the
previous menu.

SS
Menu Operation
TAB
LEVEL1
LEVEL2
LEVEL3
LEVEL4
Addr(Address)
001-512
001
Chmd(Channel mode)
29CH/11CH/119CH/108CH
11CH
Stat(Static control)
R
0-255
000
G
0-255
000
B
0-255
000
W
0-255
000
Y
0-255
000
P
0-255
000
Set(Set)
CAL(Calibration)
R
20--255
255
G
20--255
255
B
20--255
255
W
20--255
255
Y
20--255
255
P(UV)
20--255
255
Reverse
YES/NO
DMX HOLD
ON/OFF DMX
OFF
LOCK(Key 2 minutes lock)
YES/NO
no
Auto(Auto)
Mode
Sound 1
AUTO 3
Sound 2
Auto0 3
......
Auto 11
Speed
0--100
50
Info(Information )
SOFT(Software version)
TEMP
Load(Load)
SET L(Setting load)
YES/NO
Send(Send)
YES/NO
COPY the Default setting
to slave lights
NO
MENU
DMX Address
Address
1-512
Channel Mode
CH Mode
4CH
5CH
6CH
9CH
Slave Mode
Slave Mode
Master
Slave
Show Mode
Show MD
Show 0
Show 1-8
Color Mode
Manual
R (0-255)

SS
G (0-255)
B (0-255)
W (0-255)
Color: 1-32
Sound Sens
Sense 0-100
Dimmer Curve
Curve
Linear
Sine 1
Sine 2
Off
Auto Test
Temp
Fixture Time
Firmware

SS
DMX Address
Select the DMX address, press ENTER to confirm, and the current DMX address will be
displayed on the display. Use UP / DOWN button to select 001-512 address, and press
ENTER button to save. Press the MENU button to return to the previous menu or wait one
minute for the menu mode to exit automatically.
Channel Mode
Select the Channel Mode, press ENTER to confirm, and the current Channel Mode will
be displayed on the display. Use UP / DOWN button to select 11CH/29CH/108CH/119CH,
and press ENTER button to save. Press the MENU button to return to the previous menu or
wait one minute for the menu mode to exit automatically.
Slave Mode
Select the Slave Mode, press ENTER to confirm, and the current Slave Mode will be
displayed on the display. Use UP / DOWN button to select Master/Slaver, and press
ENTER button to save. Press the MENU button to return to the previous menu or wait
one minute for the menu mode to exit automatically.
Auto Mode
Select the Auto Mode, press ENTER to confirm, and the current Auto Mode will be
displayed on the display. Use UP / DOWN button to select Show 0
（
Voice control
mode
）
/Show 1~11, and press ENTER button to save. Press the MENU button to return
to the previous menu or wait one minute for the menu mode to exit automatically.
Sound Sense
Select the Sound Sense, press ENTER to confirm, and the current Sound Sense will be
displayed on the display. Use UP / DOWN button to select 0-100, and press ENTER button

SS
to save. Press the MENU button to return to the previous menu or wait one minute for the
menu mode to exit .
DMX Setup
DMX Basics
DMX512 stands for digital multiplex 512. This means that 512 channels are controlled digitally
through 1 data cable.
A channel is a set of 255 steps that are assigned to control attributes in each light. This may be
a color like red, green or blue, and intensity, strobe, pan/tilt or other attributes.
Multiple sets of 512 “universes” may be used. Only 1 universe will travel on a DMX cable, but
through networked DMX (Art-Net or sACN E1.31), many universes can travel over a network.
DMX Wiring
DMX works by connecting 1 or multiple lights to the output of a DMX lighting console or
software with a DMX interface.
DMX lights connect in what is called a “daisy-chain”. Your first DMX cable will plug it’s male
DMX connector into the female DMX connector on your lighting console. The remaining female
connector will then connect to the DMX input on your first light.
You may then connect your next fixture to the output of your first light, and continue the chain.
32
Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single daisy chain for
signal strength. Sometimes, depending on the fixtures and cable length, this number is less (or
more).

SS
DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin only pins
1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at least 110 ohms
resistance. Microphone cable is not DMX cable.

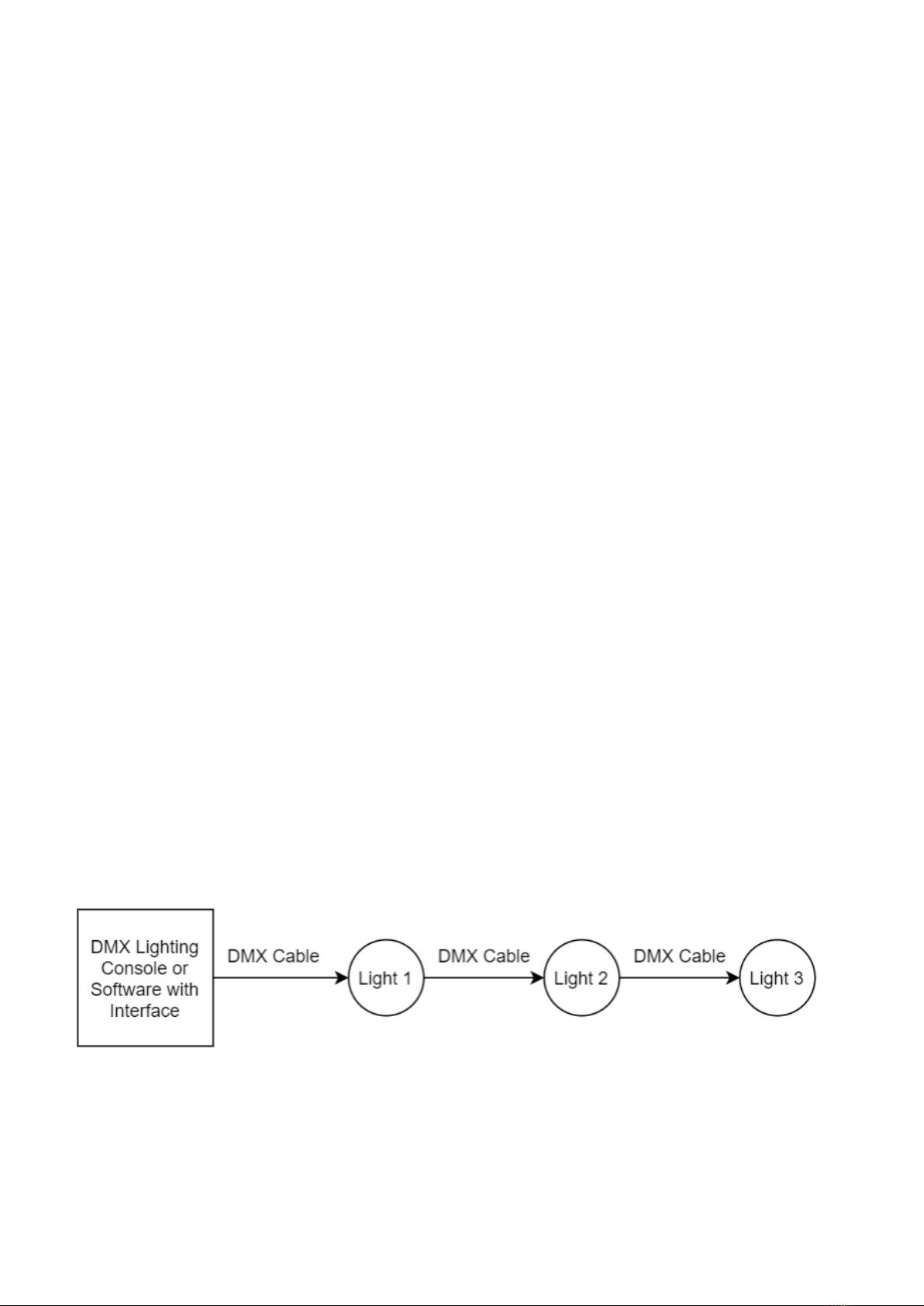

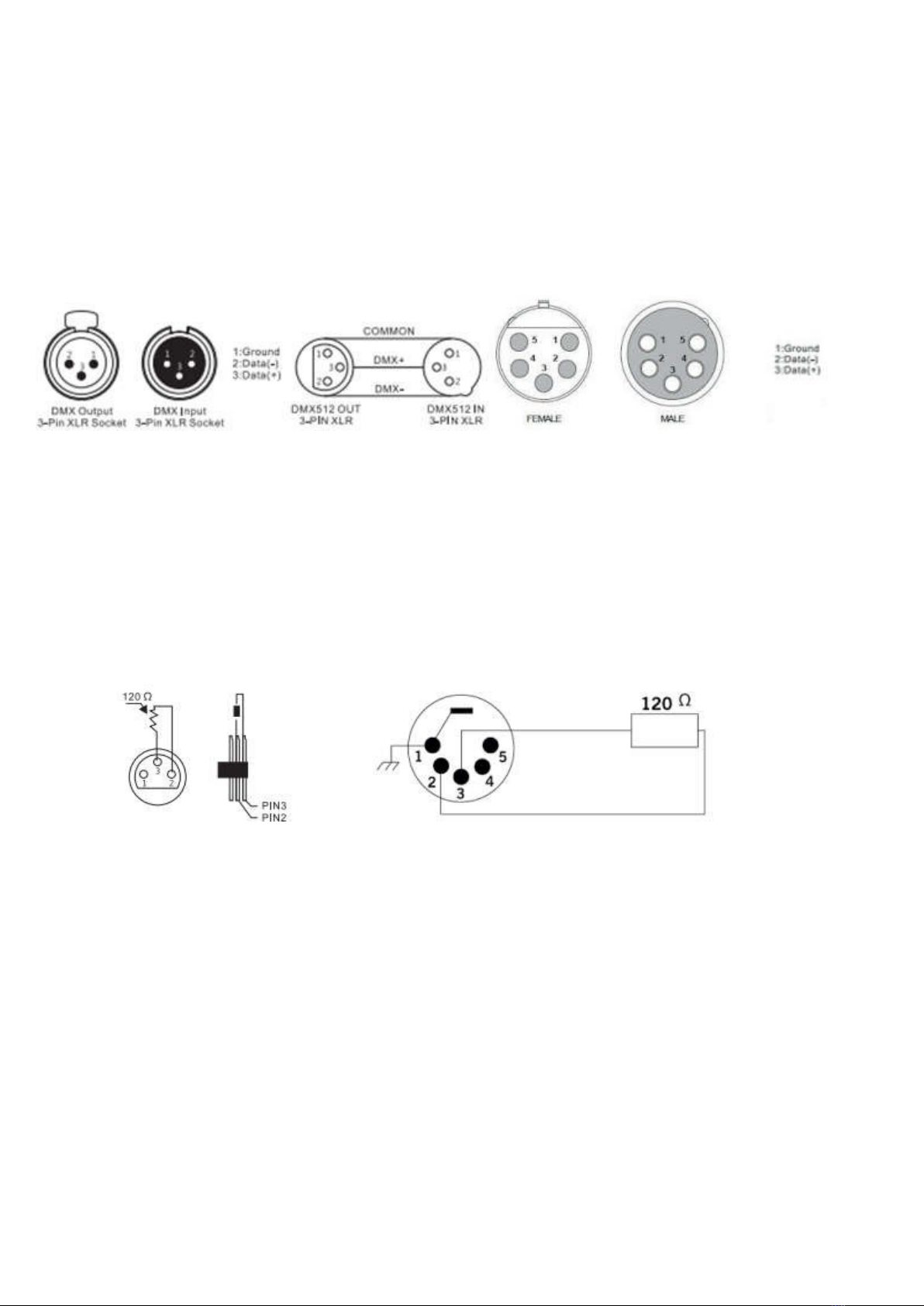

Please refer to the diagram below:
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, it is recommended to use a DMX terminator. This helps in preventing corruption
of the digital control signal by electrical noise and reflections. The DMX terminator is simply an
XLR plug with a 120 Ω resistor connected between pins 2 and 3, which is then plugged into
the output XLR socket of the last fixture in the chain. Please see illustrations below:

SS
DMX Modes and Configuration
The Starburst Versa has multiple DMX modes, sometimes called “personalities”, “profiles”, or as
we will use here “modes”.
In general, modes with more DMX channels offer a greater level of control or options but take
up more of your output channels on your lighting console or software.
Modes with less DMX channels often offer less control, but may be plenty for your needs.
Depending on your needs and control solution, you may not need channels for automated
programs, strobes, or macros – your console may have great effects! In this case, you can use a
lesser channel mode and fit more lights per DMX universe.
View the DMX mode charts below to find the mode that best suits your needs.
DMX Channel Mode Sheet:
On the left side of the sheet you will see the different modes and which channel
corresponds to each function listed on the right in the given mode.
11 Channel Mode:
Channels
Function
Description
CH1
Dimmer
RGBWYUV master dimmer, 0~100% linear dimming,dark ->bright
CH2
Strobe
RGBWYUV master strobe, slow->fast
CH3
Macro1
0--14: Empty
15--34: Color flow(Jump)(CH1--5 enable) 35--54: Color flow(Fade)(CH1--5 enable) 55--
74: Color choose(CH1 enable) 75--94: Color Jump(CH1 enable) 95--114: Color fade,Color
pulse(CH1 enable) 115--134:Effects 1(CH1 enable) 135--154:Effects2(CH1 enable) 155--
174:Effects3(CH1 enable) 175--194:Effects4(CH1 enable) 195--214:Effects5(CH1 enable)
215--234:Effects6(CH1 enable) 235--255:Sound active(CH1 enable)
CH4
Macro2
0--15: Empty
16--45: Effects1(CH1 ,CH6~CH11 enable) 56--60: Effects2(CH1 ,CH6~CH11 enable) 96--
45: Effects3(CH1 ,CH6~CH11 enable) 136--60: Effects4(CH1 ,CH6~CH11 enable) 176--
45: Effects5(CH1 ,CH6~CH11 enable) 240--255:Effects6(CH1 ,CH6~CH11 enable)
Macro3
The direction of Color flow 0--127: flow left
128--255: flow right
CH5
Macro
speed 1
Macro speed , slow->fast
CH6
R dimmer
R dimming,0~100% linear dimming,dark ->bright
CH7
G dimmer
G dimming,0~100% linear dimming,dark ->bright

SS
CH8
B dimmer
B dimming,0~100% linear dimming,dark ->bright
CH9
W dimmer
W dimming,0~100% linear dimming,dark ->bright
CH10
Y dimmer
Y dimming,0~100% linear dimming,dark ->bright
CH11
UV
dimmer
UV dimming,0~100% linear dimming,dark ->bright
29 Channel Mode:
Channels
Function
Description
CH1
Dimmer
RGBWYUV master dimmer, 0~100% linear dimming,dark ->bright
CH2
Strobe
RGBWYUV master strobe, slow->fast
CH3
Macro1
0--14: Empty
15--34: Color flow(Jump)(CH1--5 enable) 35--54: Color flow(Fade)(CH1--5 enable) 55-
-74: Color choose(CH1 enable) 75--94: Color Jump(CH1 enable) 95--114: Color
fade,Color pulse(CH1 enable) 115--134:Effects 1(CH1 enable) 135--154:Effects2(CH1
enable) 155--174:Effects3(CH1 enable) 175--194:Effects4(CH1 enable) 195--
214:Effects5(CH1 enable) 215--234:Effects6(CH1 enable) 235--255:Sound active(CH1
enable)
CH4
Macro2
0--15: Empty
16--45: Effects1(CH1 ,CH6~CH11 enable) 56--60: Effects2(CH1 ,CH6~CH11 enable)
96--45: Effects3(CH1 ,CH6~CH11 enable) 136--60: Effects4(CH1 ,CH6~CH11 enable)
176--45: Effects5(CH1 ,CH6~CH11 enable) 240--255:Effects6(CH1 ,CH6~CH11 enable)
Macro3
The direction of Color flow 0--127: flow left
128--255: flow right
CH5
Macro
speed 1
Macro speed , slow->fast
CH6
R dimmer
R dimming,0~100% linear dimming,dark ->bright(priority)
CH7
G dimmer
G dimming,0~100% linear dimming,dark ->bright(priority)
CH8
B dimmer
B dimming,0~100% linear dimming,dark ->bright(priority)
CH9
W dimmer
W dimming,0~100% linear dimming,dark ->bright(priority)
CH10
Y dimmer
Y dimming,0~100% linear dimming,dark ->bright(priority)
CH11
UV
dimmer
UV dimming,0~100% linear dimming,dark ->bright(priority)
CH12
LED1
dimmer
RGBWYUV dimming
CH13
LED2
dimmer
RGBWYUV dimming
CH14
LED3
dimmer
RGBWYUV dimming

SS
CH15
LED4
dimmer
RGBWYUV dimming
......
.......
..........
CH29
LED18
dimmer
RGBWYUV dimming
108 Channel Mode:
Channels
Function
Description
CH1
R1 dimmer
R1 dimming,0~100% linear dimming,dark ->bright
CH2
G1 dimmer
G1 dimming,0~100% linear dimming,dark ->bright
CH3
B1 dimmer
B1 dimming,0~100% linear dimming,dark ->bright
CH4
W1 dimmer
W1 dimming,0~100% linear dimming,dark ->bright
CH5
A1 dimmer
A1 dimming,0~100% linear dimming,dark ->bright
CH6
UV1 dimmer
UV1 dimming,0~100% linear dimming,dark ->bright
CH7
R2 dimmer
R2 dimming,0~100% linear dimming,dark ->bright
CH8
G2 dimmer
G2 dimming,0~100% linear dimming,dark ->bright
CH9
B2 dimmer
B2 dimming,0~100% linear dimming,dark ->bright
..........
..........
..........
CH108
UV18 dimmer
UV18 dimming,0~100% linear dimming,dark ->bright
119 Channel Mode:
Channels
Function
Description
CH1
Dimmer
RGBWYUV master dimmer, 0~100% linear dimming,dark ->bright
CH2
Strobe
RGBWYUV master strobe, slow->fast
CH3
Macro1
0--14: Empty
15--34: Color flow(Jump)(CH1--5 enable) 35--54: Color
flow(Fade)(CH1--5 enable) 55--74: Color choose(CH1 enable) 75--
94: Color Jump(CH1 enable) 95--114: Color fade,Color pulse(CH1
enable) 115--134:Effects 1(CH1 enable) 135--154:Effects2(CH1
enable) 155--174:Effects3(CH1 enable) 175--194:Effects4(CH1
enable) 195--214:Effects5(CH1 enable) 215--234:Effects6(CH1
enable) 235--255:Sound active(CH1 enable)
CH4
Macro2
0--15: Empty
16--45: Effects1(CH1 ,CH6~CH11 enable) 56--60: Effects2(CH1
,CH6~CH11 enable) 96--45: Effects3(CH1 ,CH6~CH11 enable) 136--
60: Effects4(CH1 ,CH6~CH11 enable) 176--45: Effects5(CH1
,CH6~CH11 enable) 240--255:Effects6(CH1 ,CH6~CH11 enable)
Macro3
The direction of Color flow 0--127: flow left
128--255: flow right
CH5
Macro speed 1
Macro speed , slow->fast
CH6
R dimmer
R dimming,0~100% linear dimming,dark ->bright(priority)
CH7
G dimmer
G dimming,0~100% linear dimming,dark ->bright(priority)

SS
CH8
B dimmer
B dimming,0~100% linear dimming,dark ->bright(priority))
CH9
W dimmer
W dimming,0~100% linear dimming,dark ->bright(priority)
CH10
Y dimmer
Y dimming,0~100% linear dimming,dark ->bright(priority)
CH11
UV dimmer
UV dimming,0~100% linear dimming,dark ->bright(priority)
CH1
R1 dimmer
R1 dimming,0~100% linear dimming,dark ->bright
CH2
G1 dimmer
G1 dimming,0~100% linear dimming,dark ->bright
CH3
B1 dimmer
B1 dimming,0~100% linear dimming,dark ->bright
CH4
W1 dimmer
W1 dimming,0~100% linear dimming,dark ->bright
CH5
Y1 dimmer
Y1 dimming,0~100% linear dimming,dark ->bright
CH6
UV1 dimmer
UV1 dimming,0~100% linear dimming,dark ->bright
CH7
R2 dimmer
R2 dimming,0~100% linear dimming,dark ->bright
CH8
G2 dimmer
G2 dimming,0~100% linear dimming,dark ->bright
CH9
B2 dimmer
B2 dimming,0~100% linear dimming,dark ->bright
..........
..........
..........
CH119
UV18 dimmer
UV18 dimming,0~100% linear dimming,dark ->bright
Standalone Mode and Configuration
By linking the units with DMX cable in a Master/Slave connection, the first unit will control the
other units to give an automatic, sound-activated, synchronized light show when the Penn is
placed into Standalone mode by the on-board menu and keys..

SS
3. Maintenance
Routine Maintenance
The cleaning of lens must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smokey, or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
• Clean with a damp, soft cloth..
• Always dry the parts carefully.
• Clean the external optics at least every 20 days in demanding environments.
Troubleshooting Problems
The following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work:
• Check that the unit is plugged in to a working power connector.
• Press the menu button to confirm that the unit is powered on. If the screen does not
light up, the unit has no power.
B. Not Responding to the DMX Controller
• Check DMX cables to verify that they are plugged in and functional.
• Check the DMX address and mode – does it match the address and mode patched in the
lighting console or software?
• Plug the light directly into the DMX controller with a cable that you know is good.
Unplug all other lights – does it work?
• Try to use another DMX controller.

SS
4. Technical Specifications
Voltage:AC100~240V,50/60HZ
¬Light source: (18) 30 watt - RGBWAUV (6in1) LED’s
¬DMX Channel:11/29/108/119CH
¬Dimmer: High resolution dimmer 0~100%
¬Lenses: 45mm 10/12/25/40degree optional
¬Pixel Pitch: 52MM
¬Filter: Quick release diffusion filter
¬RDM: Supported
¬Working temperature: -30°C~50°C
¬Control mode: DMX512, Auto Run, Master/Slave, Sound active
¬Pattern effects with variable speed and fade time
¬Strobe effect: Variable speed (1-20HZ)
¬Horizontal hanging with Omega brackets
¬Horizontal installation on the floor with tilt bracket fast locks
¬Vertical installation on the floor with a base plate
¬Hanging vertically “dropped” with a vertical adapter
¬Split Joint: structural connection with 2 pieces quick release pins
¬House: Aluminum
¬Data : XLR IN/OUT Power IN / OUT
¬IPGrade:IP20
¬Weight:20 lbs/ 9.0 kg
¬Dimensions: 4.5 x 36.5 x 3.2” in

SS
