TX5 Hybrid
250w Hybrid Moving Head with Zoom
User Manual

TX5 Hybrid – GAMMA LED Vision Page 2 of 24
Table of Contents
1. Introduction and Setup ..................................................................................................................................... 3
2. Setup and Operation ....................................................................................................................................... 10
DMX Basics ..................................................................................................................................................... 11
DMX Wiring .................................................................................................................................................... 11
3. Maintenance ........................................................................................................................................................ 17
Routine Maintenance ................................................................................................................................. 17
Troubleshooting Problems ....................................................................................................................... 18
4. Technical Specifications .................................................................................................................................. 19
1. Introduction and Setup
Unpacking and In the Box
Thank you for choosing our TX5 Hybrid moving head light. For your own safety, please
read this manual before installing or using the device. This manual covers the important
information on installation and applications. Please install and operate the fixture with
following instructions. Meanwhile, please keep this manual for future needs.
The TX5 is made of a new type of high temperature strength plastic and cast aluminum
casing. The fixture is designed and manufactured strictly following CE standards,
complying with international standard DMX512 protocol. It’s independently controllable
and link-able with other lights for operation. And it is applicable for large-scale live
performances, theater, studio, nightclubs, houses of worship, and more.
The TX5 features high brightness and stability. Please carefully unpack it when you receive
the fixture and check for any damages from shipping. And please check whether the
following items are included inside the box:
•

TX5 Hybrid – GAMMA LED Vision Page 3 of 24
• TX-5 250w Moving Head – 1
• DMX Signal Cable – 1
• Power Cable – 1
• Omega Clamps – 2
• User Manual - 1

TX5 Hybrid – GAMMA LED Vision Page 4 of 24
Mounting and Operation
Caution: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas where the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is
kept at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Mounting points: Overhead mounting requires extensive experience, including amongst
others calculating working load limits, a fine knowledge of the installation material being
used, and periodic safety inspection of all installation material and the fixture. If you lack
these qualifications, do not attempt the installation yourself. Improper installation can
result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.
Clamp Mounting: The TX5 provides a unique mounting bracket assembly that integrates
the bottom of the base, and the safety cable rigging point in one unit (see the illustration
below).

TX5 Hybrid – GAMMA LED Vision Page 5 of 24
When mounting this fixture to truss be sure to secure an appropriately rated clamp to
each of the included omega brackets using a M10 screw fitted through the center hole of
the “omega bracket”. As an added safety measure be sure to attached at least one
properly rated safety cable to the fixture using on of the safety cable rigging point
integrated in the base assembly.

TX5 Hybrid – GAMMA LED Vision Page 6 of 24
Regardless of the rigging option you choose for your TX5 Hybrid, always be sure to secure
your fixture with a safety cable. The fixture providers a built-in rigging point for a safety
cable on the hanging bracket as illustrated above. Be sure to only use the designated
rigging point for the safety cable and never secure a safety cable to a carrying handle.
∙The moving head is for spot effect for on-site decoration purpose.
So make sure to operate the fixture until it is in normal temperature.
∙This light should be keep away from strong shaking during any transportation or
movement.
∙Don’t pull up the light by only the head, or it might cause damages to the mechanical
parts.
∙Don’t expose the fixture in overheating, moisture or environments with too much dust
when installing it.
∙Make sure the installation environment is in good safety condition before installing the
fixture.

TX5 Hybrid – GAMMA LED Vision Page 7 of 24
∙Make sure to put the safety chain and check whether the screws/clamps are screwed
properly when installing the fixture.
∙Make sure the lens are in good condition. It’s recommended to replace the units if there
are any damages or severe scratches.
∙Make sure the fixture is operated by qualified personnel who know the fixture before
using.
∙Keep the original packaging in case there is any future need for any warranty repair or
service.
∙Don’t try to modify the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
∙Warranty is voided if there are any malfunctions from not following the user manual
while operating or any hazardous operation, like shock short circuit, electronic shock, lamp
broken, etc.
Features
• 250W High Output White LED
• 50,000 hour lifespan and lower power consumption
• 5.5°-30° Beam Angle with focus function
• High light output: 13300 LUX@5M in White light, Zoomed In
• Overtemp protection: When the internal temperature hits 40°C and then the fans
begin to work, if the internal temperature hits 70°C, the brightness reduces to half
until it cools.
• Color Wheel: 7 colors +white, rotation with variable direction and speed
• 1 static Gobo Wheel: 8 gobos +white, wheel rotation and shake
• 1 Rotating Gobo Wheel: 6 gobos +white, wheel rotation and shake
• Prism: 3-facet Prism, bi-directionally rotatable at variable speeds
• High speed strobe effect with 1-25 hz
• Internal program available
• 16/18 DMX Channels USITT DMX-512
• DMX 512, master-slave and sound activated controllable or auto operation
• Colorful LCD display

TX5 Hybrid – GAMMA LED Vision Page 8 of 24
• Efficient low noise fan cooling system
• PowerCon IN/OUT
• 3-pin XLR connectors IN/OUT
• Two 1/4 turn fastening Omega Clamps
• IP 20 protection rating

TX5 Hybrid – GAMMA LED Vision Page 9 of 24

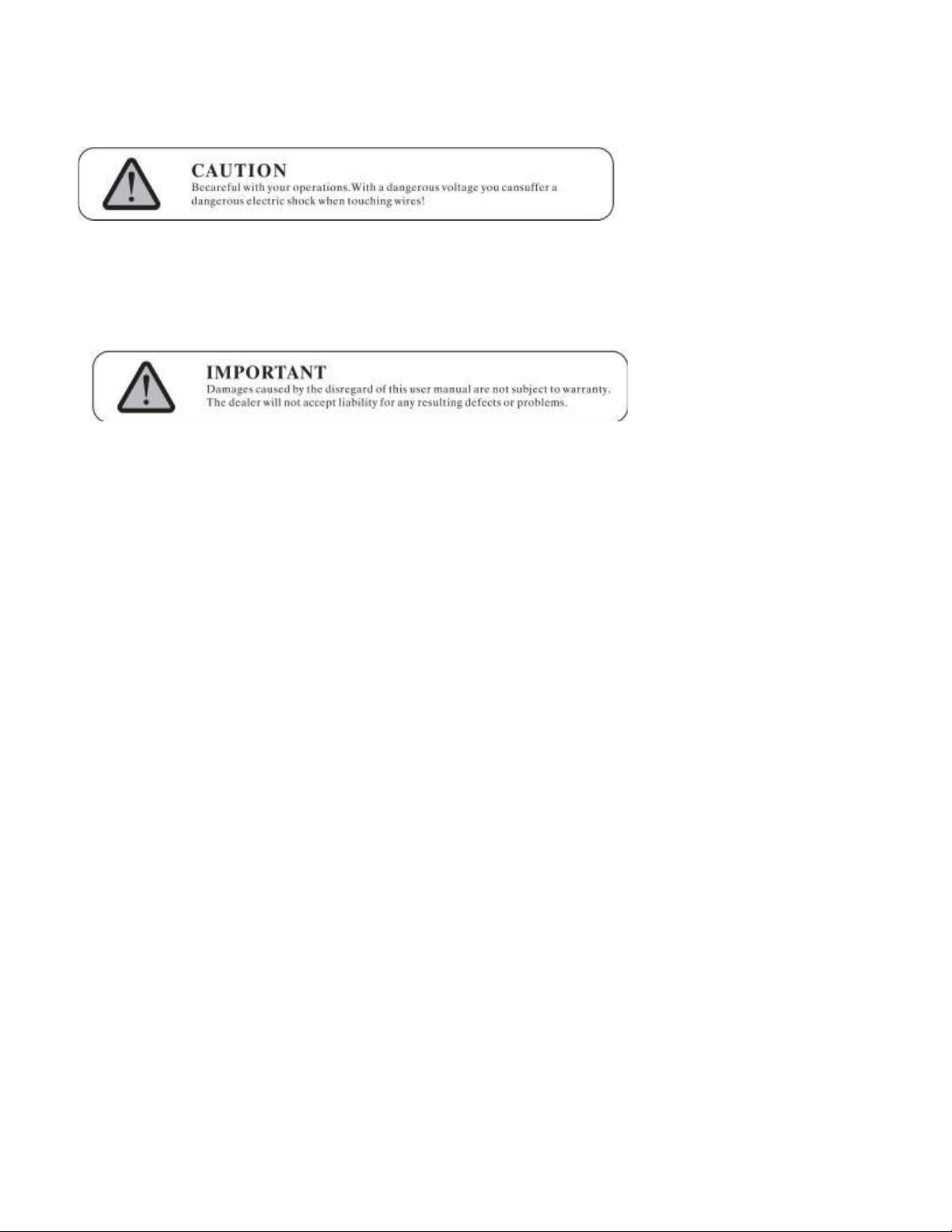

Safety Precautions
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do
not switch it on immediately. The arising condensation could damage the device.
This light should be keep away from strong shaking during any transportation or
movement.
Don’t pull up the light by only the head, or it might cause damages to the mechanical
parts.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed. The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be
the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell or smell may arise. This is a normal process
and does not necessary mean that the device is defective, it should decrease gradually.
Please don’t project the beam onto combustible substances.

TX5 Hybrid – GAMMA LED Vision Page 10 of 24
Fixtures cannot be installed on combustible substances, keep more than 50cm distance
with wall for smooth air flow, so there should be no shelter for fans and ventilation for
heat radiation.
If the external flexible cable or cord of this fixture is damaged, it shall be exclusively
replaced by the manufacturer of his service agent or a similar qualified person in order to
avoid a hazard.
Don’t expose the fixture in overheating, moisture or environments with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronics shock to the people.

TX5 Hybrid – GAMMA LED Vision Page 11 of 24
Customer Support
WARRANTY POLICY
GAMMA LED Vision warrants its products for the periods set below from the date of
purchase to be free of manufacturer and workmanship defects. Warranty does not cover
normal wear and tear caused by force, negligence or misuse of products. GAMMA LED
Vision is not responsible for any damages or injury caused by misuse or improper
handling of the products and in accordance with instructions and specifications of manual.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussing Related Products and Accessories: 1 Year
Please visit WWW.GAMMALEDVISON.COM for complete Limited Warranty terms and
contact information.
2. Setup and Operation
Using the LCD Menu and Buttons

TX5 Hybrid – GAMMA LED Vision Page 12 of 24
Menu Operation

TX5 Hybrid – GAMMA LED Vision Page 13 of 24
DMX Setup
DMX Basics
DMX512 stands for digital multiplex 512. This means that 512 channels are controlled
digitally through 1 data cable.
A channel is a set of 255 steps that are assigned to control attributes in each light. This
may be a color like red, green or blue, and intensity, strobe, pan/tilt or other attributes.
Multiple sets of 512 “universes” may be used. Only 1 universe will travel on a DMX cable,
but through networked DMX (Art-Net or sACN E1.31), many universes can travel over a
network.
DMX Wiring
DMX works by connecting 1 or multiple lights to the output of a DMX lighting console or
software with a DMX interface.

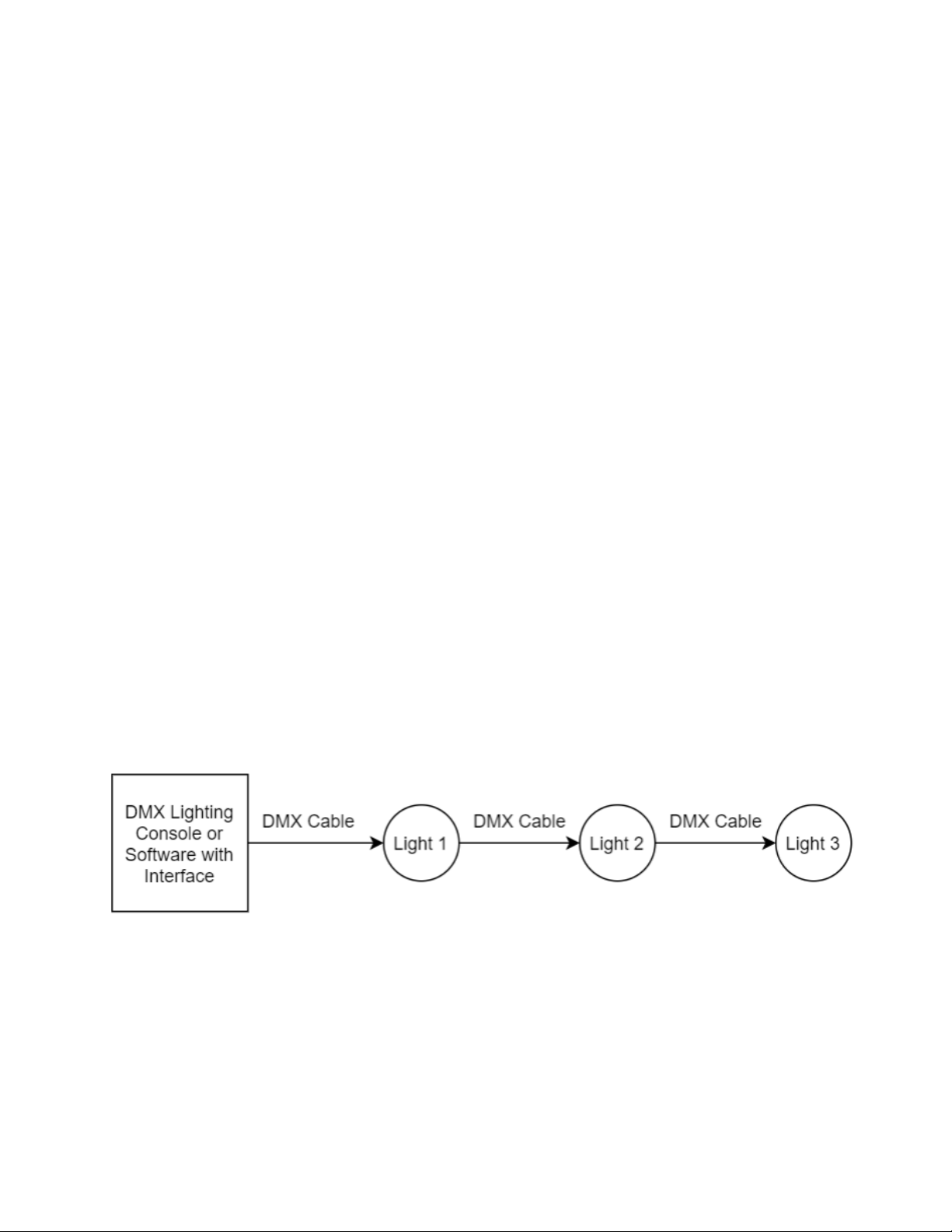

DMX lights connect in what is called a “daisy-chain”. Your first DMX cable will plug it’s
male DMX connector into the female DMX connector on your lighting console. The
remaining female connector will then connect to the DMX input on your first light.
You may then connect your next fixture to the output of your first light, and continue the
chain.
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single daisy
chain for signal strength. Sometimes, depending on the fixtures and cable length, this
number is less (or more).

TX5 Hybrid – GAMMA LED Vision Page 14 of 24
DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance. Microphone cable is not DMX cable.

TX5 Hybrid – GAMMA LED Vision Page 15 of 24
Please refer to the diagram below:
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise and reflections. The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,
which is then plugged into the output XLR socket of the last fixture in the chain. Please
see illustrations below:
DMX Modes and Configuration
The TX5-250 Hybrid has multiple DMX modes, sometimes called “personalities”, “profiles”,
or as we will use here “modes”.
In general, modes with more DMX channels offer a greater level of control or options but
take up more of your output channels on your lighting console or software.
Modes with less DMX channels often offer less control, but may be plenty for your needs.
Depending on your needs and control solution, you may not need channels for
automated programs, strobes, or macros – your console may have great effects! In this
case, you can use a lesser channel mode and fit more lights per DMX universe.

TX5 Hybrid – GAMMA LED Vision Page 16 of 24
View the DMX mode charts below to find the mode that best suits your needs.

TX5 Hybrid – GAMMA LED Vision Page 17 of 24
DMX Channel Mode Sheet:
On the left side of the sheet you will see the different modes and which channel
corresponds to each function listed on the right in the given mode.
18CH
16CH
Function
Channel Value
Description
1
1
Pan
0-255
0-540°
2
Pan Fine
0-255
Pan Fine
3
2
Tilt
0-255
0-270°
4
Tilt Fine
0-255
Tilt Fine
5
3
Movement
Speed
0-255
Fast to slow
6
4
Intensity
0-255
Dimmer Control
7
5
Strobe
0-7
Strobe off
8-250
Strobe, Slow to Fast
251-255
Strobe off
8
6
Color Wheel
0-15
No Color/White
16-31
Red
32-47
Green
48-63
Yellow
64-79
Deep Blue/Indigo
80-95
Magenta
96-111
Amber
112-127
Cyan
128-191
CW scroll, slow to fast
192-255
CCW scroll, slow to fast
9
7
Color
0-10
No Function

TX5 Hybrid – GAMMA LED Vision Page 18 of 24
Indexing
11-209
Color Index (Allows for
variable splits between any 2
colors on the wheel)
10
8
Gobo Wheel
1 – Static
0-6
Open
7-13
Gobo 1
14-20
Gobo 2
21-27
Gobo 3
28-34
Gobo 4
35-41
Gobo 5
42-48
Gobo 6
49-55
Gobo 7
56-63
Gobo 8
64-70
Gobo 8 Shake
71-77
Gobo 7 Shake
78-84
Gobo 6 Shake
85-91
Gobo 5 Shake
92-98
Gobo 4 Shake
99-105
Gobo 3 Shake
106-112
Gobo 2 Shake
113-119
Gobo 1 Shake
120-127
Open
128-191
Gobo Scroll CW from Slow
to Fast
192-255
Gobo Scroll CCW from Slow
to Fast

TX5 Hybrid – GAMMA LED Vision Page 19 of 24
11
9
7 Rotating
Gobos +
White
0-15
Open
16-31
Gobo 1
32-47
Gobo 2
48-63
Gobo 3
64-79
Gobo 4
80-95
Gobo 5
96-111
Gobo 6
112-127
Gobo 7
128-191
Gobo Rotate CW from Slow
to Fast
192-255
Gobo Rotate CCW from Slow
to Fast
12
10
Gobo
Rotation
0-15
Open
16-95
Gobo Fine 0-250
96-135
Gobo Rotation 0-90°
136-155
Gobo Rotation 0-250°
156-175
Gobo Rotation 0-360°
176-215
Gobo Scroll CW Slow to Fast
216-255
Gobo Scroll CCW Slow to
Fast
13
11
Focus
0-255
Soft to sharp
14
12
Zoom
0-255
Narrow to Wide, 5.5°-30°
15
13
Prism
0-63
Open
64-255
Prism In
16
14
Prism
0-15
Stop

TX5 Hybrid – GAMMA LED Vision Page 20 of 24
Rotation
16-95
Prism Index 0-250°
96-135
Prism Bounce 0-90°
136-155
Prism Bounce 0-250°
156-175
Prism Bounce 0-360°
176-215
Prism Rotate CW, Slow to
Fast
216-255
Prism Rotate CCW, Slow to
Fast
17
15
Frost
0-4
Open
5-127
Variable Frost
128-191
Frost Shake
192-255
Frost Effect
18
16
Automatic
Programs
and Reset
0-7
No Function
8-131
Auto Programs
132-249
Sound-Active Mode
250-253
Reset
254-255
No Function
3. Maintenance
Routine Maintenance
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
