Garage Door Systems ThermaRoll 77 User manual

ThermaRoll Roller Garage Door
Installation Instructions
For residential doors
!
!
HEAVY -
LIFT WITH
CAUTION!
!
!
YOUR SAFETY
FIRST!
Read this booklet
carefully before
installing your door
2020 V1

2
CONTENTS
Important Information – Warnings & Safety Obligations Page 3
CE marking, Operating & Warranty Page 4
Pre-Installation Checks Page 5
Component Check / Assembly Parts / Tools / Recommended Fixings Page 6
Setting out your Installation Page 8
Full Box
Half Box
No Box
Guide Preparation Page 10

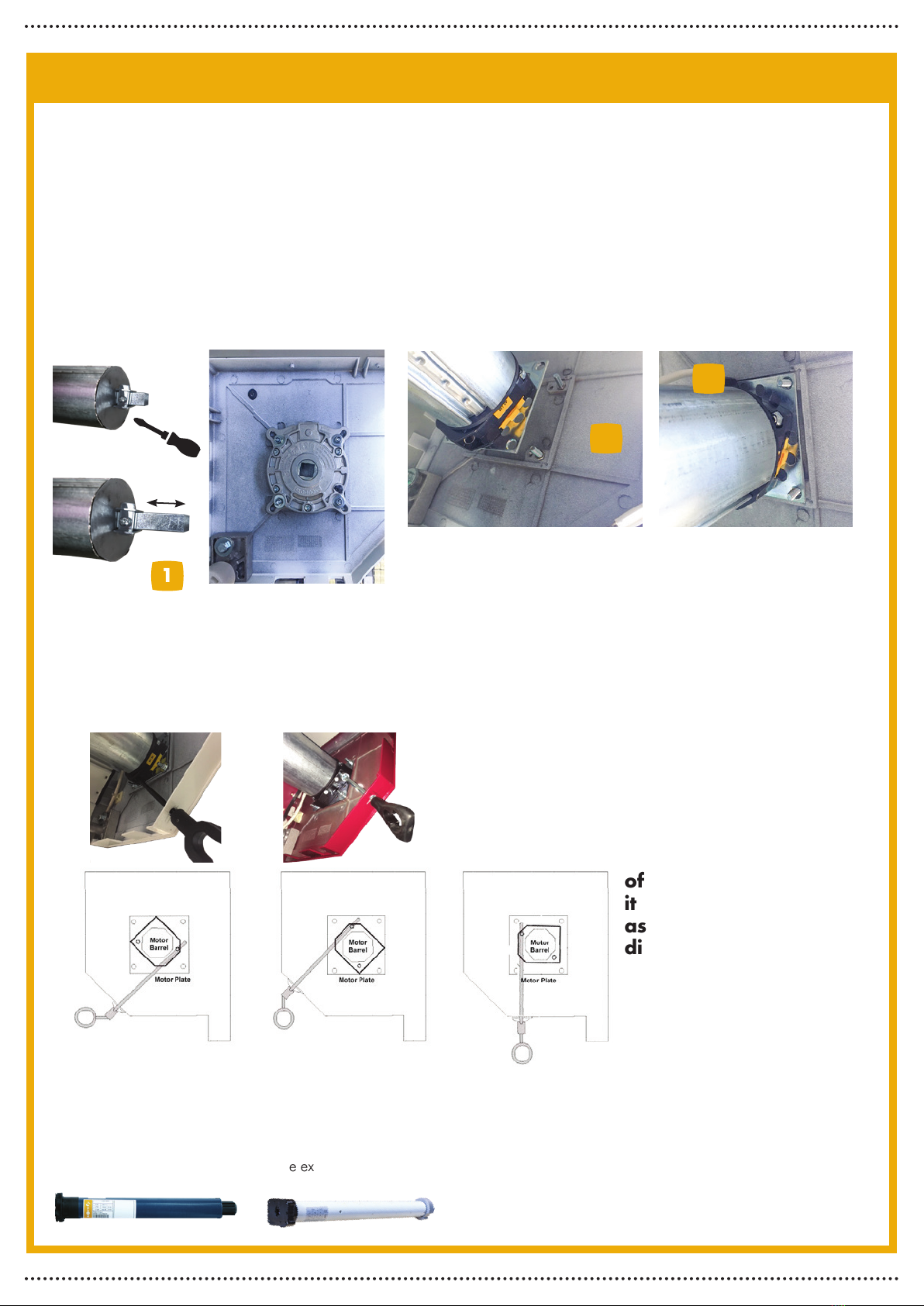

Guide Rails & Axle Assembly Page 11
Endplate plate Preparation, Guide & Endplate Fixing Page 13
Manual Override Fitting Page 14
Installation of Curtain into Guides & Stop Fitting Page 14

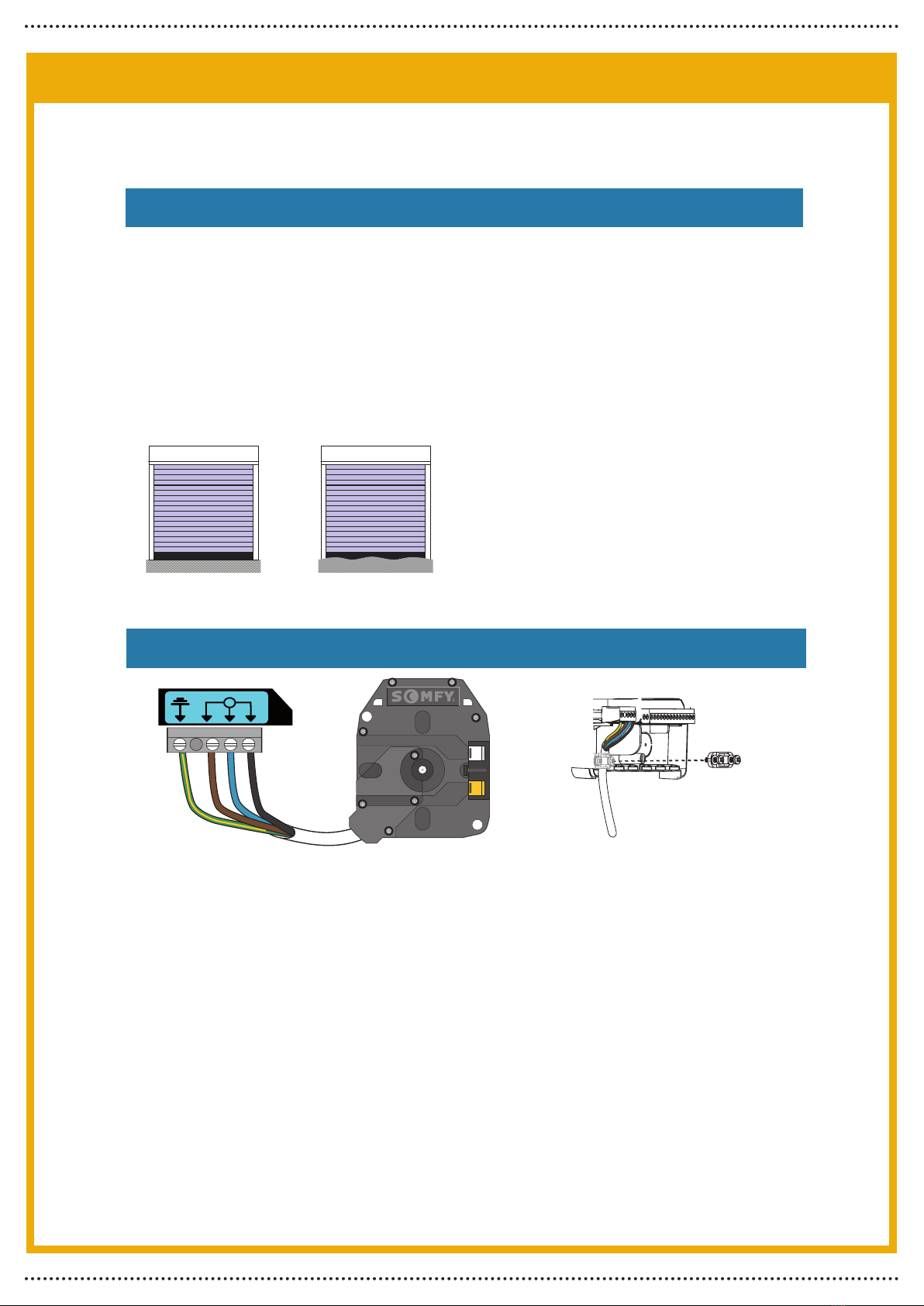

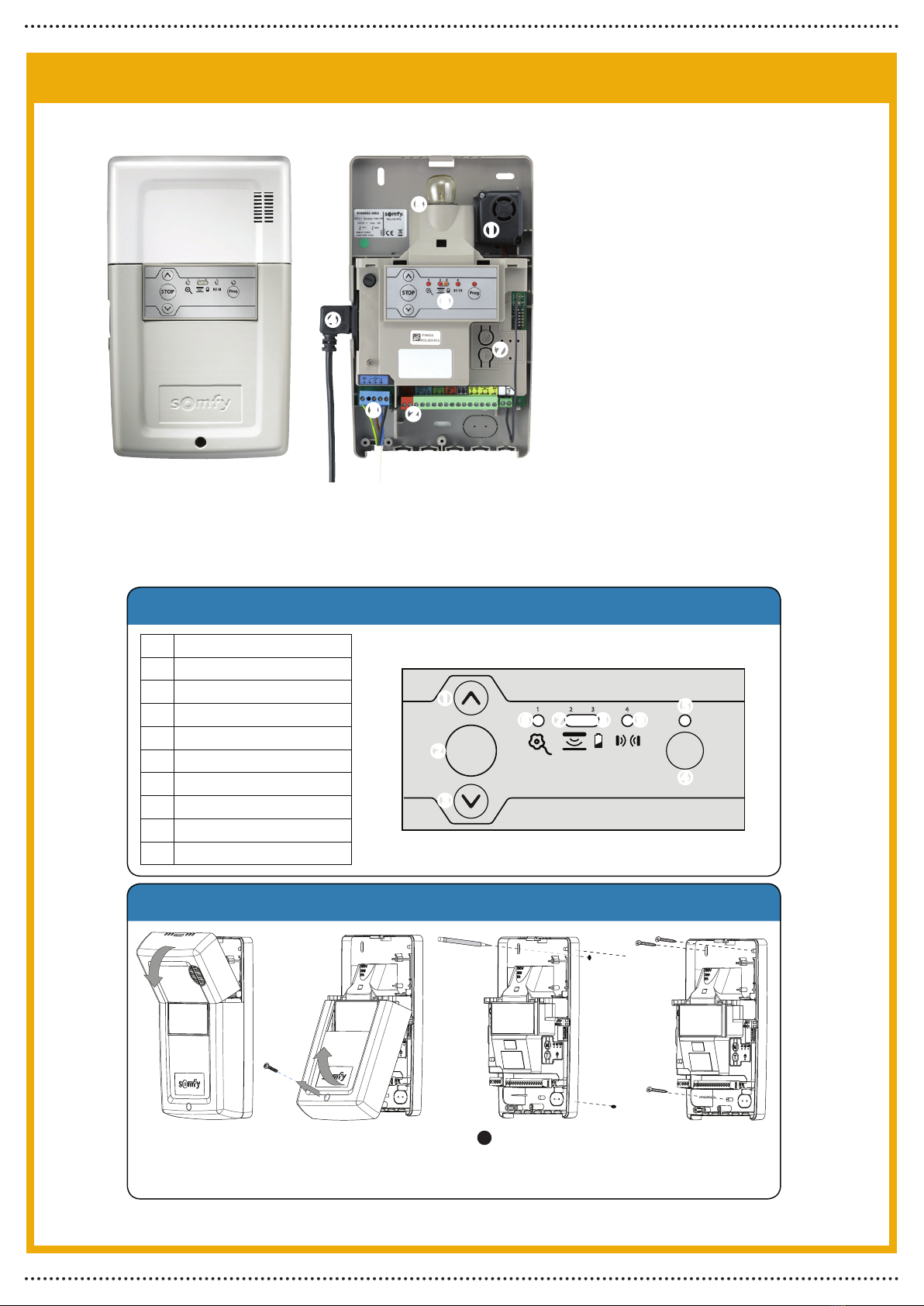

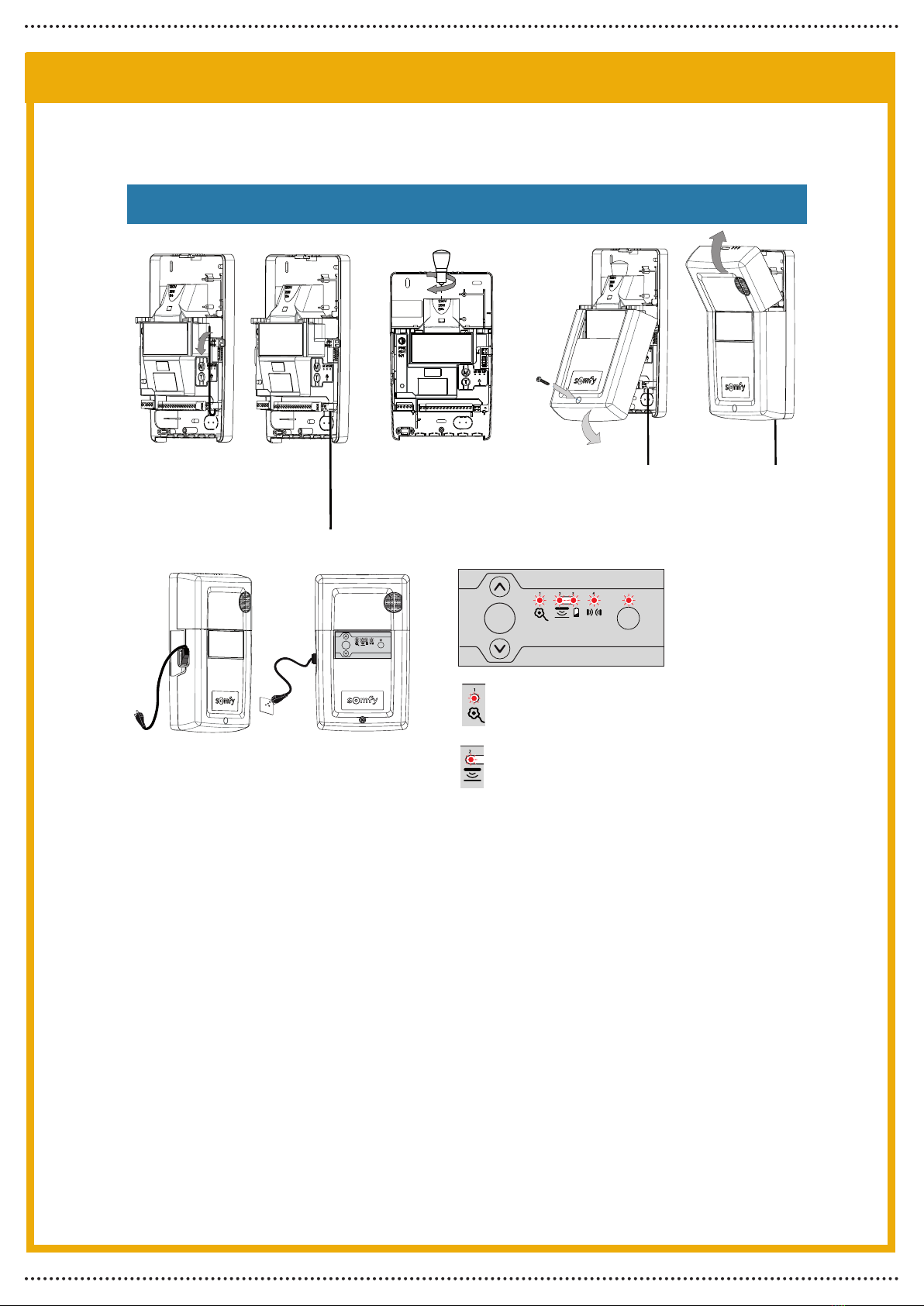

Installation & Connection of Board, Motor Direction Page 15

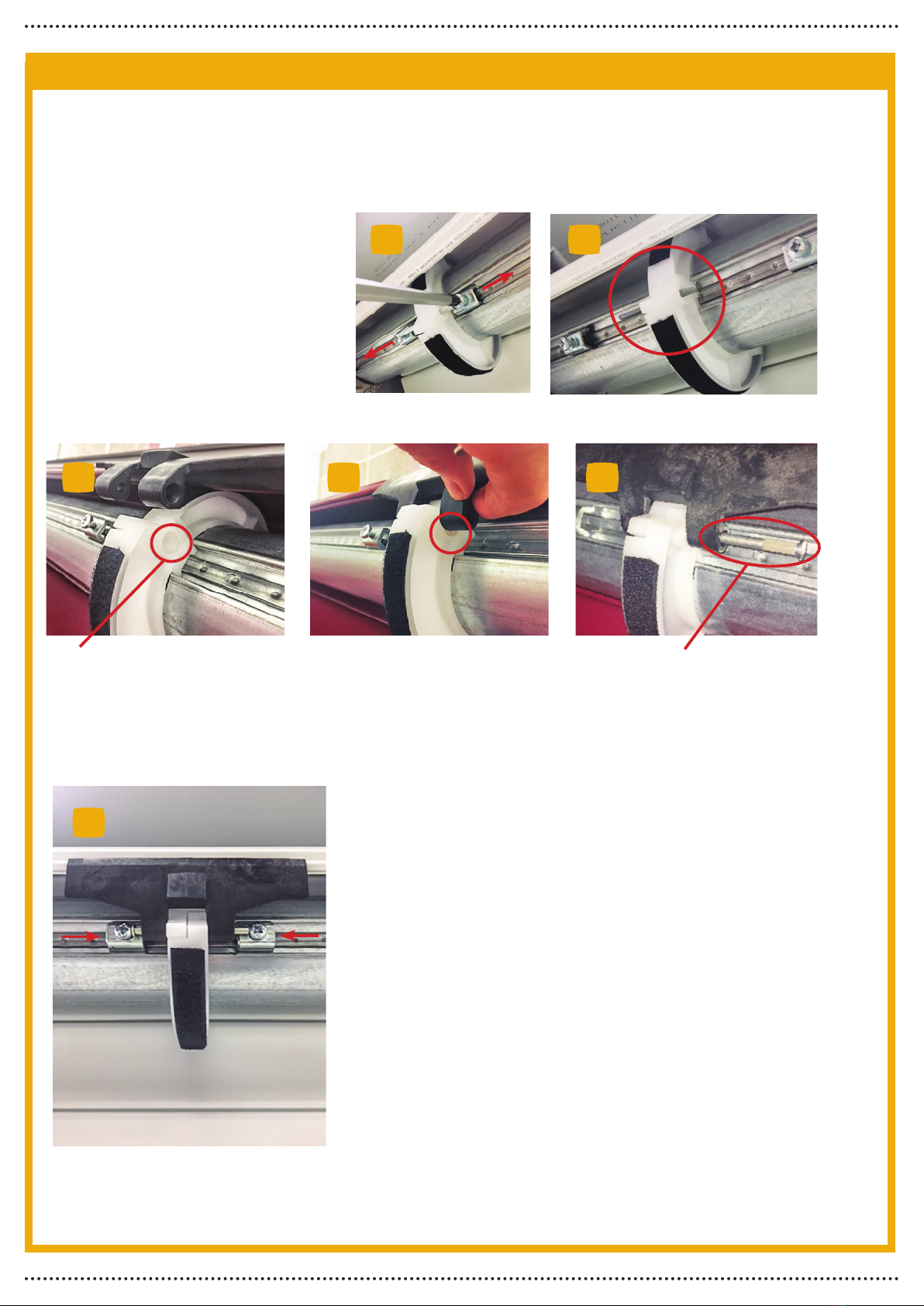

Attachment of Curtain to Axle Page 20
Commissioning and Setting Somfy Motor Limits Page 21
Setting Econom Motor Limits Page 22

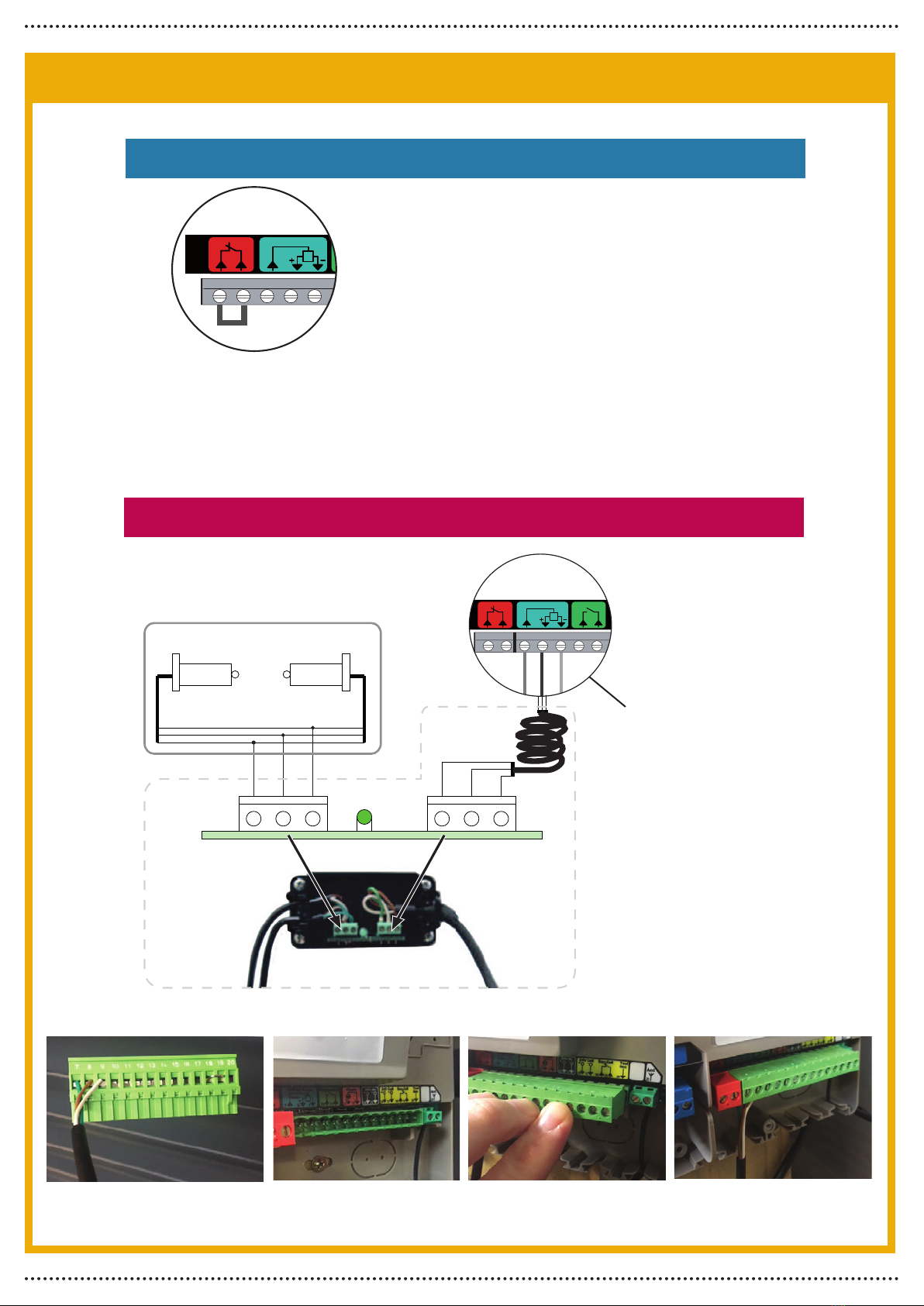

Additional Rollixo Set Up and Connecting Additional Devices Page 24
360mm endplate Barrel Assembly Page 29
ThermaRoll Roller Garage Door
Installation Instructions
For residential doors

3
WHO SHOULD
INSTALL THIS DOOR?
A minimum of two
people must be
available for fitting.
GDS recommend that
fitting and/or repair of
garage doors be performed by a qualified,
factory trained garage door specialist.
• Your safety, your end user’s safety and that of the general public is our primary concern. Please
read, understand and follow our advice.
• These installation instructions are intended for qualified and trained installation engineers.
• Installation, initial operation, servicing, repairs and dismantling of this product should only be
carried out by a qualified and trained installation engineer.
Failure to comply with these instructions
invalidates the warranty.
Before you begin the fitting of the door, read
and fully understand all of the instructions
thoroughly.
These doors meet all relevant safety
requirements when installed according to these
fitting instructions.
Both one and two car doors are installed in the
same manner.
Damage to the garage door due to improper
handling, installation or improper adjustment
of the electric operator is not covered by
Garage Door Systems’ warranty.
Be sure all warning labels and tags are
properly affixed to the door and that the
home owner is familiar with the door
operation.
Before removing the old door or
unpacking the door, confirm the opening
dimensions to ensure door will fit.
!
!
!
!
IMPORTANT INFORMATION
WARNINGS & SAFETY OBLIGATIONS
WARNING!
GENERAL NOTES
Goggles
Safety Shoes
Gloves
SAFETY EQUIPMENT

4
Upon completion of the installation the end
user of the door must be trained how to
operate the product safely paying particular
attention to the following points;
• The door should only be operated
when in view.
• The end user must ensure there are
no objects or persons in the opening
before and during operation.
• The end user must read and follow the
instructions given in the operating and
maintenance instructions.
• In the event of a malfunction the end
user should follow the instructions given
in the operating and maintenance
instructions and if required contact the
installer.
• It is the end users responsibility to
maintain a regular and appropriate
service and maintenance schedule.
The recommended service period for a
ThermaRoll door that will operate on average
two cycles per day is once every 12 months
or as a minimum once every 24 months to
maintain the products warranty requirements.
• The installation must be carried out by a
competent installation engineer following
these instructions.
• Only original parts are used.
• No additional objects are attached to the
door.
• Regular and appropriate maintenance
checks are performed.
• For further details on the product warranties
please contact us.
!
!IMPORTANT INFORMATION
CE MARKING, OPERATING & WARRANTY
GENERAL OPERATING INFORMATION RECOMMENDED SERVICE PERIOD
WARRANTY/LIFE CYCLES
CE MARKING
• To comply with the Machinery Directive both
the door and the motor and controller used
in the installation must have a Declaration of
Performance from the manufacturer.
• On completion of the installation the installer
must provide a Declaration of Conformity
and apply a CE mark giving details of the
installations to the door/motor and controller
combination, which is now classed as a
machine.
• The installer must issue to the customer a
Declaration of Conformity and operating and
maintenance instructions on completion of the
installation.
• The installer must hold copies of both
the Declaration of Performance and the
Declaration of Conformity on a technical file
for inspection by the relevant authorities.
• If any of the above requirements are not
fulfilled, the installation is illegal.

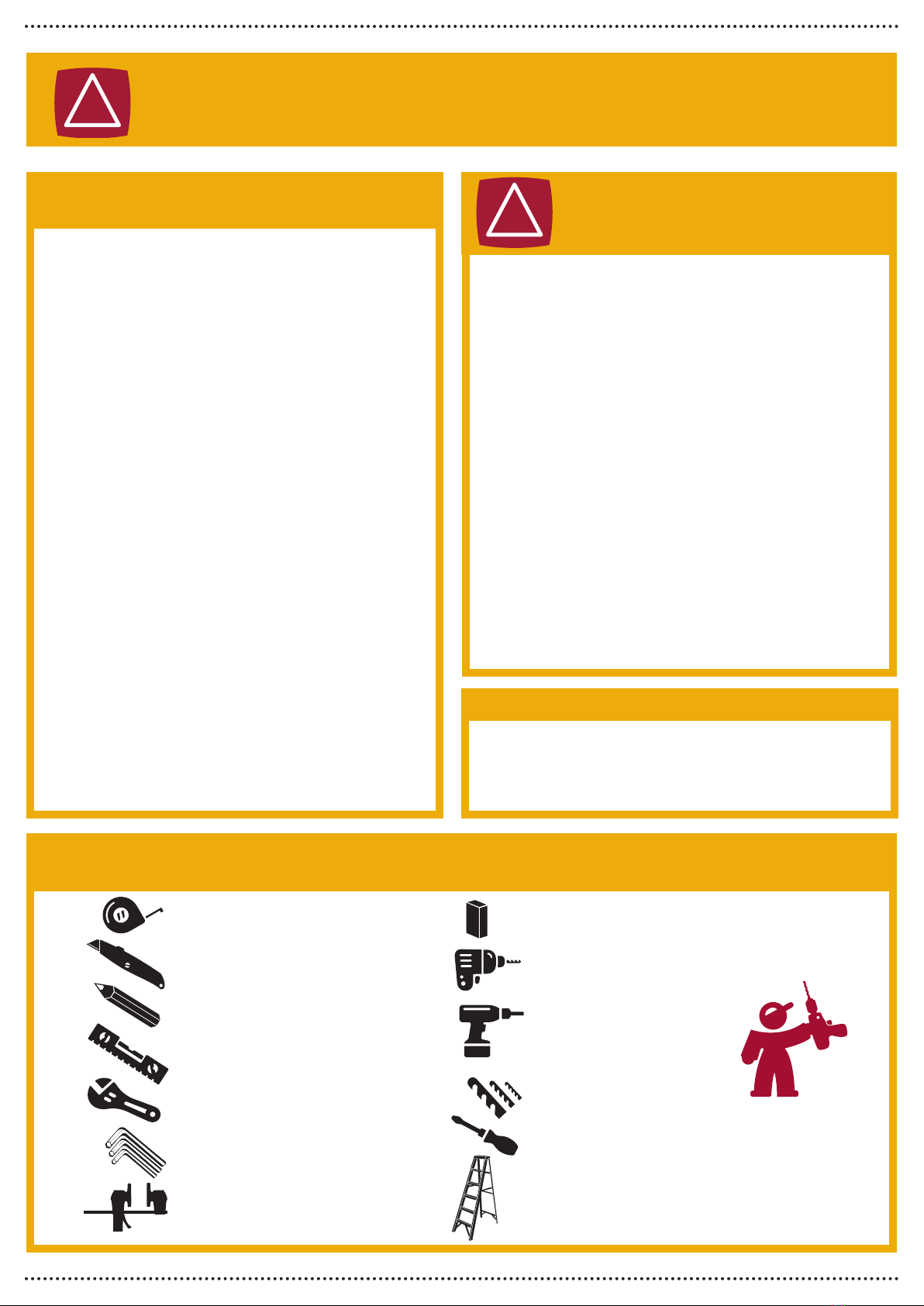

5
Tape measure
Stanley knife
Pencil
Spirit/laser level
Adjustable spanner
Allen key set
Quick clamps
Spacers/wedges for frame setting
Masonry drill/bits
Electric drill
Bits
Pozidrive screw drivers
‘A’ rated steps x2
• Ensure finished floor surface is in place before
installing your ThermaRoll door.
• Ensure there is adequate sideroom and
headroom.
• The jambs and head should be on the same
plane.
• The jambs must be plumb, and the header
level for a true opening. Small irregularities in
the brickwork are acceptable as long as they
do not interfere with proper fitting of the door
guides or optional boxes.
• The surface where the door is to be fitted must
be strong enough to support the door.
• The door should be fitted only after any
plastering of the area has been completed.
Plaster splashes may damage the door finish
and interfere with proper operation.
• Before unpacking your door confirm opening
measurements as well as headroom and side
room clearance to ensure door will fit.
• Ensure that the site is clear and that all fixing
surfaces are free from loose plaster or masonry.
Ensure the opening has no irregularities that
could damage or mark the box or curtain.
!
!PRE-INSTALLATION CHECKS
STRUCTURAL CONDITIONS
ENSURE THAT THE AREA AROUND THE
OPENING IS STRONG ENOUGH TO SUPPORT
THE DOOR
Check:
• Structure is sound and even and can carry the
weight of the door.
• No obstacles in fitting footprint eg. no sharp
objects, pipes, cables, bumps etc. sticking
out from the pillars, lintel or header to twist
the guides, distort the fascia or catch on the
curtain.
• Floor is flat and level.
• If necessary install a sub-frame to ensure
secure, flush and level fixing (Recommended
minimum 70 X 70 PAR).
!
!CHECK!
RECOMMENDED FIXINGS (NOT SUPPLIED)
12 x 2.5” coach screws for wood and coach screws and
plugs for Masonry.
12 x 1” self tapping screws for steel.
TOOLS REQUIRED FOR INSTALLATION

6
THE PACKED DOOR
The door curtain will be fully packaged when
delivered, if a box option has been ordered the
headplates will be factory fitted to the box and will
have the curtain packed and rolled inside.
The door box and door curtain roll.
The door barrel, guides and hand crank.
Two packages.
The control box
is packed in the
end of the door
box package.
INCLUDES:
• Somfy Control Box
• Manual Hand Crank
Override Direction Label
• Power Cord
• LED Bulb
• 2 x Keygo Transmitters
• Guide Bungs
• Conical Stops
• Information Label for
Fixing to the Guide
• Cable Grip
• Screws for Mounting
Board
The wrapped curtain is shipped inside the door box for full and half box doors.
Doors with no roll box have the end
plates at one end of the package.
The wrapped barrel,
guides and hand
crank unwrapped
below.
The 90º half box shown with stiffeners (fitted as standard
to all doors 3m+) and the curtain lifted clear.
A full box door unwrapped.

7

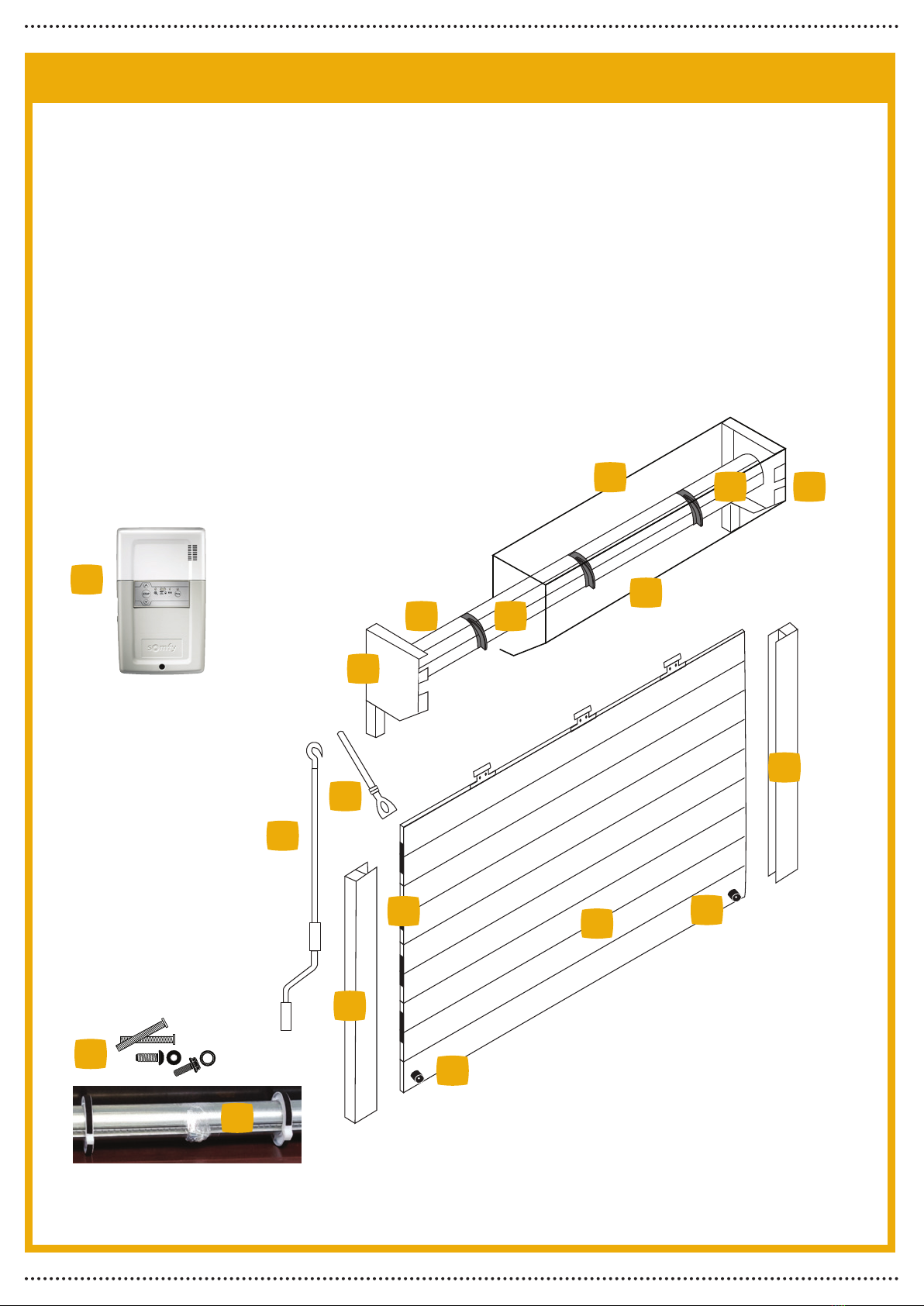

THE COMPONENTS
Lock strap bolt pack is wrapped onto the barrel
(4 bolts, 4 nuts and washers for headplate on
standard ThermaRoll 77 300mm box).
1
3
5
5
4
6
7
8
11
9
13 12
14
15
15
10
2
1. Somfy Control box.
2. Crank handle.
3. Override eye.
4. Lock strap pins and end plate fixing
nuts and bolts (in shrink wrapped pack,
attached to barrel).
5. Guide Rails 70mm or 95mm with brush
inserts fitted.
6. Curtain with bottom slat, factory fitted
wired safety edge/spiral cable and direct
connect locking straps.
7. Curtain endlocks or webbing (pre-fitted).
8. Left hand endplate.
9. Right hand end plate.
10. Barrel assembly with lock rings, pins, safety
brake and motor.
11. Motor end.
12. Non-drive end with safety brake.
13. Optional 90º half box - pre-fitted to end
plates
14. Optional 45º full box.
15. Door stops.
4

8
SETTING OUT YOUR INSTALLATION
FULL BOX & HALF BOX
If your door has been supplied with an optional Full or Half box assembled your overall size is pre-set.
Put cardboard protection down first. Place box on the floor against the opening where the door is to be
fitted, ensure overlap is equal on each side and mark a plumb line ‘A’ up each wall at the outside edge of
the box.
This is your outside edge of guide mark.
Fit base of
guide level
with the highest
point of the
floor surface
DO NOT fit
guide in recess
left by removal
of timber frame !
!
!
A
IMPORTANT – FLOOR IS FLAT AND LEVEL
!
!
Floor
✔
Floor
✘
GuideGuide

9

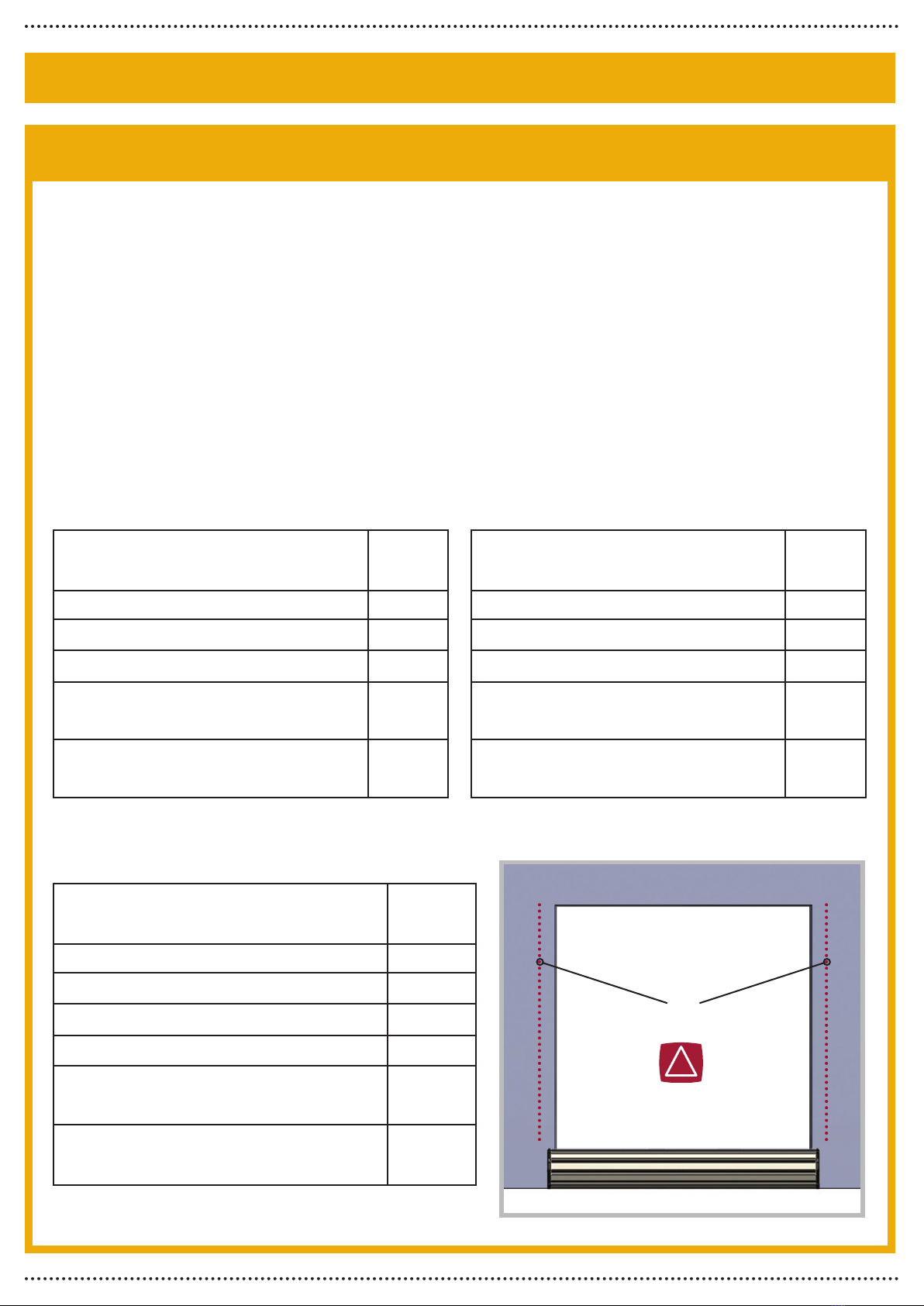

SETTING OUT YOUR INSTALLATION
NO BOX
Guides are 70mm or 95mm depending on door size.
Endplates and the control box will be packed with the curtain. The barrel assembly, including motor and fixing
plate at one end and safety brake at the other, will be packaged with the guide rails and crank handle.
To determine the over-guide width you must measure the width of the door curtain (width does not include the
plastic end locks).
Once you have determined the curtain width add 100mm if your door has endlocks or 92mm if your door has
webbing to give you the over-guide width.
Deduct the opening width from the over-guide width and divide by 2 to determine the outside edge position of
the guide from the edge of the opening.
Mark a plumb line ‘A’ up each wall at this point. This is your outside edge of guide mark.
Door curtain width / cut slat dimension 2040mm
(exclude plastic end locks when measuring)
+100mm to above dimension
+ 100mm
(This is your overguide width) TOTAL 2140mm
Opening Width 2000mm
Overguide width 2140mm - opening width 2000mm
= TOTAL OVERLAP 140mm
TOTAL OVERLAP / 2 = outside edge of
guide from edge of opening 70mm
Door curtain width / cut slat dimension mm
(exclude plastic end locks when measuring)
+100mm if end locked curtain
+ 100mm
+92mm if webbed curtain
+ 92mm
(This is your overguide width) TOTAL mm
Opening Width mm
Overguide width ____mm - opening width ____mm
= TOTAL OVERLAP mm
TOTAL OVERLAP / 2 = outside edge of
guide from edge of opening mm
Door curtain width / cut slat dimension 2048mm
+92mm to above dimension
+ 92mm
(This is your overguide width) TOTAL 2140mm
Opening Width 2000mm
Overguide width 2140mm - opening width 2000mm
= TOTAL OVERLAP 140mm
TOTAL OVERLAP / 2 = outside edge of
guide from edge of opening 70mm
Example: End locked Curtain
(based on 2000mm opening width & internal face fix)
Worksheet: End Locked or Webbed Curtain
Example: Webbed Curtain
(based on 2000mm opening width & internal face fix)
!
!
A

10
GUIDE PREPARATION
The guides should be unpacked and placed either side of the opening. The guides are designed with spacing
lugs inside the box to ensure that the guide is a good fit to the head-plate. Ensure that the guides are the
correct way round. See Fig 1.
As a further aid to alignment the 25mm saw cut in the guide should be oriented as shown
GUIDE ORIENTATION
GUIDE FIXING HOLES
Fixing positions as illustrated above can also
be combined. Please ensure both walls are
parallel before commencing installation
Face Fix Example
Reveal Fix Example
Spacing lugs
Fixing positions as illustrated above can also
be combined. Please ensure both walls are
parallel before commencing installation
Face Fix Example
Reveal Fix Example
Spacing lugs
Left hand guide shown. The
spacing lugs ensure the head
plate is a flush fit against the
opening.
Inside
face
Spacing
lugs
Figure 1.
Outside face (to wall)
25mm
saw cut
Splayed
guide
On 300mm head plate Drill 7mm fixing holes through the guide channel box section starting 100mm
from the bottom and space evenly thereafter, your last hole should be 100mm from the top of the guide.
On 360mm head plate Drill 7mm fixing holes through the guide channel box section starting 130mm
from the bottom and space evenly thereafter, your last hole should be 130mm from the top of the guide.
Note which face of the guide is to be fitted to the wall (Spacing legs and or the saw cut away from fixing
wall). Now enlarge the fixing holes to 12mm* on the Inside face of the guide section to allow access to
the fixings and accept the hole cover grommets.
*Guides are supplied with black grommets – Drill 12mm hole.
To assist the smooth operation of the garage door a 25mm saw cut has been made at the top of both
guide sections on the internal face, and the guide should be splayed creating a funnel below the nylon
idler wheel on the head plate.
Reveal
Fix Face Fix
Evenly spaced xing holes
Elevation 12mm Dia
100mm
130mm
100mm
15mm Long
Saw Cut
Evenly spaced xing holes
For 360mm box
For 300mm box
Elevation 10mm Dia
130mm
15mm Long
Saw Cut
Saw Cut
Reveal
Fix Face Fix
Evenly spaced xing holes
Elevation 12mm Dia
100mm
130mm
100mm
15mm Long
Saw Cut
Evenly spaced xing holes
For 360mm box
For 300mm box
Elevation 10mm Dia
130mm
15mm Long
Saw Cut
Saw Cut
Fixing positions as illustrated
above can also be combined.
You must ensure both walls are
parallel before commencing
installation.

11
AXLE ASSEMBLY
The barrel is held in place by a motor mounting plate on the motor end of the barrel and a safety brake on
the non-drive end of the motor barrel. The motor mounting plate is pre-fitted to the motor and the safety brake
is pre-fitted to the endplate.
The non-drive end of the barrel has an adjustable shaft which is held in place by a No.5 tensile Allen bolt.
NOTE: If the optional 90° box has been ordered, you can install the barrel into the head plates
before lifting into position.
(1) Using a Pozi screwdriver loosen the locking collar screw on the non-drive end, allowing the shaft to move
in and out of the barrel tube freely.
(2) Move the motor mounting plate into position, making sure the over-ride position is at the required point -
45º for Somfy and Econom motors (except for external over-ride - vertical - see separate instructions supplied
with the external over-ride). Please note: on 360mm boxes the over-ride position is always vertical.
IMPORTANT - Ensure
the opposite end of the
barrel is raised to a
similar position. Check
the override position
of the motor to ensure
it exits the headplates
as shown in the three
diagrams.
1
Correct motor position
45° over-ride position
for Somfy (except for
external over-ride -
vertical - see separate
instructions supplied with
the external over-ride).
Correct motor position
45° over-ride position
for Econom (except
for external over-ride -
vertical - see separate
instructions supplied with
the external over-ride).
Correct motor position
vertical over-ride
position 360mm box
Pre-fitted safety brake
Align the motor plate to the pre-
fitted bolts
Engage the motor plate
onto the bolts, ensuring
the over-ride is correctly
aligned as below.
2
2

12

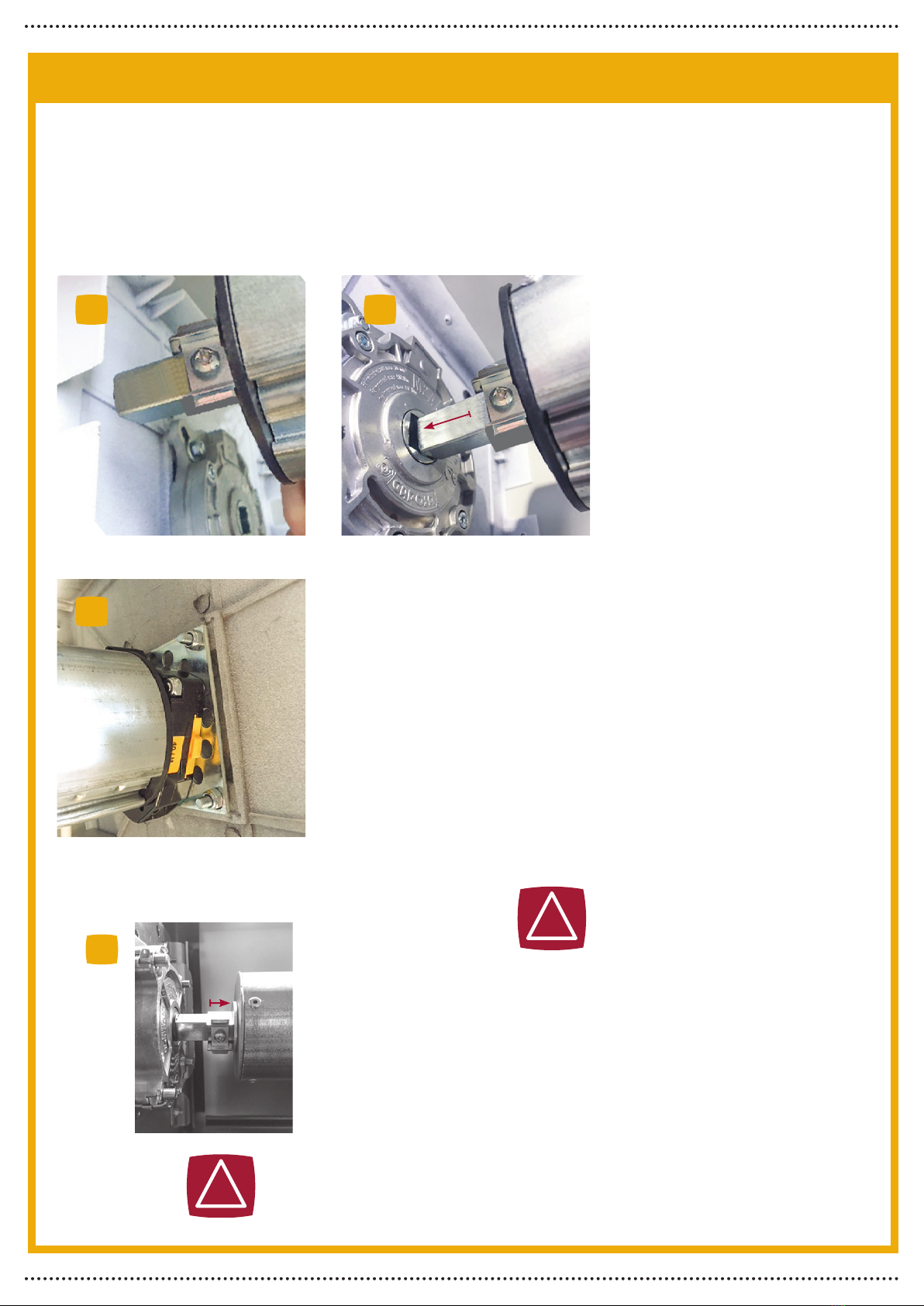

AXLE ASSEMBLY
(3) Now at the opposite end (safety brake end) move the barrel into position by sliding the shaft through the
endplate notch (with the motor plate located onto the four mounting bolts you will have sufficient room to do
this). Extend the shaft into the pre-fitted safety brake.
(4) When shaft at non-drive end has been located within the safety
brake you can then position the motor mounting plate fully on the 4
x pre-fitted bolts on opposite endplate and secure with 4 nyloc nuts
provided using a 10mm socket.
(5) LOCK OFF THE NON-DRIVE END SHAFT USING A
POZI SCREWDRIVER, ENSURING THAT THE LOCKING
COLLAR IS TIGHT AGAINST THE MOTOR BARREL.
!
!
!
!
3 3
4
5

13
FIXING THE DOOR GUIDES & HEAD PLATES
Slide the peg on the head plate into the box
channel of the guide. Note: The lugs in the channel
help to ensure the head plate rests neatly against
the head and in the correct position - see guide
orientation section on page 10. Lift into position
against the opening.
Hold guides in place using quick clamps. Check the
level of the guides, both vertically and horizontally.
If the floor is not level it will be necessary to pack
the bottom of the guide on the low side to ensure
guides are horizontally level.
IMPORTANT: It is important that your floor is level
to achieve an effective seal and ensure proper
operation of safety edge over time. The door
cannot be fitted off level to compensate for uneven
floors.
Once guides are positioned correctly secure to the wall
with fasteners using a central fixing hole. Check levels
again and when guides are level both vertically and
horizontally, secure to wall using appropriate fixings in
the remaining fixing holes.
Note: Do not over tighten to compensate for irreg-
ularities in the wall – instead pack wall where necessary.
Secure the head plate to the wall using appropriate
fixings through the pre-drilled fixing holes. Additional
fixings may be required depending on the structural
integrity!
MONKEY FUR PLACEMENT
Where the optional 90º box is being fitted it will be
necessary to secure to the head to prevent any marking
of the door curtain while in operation. Ensure any
fixing used is countersunk and that screw heads do not
protrude to avoid damage to door curtain. You have
the option to fit the supplied monkey fur at this point
to cover the screw heads. Please Note: The primary
function of the monkey fur is to protect the door curtain
from the screw heads. It may also aid draught proofing
but this is not its primary function. The monkey fur may
lead to curtain marking over time, this is not considered
warranty.
ENSURE FIXINGS ARE SUITABLE FOR
THE GARAGE WALL BUILD PROPERTIES
If the half box or full box option has
been selected the axle can be
assembled on the floor before lifting the
guides and head plates into position.
3
3
Opening
!
!
!
!
PREPARING THE HEAD PLATES
Head plates will be pre-drilled with 1 x fixing hole each. Head
plate will require 2 x fixings to secure via the reinforced tabs.
Use appropriate fixings to secure the head plates to the wall.
Plate peg
Fit base of guide level with
the highest point of the
floor surface
DO NOT fit guide in
recess left by removal of
timber frame
!
!
Floor
✔
Floor
✘
GuideGuide
IMPORTANT – FLOOR
MUST BE FLAT AND LEVEL

14
INSTALLING THE INTERNAL MANUAL OVERRIDE
The head plate will be pre-drilled to allow free access for the over-ride bar.
Please note: on 360mm boxes the over-ride position is always vertical.
Insert the over-ride bar
through motor unit, fit
and tighten the lock screw
and washer, on Econom
motors and No.3 Allen
bolt on Somfy motors
Correct motor position 45°
over-ride position for Somfy
(needs to be secured with
No.3 Allen bolt and washer)
(except for external over-
ride - vertical - see separate
instructions supplied with the
external over-ride).
Correct motor position 45°
over-ride position for Econom
(needs to be secured with
Phillips screw and washer)
(except for external over-
ride - vertical - see separate
instructions supplied with the
external over-ride).
INSTALLATION OF CURTAIN INTO GUIDES AND FITTING OF STOPS
1.Cover the barrel and rings with the protective bubble wrap from
the curtain.
2.Lift coiled curtain up level with axle (requires 2 people) and feed
the safety edge terminal block over the barrel, then feed the
bottom of the curtain over the barrel into guide.
3.Slowly unroll curtain and gently lower down to floor. NB Do not
allow the curtain to free fall over the axle as this will result in
damage to the curtain.
4.Fit conical stops to bottom slat.
Correct motor position
vertical over-ride
position 360mm box
ATTACH THE CORRECT MANUAL OVERRIDE CRANKING DIRECTIONAL ARROW LABELS TO
THE 45 DEGREE BOX OR DOOR GUIDE (IF NO BOX OR HALF BOX FITTED).
!
!

15
The head plate will be pre-drilled to allow free access for the over-ride bar.
INSTALLATION AND CONNECTION OF BOARD
Page 4
Rollixo RTS control panel
n Remove the
courtesy light
cover.
No. Description
1Up button
2Stop button
3Down button
4Prog button
5Prog LED
6Motor & safety brake LED
7Safety edge LED
8Battery LED
9Photocell LED
3 421
Prog
STOP
L1 L2N
M
1 234
Bleu
Marron
Noir
Green/Yellow
Brown
Blue
Black
Mounting the Rollixo RTS
o Unscrew
and remove the
panel cover.
p Mark the
wall drilling
positions.
q Secure the
Rollixo RTS in
place.
Somfy motor wiring
n Connect the motor wires into terminals 1, 2, 3
& 4 as illustrated above.
Note: The motor direction can be reversed during the
commissioning procedure.
o Secure the motor supply
cable in place with the cable
clamp.
o.
n.
p.
q.
r.
s.t.u.v.
Rollixo RTS
Alarm sounder
Plug-in connectors for accessories
Plug-in motor connector
Quick plug-in mains supply cable
Courtesy light
LED diagnostic interface
- motor & safety brake
- safety edge
- photo-cells
- low battery
Functional mode setting
- standard operating mode
- auto time return mode
Plug & play system
•Wireless safety edge: no wiring between safety edge and control unit.
•We’ve done some of the work for you already:
- Remote keyfob pre-programmed into the Rollixo RTS.
- Quick connect: mains supply cable, motor and accessories.
Universal solution to suit all needs
•Wireless / wired - optical / resistive safety edge.
•Somfy RDO manual over-ride motor.
Quick & simple installation
The setting and diagnostics interface makes it simple:
•Real-time feedback during the commissioning phase:
- Motor, safety brake, safety edge, photo-cells.
•Motor direction/limit settings completed from the control panel.
Real time diagnostics: saves you time
•With 4 LEDs providing real-time status:
- Motor thermal and safety brake status.
- Safety edge and photo-cell status.
- Low-battery indicator.
Save time installing & commissioning the Rolixo RTS







Quality comes as standard
Radio Technology Somfy®
With over 10 million systems installed
globally, Radio Technology Somfy®
is the absolute reference in terms of reliability,
flexibility and simplicity of installation.
Take advantage of Somfy RTS and see for yourself!
5 Year Warranty
Somfy products comply with European
safety standards. They are designed
and tested to stand up to several
thousand cycles of use under the most difficult
climatic conditions.
Rollixo RTS is supplied with a 5 year warranty.
230 V
3 421
Prog
STOP
Somfy RDO manual
over-ride motor
Safety Brake
Smoove wall
switch
Bottom slat
stoppers
Rollixo RTS controller
OSE safety
edge transmitter
Optical safety edge
Rollixo RTS OSE solution
• Rollixo RTS controller
• Optical safety edge transmitter
• 2 x Keygo multi-channel keyfobs
Optical safety edge
• 1 x pair of optical cells
• 1 x pair of bottom slat stoppers
• Rubber prole compatible with the optical cells available
Rollixo RTS ESE solution
• Rollixo RTS controller
• Electrical safety edge transmitter
• 2 x Keygo multi-channel keyfobs
• 1 x pair of guide magnets
Resistive safety edge
• Made to measure RF welded resistive safety edges available
Technical Characteristics
Mains power supply 230Vac - 50/60 Hz
Electrical insulation Class 1
Maximum motor voltage 230Vac - 750W
Radio frequency RTS: 433.42 MHz
Maximum number of controls that can be stored 32
Operating temperature -20˚C to + 60˚C
Index of protection IP 20
Integral light 230Vac - 25W maximum - E14
Safety inputs
3 dry contact inputs (N/C) for:
• Wired safety edge: optical or resistive
• Safety brake
• Photocells
Wired control input Dry contact input: N/O
Alarm Sounder & LT50/60 RDO
The complete solution
THE NEXT GENERATION ROLLER GARAGE DOOR CONTROLLER...
Rollixo RTS is the complete solution for automated, motorised roller garage doors.
The smart design of Rollixo RTS will ensure that you install and commission the system quicker than
before and deliver a premium solution, sure to meet with your customers requirements.
... SAVING YOU TIME AND EFFORT
Rollixo RTS is quick and easy to install.
Illustration of a Rollixo RTS installation with a wireless optical safety edge system.
NEW !
SOMFY +
SOMFY +
Warranty
year
LT50/60 RDO tubular motor
The Somfy HiPro rapid limit setting motor available in Ø 50/60 mm
formats for single and double sized roller garage doors.
Alarm sounder
Used with the safety edge system, the alarm will sound when
an attempt is made to manually lift the roller door.
Plug-in motor connector Simple programming procedure
Quick fit mains supply cable LED diagnostic interface
Rollixo B2B leaflet.indd 1 11/03/2013 13:27
Mark the wall drilling
positions, set box aside
& drill 3 holes.
3

16
SOMFY ROLLIXO QUICK COMMISSIONING
Page 4
This quick guide provides basic installation and commissioning guidance based on the Somfy
Rollixo RTS controller and safety edge solutions. Refer to the main Rollixo RTS controller and
safety edge installation guides where more in-depth information relating to the installation
procedure of the Rollixo RTS system is required.
Rollixo RTS Safety Edge Solutions
There is one Somfy hardwired safety edge solution available with the Rollixo RTS:
Rollixo RTS OSE - OSE stands for ‘Optical Safety Edge’.
This is supplied with a safety edge via a hard wired spiral cable and is connected to a Somfy
optical safety edge system. The optical safety edge consists of two optical cells mounted at
each end of a rubber profile. The cells project an optical beam through a hollow section of
the profile, it becomes obscured once the rubber profile is depressed. This in turn results in a
signal from the safety edge, indicating that an obstacle has been detected.
Aditional steps must be taken to ensure the straight edge of the door meets with the straight
edge of a floor extending into the guides. Failure to do so will result in; air + light gaps, false
activations of the edge etc.
Rollixo RTS Solutions
“Please refer to the Installer Guide
provided with every Rollixo, here
you will find the basic principles and
operating parameters for any CE
compliant safety edge system”
L1 L2N
M
1 2 3 4
Bleu
Marron
Noir
Green/Yellow
Brown
Blue
Black
L1 L2N
M
1 2 3 4
Bleu
Marron
Noir
Sec
Safety EdgeStop
K
5 6 7 8 9 1
Green/Yellow
Brown
Blue
Black
Sec
Safety EdgeStop
K
5 6 7 8 9 1
Somfy motor wiring
Connect the motor wires into terminals 1, 2, 3
& 4 as illustrated above.
Note: The motor direction can be reversed during
the commissioning procedure.
Secure the motor supply
cable in place with the
cable clamp.
✓
✗
Rollixo Quick GuideHW_A5_02.indd 4 12-07-17 14:02
Additional steps must be taken to ensure the straight edge of the door meets with the straight edge
of a oor extending into the guides, especially when removing posts - holes must be lled level with
the oor. Failure to do so will result in; air + light gaps, false activations of the safety edge etc.
Page 4
This quick guide provides basic installation and commissioning guidance based on the Somfy
Rollixo RTS controller and safety edge solutions. Refer to the main Rollixo RTS controller and
safety edge installation guides where more in-depth information relating to the installation
procedure of the Rollixo RTS system is required.
Rollixo RTS Safety Edge Solutions
There is one Somfy hardwired safety edge solution available with the Rollixo RTS:
Rollixo RTS OSE - OSE stands for ‘Optical Safety Edge’.
This is supplied with a safety edge via a hard wired spiral cable and is connected to a Somfy
optical safety edge system. The optical safety edge consists of two optical cells mounted at
each end of a rubber profile. The cells project an optical beam through a hollow section of
the profile, it becomes obscured once the rubber profile is depressed. This in turn results in a
signal from the safety edge, indicating that an obstacle has been detected.
Aditional steps must be taken to ensure the straight edge of the door meets with the straight
edge of a floor extending into the guides. Failure to do so will result in; air + light gaps, false
activations of the edge etc.
Rollixo RTS Solutions
“Please refer to the Installer Guide
provided with every Rollixo, here
you will find the basic principles and
operating parameters for any CE
compliant safety edge system”
L1 L2N
M
1 2 3 4
Bleu
Marron
Noir
Green/Yellow
Brown
Blue
Black
L1 L2N
M
1 2 3 4
Bleu
Marron
Noir
Sec
Safety EdgeStop
K
5 6 7 8 9 1
Green/Yellow
Brown
Blue
Black
Sec
Safety EdgeStop
K
5 6 7 8 9 1
Somfy motor wiring
Connect the motor wires into terminals 1, 2, 3
& 4 as illustrated above.
Note: The motor direction can be reversed during
the commissioning procedure.
Secure the motor supply
cable in place with the
cable clamp.
✓
✗
Rollixo Quick GuideHW_A5_02.indd 4 12-07-17 14:02

17
SOMFY ROLLIXO QUICK COMMISSIONING
Page 5
L1 L 2N
M
1 234
Bleu
Marron
Noir
Sec
Safety EdgeStop
K
56 7 8 9 1
Green/Yellow
Brown
Blue
Black
Sec
Safety EdgeStop
K
56 7 8 9 1
L1 L 2N
M
1 234
Bleu
Marron
Noir
Sec
Safety EdgeStop
K
56 7 8 9 1
Green/Yellow
Brown
Blue
Black
Sec
Safety EdgeStop
K
56 7 8 9 1
Safety brake j
j
u
u
m
m
p
p
e
e
r
r
 Connect the electrical safety brake
into terminals 5 & 6.
 Use the link provided to
connect terminals 5 & 6
3 421
Prog
STOP
 Unfold the aerial so
that it points verti-
cally downwards.
Powering up the Rollixo RTS
 Screw the bulb
supplied into the
light fitting.
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
 Refit the panel
cover and secure
with the screw.
 Plug in the supply cable and con-
nect the the mains supply.
3 421
Prog
STOP
 Refit the
courtesy light
cover.
3 42
1
Prog
STOP
3 4
2
1
Prog
STOP
If the motor LED comes on, check the
safety brake or link connection.
If the safety edge LED comes on, the safety
edge transmitter has not been recognised.
Prog
3 421
Prog
STOP
Prog
Prog
Prog
Prog
Prog
All the LED’s
come on briefly
and then go out.
Prog
(This is normal if the safety edge transmitter has
not been paired to the Rollixo RTS yet).
OR
Rollixo Quick GuideHW_A5_02.indd 5 12-07-17 14:02
The safety brake jumper is pre-fitted to terminals
5 and 6.
Pre-wired block Control panel
connector
Push to fit Pre-wired block in place
Page 8
Hard wired safety edge connection
Se c
SafetyEdgeStop
KeySwitch
5 6 7 8 9 10 11 1
Brown
Brown
Brown
White
White
White
Green
Green
Green
Dipswitch 4 receiver position
Pairing Keygo RTS keyfob’s (supplied paired)
 Press the ‘Prog’ button on the Rollixo RTS front panel until the LED above the Prog button
lights up RED.
 Press the button on the Keygo RTS keyfob that you want to control the Rollixo RTS controller
with until the ‘Prog’ LED on the Rollixo RTS controller flashes and then goes out.
solsol
3 421
Prog
STOP
20 mm
max
1 2 3 4
ON
3 screws
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
solsol
3 421
Prog
STOP
20 mm
max
1 2 3 4
ON
3 screws
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
Rollixo Quick GuideHW_A5_02.indd 8 12-07-17 14:02
The cable connects via a
plug-in connector block,
(this comes pre-wired).
IMPORTANT! Make sure you connect the
pre-wired green terminal block before
bringing power to the control board.

18
SOMFY ROLLIXO QUICK COMMISSIONING
Page 5
L1 L 2N
M
1 234
Bleu
Marron
Noir
Sec
Safety EdgeStop
K
56 7 8 9 1
Green/Yellow
Brown
Blue
Black
Sec
Safety EdgeStop
K
56 7 8 9 1
L1 L 2N
M
1 234
Bleu
Marron
Noir
Sec
Safety EdgeStop
K
56 7 8 9 1
Green/Yellow
Brown
Blue
Black
Sec
Safety EdgeStop
K
56 7 8 9 1
Safety brake jjuummppeerr
 Connect the electrical safety brake
into terminals 5 & 6.
 Use the link provided to
connect terminals 5 & 6
3 421
Prog
STOP
 Unfold the aerial so
that it points verti-
cally downwards.
Powering up the Rollixo RTS
 Screw the bulb
supplied into the
light fitting.
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
 Refit the panel
cover and secure
with the screw.
 Plug in the supply cable and con-
nect the the mains supply.
3 421
Prog
STOP
 Refit the
courtesy light
cover.
3 42
1
Prog
STOP
3 4
2
1
Prog
STOP
If the motor LED comes on, check the
safety brake or link connection.
If the safety edge LED comes on, the safety
edge transmitter has not been recognised.
Prog
3 421
Prog
STOP
Prog
Prog
Prog
Prog
Prog
All the LED’s
come on briefly
and then go out.
Prog
(This is normal if the safety edge transmitter has
not been paired to the Rollixo RTS yet).
OR
Rollixo Quick GuideHW_A5_02.indd 5 12-07-17 14:02
If the safety edge LED comes on, this may
be due to plugging the terminal block in
after power was switched on. To restore,
switch power off and on

19
SOMFY ROLLIXO QUICK COMMISSIONING
Page 6
Motor direction
 Press the motor limit buttons IN to
allow the motor to rotate during the
direction and limit setting procedure.
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
 At the same time press and hold the UP & DOWN buttons on the control panel until the door
moves up AND down, then release the buttons – the controller is now in
‘motor adjustment mode’, the motor LED light will flash slowly.
In motor adjustment mode, the Up & Down control buttons are in ‘hold to run’ mode - you
must press and hold the button in to operate the door up and down.
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
solsol
3 421
Prog
STOP
20 mm
max
1234
ON
3 screws
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
Prog
 Press and hold the UP button to check the motor
direction
If the motor direction is correct, move on to page
20.
If the motor direction is incorrect, press and hold
the STOP button until the door jogs up and down >
the direction has been reversed > check again and
move on to page 20.
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
Correct direc-
tion of rotation
Incorrect direc-
tion of rotation
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
Prog
Prog
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
34
2
1
Prog
STOP
34
2
1
Prog
STOP
OR
34
2
1
Prog
STOP
34
2
1
Prog
STOP
on
34
2
1
Prog
STOP
34
2
1
Prog
STOP
34
2
1
Prog
STOP
34
2
1
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
34
2
1
Prog
STOP
Rollixo Quick GuideHW_A5_02.indd 6 12-07-17 14:02
Page 6
Motor direction
 Press the motor limit buttons IN to
allow the motor to rotate during the
direction and limit setting procedure.
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
 At the same time press and hold the UP & DOWN buttons on the control panel until the door
moves up AND down, then release the buttons – the controller is now in
‘motor adjustment mode’, the motor LED light will flash slowly.
In motor adjustment mode, the Up & Down control buttons are in ‘hold to run’ mode - you
must press and hold the button in to operate the door up and down.
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
solsol
3 421
Prog
STOP
20 mm
max
1234
ON
3 screws
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
Prog
 Press and hold the UP button to check the motor
direction
If the motor direction is correct, move on to page
20.
If the motor direction is incorrect, press and hold
the STOP button until the door jogs up and down >
the direction has been reversed > check again and
move on to page 20.
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
Correct direc-
tion of rotation
Incorrect direc-
tion of rotation
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
Prog
Prog
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
34
2
1
Prog
STOP
34
2
1
Prog
STOP
OR
34
2
1
Prog
STOP
34
2
1
Prog
STOP
on
34
2
1
Prog
STOP
34
2
1
Prog
STOP
34
2
1
Prog
STOP
34
2
1
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
34
2
1
Prog
STOP
Rollixo Quick GuideHW_A5_02.indd 6 12-07-17 14:02
Page 6
Motor direction
 Press the motor limit buttons IN to
allow the motor to rotate during the
direction and limit setting procedure.
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
 At the same time press and hold the UP & DOWN buttons on the control panel until the door
moves up AND down, then release the buttons – the controller is now in
‘motor adjustment mode’, the motor LED light will flash slowly.
In motor adjustment mode, the Up & Down control buttons are in ‘hold to run’ mode - you
must press and hold the button in to operate the door up and down.
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
solsol
3 421
Prog
STOP
20 mm
max
1234
ON
3 screws
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
Prog
 Press and hold the UP button to check the motor
direction
If the motor direction is correct, move on to page
20.
If the motor direction is incorrect, press and hold
the STOP button until the door jogs up and down >
the direction has been reversed > check again and
move on to page 20.
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
Correct direc-
tion of rotation
Incorrect direc-
tion of rotation
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
Prog
Prog
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
OR
3 421
Prog
STOP
3 421
Prog
STOP
on
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
3 421
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
3 421
Prog
STOP
34
2
1
Prog
STOP
34
2
1
Prog
STOP
OR
34
2
1
Prog
STOP
34
2
1
Prog
STOP
on
34
2
1
Prog
STOP
34
2
1
Prog
STOP
34
2
1
Prog
STOP
34
2
1
Prog
STOP
motor on left side
yellow = up limit
motor on right side
white = up limit
34
2
1
Prog
STOP
Rollixo Quick GuideHW_A5_02.indd 6 12-07-17 14:02
Buttons Out Buttons In
Remove yellow top limit switch
cover. Press the motor limit
buttons IN to allow the motor to
rotate during the direction and
limit setting procedure.
Press and hold the UP & DOWN buttons on the control panel until the barrel
jogs up AND down, then release the buttons - the controller is now in ‘motor adjustment
mode’, the motor LED light will flash slowly.
22 if correct direction.
In motor adjustment mode, the Up & Down control buttons are ‘hold to run’
mode - you must press and hold the respective button in to operate the door up and
down.
FOR ECONOM MOTOR COMMISSIONING PLEASE GO TO PAGE 21
!
!
If the motor direction is correct, connect the
curtain as shown on the facing page.
If the motor direction is incorrect press and
hold the STOP button until the door jogs up
and down> the direction has been revered >
check again and connect the curtain as shown
on the facing page.

20
1) Loosen the sliding lock clips.
2) Remove the connecting pin that is
pre-installed within the ring.
3) Aligning the locking strap with
the lock ring hole and insert the
connecting pin.
4) Secure the sliding lock clips
against the connecting pin.
Secure with the connecting pin provided.Align the locking strap with the lock ring hole.
SOMFY MOTOR - ATTACHING CURTAIN TO AXEL
1 2
3 3 3
4
