Garden PAC InverTech GHD-150-0219 User manual

Thank you for choosing
Inverter heat pump
This manual provides
you necessary information for optimal
use and maintenance, please read it carefully and keep it for
subsequent use.
INSTALLATION AND
USER MANUAL
Inverter heat pump
.
you necessary information for optimal
use and maintenance, please read it carefully and keep it for
INSTALLATION AND
USER MANUAL

Summary
1. General information ................................................................................................ - 1 -
1.1. Contents ....................................................................................................................... - 1 -
1.2. perating conditions and range ............................................................................... - 1 -
1.3. Advantages of different modes ................................................................................. - 1 -
1.4. Kind reminder .............................................................................................................. - 2 -
2. perations .................................................................................................................... - 4 -
2.1. Notice before using .................................................................................................... - 4 -
2.2. peration instructions ................................................................................................ - 4 -
2.3. Daily maintenance and winterizing .......................................................................... - 4 -
3. Technical specification .......................................................................................... - 7 -
1. Transportation ............................................................................................................ - 8 -
2. Installation and maintenance ............................................................................ - 8 -
2.1. Notice before installation ........................................................................................... - 8 -
2.2. Installation instructions .............................................................................................. - 9 -
2.3. Trial after installation ................................................................................................ - 12 -
2.4. Maintenance and winterizing .................................................................................. - 12 -
3. Trouble shooting for common faults ........................................................... - 13 -
4. Failure code .............................................................................................................. - 14 -

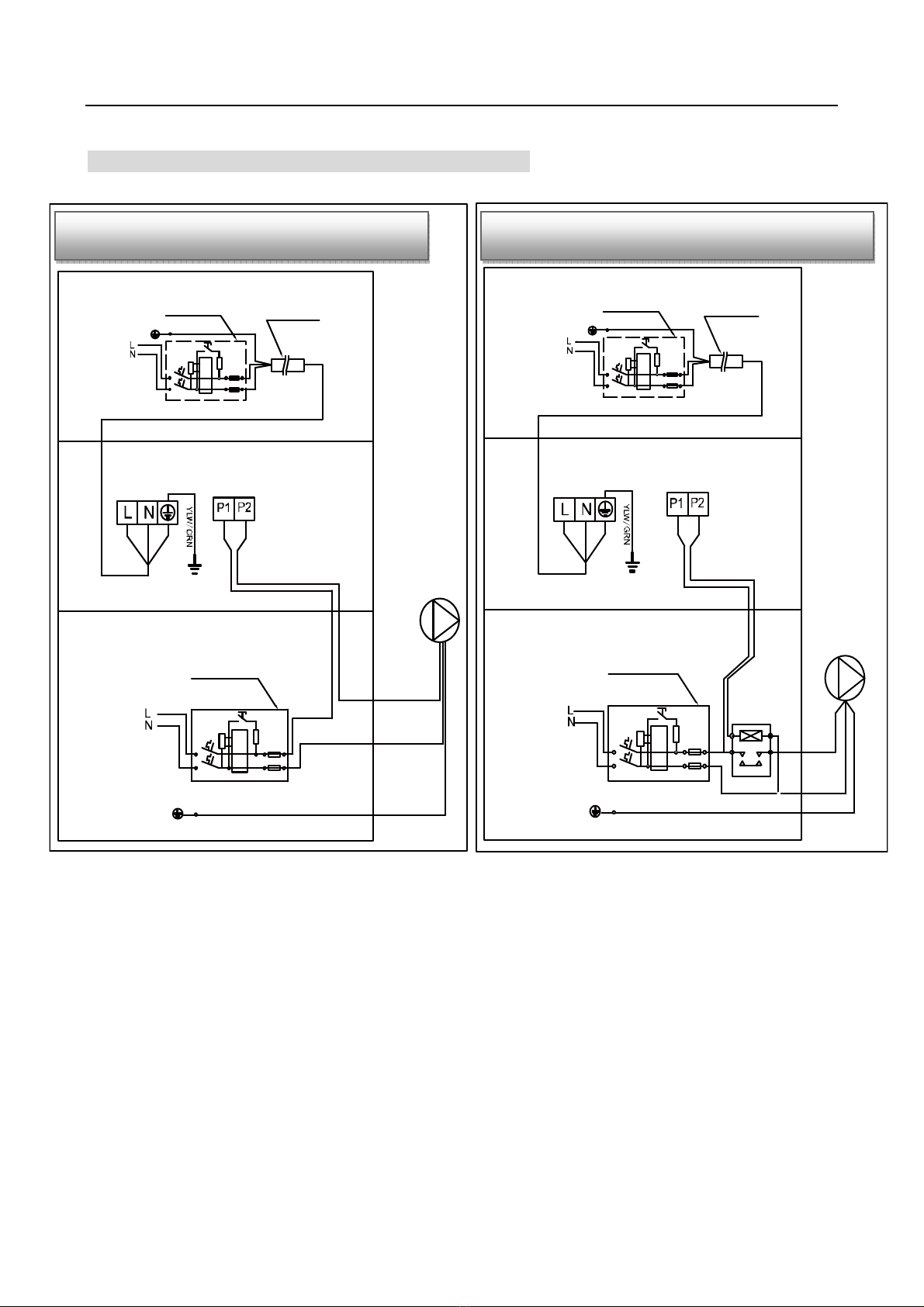

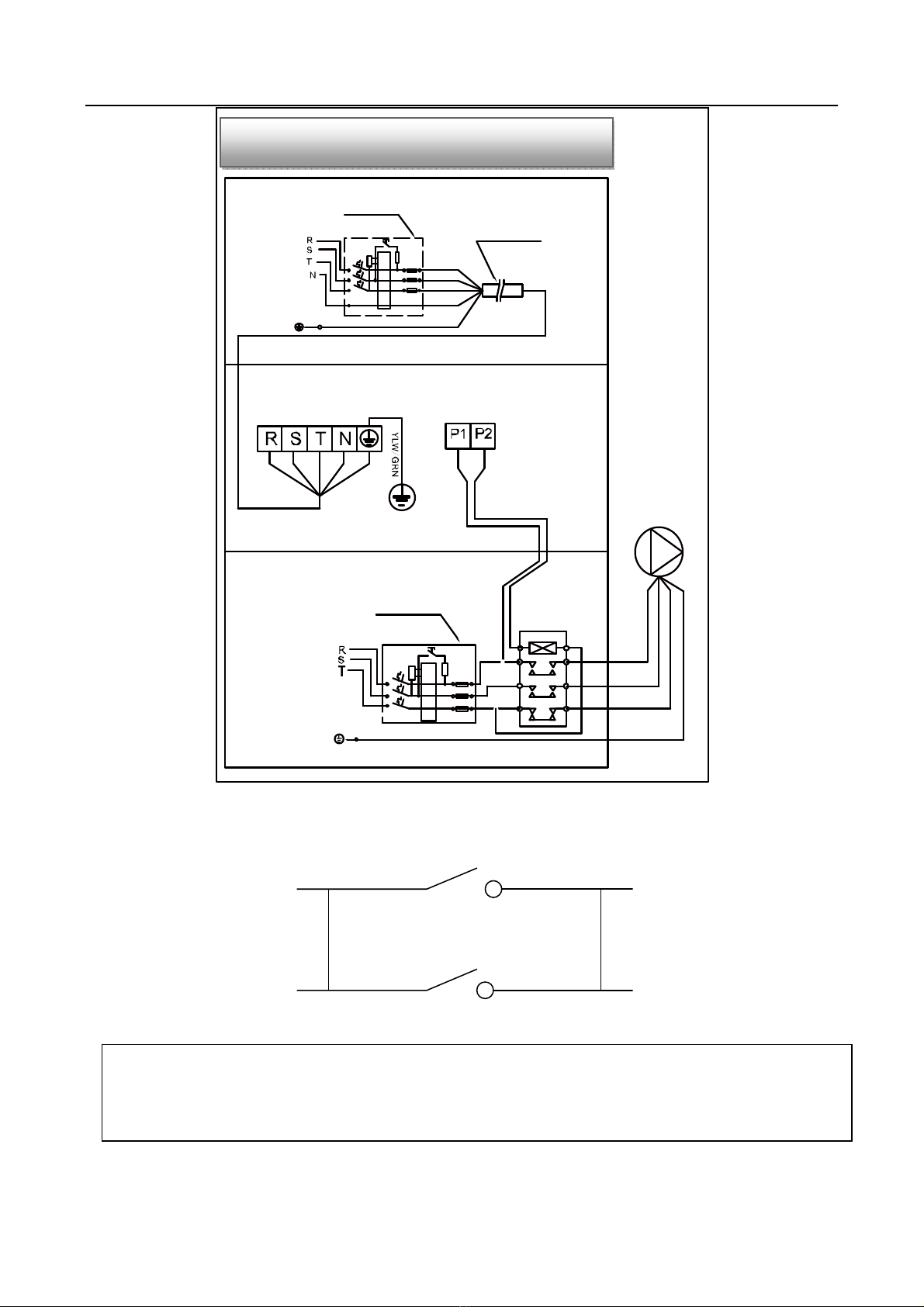

Appendix 1: Heating priority wiring diagram …………………...……………….….... - 15 -
For users ……………………………………………………………………………….
P.1
-
P.6
For installers and professionals
…………
………………………………………
P.
8
-
P.1
6

For users
- 1 -
1. General information:

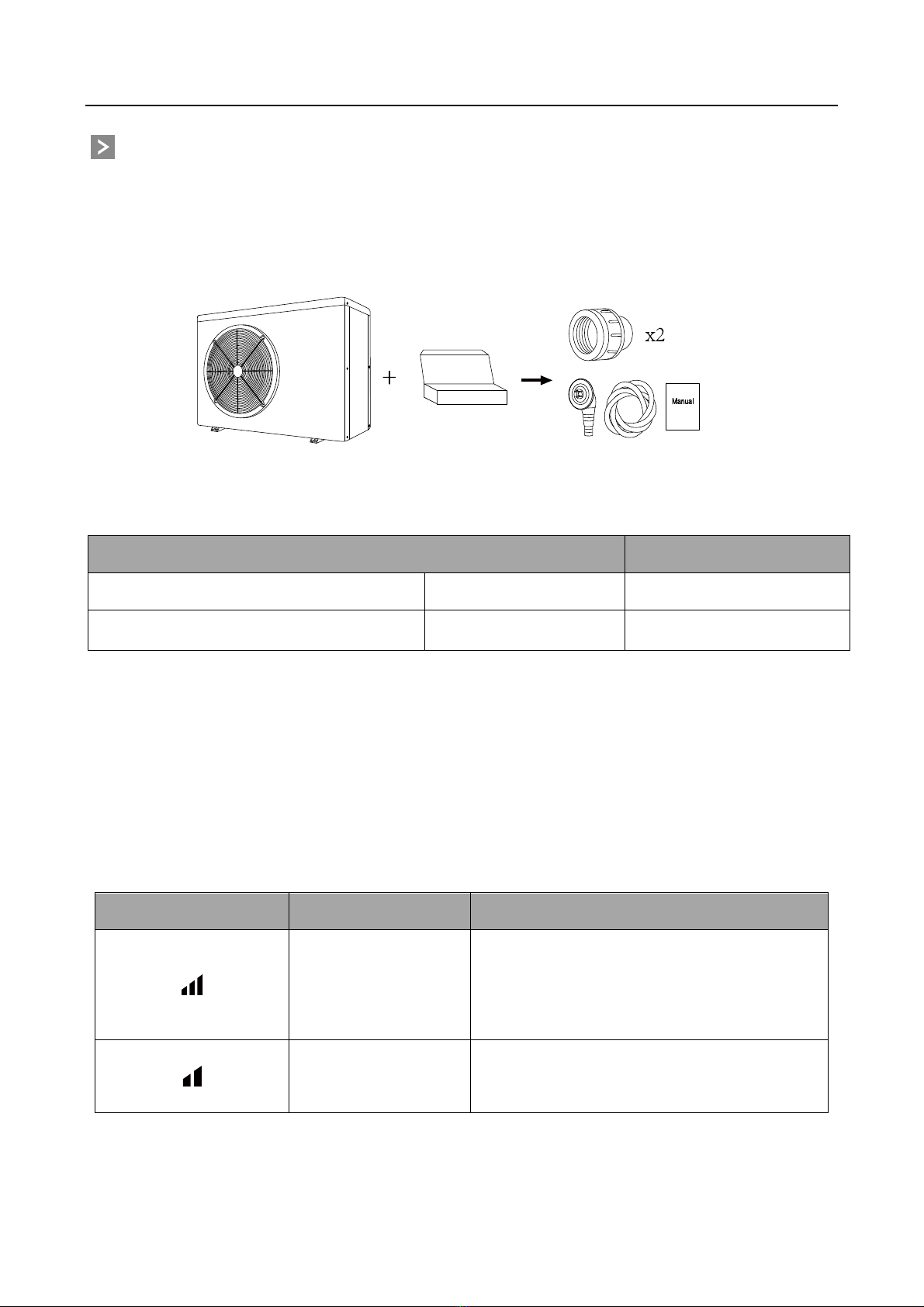

1.1. Contents:
After unpacking, please check if you have all the following components.
1.2. perating conditions and range:
Items Range
perating range Air temp -7℃～43℃
Temp. setting heating 18℃-35℃
The heat pump will have ideal performance in the operation range Air 15 ℃～ 25 ℃
1.3. Advantages of different modes:
The heat pump has two modes: Smart and Silence. They have different advantages under
different conditions
Mode Recommendation Advantages
Smart mode
As standard
Heating capacity: 20% to 100% capacity
Intelligent optimization
Fast heating
Silence mode
Use at night
Heating capacity: 20% to 80% capacity
Sound level: 3dB (A) lower than Smart mode.

For users
- 2 -
1.4. Kind reminder:
This heat pump has Power-off memory function. When the power is recovered, the heat
pump will restart automatically.
1.4.1. The heat pump can only be used to heat the pool water. It can NEVER be used to
heat other flammable or turbid liquid.
1.4.2. Don’t lift the water union when moving the heat pump since the titanium heat
exchanger inside the heat pump will be damaged.
1.4.3. Don’t put obstacles before the air inlet and outlet of the heat pump.
1.4.4. Don’t put anything into inlet or outlet, or the efficiency of the heat pump will be
reduced or even stopped.
1.4.5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid
fire.

For users
- 3 -
1.4.6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and
leakage of electricity, switch off the main power immediately and contact your local
dealer. Don’t try to repair the heat pump by yourselves.
1.4.7. The main power switch should be out of the reach of Children.
1.4.8. Please cut off the power in the lightning storm weather.
1.4.9. Please note that following codes are not failure.
Codes
No water flow
Anti-Freezing Reminder
ut of the operating range
Insufficient water flow or pump
blocked
Power abnormal

For users
- 4 -
2. perations
2.1. Notice before using
① For longer service life, please ensure water pump on before heat pump on, and water
pump off after heat pump off.
② Ensure no water leakage on piping system, then unlock screen and press to
power on heat pump.

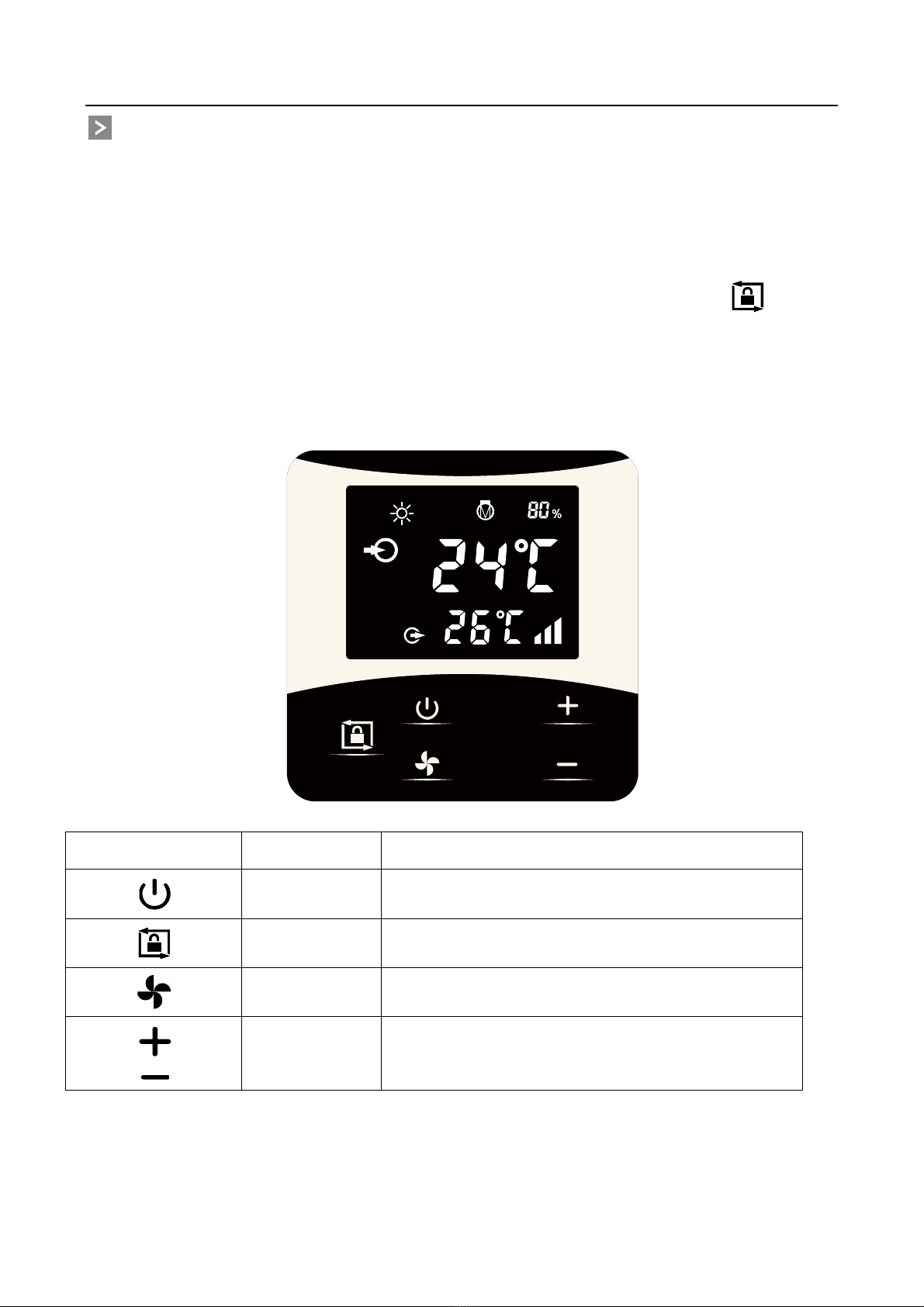

2.2. peration instructions
Symbol Designation Function
N/ FF Power n/ ff
Unlock Press it for 3 seconds to unlock/lock screen
Speed Select Smart/Silence mode
Up / Down Adjust set temperature
Note:
① Screen lock:
a. If no operation in 30 seconds, screen will be locked.
b. When HP is off, screen will be dark and “0%” will be displayed.

For users
- 5 -
c. Press for 3 seconds to lock screen and it will be dark
② Screen unlock:
a. Press for 3 seconds to unlock screen and it will be lit up.
b. nly after screen is unlocked, any other buttons can be functioned.
Heating
Compressor
Heating capacity percentage
1.Power n: Press for 3 seconds to light up screen, then press to power on heat pump.
2.Adjust Set Temperature: When screen is unlocked, press or to display or adjust the set
temperature.
3.Smart/Silence mode selection:
① Smart mode as default will be activated when heat pump is on, and screen shows .
② Press to enter Silence mode, and screen shows .
(Suggestion: select Smart mode for initial heating.)
Water inlet
temperature
Water outlet
temperature
Smart/Silence
mode

For users
- 6 -
4.Defrosting
a. Auto Defrosting: When heat pump is defrosting, will be flashing. After defrosting, will stop
flashing.
b. Compulsory Defrosting: When heat pump is heating, press and together for 5 seconds
to start compulsory defrosting, and will be flashing. After defrosting, will stop flashing.
(Note: Compulsory defrosting intervals should be more than 30 minutes and the compressor should run
for more than 10 minutes.)

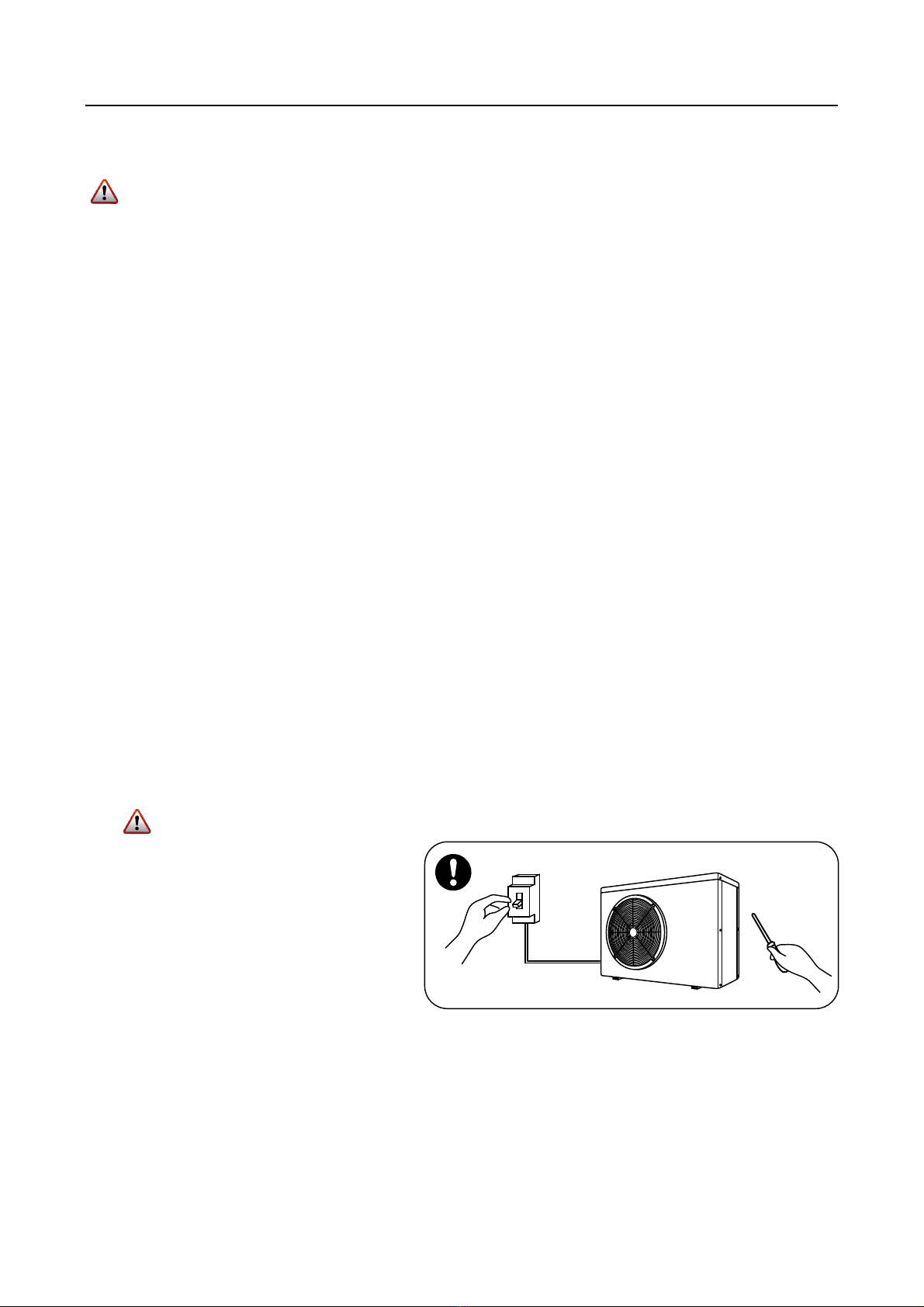

2.3. Daily maintenance and winterizing
2.3.1. Daily Maintenance
Please don’t forget to cut off power supply of the heat pump
① Please clean the evaporator with household detergents or clean water, NEVER use
gasoline, thinners or any similar fuel.
② Check bolts, cables and connections regularly.
2.3.2. Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out
of the heat pump. When using the heat pump under 2℃, make sure there is always
water flow.
Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine freezes in
winter season, the titanium heat
exchanger may be damaged.

For users
- 7 -
3. Technical specification
Model
GHD-150-
021
GHD-150-
0220
GHD-150-
0221
GHD-150-
0222
GHD-150-
0223
GHD-150-
0224
GHD-150-
0225
GHD-150-
0226
GHD-150-
0227
Advised pool volume (m
3
) 20~40 25~45 30~55 35~65 40~75 50~95 65~120 65~120 90~169
Working air temp (℃) -7~43
Performance Condition: Air 26°C, Water 26°C, Humidity 80%
Heating capacity (kW)
8.0 9.8 12.0 13.3 17.3 21.0 27.3 27.0 35.2
C P 14.7~7.0 15.3~6.9 14.8~5.7 15.4~6.4 15.5~5.9 15.2~5.7 15.3~6.2 15.2~6.2 15.5~5.5
C P at 50% capacity 10.6 10.7 10.3 10.6 10.8 10.5 11.0 11.0 10.6
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)
5.8 6.8 8.0 9.4 11.4 14.3 18.0 18.0 24.0
C P 7.3~4.8 7.7~4.6 7.4~4.3 7.8~4.4 7.8~4.3 7.7~4.2 8.1~4.6 7.9~4.5 8.0~4.5
C P at 50% capacity 6.5 6.6 6.2 6.5 6.3 6.2 6.7 6.7 7.0
Rated input power(kW) at
air 15℃
0.16~1.2 0.21~1.4 0.24~1.8 0.27~2.1 0.3~2.6 0.36~3.3 0.53~3.8 0.53~3.9 0.63~5.15
Rated input current (A) at
air 15℃
0.7~5.2 0.91~6.1 1.04~7.8 1.17~9.1 1.3~11.3 1.57~14.3 2.3~16.5 0.76~5.6 0.91~7.4
Max input current(A) 8.0 9.0 10.0 11.0 13.5 17.5 21.0 7.0 9.5
Power supply 230V/1 Ph/50Hz 400V/3 Ph/50Hz
Advised water flux
(m³/h)
2~4 3~4 4~6 5~7 6.5~8.5 8~10 10~12 10~12 12~18
Sound pressure 1m dB(A) 38.8~48.2 38.6~49.9 42.1~50.7 41.3~54.0 43.1~53.8 40.9~54.2 43.5~54.9 43.5~54.9 42.6~54.7
Sound pressure 10m
dB(A)
18.8~28.2 18.6~29.9 22.1~30.7 21.3~34.0 23.1~33.8 20.9~34.2 23.5~34.9 23.5~34.9 22.6~34.7
Water pipe in-out Spec
(mm)
48
Net Dimension LxWxH
(mm)
961×340×658 961×340×658 961×340×658 961×340×658 961×420×658 961×420×758 1092×420×958 1092×420×958 1161×530×958
Net Weight (kg) 45 49 50 52 63 68 90 93 117
1. The values indicated are valid under ideal conditions: ool covered with an isothermal cover, filtration
system running at least 15 hours a day
2. Related parameters are subject to adjustment periodically for technical improvement without further
notice. For details please refer to nameplate.

For installers and professionals
- 8 -
1. Transportation
1.1. When storing or moving the heat pump, the heat pump should be at the upright
position.
1.2. When moving the heat pump, do not lift the water union since the titanium heat
exchanger inside the heat pump will be damaged.
2. Installation and maintenance
The heat pump must be installed by a professional team. The users are not qualified to
install by themselves, otherwise the heat pump might be damaged and risky for users’
safety.
2.1. Notice before installation：
2.1.1. The inlet and outlet water unions can’t bear the weight of soft pipes. The heat pump
must be connected with hard pipes!
2.1.2．In order to guarantee the heating efficiency, the water pipe length should be ≤10m
between the pool and the heat pump.

For installers and professionals
- 9 -
2.2. Installation instruction
2.2.1. Location and size
The heat pump should be installed in a place with good ventilation
* Minimum distance
filter
water processor
water switch

For installers and professionals
- 10 -
※ Above data is subject to modification without notice.
2.2.2. Heat pump installation.
① The frame must be fixed by bolts (M10) to concrete foundation or brackets. The
concrete foundation must be solid; the bracket must be strong enough and anti-rust
treated;
② The heat pump needs a water pump (Supplied by the user). The recommended pump
specification-flux: refer to Technical Parameter, Max. lift ≥10m
③ When the heat pump is running, there will be condensation water discharged from the
bottom, please pay attention to it. Please insert the drainage tube(accessory) into the
hole and clip it well, then connect a pipe to drain off the condensation water.
2.2.3. Wiring & protecting devices and cable specification
① Connect to appropriate power supply, the voltage should comply with the rated voltage
of the products.
② Well earth the heat pump.
③ Wiring must be connected by a professional technician according to the circuit diagram.
④ Set breaker or fuse according to the local code (leakage operating current ≤ 30mA).
⑤ The layout of power cable and signal cable should be orderly and not affecting each
other.
A B C D E F G H
GHD-150-0219 315
590 312 340 961 250 74 658
GHD-150-0220 315
590 312 340 961 280 74 658
GHD-150-0221 315
590 312 340 961 340 74 658
GHD-150-0222 315
590 312 340 961 340 74 658
GHD-150-0223 395
590 392 420 961 390 74 658
GHD-150-0224 395
590 392 420 961 460 74 758
GHD-150-0225 395
720 392 420 1092 620 74 958
GHD-150-0226 395
720 392 420 1092 620 74 958
GHD-150-0227 505
790 496 530 1161 650 74 958
Name Size(mm)
Model

For installers and professionals
- 11 -

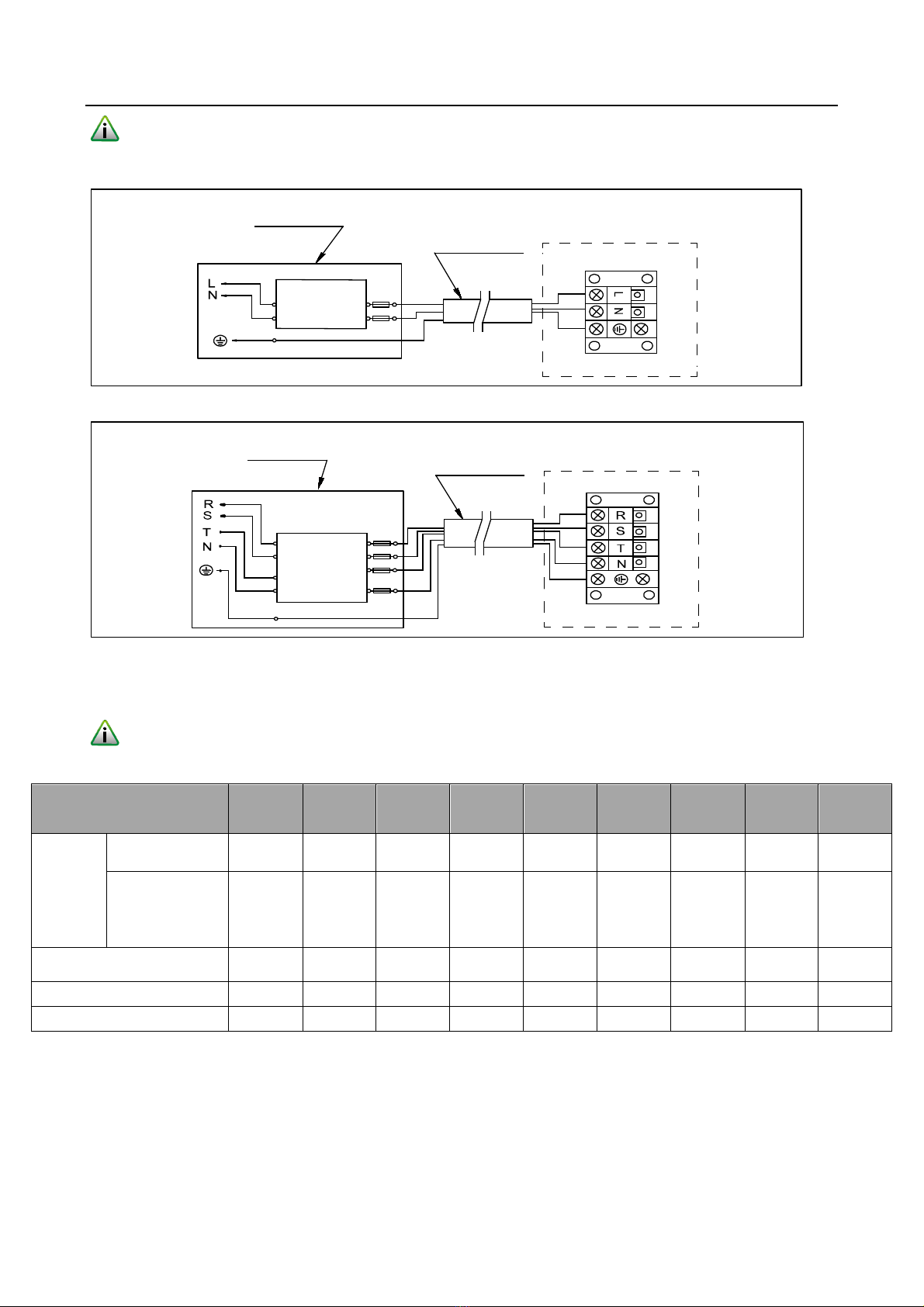

1. Wiring diagram
Note: For your safe use in winter, it’s strongly recommended to equip heating priority
function. For the detailed wiring diagram, please refer to Appendix 1.
2．ptions for protecting devices and cable specification
M DEL
GHD-15
0-0219
GHD-15
0-0220
GHD-15
0-0221
GHD-15
0-0222
GHD-15
0-0223
GHD-15
0-0224
GHD-15
0-0225
GHD-15
0-0226
GHD-15
0-0227
Breaker
Rated Current
A
10.5 11.0 12.0 13.0 16.0 21.0 25.0 9.0 12.0
Rated
Residual
Action Current
mA
30 30 30 30 30 30 30 30 30
Fuse A
10.5 11.0 12.0 13.0 16.0 21.0 25.0 9.0 12.0
Power Cord（mm
2
）
3×1.5 3×2.5 3×2.5 3×2.5 3×2.5 3×4 3×6 5×2.5 5×2.5
Signal cable（mm
2
）
3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5
NOTE: The above data is adapted to power cord ≤ 10m. If power cord is ＞ 10m, wire diameter must be
increased. The signal cable can be extended to 50m at most.
A. For power supply: 230V 50H
Distribution Box(Customer prepare)
Power Cord Swimming Pool Heat Pump Wiring Board
Power Supply
400V 50Hz
Breaker
Distribution Box(Customer prepare)
Power Cord Swimming Pool Heat Pump Wiring Board
Power Supply
230V 50Hz
Breaker
B. For power supply: 400V 50H
Earthing
Earthing
Fuse
Fuse

For installers and professionals
- 12 -
2.3. Trial after installation
Please check all the wirings carefully before turning on the heat pump.
2.3.1．Inspection before use
① Check installation of the whole heat pump and the pipe connections according to the
pipe connecting drawing;
② Check the electric wiring according to the electrical wiring diagram and earthing
connection;
③ Make sure that the main power is well connected;
④ Check if there is any obstacle in front of the air inlet and outlet of the heat pump
2.3.2．Trial
① The user is advised to start the water pump before the heat pump, and turn off the heat
pump before the water pump for long life circle.
② The user should start the water pump, and check for any leakage of water; Power on
and press the N/ FF button of the heat pump, and set desired temperature in the
thermostat.
③ In order to protect the heat pump, the heat pump is equipped with start delay
function. When starting the heat pump, the fan will start to run in 3 minutes, in another
30 seconds, the compressor will start to run.
④ After pool heat pump starts up, check for any abnormal noise from the heat pump.
⑤ Check the temperature setting
2.4. Maintenance and winterizing
2.4.1 Maintenance
The maintenance should be carried out once per year by qualified professional
technician.
① Cut off power supply of the
heat pump before cleaning,
examination and repairing .
Do not touch the electronic
components until the LED
indication lights on PCB turn off.
② Please clean the evaporator with household detergents or clean water, NEVER use
gasoline, thinners or any similar fuel.
③ Check bolts, cables and connections regularly.
2.4.2 Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out of
the heat pump. When using the heat pump under 2℃, make sure there is always water
flow.

For installers and professionals
- 13 -
3. Trouble shooting for common faults
Failure Reason Solution
Heat pump doesn’t run
No power Wait until the power recovers
Power switch is off Switch on the power
Fuse burned Check and change the fuse
The breaker is off Check and turn on the breaker
Fan running but with
insufficient heating
evaporator blocked Remove the obstacles
Air outlet blocked Remove the obstacles
3 minutes start delay Wait patiently
Display normal, but no
heating
Set temp. too low Set proper heating temp.
3 minutes start delay Wait patiently
If above solutions don’t work, please contact your installer with detailed information and your model
number. Don’t try to repair it yourself.
ATTENTION！Please don’t try to repair the heat pump by yourself to avoid any risk.
Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine freezes in
winter season, the tit
anium heat
exchanger may be damaged.

For installers and professionals
- 14 -
4. Failure code
N . Display Failure description
1 E1 High pressure protection
2 E2 Low pressure protection
3 E3 No water protection (not failure)
4 E4 3 phase sequence protection (three phase only)
5 E5 Not failure, power supply excesses operation range
6 E6
Excessive temp difference between inlet and outlet
water(Insufficient water flow protection)
7 E7 Water outlet temp too high or too low protection
8 E8 High exhaust temp protection
9 EA cooling coil pipe(heat exchanger)overheat protection
10 Eb Ambient temperature too high or too low protection
11 Ed Anti-freezing reminder (not failure )
12 P0 Controller communication failure
13 P1 Water inlet temp sensor failure
14 P2 Water outlet temp sensor failure
15 P3 Gas exhaust temp sensor failure
16 P4 Cooling coil pipe (heat exchanger) temp sensor failure
at
cooling mode
17 P5 Gas return temp sensor failure
18 P6 Heating coil pipe (evaporator) temp sensor failure
19 P7 Ambient temp sensor failure
20 P8 Cooling plate temp sensor failure
21 P9 Current sensor failure
22 PA Restart memory failure
23 F1 Compressor drive module failure
24 F2 PFC module failure
25 F3 Compressor start failure
26 F4 Compressor running failure
27 F5 Inverter board over current protection
28 F6 Inverter board overheat protection
29 F7 Current protection
30 F8 Cooling plate overheat protection
31 F9 Fan motor failure
32 Fb Capacitor & power filter plate No-power protection

For installers and professionals
- 15 -
Appendix 1: Heating priority wiring diagram (Optional)
For water pump: Voltage 230V, Capacity ≤500W
For water pump: Voltage 230V, Capacity ＞500W
Power Supply
230V~/50Hz
Earthing
Breaker/fuse
(Customer
prepare)
Power Cord
Water Pump
Power Supply
230V~/50Hz
Earthing
Breaker/fuse
(Customer
prepare)
Water Pump
Water Pump
Power Supply
230V~/50Hz
Earthing
Breaker/fuse
(Customer
prepare)
Water Pump
contactor
Power Supply
230V~/50Hz
Breaker/fuse
(Customer
prepare)
Power Cord
Earthing

For installers and professionals
- 16 -
Parallel connection with filtration clock
Note: The installer should connect A parallel with B (as above picture). To start the water
pump, condition A or B is connected. To stop the water pump, both A and B should
be disconnected.
A: Water pump timer
B: Water pump wiring of Heat Pump
Earthing
Power Supply
400V~/50Hz
For water pump: Voltage 400V
Breaker/fuse
(Customer
prepare)
Power Supply
400V~/50Hz
Earthing
Water Pump
Water Pump
Breaker/fuse
(Customer
prepare)
Contactor
coil voltage: 400V
Power Cord

For installers and professionals
- 17 -
Note:

Version:A40ID
