Garlando TOORX MSX 3000 User manual

Ed: 10/18 Rev : 00 Cod : GRLDTOORXLGPRESS
INSTRUCTION
LEG PRESS

Table of Contents
Spare parts list ...................................................................................................................................................3
S
pare parts list ...................................................................................................................................................
4
S
pare parts drawing .........................................................................................................................................
5
F
asteners drawing ............................................................................................................................................
6
A
ssembly step（1）.......................................................................................................................................7-
8
A
ssembly step（2）.....................................................................................................................................9-1
0
A
ssembly step（3）...................................................................................................................................11-1
2
A
ssembly step（4）...................................................................................................................................13-1
5
A
ssembly step（5）...................................................................................................................................16-1
7
A
ssembly step（6）...................................................................................................................................18-1
9
E
xplosion drawing ..........................................................................................................................................2
0
F
actory assembly explosion drawing..........................................................................................................21-2
3

Spare parts list
3
No. Descripon Note Qty.
5 washer Φ10 19
11 lock nut M8 2
15 washer Φ8 13
18 locking spring knobΦ10 2
20 washer Φ12 14
21 lock nut M12 6
23 lock nut M10 9
30 hexagon bolt M10*25 2
35 big washer Φ25*10*2.0 4
52 hexagon bolt M10*45 1
55 pulley Φ95*26 1
65 hexagon bolt M10*75 2
72 spring washer Φ8 8
89 foot margin cover Φ120 2
92 oval tube plug 50-100 2
97 reducon sleeve □50-40L 1
99 hexagon socket buon head bolt M8*16 1
100 inner plug □25*50 2
125 leg press main frame 1
126 leg press front connecon tube 1
127 leg press back connecon tube 1
128 connecon plate 1
129 arc-shaped connecon plate 2
130 spring washer Φ12 2
131 hexagon bolt M12*30 2
132 hexagon bolt M12*80 2
133 hexagon bolt M12*125 4
134 leg press support tube-1 1
135 leg press support tube-2 1
136 sha Φ25*125 2
137 plug 8
138 hexagon socket buon head bolt M10*25 8
139 sha Φ25*125 2

Spare parts list
4
No. Descripon Note Qty.
140 support tube 1
141 footplate tube 1
142 hexagon bolt M10*50 4
143 big pulley Φ127*28 4
144 leg press cable L:3255mm 1
145 hexagon bolt M8*20 8
146 hexagon bolt M8*70 2
147 leg press seat cushion adjust frame 1
148 leg press seat cushion 1
149 leg press handle 1
150 hexagon bolt M8*25 1
151 leg press back cushion adjust frame 1
152 leg press back cushion 1
153 oval reducon sleeve 50-100 1
154 cone rubber cushionΦ42*Φ32*26 1
155 sq plug □50*50*2.0 2
156 “+"sloed countersunk head bolt M6*10 8
157 footplate 1
158 bearing 6005 8
159 handle grip Φ25 2
160 handle Φ40*Φ25*29 2
161 “-"sloed headless bolt M4*5 2
162 hexagon bolt M10*40 1
163 cable adjust sleeve 1

Spare parts drawing
5
5518
125 126 127
128 129 137 139136
134
140 143
141
135
149
151
147
152 163
148

6
5 11 15 302320 21 52
35
72 130 131 132 133 138
142 145 146 150 162
Bolt length measurement ruler
Fasteners drawing
Cable drawing
65
144
0 1 6 7 8 9 10 11 12 13 14 152 3 4 5 cm

Assembly step（1）explosion drawing
7
20
125
126
127
20
20
20
132
128
129
129
130
133
133 21
21
20
21
20
20
131
20
ground frame
No. Descripon Note Qty.
20 washer Φ12 14
21 lock nut M12 6
125 leg press main frame 1
126 leg press front
connecon tube 1
127 leg press back
connecon tube 1
128 connecon plate 1
129 arc-shaped connecon
plate 2
130 spring washer Φ12 2
131 hexagon bolt M12*30 2
132 hexagon bolt M12*80 2
133 hexagon bolt M12*125 4

Assembly step（1）drawing
8
Assembly step（1）assembly instrucon
1. Fix leg press front connecon tube(126) fastening on ground frame using:
M12*30 hexagon bolt(131),Ф12 spring washer(130),Ф12 washer(20)
2
.Fix leg press back connecon tube(127) fastening on ground frame using:
M12*80 hexagon bolt(132), Ф12 washer(20),M12 lock nut(21),connection plate(128)
3
.Fix leg press main frame fastening on leg press front connecon tube(126) using:
M12*125 hexagon bolt(133) ),Ф12 washer(20),M12 lock nut(21),
arc-shaped connecon plate(129)
4
.Fix leg press main frame fastening on leg press back connecon tube(127) using:
M12*125 hexagon bolt(133) ),Ф12 washer(20),M12 lock nut(21),
arc-shaped connecon plate(129)
CAUTION: All bolts and pins should be ghtening.

Assembly step（2）explosion drawing
9
135
134
136
136
137
137
137
138
138
No. Descripon Note Qty.
134 leg press support tube-1 1
135 leg press support tube-2 1
136 sha Φ25*125 2
137 plug 4
138 hexagon socket buon
head bolt M10*25 4

Assembly step（2）drawing
10
Assembly step（2）assembly instrucon
1. Fix leg press support tube-1(134) on leg press main frame using:
Ф25*125sha(136),plug(137),M10*25 hexagon socket buon head bolt (138)
2
.Fix leg press support tube-2(135) on leg press main frame using:
Ф25*125sha(136),plug(137),M10*25 hexagon socket buon head bolt (138)
CAUTION: All bolts should be ghtening.

Assembly step（3）explosion drawing
11
23
35
35
65
138
138
137
137
139
140
139
141
No. Descripon Note Qty.
23 lock nut M10 2
35 big washer Φ25*10*2.0 4
65 hexagon bolt M10*75 2
137 plug 4
138 hexagon socket buon
head bolt M10*25 4
139 sha Φ25*125 2
140 support tube 1
141 footplate tube 1

Assembly step（3）drawing
12
Assembly step（3）assembly instrucon
1. Fix leg press support tube-1 on support tube(140) using:
Ф25*115sha(139),plug(137),M10*25 hexagon socket buon head bolt (138)
2
.Fix leg press support tube-2 on support tube(140) using:
Ф25*115sha(139),plug(137),M10*25 hexagon socket buon head bolt (138)
3
.Fix footplate tube fastening on support tube(140) using:
M10*75 hexagon bolt(65),Ф10 big washer(35),M10 lock nut(23)
CAUTION: All bolts should be ghtening.

Assembly step（4）explosion drawing
13
A
B
C
D
F
E
G
23
30
52
5
5
23
23
23
142
142
163
143
144
A
B
E
C
D
F
5
5
5
55
20
5
5
162
23
G
5
5

14
Assembly step（4）cable drawing
Drawing 01
Drawing 03Drawing 02
C
D
E
F
G
No. Descripon Note Qty.
5 washer Φ10 14
20 washer Φ12 6
23 lock nut M10 7
30 hexagon bolt M10*25 1
52 hexagon bolt M10*45 1
55 pulley Φ95*26 1
142 hexagon bolt M10*50 4
143 big pulley Φ127*28 4
144 leg press cable L:3255mm 1
162 hexagon bolt M10*40 1
163 cable adjust sleeve 1

15
Assembly step（4）assembly instrucon
Assembly step（4）drawing
low pull cable
A
B
C
DE
F
G
1. Fix leg press cable flat end fastening on low pull cable using:
M10*25 hexagon bolt(30),Ф10 washer(5),M10 lock nut(23) as show in drawing 01
2
.Leg press cable(144) thread end start through from point A in order B,C,D,E,F
3
.Fix pulley(44) fastening on point B using:
M10*45 hexagon bolt(52),Ф10 washer(5),M10 lock nut(23) as show in drawing 02
4
.Fix big pulley(143) fastening on point C,D,E,F using:
M10*50 hexagon bolt(142),Ф10 washer(5),M10 lock nut(23) as show in drawing 03
5
.Connect leg press cable(144) flat end through Ф12 washer(20) with cable adjust sleeve(163)
6
.Fix cable adjust sleeve(163) fastening on leg press main frame using:
M10*40 hexagon bolt(162),Ф10 washer(5), M10 lock nut(23)
CAUTION: All bolts should be ghtening.

Assembly step（5）explosion drawing
16
11
15
15
72
145
146
147
149
148
18
No. Descripon Note Qty.
11 lock nut M8 2
15 washer Φ8 8
18 locking spring knobΦ10 1
72 spring washer Φ8 4
145 hexagon bolt M8*20 4
146 hexagon bolt M8*70 2
147 leg press seat cushion
adjust frame 1
148 leg press seat cushion 1
149 leg press handle 1

17
Assembly step（5）drawing
Assembly step（5）assembly instrucon
1. Fix leg press handle(149 fastening on leg press seat cushion adjust frame(147) using:
M8*70 hexagon bolt(146),Ф8 washer(15),M8 lock nut(11)
2
.Fix leg press seat cushion(148) on leg press seat cushion adjust frame(147) using:
M8*20 hexagon bolt(145),Ф8 spring washer(72),Ф8 washer(15)
3
.Slide leg press seat cushion adjust frame(147) toleg press main frame
using locking spring knob(18)
CAUTION: All bolts and pins should be ghtening.

Assembly step（6）explosion drawing
18
145
150
18
152
151
72
15
15
No. Descripon Note Qty.
15 washer Φ8 5
18 locking spring knobΦ10 1
72 spring washer Φ8 4
145 hexagon bolt M8*20 4
150 hexagon bolt M8*25 1
151 leg press back cushion
adjust frame 1
152 leg press back cushion 1

19
Assembly step（6）drawing
Assembly step（6）assembly instrucon
CAUTION: All bolts and pins should be ghtening.
1. Fix leg press back cushion(152) on leg press back cushion adjust frame(151) using:
M8*20 hexagon bolt(145),Ф8 spring washer(72),Ф8 washer(15)
2
.Slide leg press back cushion adjust frame(151) toleg press main frame
using locking spring knob(18)
3
.Fix M8*25 hexagon bolt(150),Ф8 washer(15) on leg press main frame

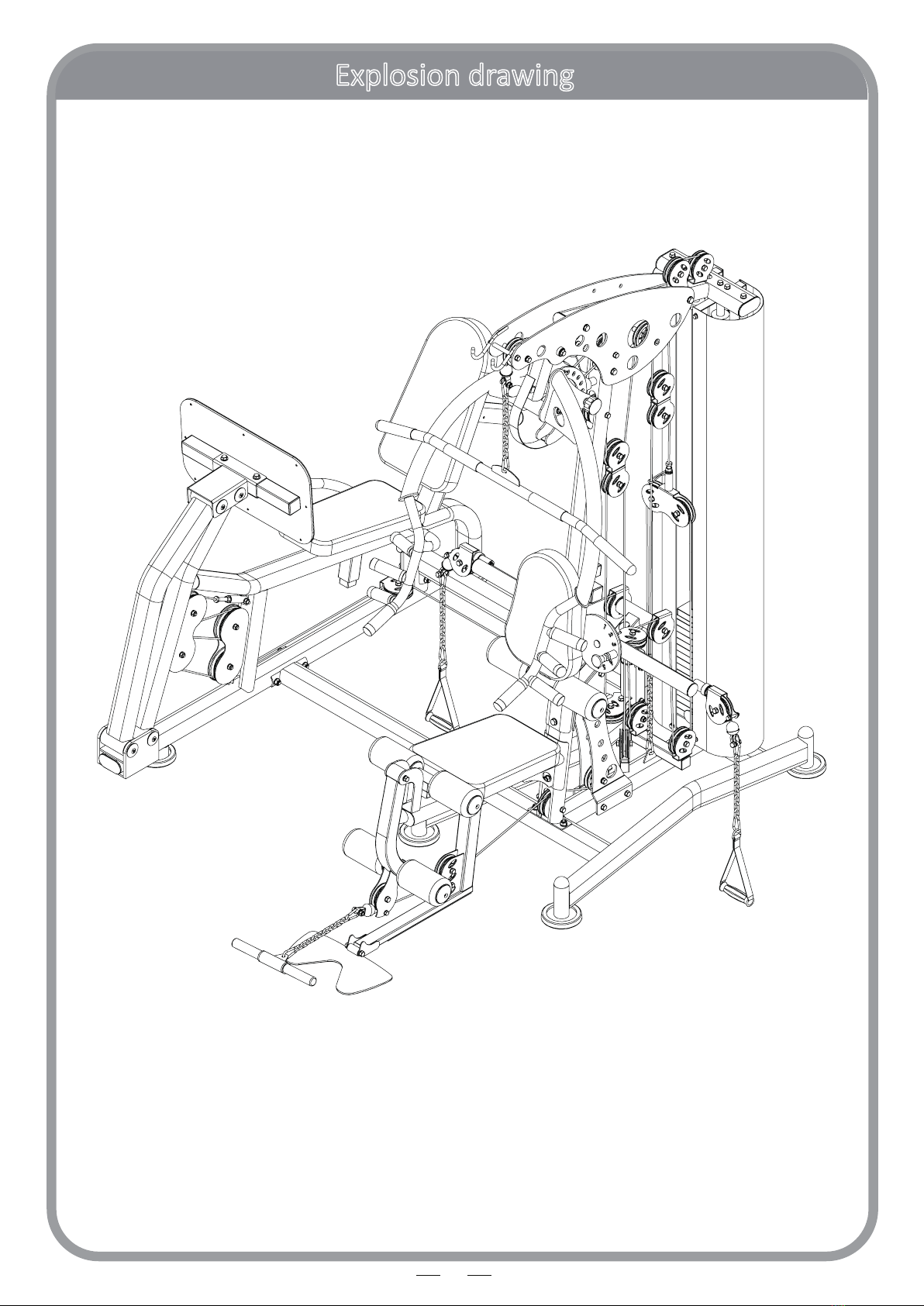

Explosion drawing
20
CAUTION: Please check machine all bolt, lock nut, pull pin whether ghten, ghten can use.
