Garmin Rino 650 Instruction manual

Rino® 650
quick start manual
August 2011 190-01183-04_0B Printed in Taiwan

2 Rino650QuickStartManual

 
See the Important Safety and Product
Information guide in the product
box for product warnings and other
important information.
When using your device the rst time,
complete these tasks.
1. Install the batteries or battery pack
(page 4).
2. If necessary, charge the lithium-ion
battery (page 4).
3. Acquire satellite signals (page 5).
4. Set up the radio (page 5).


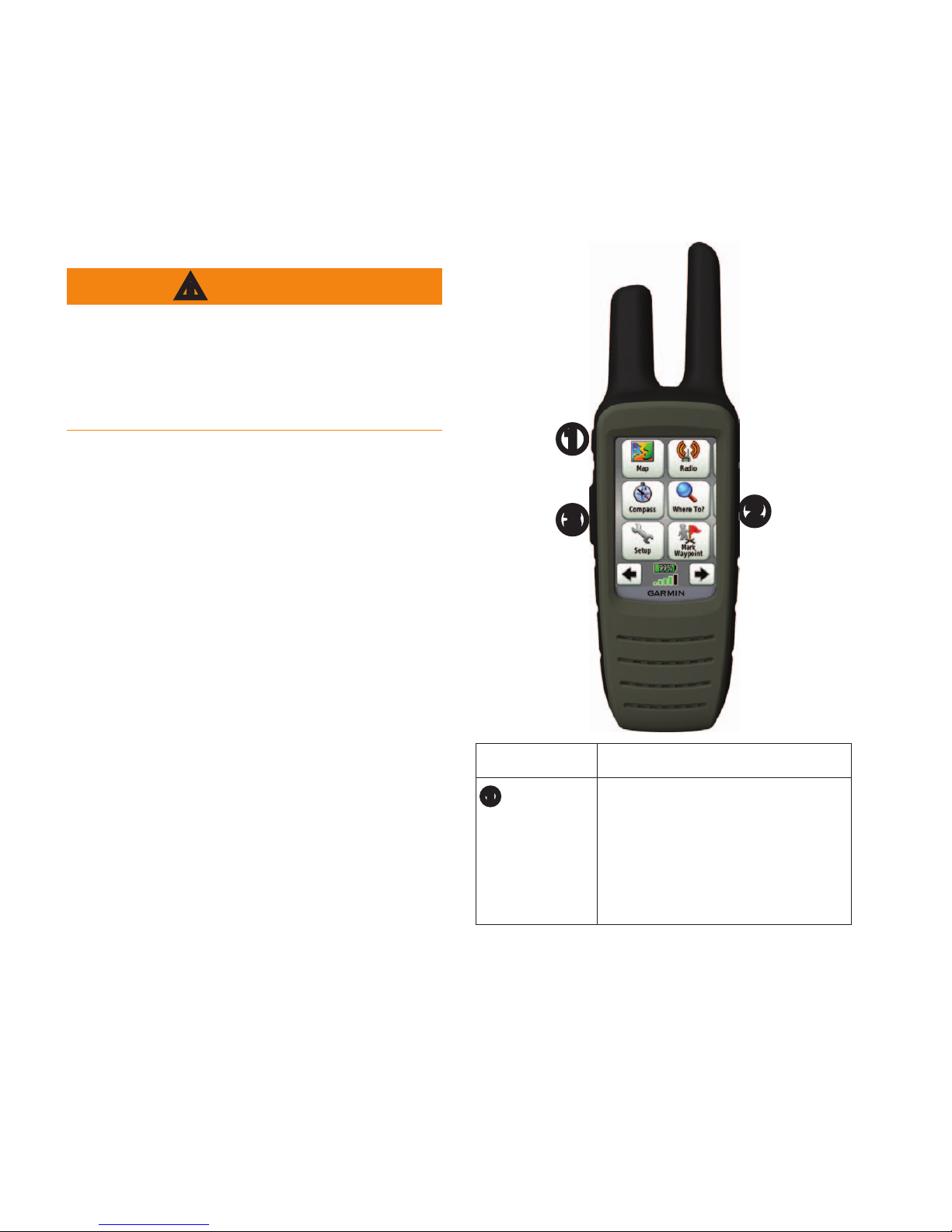

➌
➊
➋
 
➊
Select to send out a call
tone. If enabled (page 7),
the call key sends your
position when released.

Rino650QuickStartManual 3
➋
Hold to turn on or off
the unit. Select to adjust
backlight, volume,
squelch level, and to lock
or unlock the screen.
➌
Hold to talk.  stands
for push-to-talk.

All the pages are found on the home
screen. Use or to scroll through
the pages. The small arrows (>) used in
the text indicate that you should select
a series of items in order, for example,
“Select Delete > Yes.”

• Go to www.garmin.com to
download the latest manuals.
• Go to http://buy.garmin.com,
or contact your Garmin dealer
for information about optional
accessories and replacement parts.

 
This product contains a lithium-ion
battery. To prevent the possibility of
personal injury or product damage
caused by battery exposure to extreme
heat, store the device out of direct
sunlight.
The temperature rating for the device
may exceed the usable range of some
batteries. Alkaline batteries can rupture
at high temperatures. Alkaline batteries
lose a signicant amount of their
capacity as temperature decreases. Use
lithium batteries when operating the
device in below-freezing conditions.
The device operates on the included
lithium-ion battery pack or an optional
Alkaline battery pack, which uses four
AA batteries.

4 Rino650QuickStartManual


1. Locate the battery pack ➊ that
came in the product box.
➊
2. Align the metal contacts on the
battery pack with the metal contacts
on the back of the unit.
3. Gently press the battery pack into
place.
4. Turn the D-ring clockwise.


Before you use the device the rst
time, charge the battery.
Charging a fully depleted battery
takes 6 hours. The device will not
charge when outside the temperature
range from 0°C to 45°C (from 32°F to
113°F).
1. Plug the AC charger into a standard
wall outlet.
2. Lift the weather cap.
3. Plug the small end of the AC
charger into the two-pin connector
➊ .
➊
4. Charge the device completely.
A fully charged battery can run for
up to 14 hours before it must be
recharged.

Rino650QuickStartManual 5


It may take 30 to 60 seconds to acquire
signals.
1. Go outdoors to an open area.
2. Turn on the device.
3. Wait while the device searches for
satellites.
A question mark ashes while the
device determines your location.
The GPS bars indicate satellite
strength. When the bars are green, the
device has acquired satellite signals.

The radio page provides interface for
UHF CBRS-Australia/ UHF PRS New
Zealand radio operations.

 
9–30, 39, 40,
49–60, 64–70,
79, 80
UHF CBRS/PRS
channels
1R–8R (31–38)
41R–48R (71–78)
Repeater
channels
NOTE: Channels 5 and 35 are reserved
as emergency channels. Channels 22
and 23 are reserved for data only, and
voice transmissions are not allowed.
Channels 61, 62, and 63 are reserved
for future allocation and should not be
used. Communication with another CB
station is not authorized on channels
1–8, 31–38, 41–48, and 71–78 within
operational range of a CB repeater
station.

1. Select Radio > Channel.
2. Use + or - to select a channel.

6 Rino650QuickStartManual

You can scan the channels for voice
activity.
Select Radio > Scan.

You can pick which channels and codes
to scan. Selecting specic channels and
codes reduces the scan time and helps
prevent missing a transmission.
1. Select > Setup Scanlist.
2. Select a channel to add.
3. Select .

You can monitor a single channel for
any activity, including static and weak
voice signals. This is helpful if a signal
is going out of range.
Select Radio > Monitor.

1. Select .
2. Select Volume.

The rst time a signal is received from
another Rino user, the new contact
page appears. From that page you
can show their location on the map,
navigate to their location (page 7), or
add them to your contacts list.

When a new contact signal is received,
the new contact page appears.
Select OK to save the contact.

1. Select Contacts.
2. Select a contact.
3. Select an item.
4. Select .

1. Select Contacts.
2. Select a contact.
3. Select View Map.

Rino650QuickStartManual 7

Before you can navigate to a contact,
you must save the contact (page 6).
1. Select Contacts.
2. Select a contact.
3. Select View Map > Go.
4. Follow to your destination.

NOTE: Notes transmit to all users on
your current channel and code.
You can send notes to other Rino users
on your current channel and code. You
can review previously received notes
from your contacts. You can edit and
save favorite notes to quickly send
them later.

1. Select Notes > <Send Note> <New
Note>.
2. Write the note.
The maximum character limit is 13.
3. Select .
4. Select an option:
• Select Send Note to send
without saving.
• Select Save.
• Select Send and Save.


You can send your location to another
Rino using peer-to-peer positioning.
You can also track the movement of
other Rino users and navigate to their
locations.

8 Rino650QuickStartManual


Select Setup > Radio > Send
Location > On.

Before you can send a location, you
must enable peer-to-peer positioning
(page 8).
1. Select Share Wirelessly > Send.
2. Select Use UHF.
3. Select a category.
4. Select an item.
5. Select Send.

Waypoints are locations you record and
store in the device.

You can save your current location as
a waypoint.
Select Mark Waypoint.

1. Select Where To? > Waypoints.
2. Select a waypoint.


You can use the Where To? menu to
navigate to a destination. Not all Where
To? categories are available in all areas
and maps.
1. Select Where To?.
2. Select a destination.
3. Select Go.
4. Navigate using the map (page 8) or
compass (page 9).

represents your location on the map.
As you travel, the moves. When you
are navigating to a destination, your
route is marked with a magenta line.

Rino650QuickStartManual 9

You can use the map to navigate an
active route.
1. Select Map.
2. Hold the device level.
3. Follow the magenta route line to
your destination.

The device has a 3-axis compass. You
can use a bearing pointer or a course
pointer to navigate to your destination.

Notice
Calibrate the electronic compass
outdoors. Do not stand near objects that
inuence magnetic elds, such as cars,
buildings, or overhead power lines.
You should calibrate the compass after
moving long distances, experiencing
temperature changes, or changing the
batteries.
1. From the compass page, touch and
hold the middle of the compass.
2. Follow the on-screen instructions.

A track is a recording of your path.
The track log contains information
about points along the recorded path,
including time, location, and elevation
for each point.

1. Select Route Planner > Create
Route > Select First Point.
2. Select a category.
3. Select the rst point in the route.
4. Select Use > Select Next Point.
5. Repeat steps 2–4 until the route is
complete.
A route must contain at least two
points.
6. Select to save the route.

10 Rino650QuickStartManual

The backlight will turn off after a
period of inactivity.
• Select .
• Touch the screen.
Alerts and messages also activate the
backlight.


The backlight levels vary for the
different power sources. For example,
the highest backlight setting while
running on AA batteries is lower
than the highest while running on the
lithium-ion battery. This is to extend
the AA battery life.
1. While the device is on, select .
2. Use + and - to adjust the brightness
level.

NOTE: This action does not lock the
keys.
1. Select .
2. Select Lock Screen.

Help us better support you by
completing our online registration
today.
• Go to http://my.garmin.com.
• Keep the original sales receipt, or a
photocopy, in a safe place.

If your device screen or keys stop
responding, you can reset the device.
1. Remove the batteries.
2. Reinstall the batteries.
NOTE: This does not erase any of your
data or settings.

Rino650QuickStartManual 11

You can use additional maps in the
device, such as BirdsEye satellite
imagery, BlueChart® g2, and City
Navigator® detailed maps. Detailed
maps may contain additional points of
interest, such as restaurants or marine
services. For more information, go to
http://buy.garmin.com or contact your
Garmin dealer.

Optional accessories, such as the
Alkaline battery pack, mounts,
preloaded map memory cards, tness
accessories, and replacement parts, are
available at http://buy.garmin.com or
from your Garmin dealer.
