GASLAND chef IH30BFH User manual

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
Electric Induction Cooktop
Instruction For Installation And Use
Important! Read these instructions for installation and use carefully.
Keep these instructions for future reference. Any questions regarding
the operation, maintenance service or warranty of the appliance
should be directed to GASLAND chef.
Model: IH30BFH
IH77BFH

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
Safety Warning
Your safety is important to us. Please read this information before using your cooktop.
Installation
Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.
Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
Important Safety Instructions
• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce
your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full
disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.
Operation And Maintenance Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance
off immediately at the mains power supply(wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
1

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
DISPOSAL: Do not
dispose this product
as unsorted municipal
waste. Collection of
such waste separately
for special treatment is
necessary.
This appliance is labeled in compliance with European
directive 2002/96/EC for Waste Electrical and Electronic
Equipment(WEEE). By ensuring that this appliance is
disposed of correctly, you will help prevent any possible
damage to the environment and to human health, which
might otherwise be caused if it were disposed of in the
wrong way.
The symbol on the product indicates that it may not be
treated as normal household waste. It should be taken to a
collection point for the recycling of electrical and electronic
goods.
This appliance requires specialist waste disposal. For further
information regarding the treatment, recover and recycling
of this product please contact your local council, your
household waste disposal service, or the shop where you
purchased it.
For more detailed information about treatment, recovery
and recycling of this product, please contact your local city
office, your household waste disposal service or the shop
where you purchased the product.
1. If the cable is damaged or needs replacing, this should be done by a technician using the proper tools, so as to
avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed
with a minimum gap of 0.12 in between the contacts.
3. The installer must ensure that the correct electrical connection has been made and that it complies with safety
regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a properly qualified person.
26

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
Connecting The Cooktop To The Mains Power Supply
The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker.
The method of connection is shown below.
Black
Black
Wire
Red
Red
Wire
Green
Wire
220-240V~
Cable from Power Supply
Cable from Appliances
White
Wire
(N)(L)(L)
IH30BFH
IH77BFH
25

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
Health Hazard
• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants(such as insulin pumps) must consult with
their doctor or implant manufacturer before using this appliance to make sure that their implants will not be
affected by the electromagnetic field.
• Failure to follow this advice may result in death.
Hot Surface Hazard
• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the induction glass until the
surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the cooktop surface since they can
get hot.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that
are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.
Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care
and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.
Important Safety Instructions
• Never leave the appliance unattended when in use. Boil over causes smoking and greasy spillovers that may
ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects(e.g. credit cards, memory cards) or electronic devices(e.g.
computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this manual(i.e. by using the touch
controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop
could be seriously injured.
2

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and
competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance
without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other
servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the
induction glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops,
offices and other working environments, farm houses, by clients in hotels, motels and other residential type
environments, bed and breakfast type environments.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
• WARNING: Unattended cooking on the cooktop with fat or oil can be dangerous and may result in fire. Never try
to extinguish a fire with water, but switch off the appliance and then cover flame with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised
continuously.
WARNING: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the
instructions for installation.
WARNING: Use only cooktop guards designed by the manufactuer of the cooking appliance or indicated by the
manufacture of the appliance in the instruction for use as suitable or cooktop guards incorporated in the appliance.
The use of inappropriate guards can cause accidents. This appliance incorporates an earth connection for
functional purposes only.
Congratulations
On the purchase of your new Induction cooktop. We recommend that you spend some time to read this user
manual in order to fully understand how to install correctly and operate it. For installation, please read the
installation section. Read all the safety instructions carefully before use and keep this user manual for future
reference.
3

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
Cautions
1. The induction cooktop must be installed by qualified personnel or technicians.
2. The induction cooktop shall not be mounted to directly above a dishwasher, fridge, freezer, washing machine or
clothes dryer, as the humidity may damage the cooktop electronic.
3. The induction cooktop shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the worktop shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.
7. This induction can be connected only to a supply with system impedance no more than 0.427 ohm. In case
necessary, please consult your supply authority for system impedance information.
A B
screw bracket
C
screw hole
D
bottom/housing
Before Locating The Fixing Brackets
1. The unit should be placed on a stable, smooth surface(use the packaging). Do not apply force onto the controls
protruding from the cooktop.
2. Fix the cooktop on the work surface by screw four brackets on the bottom of the cooktop(see picture) after
installation.
Adjust the bracket position to suit for different work surface’s thickness.
3. Insert the appliance into the installation opening.
C
B
D
A
Glass
Worktop/Kitchen cabinet
B
A ST3.5*8
D
24

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
A B
30 in 2 in mini
C
/in mini
D
Air intake
E
Air exit ¹/in
Always ensure the induction cooktop is well ventilated and air inlet and outlet are not blocked. Ensure induction
cooktop is in good condition, as indicated above.
Remark: the safety distance between cooktop and furniture above it should be at least 30 in.
Installation
Choice Of Installation Material
Arrange the work surface in line with the dimensions indicated in the drawing. For purposes of installation and use
a minimum of 2 in should be kept round the hole.
Ensure thickness of work surface is less than 1/. Please select materials of work surface resistant to heat, to
prevent deformation caused by heat generated by the hot cooktop, as indicated below:
Model L W H D A B X
IH77BFH 30/in 20¹/in 2¹/in 2 in 29¹/in 19/in 2 in mini
IH30BFH 11/in 20¹/in 2¹/in 2/in 10/in 19/in 2 in mini
23

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
4
Product Overview
Top view(IH30BFH)
Control panel(IH30BFH)
1. 2000W cook zone, boost 2300W
2. 1500W cook zone, boost 1800W
3. Flex zone
4. Glass plate
5. Control panel
1. Heating zone selection controls
2. Timer control
3. Power/Timer regulating controls
4. Keylock control
5. ON/OFF control
6. Boost control
7. Flex zone control & BBQ control
8. STOP+GO

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
5
A Word On Induction Cooking
Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic
vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass
becomes hot only because the pan eventually warms it up.
Iron Pan
Magnetic Circuit
Ceramic Glass Plate
Induction Coil
Currents Induced
1. Heating zone selection controls
2. Timer control & Keylock control
3. Power level control & keep warm
4. STOP+GO
5. ON/OFF control
6. Boost function control
7. Flex zone & BBQ control
8. Time indicator
Top view(IH77BFH)
Control panel(IH77BFH)
1. 2000W zone, boost to 2600W
2. 1500W zone, boost to 2000W
3. 2000W zone, boost to 2600w
4. 1500W zone, boost to 2000W
5. 2000W zone, boost to 2600W
6. 2500W flex zone, boost to 2800W
7. Glass plate
8. Control panel

22
[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
Failure Display And Inspection
If an abnormality comes up, the induction cooktop will enter the protective state automatically and display
corresponding protective codes:
Technical Specifications
Problem What to doPossible reasons
Temperature sensor of the
induction coil failure. Please contact the supplier.F3/F4
Temperature sensor of the IGBT
failure.
Elevated temperature of the
temperature sensor for an inductor
fault.
Please contact the supplier.
Please contact the supplier.
F9/FA
Abnormal supply voltage.
Check if the voltage is normal.
Switch on once electric power
is normal.
E1/E2
E3
Elevated temperature of the
temperature sensor for an IGBT
module.
The above concerns assessment and inspection of common faults.
Do not dismantle the appliance yourself, to prevent dangers and damage to the induction cooktop.
The weight and dimensions are approximate. We are continually improving our products, and we may modify the
specifications, designs and models without notice.
Please restart after the cooktop
cools down.
E5
IH77BFH
5 Zones
220-240V~
50-60Hz
6800-7400W
30/*20/*2/in
29/* 19/in
Model
Cooking Zones
Supply Voltage
Frequency
Rating Power
Product Size L×W×H
Built-in Dimension A×B
IH30BFH
2 Zones
220-240V~
50-60Hz
3000-3800W
11/* 20/* 2/in
10/* 19/in

21
[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
Hints And Tips
Problem What to doPossible reasons
No electric power supply.
Ensure induction cooktop is connected to
the power and it is switched on. Check
whether there is a power cut in your
building or region. If the problem persists
after checking, call a qualified technician.
Induction cooktop cannot
be switched on.
Setting controls are locked.
Cooking pan has rough edges.
Scourer unsuitable or abrasive
or cleaning products used.
Unlock setting controls. See the section
“Using Your Induction Cooktop” for
instructions.
Use cooking pans with flat, smooth bases.
See “Choosing The Right Cookware”.
See “Maintenance And Cleaning”.
The touch setting controls
do not respond.
There may be a thin film of water
on the setting controls, or you
might have used the tip of your
finger when touching them.
Ensure surface of the touch setting controls
is dry and use the seat of the finger to touch
them.
Touch setting controls are
difficult to use.
Glass is scratched.
This may be caused by the structure
of your cooking utensils(layers of
various metals vibrate differently).
This is normal for cooking utensils and does
not indicate a fault.
Certain pots make crackling
or clicking noises.
This is caused by induction cooking
technology.
A cooling fan is integrated in your
induction cooktop to prevent
overheating. It may continue to
rotate, even after switching off the
induction cooktop.
This is normal, but the noise should lessen or
disappear completely when you reduce the
heat setting.
Induction cooktop makes a
faint humming noise when
used at high temperature.
This is normal and requires no action. Do not
unplug induction cooktop from the mains
while fan is rotating.
Fan noise coming from the
induction cooktop.
Induction cooktop may not detect
the pot, because it is not suited to
induction cooking.
Use cooking pots for induction cooking. See
the section “Choosing The Right Cookware”.
Induction cooktop may not detect
the pot, because it is too small for
the cooking zone or not properly
centred.
Pots do not heat and screen
display.
Centre the pan and ensure its base
corresponds to the size of the cooking zone.
Technical fault.
The induction cooktop or a
cooking zone switches off
unexpectedly, a beep
sounds and an error code
shows(generally alternately
with one or two figures
displayed in cooking timer).
Please note the error code in letters and
numbers, unplug induction cooktop from the
mains and contact a qualified technician.

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
6
Before Using Your New Induction Cooktop
• Read this guide, taking special note of the “Safety Warning” section.
• Remove any protective film that may still be on your induction cooktop.

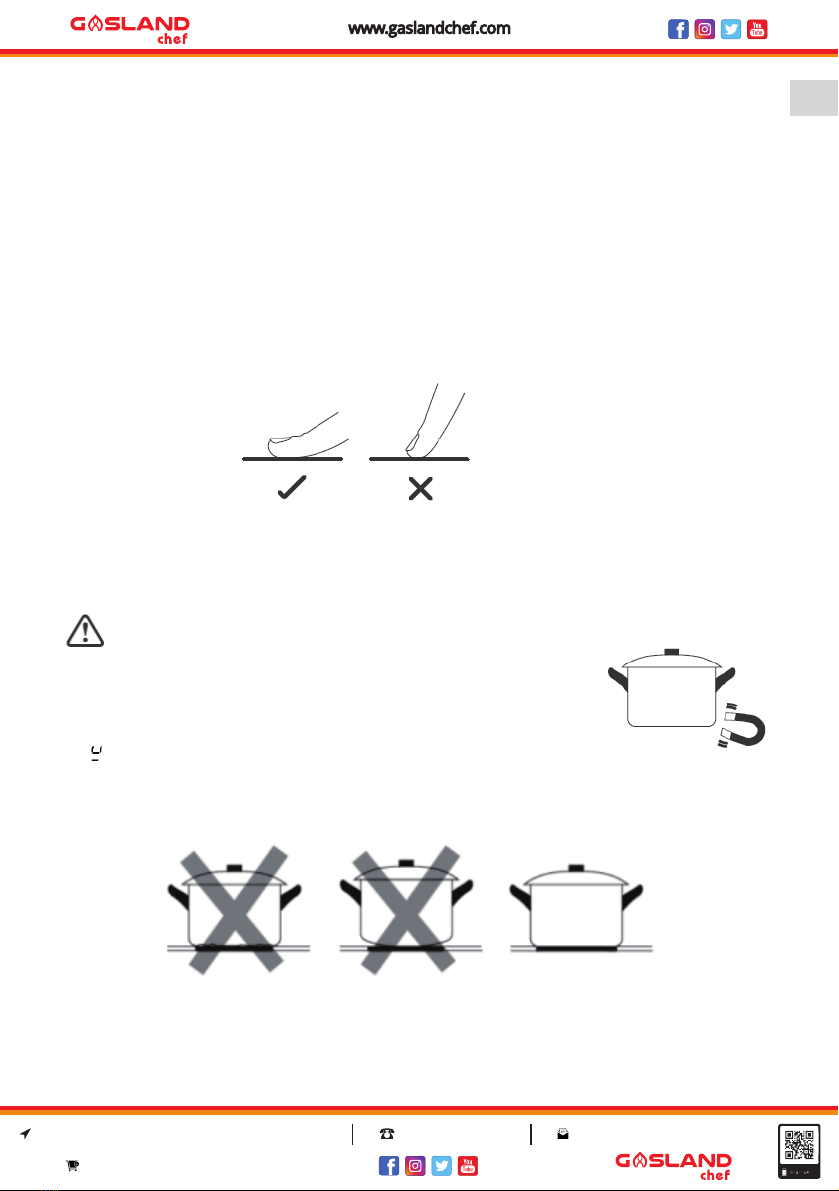

Using The Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object(e.g. a utensil or a cloth) covering them.
Even a thin film of water may make the controls difficult to operate.
Choosing The Right Cookware
• Use only cookware with a base suitable for induction cooking. Look for the induction symbol on the
packaging or on the bottom of the pan.
• You can check if your cookware is suitable by carrying out a magnet test.
Move a magnet towards the base of the pan. If it is attracted, the pan is suitable
for induction cooking.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.
• Cookware made of the following materials is not suitable: pure stainless steel, aluminium or copper without a
magnetic base, glass, wood, porcelain, ceramic, and earthenware.
Do not use cookware with jagged edges or a curved base.
Ensure the bottom of your pan is smooth, rests flat against the glass and is level with the cooking zone. Use pans
with a diameter larger than the outline of the zone selected. Using a slightly wider pan produces maximum
efficiency. If you use a smaller pan, efficiency might be less than desired. A pan of less than 5/in might not be
detected by the cooktop. Always centre your pan on the cooking zone.

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
7
Always lift pans off the induction cooktop. Do not slide them, or they may scratch the glass.
Pan Dimensions
The cooking zones are up to a limit, automatically adapted to the diameter of the pan. However the bottom of this
pan must have a minimum of diameter according to the corresponding cooking zone. To obtain the best efficiency
of your cooktop, please place the pan in the centre of the cooking zone.
The Base Diameter Of Induction Cookware
Cooking Zone Diameter(mm/in) Minimum Base Diamete Of Cookware(mm/in)
160/6.5 100/4.0
180/7.0 120/4.8
210/8.5 140/5.5
280/110
Flex zone 200/8.0
180/7.0

20
[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
Maintenance And Cleaning
What? Important!How?
1. Cut off the power to cooktop.
2. Apply detergent to cooktop while
glass is still hot but not burning.
3. Rinse and wipe with clean cloth
or paper towel.
4. Switch on the cooktop.
• When the electric power is cut off, there
is no “surface hot” display, but the
cooking zone may still be hot!
Be extremely careful.
• Sponges and certain nylon scourers and
abrasive cleaning agents may scratch
the glass. Always read the label, to see if
your detergent or scourer is suitable.
• Never leave residues of detergent on
the cooking surface, the glass may be
stained.
Every day stains on the glass
(finger and other marks,
spots left by the food or
spillage to crystallised on
the glass).
Wipe immediately with a slice of
bread, a knife or a razor blade
suited to glass induction cooktop,
but beware of hot cooking zone
surfaces:
1. Cut off the power to cooktop.
2. Hold the blade or utensil at an
angle of 30° and scrape off the
dirt or liquid on the cold surface
of the cooktop.
3. Clean the stains or spill with a
paper or cloth towel.
4. Follow steps 2 to 4 in “Every day
stains on the glass” above.
1. Cut off the power to cooktop.
2. Mop up the spill.
3. Wipe the surface of touch setting
controls with a cloth or clean,
damp sponge.
4. Wipe the zone completely dry
with a paper towel.
5. Switch on cooktop.
• Remove spots left by the bottom,
sugary food and spills as soon as
possible. If you leave the glass to cool,
these may be difficult to remove or even
irreparably damage the glass surface.
• Reducing the risk: when the safety cap is
retracted, the scraping blade is a sharp
razor blade. Use with extreme care and
always store safely out of the reach of
children.
• The cooktop may emit a beep and turn
off, and the control keys may not work,
if there is liquid on them. Be sure to
wipe the surface of the touch setting
controls before switching on cooktop.
Spills and hot sugars on the
glass.
Spillage on the touch
setting controls

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
19
Heat setting Suitability
• Delicate warming for small amounts of food
• Melting chocolate, butter, and foods that burn quickly
• Gentle simmering
• Slow warming
1 - 2
3-4
5-6
7-8
9
• Reheating
• Rapid simmering
• Cooking rice
• Pancakes
• Sauteing
• Cooking pasta
• Stir-frying
• Searing
• Bringing soup to the boil
• Boiling water
4. Turn the steak once only during cooking. The exact cooking time depends on the thickness of the steak and the
cooking you desire. The time may vary from 2 to 8 minutes each side. Touch the steak to judge how it is cooked.
The firmer it is, the more “well done”.
5. Leave the steak to rest on a pot for several minutes, let it to relax and become tender before serving.
For stir-frying
1. Select a wok with a flat bottom suitable for induction or a large pan.
2. Prepare all the ingredients and the materials. Frying the food should be rapid. If you should cook large
quantities, cook the food in several small lots.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook all the meat first, set aside and keep hot.
5. Stir-fry the vegetables. While they are hot but still crisp, turn the cooking zone to a lower setting, return the meat
to the pan and add your sauce.
6. Mix the ingredients gently to ensure they are warm through.
7. Serve immediately.
Heat Settings
The parameters below are simply indications. The exact setting depends on several factors including your cooking
pans and quantities cooked. Experiment with the induction cooktop to identify the settings that suit you best.

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
8
Using Your Induction Cooktop
To start cooking
1. Touch the control, after power on, the buzzer beeps once, all displays
show or , indicating that the induction cooktop has entered the
state of standby mode.
2. Place a suitable pan on the cooking zone that you wish to use.
• Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
3. Touch the heating zone selection control, the indicator next to the key will flash.
4. Select a heat setting by touching and sliding along the dotted line towards right.
• If you don’t choose a heat setting within 1 minute, the induction cooktop will automatically
switch off. You will need to start again at step 1.
• You can modify the heat setting at any time during cooking.
If the display flashes alternately with the heat setting
This means that:
• you have not placed a pan on the correct cooking zone or,
• the pan you’re using is not suitable for induction cooking or,
• the pan is too small or not properly centered on the cooking zone.
No heating will take place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 1 minutes if no suitable pan is placed on it.

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
9
When you have finished cooking
1. Touch the heating zone selection control that you wish to switch off.
2. Turn the cooking zone off by sliding along the to the left point.
Make sure the power display shows , then shows .
3. Turn the whole cooktop off by touching the control.
4. Beware of hot surfaces
will show which cooking zone is hot to touch. It will disappear when the surface has
cooled down to a safe temperature. It can also be used as an energy saving function if
you want to heat further pans, use the hotplate that is still hot.
Using The Boost
Boost is the function that one zone rising to a larger power in one second and lasting for 5 minutes. Thus you can
get a more powerful and faster cooking.
Using the boost to get larger power
1. Touch the heating zone selection control that you wish to boost, an indicator next
to the key will flash.

[phone] [email protected]
www.gaslandchef.com
3330-A Marathon Ct Charleston, SC 29418
18
2. When cooking timer expires, the corresponding heating zone will be automatically
switched off and show .
NOTE: If you want to change the time after the timer is set, you have to start from step 1.
Cooking Instructions
Pay attention when frying, because oil and fat heat up very quickly, particularly if using the power boost
function. At extremely elevated temperatures oil and fat spontaneously burst into flames, and this poses a serious
fire risk.
Advice on cooking
• When the food reaches boiling point, reduce the temperature.
• Use a cover can reduce cooking time and save energy by retaining heat.
• Reduce the quantity of liquid or fat can reduce cooking time.
• Begin cooking at a high temperature and reduce the setting when the food is re-heated.
Gentle heat, cooking rice

cooking liquid. This is the key to delicious soups and tender stews, because the flavours develop without
overcooking the food. You can also cook sauces based on eggs and thicken them below boiling point.
• Certain tasks, including cooking rice by the absorption method, may require a more elevated setting than the
lowest to ensure the food is cooked properly in the time recommended.
Searing steaks
To cook juicy, flavourful steaks:
1. Place the meat at room temperature for about 20 minutes before cooking.
2. Heat a frying pan with a thick bottom.
3. Coat the two sides of the steak with oil. Drizzle a little oil in the hot pan and then place the meat in.
(set to 6 minutes)
(set to 3 minutes)
